VEVOR Electric Griddle Manual with PDF Guide

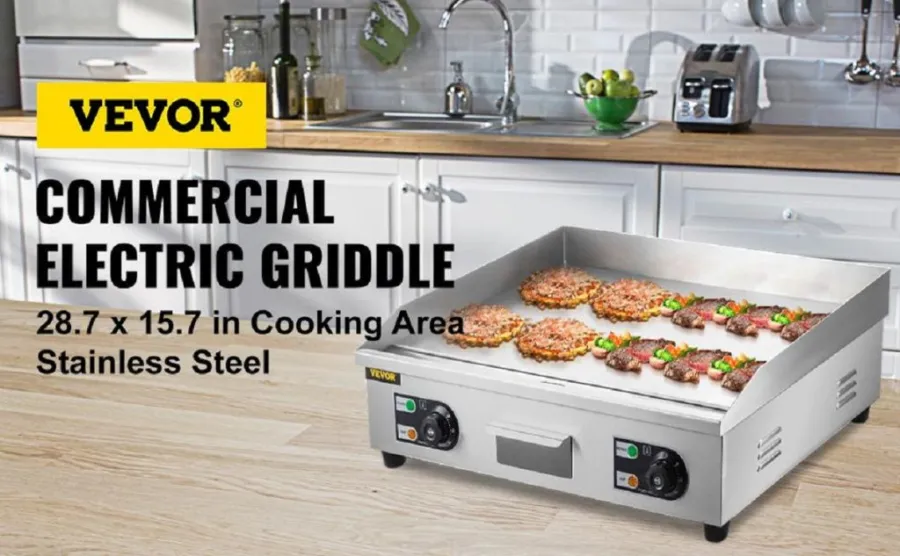

VEVOR Electric Griddle

If you have recently acquired a VEVOR Electric Griddle and are looking for a comprehensive guide on how to use it, you have come to the right place. The VEVOR Electric Griddle Manual provides all the information you need to operate your appliance safely and efficiently.

From basic parameters to transportation and custody, installation location and attention, use of methods, cleaning and maintenance, and electrical schematics, this guide has got you covered. Keep reading to make the most of your VEVOR Electric Griddle.

â… . The basic parameters

ModelDimensions(mm)Power (Kw)Voltage(V)Switching few
LD-818550*430*2201.6110Group 1
LD-820730*480*2203110Group 2
LD-818A540*400*2201.6110Group1
LD-818B360*390*2201.5110Group 1
LD-822730*480*2203110Group 2

â…¡.Transportation and custody

During the process, the products should be treated properly, to prevent severe shock, packaging products generally not a good long-term outdoor storage, take a well-ventilated, non-corrosive gases within the warehouse, not inverted, the need for temporary storage, resistant measures should be adopted.

â…¢.Installation location and attention

  1. The products should be on smooth, Unbarring left side about 10cm above objects, should back away from Unbarring – 20cm above.
  2. Cut hasty inflammable goods (such as towels, etc.) on the lining, this may cause a fire burning incidents.
  3. The equipment used in power supply voltage must be the product nameplate supply voltage line.
  4. Users need in the vicinity of the fixed equipment supply road and opened with a contact from the entire ≥ 3m very disconnected devices and leakage protection switch is not allowed in front of owning.
  5. The use of the equipment must be safe before the grounding.
  6. The replacement power line should use the same cable and requested the replacement of professionals.
  7. Before using the product, you should check the electrical components connected whether solid, reliable safety grounding.

â…£.The use of methods

  1. Temperature control device installed in front of products, used to control the heating plate heat temperature, thereby ensuring serving plate temperature
  2. Power Up, Green-light, rotating clockwise direction respectively temperature control device, the temperature of the temperature required for alignment position, this bright orange light, power has for the rest of the furnace, heat pipe to start work, when the temperature of the required temperature, temperature control device can automatically cut off the power supply, while orange color light exterminated, heating stop. When the temperature drops slightly, the temperature control device can automatically connect power, orange indicator light, heat pipe heat recovery, and an increase in temperature, so repeated cycle to ensure that the set temperature within constant. If necessary, adjust to the required temperature, and the food will produce the desired results.
  3. Use oil to a timely liquidation of oil to prevent overflow.
  4. Use process, anomalies should immediately stop using the inspection troubleshooting, before use.

â…¤.Cleaning and maintenance

  1. During cleaning maintenance, the power supply should be cut off to prevent accidents.
  2. Every day after work, the available non-corrosive cleaning agent towels, cleaning furnace surface to prevent damage to the surface lining.

â…¥.Electrical schematics

VEVOR Electric griddle Schematics

EH- Electric tube HL1- Power indicator

S- Temperature Controller

Warranty cards

Product NamesUser name or address
Date of purchase Distribution units (Seal)
OutgoingNo.
The products “wrapped”, such as failure of users cannot be ruled out, I may or local maintenance department with the resolution, in the after-sale within six months free repair.
a. User at the time of purchase to be complete warranty cards, and the seal-force distribution, the leading card after crude repairs.
b. Any statement in accordance with the provisions of the wiring, improper use of transportation, such as collision damage, the need to replace parts of the products, the company only recovers spare parts.
c. The company must be “wrapped” maintenance, please use the notification letter or telephone company and the products and the number of defects.

Conclusion

Using an electric griddle can be a great way to cook a variety of foods, and the VEVOR Electric Griddle is no exception. However, it’s important to know how to use it properly to ensure your safety and get the best results.

With the VEVOR Electric Griddle Manual, you can confidently prepare delicious meals with your appliance. Remember to follow the instructions closely and perform regular maintenance to keep your griddle in top shape for years to come.
