VEVOR Hydraulic Gear Puller, 5 Ton Max Capacity Wheel Bearing Pulling Separator Manual

Unlock the full potential of your VEVOR Hydraulic Gear Puller with our comprehensive product manual download. Designed for maximum ease of use, this manual guides you through setting up, troubleshooting, and optimizing your 5-Ton Max Capacity Wheel Bearing Pulling Separator. Whether you’re using the 2 or 3-jaw puller vertically or horizontally, our detailed instructions ensure you achieve the best results every time.

Additionally, you’ll find expert tips on pulling hubs efficiently with the 8″ jaw hydraulic puller. The manual has clear, user-friendly diagrams and step-by-step explanations, making it an invaluable resource for beginners and seasoned professionals.

Download your VEVOR Hydraulic Gear Puller manual now and enhance your tool’s performance while saving time and effort.

MODEL: YL-5T

Safety & Warning

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage to valuable property.
• While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
• Wear ANSI-approved safety goggles, heavy-duty work gloves, and safety shoes during use.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check for: broken, cracked, or bent parts, loose or missing parts, and any condition that may affect the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product in a safe, dry location out of reach of children and other unauthorized people.
• Ensure only genuine parts are used for replacement &Repair.
• Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

Specifications

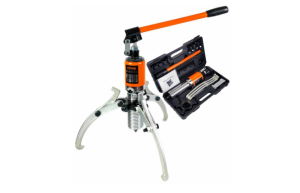

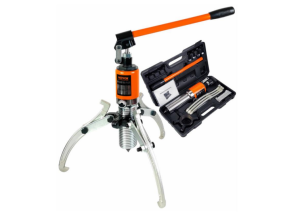

Figure of the Product

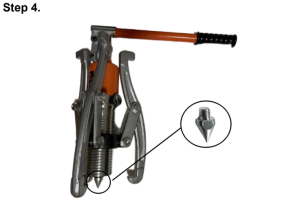

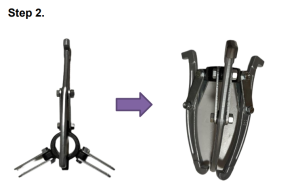

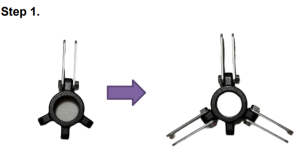

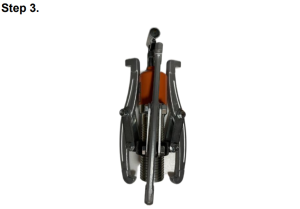

Gear Puller Installation Instructions

Hydraulic Gear Puller Instructions

• Oil valve stem screw tightens on deasil first when using.

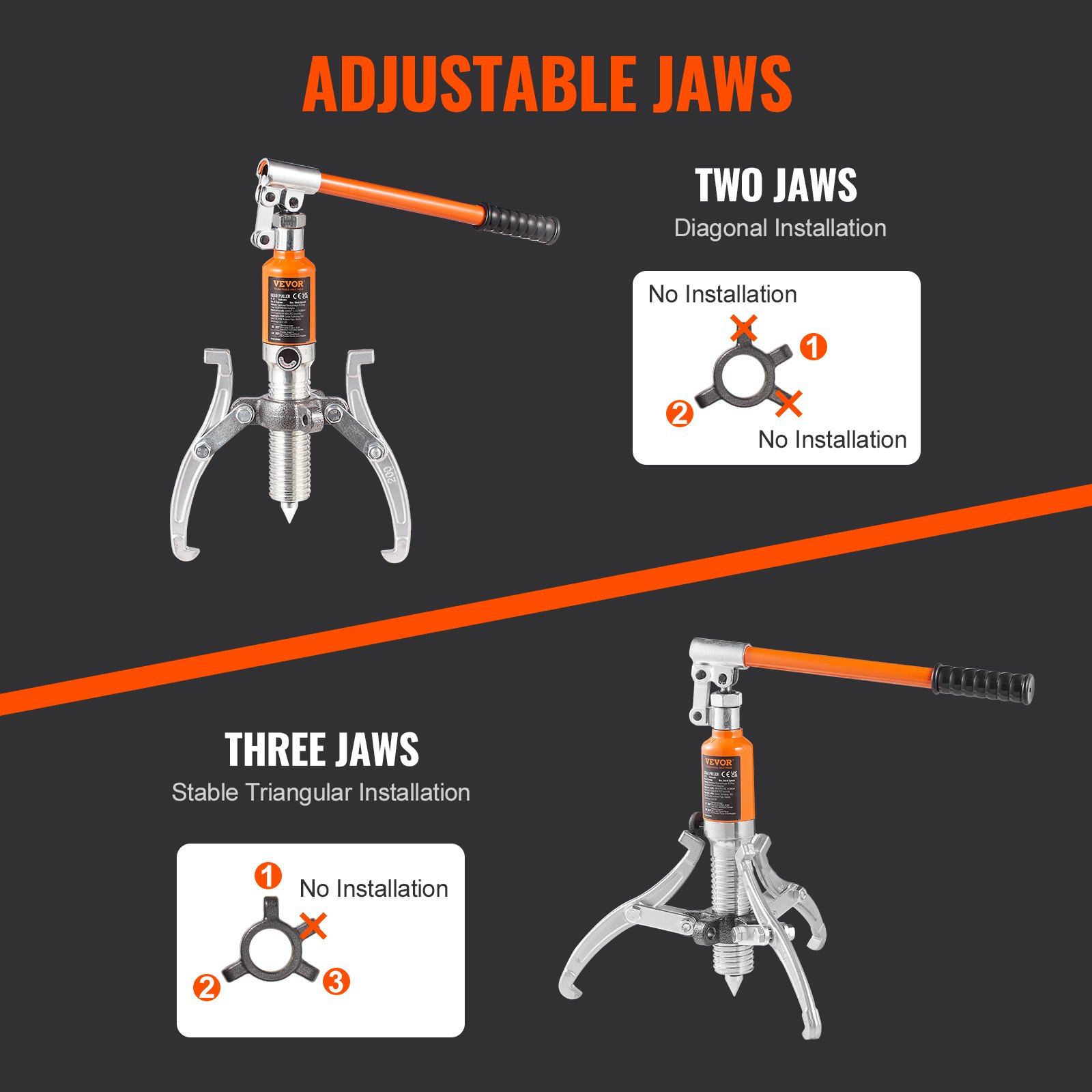

• Adjust the hook claw to the claw hook to hold the objects.
• Raise the handle of the hand hole to lift the filling pump upper and lower, corresponding to going backward. The claw hook has a back and forth inside to insert, and the object is pulled out to draw the quilt.
• If you want to make the cylinder rod contract back, it only needs to go back to loosen the right valve stem in a counterclockwise direction; little by little, the cylinder rod will contract gradually under the function of the spring.
• Depending on the external diameter of the object, draw distance, and load strength, choose the corresponding hydraulic pressure of tonnage draw horses before using. To avoid damage, guard against overloading.
• To prevent damage to machines due to overload, the hydraulics setting is set up to unload the valve automatically; when the object exceeds the specified load, the hydraulic pump will shut down due to low oil automatically, the workpiece will not retreat and enter, and the tonnage draw horses should be reelect with large hydraulic pressure at this moment.
