VEVOR Ratcheting Crimping Tool Set User Manual

Models: HS-30, RHS-D1

Warning

1. Disconnect the wiring power supply before working.
2. Inspect before every use; do not use if damaged.
3. Keep away from children.

Product overview

Ratchet crimping pliers are tools used to connect conductorssuchascables and conductors. They are mainly used in the electrical, telecommunication, and network industries. This product is characterized by a ratchet design, which makes the crimping process more convenient and faster, while ensuring the quality of crimping stability and reliability.

Product parameters

1) Name: Ratcheting crimper

2) Model: HS-30R+HS-D1

3) Crimping range: AWG22-10

4) Applicable terminal spec：0.5~6mm2

5) Package Size: 305x120x50mm

6) G.W.: 1.06kg

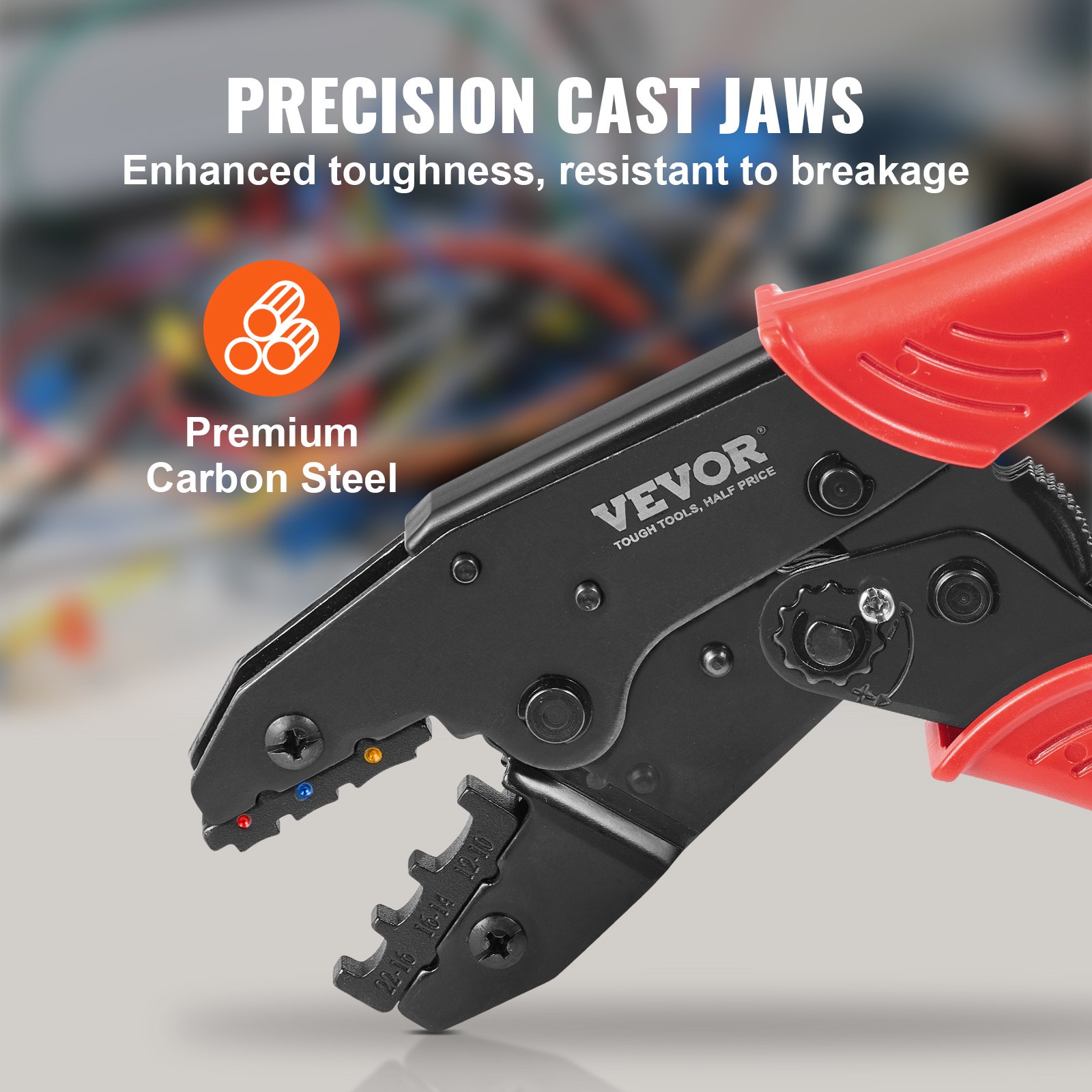

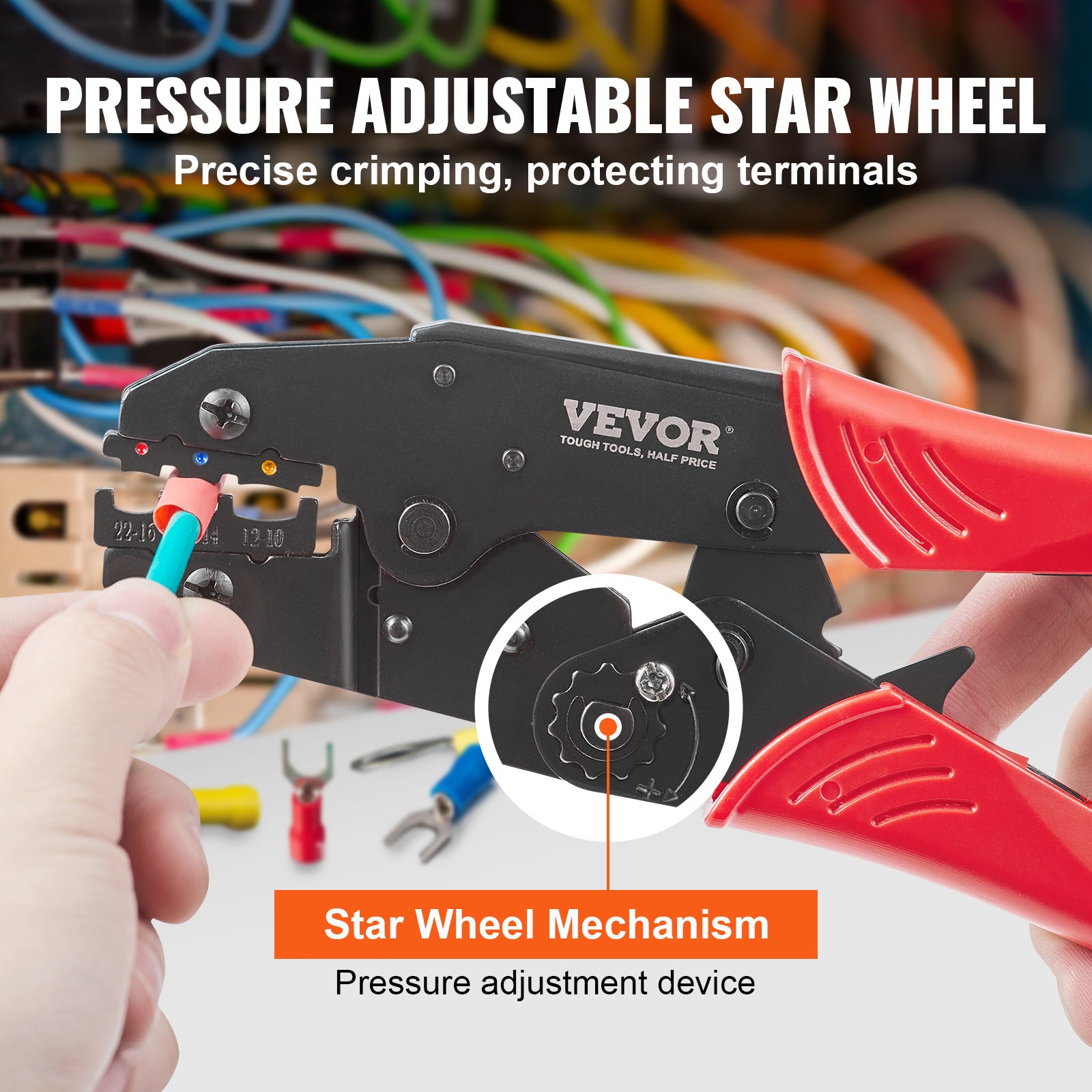

Product Structure

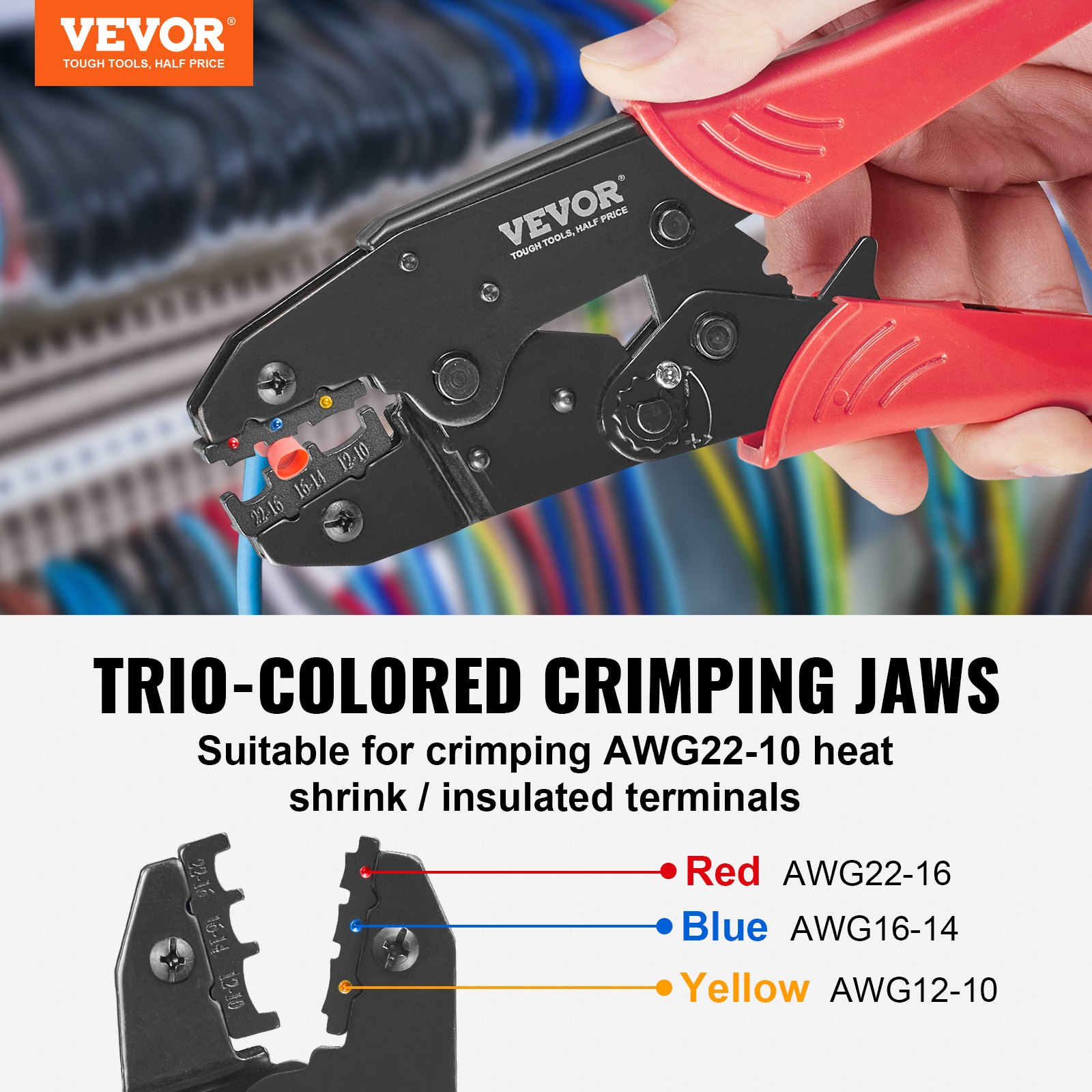

• Crimps Heat Shrink terminals onto 10-22 AWG stranded copper wire
• Convenient quick-release lever

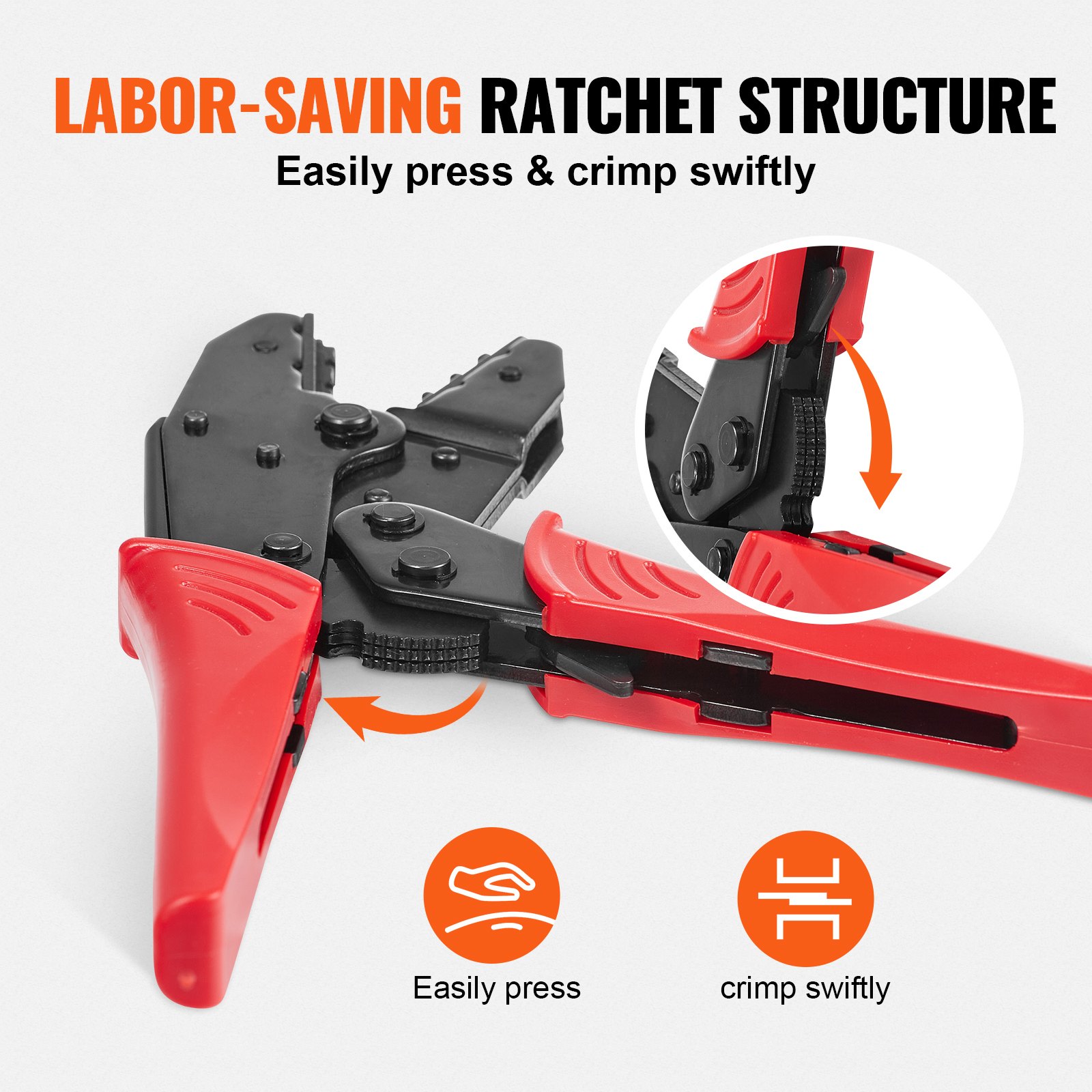

• Built-in ratchet and unique cavity design

Ratcheting Crimping Tool Set User Guide

• Choose the appropriate crimping die: Select the corresponding one based on the cable and terminal specifications that need to be crimped.

2. Strip the cable to the appropriate length: Use the matching wire stripping pliers to strip the cable insulation to the recommended length by the terminal manufacturer.

• Insert the terminal onto the stripped cable: Ensure good contact between the cable and terminal, and securely insert the terminal onto the cable.
• Insert the cable and terminal into the crimping tool: Place the cable and terminal into the crimping tool’s corresponding slot.
• Begin crimping: Grip the handle of the crimping tool and use the ratchet-style linkage structure to crimp until the handle automatically tightens and opens. At this point, the crimping process is completed.
• Check the crimping effect: Check whether the crimped terminal is neat, and ensure the connection is reliable.
• During crimping, you can press the Quick Release Lever to open the handle quickly.

Safety and Maintenance

1. Select the correct jaws and crimping range before using the crimping pliers to avoid damaging the cable and terminals.
2. Do not use the crimping pliers for cables and terminals that are not applicable, as this may damage equipment or cause unstable connections.
3. When using wire strippers, avoid cutting your fingers or damaging the inner core of the cable.
4. Store the crimping pliers and wire strippers in a dry, dust-free environment to prevent moisture and t.
5. After using the crimping pliers and wire strippers, clean the surface dirt with a clean cloth to keep the tools clean.
6. Regularly check the screw tightening of the tools. If there is looseness, please tighten it in time.
7. Avoid placing the crimping pliers and wire strippers in high-temperature,high-humidity, or chemically corrosive environments to avoid damaging the tools.
