BJDJ42HS45NCMWZZ1V9

VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
$29.99
29.99
Price including VATSee details
  • · 【PRECISION CONTROL SYSTEM】- Stepper motor applied new control technology and vector control technology to prevent out-of-control and ensure product accuracy. High torque stepper motor features a stepping-open-loop circuit system that runs smoothly, vibrates mildly, and has less movement synchronization.
  • · 【EXCELLENT PERFORMANCE】- Stepper motor is provided with 45 N.cm / 63.7 oz.in high holding torque, low self-inductance reactance, responsive and can avoid system error. This step motor can lower resistance value than motors of the same thickness and torque, thus enabling good thermal conductivity.
  • · 【PREMIUM QUALITY】- The stepping motor is built with a 100% copper core for low noise operation and excellent speed regulating performance. The nema motor adopts a durable metal structure to keep the rotor away from corrosion rust. Magnetic filling materials cover the motor rotor to refrain from skipping steps and getting stuck.
  • · 【EFFORTLESS TO USE】- The stepper motor is equipped with a wire stripper commonly used by internal electricians, motor repairs, and instrument electricians to strip plastic & rubber insulated & cable core wires. Insulating rubber tape with excellent insulation performance and good adhesion to prevent leakage.
  • · 【MULTIPLE APPLICATION】- A stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.


Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
5PCS NEMA 17 45Ncm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use

VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

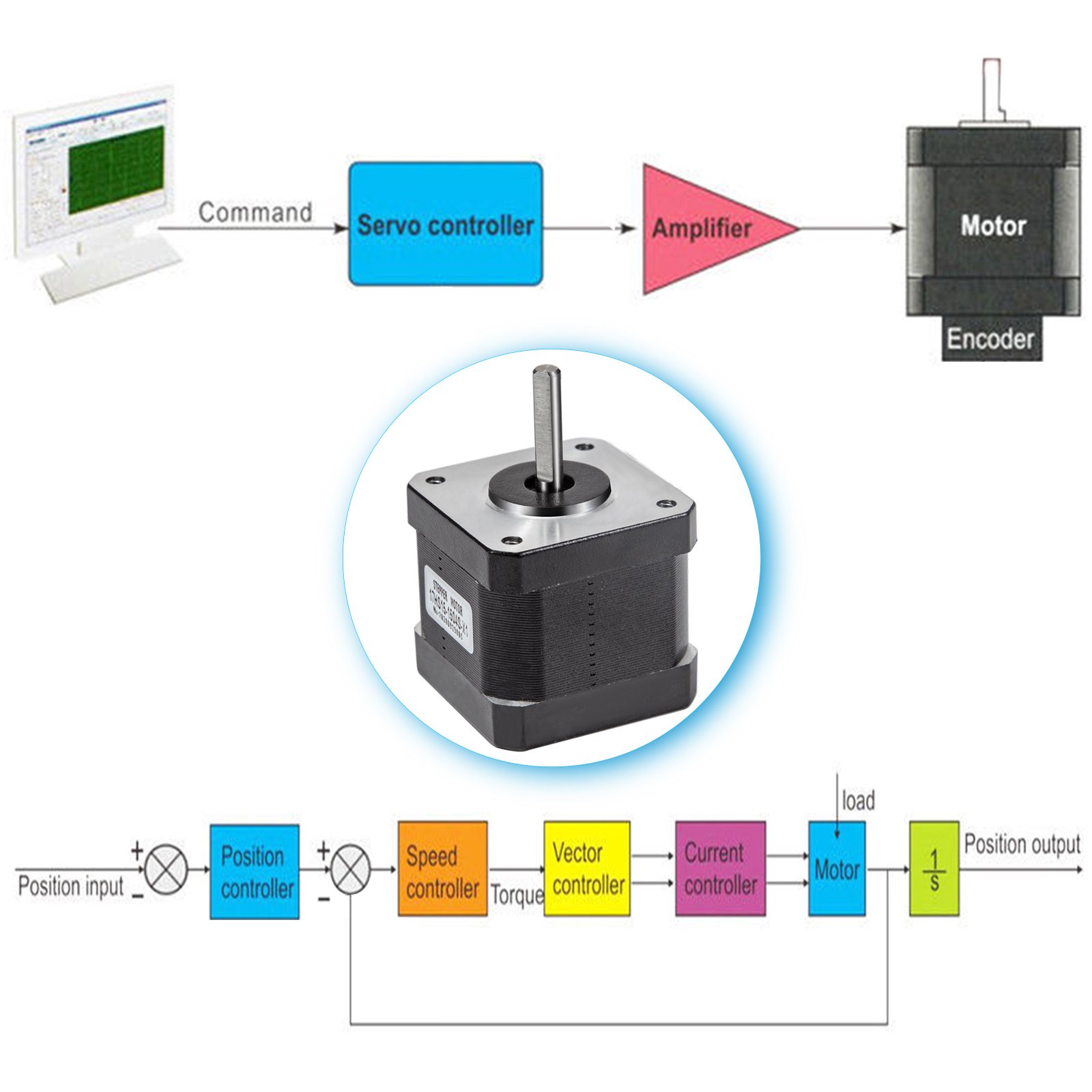

Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

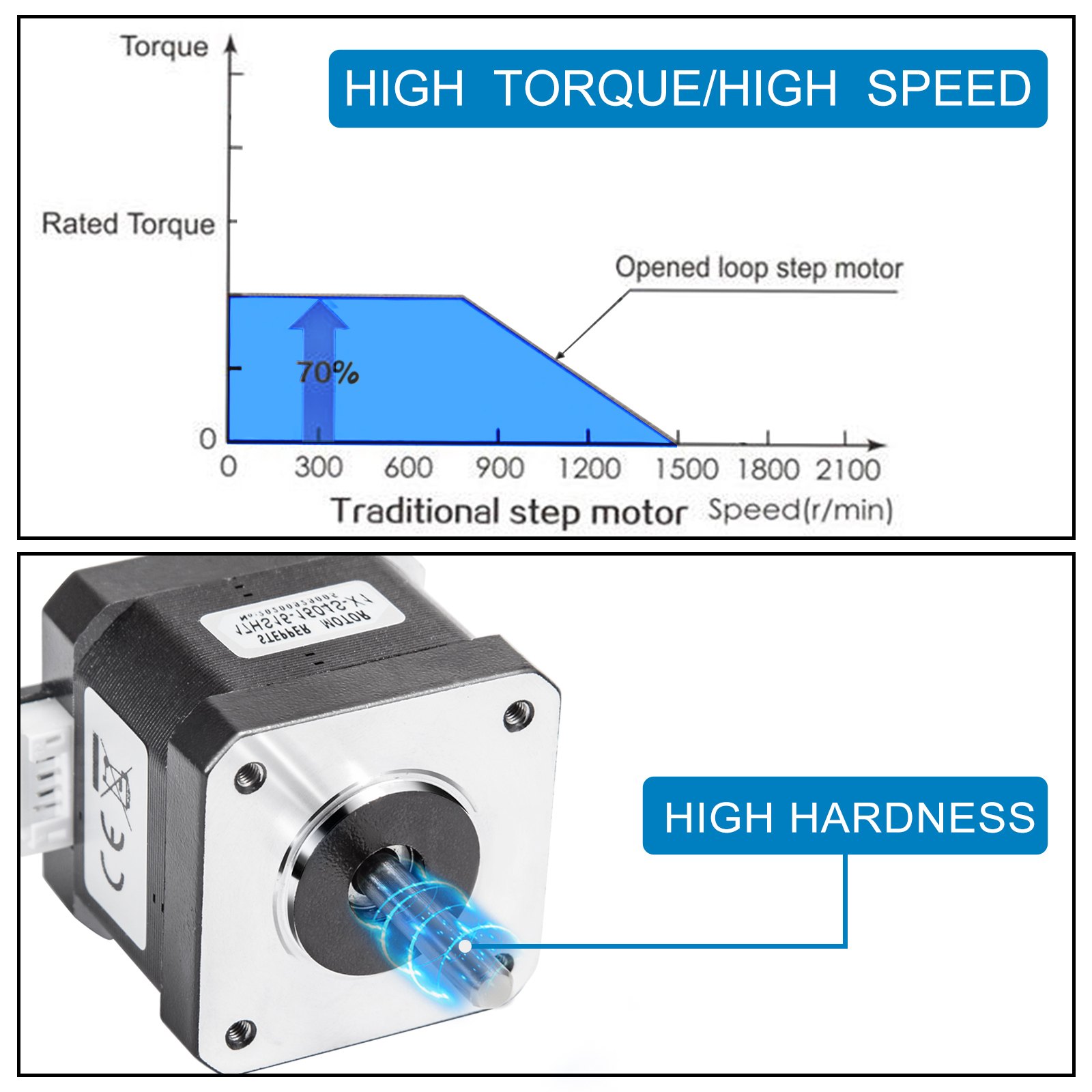

High Torque & Speed
The holding torque of the stepper motor up to 45 N.cm / 63.7 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

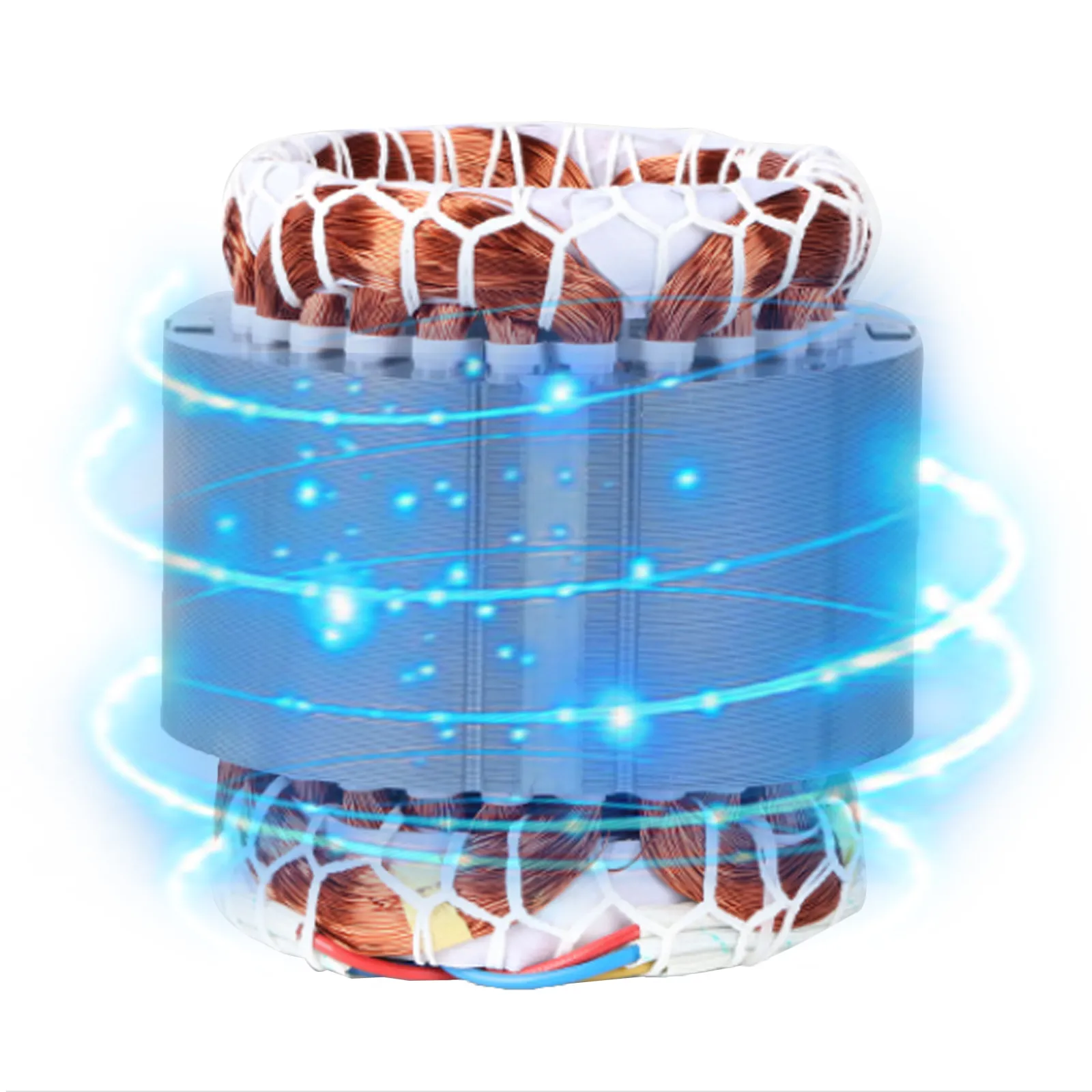

Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

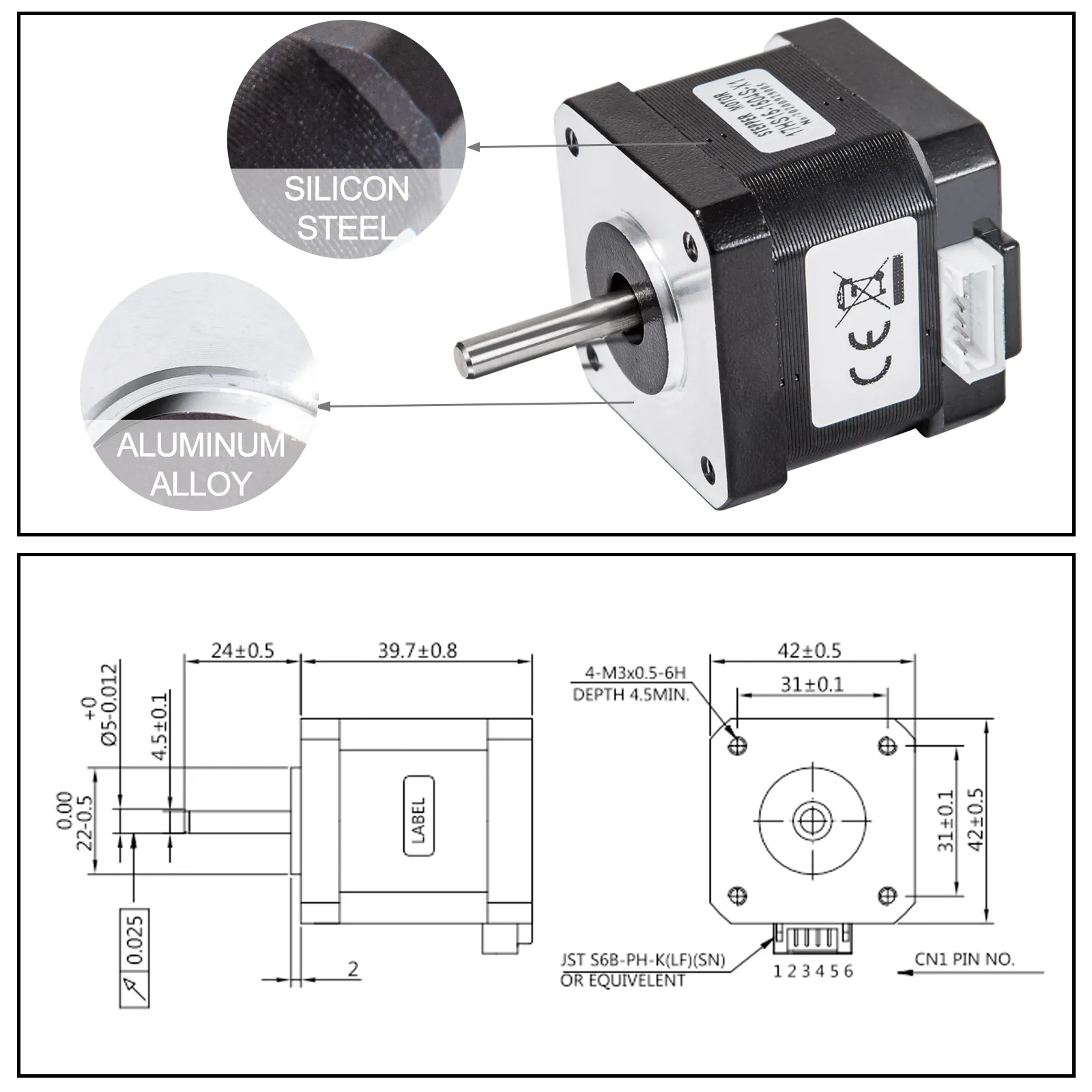

Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

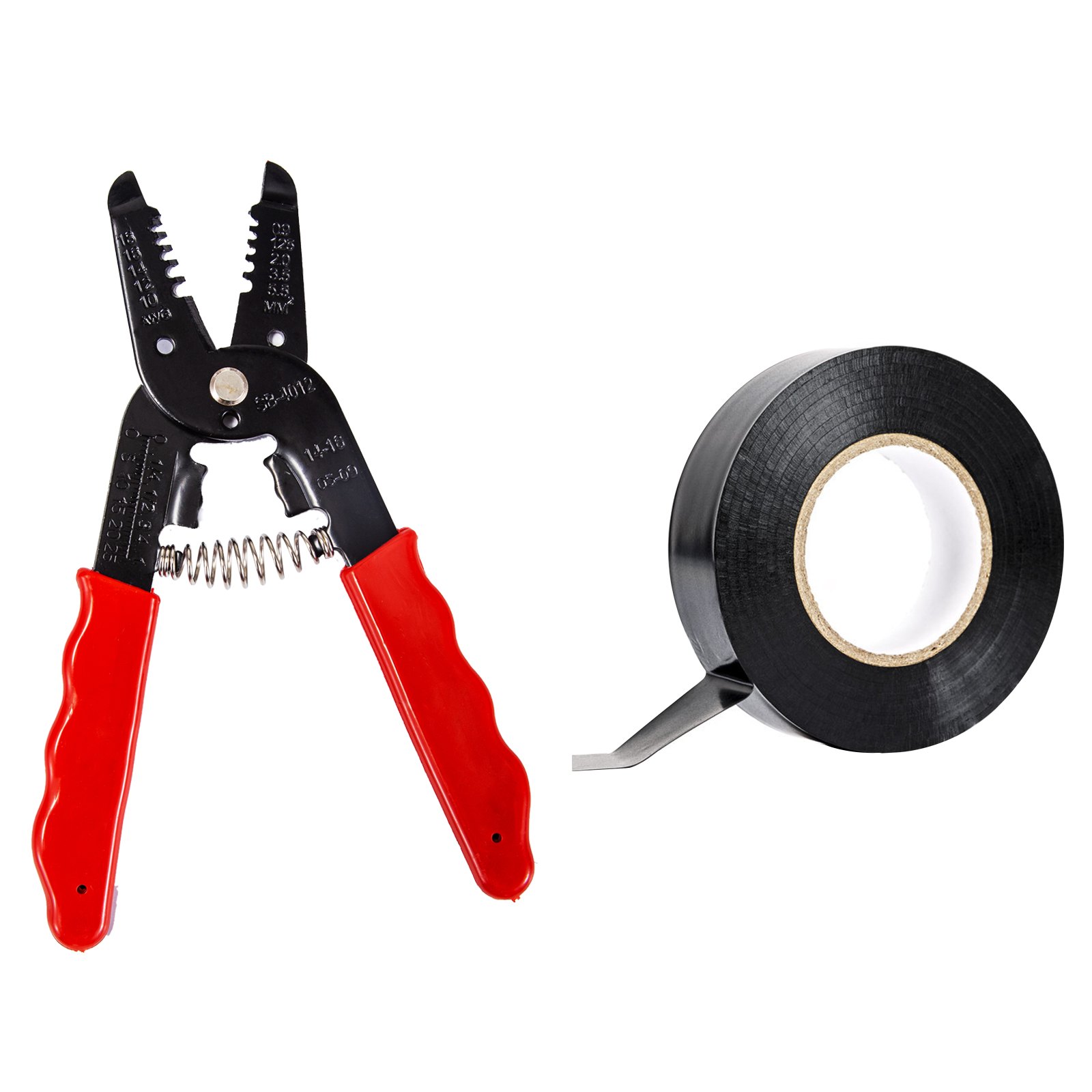

Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Specifications
  • Model: 42HS15-1504S-X1
  • Rated Voltage: 3.4V
  • Rated Current/Phase: 1.5A
  • Number of Phase: 2
  • Holding Torque: 45 N.cm / 63.7 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5% (full step, no load)
  • Lead Wire: 4
  • Phase Inductance: 4.4mH
  • Phase Resistance: 2.3 Ω
  • Moment of Inertia: 54 g.cm²
  • Orientation Torque: 150 g.cm
  • Shaft Diameter: Ø 4.5 mm / 0.18''
  • Shaft Length: 24 ± 0.5 mm / 0.94''
  • Resistance Accuracy: ± 10%
  • Inductance Accuracy: ± 20%
  • Insulation Resistance: 100 m/min, 500VDC
  • Dielectric Strength: 500VAC/ for one minute
  • Shaft Radial Play: 0.02 Max.(450g-load)
  • Shaft Axial Play: 0.08 Max.(450g-load)
  • Max. Radial Force: 28 N(20 mm from the flange)
  • Max. Axial Force: 10 N

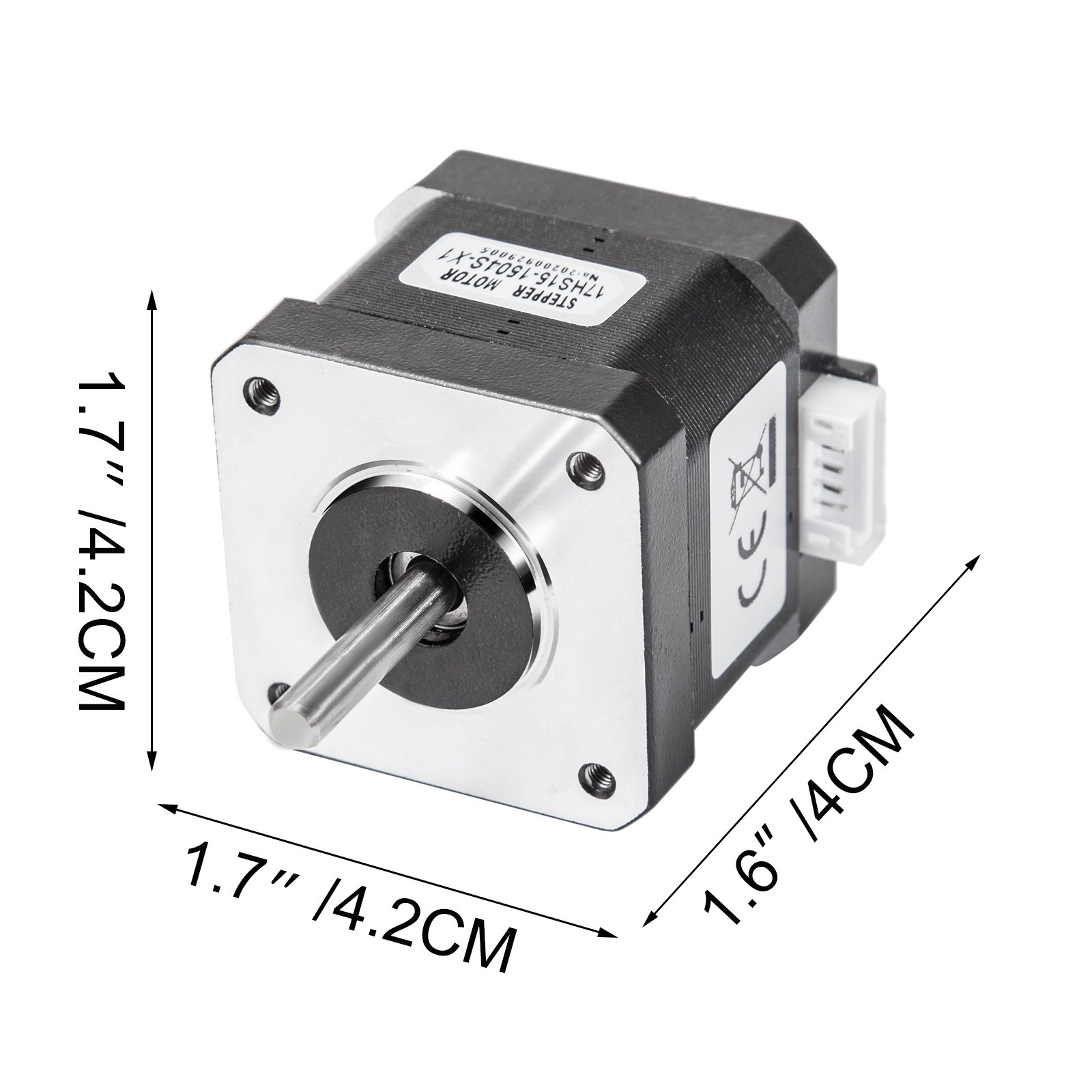

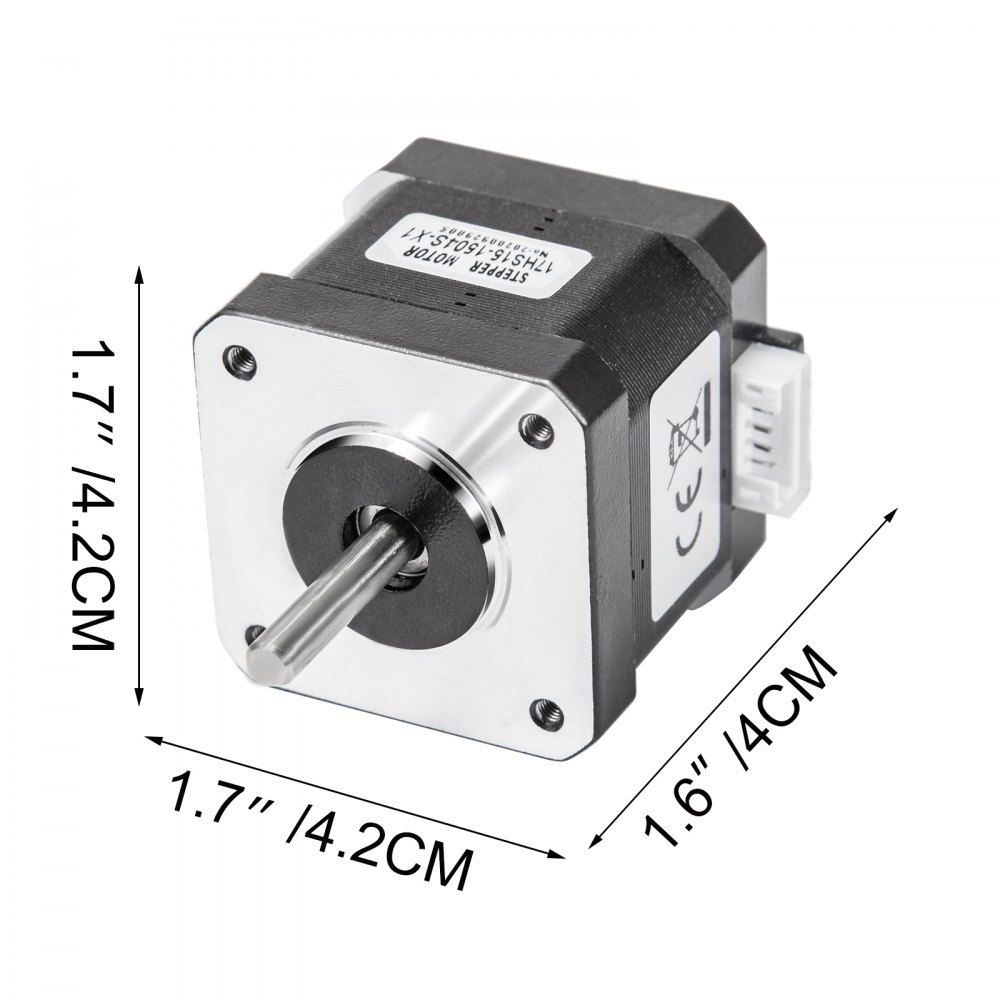

  • Motor Size(L x W x H): 42 x 42 x 40 mm / 1.65 x 1.65 x 1.57''
  • Weight: 0.28 kg / 0.62 lbs
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

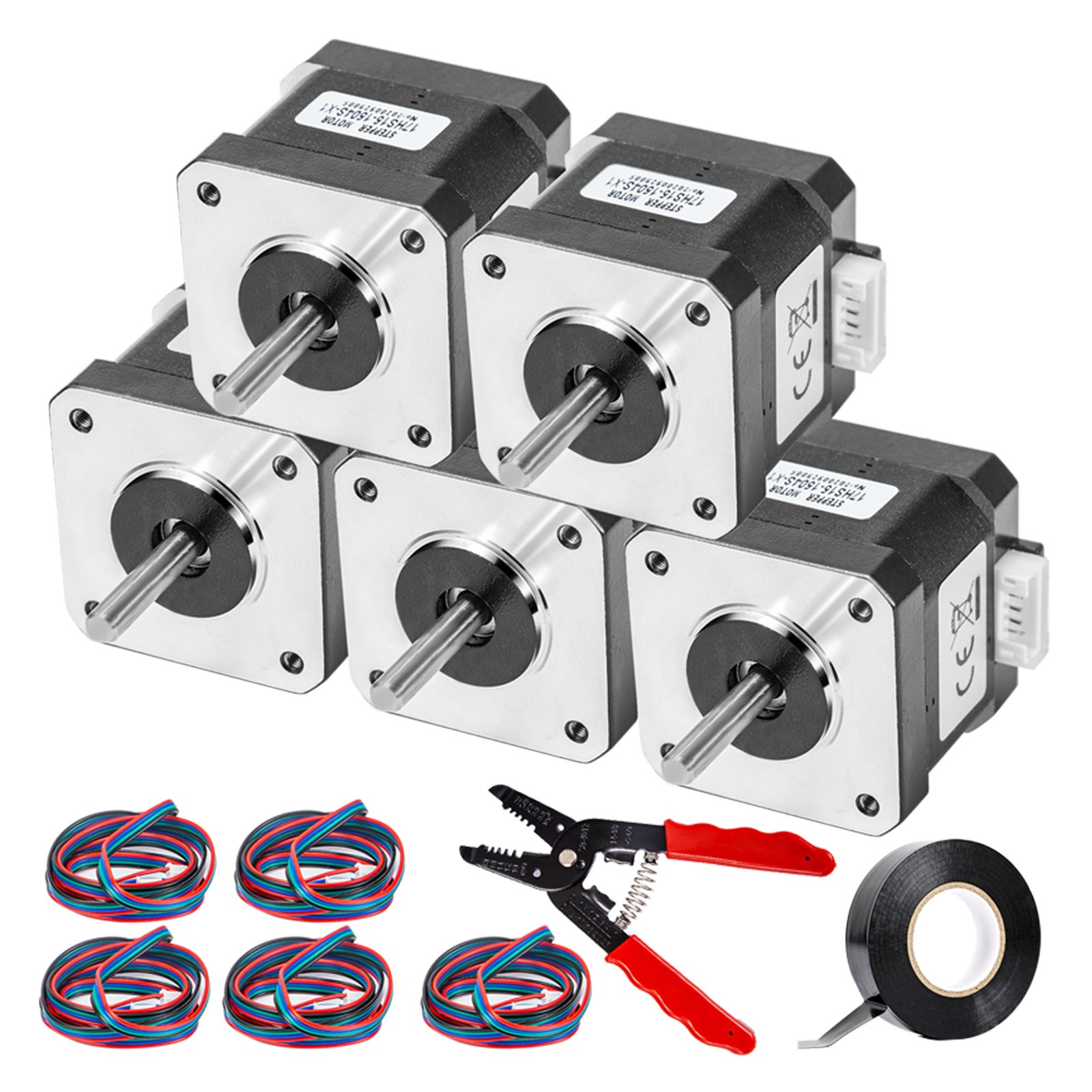

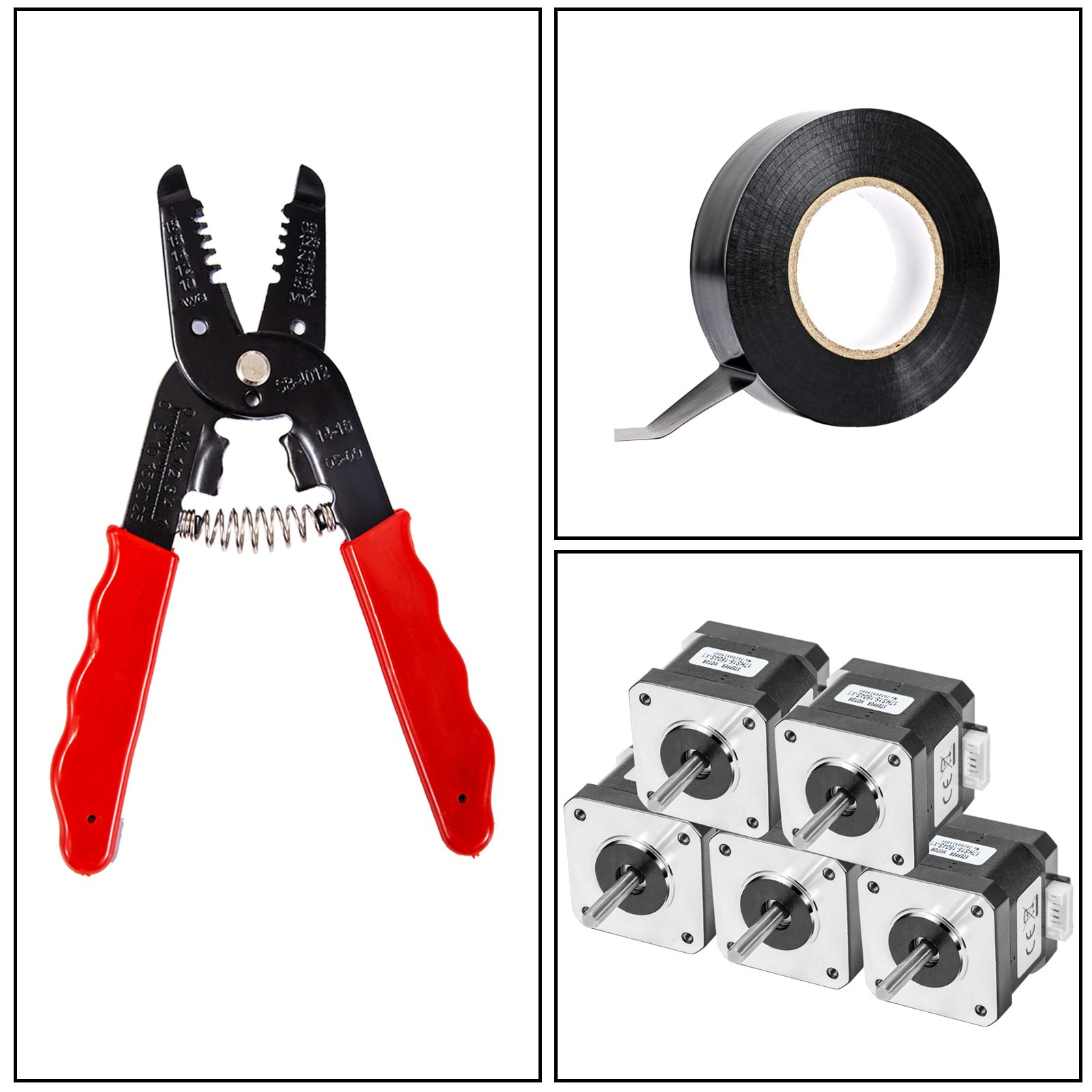

Package Content
  • 5 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS

VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
5PCS NEMA 17 45Ncm High Torque Stepper Motor
This two-phase stepper motor adopts new control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
High Torque & Speed
The holding torque of the stepper motor up to 45 N.cm / 63.7 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Package Content
  • 5 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
VEVOR Stepper Motor 45Ncm High Torque Stepper Motor, NEMA 17 Step Motor, 2 Phase 1.8 Degree 1.5A Stepping Motor, 3.4V 5PCS
Specifications
  • Model: 42HS15-1504S-X1
  • Rated Voltage: 3.4V
  • Rated Current/Phase: 1.5A
  • Number of Phase: 2
  • Holding Torque: 45 N.cm / 63.7 oz.in
  • Step Angle: 1.8°
  • Step Angle Accuracy: 5% (full step, no load)
  • Lead Wire: 4
  • Phase Inductance: 4.4mH
  • Phase Resistance: 2.3 Ω
  • Moment of Inertia: 54 g.cm²
  • Orientation Torque: 150 g.cm
  • Shaft Diameter: Ø 4.5 mm / 0.18''
  • Shaft Length: 24 ± 0.5 mm / 0.94''
  • Resistance Accuracy: ± 10%
  • Inductance Accuracy: ± 20%
  • Insulation Resistance: 100 m/min, 500VDC
  • Dielectric Strength: 500VAC/ for one minute
  • Shaft Radial Play: 0.02 Max.(450g-load)
  • Shaft Axial Play: 0.08 Max.(450g-load)
  • Max. Radial Force: 28 N(20 mm from the flange)
  • Max. Axial Force: 10 N
  • Motor Size(L x W x H): 42 x 42 x 40 mm / 1.65 x 1.65 x 1.57''
  • Weight: 0.28 kg / 0.62 lbs

Specification

Model
42HS15-1504S-X1
Rated Voltage
3.4V
Rated Current/Phase
1.5A
Number of Phase
2
Holding Torque
45 N.cm / 63.7 oz.in
Step Angle
1.8°
Step Angle Accuracy
5% (full step, no load)
Lead Wire
4
Phase Inductance
4.4mH
Phase Resistance
2.3 Ω
Moment of Inertia
54 g.cm²
Orientation Torque
150 g.cm
Shaft Diameter
Ø 4.5 mm / 0.18''
Shaft Length
24 ± 0.5 mm / 0.94''
Resistance Accuracy
± 10%
Inductance Accuracy
± 20%
Insulation Resistance
100 m/min, 500VDC
Dielectric Strength
500VAC/ for one minute
Shaft Radial Play
0.02 Max.(450g-load)
Shaft Axial Play
0.08 Max.(450g-load)
Max. Radial Force
28 N(20 mm from the flange)
Max. Axial Force
10 N
Motor Size(L x W x H)
42 x 42 x 40 mm / 1.65 x 1.65 x 1.57''
Weight
0.28 kg / 0.62 lbs
Questions and Answers
Typical questions asked about products: Is the product durable? ...

Customer Reviews

  • 4.8
  • 4.6
  • 4.6
  • 4.7
4 Reviews
Xiao Bi Xiao Bi
Good motor and driver
Impressed by the motor's performance in the initial testing. Easy to hook up, fast response and smooth movement at both high and low speed. Powerful but does not take much power. The motor shares a 350W DC power supply with two other 200W Nema 23 stepper motors. The three motors all move at the same time. Not sure about the motor's long term performance.
0
Daryl L. Price Daryl L. Price
Upper Quality
Very excellent quality, well built and works Great. I use it as my Z axis on my CNC machine I built.
0
WW WW
Great product!!!
Great product!!!
0
Nivia Nivia
Perfect!!!!
Really good stepper motor with a great precision.
0
