New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556 New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
DJ121556000000001V6

New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

$159.99
159.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Single Phase Electric Motor: This electric compressor motor runs at 1.5 HP. Type: SHDC; Phase: Single Phase, 2 Pole; Voltage: 115/230V; Full Load Amps: 14.2/7.1A; Frequency: 60 Hz; Frame: 56 Frame; Rotation: CW - CCW(Reversible); AC Motor Type: Induction Motor. Push your machine to the limits with this well-balanced motor!
  • Excellent Working Efficiency: The single phase electric motor features a 3450 RPM rated speed, and 3600 RPM synchronous speed. Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft; Shaft Length: 1.875 in / 4.8 cm; Service Factor: 1.15; Insulation Class: F. The upper hardness shaft is more durable. Works above and beyond while maintaining high performance.
  • Sturdy Steel Construction: The 1.5 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. High-quality capacitors and ball bearings ensure long service life.
  • High-Speed Cooling Fan: Enclosure Type: TEFC(Totally Enclosed Fan Cooled). The big fan at one end cools the 1.5 HP electric motor single phase for hours while running, even in dusty or damp environments. Multiple heat dissipation strips guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust.
  • Apply in Multiple Sectors: The air compressor motor 3450 rpm is commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc. Ensure our motor matches the specific specifications listed on your compressor before purchase.

Frequently Bought Together

People Who Bought This Item Also Bought

New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Only 1 Left, order soon
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

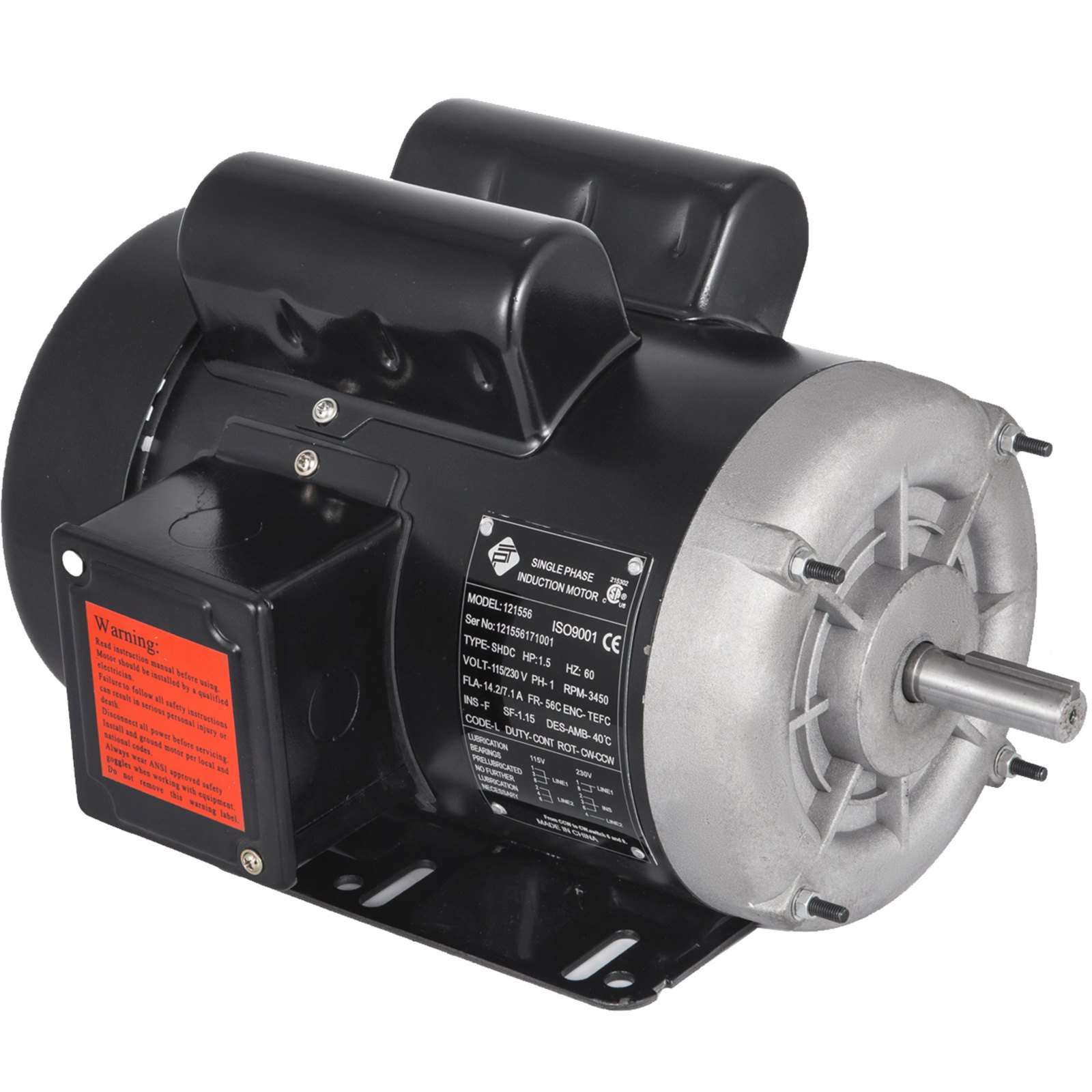

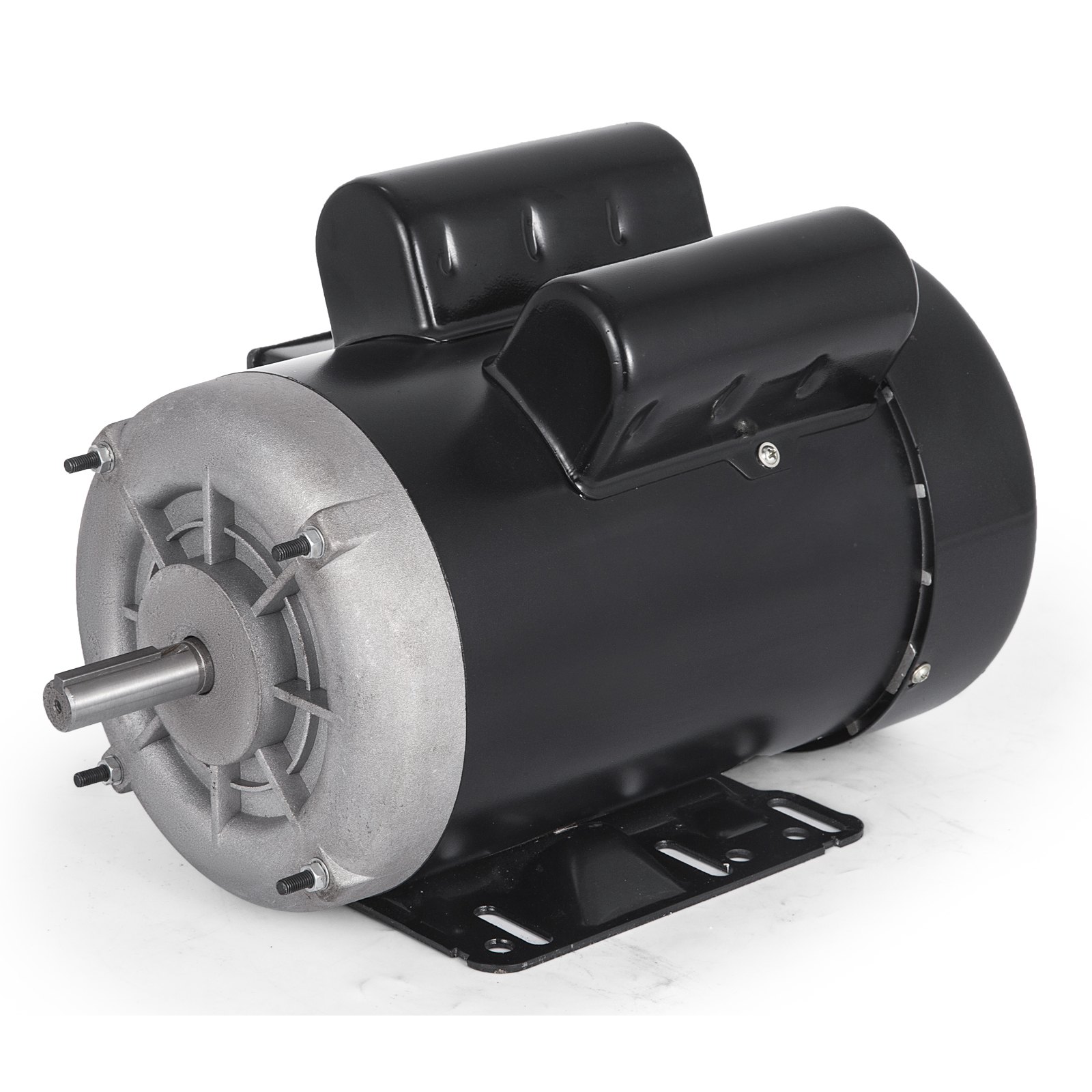

1.5 HP 3450 RPM Electric Motor
Single Phase & TEFC Enclosure & Fast Heat Dissipation
VEVOR's single phase electric motor is rated at 1.5 HP 3450 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
  • Single Phase Electric Motor
  • Excellent Working Efficiency
  • Sturdy Steel Construction
  • High-Speed Cooling Fan
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

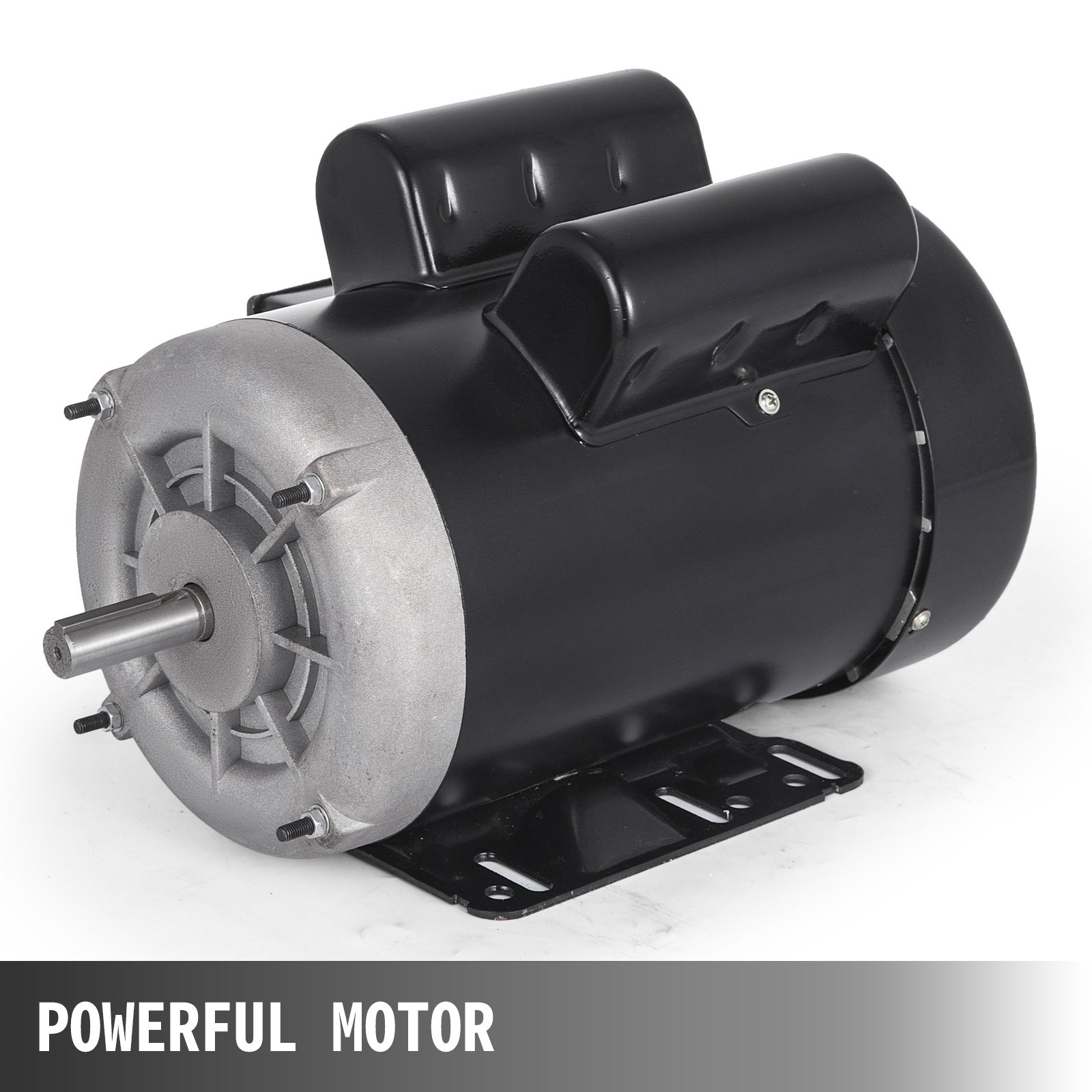

High-Performance Motor
1.5hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

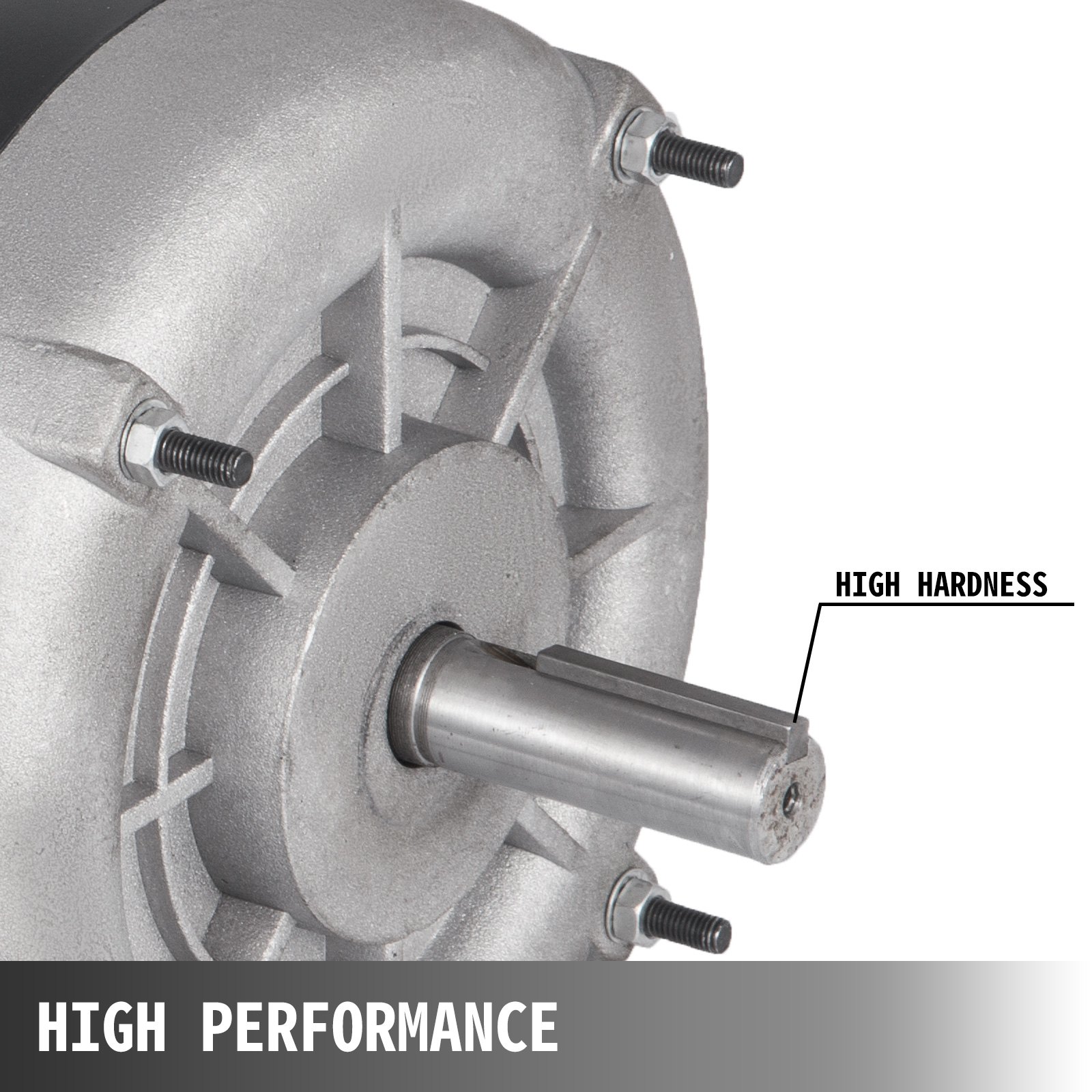

3450 RPM High Speed
The motor for air compressor runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

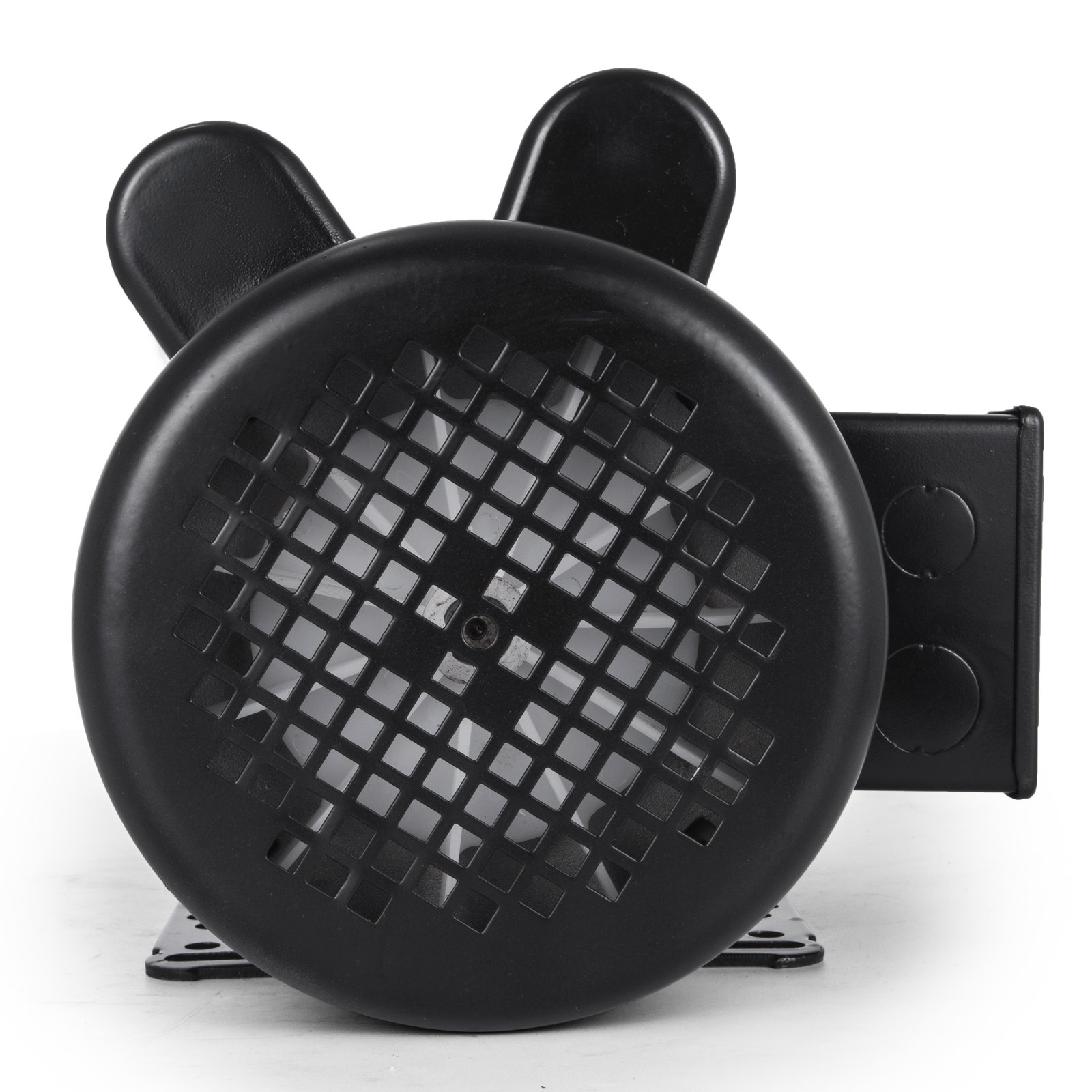

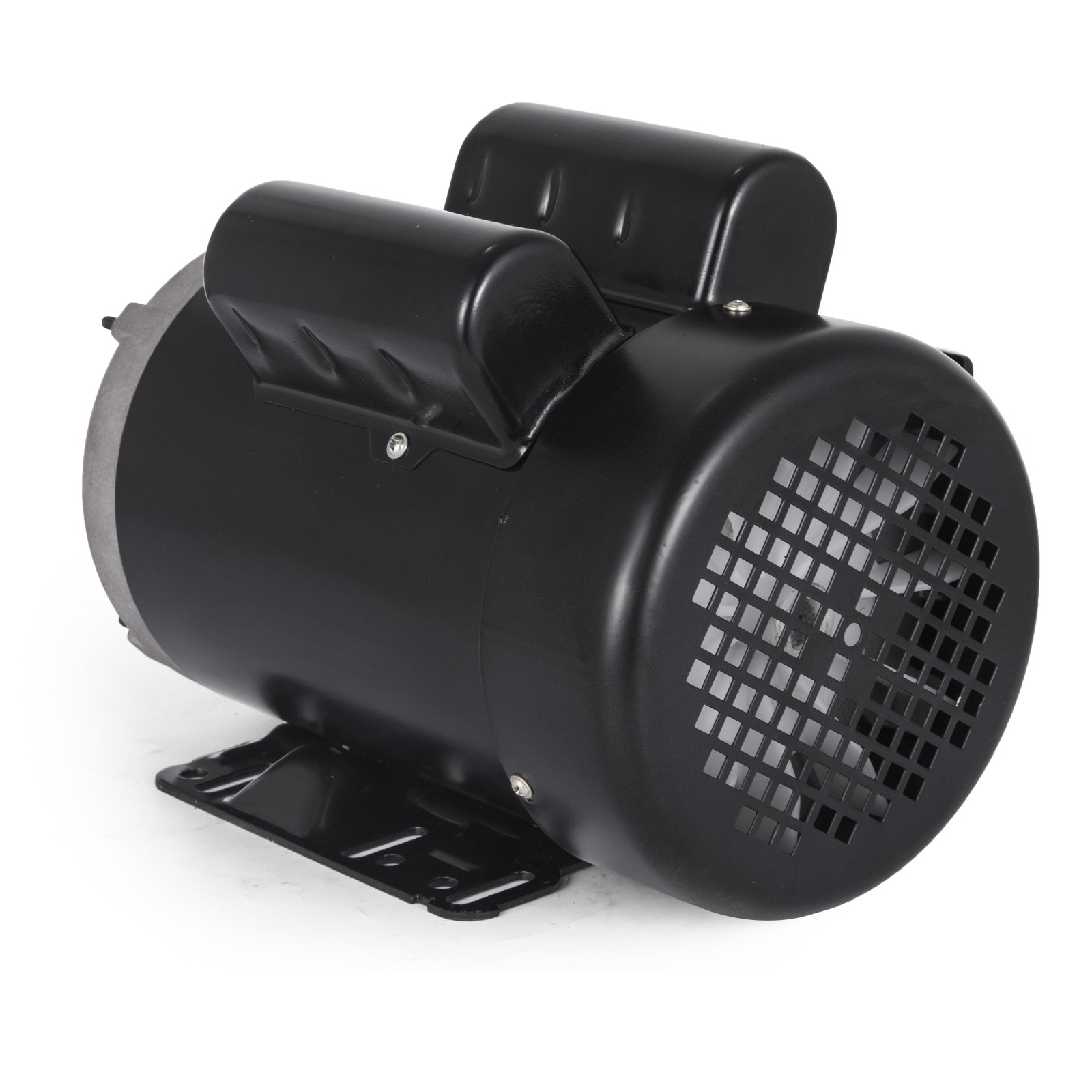

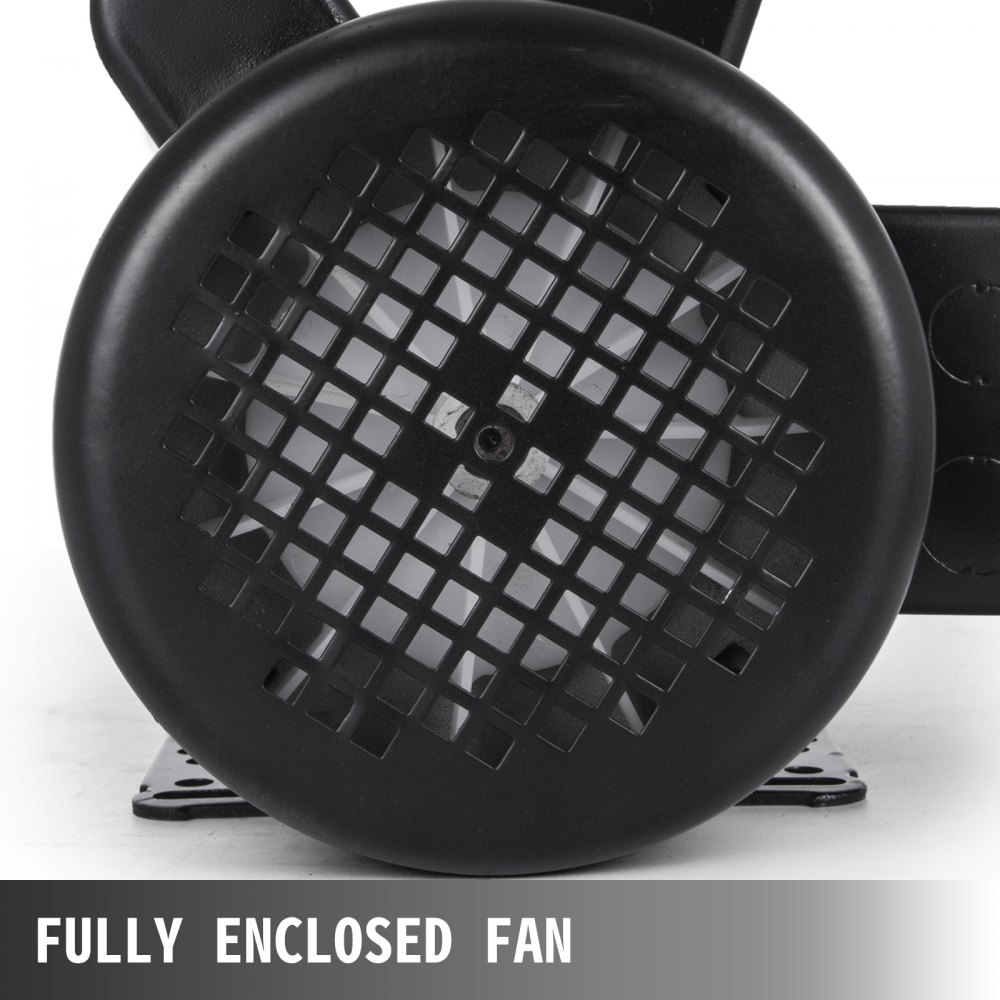

Fully Enclosed Fan
A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor's body.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

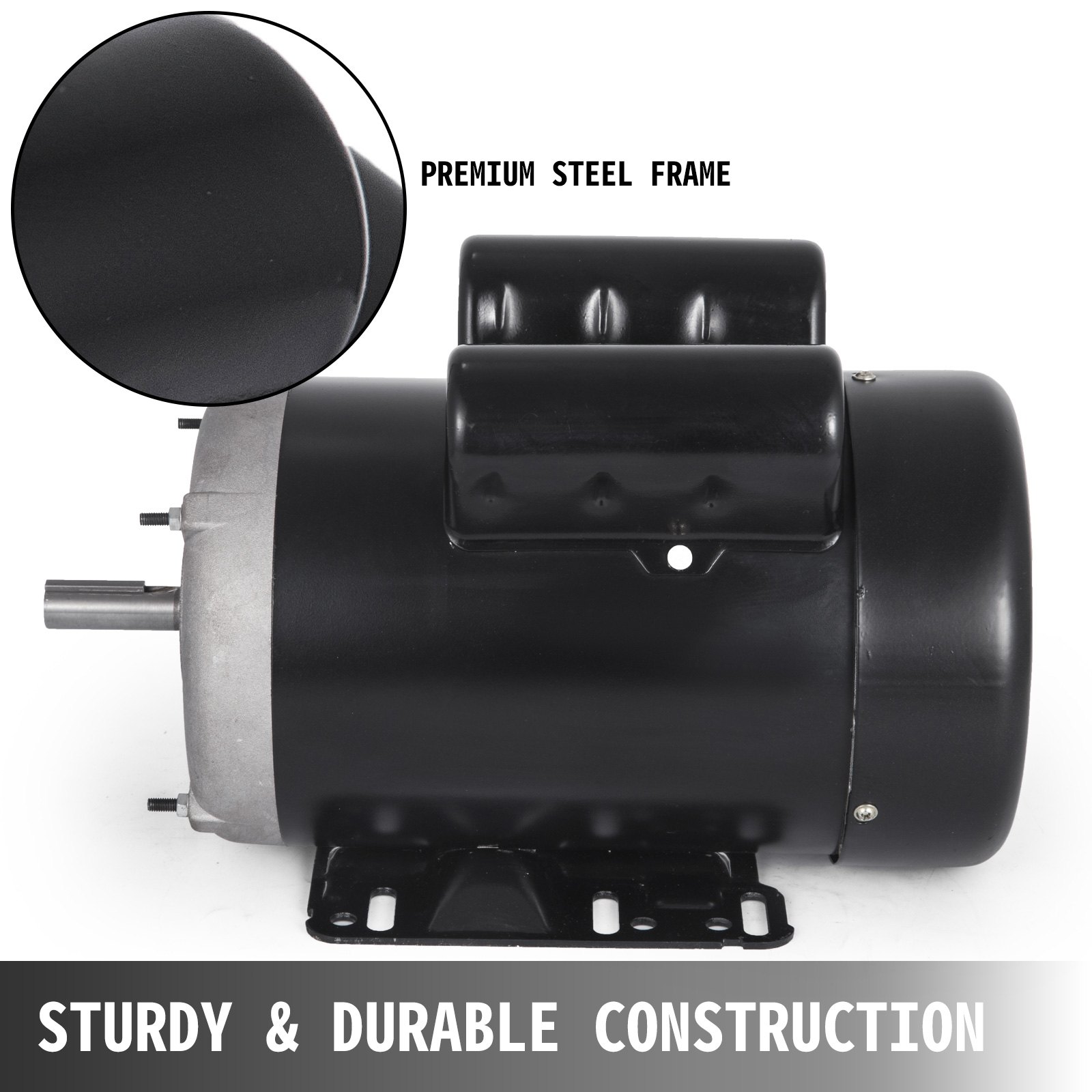

Rugged & Durable Construction
The 3450 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556

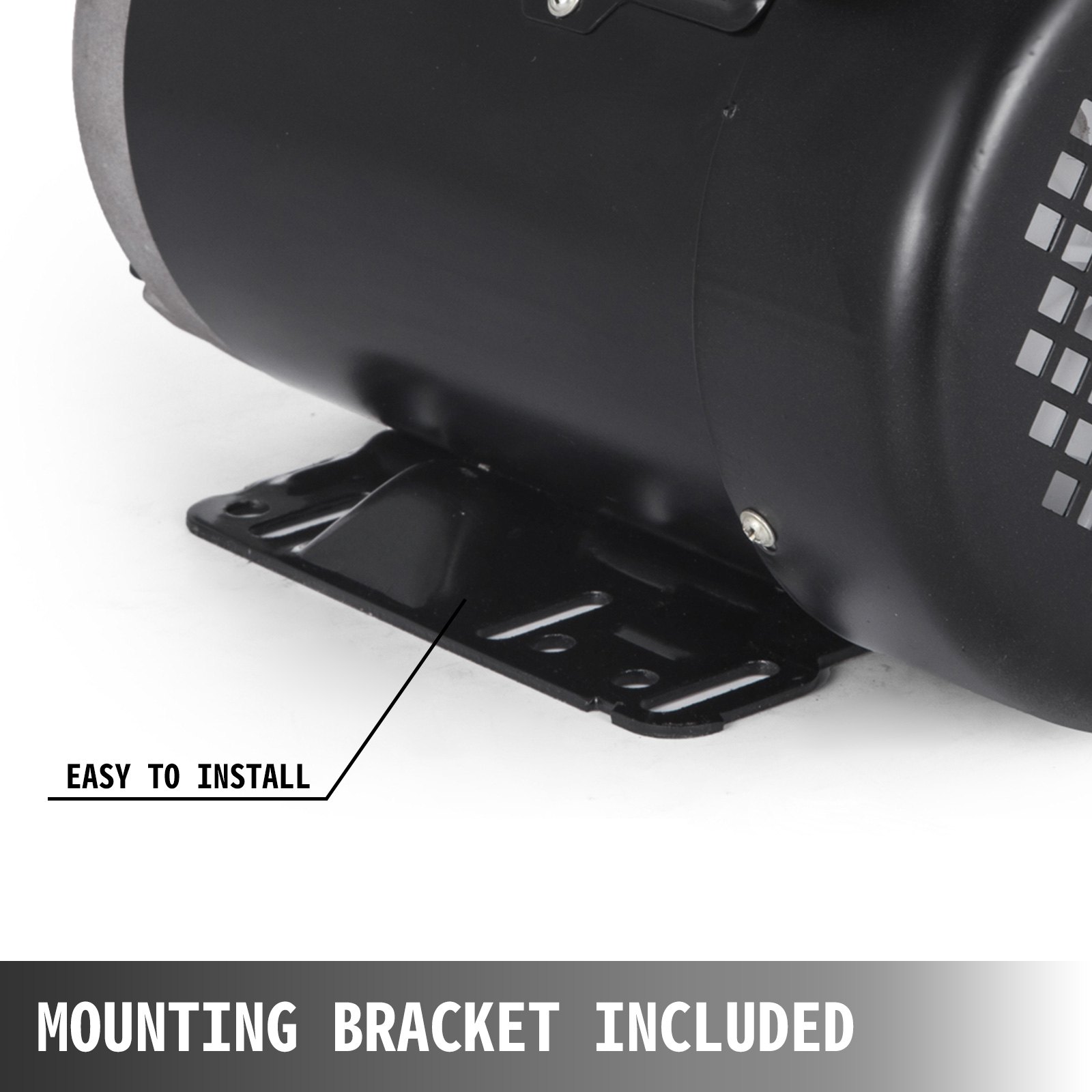

Rigid Mounting Bracket
The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Wide Application
This motor 56 frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Specifications
  • Type: SHDC
  • Phase: Single Phase, 2 Pole
  • Horsepower: 1.5 HP
  • Voltage: 115/230V
  • Full Load Amps: 14.2/7.1 A
  • Frequency: 60 Hz
  • Rated Speed: 3450 RPM
  • Synchronous Speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
  • Shaft Length: 1.875 in / 4.8 cm
  • Rotation: CW - CCW(Reversible)
  • ENC: TEFC
  • Service Factor: 1.15
  • Insulation Class: F
  • AC Motor Type: Induction Motor
  • IP Rating: IP55
  • Efficiency: 80%
  • Reversible/Non-Reversible: Reversible
  • Mounting Type: Rigid
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Package Content
  • 1 x Electric Motor
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
1.5 HP 3450 RPM Electric Motor
Single Phase & TEFC Enclosure & Fast Heat Dissipation
VEVOR's single phase electric motor is rated at 1.5 HP 3450 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
  • Single Phase Electric Motor
  • Excellent Working Efficiency
  • Sturdy Steel Construction
  • High-Speed Cooling Fan
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
High-Performance Motor
1.5hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
3450 RPM High Speed
The motor for air compressor runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Fully Enclosed Fan
A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor's body.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Rugged & Durable Construction
The 3450 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Rigid Mounting Bracket
The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Wide Application
This motor 56 frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Package Content
  • 1 x Electric Motor
New 1.5Hp Electric Motor 56 Frame Single Phase TEFC 3450RPM 115/230V 121556
Specifications
  • Type: SHDC
  • Phase: Single Phase, 2 Pole
  • Horsepower: 1.5 HP
  • Voltage: 115/230V
  • Full Load Amps: 14.2/7.1 A
  • Frequency: 60 Hz
  • Rated Speed: 3450 RPM
  • Synchronous Speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
  • Shaft Length: 1.875 in / 4.8 cm
  • Rotation: CW - CCW(Reversible)
  • ENC: TEFC
  • Service Factor: 1.15
  • Insulation Class: F
  • AC Motor Type: Induction Motor
  • IP Rating: IP55
  • Efficiency: 80%
  • Reversible/Non-Reversible: Reversible
  • Mounting Type: Rigid

Specification

Type
SHDC
Phase
Single Phase, 2 Pole
Horsepower
1.5 HP
Voltage
115/230V
Full Load Amps
14.2/7.1 A
Frequency
60 Hz
Rated Speed
3450 RPM
Synchronous Speed
3600 RPM
Frame
56 Frame
Shaft Diameter
5/8 in / 1.6 cm Keyed Shaft
Shaft Length
1.875 in / 4.8 cm
Rotation
CW - CCW(Reversible)
ENC
TEFC
Service Factor
1.15
Insulation Class
F
AC Motor Type
Induction Motor
IP Rating
IP55
Efficiency
80%
Reversible/Non-Reversible
Reversible
Mounting Type
Rigid
Questions and Answers
12 Questions
What is the height of the center of the shaft as measured from the base?
The height from the base to the center of the shaft is 3.5 inches.
By vevor
Does this unit carry Ball bearings?
Yes, it carries Ball bearings.
By vevor
What type of capacitors does this item carry ? And how many ?
The starting capacitor is 200uF and the running capacitor is 30uF.
By vevor
I'm going to use this model at 230v but I need to reverse the direction of rotation. How to make? I saw on another Vevor model that you just need to exchange wire 6 for 8, is that correct?
Just swap the T6 and T8 wires.
By vevor
Is the motor in the USA now
Yes, it is in the USA now.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
102 Review(s)
Clear filters
Tnman9999 Tnman9999
Owner
This motor gave my Grizzly table saw the get up and go it needed. I've only had it running a week but it is much improved over the Grizzly motor. I would certainly recommend this motor to all.
Brent Brent
Good
It works. Mounts easily. Hooks up easily.
Madison Madison
Works great
Installed and working well no issues so far
Kyle Kyle
1 hp electric motor 3450 rpm
I read some of the reviews on this motor, I used it for my 1970'S craftsman table saw. I found the directions on wiring it simple to follow. It has worked flawlessly and dependable. I would buy it again if needed. The ordering was great and being able to talk to someone made my choice easy.
John John
Works Well
The fan housing was crushed on arrival but I managed to straighten out. Motor works well. Used it for a Housemade 2x72 belt grinder. Plenty of power. The belt makes more noise than this motor.
Phillip Grimes Phillip Grimes
PnT Farm
This motor is a power house! Works perfectly straight from the box. I put it on a stationary belt and disc sander. The original motor struggled to do its job. This motor makes short work of the project. I'm very impressed with the motor and it's definitely worth the price.
SoCalGeezer SoCalGeezer
Vintage Craftsman table saw replacement motor
A perfect replacement for my vintage Craftsman table saw. A quick check of the instructions to reverse the rotation and away it went. I'm Very happy!
Dale Dale
Dale
The motor was better than expected, don’t let the price fool you. I honestly thought it would be a low quality product but it really works well and was heavier than the original model from 1978. I believe it will last just as long.
Spydercatz Spydercatz
Mister
Fast service good price point...The product has poor instruction with regard to wiring. Simple is good just in this case you have to study it carefully in order to pick up on how two wires determine the rotation of the motor. It's not difficult only it could be made easier to understand...Aside from that for the application I have for this motor, it is a beast with quite low vibration and plenty of power.
DAVID TOLBERT DAVID TOLBERT
does a great job
great product
