New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM
New 1Hp Electric Motor 140156C Single Phase 56C Frame TEFC 115/230V 1800RPM

Features & Details

  • Single Phase Electric Motor: This electric compressor motor runs at 1 HP. Type: SHDC; Phase: Single Phase, 4 Pole; Voltage: 115/230V; Full Load Amps: 13.1/6.5A; Frequency: 60 Hz; Frame: 56C Frame; Rotation: CW - CCW(Reversible). Push your machine to the limits with this well-balanced motor!
  • Excellent Working Efficiency: The single phase electric motor features a 1745 RPM rated speed, and 1800 RPM synchronous speed. Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft; Shaft Length: 1.875 in / 4.8 cm; Rated Torque: 3.89 N.m; Service Factor: 1.15; Insulation Class: F. The upper hardness shaft is more durable. Works above and beyond while maintaining high performance.
  • Sturdy Steel Construction: The 1 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. High-quality capacitors and ball bearings ensure long service life.
  • High-Speed Cooling Fan: Enclosure Type: TEFC(Totally Enclosed Fan Cooled). The big fan at one end cools the 1 HP electric motor single phase for hours while running, even in dusty or damp environments. Multiple heat dissipation strips guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust.
  • Apply in Multiple Sectors: The air compressor motor 1745 rpm is commonly used in industrial and agricultural production, transportation, commercial and household appliances, and other fields. For instance, the matching of water pumps, agricultural machinery, etc. Ensure our motor matches the specific specifications listed on your compressor before purchase.
See More

Frequently Bought Together

Videos for this product

Reviews 4.8

All reviews are from verified purchases
Average rating based on 115 reviews
Top Reviews
Troy McDonald Troy McDonald
Reviewed on Jun 05,2025
Used this for a Bridgeport mill conversion. So far it's worked great.
Ed Ed
Reviewed on Apr 11,2025
We needed a replacement motor for an exhaust fan in the warehouse and this was the cheapest for the price we could find at the time. So far it has worked great and did what was expected. We don't know the longevity as of yet since we have only ran it part of a year. We have noticed that since it's in a hot location, if it is stopped after running it might not start till it cools down. I gave a one star on features and ease of use because it has no features or ease of use.
Phill Phill
Reviewed on Feb 05,2025
I used this on my Ammco brake lathe to double the power and speed up production for our trailer business it works great better than expected.
Randy Randy
Reviewed on Jan 21,2025
I put this on my cement mixer. Replaced the small motor that burnt up. Mixes 80lb bags with no problem.
Ken Gordon Ken Gordon
Reviewed on Dec 26,2024
Works good and good price.
DB DB
Reviewed on Dec 26,2024
I ordered a 1.5 hp motor to replace my 1 hp Jet bandsaw motor that died. I was able to make it fit in the enclosed stand; however it was necessary to modify the stand (enclosure) to get proper airflow for cooling. I am very happy with my purchase from this vendor!
WMCE WMCE
Reviewed on Dec 24,2024
Seems to be a quality motor.
Jack B. Jack B.
Reviewed on Dec 14,2024
I am using this motor on a hydraulic lift. Works well as it should. The only thing is that it is out side and is not water proof. I have to keep it covered up when not in use. The last one I had filled up with water and froze up.
Rick Eggink Rick Eggink
Reviewed on Dec 13,2024
Very nice motor. Package extremely well. I was very impressed with it. I would not hesitate to purchase again.
John John
Reviewed on Dec 08,2024
Works great for what it needs to do. Instead of purchasing a $300 motor for the lift that I will use very seldom, I bought one half the price and it works great. Easy to install Great instructions

About this item

Product specification
Type
SHDC
Phase
Single Phase, 4 Pole
Horsepower
1 HP
Voltage
115/230 V
Full Load Amps
13.1/6.5A
SF Amps
14.4/7.2A
Frequency
60 Hz
Rated Speed
1745 RPM
Synchronous Speed
1800 RPM
Frame
56C Frame
Shaft Diameter
5/8 in / 1.6 cm Keyed Shaft
Shaft Length
1.875 in / 4.8 cm
Rotation
CW - CCW(Reversible)
Rated Torque
3.89 N.m
IP Rating
IP45
ENC
TEFC
Service Factor
1.15
Insulation Class
F
Reversible/Non-Reversible
Reversible
NEMA
L
CODE
J
Description

Boost Your Machine's Power — 1Hp Electric Motor

Upgrade your power supply with a reliable 1HP electric motor. It keeps your air compressor running smoothly and can handle tough jobs for a long time. The motor is energy-efficient, helping you save on electricity costs. For safety, it has a cooling fan that prevents overheating and unique strips that stop debris from getting inside. Installation is easy, with clear instructions and compatibility with different setups. Made from solid steel, this motor is durable and stable. The VEVOR 1800 RMP motor is versatile and works well in many settings, from industrial and farm to home appliances.


Exceptional Performance with Lower Consumption

The 1HP electric motor works well and is reliable. It gives steady and strong power, so your air compressor runs smoothly. It's built to handle challenging tasks and keep working efficiently for a long time. It's an excellent choice for factories and home use because it works well without any issues. Moreover, the motor also helps save energy. It uses power smartly, which can lower your electricity bills. Whether you use it in a factory or at home, this motor performs consistently and helps you save money on energy.


Reliable Cooling Fan for Safety

Safety is paramount in the design of this single-phase motor. It has a high-speed cooling fan that helps keep the motor cool while running, even in a dusty or wet place. This cooling fan prevents the motor from getting too hot and helps it last longer. The motor also has unique heat-dissipation strips. These strips prevent debris and objects from entering, reducing the risk of accidents and damage. These safety features ensure the motor operates safely and efficiently in different conditions.


Hassle-free Setup

The VEVOR TEFC motor is easy to install and use. It has clear instructions so that you can set it up without trouble. The motor is also compatible, making it an excellent replacement for many other motors. The design includes features that make installation and operation straightforward. It can work with different voltages (115V and 230V). It can spin in both directions (clockwise and counterclockwise). This makes it useful for many other setups. Whether replacing an old motor or installing a new one, this 1HP electric motor will work efficiently.


Premium Quality Construction

This single-phase motor is made from solid steel. It is challenging and lasts a long time. The hard outer shell stops the inside parts from getting too hot. This quality helps the motor last longer. It has good quality parts like capacitors and ball bearings. These parts make it run smoothly. The motor also comes with a steel bracket. The bracket keeps it steady and robust. This solid build means the motor can be used in many different settings.


User-Friendly Features

The VEVOR 1800RPM motor is made to be very easy to use. The display panel is easy to read and shows clear information. You can easily see and control what's happening with the motor. The display turns off when you're not using it. This saves power and doesn't distract you. Because of its smart design, installing the motor is simple. Even if you're unfamiliar with electric motors, you can set it up quickly.


Versatile Applications

This 1HP electric motor is versatile, making it useful in many areas. It works well in industrial and farm settings, as well as in commercial and home appliances. It can power water pumps, farm machines, and other equipment that needs steady and reliable power. This motor's strong performance can handle the demands of constant factory use. The VEVOR TEFC motor is also great for transportation and commercial use because of its reliable power and sturdy build.


VEVOR electric motor 1 hp single phase 1800 rpm 56c frame machine background

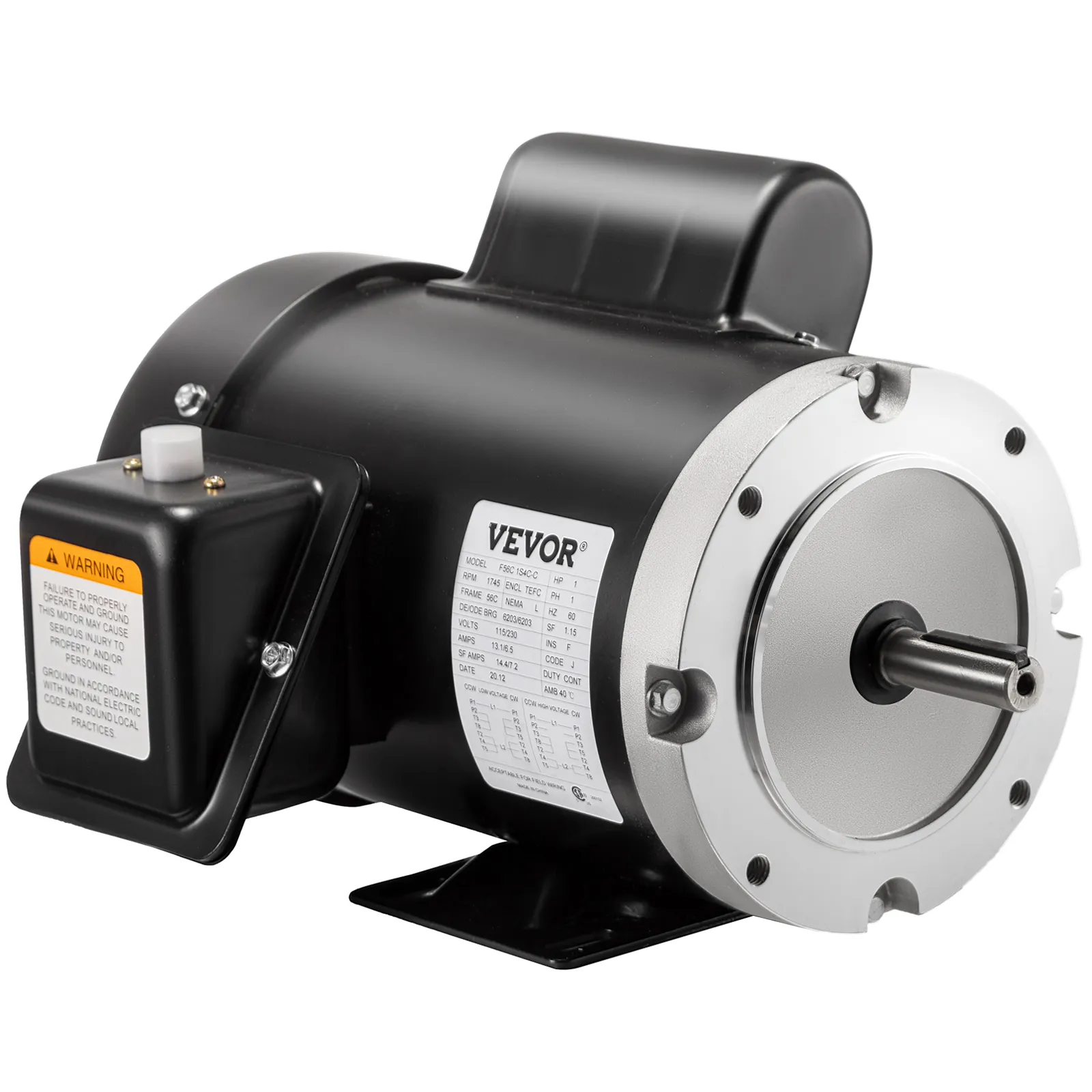

VEVOR electric motor with specifications label and warning notice on black casing.
1 HP 1745 RPM Electric Motor
Single Phase & TEFC Enclosure & Fast Heat Dissipation
VEVOR's single phase electric motor is rated at 1 HP 1745 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
  • Single Phase Electric Motor
  • Excellent Working Efficiency
  • Sturdy Steel Construction
  • High-Speed Cooling Fan
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

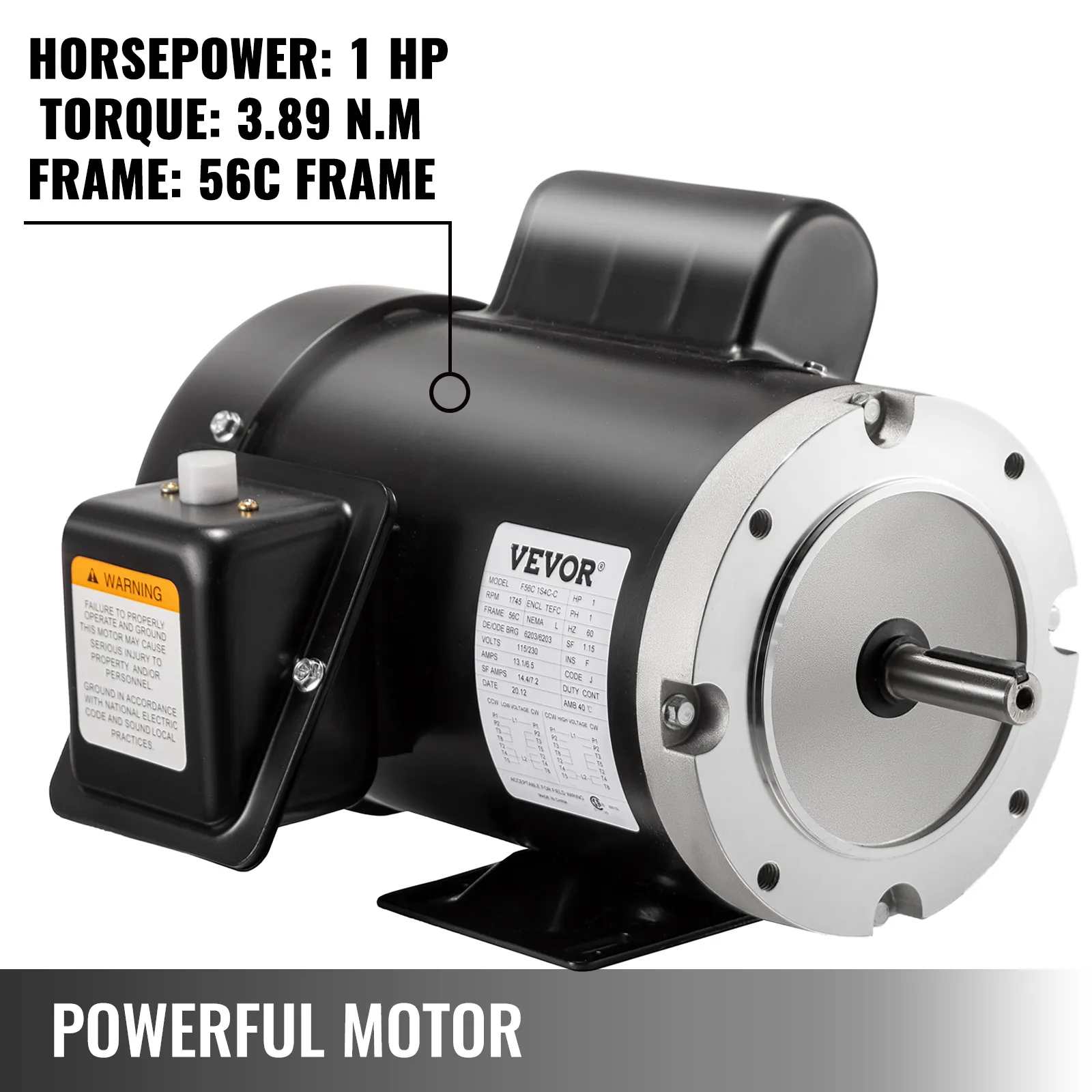

VEVOR electric motor, 1 hp, 3.89 nm torque, 56c frame. powerful motor.
High-Performance Motor
1hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.

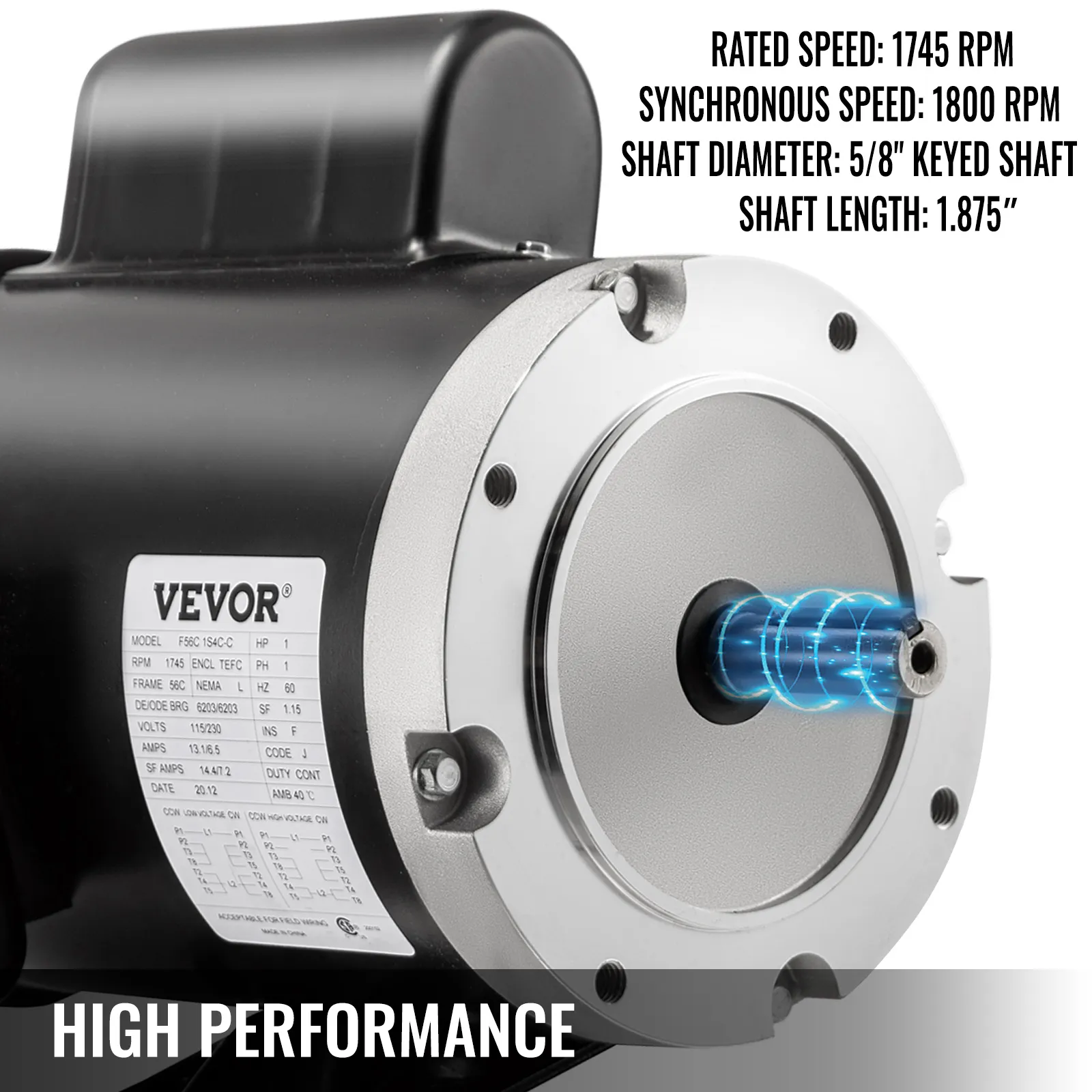

VEVOR electric motor 1 hp, 1745 rpm, 5/8" keyed shaft, high performance.
1745 RPM High Speed
The motor for air compressor runs at 1745 RPM, Synchronous Speed: 1800 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.

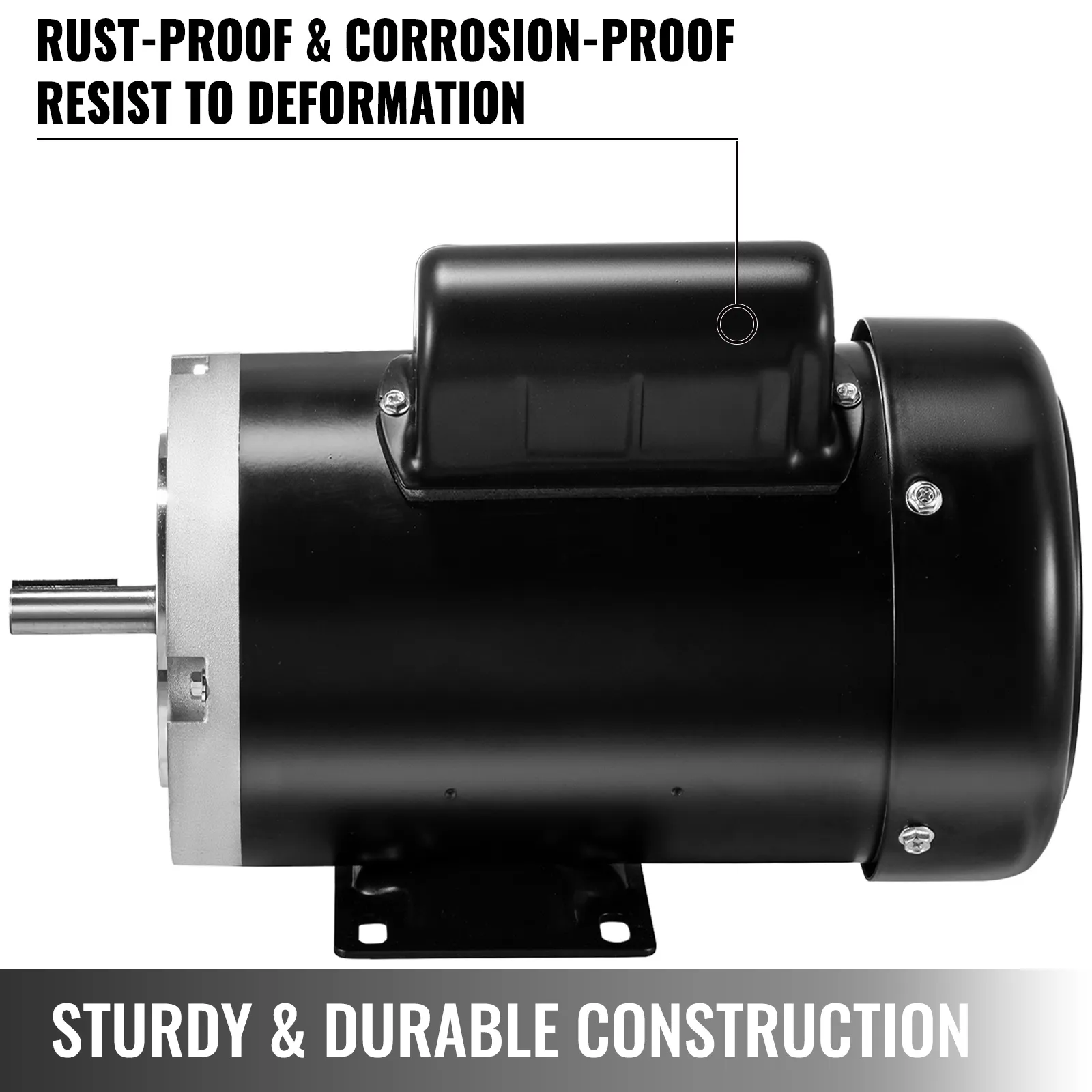

VEVOR electric motor, sturdy and durable, rust-proof, and corrosion-resistant.
Rugged & Durable Construction
The 1745 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.

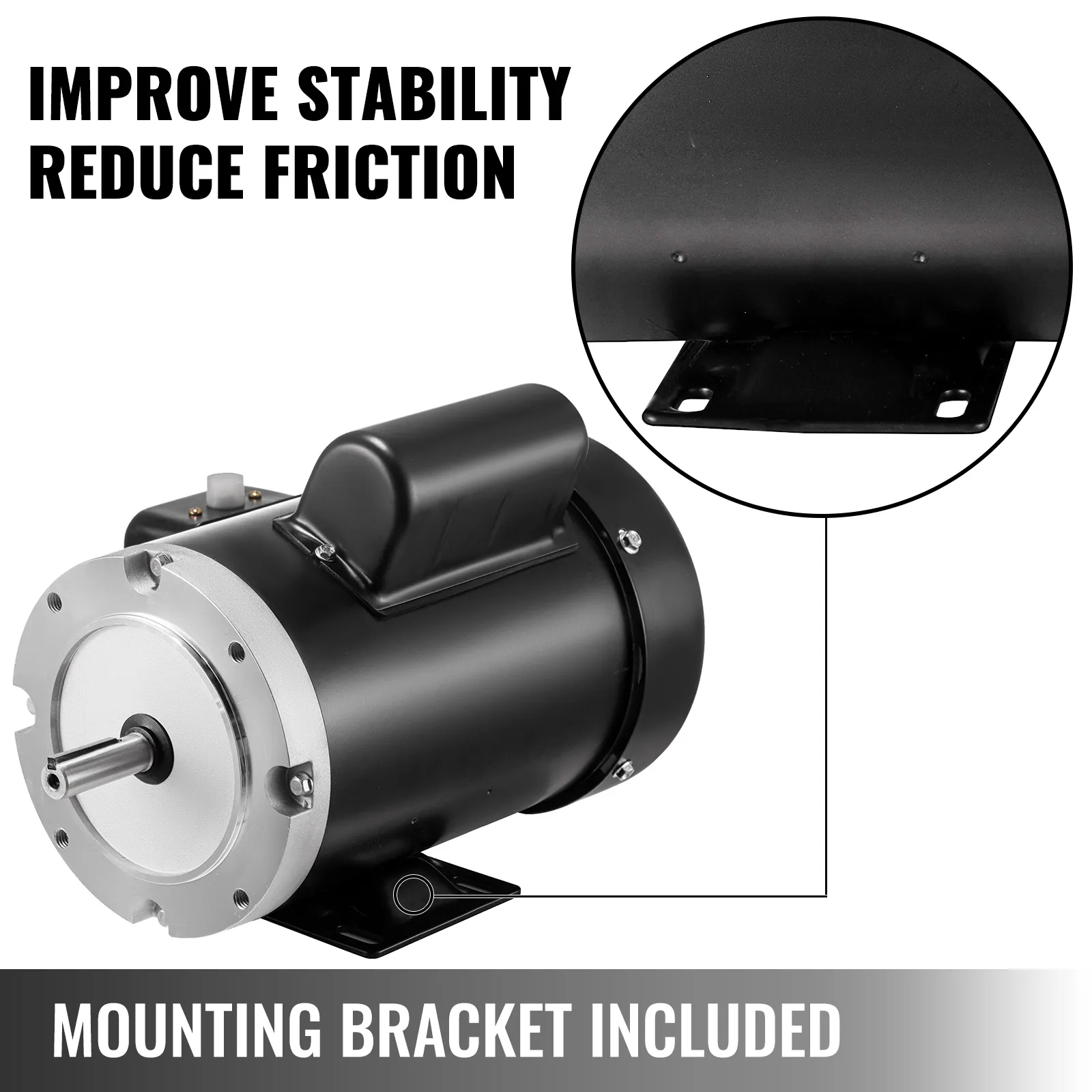

VEVOR electric motor with mounting bracket, improves stability, and reduces friction.
Rigid Mounting Bracket
The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.

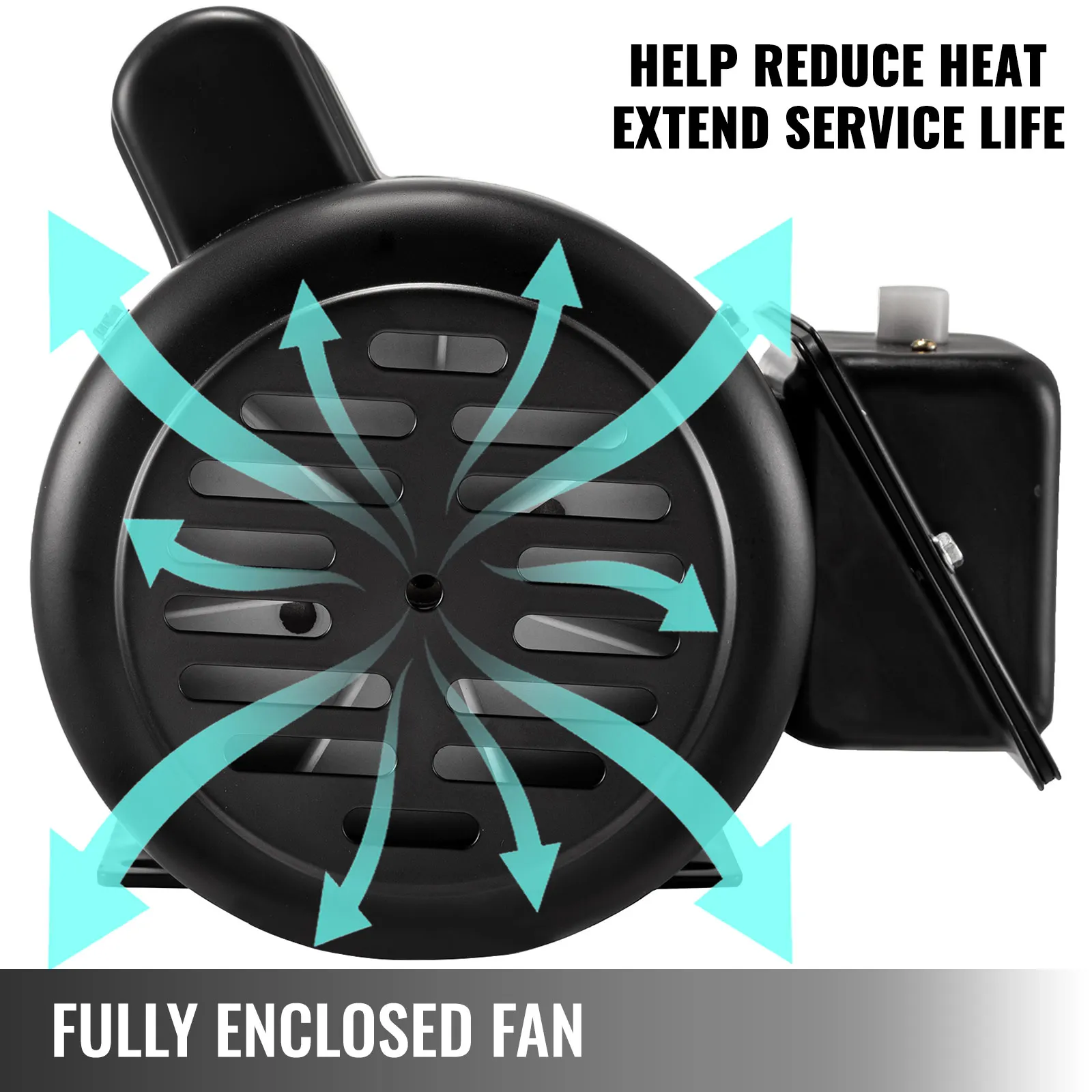

VEVOR electric motor with fully enclosed fan, helps reduce heat and extend service life.
Fully Enclosed Fan
A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor's body.
VEVOR electric motor showcasing wide application in industrial settings and machinery.
Wide Application
This motor 56c frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.

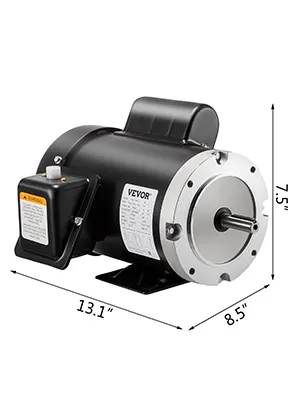

black and silver VEVOR electric motor with size dimensions 13.1"x8.5"x7.5".
Specifications
  • Type: SHDC
  • Phase: Single Phase, 4 Pole
  • Horsepower: 1 HP
  • Voltage: 115/230 V
  • Full Load Amps: 13.1/6.5A
  • SF Amps: 14.4/7.2A
  • Frequency: 60 Hz
  • Rated Speed: 1745 RPM
  • Synchronous Speed: 1800 RPM
  • Frame: 56C Frame
  • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
  • Shaft Length: 1.875 in / 4.8 cm
  • Rotation: CW - CCW(Reversible)
  • Rated Torque: 3.89 N.m
  • IP Rating: IP45
  • ENC: TEFC
  • Service Factor: 1.15
  • Insulation Class: F
  • Reversible/Non-Reversible: Reversible
  • NEMA: L
  • CODE: J

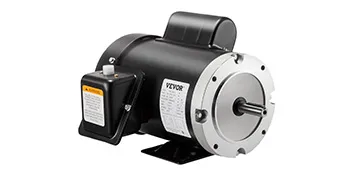

VEVOR electric motor in black with a control box and silver mounting plate.
Package Content
  • 1 x Electric Motor
  • 1 x Product Manual
VEVOR electric motor 1 hp single phase 1800 rpm 56c frame machine background
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR electric motor with specifications label and warning notice on black casing.
1 HP 1745 RPM Electric Motor
Single Phase & TEFC Enclosure & Fast Heat Dissipation
VEVOR's single phase electric motor is rated at 1 HP 1745 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
  • Single Phase Electric Motor
  • Excellent Working Efficiency
  • Sturdy Steel Construction
  • High-Speed Cooling Fan
VEVOR electric motor, 1 hp, 3.89 nm torque, 56c frame. powerful motor.
High-Performance Motor
1hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.
VEVOR electric motor 1 hp, 1745 rpm, 5/8" keyed shaft, high performance.
1745 RPM High Speed
The motor for air compressor runs at 1745 RPM, Synchronous Speed: 1800 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.
VEVOR electric motor, sturdy and durable, rust-proof, and corrosion-resistant.
Rugged & Durable Construction
The 1745 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.
VEVOR electric motor with mounting bracket, improves stability, and reduces friction.
Rigid Mounting Bracket
The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.
VEVOR electric motor with fully enclosed fan, helps reduce heat and extend service life.
Fully Enclosed Fan
A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor's body.
VEVOR electric motor showcasing wide application in industrial settings and machinery.
Wide Application
This motor 56c frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.
VEVOR electric motor in black with a control box and silver mounting plate.
Package Content
  • 1 x Electric Motor
  • 1 x Product Manual
black and silver VEVOR electric motor with size dimensions 13.1"x8.5"x7.5".
Specifications
  • Type: SHDC
  • Phase: Single Phase, 4 Pole
  • Horsepower: 1 HP
  • Voltage: 115/230 V
  • Full Load Amps: 13.1/6.5A
  • SF Amps: 14.4/7.2A
  • Frequency: 60 Hz
  • Rated Speed: 1745 RPM
  • Synchronous Speed: 1800 RPM
  • Frame: 56C Frame
  • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
  • Shaft Length: 1.875 in / 4.8 cm
  • Rotation: CW - CCW(Reversible)
  • Rated Torque: 3.89 N.m
  • IP Rating: IP45
  • ENC: TEFC
  • Service Factor: 1.15
  • Insulation Class: F
  • Reversible/Non-Reversible: Reversible
  • NEMA: L
  • CODE: J

Questions and Answers (20)

20 Questions
Ask a Question
Showing 1-20 of 20
Sort by: Featured questions
How much does this weigh in LBS?
Answer This Question
It is 35 LBS.
By vevor on
Can The base be removed
Answer This Question
The base of this product is detachable. If you don't need it, you can remove the base by removing the 6 hexagon socket screws.
By vevor on
Can the mounting bracket be removed
Answer This Question
Yes, the mounting bracket can be removed.
By vevor on
what are the dimensions of the motor
Answer This Question
Please see the dimension of the motor in below link, the link is valid in 3 days: https://we.tl/t-21Tnvlg1oV
By vevor on
What is the dimensions for the mounting plate holes?
Answer This Question
Its mounting holes are spaced 5.875 inches in diameter.
By vevor on
