Features & Details

• Single Phase Electric Motor: This air compressor electric motor runs at 7.5 HP, changed from CCW to CW is the exchange of 5 and 8. The size of the 184T frame corresponds to the size of the motor. Input: 6.5 kW, Torque: 15.26 N.m, Frequency: 60 Hz, Amperage: 33.0-30.0A. Push your air compressor to the limits with this well-balanced motor!
• High Working Efficiency: The 7.5HP electric motor for air compressor runs at the rated speed of 3450 RPM. Synchronous Speed: 3600 RPM, Shaft Diameter: 1-1/8 in / 2.86 cm Keyed Shaft, Shaft Length: 2.75 in / 6.99 cm. A 230V motor single-phase power supply refers to a 1-Phase 230V AC motor. A 230V motor cannot withstand a voltage lower than 208V.
• Sturdy Steel Construction: The 7.5 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. High-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.
• Fast Heat Dissipation: The air compressor motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Our motor will run smoothly, so you get the job done right.
• ODP for Dry Environments: The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

CM722184T

Type

SHDC

Input

6.5 kW

Horsepower

7.5 HP

Voltage

208-230V

Phase

Single Phase, 2 Pole

Amperage

33.0-30.0A

Rated Speed

3450 RPM

Frequency

60 Hz

Synchronous Speed

3600 RPM

Frame

184T

Shaft Diameter

1-1/8 in / 2.86 cm Keyed shaft

Shaft Length

2.75 in / 6.99 cm

Rotation

CW-CCW(Reversible)

Torque

15.26 N.m

Service Factor

1.15

Insulation Class

F

Mounting Type

Base-Mounted

Enclosure Type

ODP (Open Drip-Proof)

AC Motor Type

Induction Motor

IP Rating

IP 23

Housing Material

Cast Iron Shell

CODE

L

DUTY

CONT

Current Type

AC

Protector

Non

Special Motor Construction

Spindle Motor

AMB

104℉ / 40℃

Net Weight

115.1 lbs / 52.21 kg

Description

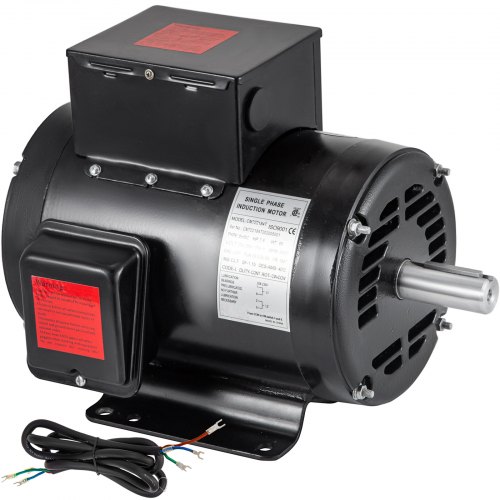

7.5 HP SPL 3450 RPM Electric Motor

Single Phase & ODP Enclosure & For Air Compressor Uses

VEVOR's heavy-duty air compressor electric motor is rated at 7.5 HP 3450 RPM and can be connected to 208-230V incoming power devices. This single-phase 184T frame electric motor conforms to the standard for high hardness and performance, which is well suited for air compressor applications. Built tough to work tough, can you handle that! Our motor will have your air compressor roaring for the next job!

• Single Phase Electric Motor
• High Working Efficiency
• Sturdy Steel Construction
• Fast Heat Dissipation
• ODP for Dry Environments

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

High-Performance Motor

7.5 HP electric compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads. It's effortless to move and strong enough to maintain a high working efficiency.

3450 RPM High Speed

The compressor motor 230v runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft has toughness, hardness, and the characteristics of low rotating noise and stable operation.

Rugged & Durable Construction

The 7.5 horsepower electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life. A smooth surface provides comfortable use.

Strip-Shaped Cooling Holes

The table saw motor replacement has multiple heat dissipation holes on both sides. It can quickly dissipate heat while running for a long time, effectively guarding the motor's body.

Rigid Mounting Bracket

The single-phase commercial-duty open drip-proof air compressor motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.

Designed for Air Compressors

This 7.5 HP single phase electric motor is intended to be used in dry and non-dusty environments. Suitable for various kinds of air compressors and other related appliances.

Specifications

• Model: CM722184T
• Type: SHDC
• Input: 6.5 kW
• Horsepower: 7.5 HP
• Voltage: 208-230V
• Phase: Single Phase, 2 Pole
• Amperage: 33.0-30.0A
• Rated Speed: 3450 RPM
• Frequency: 60 Hz
• Synchronous Speed: 3600 RPM
• Frame: 184T
• Shaft Diameter: 1-1/8 in / 2.86 cm Keyed shaft
• Shaft Length: 2.75 in / 6.99 cm
• Rotation: CW-CCW(Reversible)
• Torque: 15.26 N.m
• Service Factor: 1.15
• Insulation Class: F
• Mounting Type: Base-Mounted
• Enclosure Type: ODP (Open Drip-Proof)
• AC Motor Type: Induction Motor
• IP Rating: IP 23
• Housing Material: Cast Iron Shell
• CODE: L
• DUTY: CONT
• Current Type: AC
• Protector: Non
• Special Motor Construction: Spindle Motor
• AMB: 104℉ / 40℃
• Net Weight: 115.1 lbs / 52.21 kg

Package Content

• 1 x Air Compressor Electric Motor
• 1 x Wiring

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

7.5 HP SPL 3450 RPM Electric Motor

Single Phase & ODP Enclosure & For Air Compressor Uses

VEVOR's heavy-duty air compressor electric motor is rated at 7.5 HP 3450 RPM and can be connected to 208-230V incoming power devices. This single-phase 184T frame electric motor conforms to the standard for high hardness and performance, which is well suited for air compressor applications. Built tough to work tough, can you handle that! Our motor will have your air compressor roaring for the next job!

• Single Phase Electric Motor
• High Working Efficiency
• Sturdy Steel Construction
• Fast Heat Dissipation
• ODP for Dry Environments

High-Performance Motor

7.5 HP electric compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads. It's effortless to move and strong enough to maintain a high working efficiency.

3450 RPM High Speed

The compressor motor 230v runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft has toughness, hardness, and the characteristics of low rotating noise and stable operation.

Rugged & Durable Construction

The 7.5 horsepower electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life. A smooth surface provides comfortable use.

Strip-Shaped Cooling Holes

The table saw motor replacement has multiple heat dissipation holes on both sides. It can quickly dissipate heat while running for a long time, effectively guarding the motor's body.

Rigid Mounting Bracket

The single-phase commercial-duty open drip-proof air compressor motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.

Designed for Air Compressors

This 7.5 HP single phase electric motor is intended to be used in dry and non-dusty environments. Suitable for various kinds of air compressors and other related appliances.

Package Content

• 1 x Air Compressor Electric Motor
• 1 x Wiring

Specifications

• Model: CM722184T
• Type: SHDC
• Input: 6.5 kW
• Horsepower: 7.5 HP
• Voltage: 208-230V
• Phase: Single Phase, 2 Pole
• Amperage: 33.0-30.0A
• Rated Speed: 3450 RPM
• Frequency: 60 Hz
• Synchronous Speed: 3600 RPM
• Frame: 184T
• Shaft Diameter: 1-1/8 in / 2.86 cm Keyed shaft
• Shaft Length: 2.75 in / 6.99 cm
• Rotation: CW-CCW(Reversible)
• Torque: 15.26 N.m
• Service Factor: 1.15
• Insulation Class: F
• Mounting Type: Base-Mounted
• Enclosure Type: ODP (Open Drip-Proof)
• AC Motor Type: Induction Motor
• IP Rating: IP 23
• Housing Material: Cast Iron Shell
• CODE: L
• DUTY: CONT
• Current Type: AC
• Protector: Non
• Special Motor Construction: Spindle Motor
• AMB: 104℉ / 40℃
• Net Weight: 115.1 lbs / 52.21 kg

See More
