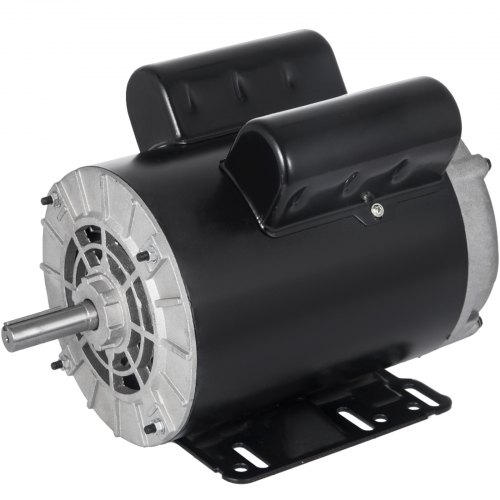

New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM

4.9
See All Customer Reviews
45 Reviews | 9 answered questions
Share
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
$152.99
152.99
Price including VATSee details
  • · Single Phase Electric Motor: This air compressor electric motor runs at 3 HP SPL. Rated Speed: 3450 RPM, Input: 2.2 kW, Voltage: 115/230V, Amperage: 18/9A, Frequency: 60 Hz, Synchronous Speed: 3600 RPM, Frame: 56 Frame, Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft, Shaft Length: 1.875 in / 4.8 cm, Rotation: CW-CCW(Reversible). Push your air compressor to the limits with this well-balanced motor!
  • · Sturdy Steel Construction: The 3 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.
  • · Overload Thermal Protector: The 3HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load. Insulation Class: F, Service Factor: 1.
  • · Fast Heat Dissipation: The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.
  • · ODP for Dry Environments: The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.


Frequently Bought Together

People Who Bought This Item Also Bought

New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Description Specification Questions and Answers Reviews
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
2.2 KW 3 HP Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 2.2 KW Electric Motor for air compressor. A 115/230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a three hp SPL electric motor that is commonly used for home and small shop air compressors.
  • AC Electric Motor
  • Steel Housing
  • Fast Heat Dissipation
  • Manual Overload Protection

New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
3 HP Reliable Motor
High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
High Performance
Runs at 3 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 115/230V 60 HZ, Frame: 56, easy to use.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Premium Steel Frame
Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Multiple Cooling Holes
The electric AC motor has multiple heat dissipation holes, so the motor can reduce the operating heat more effectively while running and prevent foreign objects from being involved in the engine.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Safe Protection
The electric motor is well protected by the capacitor housing and conduit boxes in all environments, and a low-temperature manual overload protector protects against extreme overload.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Specifications
  • Type: SPL
  • Phase: Single phase, 2 pole
  • Input: 2.2 KW
  • Horsepower: 3 HP
  • Voltage: 115/230V
  • Amperage: 18/9 fl amps
  • Frequency: 60 Hz
  • Rated speed: 3450 RPM
  • Synchronous speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service factor: 1.15
  • Efficiency: 80 %
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Package Content
  • 1 x Electric Motor
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM

New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
2.2 KW 3 HP Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 2.2 KW Electric Motor for air compressor. A 115/230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a three hp SPL electric motor that is commonly used for home and small shop air compressors.
  • AC Electric Motor
  • Steel Housing
  • Fast Heat Dissipation
  • Manual Overload Protection
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
3 HP Reliable Motor
High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
High Performance
Runs at 3 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 115/230V 60 HZ, Frame: 56, easy to use.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Premium Steel Frame
Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Multiple Cooling Holes
The electric AC motor has multiple heat dissipation holes, so the motor can reduce the operating heat more effectively while running and prevent foreign objects from being involved in the engine.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Safe Protection
The electric motor is well protected by the capacitor housing and conduit boxes in all environments, and a low-temperature manual overload protector protects against extreme overload.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Package Content
  • 1 x Electric Motor
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
Specifications
  • Type: SPL
  • Phase: Single phase, 2 pole
  • Input: 2.2 KW
  • Horsepower: 3 HP
  • Voltage: 115/230V
  • Amperage: 18/9 fl amps
  • Frequency: 60 Hz
  • Rated speed: 3450 RPM
  • Synchronous speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service factor: 1.15
  • Efficiency: 80 %

Specification

Model
CM03256
Type
SPL
Input
2.2 kW
Horsepower
3 HP SPL
Voltage
115/230V
Phase
Single Phase, 2 Pole
Amperage
18/9A
Rated Speed
3450 RPM
Frequency
60 Hz
Synchronous Speed
3600 RPM
Frame
56 Frame
Shaft Diameter
5/8 in / 1.6 cm Keyed Shaft
Shaft Length
1.875 in / 4.8 cm
Rotation
CW-CCW(Reversible)
Service Factor
1
Efficiency
80%
Insulation Class
F
Mounting Type
Base-Mounted
Enclosure Type
ODP (Open Drip-Proof)
IP Rating
IP 23
Current Type
AC
Questions and Answers
9 Questions
Ask a Question
In some areas, the specifications say this motor is reversible and in other areas, it says it is not. Does anyone know for certain whether this motor can be ran in the clockwise direction?
It is reversible.
By vevor
(0) (0)
Does the black wire go to L1 and the white wire to L2
This motor is wired by number, not by color.
By vevor
(0) (0)
Can I use this motor on 220volts 50htz
No, you can't. It is 110V.
By vevor
(0) (0)

Customer Reviews

4.9 Out of 5
45 Reviews
  • 4.8
  • 4.6
  • 4.6
  • 4.7
Kenny carpenter Kenny carpenter
kenny
I have seen a couple of emails trying to get information on how to send the motor back I do not need it anymore thank you very Order Number:22110800960202031025
See more See less
0
el_Batoviejo el_Batoviejo
Works!
I had to add a 1/2" plate to match existing holes. Overall it works and I save a ton of money. Appi so far
See more See less
0
Brett Brett
Satisfied
I gave it a 5 star review even tho the motor did not work properly. Customer service was great. I contacted the company and explained the issues with the motor, They promptley issued me a refund, Very nice people to work with, I purchased a second motor from them and it has been working fine.
See more See less
0
bill bill
Great deal
Was as described and works well. Would by from seller again.
See more See less
0
Geraldine Lamprecht Geraldine Lamprecht
Good motor
Got the product quickly, works well.
See more See less
0
Rick Rick
owner
Intermittent use on an air compressor works fine. Will run on a 15A circuit and it replaced a 2HP motor pulling 20A. Not the best quality but it works and it's cheap. It is what it is. The motor gave new life to a 30-year-old compressor.
See more See less
0
Tonia pittman Tonia pittman
Works
Great
See more See less
0
Jeff Jeff
Powerful Motor
Replaced a gas engine that never started in the cold
See more See less
New 2.2 KW 3 HP Air Compressor Electric Motor Single Phase 56 Frame 3450 RPM
0
Gary Morische Gary Morische
Owner
Very good unit delivery was on time very quality motor bought for Air compressor great instructions
See more See less
0
VEVOR Customer VEVOR Customer
Look closly for the bolt pattern. My case it worked out just fine.
worked great.
See more See less
0
