VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts
VEVOR Metal Lathe Machine, 8.3'' x 29.5'', Precision Benchtop Power Metal Lathe, 0-2500 RPM Continuously Variable Speed, 750W Brushless Motor Metal Gears, with Tool Box for Processing Precision Parts

Features & Details

  • Widely Used: Our metal lathe machine, measuring 210mm x 750mm, is perfect for processing precision parts and models. It has a wide range of turning pitches that can create 24 different kinds of threads, including 14 metric system (ranging from 0.3-3mm) and 10 imperial system (ranging from 10-44 TPI) threads.
  • Built to Last: Our power metal lathes are built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.
  • 750W Brushless Motor: Our benchtop metal lathe features a 750W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.
  • Continuously Variable: Features a spindle that can turn in both forward and reverse directions, with two-speed options: a high gear of 100-2500 rpm and a low gear of 50-1250 rpm. It also has intelligent electric speed controls and a digital display, allowing for accurate speed adjustments and making your work easier. The height of the lathe tool is not adjustable.
  • Security Comes First: Our metal lathe machine has multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, pulley set housing power off switch, and a main control panel security switch.
See More

Frequently Bought Together

Videos for this product

Reviews 4.3

All reviews are from verified purchases
Average rating based on 15 reviews
Top Reviews
Chris Bennett Chris Bennett
Reviewed on Jun 02,2025
I got a good buy on this lathe. These are small lathes and work well for turning smaller diameter shafts. It does well with aluminum. You can add a larger chuck and they work fine for machining the tops on pistons. (That's really the only use I apply to this lathe) If you'll be working with steel I'd pay the extra and get a larger lathe with a more powerful motor. This one does not have enough power for large projects working in steel. Is it possible? Yes, but you'll need to go very slowly and only turn just a small bit at a time or you'll completely stop the lathe every time. If you're working with aluminum and smaller projects this one may fit your needs.
Ernesto Ramirez Ernesto Ramirez
Reviewed on Feb 08,2025
Good day, the machine I just bought from you arrived damaged. Could you help me with what to do in this case? Greetings, Thank you, Ernesto Ramirez
Great Buy Great Buy
Reviewed on Dec 09,2024
Great buy! Suprised by the fast service after purchase. I will definetly be using VEVOR in the future!
Newfie steak Newfie steak
Reviewed on Dec 08,2024
Just need to clean it all up and maybe take some burrs off it is very smooth once you do that. I made this little part out of aluminum with it, just with a quick change tool post added. I have since taken it apart, cleaned and debured it and it’s really smooth now. For the money I’m happy with the purchase
Howard Beever Howard Beever
Reviewed on Oct 12,2024
It is a nice machine , it needs a lot adjustment to work like it should. I love 4 different speed ranges,which makes great for threading. I .would buy again
Rusty Shackleford Rusty Shackleford
Reviewed on Jul 07,2024
Works well. Has more power and is more precise out of the box than I was expecting. The shipping took several weeks longer than advertised, when I contacted Vevor they said it was lost and offered a refund, then it finally arrived, so no refund. Weeks of precious project time were tied up in waiting for it to arrive. It seems to be a good machine, though time will tell. Just don't expect it to arrive without significant delay.
One Bone One Bone
Reviewed on Jun 20,2024
Arrived slightly beat up from handling. Just a few dents, but nothing that was not fixable. I am impressed with the quality. It actually had metal gears. I thought the start solenoid PB was faulty. The company is sending a replacement. But further investigation: After further investigation I discovered that the coil connects between terminal #4 (120 vac supply) then once the PB is pushed then to termina A1. A1 needs a neutral connection to hold the contacts in. This lathe was wired incorrectly as the A1 wire went to forward reverse switch terminal 9 then to terminal 10 which connected to the supply terminal on the board. That wire connected to the F/R switch #10 should have been connected to the neutral J1 terminal on the board, not the supply. So, it appears that the original switch was not bad, only a wiring mistake at Vevor. Even their print is incorrect. Check it out!
zero zero
Reviewed on Apr 06,2024
I'm a beginner lathe wannabe. I read dozens of reviews and a good of those reviews number TRASHED Vevor lathes. Lots of complaints about the need to work on the lathe to obtain maximum accuracy. YES, right out of the crate will give you an accuracy measured in tenths(!). I finally ordered Vevor and KNEW I'd have to mess with it to get the advertised maximum accuracy and make numerous adjustments to this mass produced ~200 pound hunk of Chinese metal. No problem. Good thing I experienced in tearing down and rebuilding car engines. I have many talents and skills and tools as far as machines are concerned. So I spent several days FINE TUNING this thing. Now it's working well (but I'm not fully familiar with metal lathe operations). I'm getting closer to reliable thousandths. MY POINT: The thing was shipped around the world and got knocked around during shipment. How can anybody expect a 200 pound chunk metal to be accurate to thousandths right out if the box?? YOU MUST SPEND HOURS WITH IT TO TUNE IT UP! PLUS? we have hundreds off guys on the net who are very willing to offer helpful advice if you were to come up against a problem that resists your DIY skills. Vevor. They make thousands of these machines so I trusted them to send me (us) a product which definitely has the POTENTIAL to be very accurate AFTER the new buyer spends hours tuning it.
archie archie
Reviewed on Feb 29,2024
Very good quality and good price, it is made with good materials which gives the operator the ease of working with various materials and not worrying about changing parts at all times
john w. walsh john w. walsh
Reviewed on Feb 22,2024
super quality, fast delivery, it came in a wooden crate when was the last time you saw that,a super machine, don't fool around if you need a mini precision lathe, this is the one , thanks John

About this item

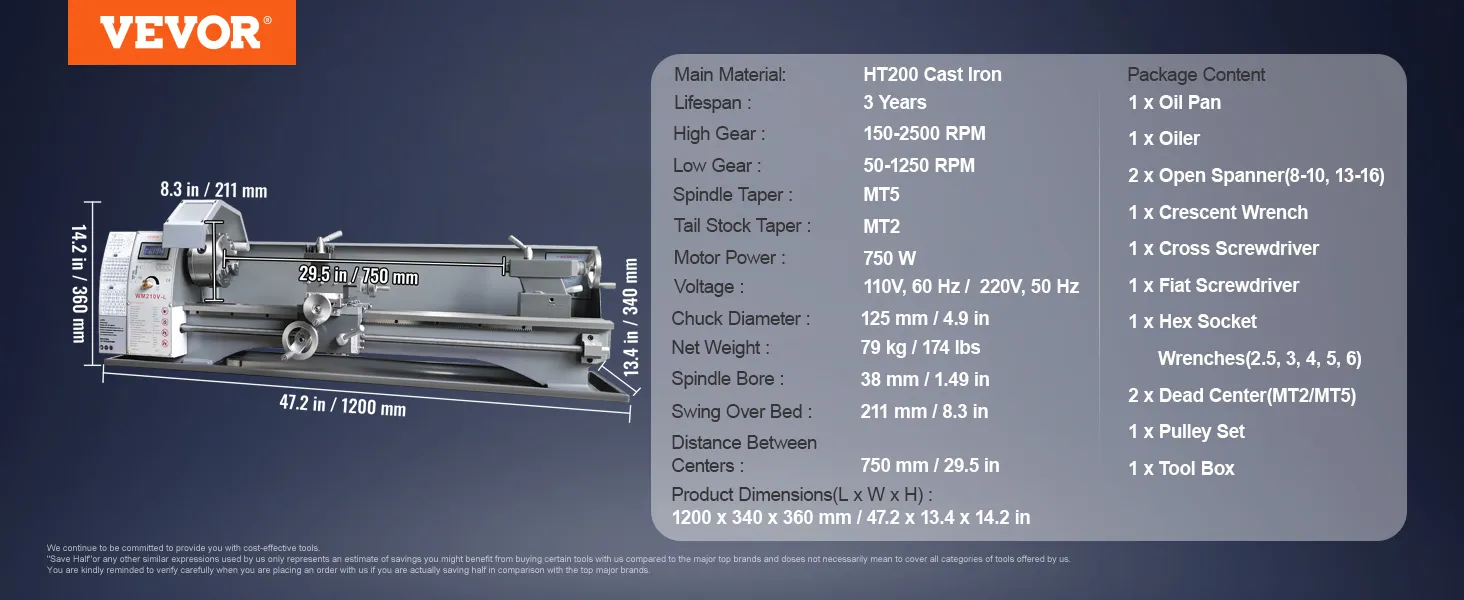

Product specification
Model
WM210V-L
Main Material
HT200 Cast Iron
Lifespan
3 Years
Spindle Speed
50-2500 RPM
Hole Through Spindle Diameter
38 mm / 1.49 in
Spindle Taper
MT5
Tail Stock Taper
MT2
Motor Power
750W
Voltage
110V, 60 Hz
Chuck Diameter
125 mm / 4.9 in
Net Weight
79 kg / 174 lbs
Product Dimensions(L x W x H)
1200 x 340 x 360 mm / 47.2 x 13.4 x 14.2 in
Description

Easily Shape Your Metal Objects — Metal Lathe Machine

Fabricate your metal into different forms and shapes with the VEVOR lathe machine. Its user-friendly design and simple controls let you operate this machine efficiently. You can do so even as a beginner. It comes with a complete accessory kit, including many tools to start working on your project. This machine uses durable and reliable cast iron material in its construction. Its versatility allows you to use it for your various projects, such as workshop projects and DIY.


High Speed & 100% Safe

If your metal lathe machine has a high-power motor, it will help you shape your metal pieces efficiently. Its variable-speed lathe allows you to turn it in both directions, forward and reverse. You can switch between a high-gear 0–2500 RPM lathe and a low-gear 50–1250 RPM, ensuring high performance in every project.


When your lathe machine has safety protection, it will save you from cuts and accidents. The VEVOR metal lathe has many features that play a key role in safety and protection. These features include an emergency switch, a pulley set switch, a chuck cover switch, and a main control panel security switch.


Efficient and Supportive Care

The VEVOR has a highly supportive and proficient team for customer care. They ensure many contact options for effective customer help. You can contact them through a phone number, email, or live chat. Their team is available 24 hours a day to answer your questions.Moreover, they have a thirty-day return policy and a 1-year warranty for 100% satisfaction. You will have a friendly and helpful experience with effective solutions to your problems.


User-Friendly Machine

The VEVOR metal lathe machine is designed with user-friendliness, making it easy to handle and operate. With its simple and intuitive controls, you can get started quickly and effectively. Its design is user-friendly. This metal machine has an easy-to-use control panel, a compact size, and complete accessories.


You will get a digital display screen, LED light, and aluminum handwheel, which enhances its usability and durability. This power metal lathe machine gives you accurate and efficient metalworking. It's perfect for your many projects. It is simple and straightforward to operate, even if you are a beginner.


Durable Design and Material

The VEVOR metal lathe machine is reliable. It has high-quality HT200 cast iron and a wear-resistant metal gear lathe. This power metal machine has an 8.3'' x 29.5'' lathe size. It offers a precision benchtop lathe that excels in accuracy. This machine will assist you in processing precision parts on a on a lathe where you want minimal size and accurate shapes. It also provides aluminum alloy handwheels and a 750W brushless motor lathe. Moreover, its durable design and high-quality material extend its lifespan. You would not need to repair it again and again, making it a reliable companion for your workshop.


Complete Accessory Kit

This lathe machine comes with a complete toolbox. It includes 1 oiler, 1 oil pan, 2 open spanners, 1 cross screwdriver, 1 flat screwdriver, and 1 crescent wrench. Also, there is a hex socket, 2 dead centers, 1 pulley set, and a toolbox. It will also provide a four-way rotating tool holder to easily install 4 common tools. You will also get a detailed manual and everything you need to start your metalworking immediately.


Versatile Application

This metal lathe machine is a versatile and adaptable option for every project where you need to shape the metal. It is very helpful for DIY enthusiasts, hobbyists, and workshops at home. Whether you are a beginner or experienced, it is handy for everyone. This hobby tool is perfect for those who tackle projects at home.

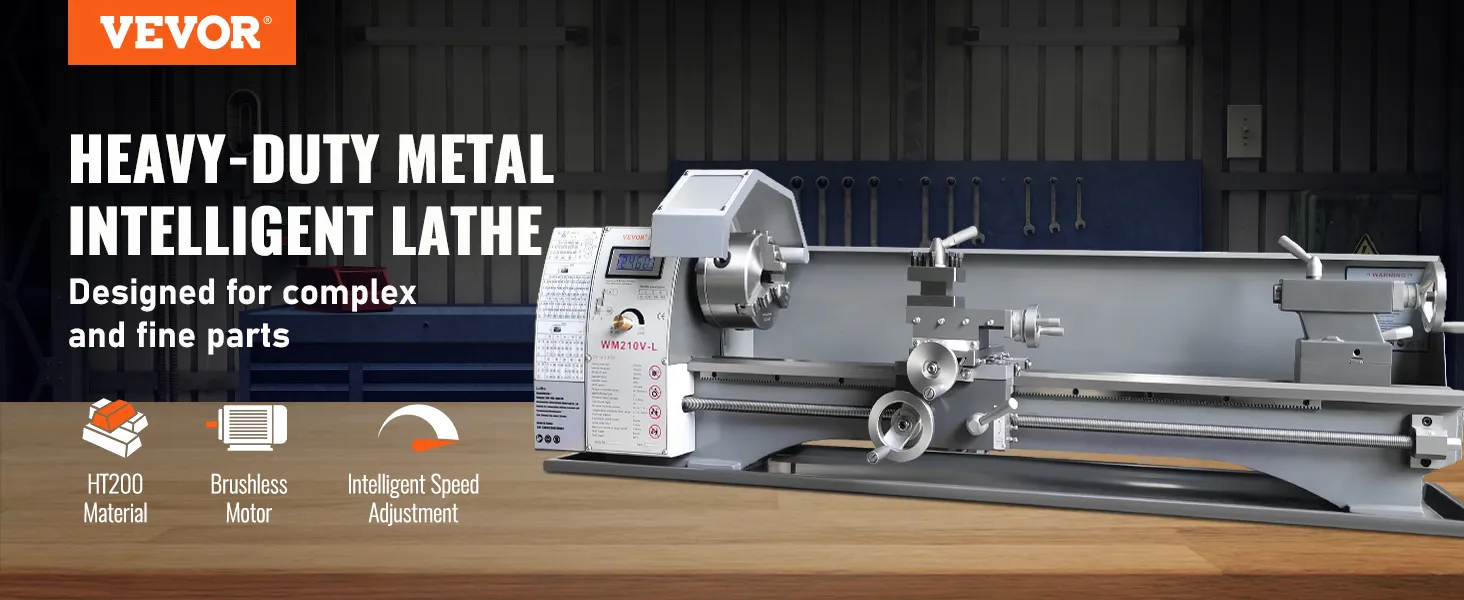

Heavy-Duty Metal Lathe

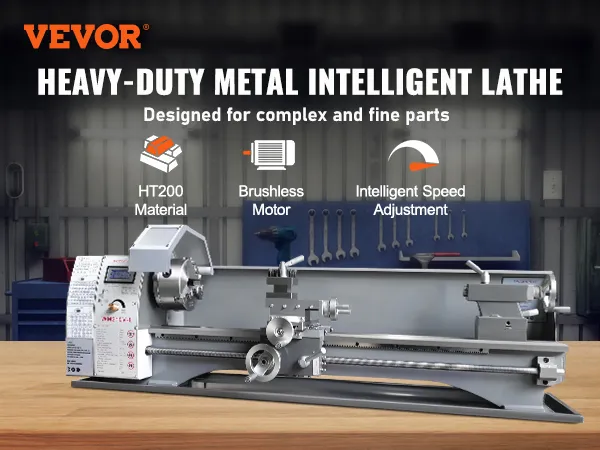

Are you ready to get more done? Our benchtop metal lathe measures 210mm x 750mm and features a powerful 750W motor for longer service life. The external poly-V belt ensures smooth transmission. VEVOR metal lathe is specifically designed for creating complex and fine parts.

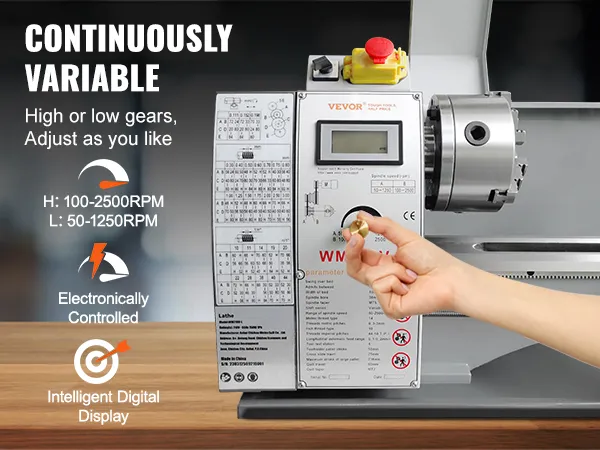

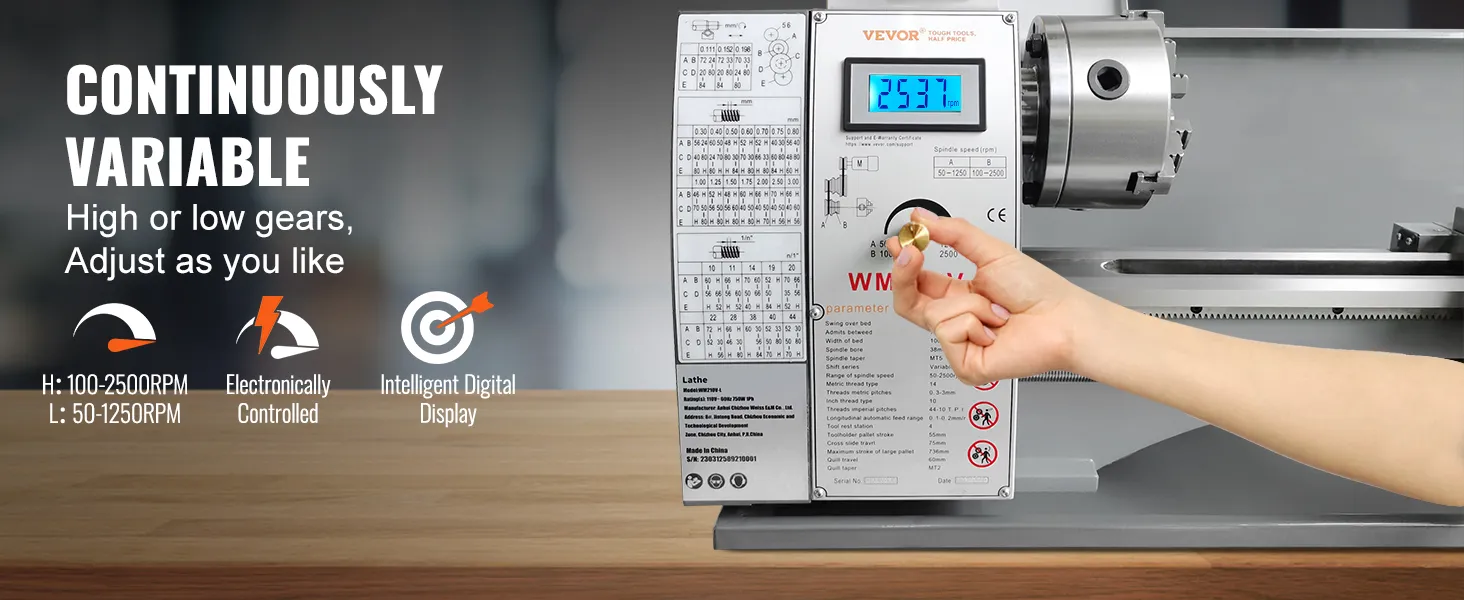

  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.
  • VEVOR metal lathe with adjustable speeds, digital display, and electronically controlled settings.
  • VEVOR metal lathe with 750w brushless motor for sufficient power and stable output.
  • upgraded 3 protection devices on VEVOR metal lathe: overload protection, high-speed reverse, chuck cover protection.

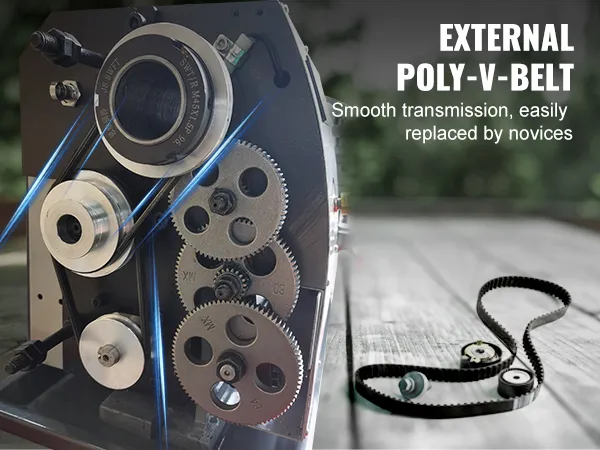

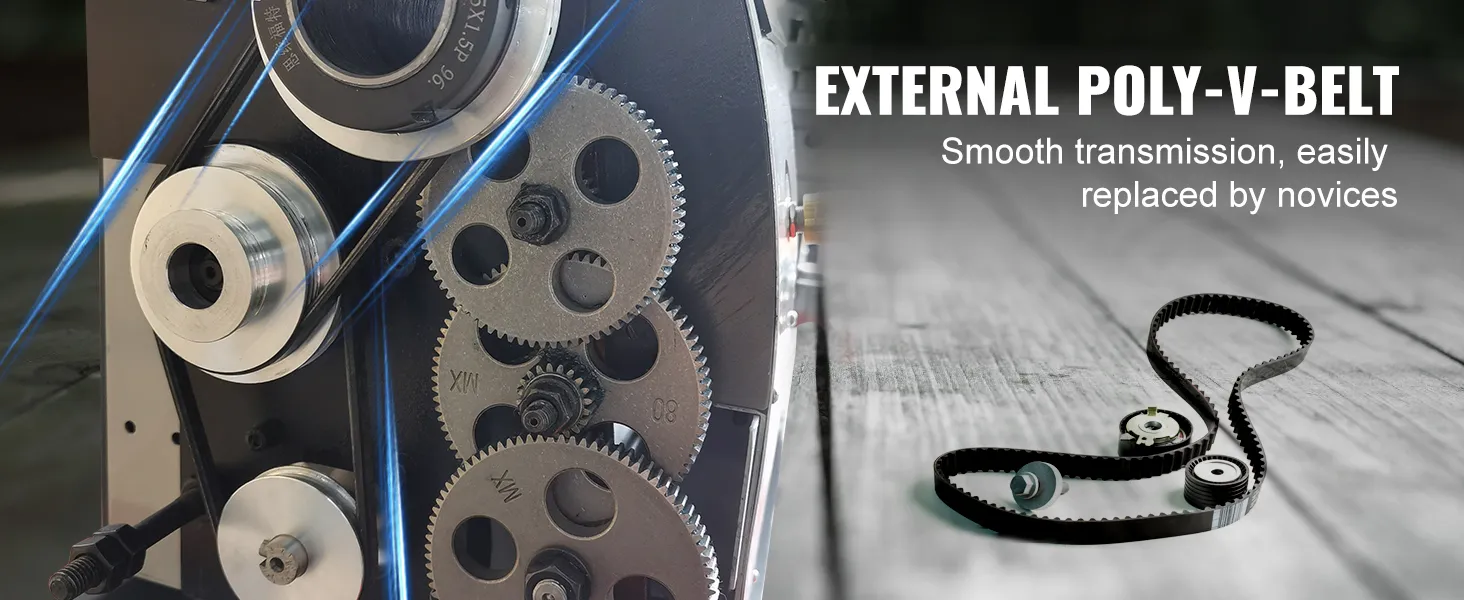

  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.

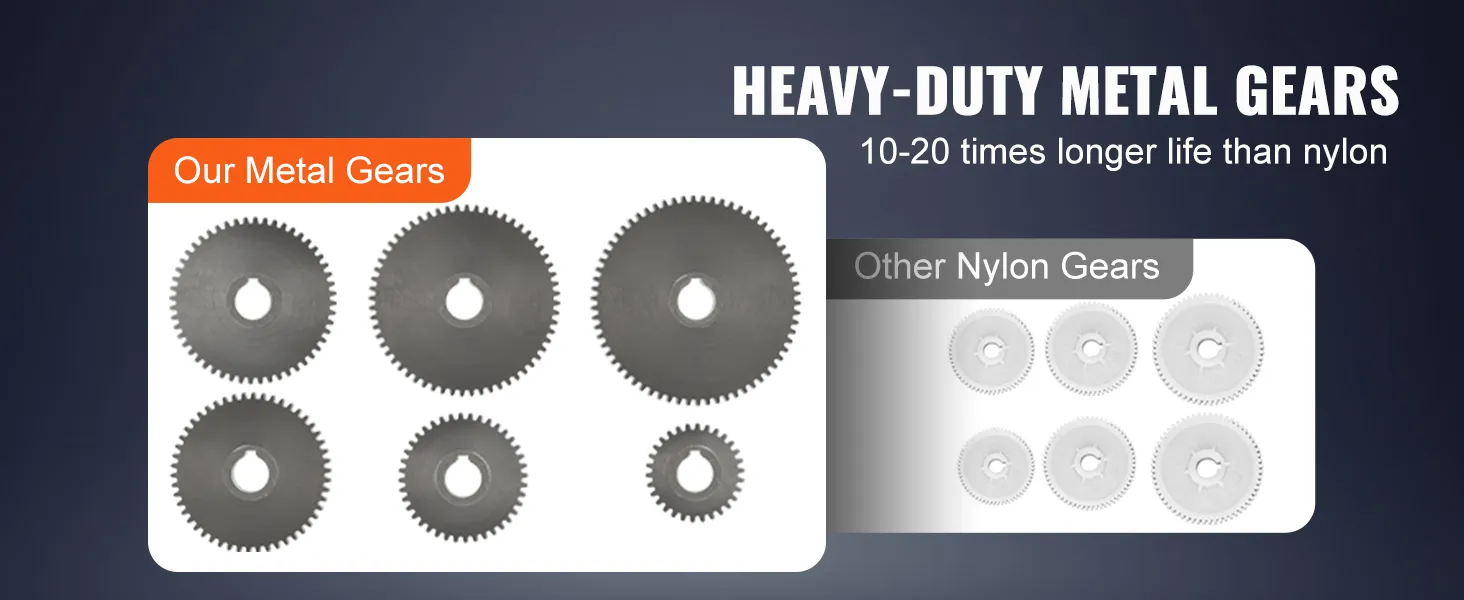

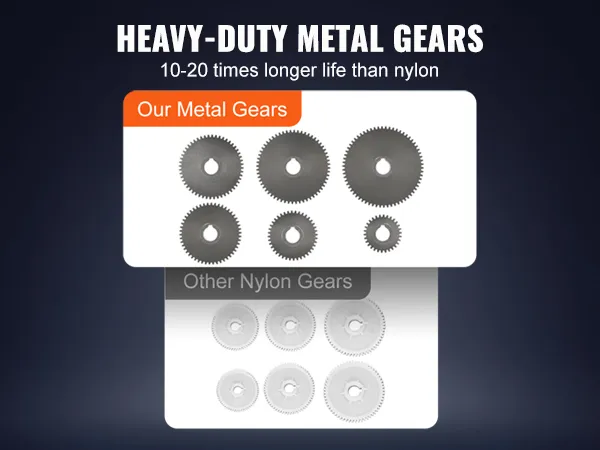

  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.

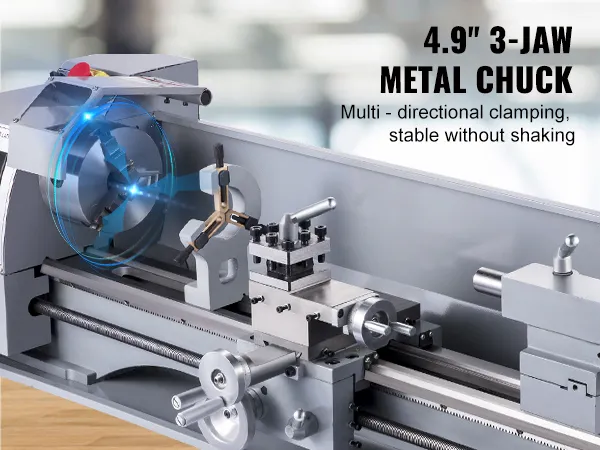

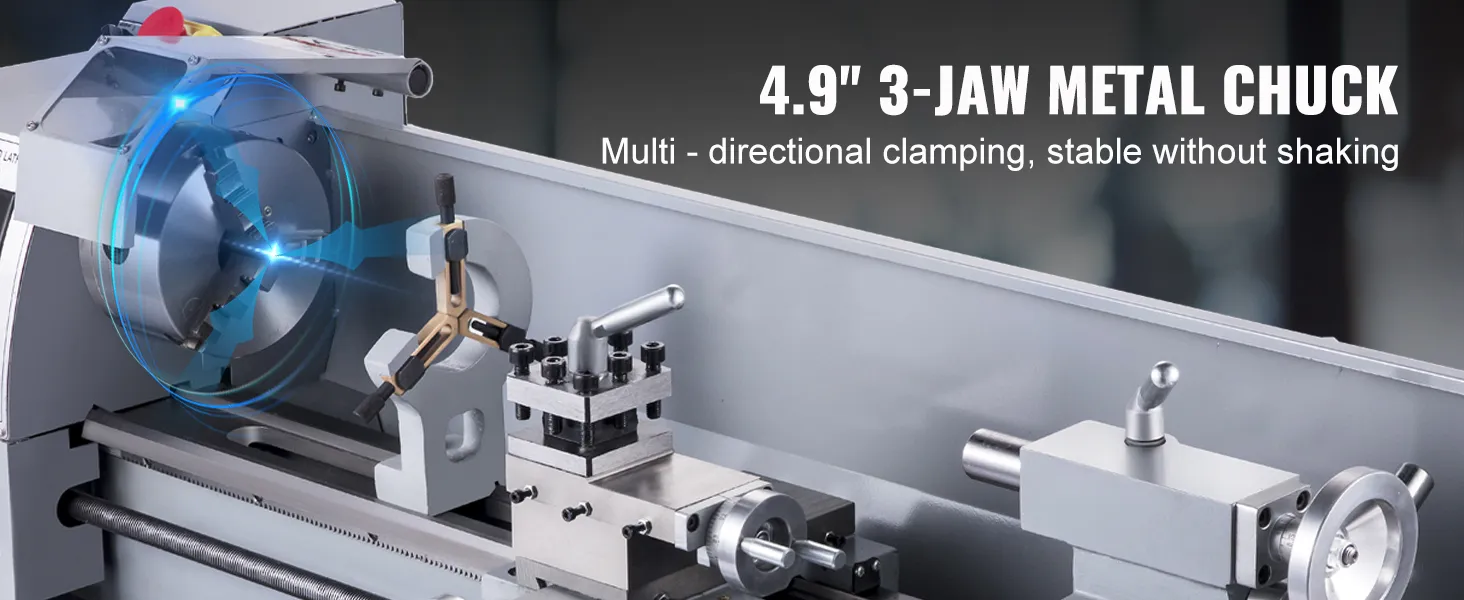

  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.
  • VEVOR metal lathe with external poly-v-belt for smooth transmission, easy replacement for novices.
  • heavy-duty VEVOR metal lathe gears vs nylon gears, showcasing durability and longevity comparison.
  • 4.9" 3-jaw metal chuck on VEVOR metal lathe, highlighting multi-directional clamping.

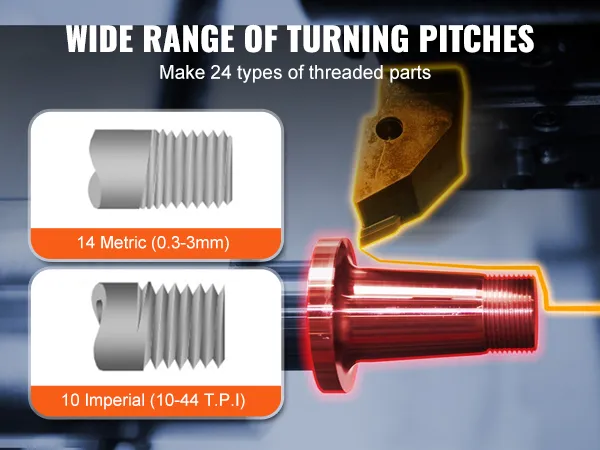

  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.

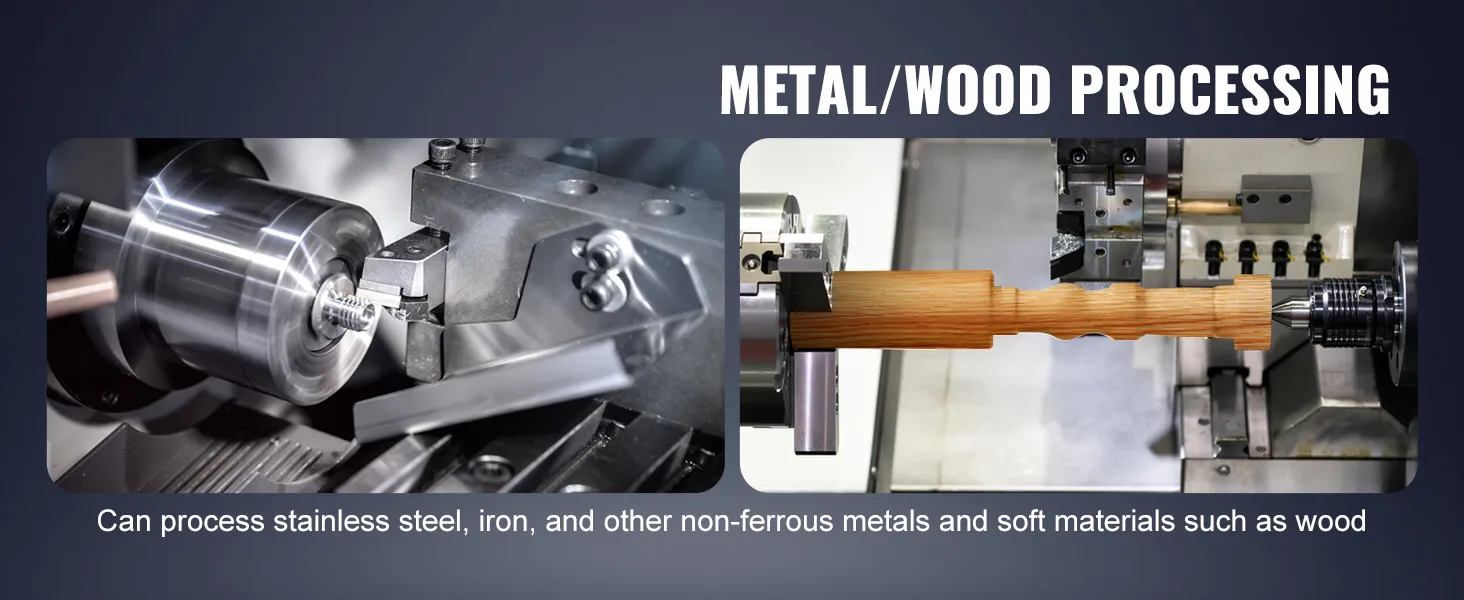

  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.

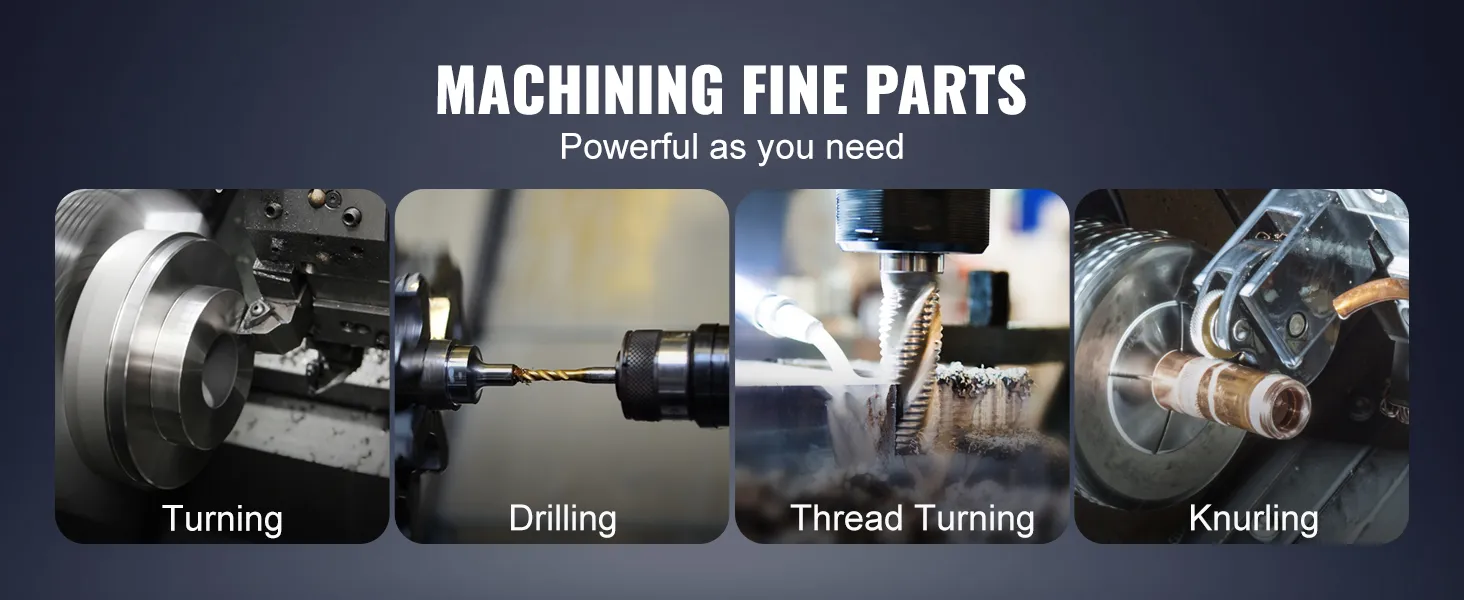

  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
  • wide range of turning pitches for VEVOR metal lathe, create 24 types of threaded parts, metric and imperial.
  • VEVOR metal lathe for processing metals and wood, showcasing stainless steel and wooden workpieces.
  • machining fine parts with VEVOR metal lathe showcasing turning, drilling, thread turning, and knurling.
Key Features

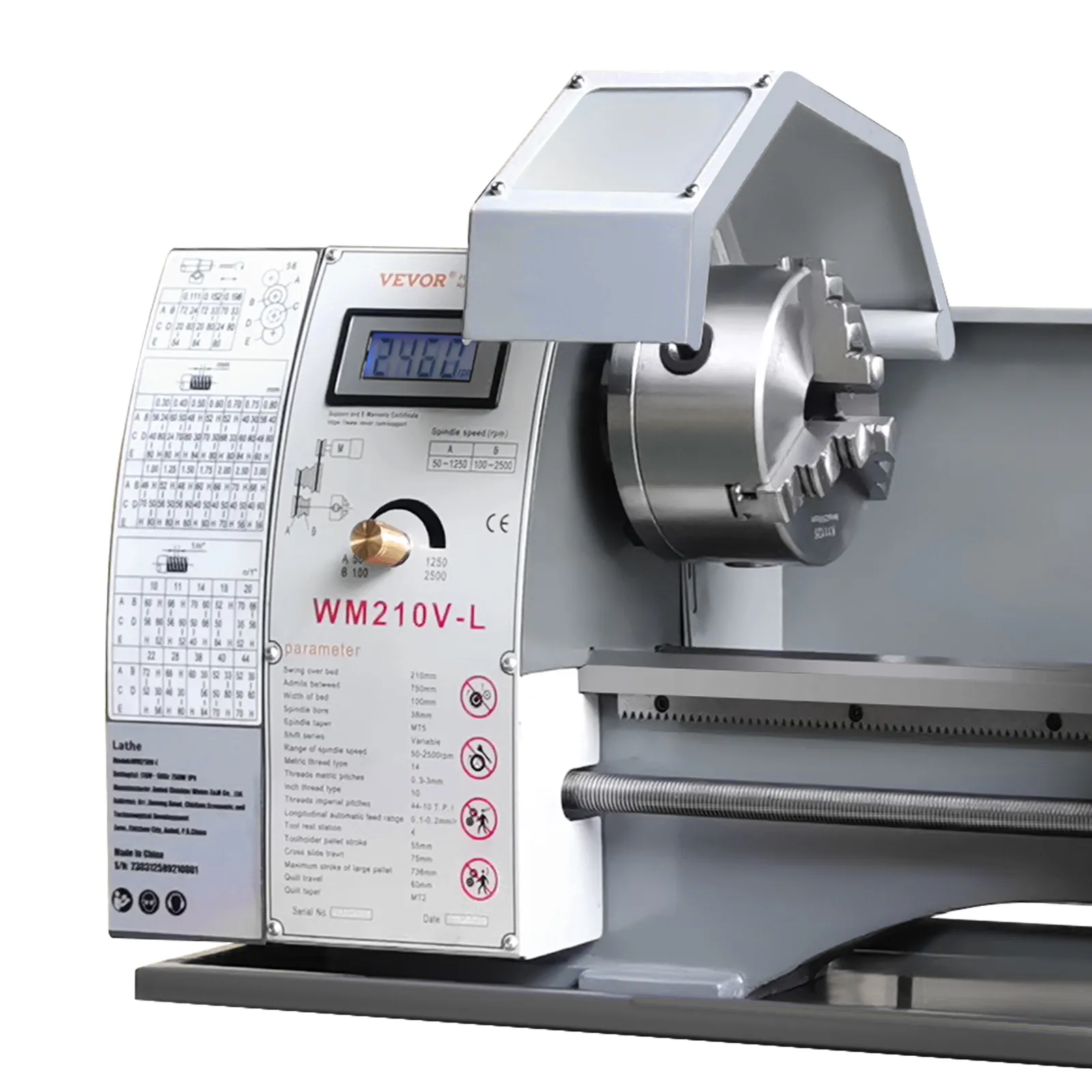

VEVOR metal lathe wm210v-l close-up with control panel, digital display, and chuck mechanism.
Convenient Tool Holder
The 4-way rotation tool holder allows you to install 4 common turning tools simultaneously. To change tools, simply open the latch and rotate it.

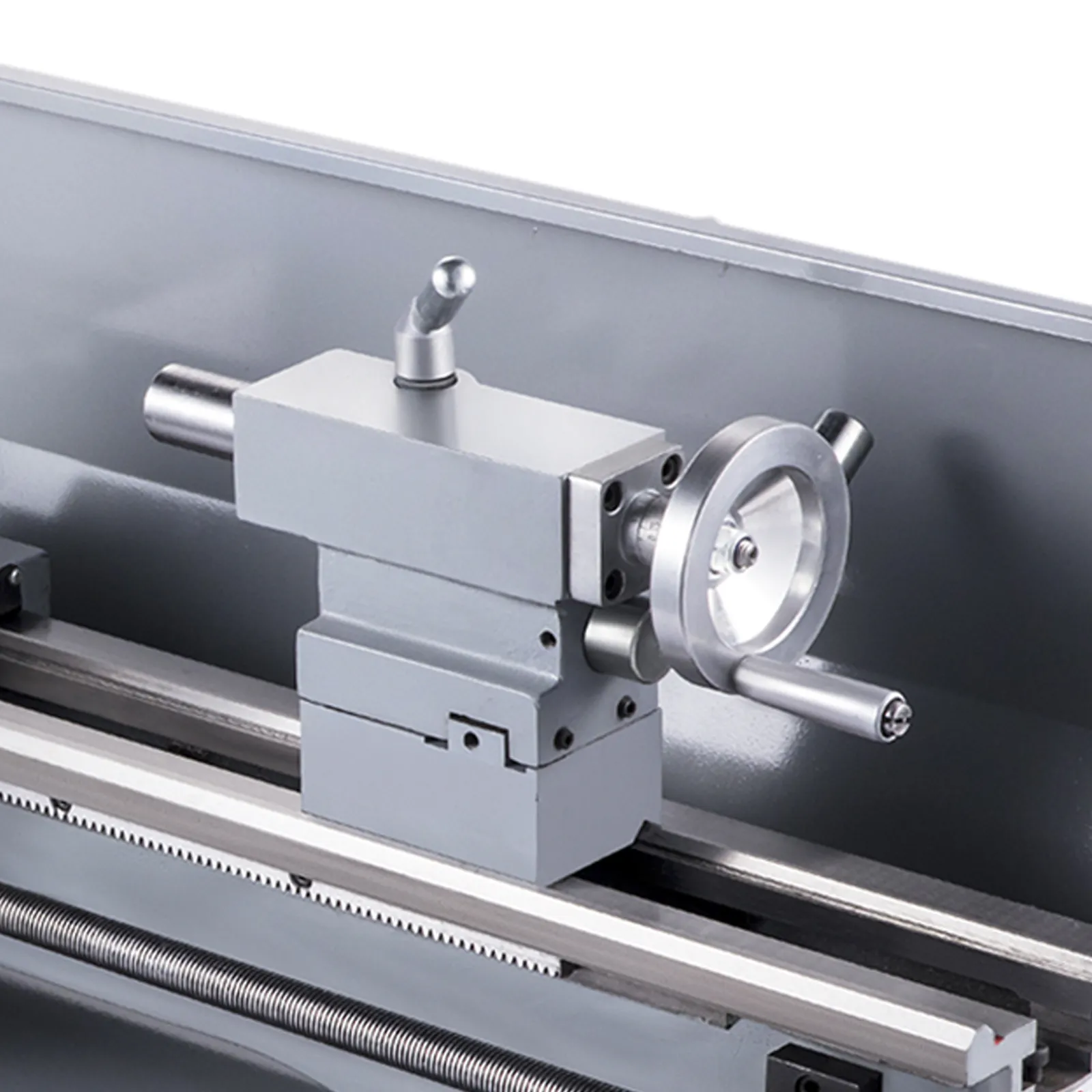

silver-toned VEVOR metal lathe close-up showcasing spindle and tool holder.
Protection Devices
Overload protection, high-speed reverse fool-proofing device, and chuck cover disconnection protection make the processing more secure.

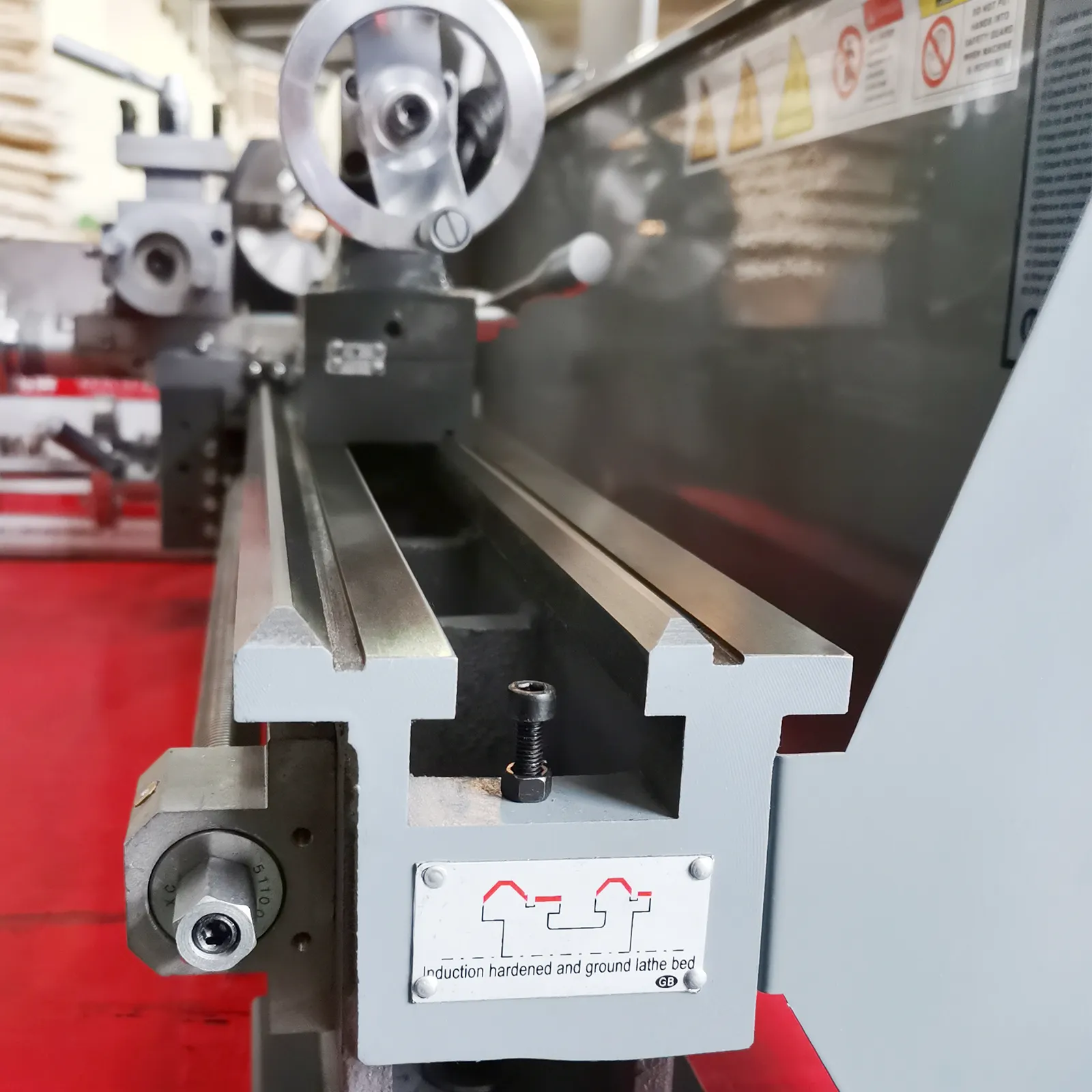

VEVOR metal lathe with precision bed, hardened and ground for accuracy, against a red industrial background.
Precision Steel Guide
The V-shaped precision steel guide has an automatic feed screw and high strength, ensuring the parallelism of the main axis and lathe body.

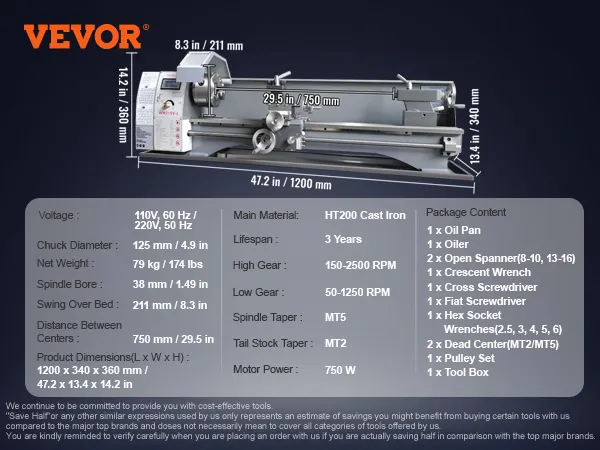

VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.VEVOR metal lathe with ht200 cast iron, 750w motor, rpm ranges 150-2500, and 29.5 in between centers.

Questions and Answers (37)

37 Questions
Ask a Question
Showing 1-37 of 37
Sort by: Featured questions
will this cut imperial threads?
Answer This Question
It can turn inch threads.
By vevor on
Are all feed screws and dials metric or imperial? Or is this a metric or imperial machine? Are additional gears needed to do the other threads not built in?
Answer This Question
It is metric. The matching change gear has been prepared and placed in the toolbox.
By vevor on
What is the maximum diameter stock this machine can handle. Will accept upto 2" round stock.
Answer This Question
The turning diameter on the tool holder is 55 mm, and the turning diameter on the bed is 210 mm. 1.5 inches of material can pass directly through the spindle bore.
By vevor on
Can i purchase another tailstock
Answer This Question
Sorry, we do not sell extra parts. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(Except for consumables). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor on
What size cutting tool to order with the stock tool post?
Answer This Question
The tool handle size is recommended to be 12*12mm.
By vevor on
