VEVOR linear guide rail set with two parallel rails and four bearing blocks on a white background. VEVOR linear guide rail set with 2 guide rails, 4 slide blocks for cnc machines and diy projects. VEVOR linear guide rail set with carbon steel linear shaft and aluminum alloy slide block and bracket. VEVOR linear guide rail set with slide block and ball bearing for low noise and unhindered movement VEVOR linear guide rail set: highly precise with accurate hole spacing and scratch-free rail surface. VEVOR linear guide rail set installation steps shown: align shaft end, push forward, fully insert. VEVOR linear guide rail set with specifications including length, diameter, and load capacity.
ZXDGSBR20MM125YV3V0

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

See All Customer Reviews
216 Reviews 1 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

1200 mm

  • 1000 mm
  • 1200 mm

About this item

  • SBR Linear Guide Rail Set: SBR20-1200 mm Linear motion guide rail includes 2 x 47.2 in/1200 mm length SBR20 guide rails and 4 x SBR20UU slide blocks. Dynamic Load Per Block: 882 N, Static Load Per Block: 1370 N.
  • Durable & Long-lasting: The linear rail is made of carbon steel and aluminum with a chrome-plated surface for rust resistance and high durability. Built-in 4 aluminum slide blocks and ball bearings for smooth and unobstructed sliding.
  • Low Noise Sliding: Aluminum SBR slide blocks and carbon steel linear shaft are perfectly paired. The built-in ball bearing provides low friction movement and is smooth and not tilted, allowing you to control more labor-saving.
  • High Precision: Precise circular shaft dimensions and straightness, ensuring high accuracy, repeatability, and stability in its motion. The sturdy aluminum base and slide block have accurate mounting holes, making it easy for users to perform reliable installation and connection.
  • Wide Application: The SBR linear rail set is versatile and suitable for all kinds of high-load automation equipment and DIY project, such as router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Linear Guide Rail Set, SBR20 1200mm, 2 PCS 47.2 in/1200 mm SBR20 Guide Rails and 4 PCS SBR20UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
1200 mm
Description Specification Questions and Answers Reviews
SBR Linear Guide Rail

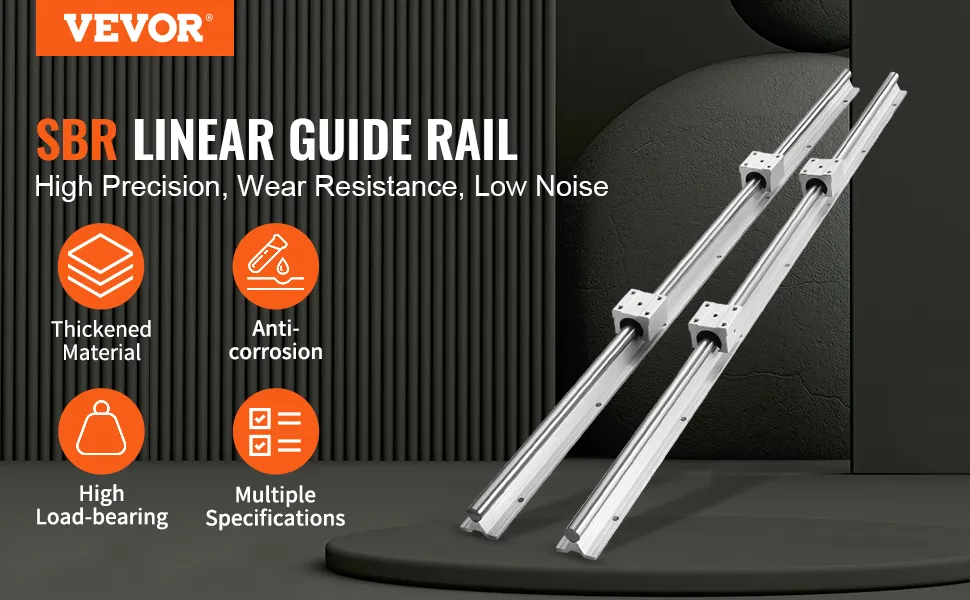

VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.
VEVOR sbr linear guide rail set with high precision, wear resistance, low noise, and anti-corrosion.
VEVOR high-quality SBR linear guide rail includes 2 guide rails and 4 slide blocks. The durable aluminum guide rails feature precise hole diameter and distance, while the SBR slide blocks utilize ball bearings for smooth and unobstructed movement.
Handle Pressure with Ease

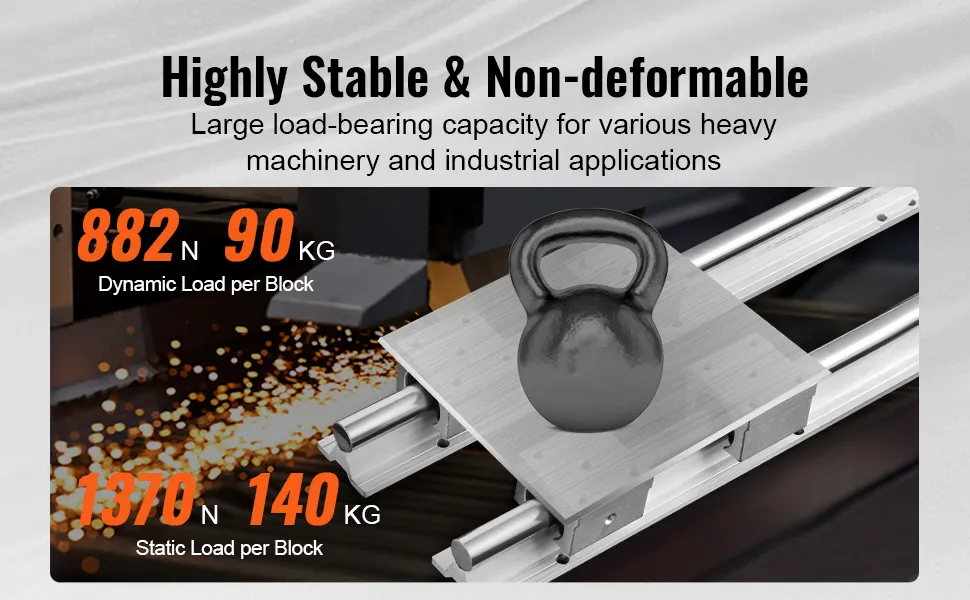

highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
highly stable VEVOR linear guide rail set with large load-bearing capacity for heavy machinery.
The linear bearing adopts an all-metal structure, and the slide block is tightly locked on the linear shaft, which has a high bearing capacity.
Smooth Sliding without Stutter

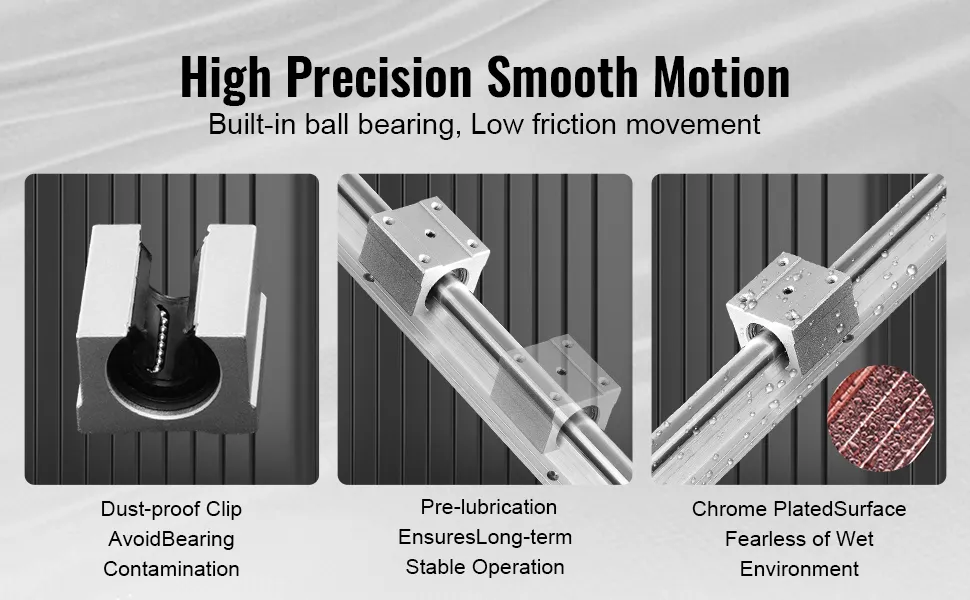

high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
high precision VEVOR linear guide rail set with built-in ball bearing, dust-proof clip, pre-lubrication, and chrome plated surface.
Aluminum SBR slide block and built-in ball bearings slide smoothly and move more effortlessly to ensure long-term stable operation.
More Accurate Than Ever

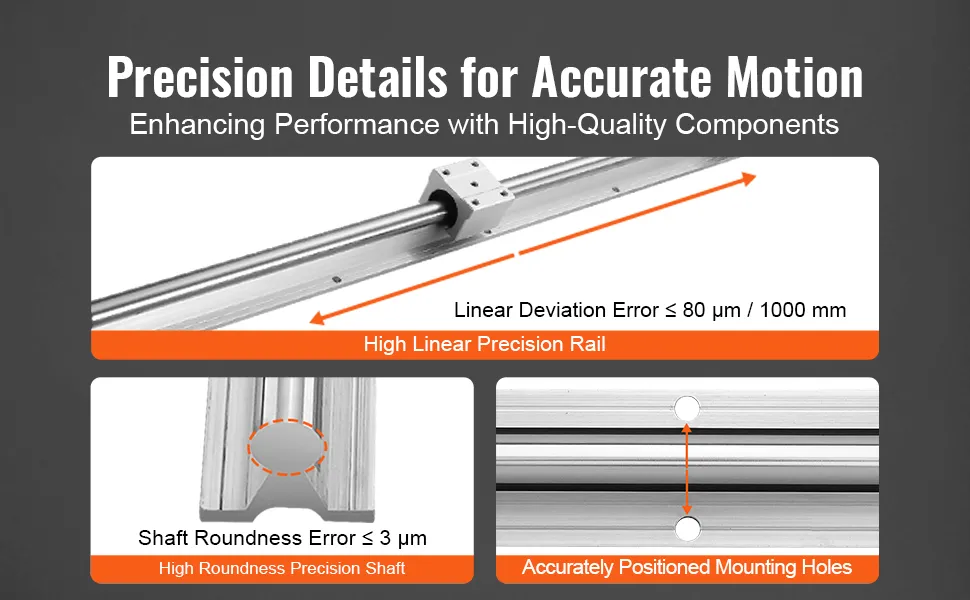

precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.
precision details of VEVOR linear guide rail set with accuracy metrics and high-quality components.
The linear motion guides have accurate hole distance, hole diameter, and standard shaft diameter, allowing you to install your equipment more precisely.
Broad Usage Scenarios

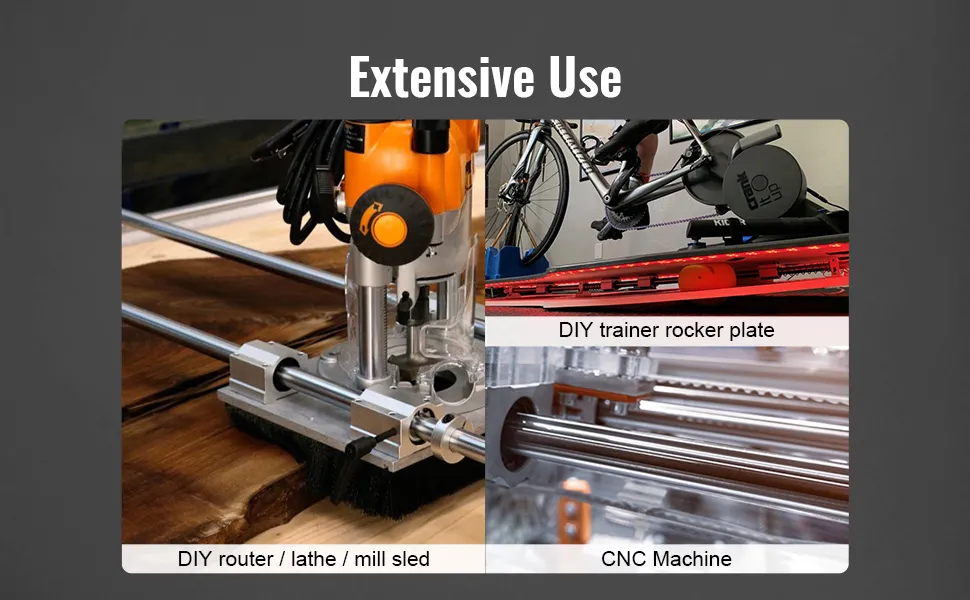

various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
various uses of VEVOR linear guide rail set: diy router, trainer rocker plate, cnc machine.
Linear rail kit is widely used in high-load automation equipment and DIY equipment production. For example, DIY CNC engraving machines, lathes, etc.

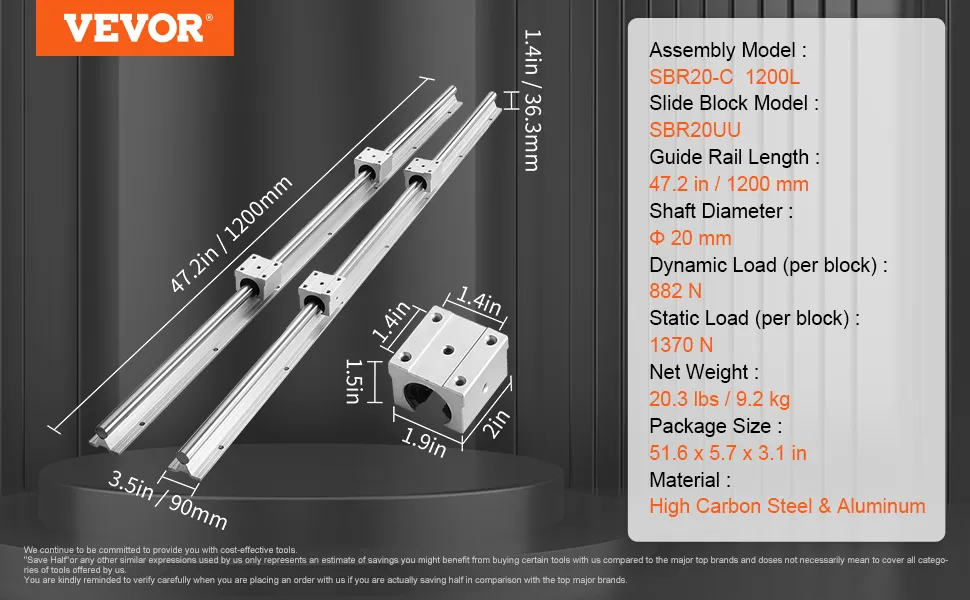

VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.
VEVOR linear guide rail set, 47.2in length, 20mm shaft diameter, high carbon steel and aluminum.

Specification

Model Number
SBR20-C 1200L
Slide Block Model
SBR20UU
Guide Rail Length
47.2 in/1200 mm
Shaft Diameter
Φ20 mm
Dynamic Load (per block)
882 N
Static Load (per block)
1370 N
Material
High Carbon Steel & Aluminum
Mounting Hole Distance A
1.4 in/35 mm
Mounting Hole Distance B
1.4 in/35 mm
Slide Block Size(L x W x H)
2 x 1.9 x 1.5 in/50 x 48 x 39 mm
Product Dimensions(L x W x H)
47.2 x 3.5 x 1.4 in/1200 x 90 x 36.3 mm
Package Size(L x W x H)
51.6 x 5.7 x 3.1 in/1310 x 145 x 80 mm
Net Weight
20.3 lbs/9.2 kg
Manual
Download Link
Questions and Answers
1 Questions
or Ask a Question
What size and thread are the 4 threaded holes on the bearing blocks for mounting
Answer This Question
M6.
By vevor
Helpful ( 0 )

Customer Reviews

4.8 Out of 5
Based on 216 reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
216 Review(s)
Clear filters
Thunter40 Thunter40
Heavy Duty
These rails are very heavy duty, I'm using them for a Router sled and the router is a 3.25 hp makita and it is very heavy but these rails have not problems with sagging
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Jose Alvarez Jose Alvarez
Carpentry hobbyist
I have received unbeatable service from VEVOR TOOLS with high quality products and at a price that I could afford.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Thomas Thomas
VEVOR Linear Guide Rail Set, SBR16 2000mm, 2 PCS 78.7 in/2000 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit
Awesome product. Used this for a sliding door flat on the floor in a barn attic Man-Cave entrance.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Bob McRae Bob McRae
Mr.
The guide blocks for the two sets of rails are different sizes with different hole patterns. Also, the blocks for the 1200mm rails have through holes while the blocks on the 2200mm rails are not drilled all the way through. I can see no reason for the blocks to be different. This made measuring and drilling the acrylic pieces that came with the 2200mm rail much more difficult. In contrast the through holes on the 1200mm rail blocks made it very easy to mark and drill out the acrylic router plate. Please consider using the same through drilled blocks for ALL your guide rails and your future customers should be much happier with their purchases. You might also consider selling acrylic pieces that are designed to connect the guide blocks on the 2200mm guide to the end stops on the cross rails. Having the acrylic pieces all pre drilled would make assembly much easier. Thank you, Bob McRae Bob.mcrae@gmail.com
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
GC GC
Woodworker
Bought these (2200mm and 1000mm) to make a router sled for flattening a large desktop I'm making. They worked great; looking forward to having another opportunity to use them. One minor issue was that one of the slider dropped some ball bearing during shipment, but Vevor took care of it right away.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Daniel Vervuurt Daniel Vervuurt
Good product
Good product. But dissapinted. Writes like new. But received as used.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
DD DD
woodworker 101
The rails are wonderful and work as described. Quality piece. Would have been nice if screws were available as I had to go to hardware store and purchase screws. Also, I would have liked is if the Router Plate was made available, a plate with drilled out holes that match up with the rail slides. If I missed something, please respond back with a part number for the plate....if none available then I will have to make one.......would prefer one that is already made with perfectly aligned screw holes already made. Other than that, good quality and quick shipping...
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Ruth Carroll Ruth Carroll
Great for the money!!
I see a lot of reviews on these sub level 4. Folks your getting \"good accuracy\" for a VERY CHEAP price. If you want betting quality, guess what, it costs major bucks! To Daniel with the router sled, you installed them upside down. The axial load is at its least support the way you have it. I suggest buying the 20mm full bearing SBR20 Linear Slide Rails instead. These are VERY good quality for the price.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Joe Schaffner Joe Schaffner
Sled rails.
Good bearings, made a router sled rolls easily and smoothly on the rails. Bearing blocks use four 6mm screws. I lasered a mounting plate from 1/4" acrylic to mount the Vevo rails.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Jason Richards Jason Richards
Excellent product
I have purchased several items from Vevor and have never been disappointed This is my second order and all items work great Thanks Vevor for the fast shipping and excellent products
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
