What Is a Magnetic Drill and Its Working Principle

When you ask what a magnetic drill is, you want to know about a tool that helps you make accurate holes in metal. A magnetic drill, also called a mag drill, uses a strong magnetic base to stick to steel surfaces. This feature lets you focus on drilling without holding the tool steady by hand.

You use a mag drill for drilling jobs that need precision and safety. The magnetic drill keeps the mag drill stable so that you can complete drilling tasks faster and with fewer mistakes. Understanding what a magnetic drill is and how it works helps you stay safe and achieve better results during drilling.

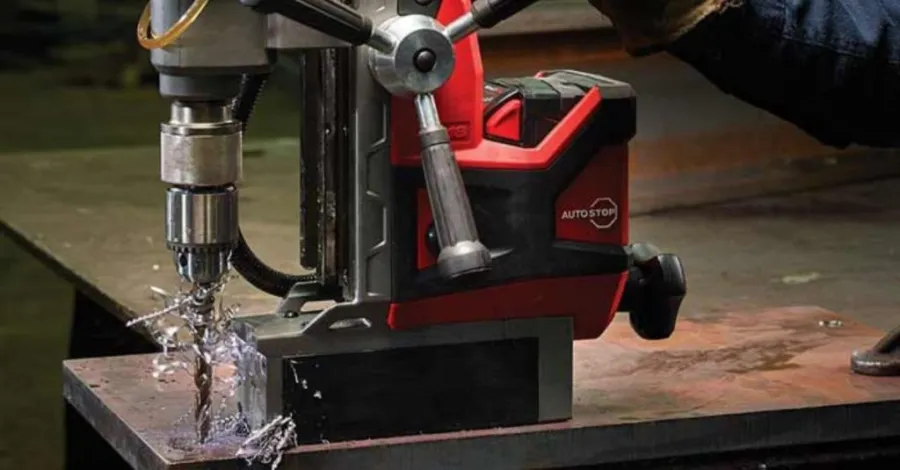

What Is a Magnetic Drill?

Mag Drill Definition

When you ask what a magnetic drill is, you want to know about a special tool for drilling holes in metal. You use a magnetic drill when you need to make precise holes in steel or iron. This tool has a strong magnet at its base. The magnet holds the magnetic drilling machine firmly to the metal surface. You do not need to keep the mag drill by hand while drilling.

The magnetic drill stays in place so that you can focus on accuracy and safety. A mag drill is also called a magnetic core-drilling machine. You can use a portable magnetic drill in many places, even on vertical or overhead surfaces. The magnetic drill works best on flat, clean steel. You can use the mag drill for drilling in workshops, construction sites, or factories.

Magnetic Drilling Machine Features

You will notice several features when you look at a magnetic drilling machine. The most important part is the magnetic base. This base creates a firm grip on steel or iron. You can trust the magnetic drill to stay steady during drilling. Most mag drills use special cutters called annular cutters. These cutters make round holes quickly and cleanly.

Some magnetic drilling machines allow the use of twist drills or other bits. You can find a portable magnetic drill that is easy to carry. This type of mag drill helps you work in tight spaces or on large steel beams. Here is a table to help you understand the main features of a mag drill:

Magnetic Drill Components

Magnetic Base

You will find the magnetic base at the bottom of every magnetic drill. This part enables the metal drilling machine to adhere firmly to steel or iron. You can choose between two main types of magnetic bases: electromagnetic and permanent magnet. An electromagnetic base uses electricity to create a firm hold. You turn on the magnetic base with a switch before you start drilling.

A permanent magnet base does not need power. It uses a strong magnet that always stays active. The magnetic base keeps the magnetic drilling machine steady during drilling. You must check the thickness of the steel before using the magnetic base. Thin metal may not provide sufficient grip for the magnetic drill.

Drill Motor and Body

The drill motor sits above the magnetic base. This part gives the magnetic drilling machine its power. You control the speed and force of the magnetic drill with the motor. The body of the magnetic drilling machine holds all the parts together.

You can move the magnetic drill up and down using a handle. The drill motor must match the size of the hole you want to make. A strong motor helps the magnetic drill cut through thick steel. You should always check the motor before drilling to ensure it is functioning correctly.

Arbor, Chuck, and Cutters

The arbor connects the drill motor to the cutting tool. You use the chuck to hold the cutting tool in place. Most magnetic drilling machines use annular cutters or broaching cutters as the main cutting tool. These cutters make clean, round holes in metal. You can also use twist drills with some of the best magnetic drills for beginners.

The cutting tool must fit the job you need to do. You should always use sharp cutters for the best results. The magnetic drilling machine works best when you use the right cutting tool for the material. You can drill holes for bolts, pipes, or wiring with the magnetic drill. The magnetic drilling machine gives you control and safety during every drilling job.

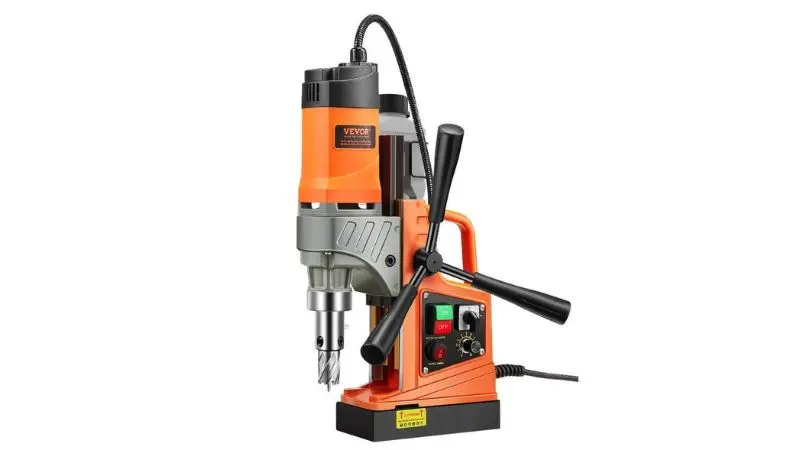

How Does a Magnetic Drill Work?

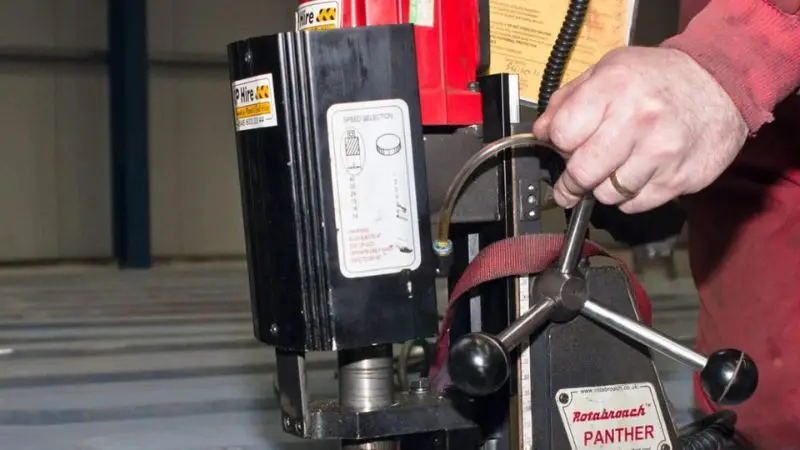

Step-by-Step Operation

You want to know how to use a magnetic drill safely before you start your project. You begin by placing the magnetic drill on the metal surface where you need a hole. You check that the area is flat and clean. You activate the magnetic base by pressing the power switch or lever. The magnetic base locks the mag drill in place. You select the right cutter for your job, such as an annular cutter or twist drill.

You attach the cutter to the arbor and secure it with the chuck. You set the drilling depth and adjust the speed on the magnetic drill. You turn on the drill motor. You use the feed handle to lower the cutter onto the metal. The mag drill starts drilling as soon as the cutter touches the surface. You let the magnetic drill do the work. You do not force the cutter.

Magnetic Base Function

The magnetic base is the heart of the magnetic drill. You rely on the magnetic base to hold the mag drill steady during drilling. You find two main types of magnetic bases: electromagnetic and permanent magnet. You activate an electromagnetic base by pressing a switch. The base uses electricity to create a strong magnetic field.

You use a permanent magnet base when you need a grip without power. The magnetic base works best on thick, flat steel. You must avoid rusty or painted surfaces because they weaken the grip. You use the magnetic base to keep the mag drill hands-free. You do not need to hold the drill while drilling. You can use a table to compare the two types of magnetic bases:

Drilling Process

You start the drilling process by setting up the mag drill. You choose the right cutter for your material. You use annular cutters for large, clean holes. You use twist drills for smaller holes. You attach the cutter to the magnetic drill. You check the magnetic base and make sure it is secure. You turn on the drill motor and set the speed.

You lower the cutter slowly onto the metal. You let the mag drill do the drilling. You do not push too hard. You watch the chips come out as the cutter moves through the metal. You use coolant to keep the cutter cool and extend its life. You may need a pilot hole if you use a large cutter. You drill the pilot hole first, then switch to the annular cutter.

Mag Drill Benefits and Uses

Advantages

You get many good things when you use a magnetic drill for metalwork. This tool provides strong stability due to the magnetic base holding it securely. You do not have to worry about the drill slipping or moving. You get clean and exact holes every time you drill. The magnetic drill helps you save time because the setup is quick. Here are some main benefits of using a magnetic drill for steel fabrication:

• Hands-Free Operation: The magnetic base keeps the drill steady so that you can guide the cutter easily.
• Portability: You can take a magnetic drill to different places or use it in small spaces.
• Versatility: You can use many cutters for different hole sizes and shapes.
• Safety: The magnetic drill reduces the risk of accidents by staying locked to the metal.

Applications

You can use it in many jobs and for different tasks if you know the magnetic drill’s safety tips. This tool works well for minor fixes and big building projects. You will find it helpful when you need to drill holes in steel beams, pipes, or heavy machines. Here is a table that shows common uses for a magnetic drill:

You can use a magnetic drill for tasks such as bolting, running wires, or preparing metal for welding. You will see how this tool makes drilling faster and more exact. Many workers choose a magnetic drill because it enables them to perform better and conserve energy.

Conclusion

You now know that a magnetic drill helps you make precise holes in metal with ease. The strong magnetic base keeps your drill steady and safe. You get clean results and save time on every project.

• You can use a mag drill for construction, repairs, or manufacturing.
• You choose the right cutter for your job and let the tool do the work.

Consider adding a magnetic drill to your toolbox. This machine can make your metalworking projects faster, safer, and more accurate.

FAQ

What is a magnetic drill used for?

You use a magnetic drill to make precise holes in steel or iron. The magnetic base holds the tool steady on metal surfaces. This helps you drill safely and quickly in construction, manufacturing, or repair projects.

How does a magnetic drill work?

You place the magnetic drilling machine on a metal surface. The magnetic base secures the mag drill. You attach the cutting tool, set the speed, and start drilling. The drill stays in place, so you get accurate holes.

How to maintain a magnetic drilling machine?

You clean the magnetic base after each use. You check the drill motor and cutting tool for wear. You keep the coolant system filled. You store your portable magnetic drill in a dry place to prevent rust.

How to choose a magnetic drilling machine?

You look at the thickness of the steel you want to drill. You check the power of the drill motor. You pick a magnetic drilling machine that fits your job size. You make sure it supports the cutting tool you need.

Can you use a mag drill on vertical surfaces?

You can use a mag drill on vertical or overhead steel. The magnetic base keeps the magnetic drilling machine secure. You must check that the surface is clean and thick enough for a firm grip.
