VEVOR 34 Inch Vinyl Cutter Machine User Manual
Precautions
- Protective material must be removed before turning on the cutting plotter.
- Check the label on the back side of the plotter to confirm that the rated voltage required by the plotter matches the voltage of the power base.
- First, ensure the power switch is off, then plug the power supply into a grounded power outlet.
- Please do not touch the power cord with wet hands to avoid electric shock.
- Please only use this product’s power cord, data cable, or manufacturer-approved replacements.
- Please do not drop metal objects and liquids into the machine to avoid malfunction.
- After shutting down, you must wait another 5 seconds to turn on the cutting plotter again; otherwise, it will be damaged.
- In thunderstorms, turn the power switch to OFF and unplug the power cord.
- Please do not privately change the manufacturer’s components.
- The manufacturer reserves the right to change product specifications without prior notice.
- The manufacturer only bears the legal obligations of the product itself sold to the users and does not bear other losses caused by the product’s malfunction.
- Without our company’s permission, no part of this manual can be copied or transmitted under any name.
- Do NOT drag the carriage by hand.
- If the machine makes an abnormal sound after being powered on, please turn off the power immediately and contact the after-sales department for feedback.
34 Inch Vinyl Cutter Machine Main Parts

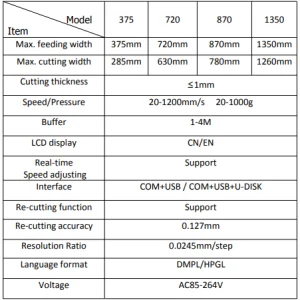

34 Inch Vinyl Cutter Machine Technical Parameters
Accessory Box
Bracket Assembly Diagram
Iron Bracket Assembly Diagram
Al Bracket Assembly Diagram
Sheet Metal Racket Assembly Diagram
Control Buttons Description and Operation Instructions
Blade Assembly
Assemble the blade into the holder, as seen below:
Loosen the blade adjustment nut and rotate the shank to adjust the length of the exposed blade tip. The tip length should be determined according to the thickness of the material.
Press the pressing rod when you want to change the blade; remove the blade when it is exposed.
Assembly the blade holder into the wagon:
- Loosen the fixed screw on the tool holder
- Put the blade holder into the tool holder
- Tighten and fix the blade holder when it arrives at the correct position
Tips:
Do not touch the blade tip with your finger; otherwise, your finger will be injured, and the tip will be blunt.
Software and Driver Installation
Open the software box (pic 1), take the disk and put it into the CD optical drive (pic 2)
Open the computer, double-click or right-click the optical drive to install the software. (pic 3)
After opening the optical drive, click Install Software (pic4)
Connection of Software and Machine
Open the software, select cut content, and click send to the cutting plotter.
Click the carving knife icon in the red box.
