VEVOR Door Threshold Ramp User Manual

Model: LD9YV0 /LYIMV0 /Z2UAV0 /GRBRV0 /OVUSV0 /SNPTV0

Safety Instructions

WARNING:

Carefully read and understand instructions and procedures before installing and using the threshold ramp. Do not modify the threshold ramp design.

• Do not move the door threshold ramp while standing on it.
• Do not use it in bad weather, such as wind, rain, snow, etc. It is recommended to use the ladder in clear weather.
• During installation, please wear gloves to prevent hand injuries.
• Do not stack items or allow children to play on the ramp.
• Regularly check the structure and fasteners of the ramp to ensure its stability and safety.
• If the surface of the ramp is worn or damaged, please replace or repair it in time.

Maintenance Guide

1. Place the door ramp on a sturdy, secure, accessible, and level starting point. The starting point’s minimum weight capacity must be equal to that of the ramp (800 lbs). Do not exceed the product’s maximum weight capacity.
2. Ensure that the product is securely flush against the starting point. If a safe, accessible, and level starting point cannot be found, or if the product does not fit securely against a higher starting point, do not use the ramp.
3. Do not tamper with, attempt to repair, or modify any part of the product. Exercise caution to avoid pinch points during assembly and handling.
4. If using the product with other mobility equipment, refer to the equipment’s user guide to understand the acceptable usage guidelines, including appropriate slope, incline, and chair direction. Do not exceed the mobility equipment’s recommendations.
5. Before each use, carefully inspect the fasteners on the ramp to ensure they are not loose. Tighten any loose fasteners if necessary.
6. When using the ramp, ensure it is securely flush against the starting point to ensure safety.
7. Before each use, clean the ramp surface of ice, snow, dust, leaves, and other debris. Remove accumulated ice and snow, and sweep the surface clean. Use a soft-bristle brush and non-alkaline detergent for dust and debris to clean the ramp surface, then rinse thoroughly.
8. The ramp surface may become slippery in wet conditions. Walk with caution and pay attention to your footing to prevent slipping.
9. If the ramp will not be used for an extended period, store it in a dry and well-ventilated area away from direct sunlight.

SAVE THESE INSTRUCTIONS

Product Description and Main Features

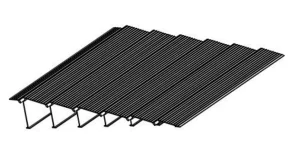

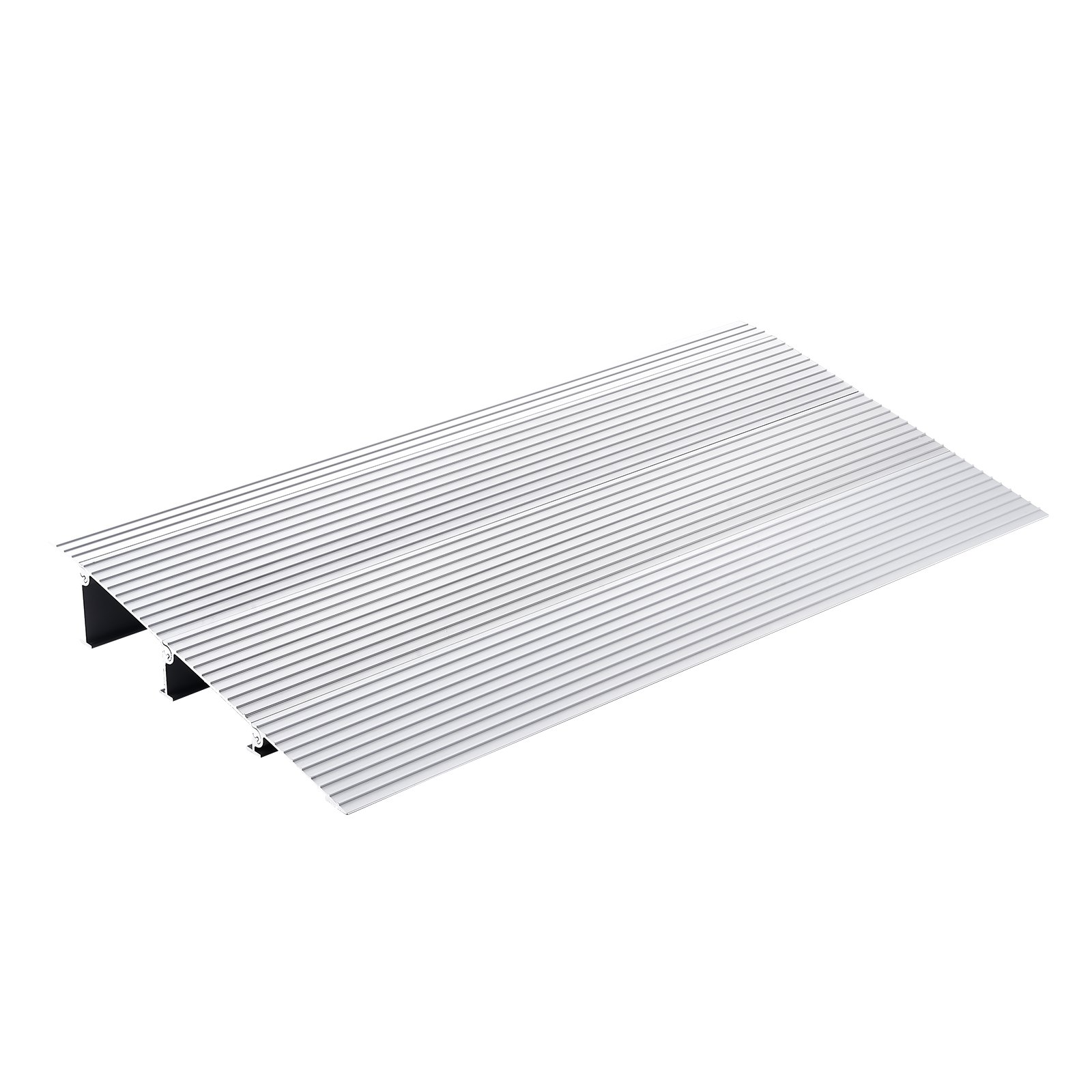

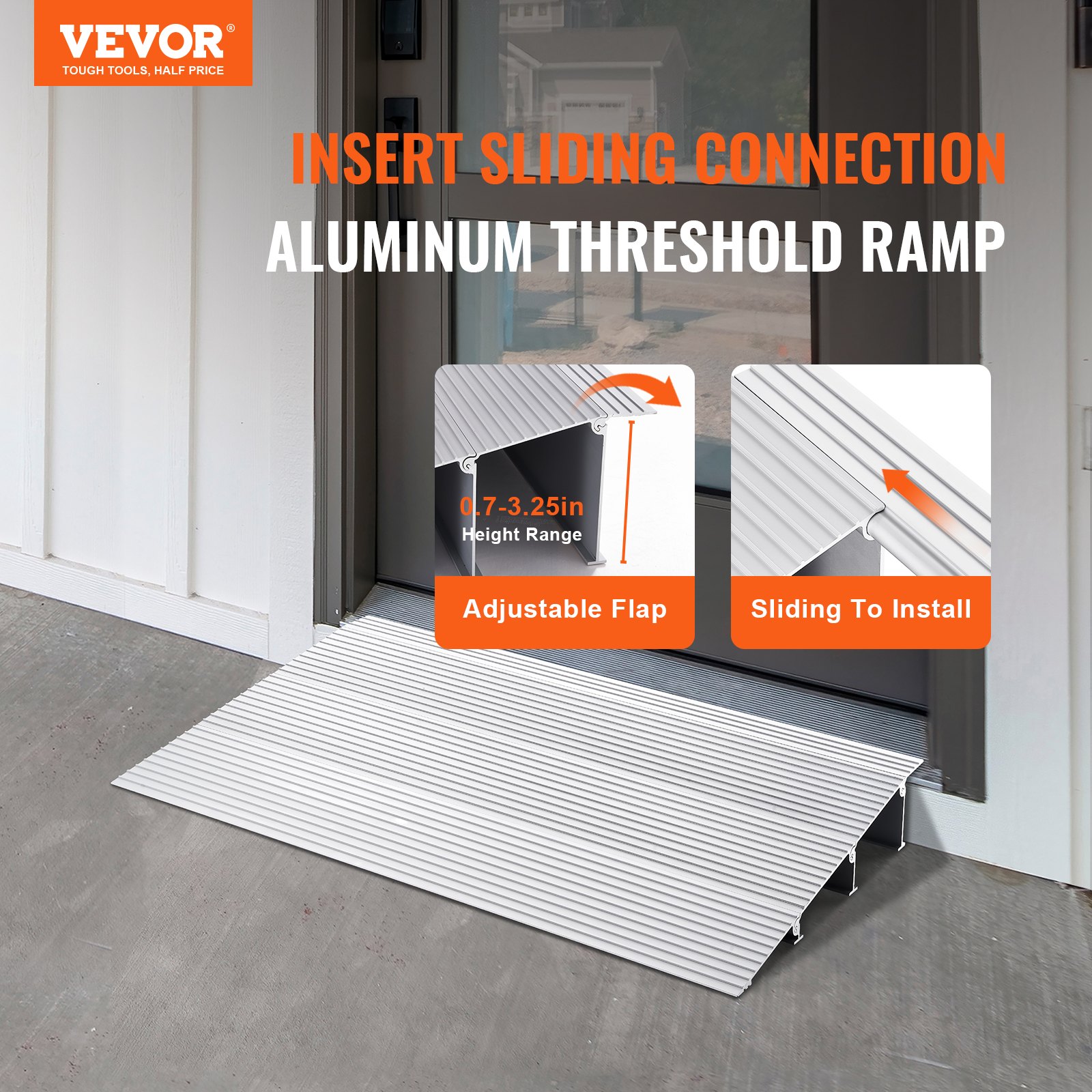

The threshold interlocking aluminum alloy ramp is made of quality aluminum alloy extrusion. This product is durable and provides convenience. It is lightweight, portable, stable, and durable, and features an interlocking design for easy installation and storage.

Door Threshold Ramp Main Features

1. Material: High-strength aluminum alloy, extruded.
2. Surface: Anti-slip treatment, deburring.
3. Interlocking design: Each section’s interface is precisely designed; align each section’s interface and push them together for installation.
4. Load limit: Up to 800 lbs.

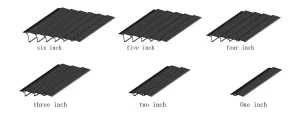

5. Height optional: suitable for thresholds of different heights.

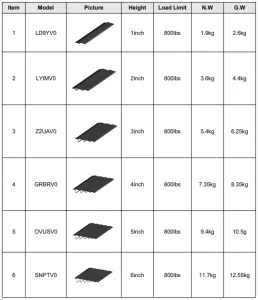

Product Parameter

Door Threshold Ramp Installation Guide

• Before starting the installation, please wear gloves to protect your hands.
• Choose an appropriate installation location, ensuring the ground is level and firm.
• Align and interlock each ramp section together until all parts are even.

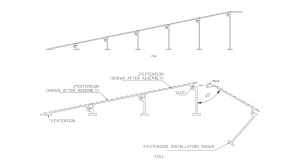

• Starting with the 1” extension, install the threshold extensions in the order shown (FIG. 1) until the final height is reached. Bring the threshold extensions together at an approximate 45° angle, then rotate them into place after the bulb is engaged in the slot.

• Use the provided screws to tighten each section of the ramp to ensure that the ramp does not slip out or make noise during use.

• After installation, check whether the ramp is stable and tightly attached to the ground.
• When using the ramp, push the equipment up and down the ramp steadily, avoiding sharp turns or speeding.
