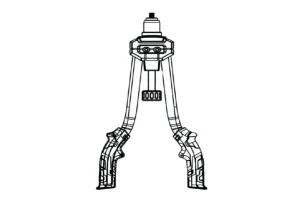

VEVOR Rivet Nut Tool User Manual

MODEL: DY-8804

Intended Use of the Rivet Nut Tool

This tool is intended to be used to install metric M4, M5, M6, M8, M10, M12 and SAE 10-24, 1/4-20, 5/16-18, 3/8-16,1/2-13 rivet nuts.

Do not use this tool outside of its intended use. Never modify the tool for any other purpose or use.

Safety Precautions

Caution: To help prevent personal injury.

• Regular use of this product will likely expose the user to dust and/or microscopic particles containing chemicals that cause cancer, birth defects, or other reproductive harm. Always wear appropriate safety equipment and clothing when using this product. Study, understand, and follow all instructions provided with this product.
• Always wear CERTIFIED GOGGLES when using this product. (Users and By-standers)
• Always select the correct accessories of the proper size and design for the job that you are attempting to perform.
• Never use this tool for any application other than for which it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.

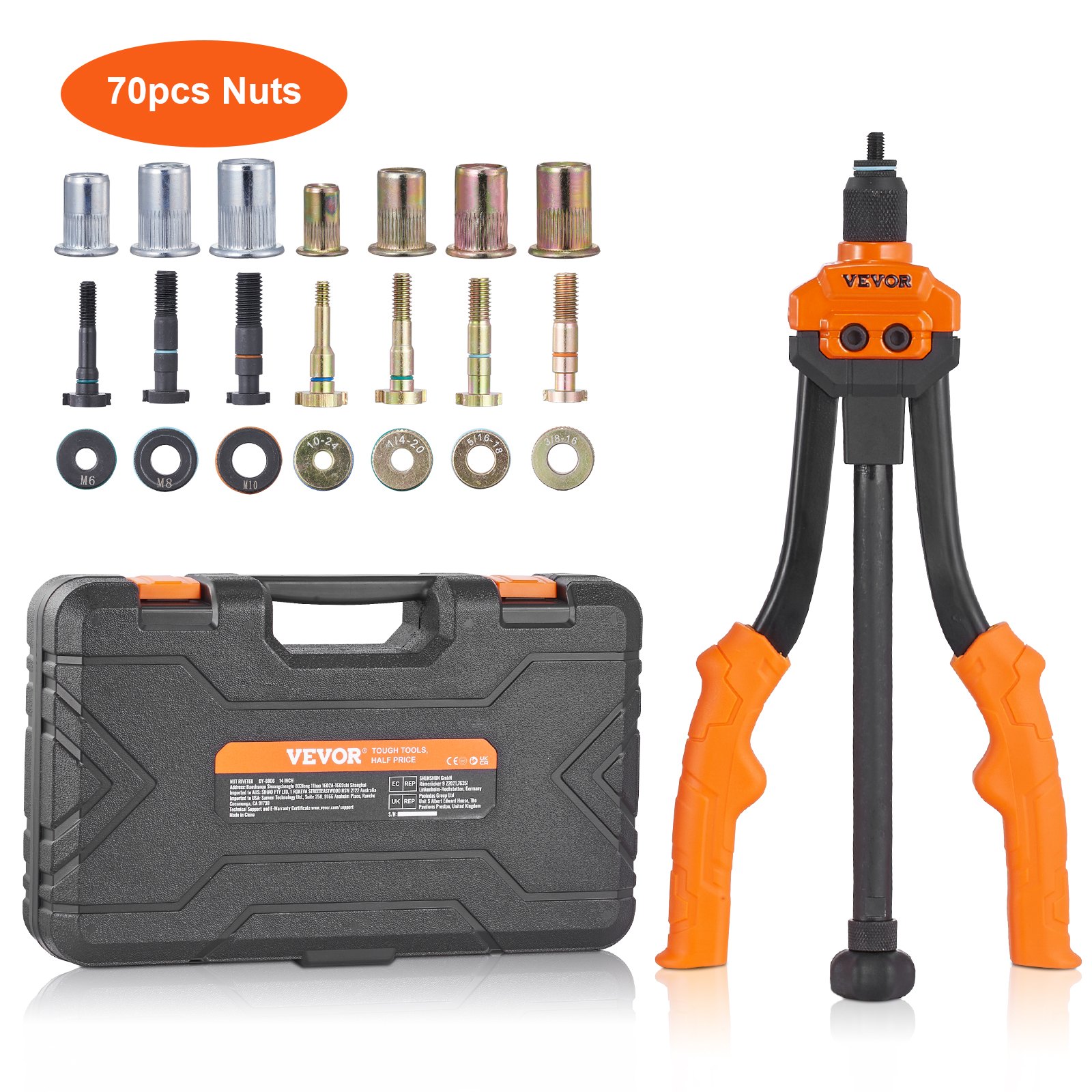

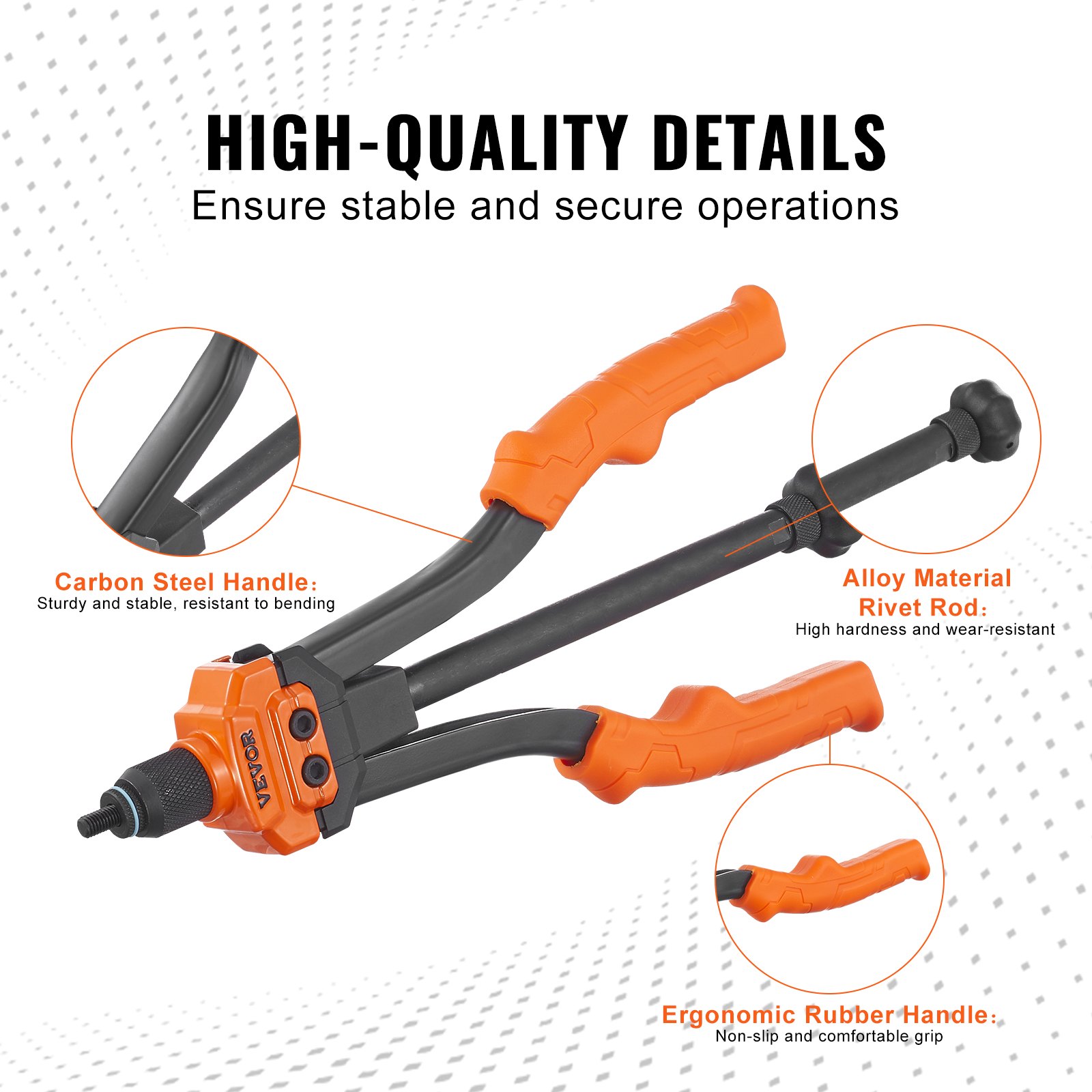

Set Includes

16-in-hand riveter

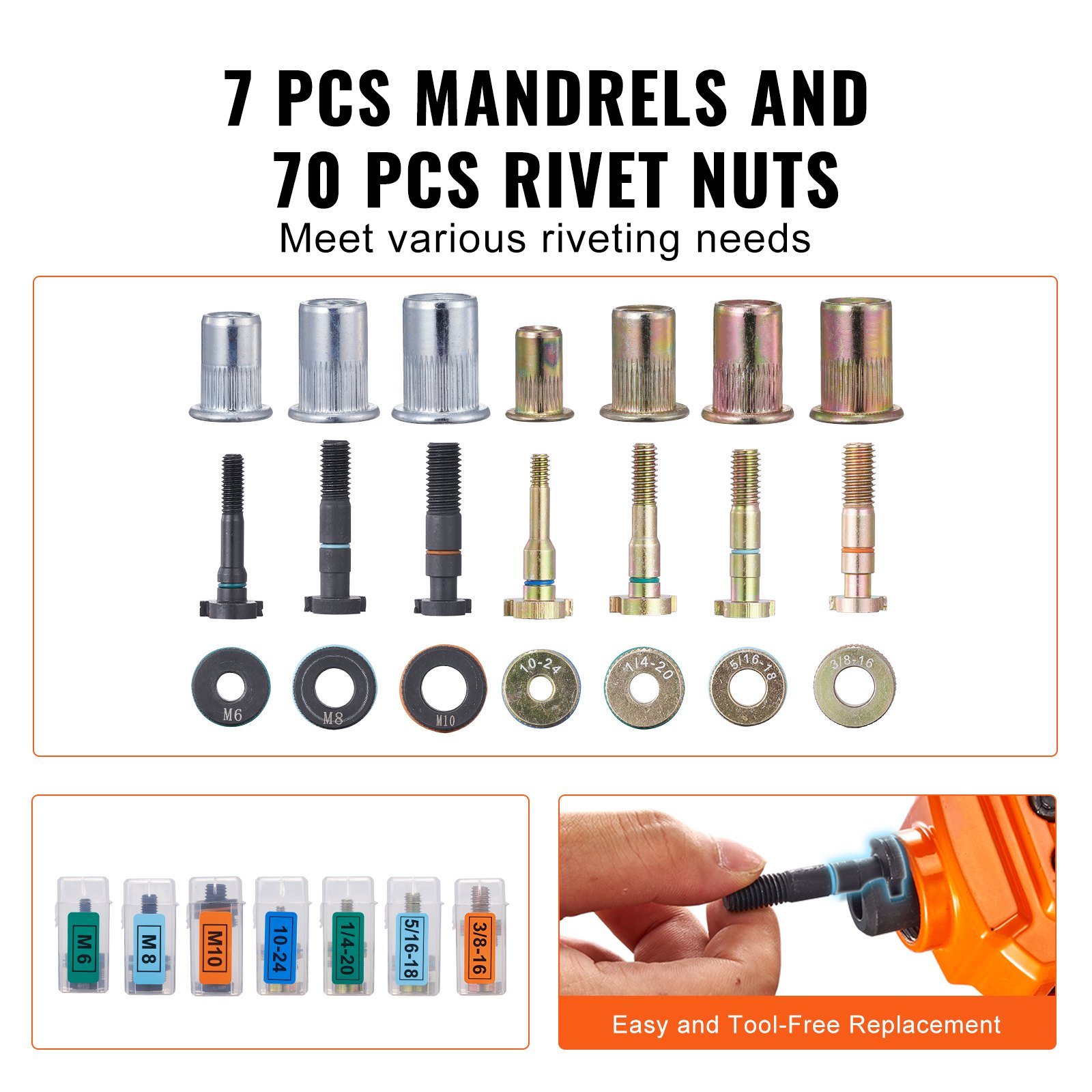

Interchangeable threaded mandrels & nosepieces:
M3, M4, 10-24, M5, M6, 1/4-20, 8-32, 5/16-18, M8, 3/8-16, M10, M12, 1/2-13, 1pc

Steel rivet nuts: 10-24, 1/4-20, M6, 5/16-18, M8, 3/8-16, M10, 10pc

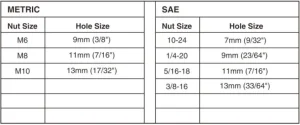

Hole Size Guide

Rivet Nut Tool Operation Instructions

1. Choose the rivet nut size to be installed.
2. Install the correct-size mandrel/nosepiece for the rivet nut. See photos and instructions for changing the mandrel/nosepiece.
3. Drill a hole in the workpiece the same size as or slightly larger than the outside diameter of the rivet nut to be installed. Refer to the section “HOLE SIZE GUIDE.”

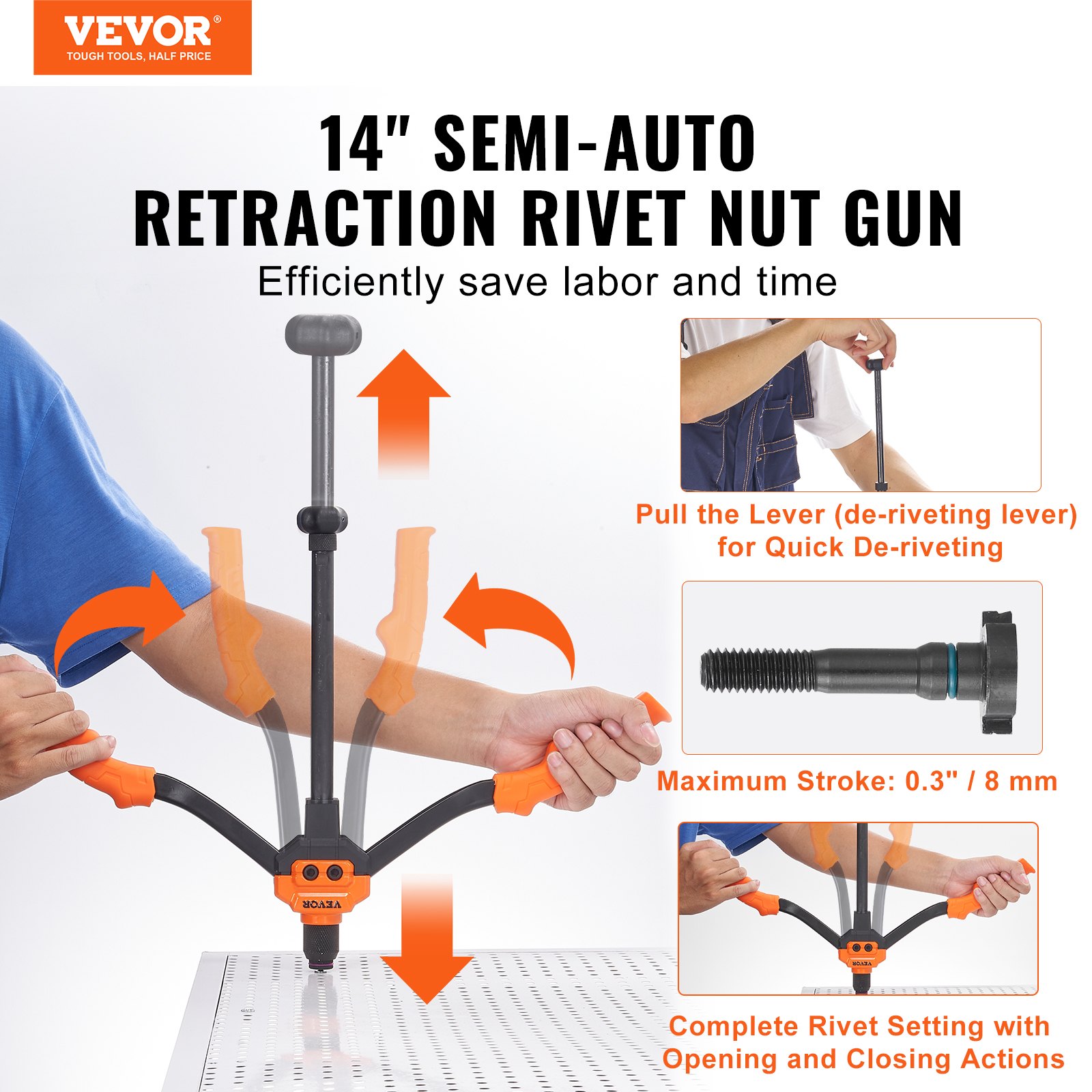

4. To install the rivet nut, open the handles outward as far as possible and thread the rivet nut clockwise onto the mandrel until reaching the nosepiece.
5. Insert the rivet nut fastened to the riveter into the pre-drilled hole until flush with the workpiece, squeeze the two handles to touch the workpiece, and secure the rivet nut into the hole. Open the handles outward to completely unscrew the threaded mandrel from the gripped rivet nut.

How to Change the Threaded Mandrel and Nosepiece

1. Remove and install the mandrel and nose pieces. Always keep the matched mandrel/nosepiece sets
   together.
2. Remove the nosepiece from the sleeve nut by unthreading the nosepiece anticlockwise. (see Fig. 1)
3. Remove the sleeve nut by unthreading anticlockwise. (see Fig. 2)
4. Take out the mandrel directly to remove it from the head. (see Fig. 3)
5. Choose the correct mandrel/nosepiece to install.
6. Thread the new mandrel into the tool.
7. Install the sleeve nut and nosepiece.

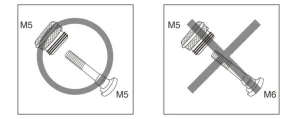

CAUTION: Store matching nosepieces and mandrels together when not in use to prevent mismatching the sizes, and for convenience.
