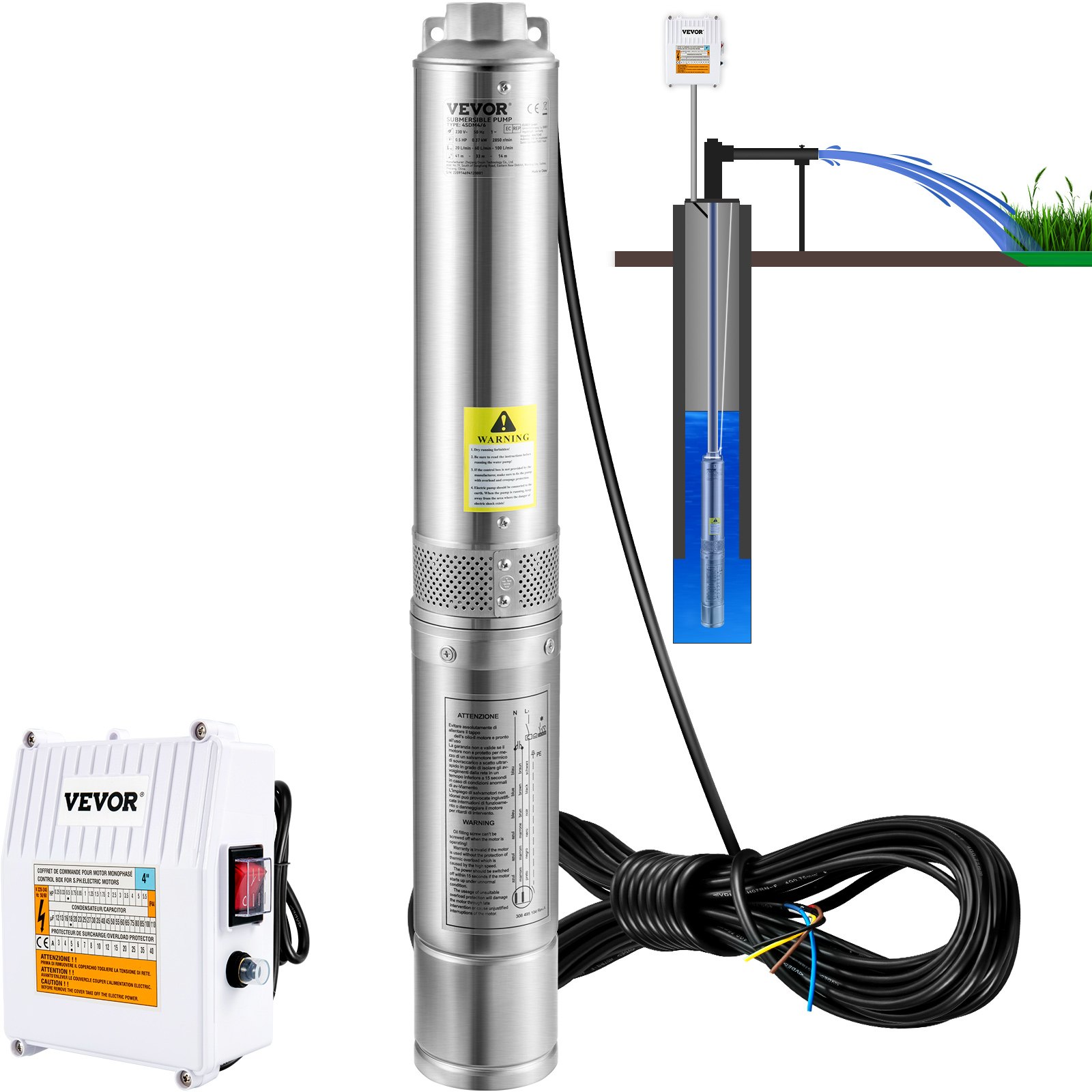

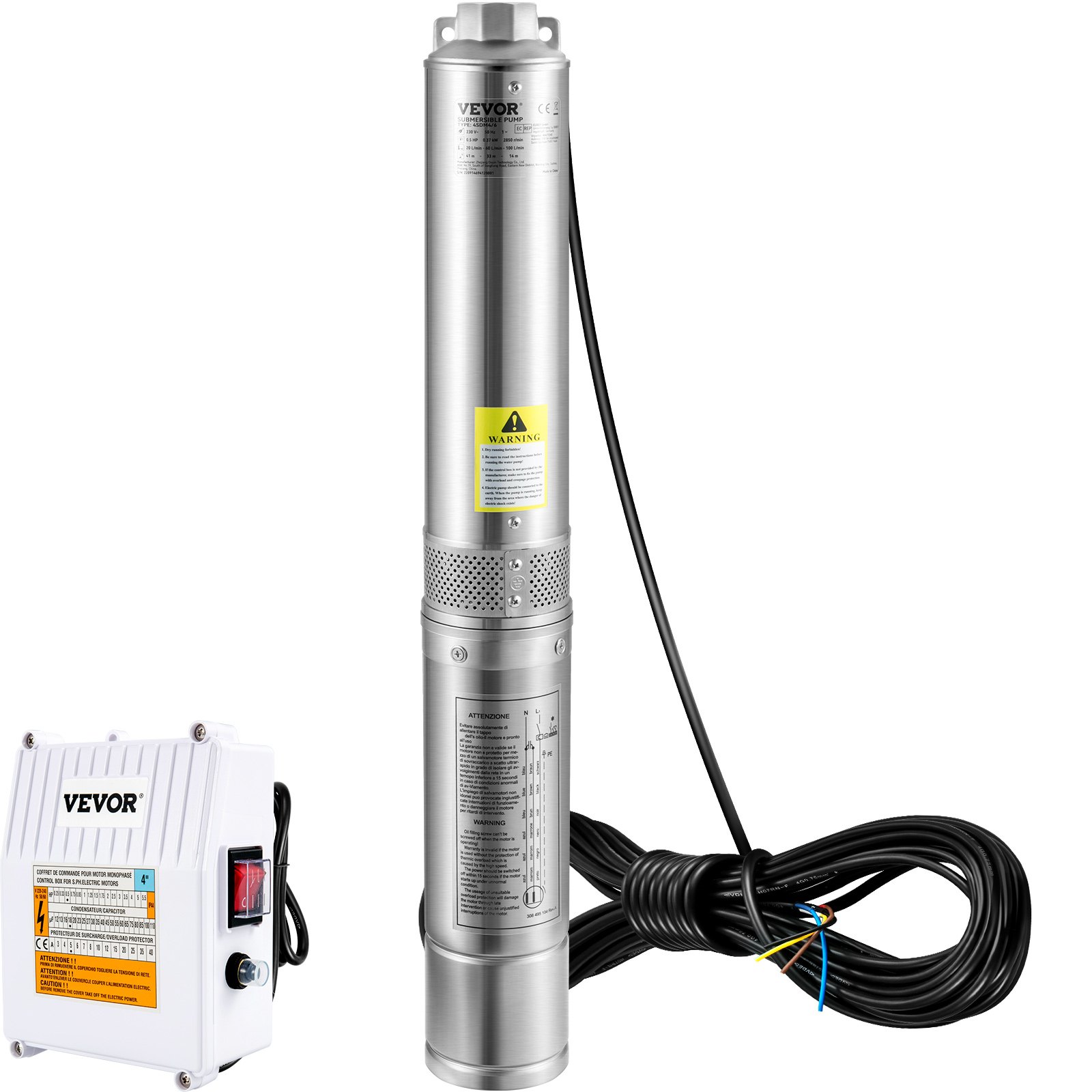

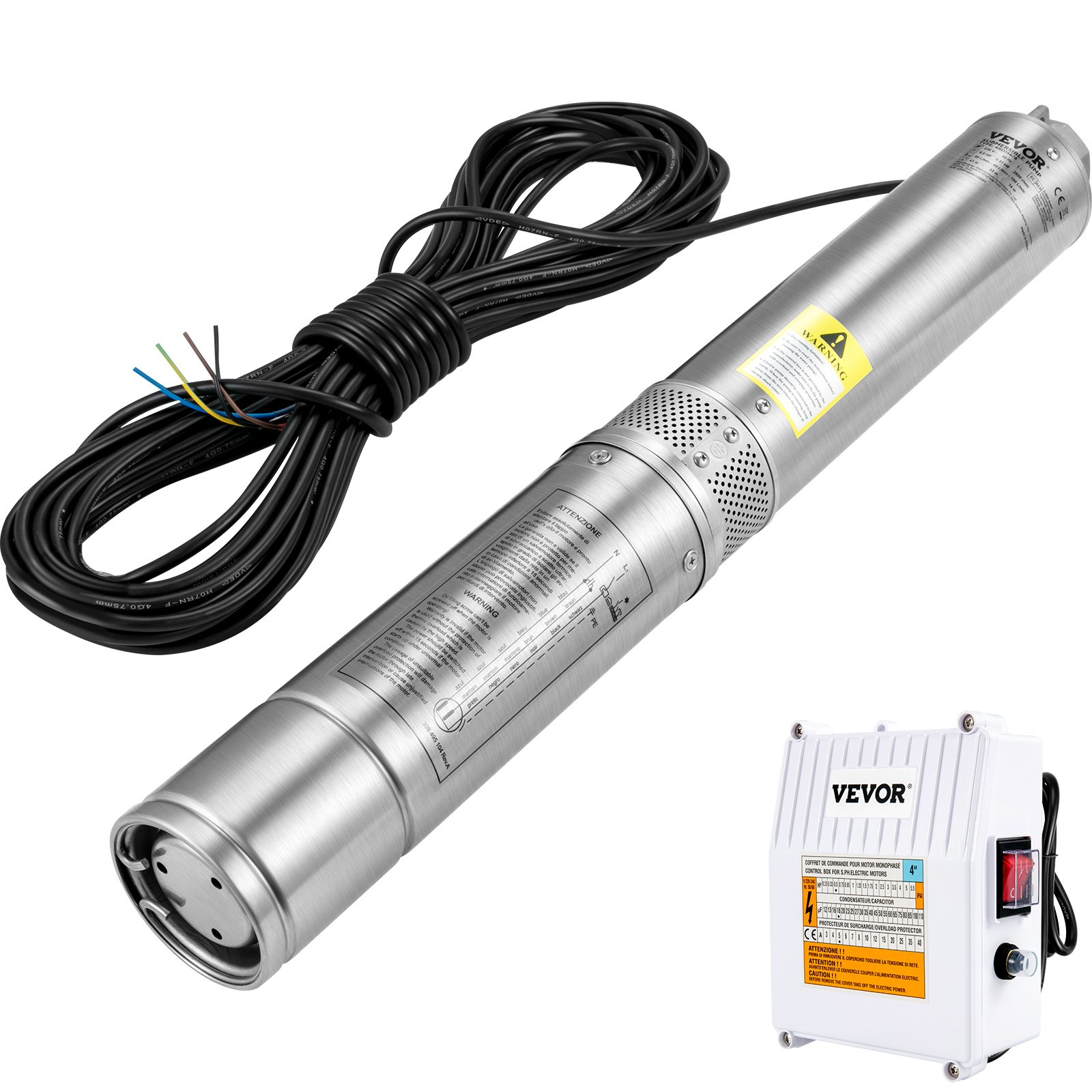

VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof
VEVOR Deep Well Submersible Pump, 2HP 230V/60Hz, 37GPM 427 ft Head, with 33 ft Cord & External Control Box, 4 inch Stainless Steel Water Pumps for Industrial, Irrigation and Home Use, IP68 Waterproof

Features & Details

  • Enhanced Pump Flow & Head: Power: 2HP, 230V; Diameter: 4" (for 4" or bigger well casing); Discharge: 1-1/4" NPT. This deep well submersible pump is designed with 12-stage thermoplastic impellers, providing 37GPM max flow and 427 ft max head. It comes with an external control box and a 33 ft electric cord, making life without modern plumbing a lot easier. Pump out your worries with ease and relax. No challenge is too big for you.
  • Upgraded Stainless Steel: The whole frame of our deep well pump is unlike anything on the market. It is made of stainless steel, including the outlet and connecting components. You don't have to worry about it becoming rusted or corroded after being underwater for a long time. With ETL certification and IP68 waterproof grade, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is in front of you!
  • Reliable Copper Motor: Are you tired of previous submersible well pumps failing you? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable running. The motor features built-in overload protection, allowing it to automatically stop when stuck or during abnormal situations to prevent burning. NOTICE: DO NOT use it without water or at a low water level to avoid idle running.
  • Trouble-free Check Valve & Filter: This well pump has a built-in check valve to prevent back-flow (an additional check valve is highly recommended). The stainless steel filtration mesh is designed to filter impurities. You can add a layer of gauze in front of the filtration inlet for a new drilled well that may contain excessive granular sediment. Keep impurities out without the headache.
  • Use It Anywhere: Whether you want to solve water supply problems for industry, farmland, or home, this deep water well pump is the one you can trust. It works excellently as a garden water source and sprinkler for the kids. You can use the pump for extracting water from deep wells, reservoirs, canals, rivers, and other water-lifting works.
See More

Frequently Bought Together

Videos for this product

Reviews 4.8

All reviews are from verified purchases
Average rating based on 118 reviews
Top Reviews
Max Max
Reviewed on May 15,2025
I purchased this pump for a temporary well pump while I saved up for a goulds pump which are a few thousand. In any case this pump had been working flawlessly since day 1, I used an Ibc tote to test water volume as I did not believe the 37gpm. I’m happy to say at 192’ I was able to pump 41 gallons per minute! I’ll be updating the day it breaks but don’t believe the hype of needing the 3k pump
Nolton Nolton
Reviewed on Apr 25,2025
Working great. I checked the quantity of water pumping and it was spot on. Has been. It has been installed about three months and is used on a daily basis.
Lloyd E Mace Lloyd E Mace
Reviewed on Apr 23,2025
I haven't actually got it in the ground yet so any kind of review would be a moot discussion. Quality looks very good though
Don roux Don roux
Reviewed on Apr 20,2025
Very satisfied with our purchase, came fast and was exactly as ordered. Working perfectly!
Morgan lentz Morgan lentz
Reviewed on Apr 09,2025
Excellent price , good stainless steel pump housing. You can tell it's heavy duty. The local well man who is a friend of mine wanted $600.00 for a pump . Lowe's and home Depo's pumps started at over $400 and went up from there . I was a little skeptical about purchasing, needed water but for the money different I figured we could go elsewhere to shower for a couple days . Vevor shipped the pump right out I received it earlier than expected in good condition and it came with 39' of the high dollar wire the well people rob you on . Installed the pump ran the well off and have had no problems what so ever with the pump . I have 4 houses that have private wells I just ordered another pump to put in my tool trailer so when the next 1 quits I will already have a pump and I will reorder to keep 1 in stock . The pump I replaced came from Lowe's and was about a year and a half Old. When I started looking for a pump I read the reviews on the brands Lowe's and home Depo sell , numerous people had them go out from as soon as 3 months to about a year and a half like mine . It's to much work and to expensive ( if you don't do it your self) to be replacing the pump every year or so . The pump I replaced before with the Lowe's pump was 35 years old and still work but the well casing had a crack in it and I had to pull the well anyway so I wasn't going to drop a 30 plus year old pump back in it probably would have lasted longer than the one I put in . Very good value .
Adrian Fleitas Adrian Fleitas
Reviewed on Apr 03,2025
So far great product
Alexander King Alexander King
Reviewed on Mar 16,2025
No place for different shipping ddress but recognized in comments flawless arrived early. No place for different shipping ddress but recognized in comments flawless arrived early. No place for different shipping ddress but recognized in comments flawless arrived early.
James Bulloch James Bulloch
Reviewed on Mar 13,2025
Great pump the metal wire protector makes it larger than 4 inches with out some modifications
WillyMiranda WillyMiranda
Reviewed on Mar 12,2025
I use this pump to move/transfer water about 275 feet. It's quite and moves about 35GPM. Works great, the only drawback is the diagram. It took me some time to figure out the proper wiring. It's a heavy pump but it works fine.
Holden Holden
Reviewed on Mar 10,2025
I installed this pump almost a year ago! I had installed one in 2022 it was a different style pump and it lasted about a year and a half at 330 feet deep. It was a vevor 3hp pump but it was their old style. This is an improved style and I've noticed it soft starts much better! It produces gobs of water and I think this is this pumps downfall. I get 20-25 gpm from this pump at 330 below the surface. All is from 1 1/4 inch line. Easy to install

About this item

Product specification
Model
4SSM5/12
Material
Stainless Steel
Power
2HP/1500W
Voltage
230V/60Hz
Max. Flow
37GPM (140L/min)
Max. Head
427 ft/130 m
Sand Resistant
<5%
Pump Diameter
4"/10.2 cm
Discharge Size
1-1/4" NPT (3.2 cm NPT)
Electric Cord Length
33 ft/10 m
Impeller Stages
12
Max. Speed
3450 r/min
Work Temperature
32℉-104℉/0℃-40℃
Certification
ETL
Waterproof Grade
IP68
Insulation Class
F
Description

Unlock Deep Water Sources — Industrial Water Pump

Get reliable water extraction with this deep-well submersible pump. It is designed for homes, farms, and businesses. It is built to last with stainless steel and works well even in tough conditions. The pump’s strong motor and high-quality parts provide plenty of water with low energy use. This 2HP deep well pump offers dependable performance and durability. You can get water for irrigation and household use with less effort.


High Performance with Copper Motor

The VEVOR deep well submersible pump is strong and reliable. It has a sturdy copper motor that uses less energy to run smoothly and has superior insulation. In order to prevent damage, the motor also features built-in protection that will turn it off immediately if it overheats or becomes stuck.


This industrial water pump is built to last and fix any issues you might have had with previous pumps. The high-precision rotor ensures stable performance over time. It's crucial to avoid using the pump in an unfilled or low-water condition since this may result in harm. The 427ft head water pump offers consistent, reliable performance you can count on.


Strong Construction for Durability

Many ordinary pumps, made from lower-quality materials, can quickly rust, corrode, or even break down after extended use underwater. The VEVOR deep well submersible pump is a long-lasting option. The pump's connecting components and outlet are made of stainless steel. Even after spending much time underwater, rust or corrosion is not a concern. It has an IP68 waterproof rating and an ETL certification, meaning it should last 8 to 10 years.


You can feel secure because the strong stainless steel design keeps anything from breaking. The irrigation submersible pump has strong impellers and holes for attaching wire or rope, making it easy to use. Plus, the double ball bearing and stainless steel parts keep the pump running smoothly and quietly. The VEVOR deep well submersible pump is a great choice for long service life.

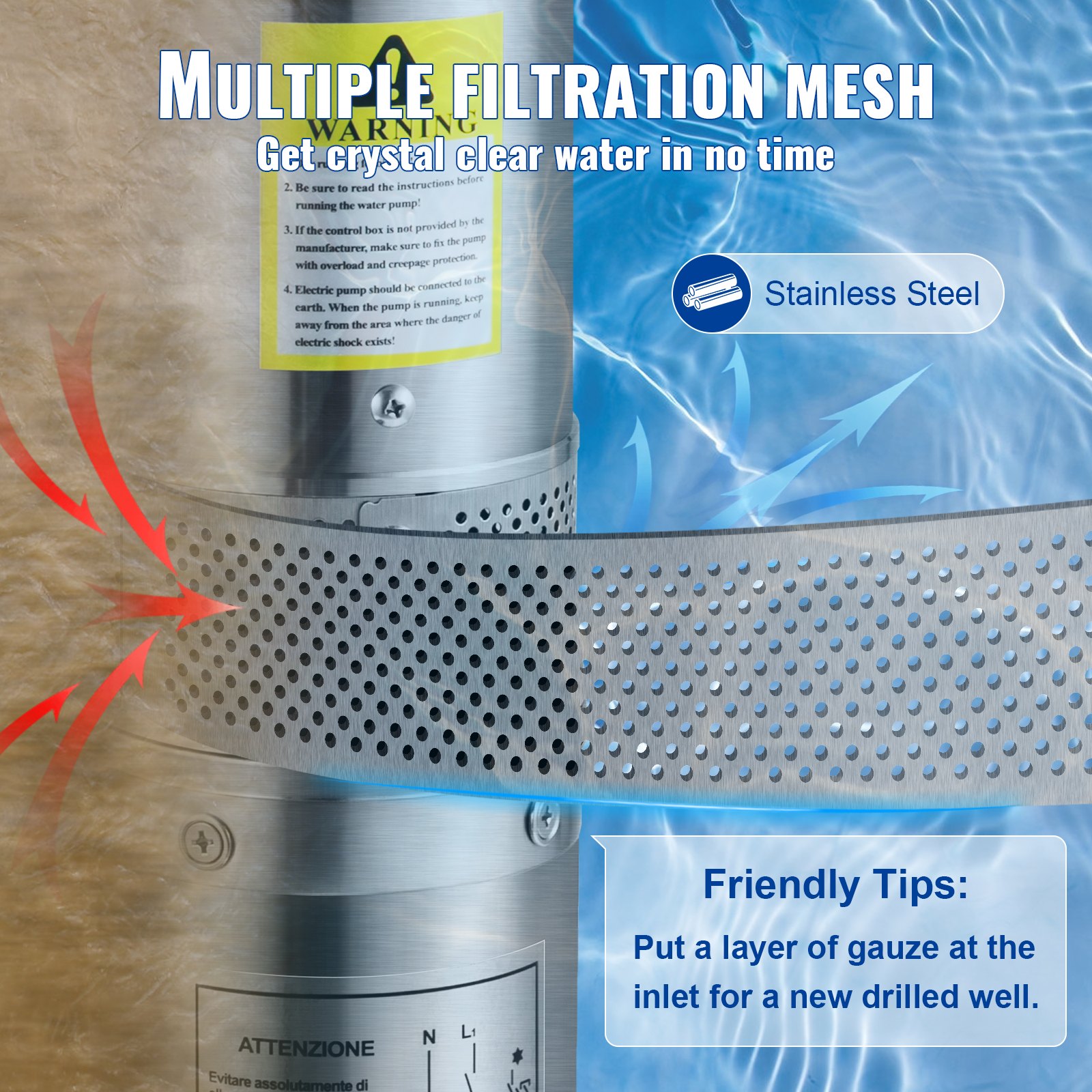

Superior Filtration & Back-Flow Prevention

Your pump may occasionally become clogged with dirt and debris, shortening its lifespan and leaving your water muddy or filthy. These issues may necessitate expensive upkeep and repairs. The VEVOR deep well submersible pump keeps your water clear and stops any unintentional backflow. It includes an integrated check valve to prevent water from returning to the well. It adds an additional check valve for more security.


Additionally, the industrial water pump has a stainless steel filter that collects particles of dirt and debris to ensure that only pure water is released. If your well is new and might have a lot of sediment, you can add a layer of gauze in front of the filter to catch even more particles. This helps keep your water crystal-clear and free from impurities.


Effortless Installation & High Head Lift

This deep well submersible pump is easy to install and delivers powerful performance. You can set it up either vertically or horizontally, depending on your needs. Just make sure the pump is fully underwater to avoid damage from running when idle. This pump is strong.


It has a 2 HP motor that pushes water at 37 gallons per minute and can lift water up to 427 feet high. It works with 4-inch or larger well casings and uses a 1-1/4" NPT discharge. The irrigation submersible pump features 12 stages of thermoplastic impellers for efficient water flow. It also comes with an external control box and a 33-foot electric cord, making it easier to install and use.


Versatility for Every Application

The VEVOR deep well submersible pump is designed to handle many different water needs. It’s perfect for homes, where it can supply fresh water and even help with watering your garden or playing with sprinklers. The pump is also great for farms, providing water for crops and irrigation.


Beyond home and farm use, this pump is versatile enough for industrial and urban tasks. It can drain water from cities, factories, railways, and mines. This 2HP deep well pump is a dependable option for a variety of water tasks, whether you need to extract water from deep wells, reservoirs, canals, or rivers.

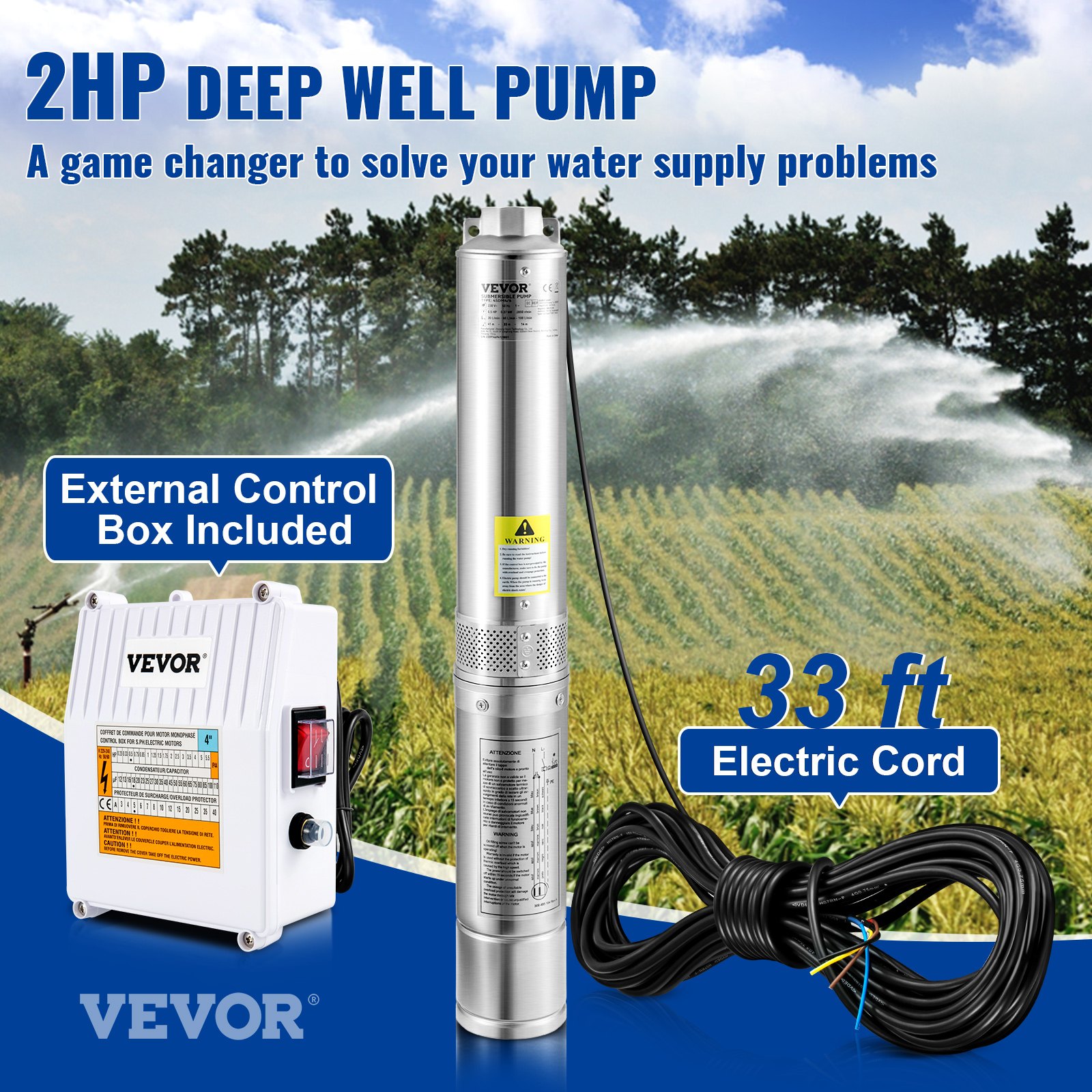

2HP Deep Well Submersible Pump
37 GPM Max. Flow & 427 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

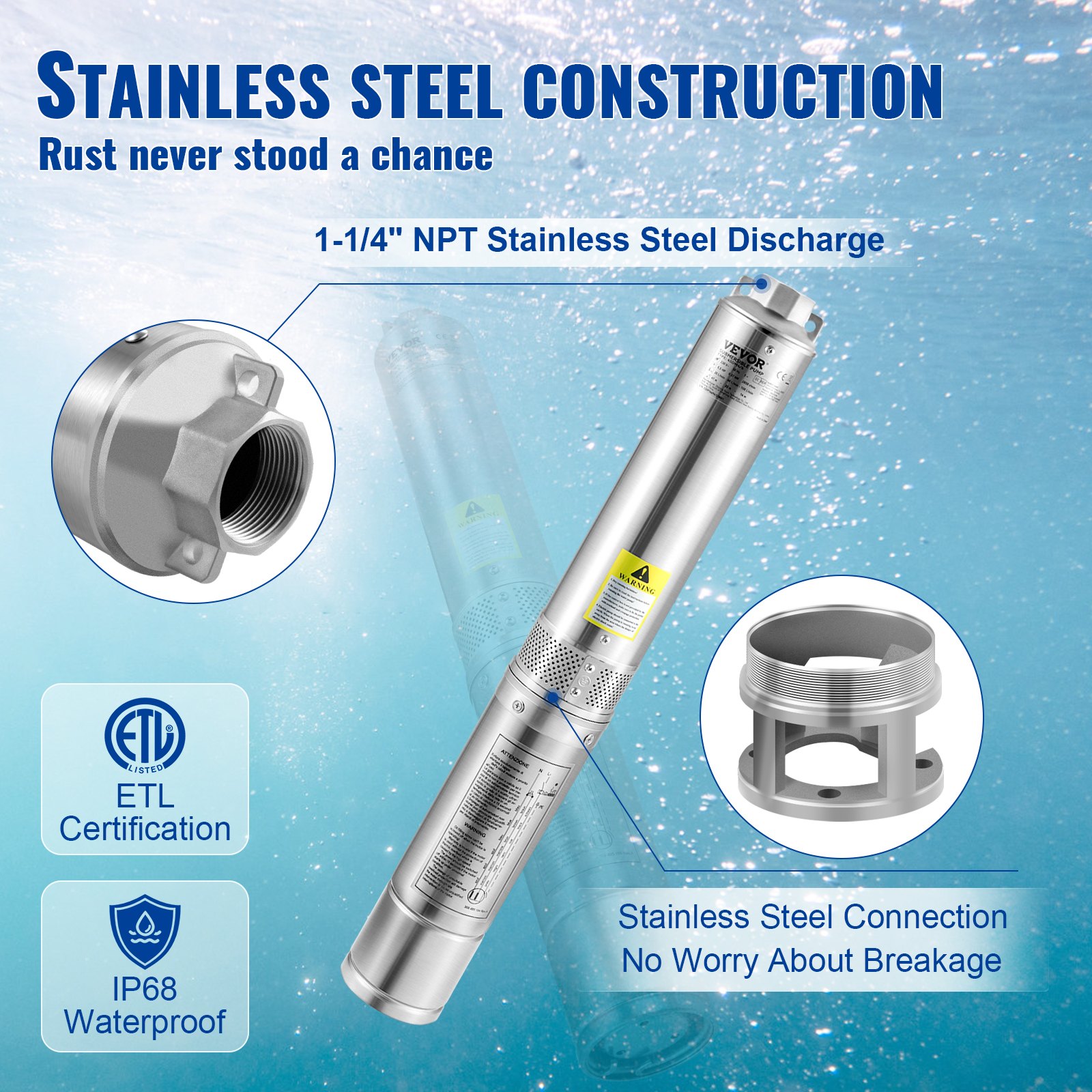

Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.

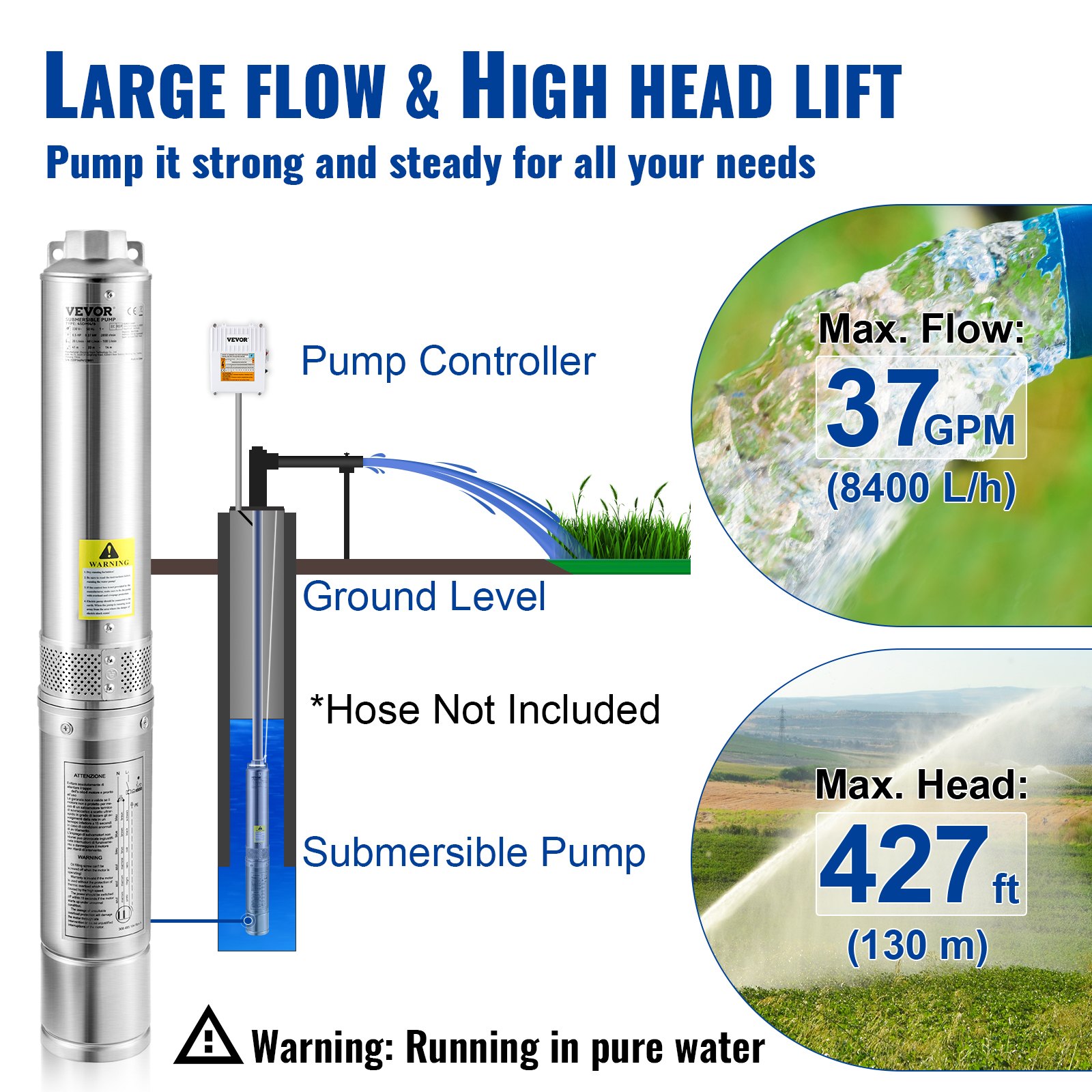

Large Flow & High Head Lift
This 2 HP submersible well pump features a large 37GPM flow and 427 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.

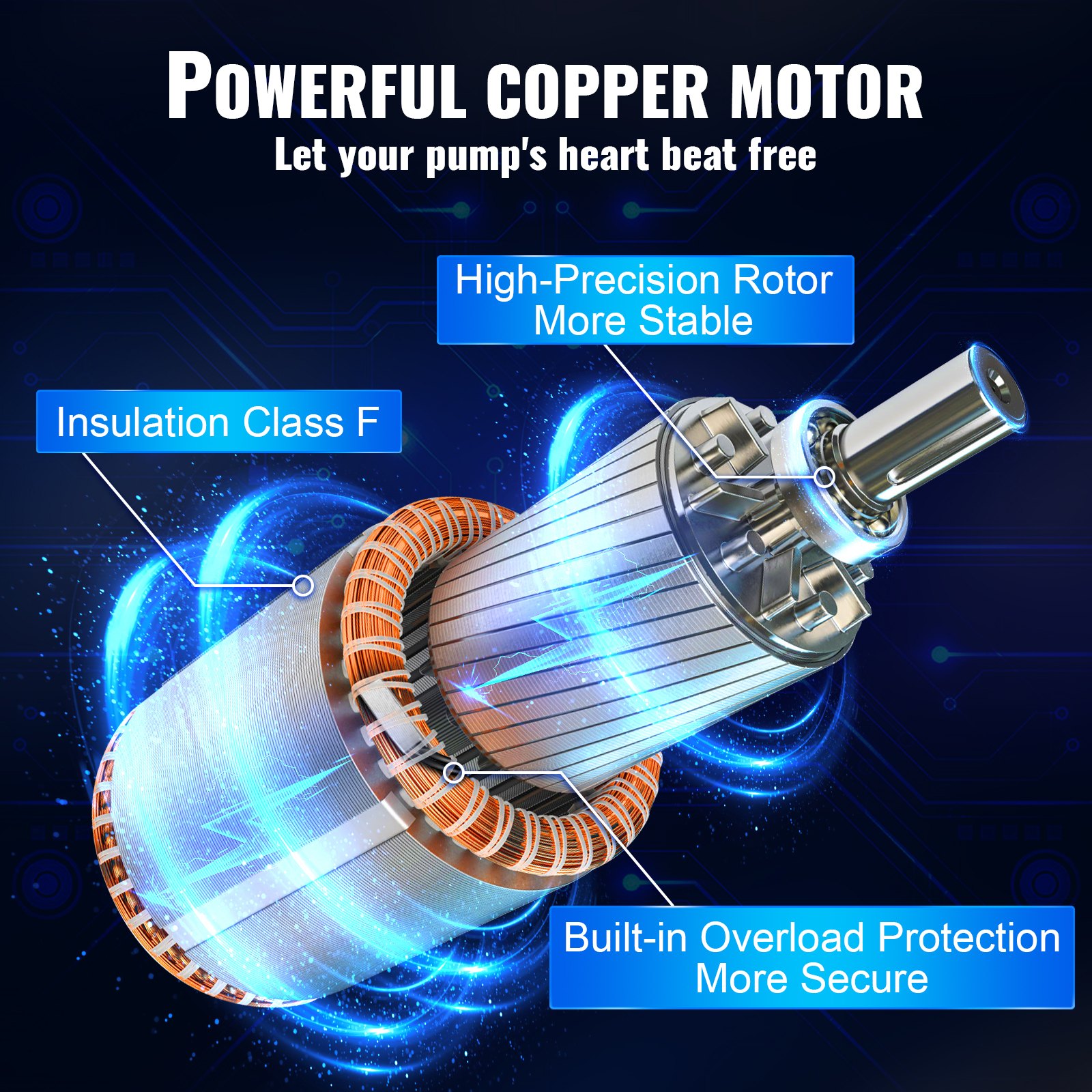

Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.

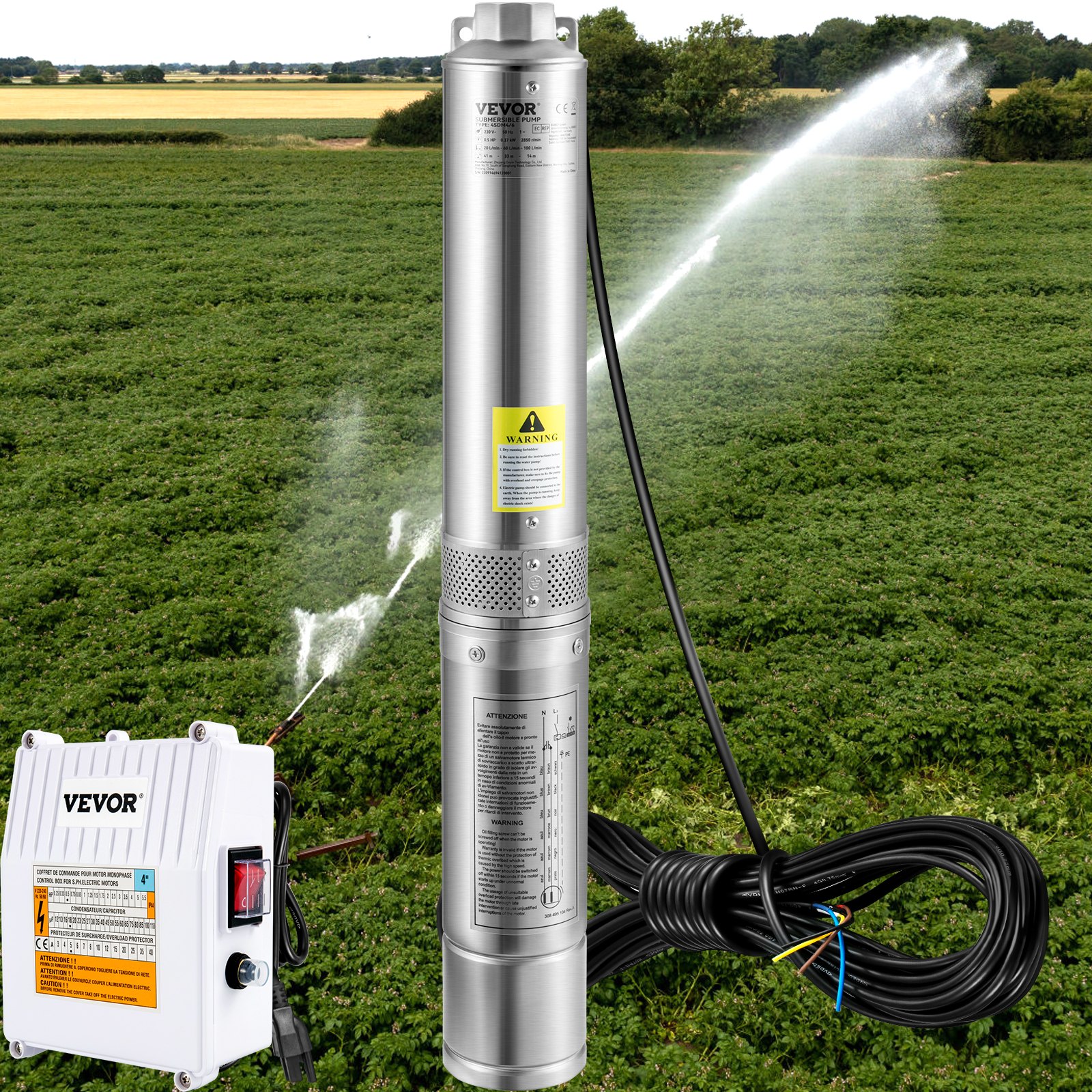

Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.

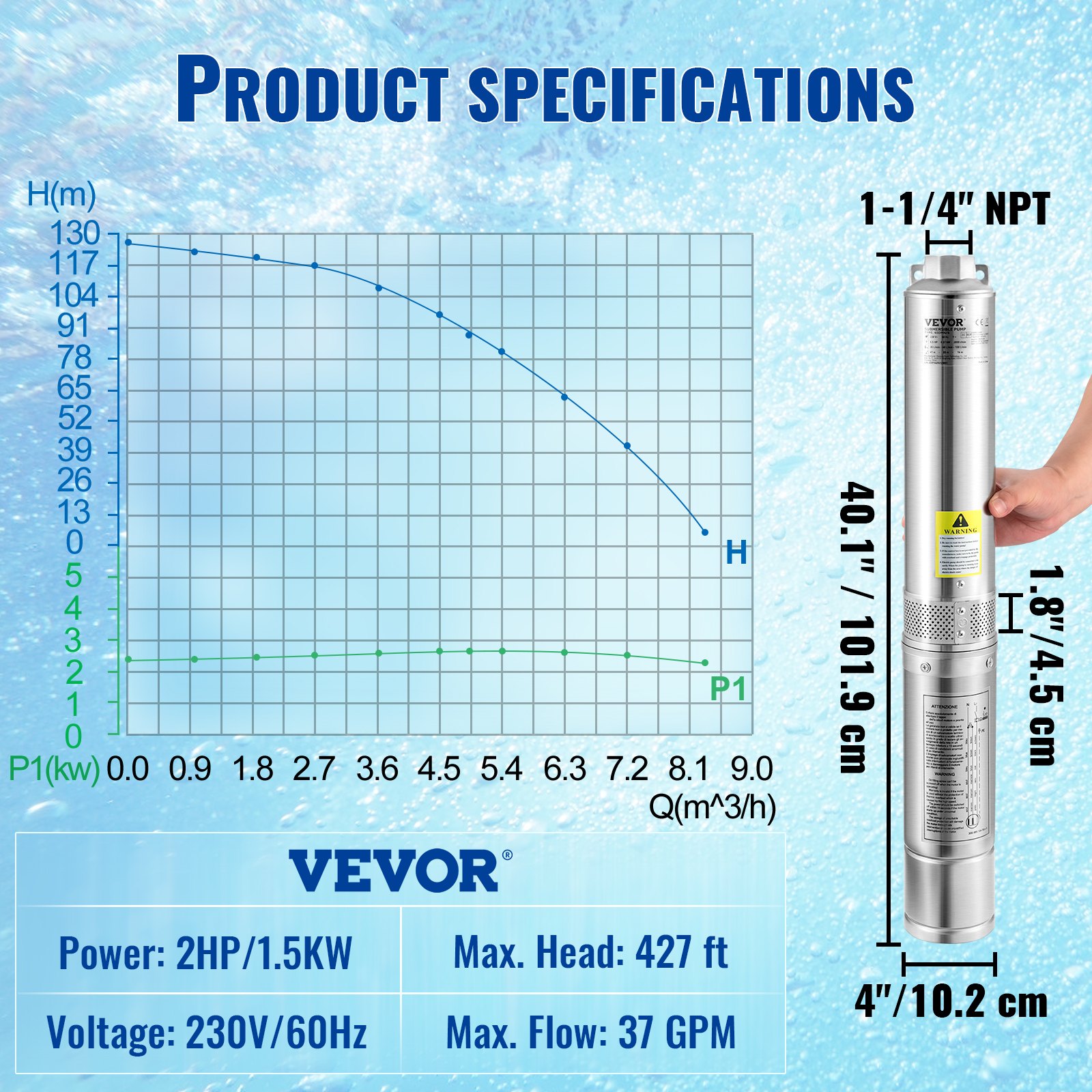

Specifications
  • Model: 4SSM5/12
  • Material: Stainless Steel
  • Power: 2HP/1500W
  • Voltage: 230V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 427 ft/130 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 12
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

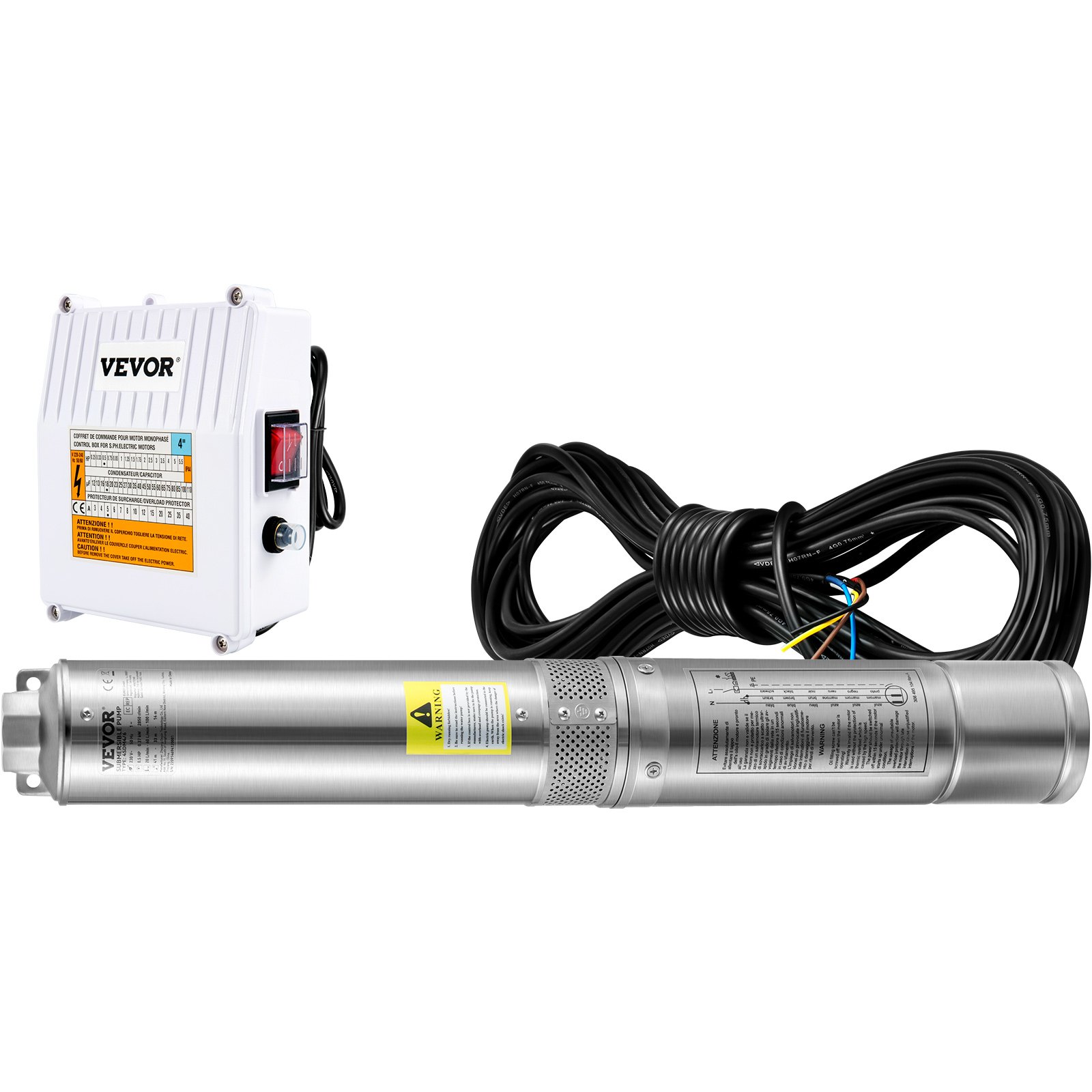

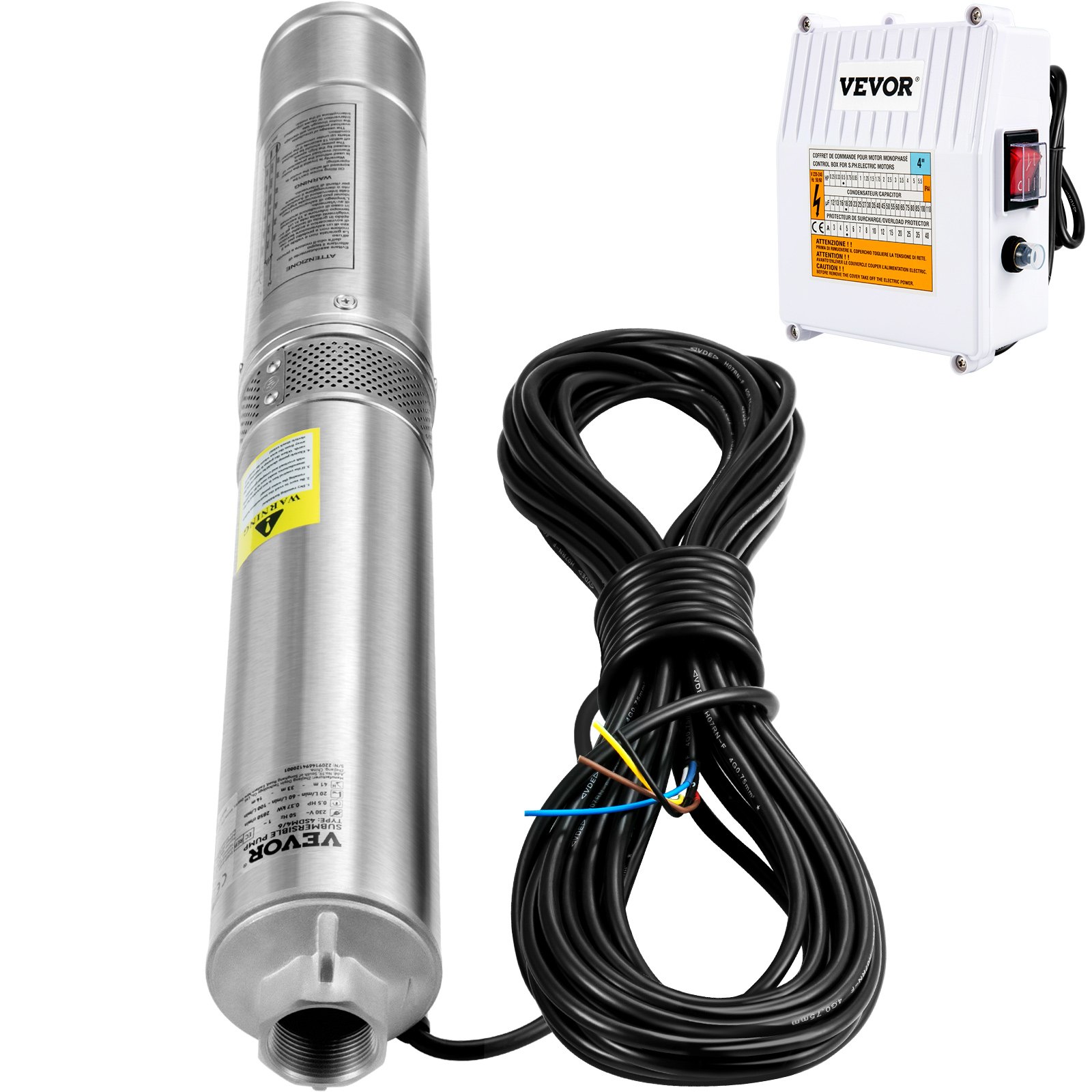

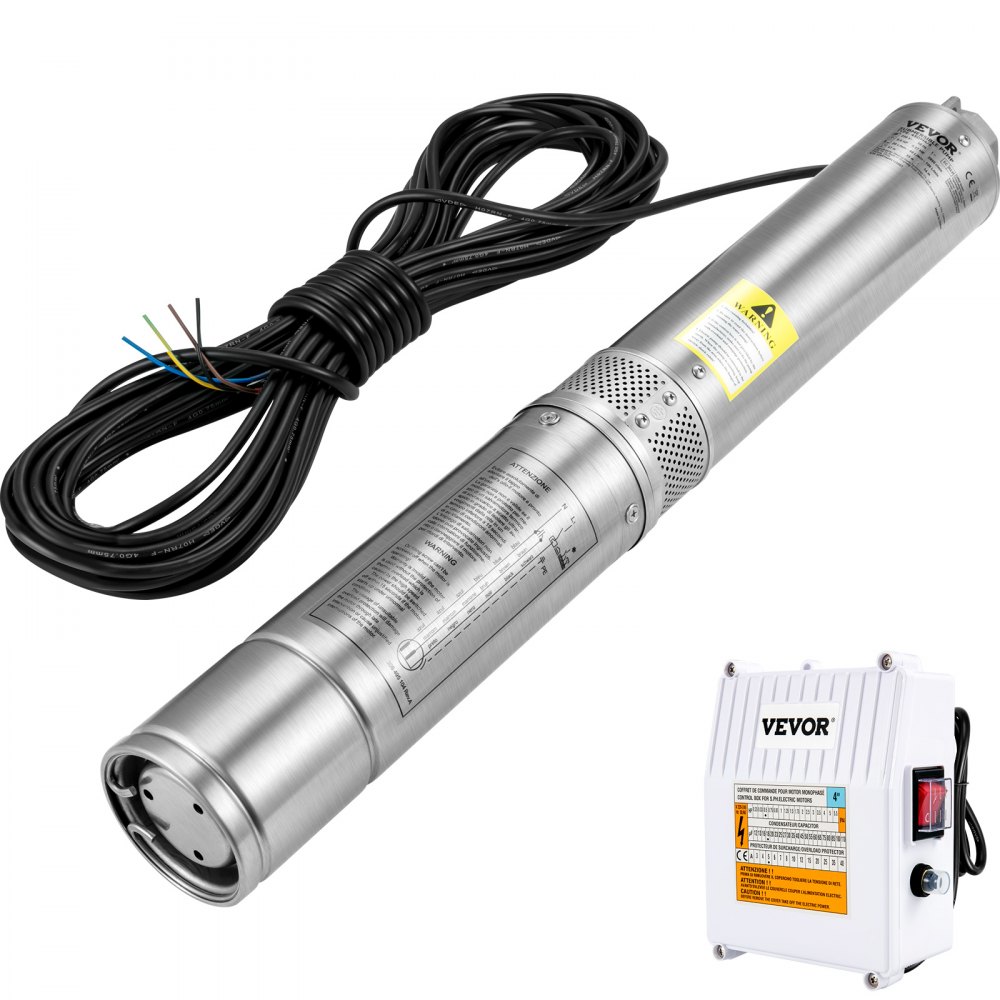

Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
2HP Deep Well Submersible Pump
37 GPM Max. Flow & 427 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.
Large Flow & High Head Lift
This 2 HP submersible well pump features a large 37GPM flow and 427 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
Specifications
  • Model: 4SSM5/12
  • Material: Stainless Steel
  • Power: 2HP/1500W
  • Voltage: 230V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 427 ft/130 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 12
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F
See More

Questions and Answers (21)

21 Questions
Ask a Question
Showing 1-21 of 21
Sort by: Featured questions
Your response didn't answer my question. There are 6 terminals in the control box. From left to right, where to the wires from the pump (red, white, black, and green) attach? The pump label is 230v, but it has a 110v cord. Where do I attach the 230 v wires, from left to right 1, 2, 3, 4, 5, or 6 to replace the 110v cord??
Answer This Question
There are 6 terminals, the first, second and second terminals are ignored, and the third, fourth, fifth and sixth are connected to black, white, red and green in turn. As shown in the picture in the link: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/4_1680060290028.jpg
By vevor on
I have a pressure tank and I would like to know the kick in and kick out pressures of the pump! I need a 30-50 PSI pressure range for my system!
Answer This Question
Its pressure is 13 bar.
By vevor on
Can I get a wiring diagram out pump did not come with instructions.
Answer This Question
The 4 wires of the water pump need to be connected according to the wiring diagram inside the control box cover, and then the black, white and green wires of the control box are connected to L1, L2 and PE respectively. Please see the picture in below link for reference, the link is valid in 3 days:https://we.tl/t-15GtkZShre
By vevor on
does the 2 hp pump with external control box have an automatic shut off if the water level gets below the pump intake? i can't seem to get definitive info off of the website.
Answer This Question
No, it doesn't have an automatic shut off. Therefore, be careful not to go lower than the water inlet, otherwise the motor will run dry and burn out.
By vevor on
Does this pump turn on Automatically when there is water and turn off when the water is drained out? or is this programable?
Answer This Question
Hello, we have the configuration with an automatic switch, if you buy the style without an automatic switch, there is no automatic shutdown function.
By vevor on
