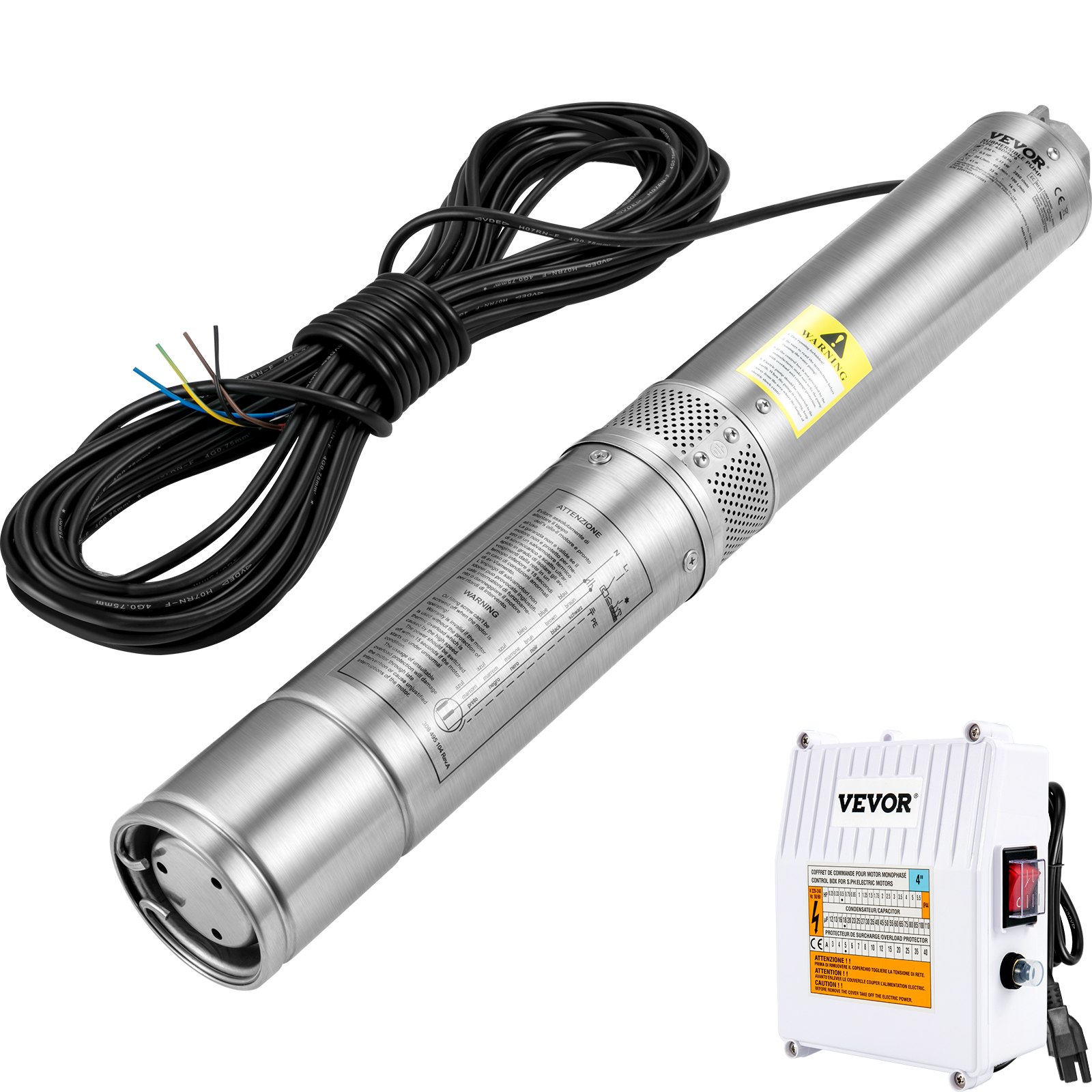

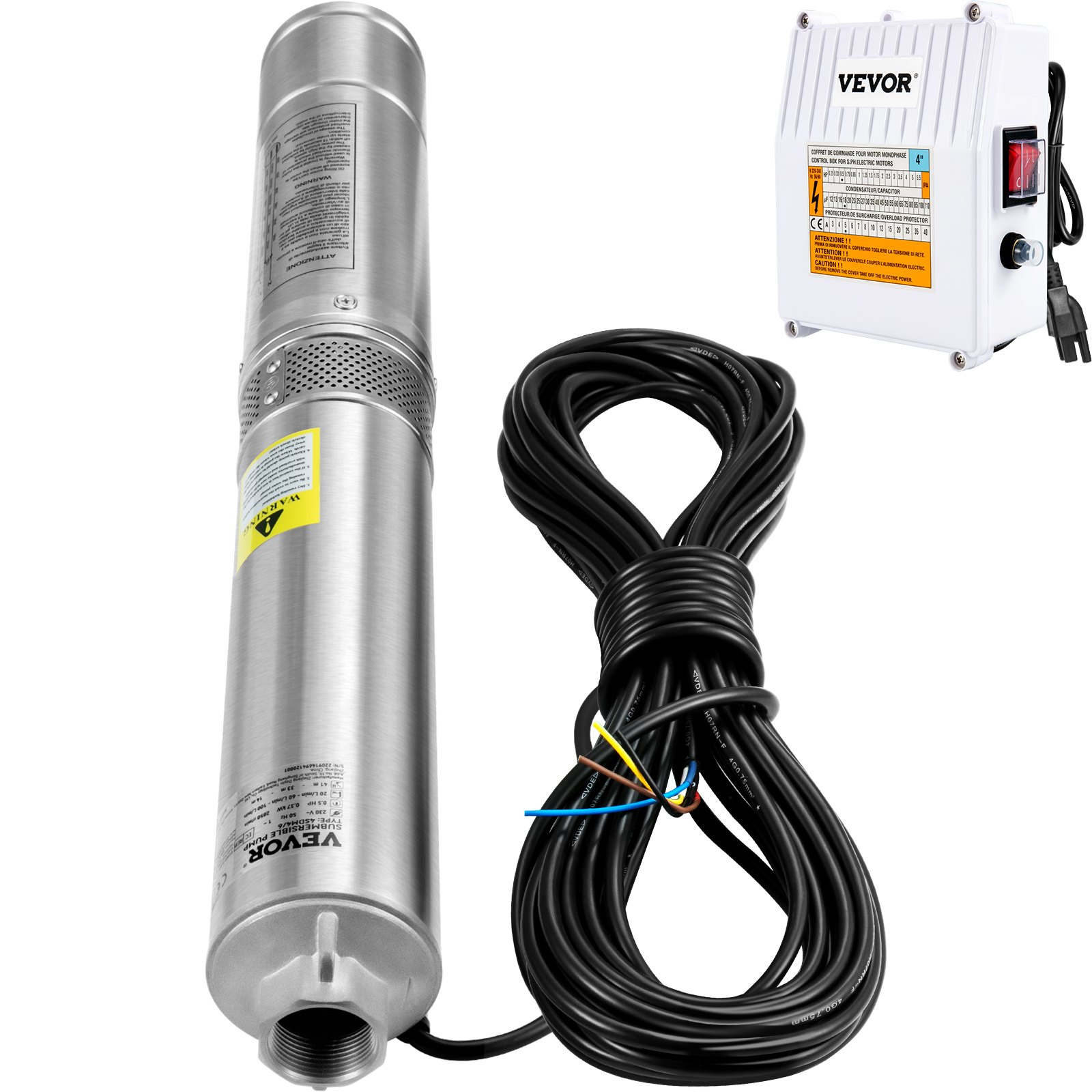

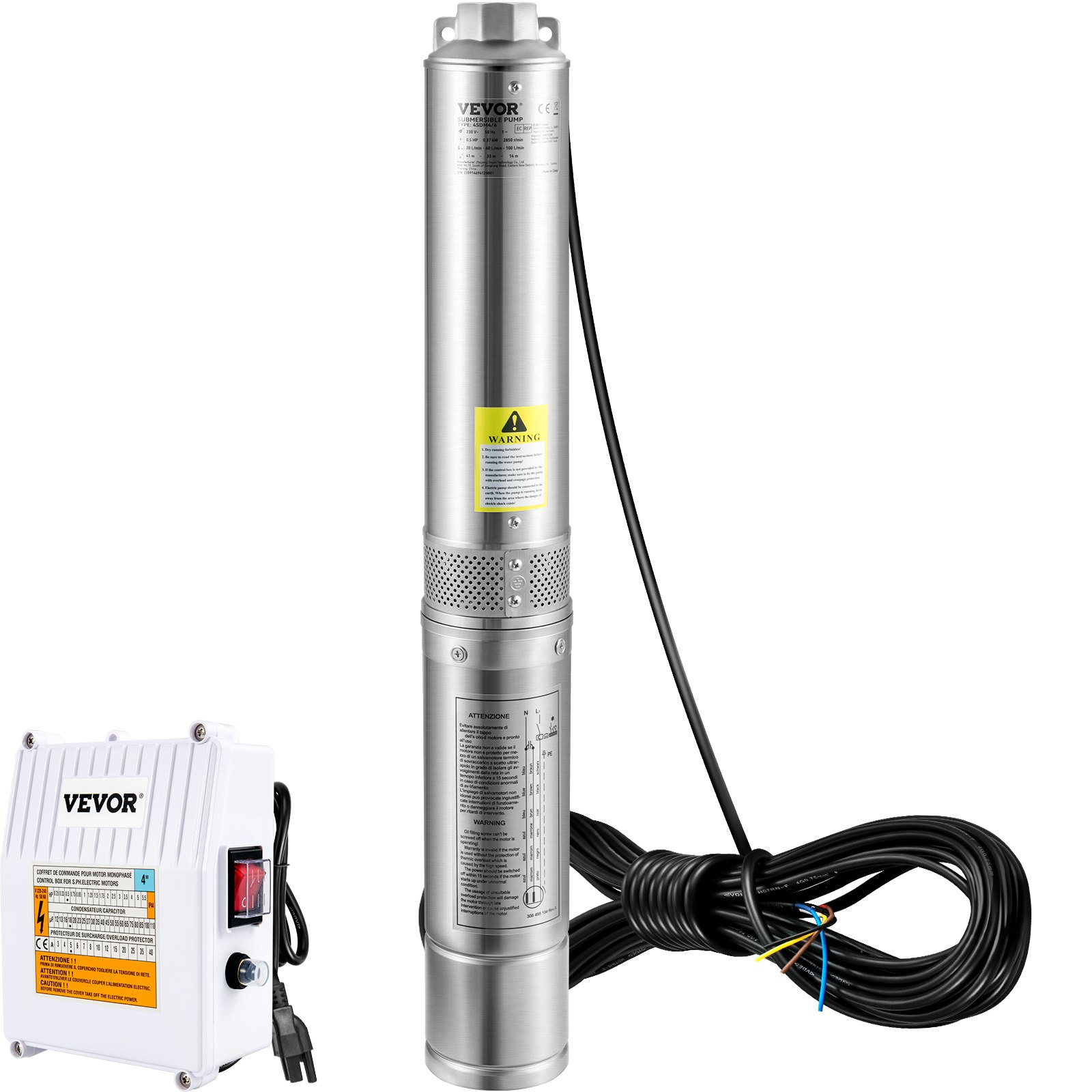

VEVOR deep well submersible pump with control box, extended cord, and water well diagram. VEVOR deep well submersible pump with 1.5hp power, external control box, and 33 ft electric cord. VEVOR deep well submersible pump with 37 gpm flow and 276 ft max head lift for efficient water pumping. VEVOR deep well submersible pump with stainless steel construction, ip68 waterproof, etl certified. powerful copper motor with insulation class f, high-precision rotor, and built-in overload protection for VEVOR deep well submersible pump. VEVOR deep well submersible pump with multiple filtration mesh, stainless steel, and gauze inlet tips.
SJQSBWZQDHMC1WNE8V1

VEVOR Deep Well Submersible Pump, 1.5HP 115V/60Hz, 37gpm 276ft Head, with 33ft Cord & External Control Box, 4" Stainless Steel Water Pump for Industrial, Irrigation and Home Use, IP68 Waterproof

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

External Starter Box

  • External Starter Box
  • Built-in

1.5 hp

  • 1.5 hp
  • 0.5 hp
  • 1 hp

About this item

  • Enhanced Pump Flow & Head: Power: 1.5HP, 115V; Diameter: 4" (for 4" or bigger well casing); Discharge: 1-1/4" NPT. This deep well submersible pump is designed with 8-stage thermoplastic impellers, providing 37GPM max flow and 276 ft max head. It comes with an external control box and a 33 ft electric cord, making life without modern plumbing a lot easier. Pump out your worries with ease and relax. No challenge is too big for you.
  • Upgraded Stainless Steel: The whole frame of our deep well pump is unlike anything on the market. It is made of stainless steel, including the outlet and connecting components. You don't have to worry about it becoming rusted or corroded after being underwater for a long time. With ETL certification and IP68 waterproof grade, the pump can be used for 8-10 years. Stop wasting time! The perfect choice is in front of you!
  • Reliable Copper Motor: Are you tired of previous submersible well pumps failing you? Are you ready for consistent satisfaction and quality? The powerful copper motor and high-precision rotor promise long-term stable running. The motor features built-in overload protection, allowing it to automatically stop when stuck or during abnormal situations to prevent burning. NOTICE: DO NOT use it without water or at a low water level to avoid idle running.
  • Trouble-free Check Valve & Filter: This well pump has a built-in check valve to prevent back-flow (an additional check valve is highly recommended). The stainless steel filtration mesh is designed to filter impurities. You can add a layer of gauze in front of the filtration inlet for a new drilled well that may contain excessive granular sediment. Keep impurities out without the headache.
  • Use It Anywhere: Whether you want to solve water supply problems for industry, farmland, or home, this deep water well pump is the one you can trust. It works excellently as a garden water source and sprinkler for the kids. You can use the pump for extracting water from deep wells, reservoirs, canals, rivers, and other water-lifting works.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Deep Well Submersible Pump, 1.5HP 115V/60Hz, 37gpm 276ft Head, with 33ft Cord & External Control Box, 4" Stainless Steel Water Pump for Industrial, Irrigation and Home Use, IP68 Waterproof
External Starter Box 1.5 hp
VEVOR deep well submersible pump with 1.5hp, 276 ft high head, 37 gpm flow, stainless steel body.
VEVOR deep well submersible pump setup with control box, shown in operation supplying water.
1.5HP Deep Well Submersible Pump
37 GPM Max. Flow & 276 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR deep well submersible pump vs others: stainless steel outlet, connection, thickened pump shell.
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.

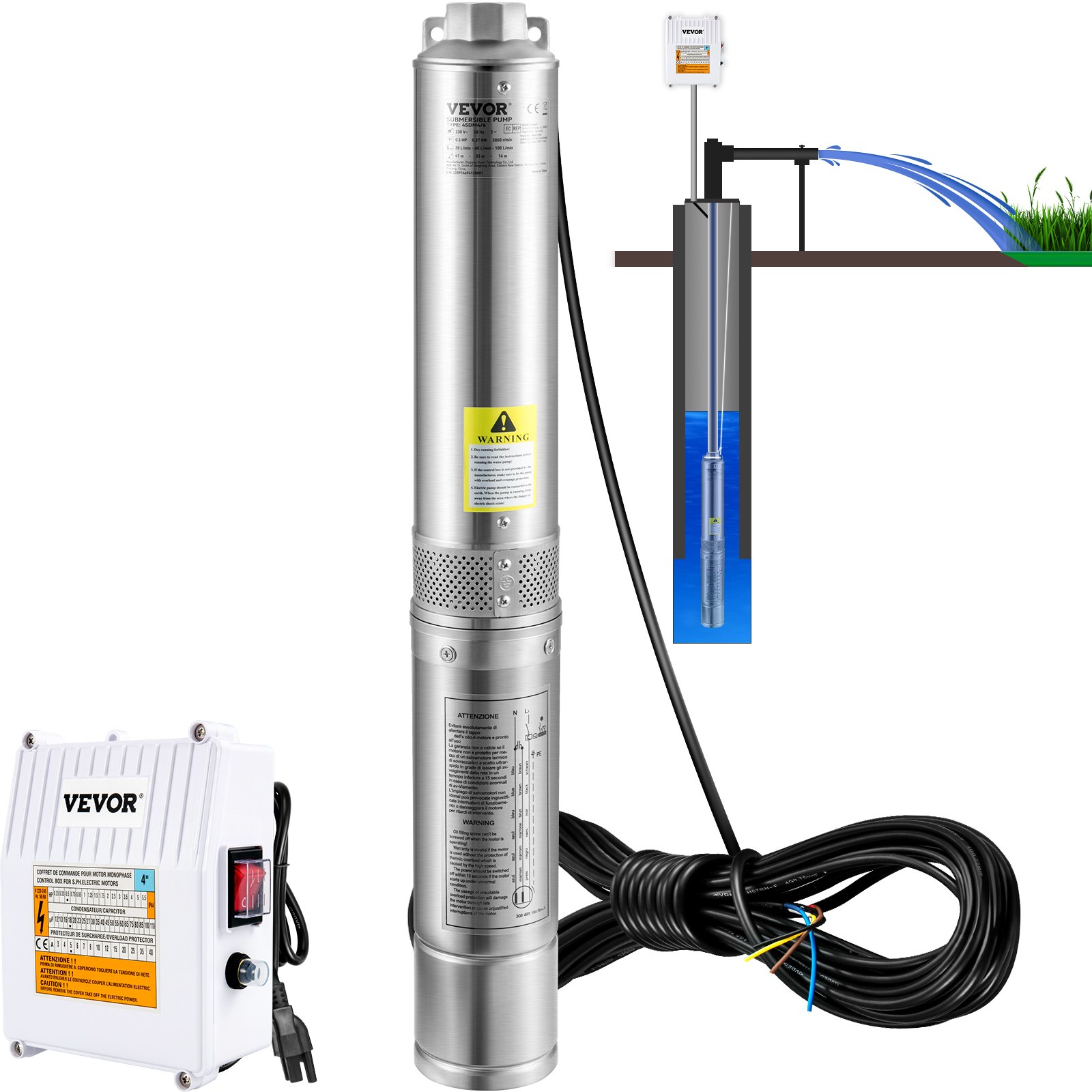

VEVOR deep well submersible pump installation guide showing proper vertical and horizontal setups.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR deep well submersible pump features 8-stage thermoplastic impellers, double ball bearing, stainless steel rotor journal
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.

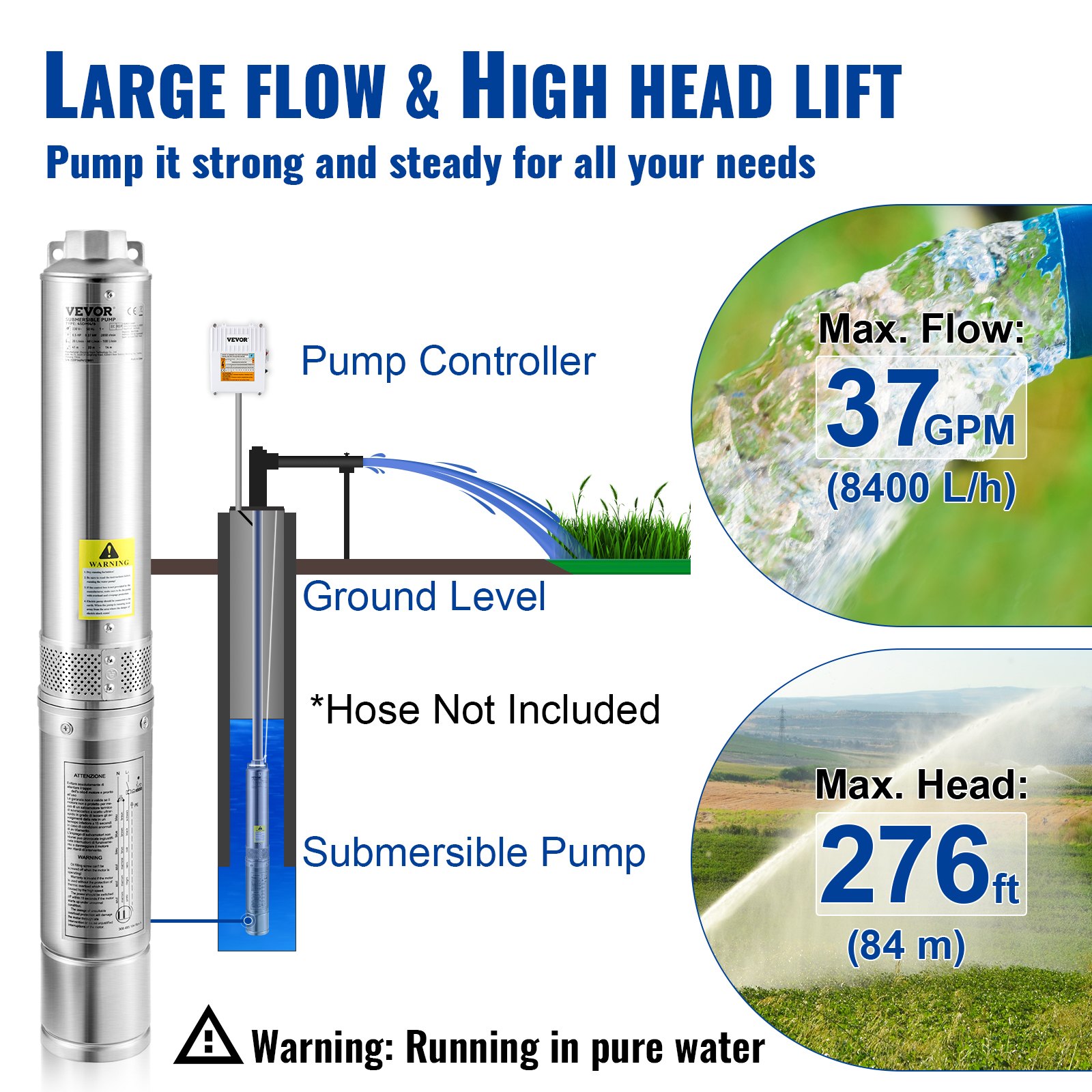

VEVOR deep well submersible pump with 37 gpm flow rate and 276 ft head lift used for irrigation.
Large Flow & High Head Lift
This 1.5 HP submersible well pump features a large 37GPM flow and 276 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.

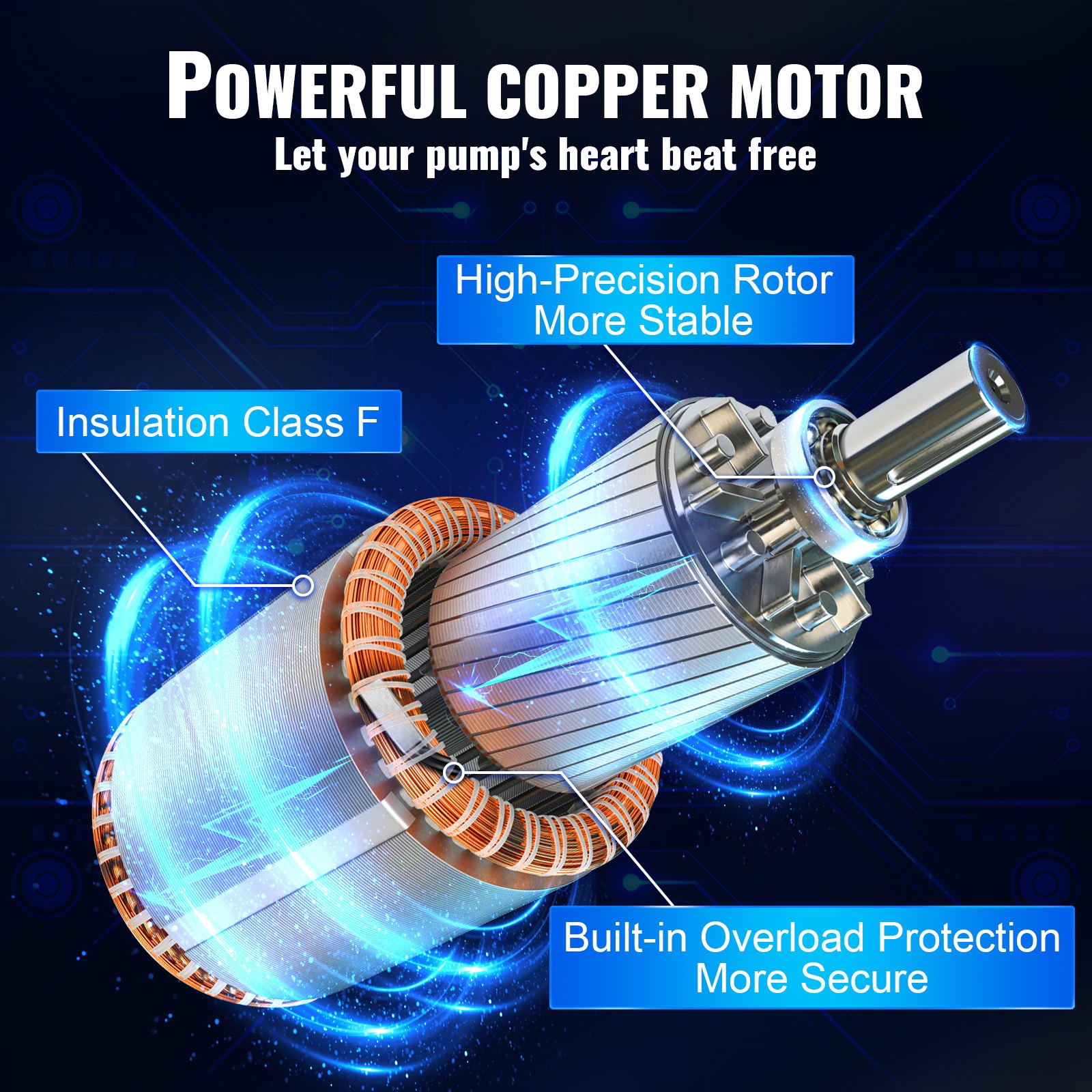

high efficiency copper motor for VEVOR deep well submersible pump with overload protection, stable running.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.

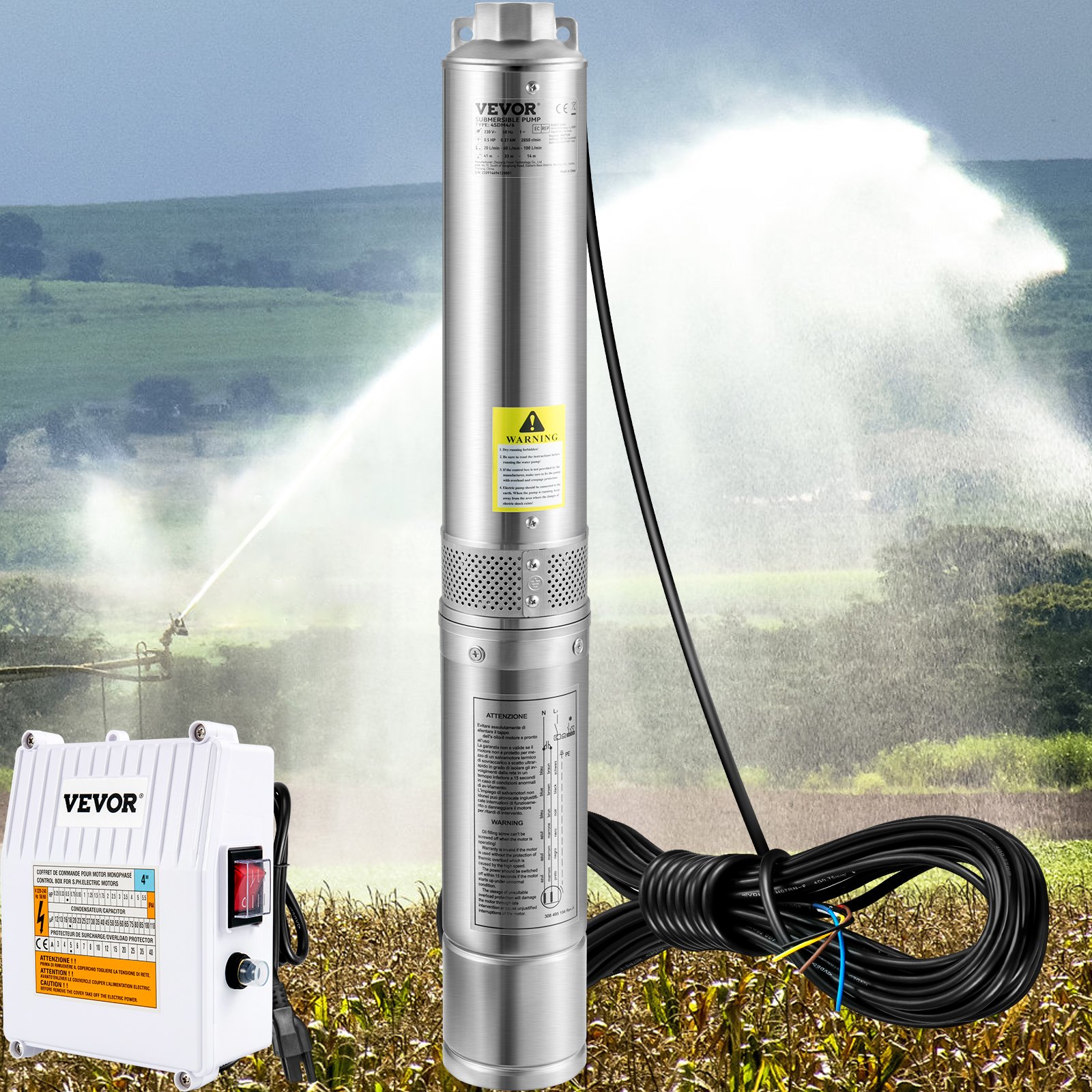

VEVOR deep well submersible pump for irrigation, livestock, domestic water supply, ponds, and rivers.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
VEVOR deep well submersible pump with 1-1/4" npt fitting, 33.5" height, 4" diameter.
Specifications
  • Model: 4SSM5/8
  • Material: Stainless Steel
  • Power: 1.5HP/1100W
  • Voltage: 115V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 276 ft/84 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 8
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

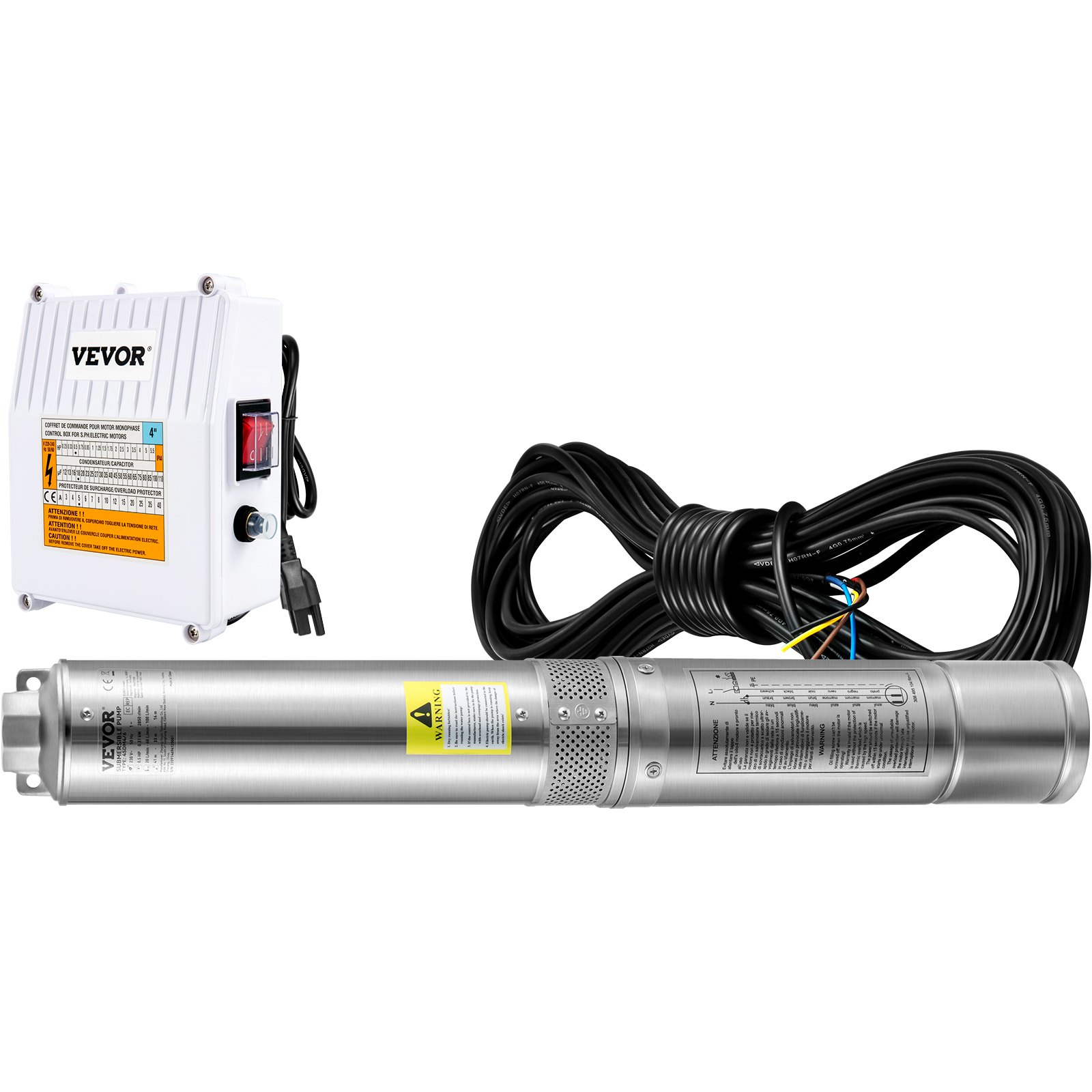

VEVOR deep well submersible pump with long cable and control box, designed for efficient water extraction.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
VEVOR deep well submersible pump with 1.5hp, 276 ft high head, 37 gpm flow, stainless steel body.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR deep well submersible pump setup with control box, shown in operation supplying water.
1.5HP Deep Well Submersible Pump
37 GPM Max. Flow & 276 ft Max. Head & ETL Certification
Are you worried about the water supply for your family or farmland? Well, get ready to have your well up and running again in no time! Our deep well submersible pump provides you with a large flow rate, producing a consistent flow up to quite a depth under the surface. Premium stainless steel construction makes this deep well pump maintain excellent performance for years. Pump it up today and start living life to the fullest with our submersible well pump. Don't hesitate to get one!!!
  • Enhanced Pump Flow & Head
  • Upgraded Stainless Steel
  • Reliable Copper Motor
  • Trouble-free Check Valve & Filter
VEVOR deep well submersible pump vs others: stainless steel outlet, connection, thickened pump shell.
Stainless Steel Construction
The thickened stainless steel construction makes this deep water well pump an excellent choice, putting your mind at ease by avoiding corrosion, rust, and breakage.
VEVOR deep well submersible pump installation guide showing proper vertical and horizontal setups.
Install in No Time
You can install the deep well submersible water pump vertically or horizontally. Please immerse the pump completely in water to avoid long time idle running.
VEVOR deep well submersible pump features 8-stage thermoplastic impellers, double ball bearing, stainless steel rotor journal
Designed with You in Mind
Our well pump is designed with heavy-duty impellers for extended service life and sling holes for wire/nylon rope. Double ball bearing and stainless steel rotor journal ensure low noise and wear resistance.
VEVOR deep well submersible pump with 37 gpm flow rate and 276 ft head lift used for irrigation.
Large Flow & High Head Lift
This 1.5 HP submersible well pump features a large 37GPM flow and 276 ft high head lift, meeting all your water needs. The multiple filtration mesh ensures crystal-clear water.
high efficiency copper motor for VEVOR deep well submersible pump with overload protection, stable running.
Unstoppable Copper Motor
A copper motor with class F insulation provides strong power for our submersible water well pump. It has overload protection to prevent overheating and consume less energy.
VEVOR deep well submersible pump for irrigation, livestock, domestic water supply, ponds, and rivers.
Wide Application
Our deep well water pump is ideal for homes with a freshwater supply. It is also a great helper for farmland irrigation, mountainous water supplies, and draining water in cities, factories, railways, and mines.
VEVOR deep well submersible pump with long cable and control box, designed for efficient water extraction.
Package Content
  • 1 x Deep Well Submersible Pump
  • 1 x External Control Box with US Plug
  • 1 x 33 ft Electric Cord
VEVOR deep well submersible pump with 1-1/4" npt fitting, 33.5" height, 4" diameter.
Specifications
  • Model: 4SSM5/8
  • Material: Stainless Steel
  • Power: 1.5HP/1100W
  • Voltage: 115V/60Hz
  • Max. Flow: 37GPM (140L/min)
  • Max. Head: 276 ft/84 m
  • Sand Resistant: <5%
  • Pump Diameter: 4"/10.2 cm
  • Discharge Size: 1-1/4" NPT (3.2 cm NPT)
  • Electric Cord Length: 33 ft/10 m
  • Impeller Stages: 8
  • Max. Speed: 3450 r/min
  • Work Temperature: 32℉-104℉/0℃-40℃
  • Certification: ETL
  • Waterproof Grade: IP68
  • Insulation Class: F

Ensure Reliable Water Supply — Deep Well Submersible Pump

Keep your water flowing smoothly with this deep-well submersible pump. This durable and efficient pump has a 1.5 HP motor and a 115V design. It runs a maximum flow rate of 37 GPM and has a head lift of up to 276 feet. Its stainless steel material guards against rust and corrosion, and its quiet copper motor ensures reliable operation. Easy installation with a pre-attached 33ft electric cord will make this ideal for all DIY lovers. It is perfect for irrigation, livestock water supply, and emergency backup. These pumps present versatile solutions for homes and small business applications to ensure a constant water supply as required.


High-performance Water Pumping

Many home and business tasks require reliable water pumping. The VEVOR 1.5HP submersible pump with a 1.5HP motor operating at 115V offers a maximum flow of 37GPM and lift to 276 feet. This powerful pump handles deep well water supply efficiently by ensuring consistency and high-pressure flow for a variety of applications.


The 8-stage thermoplastic impellers deliver exceptional performance, making the pump suitable for demanding tasks like irrigation and livestock water supply. Whether you need it for your garden, crops, or emergency backup, this 37GPM submersible pump ensures you get the water where you need it, quickly and efficiently.


Durable Stainless Steel Construction

Durability is important for equipment that operates under tough conditions. The VEVOR stainless steel water pump is designed out of totally stainless steel, guaranteeing no rust or corrosion signs, even when submerged for a long period. This gives the pump durability and reliability.


This IP68 waterproof pump includes an IP68 waterproof rating, which assures you of dependable service for years. Its rugged construction allows it to handle even the most daunting environments, not to mention both domestic and light industrial use. This makes it an ideal solution for those in need of a tough, durable water-pumping solution.


Advanced Filtration & Check Valve System

Advanced filtration is key to maintaining clean water output. The VEVOR industrial submersible pump has a stainless steel filtration mesh that effectively filters out sediments and impurities. This ensures that the water pumped is clean and suitable for various uses.


This 115V deep well pump also includes a built-in check valve to prevent backflow, although adding a check valve is recommended for optimal performance. These features help maintain the pump's efficiency and longevity, making it a reliable choice for new wells with high sediment levels.


Efficient & Quiet Copper Motor

A quiet motor is necessary for maintaining a peaceful environment while ensuring reliable performance. The VEVOR industrial submersible pump features a high-precision copper motor known for its stable and efficient operation. The motor includes built-in overload protection to prevent damage, extending the pump's lifespan.


This 37gpm submersible pump operates quietly, making it perfect for residential areas. Its powerful yet silent motor ensures smooth operation, providing consistent water pressure without the noise, making it ideal for both home and small business use.


Easy Installation & Operation

Ease of installation is important for users who prefer to set up equipment themselves. The VEVOR deep well submersible pump has a pre-attached 33ft electric cord and an external control box, simplifying the setup process. Clear instructions guide users through installation, ensuring they can get started quickly.


This 1.5 HP submersible pump is designed for easy setup and operation, ensuring accessibility to DIY enthusiasts as well as professionals who carry out installations. All the setup and functional features specify how even a beginner can set the pump up to work.


Versatile Application

Versatility in applications allows one product to serve multiple purposes. The VEVOR 115V submersible pump is designed for various applications, from irrigating crops, providing water to livestock, or simply establishing fountains in your garden. With its high flow rate and pressure, this pump can be used both at home and in industries.


Whether you are a homeowner needing a reliable water supply for your garden or a small business owner providing well maintenance services, this 276ft head pump offers the flexibility and performance required for diverse applications.


See More

Specification

Model
4SSM5/8
Material
Stainless Steel
Power
1.5HP/1100W
Voltage
115V/60Hz
Max. Flow
37GPM (140L/min)
Max. Head
276 ft/84 m
Sand Resistant
<5%
Pump Diameter
4"/10.2 cm
Discharge Size
1-1/4" NPT (3.2 cm NPT)
Electric Cord Length
33 ft/10 m
Impeller Stages
8
Max. Speed
3450 r/min
Work Temperature
32℉-104℉/0℃-40℃
Certification
ETL
Waterproof Grade
IP68
Insulation Class
F
Questions and Answers
25 Questions
Is this a 2- or 3-wire well pump?
The product has a three-core wire built in, and the one with the control box has a 4-core wire. This product comes with a control box.
By vevor
Would this be suitable for pumping from a stream to a water tank about 150ft above, just by connecting the pump directly to a solar panel?
Hello, it can be used directly by connecting the battery board. From your description, it can meet that requirement. I hope it can help you, thank you!
By vevor
it come with instructions on how to connect a tank and pressure switch? So it can run in regular household?
The starting capacitor is in the control box. First, connect the power cord of the water pump to the control box, and then plug in the control box for use.
By vevor
Can this pump be hooked up to a tank and pressure switch. If so do I not use the control panel and wire it through the pressure switch only.
No, without a start capacitor, the water pump cannot be started.
By vevor
What is the gauge of the 33-foot lead wire?
It is 4*10m*14AWG.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
44 Review(s)
Clear filters
Jed Jed
Mgr
Works great well worth the money. I can't believe how good it worked for the money I was going to never be here
Randy Randy
Good as they get
Can’t beat the performance of this pump for the price! Excellent power and quality. Very easy to use and care for.
tex tex
mr
work great been using it everyday for the last 6 months no issues psi will not do more than 50psi on my well about 80' deep.
CynicCE CynicCE
For the price, I don't know how you can beat it!
I have the older version of this that I bought 2 years ago. I did have to find an adapter to get the fitting on it (looks like this new version may have remedied that?) and I feel like the wire was a smaller gauge than I was comfortable with so i cut it and put a thicker pump wire on it. That being said, I've had it in operation for 2 summers now and it's about 95 ft down in my well. It's been working flawlessly the entire time. Until we build something permanent, this paired with a small pressure tank on top of the well is servicing my camper perfectly. Plenty of pressure for a nice strong shower. I was able to run 2 sprinklers full blast on it but a 3rd started pushing its limits a bit. I put a check valve on the line before installing for extra measure but I don't know if it was necessary or not. Ours is in bedrock and there's still quite a bit of sediment that gets caught in my filters. I feel like it's been sufficiently stress tested for me to give my seal of approval. Compared to name brand pumps, I could replace this thing 7 times and still come out ahead. Even if it died tomorrow, the value is outstanding and I'd immediately buy another. Thumbs up from me!
Justin  wisdom Justin wisdom
Mr.
2nd one I ordered and both were extremely fast would recommend to everyone. Good product. Thanks for your promtness.
Michael Michael
terrific pump!
You'll not find another 1/2 horse well pump this well built at this price no matter how hard you look.
Jimmy Jimmy
Great pump
So far I've been using the pump for over a month. Pumps water good and is quiet. I have it 85 feet deep in the well. I use it to help keep a small pond full. The price was the main selling point. It was much cheaper than well supply houses.
Jesse Holmes Jesse Holmes
Plumber
Good quality like product worked well came in time very impressed with with product do you recommend for anybody needing a wheel pump they should buy this product they have a lot of other products and I'm sure good and it is safe to buy and they deliver on time
Mike Johnson Mike Johnson
Great Pump
This effluent pump has surpassed my expectations. Works, feels and looks like a quality piece of equipment. At about a third the price of name brand pumps, I couldn’t be more impressed.
Kblack Kblack
papa
Just got it hooked up yesterday, Has a ground wire that old one didn't so had to add that from pump to ground. No big deal. worked as it should.
