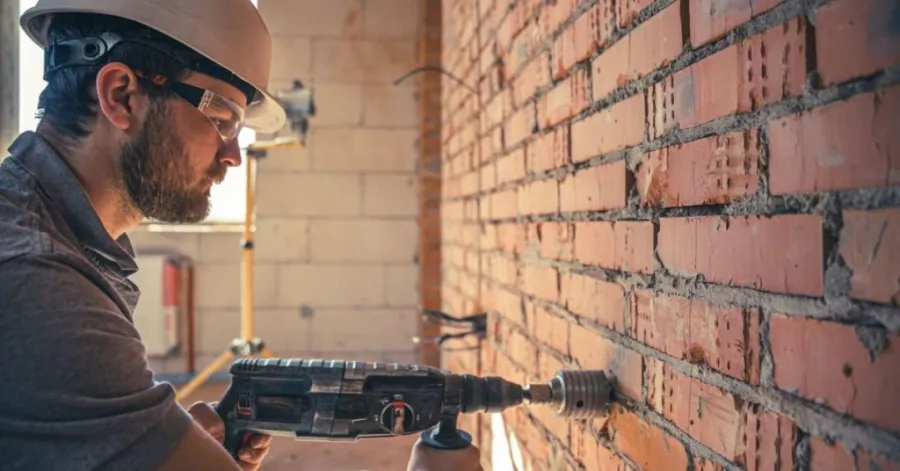

A concrete drilling machine is a power tool that rotates and hammers simultaneously to bore holes in hard concrete. You probably know the common type as a hammer drill. For bigger holes, you would use a core drilling machine instead.
Core drilling removes a solid, round piece of material, leaving a neat circular hole. You might perform kerneboring to install plumbing pipes, electrical wires, or anchor bolts. Each tool does a different job, and knowing the difference helps you pick the right one for your project.
Indholdsfortegnelse
Hvad er en Betonboremaskine?
Den grundlæggende definition
A concrete drilling machine spins and hammers or cuts to get through hard concrete. You use this tool to make exact holes for different jobs. The machine sends power from an electric motor to a drill bit that grinds through stone and cement.
Anbefalet til dit projekt
How to choose a concrete coring machine? The most common type you will see is the hammer drill. This tool uses fast hits along with spinning to break through tough material. For bigger holes, you need a kerneboremaskine instead. This tool uses a hollow round bit that cuts a circle through the concrete. The middle piece stays whole and comes out as a solid core.
A kerneboremaskine works differently from a regular drill. It uses a diamond-core bit to grind away the concrete in a ring. The diamond pieces on the bit’s edge give it the hardness to cut through stone and reinforced concrete. You can find these machines as handheld tools for small jobs or as mounted units for heavy work.
Almindelige applikationer og anvendelser
You will find concrete drilling machines on building sites, remodeling jobs, and road repair work. Workers use them to make openings for plumbing pipes, electrical wires, and HVAC ducts. Each job needs a certain hole size and depth, which tells you whether to pick a hammer drill or a kerneboremaskine.
Core drilling has many useful applications in building and repairing structures. You might need to use a kernebor when putting in anchor bolts for support beams. Another common use is making openings for fire sprinkler systems or data cables. The clean, precise holes from a diamond core bit cause less damage to nearby concrete and reduce patching work.

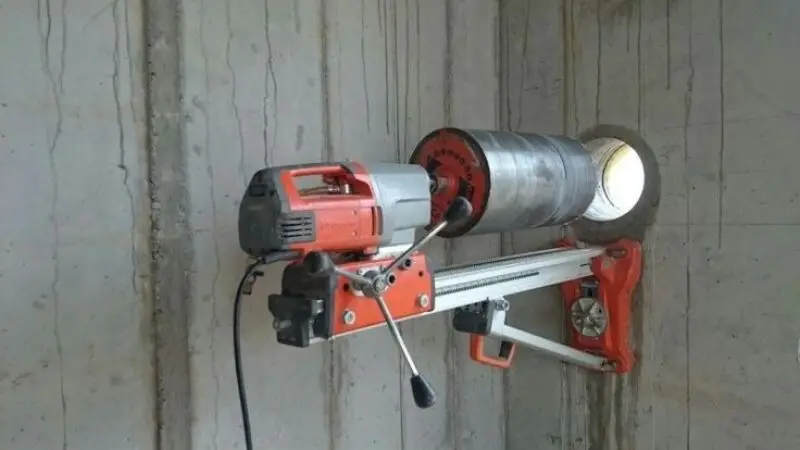

Hvordan fungerer en Betonboremaskine Arbejde?
You need to set up your equipment before you start drilling.
Step 1: Marking and Position Setup
The first step in learning how a kerneboremaskine works is to mark the exact spot. You measure the location and draw a clear mark on the concrete. This mark guides your drill for core drilling and prevents mistakes.
You use a tape measure and marker to find the center point. For large holes, you draw the full circle outline. Want to know which is better: a diamond core drill or an SDS rotary hammer drill? The outline shows if the diamond core bit will hit any obstacles.
How to use a core drill starts with this marking step. You place the diamond core bit over the mark and check alignment. Any misalignment causes the hole to drift.
Accuracy is critical. Core drilling requires patience during setup. You confirm the location and the angle. Core drilling success starts with careful preparation.
Step 2: Securing the Drill Stand or Rig
Once you mark the position, you secure the kerneboremaskine to the concrete. This step is critical to how a core drilling machine works properly. The machine must not move during drilling. For core drilling, you attach the drill stand to an anchor bolt or a vacuum base. A vacuum base creates a strong suction seal.
How to drill large holes through reinforced concrete? To use a core drill with a stand, tighten all bolts and clamps. You make sure the column is vertical. The diamond core bit must align with your mark on the concrete. Core drilling with a loose rig is dangerous. The bit can bind or jam, causing the machine to kick back. You test the rig’s stability before you start the motor.
To use a core drill safely, you connect the water supply. A diamond core bit needs water to cool the cutting edge. You turn on the water before you start. A kerneboremaskine with a secured rig gives you clean, accurate holes. The machine stays in place, and the diamond core bit cuts through the concrete smoothly. You control the feed pressure from the handle.

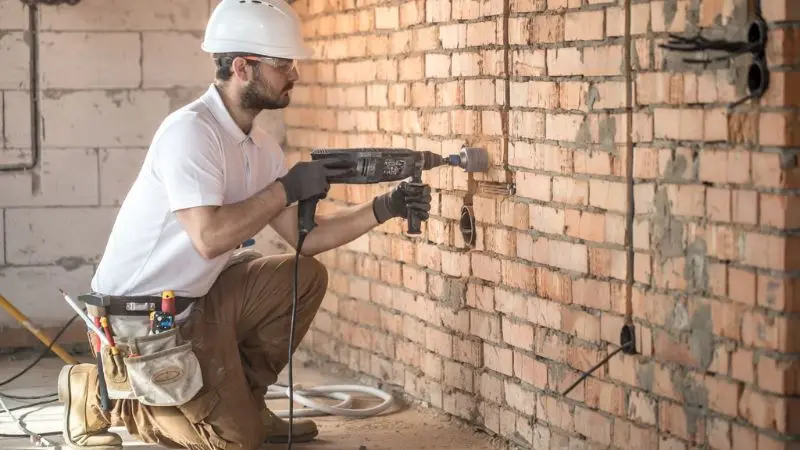

Hovedtyper af Concrete Drilling Machines
You have two main choices for concrete drilling. You can pick a handheld core drill or a rig-mounted machine. These two types of core drilling serve different purposes. Each option has its own strengths.
Handheld Concrete Core Drills
How to choose a concrete coring machine? A handheld core drill gives you a portable tool for small to medium holes. You hold the machine with both hands. You guide the bit into the concrete surface. These machines handle holes up to six inches wide.
You can use a handheld kerneboremaskine on walls, floors, and ceilings. The lightweight design lets you move quickly between drilling spots. You do not need a heavy setup.
The handheld unit uses a diamond core bit to cut concrete. The diamond segments on the bit edge grind away the material. You need a steady water supply to cool the bit.
Rig-Mounted Concrete Drilling Machines
A rig-mounted kerneboremaskine gives you stability for larger holes. You mount the machine onto a steel stand—the stand anchors to the floor or wall. The rig keeps the diamond core bit aligned.
A rig-mounted drill for core drilling works well for horizontal and overhead jobs. The stand supports the weight of the machine. You do not need to hold the tool during the cut. This reduces fatigue and gives you better control.
Precision core drilling depends on the rig’s stability. The diamond core bit on a rig-mounted core-drilling machine cuts through reinforced concrete. The diamond-ground steel rebar is undamaged. You still need water to cool the cutting edge.

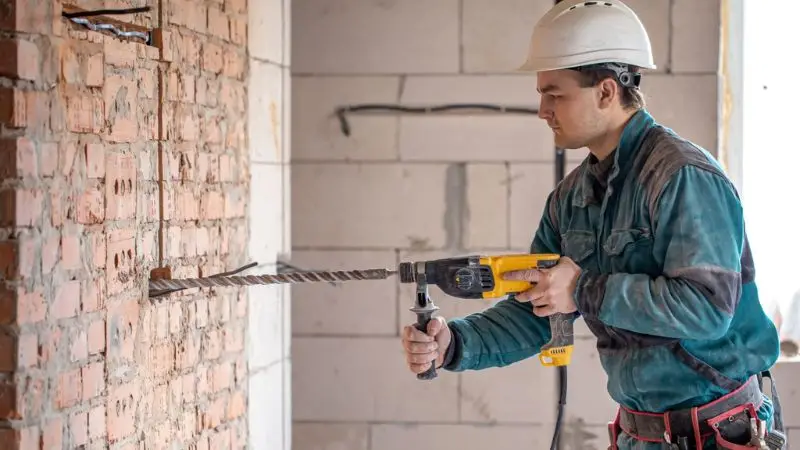

Almindelige anvendelser af Concrete Drilling Machines
You will see concrete drilling machines in use at various construction sites. Each project will require certain dimensions for the holes to be drilled. This determines what machine to use. Here is a list of the common uses of core drills:
Building and Renovation Projects
For plumbers and electricians, core drilling is important during the rough-in of the pipes. You will have to make holes in the wall or slab without compromising the stability of the surrounding concrete. The diamant kernebor makes the hole edges neat enough to be watertight.
The HVAC technicians also require this machine when making holes for their ductwork. With the help of a rig-mounted core drilling machine, it is easy to make larger-diameter holes. The rig can be set at different angles depending on the location of the hole.
You must know how to operate wet and dry concrete drilling machines. Anchor bolt installation represents another frequent task. You drill precise holes to secure structural steel, machinery, or handrails. The accuracy of a drill for core drilling ensures proper bolt alignment. This precision matters for load-bearing connections.
Infrastructure and Testing Work
Municipal crews use core drilling for road and bridge maintenance. They extract concrete samples to verify strength and composition. The diamond core bit pulls out a solid cylinder for laboratory analysis. Engineers study these samples to assess pavement condition.
Environmental consultants perform similar sampling for soil and groundwater studies. They use a kerneboremaskine to reach subsurface layers. The recovered cores reveal contamination levels or geological features.
Utility companies drill access points for underground lines. You might need a hole for fiber optic cable or water service connections. The clean cut from a diamond core bit minimizes damage to existing pavement. This reduces repair costs and traffic disruption. Always follow safety tips for operating a concrete drilling machine.
What Materials Can You Drill with a Core Drill?
A kerneboremaskine handles more than plain concrete. You can drill through reinforced concrete with steel rebar. The diamond core bit grinds through metal without losing its edge. You also cut through brick, block, stone, and asphalt.
Masonry surfaces respond well to this drilling method. The rotary action of the diamond core bit produces less vibration than hammer drilling. That quality prevents cracking in fragile materials like tile or marble. You can achieve precise results on nearly any hard surface.
Konklusion
A concrete drilling machine spins and hammers simultaneously to bore through hard materials. You need to pick the right tool for each task. A hammer drill is good for small holes. A core drilling machine makes larger holes with accuracy.
Staying safe while core drilling helps prevent injuries. Put on safety glasses, ear protection, and dust masks. Make sure your work area is stable. Check all connections before you turn on the machine. Paying attention keeps you safe on the job. A diamond core bit needs water to stay cool. The core-drilling rig must be set up correctly. Look over the diamond core bit before every use. Swap out worn bits right away.
Core drilling jobs go well when you get ready the right way. Knowing these basics helps you feel sure about any concrete task. You now understand how to pick the right method and stay safe. Your projects will turn out better with good prep and technique.
Ofte stillede spørgsmål
Can You Use a Normal Drill for Concrete?
It lacks the hammering motion needed to drill into concrete. While you can drill into masonry using a carbide bit, the process will take some time. Use a hammer drill or core drilling system for best results.
What Safety Measures Are Required for Core Drilling?
Safety glasses, ear protection, and a dust mask are required. Protect your hands with gloves. This is how to practice safety during core drilling.
How Deep Can Concrete Drilling Equipment Drill?
It varies according to the length of the bit and the equipment used. Hand drills are limited to 12 to 18 inches of drilling depth. However, rig-mounted drills can drill a lot deeper when equipped with extension rods.
Why Does My Diamond Core Bit Get Hot When Drilling?
This happens due to inadequate water flow. It may also happen if you are pressing too hard or drilling too fast. Let the bit cut through the material. Use moderate pressure when drilling.
