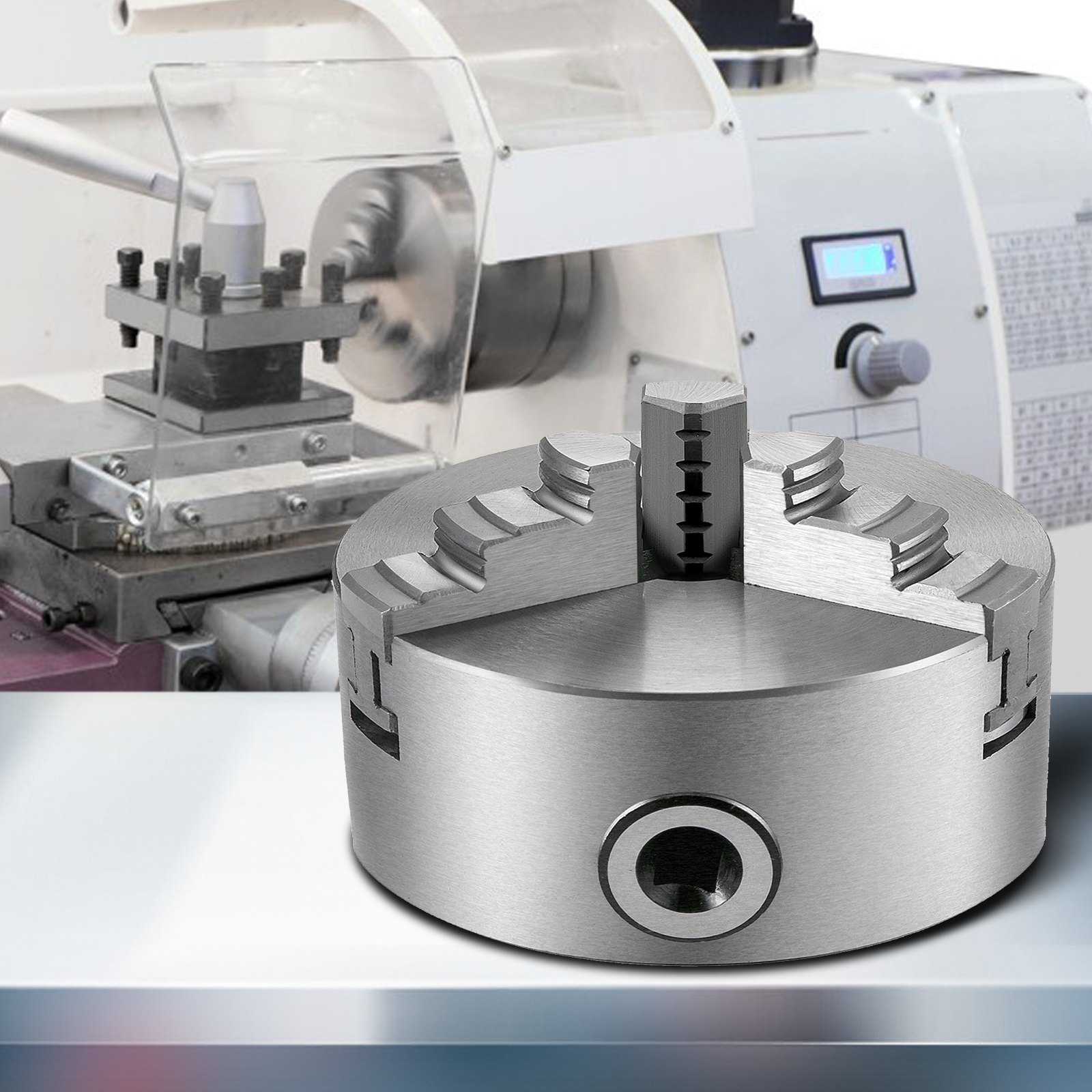

VEVOR K11-125 Lathe Chuck 5", Metal Lathe Chuck Self-centering 3 Jaw, Lathe Chuck With Two Sets Of Jaws, for Grinding Machines Milling Machines
- Premium Material: Diameter: 4.92" / 125 mm; Clamping Range:0.098"-4.33" / 2.5-110 mm; Jamming Range: 1.5"-4.92" / 38-125 mm. The self-centering lathe chuck body is made of quality cast iron that is strong and durable. Several rigorous quality tests have proved that.

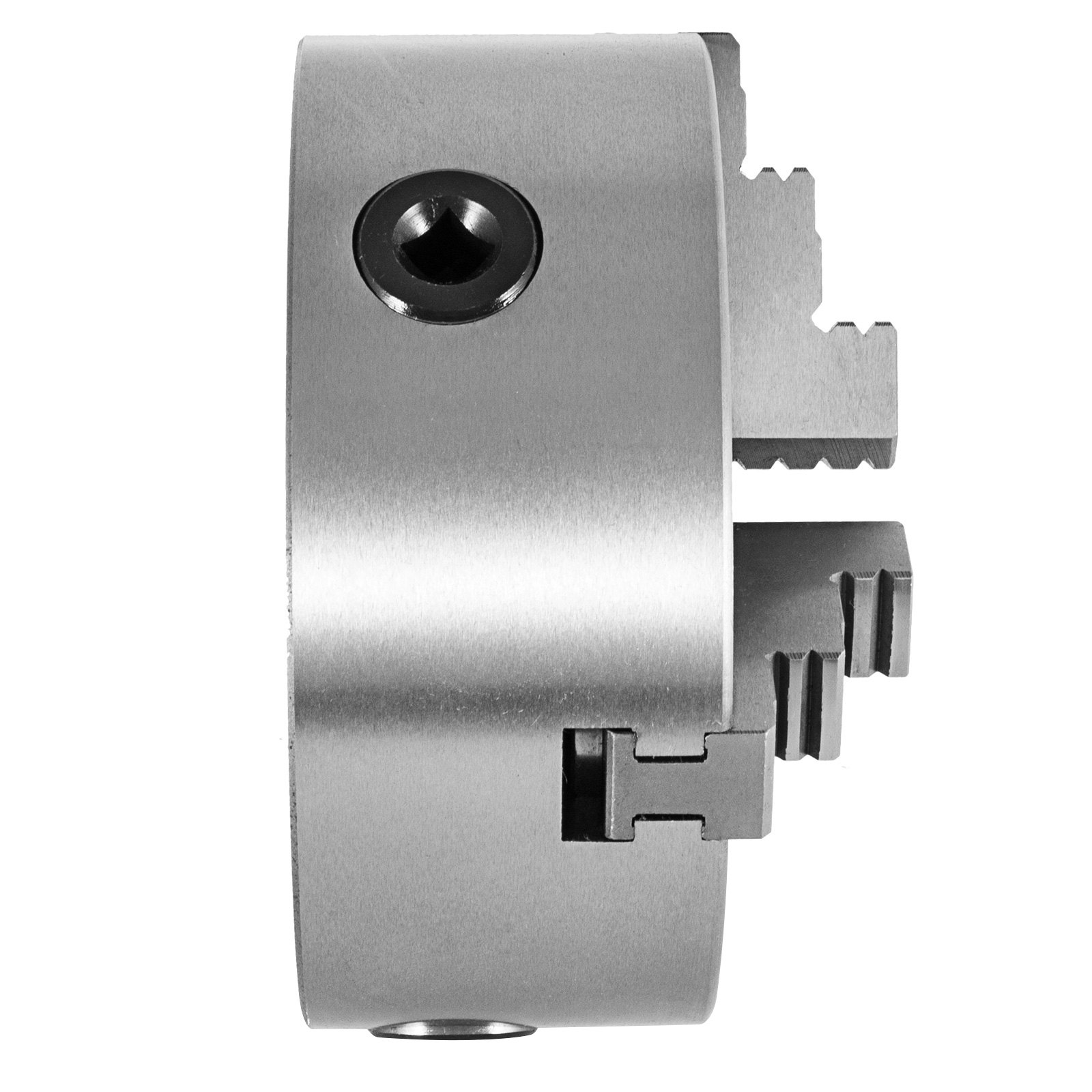

- Internal & External Jaws: The 3-jaw lathe chuck comes with two sets of jaws—inside and outside ones—to extend its holding range, and therefore allows you to handle a wide variety of stock sizes.

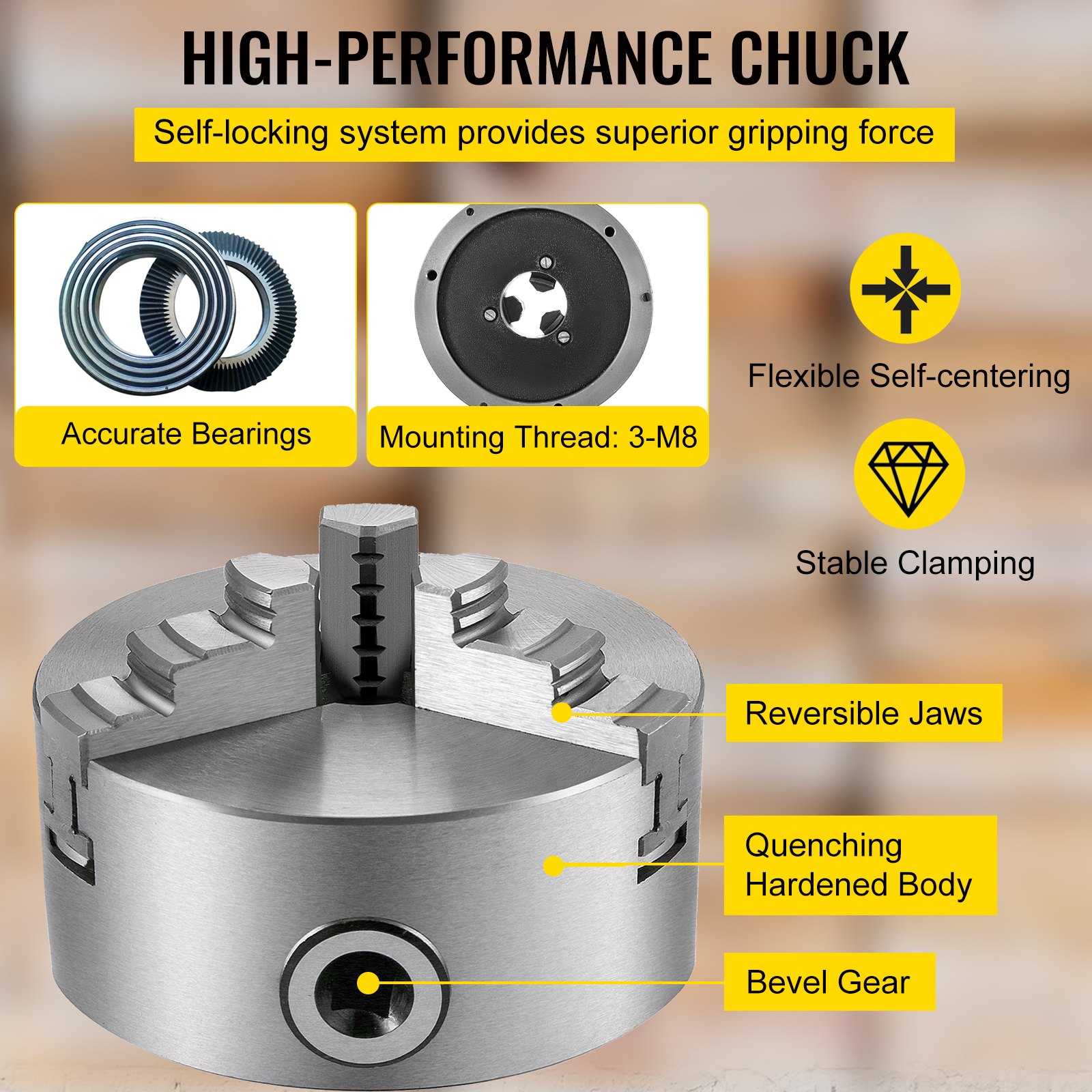

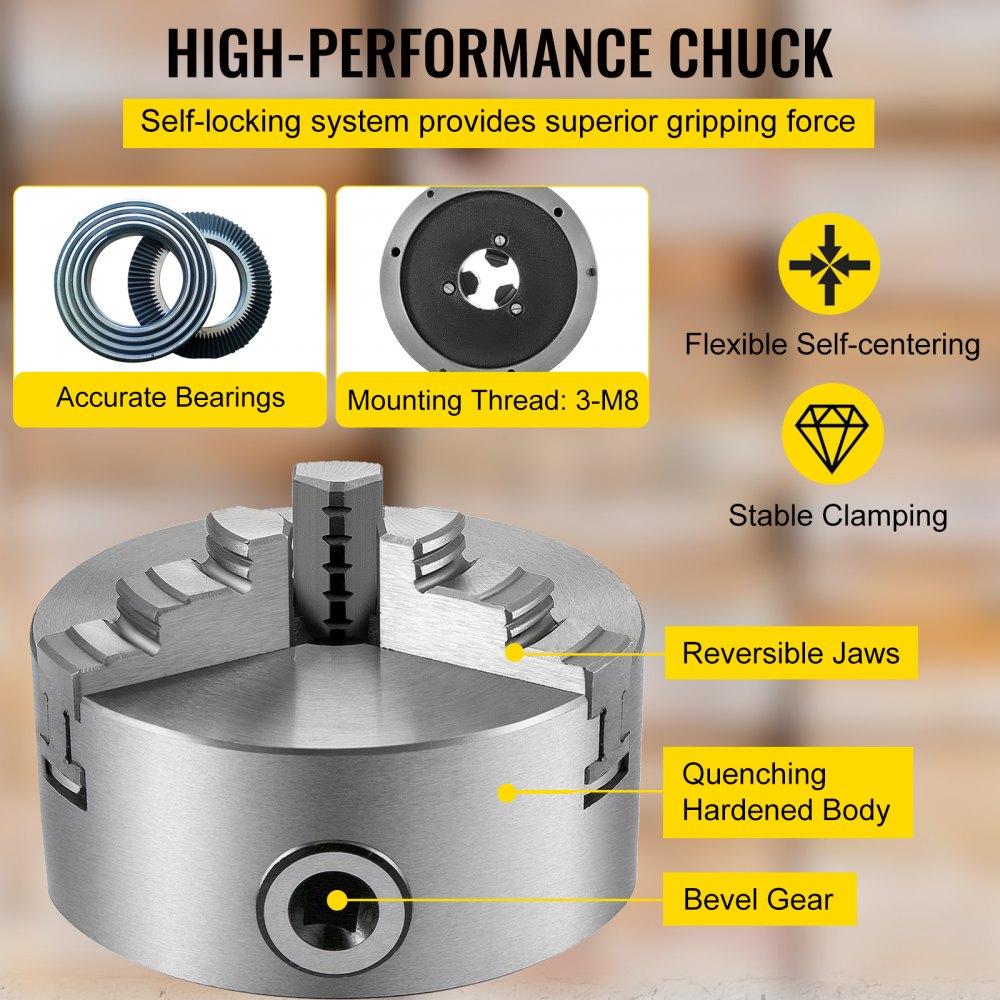

- High Precision: The self-centering lathe part contains a delicate bevel gear and three pinion gears. They contribute to precise processing progress, bearing tolerance of ≤ 0.002in / 0.05 mm.
- High Efficiency: The mini lathe chuck is easy to use by turning the ergonomic T chuck key (included in the package). Since the changeover and setting time is cut, your lathe can work with higher efficiency.

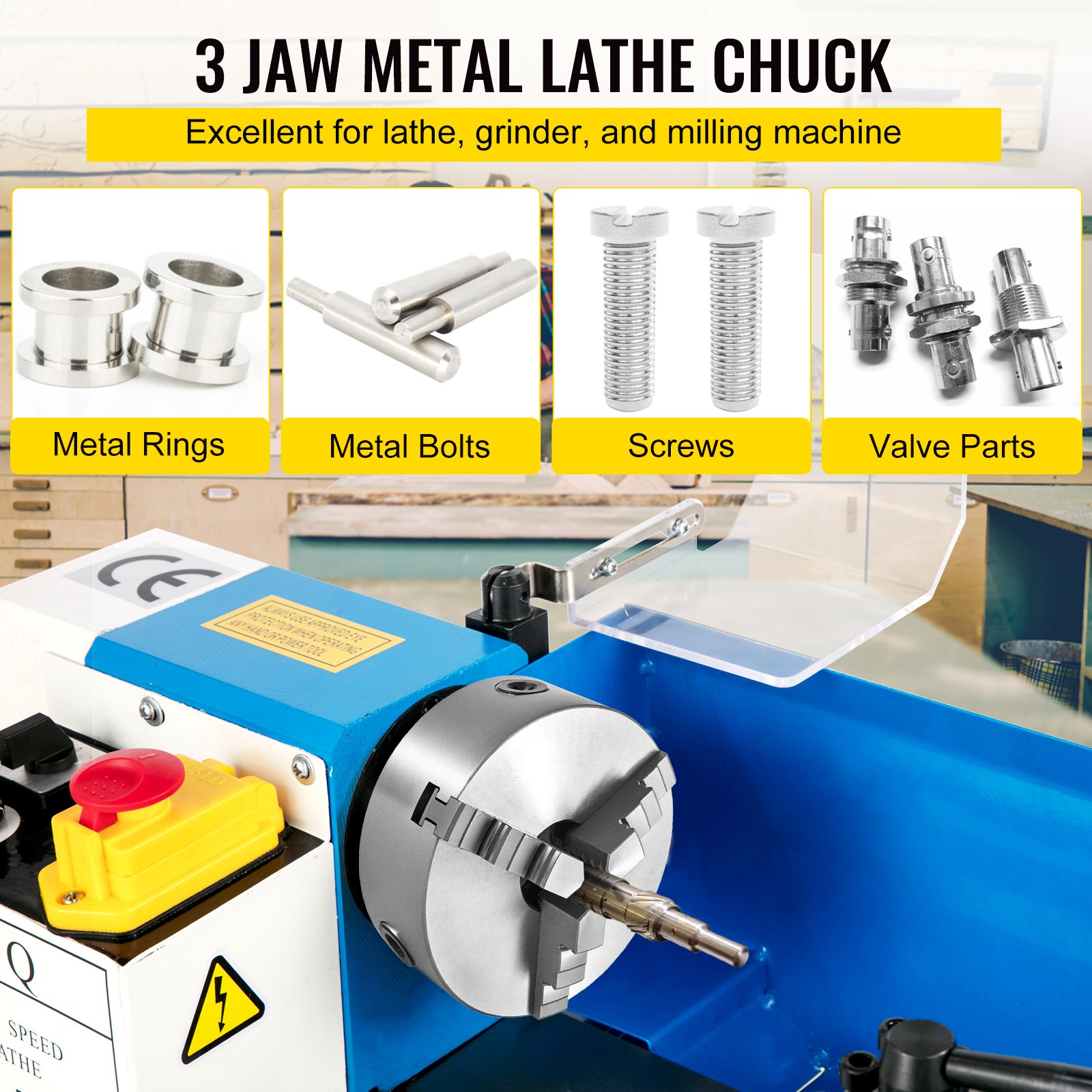

- Diversified Application: The metal lathe chuck is widely applied to metal lathes for the general turning of shafts and some more delicate materials. It would be the perfect choice for your lathe machine.
Frequently Bought Together
Reviews
About this item
- Premium Material
- Internal & External Jaws
- High Precision
- High Efficiency
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel

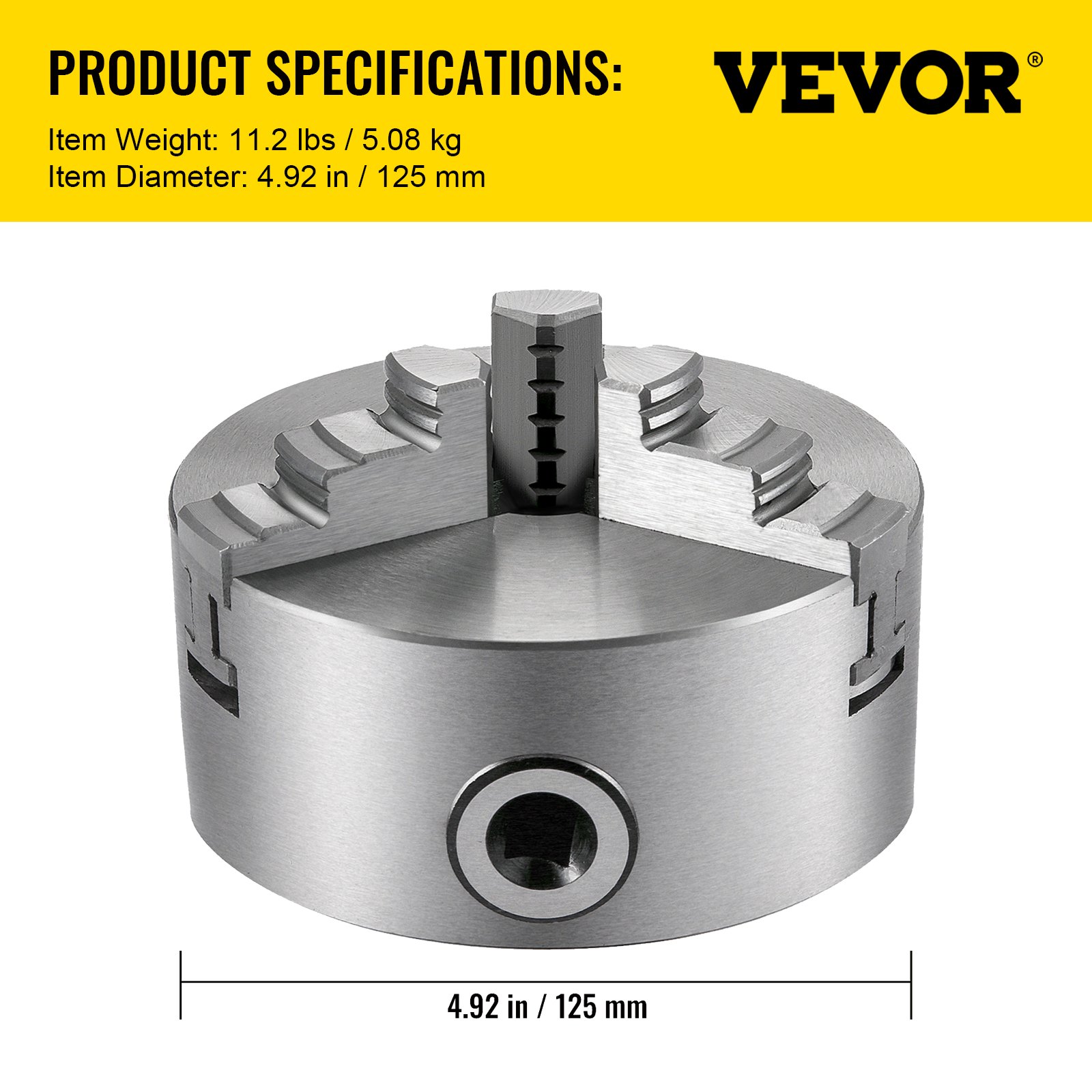

- Item Diameter: 4.92" / 125 mm
- Bolt Circle Diameter: 4.25" / 108 mm
- Center Hole Diameter: 1.18" / 30 mm

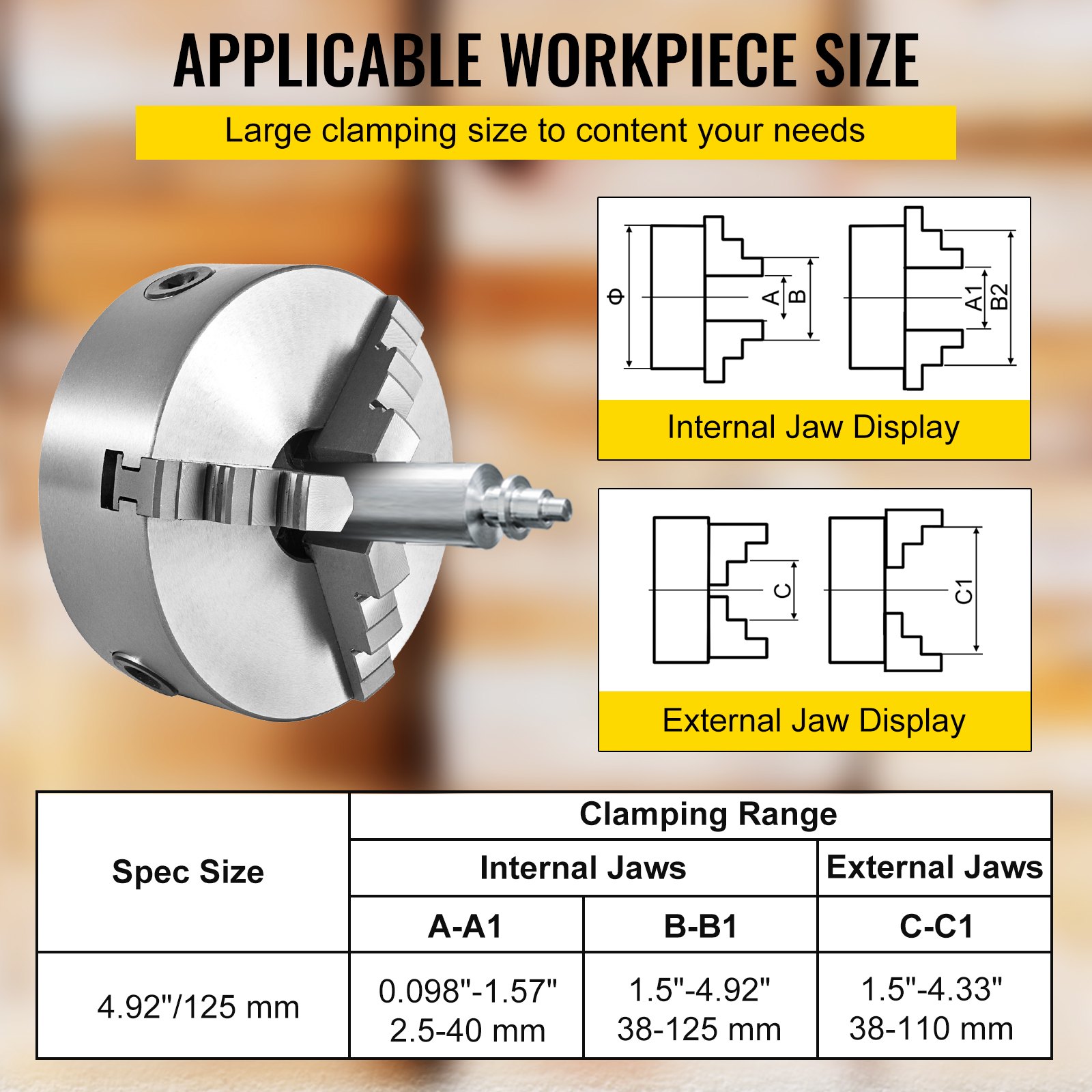

- Internal Jaw Clamping Range (A-A1): 0.098"-1.57" / 2.5-40 mm
- Internal Jaw Jamming Range (B-B1): 1.5"-4.92" / 38-125 mm
- External Jaw Clamping Range (C-C1): 1.5"-4.33" / 38-110 mm
- Chuck Body Thickness: 2.28" / 58 mm
- Mounting Thread: 3-M8
- Item Weight: 11.2 lbs / 5.08 kg
- Package Dimensions: 6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm

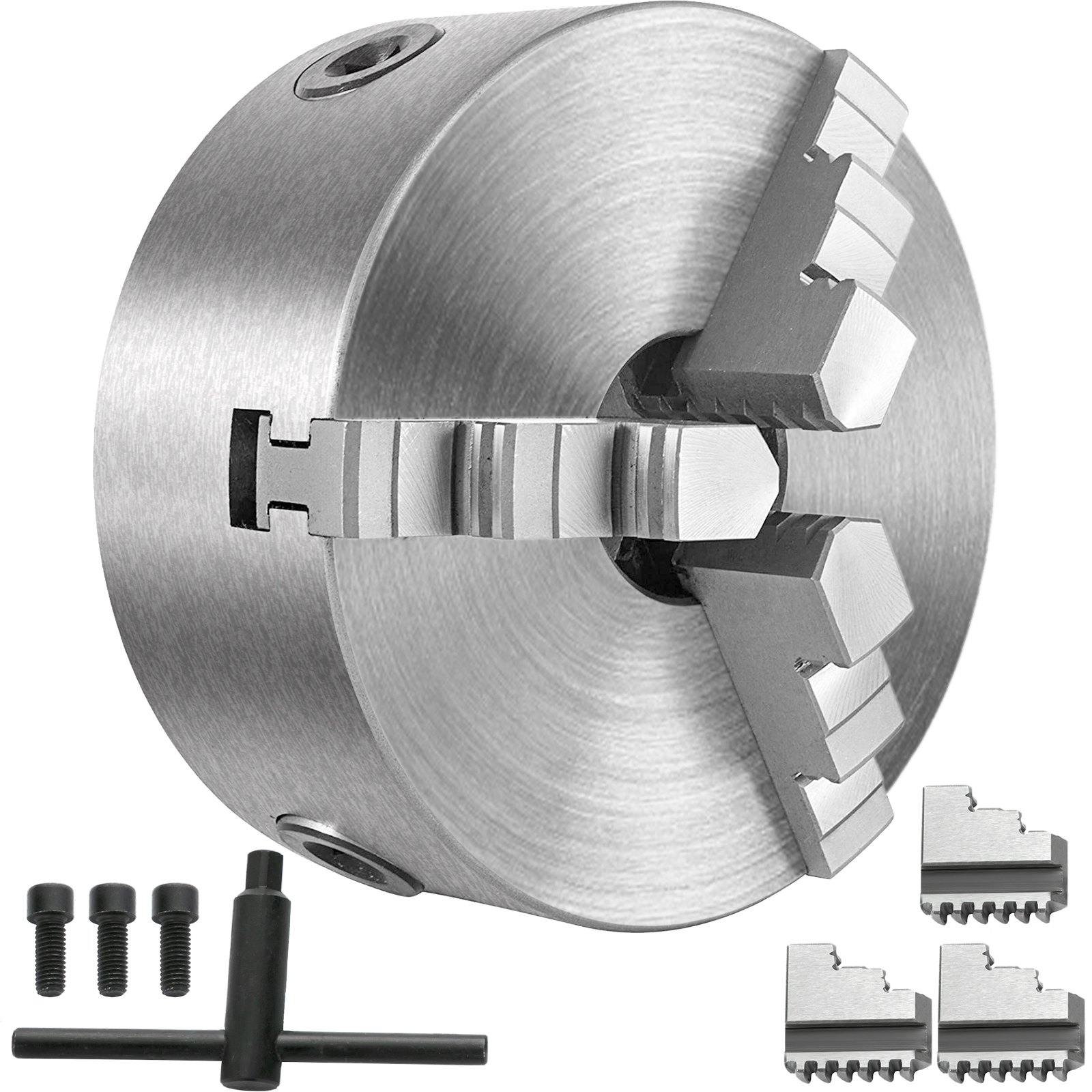

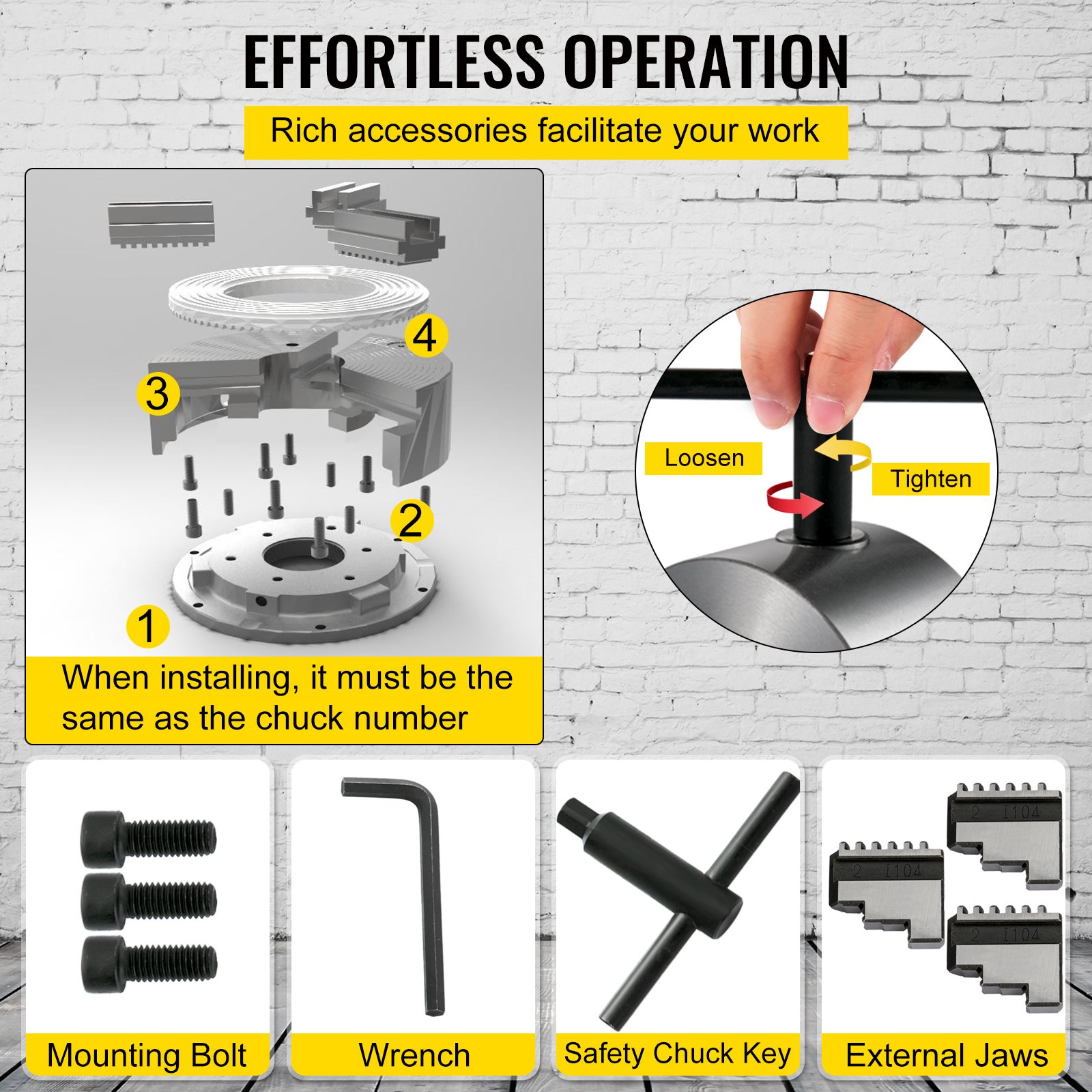

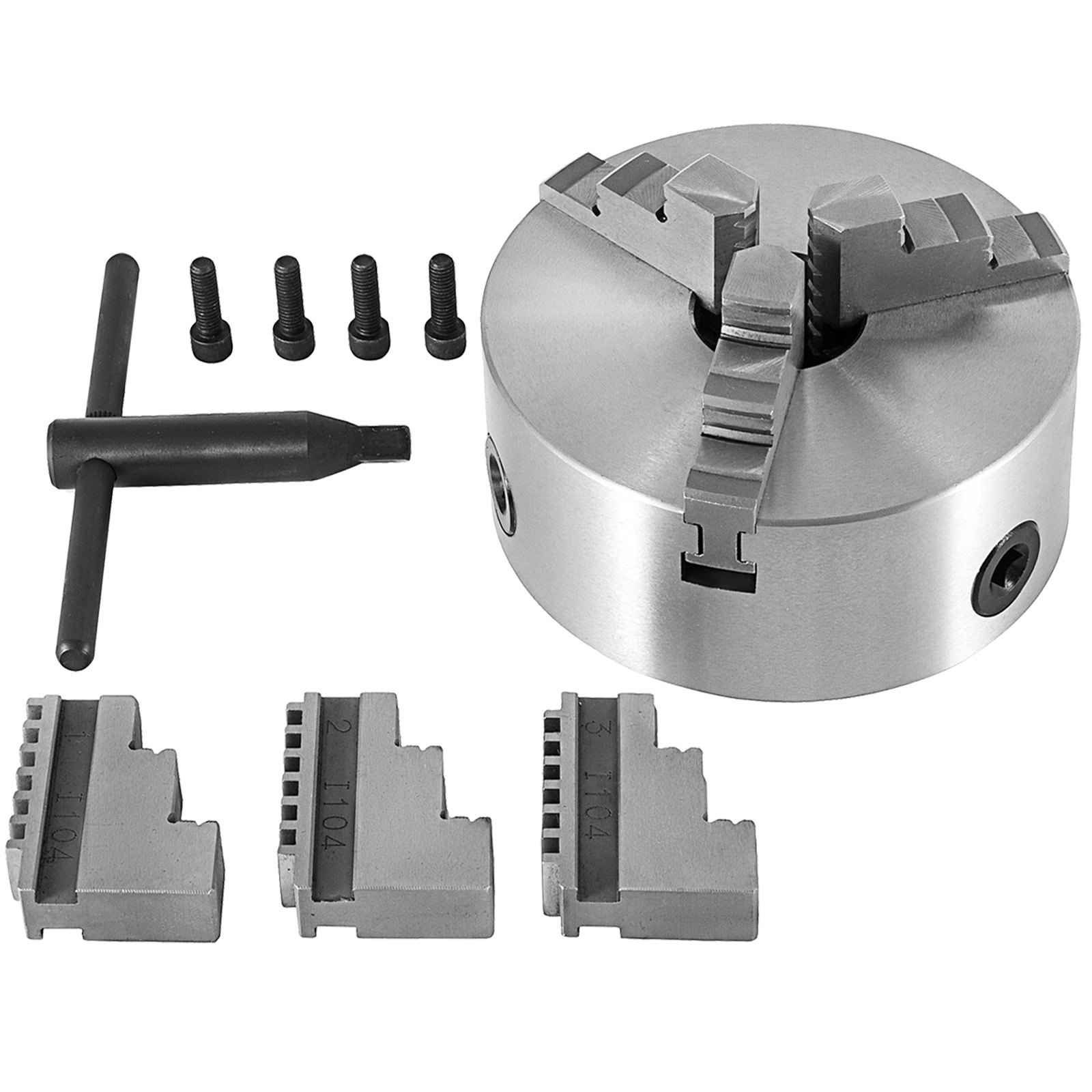

- 1 x Lathe Chuck Body
- 3 x Internal Jaws
- 3 x External Jaws
- 3 x Mounting Bolts
- 1 x Chuck Key
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
- Premium Material
- Internal & External Jaws
- High Precision
- High Efficiency
- 1 x Lathe Chuck Body
- 3 x Internal Jaws
- 3 x External Jaws
- 3 x Mounting Bolts
- 1 x Chuck Key
- Chuck Body Material: Cast Iron
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel
- Item Diameter: 4.92" / 125 mm
- Bolt Circle Diameter: 4.25" / 108 mm
- Center Hole Diameter: 1.18" / 30 mm
- Internal Jaw Clamping Range (A-A1): 0.098"-1.57" / 2.5-40 mm
- Internal Jaw Jamming Range (B-B1): 1.5"-4.92" / 38-125 mm
- External Jaw Clamping Range (C-C1): 1.5"-4.33" / 38-110 mm
- Chuck Body Thickness: 2.28" / 58 mm
- Mounting Thread: 3-M8
- Item Weight: 11.2 lbs / 5.08 kg
- Package Dimensions: 6.3" x 6.3" x 5.9" / 16 x 16 x 15 cm
Precision Lathe Chuck for Enhanced Accuracy
The VEVOR lathe chuck ensures high accuracy for your machining needs. It is made with precision, providing minimal runout. This makes it ideal for tasks that require precise measurements. The self-centering feature adds to its precision. You can use it for both grinding and milling machines. Due to this accuracy, it is a reliable tool for various applications. No matter if you are a hobbyist or professional, this chuck delivers consistent performance.
Durable Materials for Long-lasting Performance

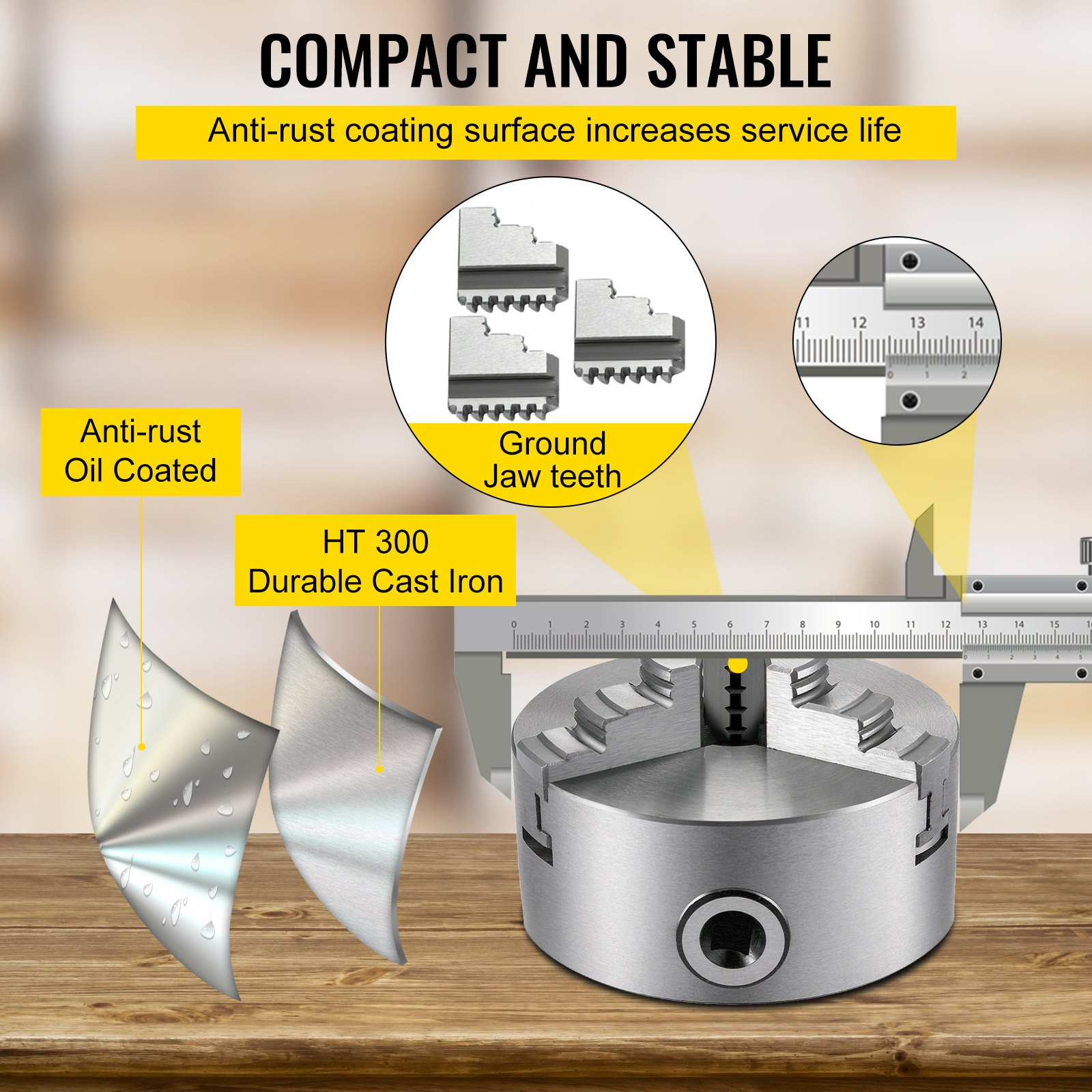

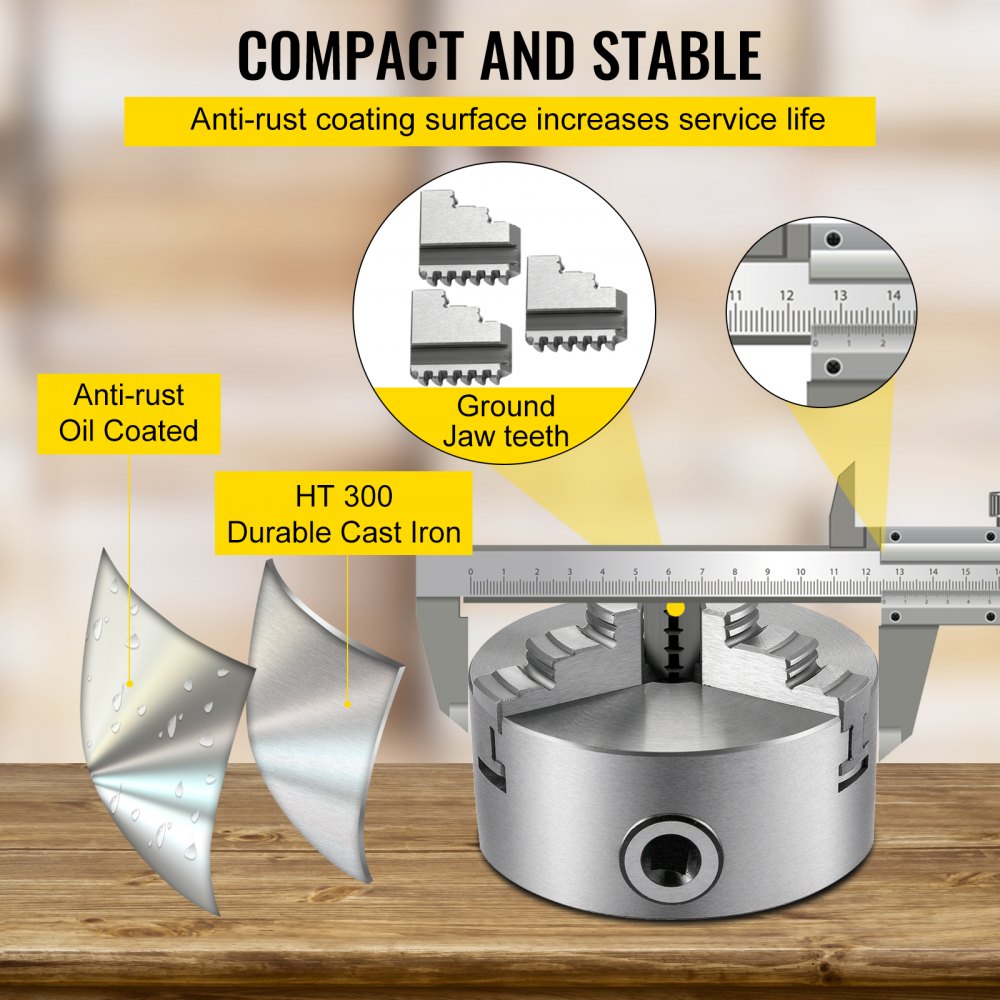

The VEVOR lathe chuck boasts a robust construction. It features a cast iron body, providing strength and durability. The jaws are made from 40CR steel. This ensures strength and longevity. The bevel gear and pinions also come from high-quality steel for this purpose. This construction guarantees the chuck can handle heavy-duty tasks. It is designed to withstand the rigors of frequent use. The materials used in its construction make it a reliable tool. You should not wait any longer when you need a dependable lathe chuck.
Easy-to-use Self-centering 3 Jaw Lathe Chuck

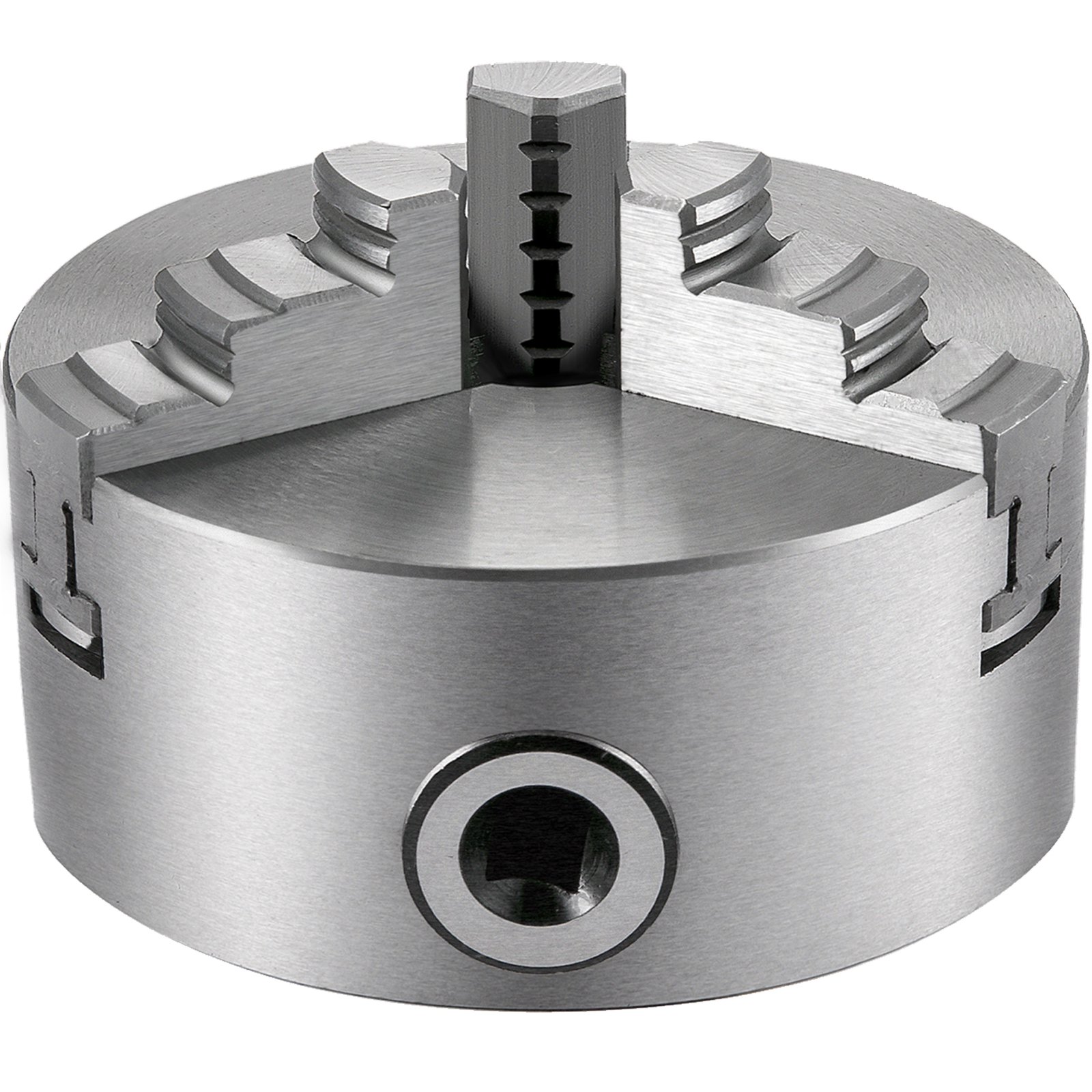

It is easy to use this lathe chuck. It has a self-centering 3-jaw design. This feature simplifies the alignment process, saving you time. The jaws close uniformly, guaranteeing a secure hold on the workpiece. This makes it suitable for a wide range of machining tasks. Also, the self-centering mechanism is convenient for any workshop. Both beginners and experienced users can make an informed purchase with this easy-to-use lathe chuck. Our self-centering mechanisms ensure reliable performance every time around.
Wide Clamping Range for Versatility
The VEVOR lathe chuck has a wide clamping range. It can hold workpieces from 0.098 inches to 4.92 inches. This versatility makes it suitable for various applications. Whether you are working with small or large parts, this chuck can handle it. Its internal and external jaw clamps also make it an invaluable tool for any machining project. You can easily adapt it to different needs. As a result, it is incredibly versatile in your workshop.
Cost-effective Solution with High Value
This lathe chuck offers great value for its price. It is an affordable solution without sacrificing quality. The materials and construction ensure it performs reliably. For budget-conscious buyers, it is a cost-effective option. Although low cost, it delivers high performance. This makes it a smart investment for any workshop. You get a dependable, durable, and precise tool at a fraction of the cost of other chucks.
Easy Mounting and Adaptability to Various Lathes

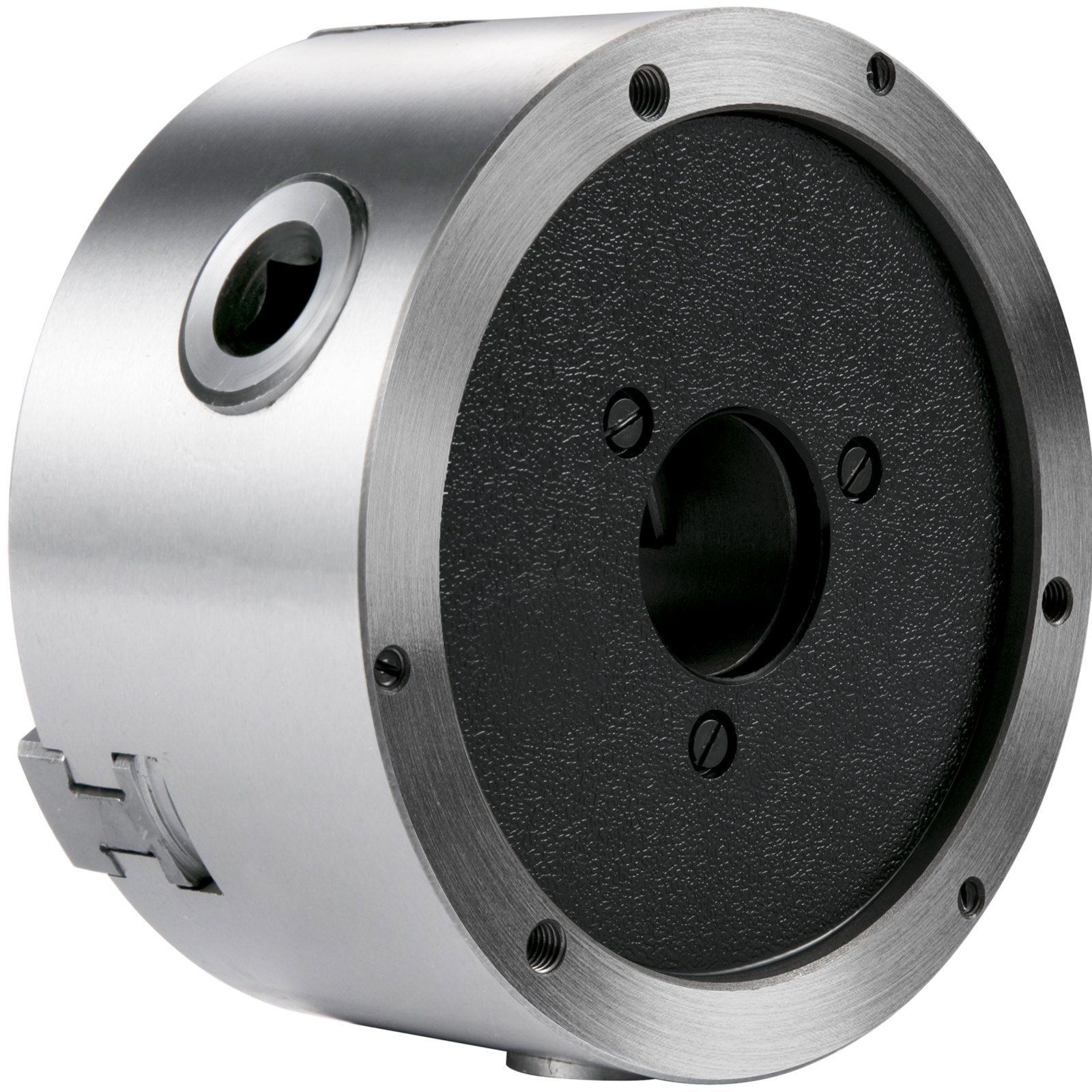

The VEVOR lathe chuck is easy to mount on various lathes. It comes with a bolt circle diameter of 4.25 inches. This makes it suitable for many lathe models. Mounting Thread: 3-M8, adding to its adaptability. You may need to use an adapter plate, but this is common with many chucks too. The chuck design allows for easy installation. So, it’s an easy-to-use tool for any workshop. For those who need a dependable and versatile lathe chuck, you can complete your work in no time.
Minimal Runout for Precise Machining
The VEVOR lathe chuck offers minimal runout. This ensures precise machining for your projects. Its high-accuracy design makes it ideal for detailed work. It maintains the workpiece's integrity by minimizing runout. Therefore, this makes it a dependable tool for tasks requiring exact measurements. Whether you are working on a hobby project or pursuing a professional job, this chuck delivers the precision you need. It is an excellent tool for any workshop.
