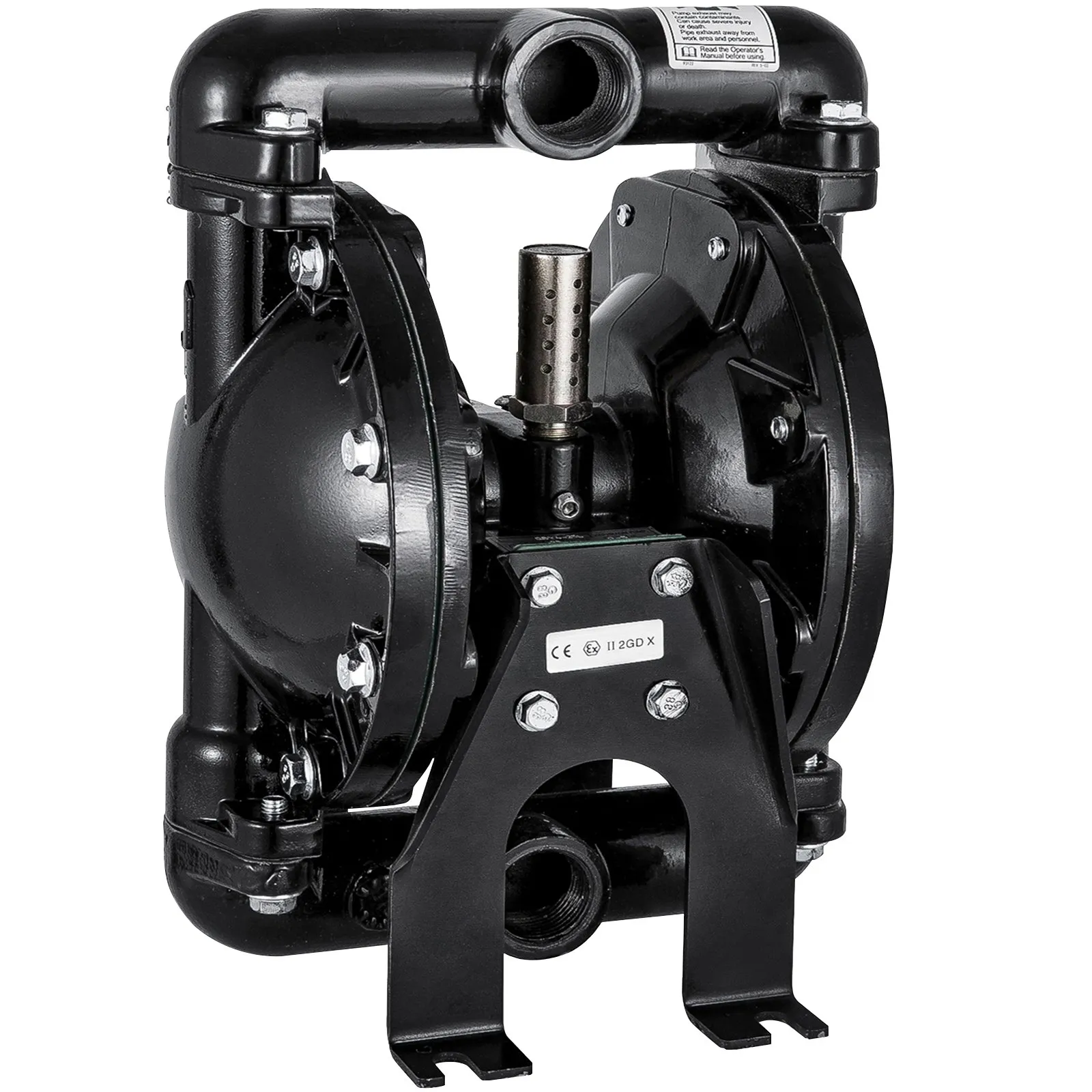

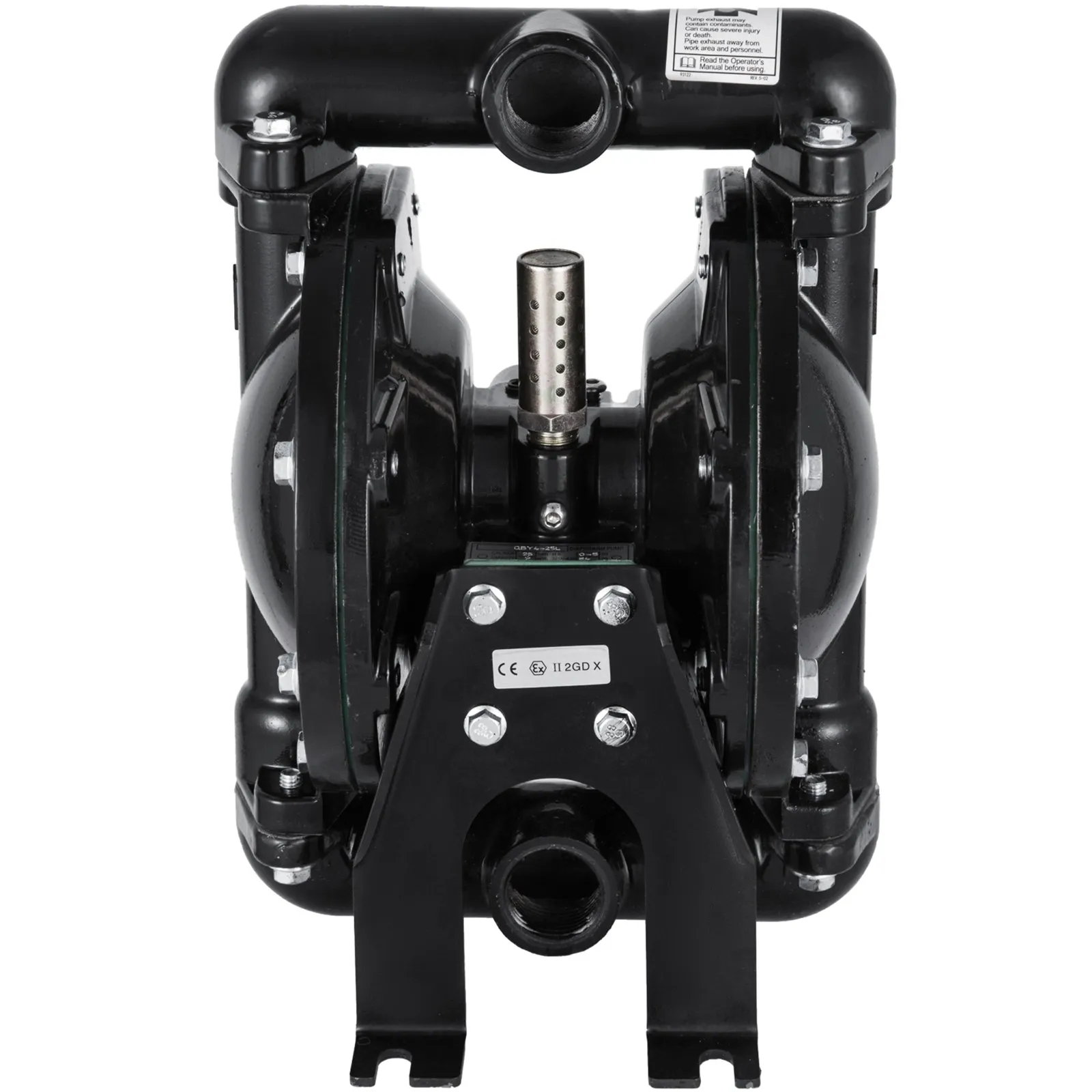

VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35 VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
YBGMBQBY4-25L0001V0

VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35

$169.99
169.99
Price including VATSee details

About this item

  • Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate: 39.6 GPM; Max Head Lift:275.6 ft/84 m.
  • Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
  • Excellent Air-operated Performance: Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
  • Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
  • Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Only 1 Left, order soon
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & Nitrile Diaphragm & 39.6 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double Nitrile Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Sturdy Aluminum Alloy Body
The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Nitrile Double Diaphragm
The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 39.6 GPM; Max Head Lift: 275.6 ft/84 m.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35

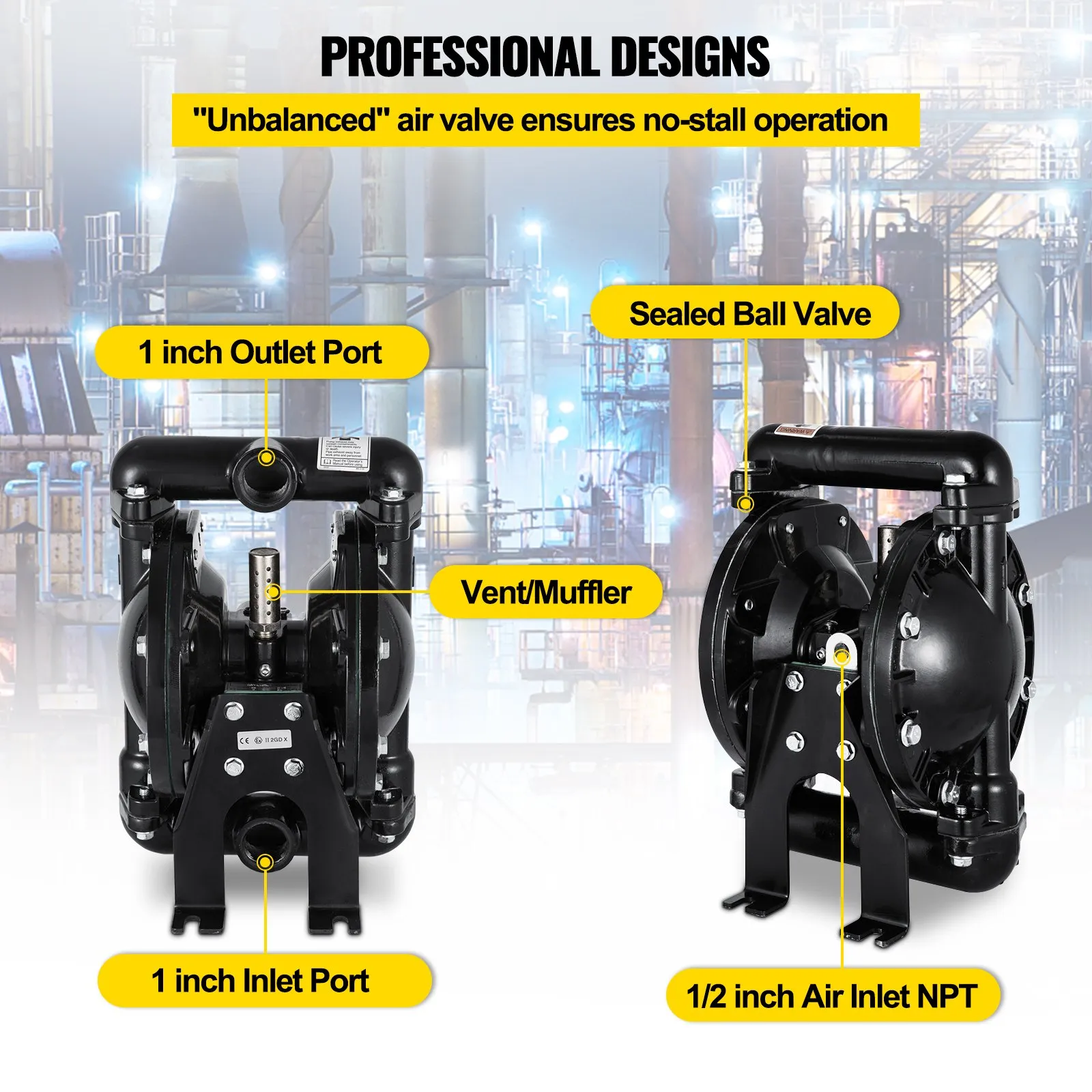

Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35

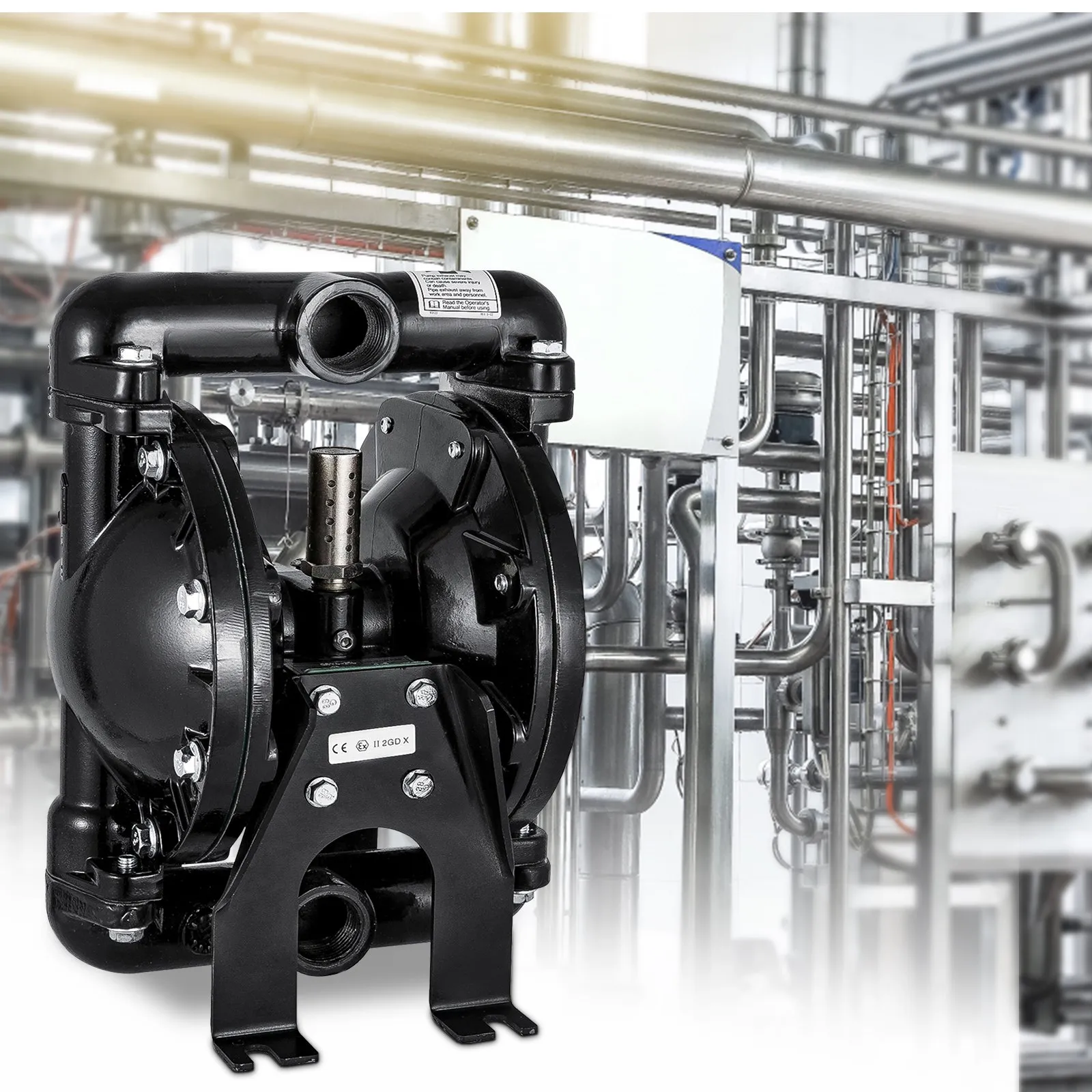

Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35

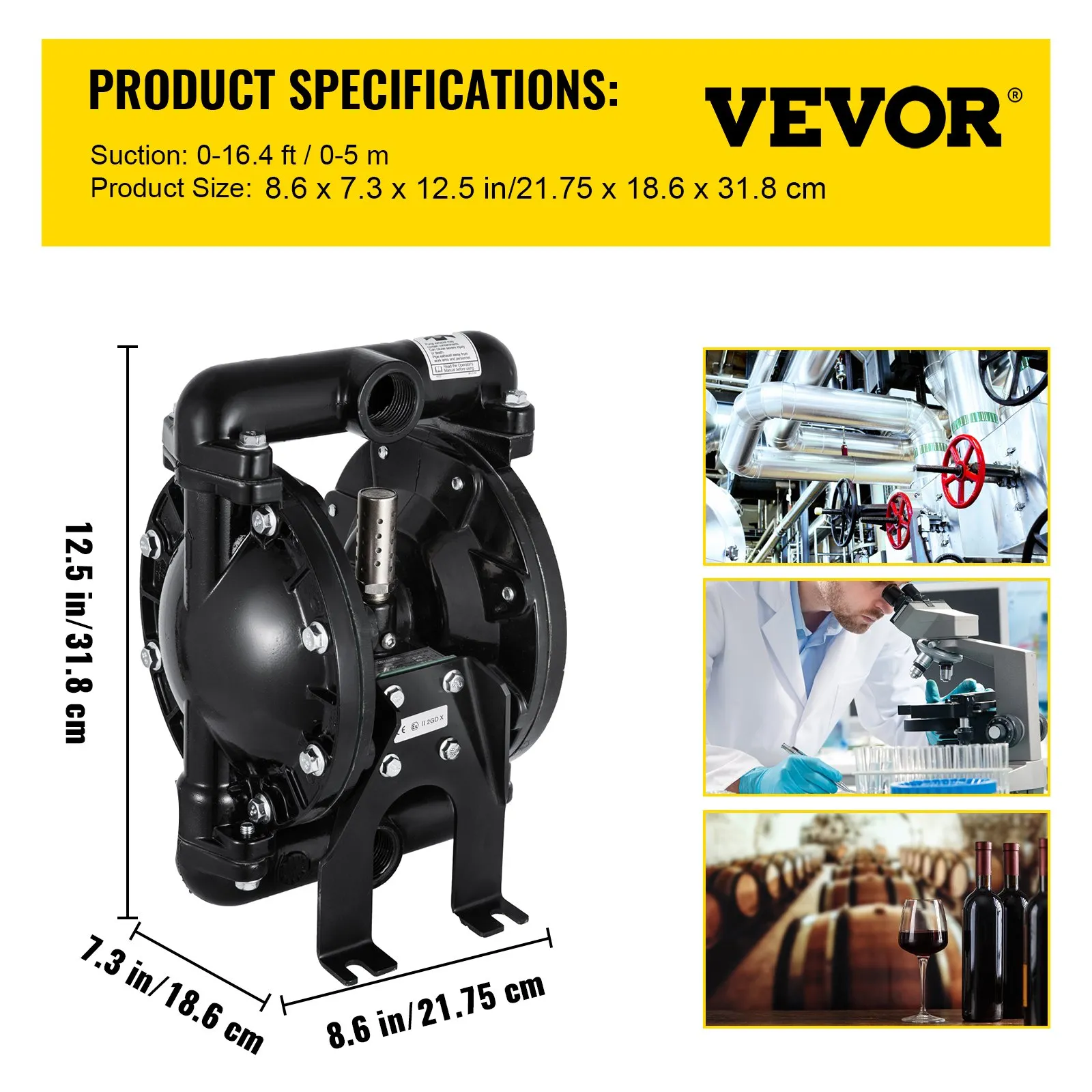

Specifications
  • Model: QBY4-25L
  • Type: Air-operated Double diaphragm
  • Diaphragm Material: Nitrile
  • Body Material: Aluminum Alloy
  • Inlet/Outlet Port: 1 inch (25 mm)
  • Air Inlet Size: NPT 1/2 inch (12.7 mm)
  • Max Flow Rate: 39.6 GPM
  • Max Head: 84 m (275.59 ft)
  • Valve Type: Ball
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 3 mm (1/8 inch)
  • Average Air Consumption: 38 CFM
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Air-Operated Double Diaphragm Pump Aluminum Alloy Construction & Nitrile Diaphragm & 39.6 GPM Flow Rate Our self-priming diaphragm pump features an all-bolted aluminum alloy body and double nitrile diaphragms, sturdy and corrosion-proof, without leakage. Sealed ball valves and non-stall operation provides outstanding performance. It is perfect for transferring viscous and flammable fluids. Our top of the line self-priming diaphragm pump will ensure your operations are flowing smoothly.
Premium Double Nitrile Diaphragms
  • Sturdy & Leak-proof Construction
  • Excellent Air-operated Performance
  • Unique & Professional Designs
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Sturdy Aluminum Alloy Body
The shell of the air-operated diaphragm pump adopts aluminum alloy construction, all bolted, solid, and corrosion-proof. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Nitrile Double Diaphragm
The self-priming pump features double nitrile diaphragms, which have high resistance to corrosion and aging. Max. Flow Rate: 39.6 GPM; Max Head Lift: 275.6 ft/84 m.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Professional Air-Operated Designs
Our diaphragm pump is built to meet the international standard for reliable performance. Inlet/Outlet Port Size: 1 inch; Air Inlet Size: FNPT 1/2 inch.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Sealed Ball Valve
It is easily accessible to ball checks and fluid caps for maintenance and repairs. In addition, the motor design delivers optimum air efficiency. An “Unbalanced" air valve ensures no-stalling during operation.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Handle Various Material
This air-operated diaphragm pump can transfer many viscous and flammable fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drinking water, and so on.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Versatile Uses
The double diaphragm pump has applications in various industries like petroleum, metallurgy, mining, coating. printing, water treatment, automobile, etc.
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Package Content
  • 1 x Air-Operated Double Diaphragm Pump
  • 1 x Product Manual
VEVOR Air-Operated Double Diaphragm Pump 1 inch Inlet Outlet Aluminum 35 GPM Max 120PSI, Nitrile Diaphragm, QBY4-25L-1inch-35
Specifications
  • Model: QBY4-25L
  • Type: Air-operated Double diaphragm
  • Diaphragm Material: Nitrile
  • Body Material: Aluminum Alloy
  • Inlet/Outlet Port: 1 inch (25 mm)
  • Air Inlet Size: NPT 1/2 inch (12.7 mm)
  • Max Flow Rate: 39.6 GPM
  • Max Head: 84 m (275.59 ft)
  • Valve Type: Ball
  • Suction: 0-5 m (0-16.4 ft)
  • Max Suspended Solids: 3 mm (1/8 inch)
  • Average Air Consumption: 38 CFM
  • Self-Priming Dry: 3 m (10 ft)
  • Self-Priming Wet: 4.6 m (15 ft)

Specification

Model
QBY4-25L
Type
Air-operated Double diaphragm
Diaphragm Material
Nitrile
Body Material
Aluminum Alloy
Inlet/Outlet Port
1 inch (25 mm)
Air Inlet Size
NPT 1/2 inch (12.7 mm)
Max Flow Rate
39.6 GPM
Max Head
84 m (275.59 ft)
Valve Type
Ball
Suction
0-5 m (0-16.4 ft)
Max Suspended Solids
3 mm (1/8 inch)
Average Air Consumption
38 CFM
Self-Priming Dry
3 m (10 ft)
Self-Priming Wet
4.6 m (15 ft)
Questions and Answers
4 Questions
where can i locate repair kits for Pump to purchase.
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(In the case of parts that are not consumable). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
Hello. What is the maximum viscosity (cp) this pump can transfer? I am looking for a high viscosity transfer pump. Thank you.
2000.
By vevor
Will this work with bleach?
This will work with bleach.
By vevor
WILL THIS PUMP USED OIL MOTOR OIL
It is ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
21 Review(s)
Clear filters
KT KT
Fleet Mgr.
Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm. Easy to order. Part arrived on time. Installed and working like a charm.
David David
President
Works Good for our application of removing garnet from our water jet tank and would recommend this to anyone needed to pump garnet
José Rivera José Rivera
Mecánico industrial
Un buen servicio con productos accesibles a buen precio buena atención, recomendado para facilitar la nesecidad del cliente
Nitrolvr33 Nitrolvr33
Decent pump, great price
We use these to pump acrylic coatings (paint with sand in it) and they work great. Put a small air regulator right at the pump so you can easily control pump output, and make sure that all the pump bolts are tight before you use it. No problems.
Boss Man Boss Man
Manager
1st time ordering and the process what quick, simple and we received our pump in 2 days with FREE Shipping. They also applied a coupon to the order!!!
Bill Overbay Bill Overbay
Plant Manager
Our facility was using Yamada AOD pumps that required rebuild every 6-12 months, for the price and time for a rebuild this is a more cost effective route. I just replaced the unit I ordered in Sept 2022, a 9 month life on a pump that cycles every 10 seconds and runs 20 hours every day is good value for our business.
Scott Jones Scott Jones
owner
Absolutely great for the price! I have easily pumped over a 1000 gallons of diesel/oil/water mix with this pump so far and it is still working good. I will say it seems to need primed a lil more than the higher priced ones I have used and if your looking to continually run this for a long period of time your going to need a pretty good size air compressor, but it gets the job done!, and for the price I'm not going to complain!
Joel Joel
Engineer
Very compact, very good equipment, good quality withstands industrial and continuous use. i recommend it.
Robert Robert
Business owner
Great pump for the price. Sometimes you have to take it apart and clean up the debris inside. Reassemble works fine. Some bolts were not tight but overall a great little unit.
Jamie Jamie
Owner
Works great and pumps super fast. Had some troubles at first getting it to stay primed, but after taking it apart a couple of times it seems to be working fine now.
