Features & Details

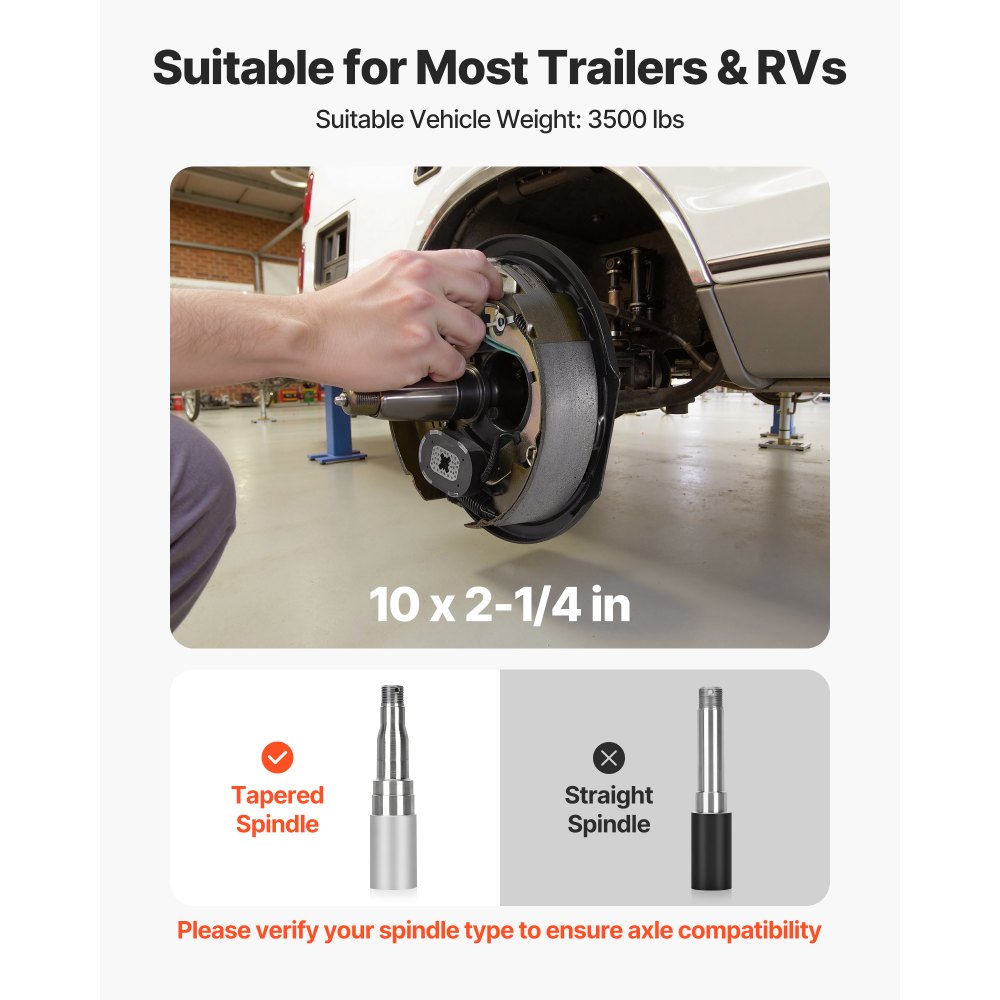

Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies and 4 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

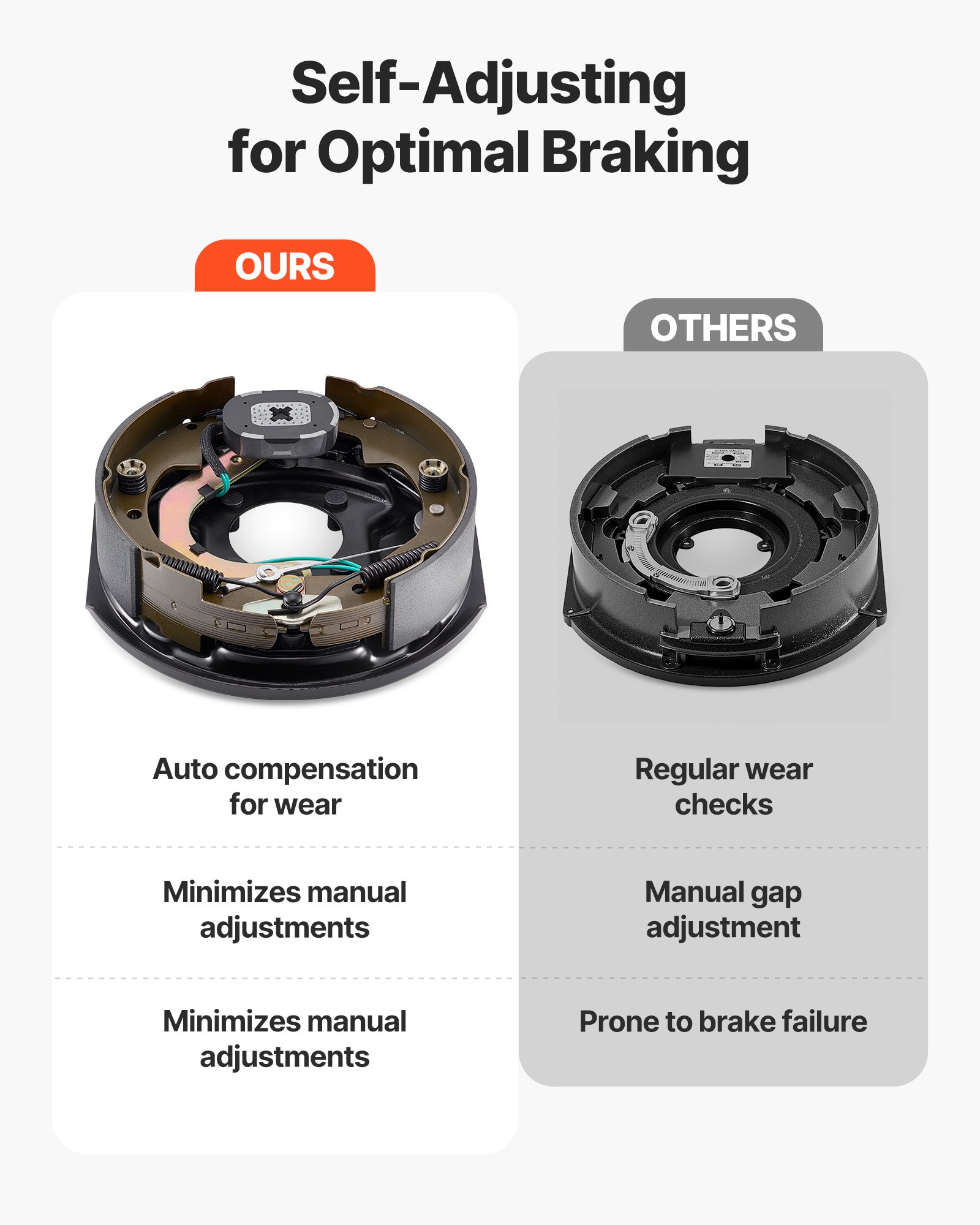

Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips
Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go
Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noise—fit for heavy-load, downhill, and frequent braking
≥30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads

See More See Less

Frequently Bought Together

Reviews 4.8

All reviews are from verified purchases

Average rating based on 149 reviews

Richard D

Reviewed on Jan 18,2026

If you have a travel trailor chances are it will be a 10x2 1/2" drum. This kit comes with everything thing you need,. The only two things you will need id a grease gun, and you may need to reuse your lock washers the ones that were supplied were to small . Other then that everything was included. They are self adjusting and I found that if I drove it around a bit and played with the gains it started to respond better. I an about to tow this camper 1500 miles and we will see how it goes.

See Less

Brian

Reviewed on Jan 16,2026

Fit and worked great

See Less

Brent Freeman

Reviewed on Jan 16,2026

Ther work great

See Less

Rich

Reviewed on Jan 11,2026

The 12" does not fit on a 24' command camper. I just ordered the 10" instead don't make my mistake!

See Less

See all 149 reviews

About this item

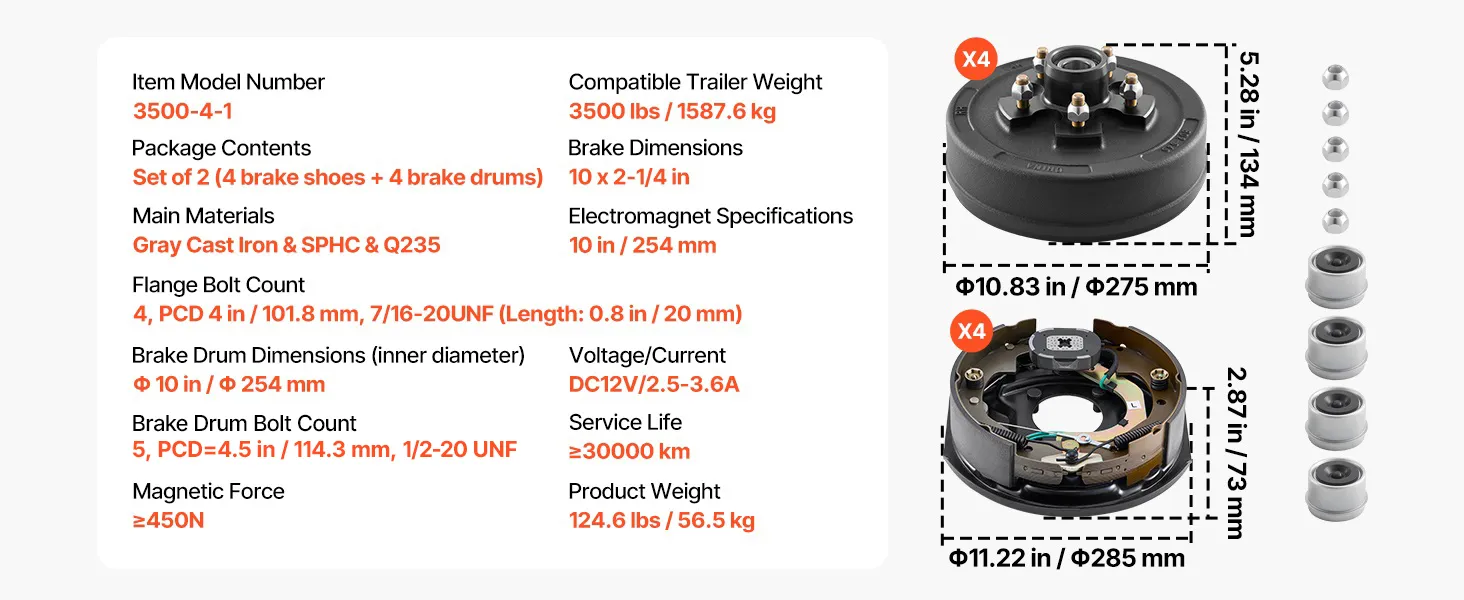

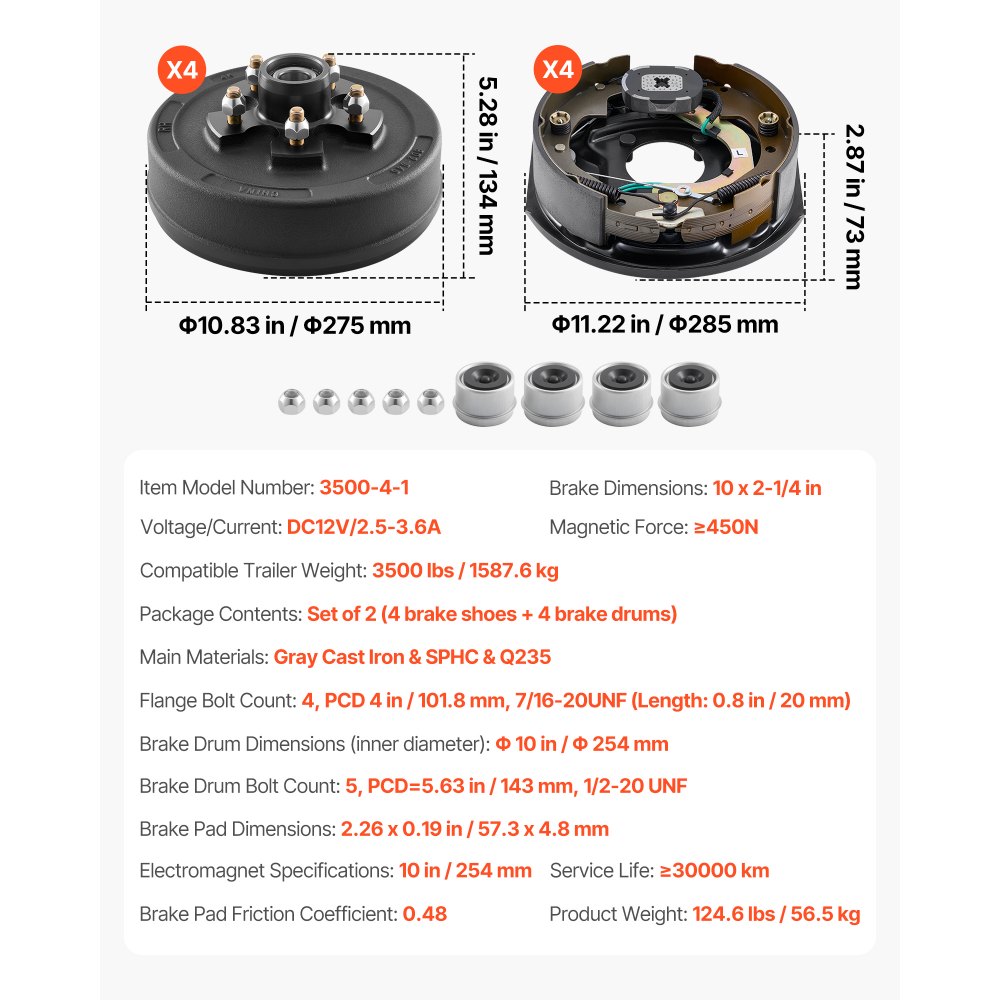

Product specification

Item Model Number: 3500-4-1

Compatible Trailer Weight: 3500 lbs / 1587.6 kg

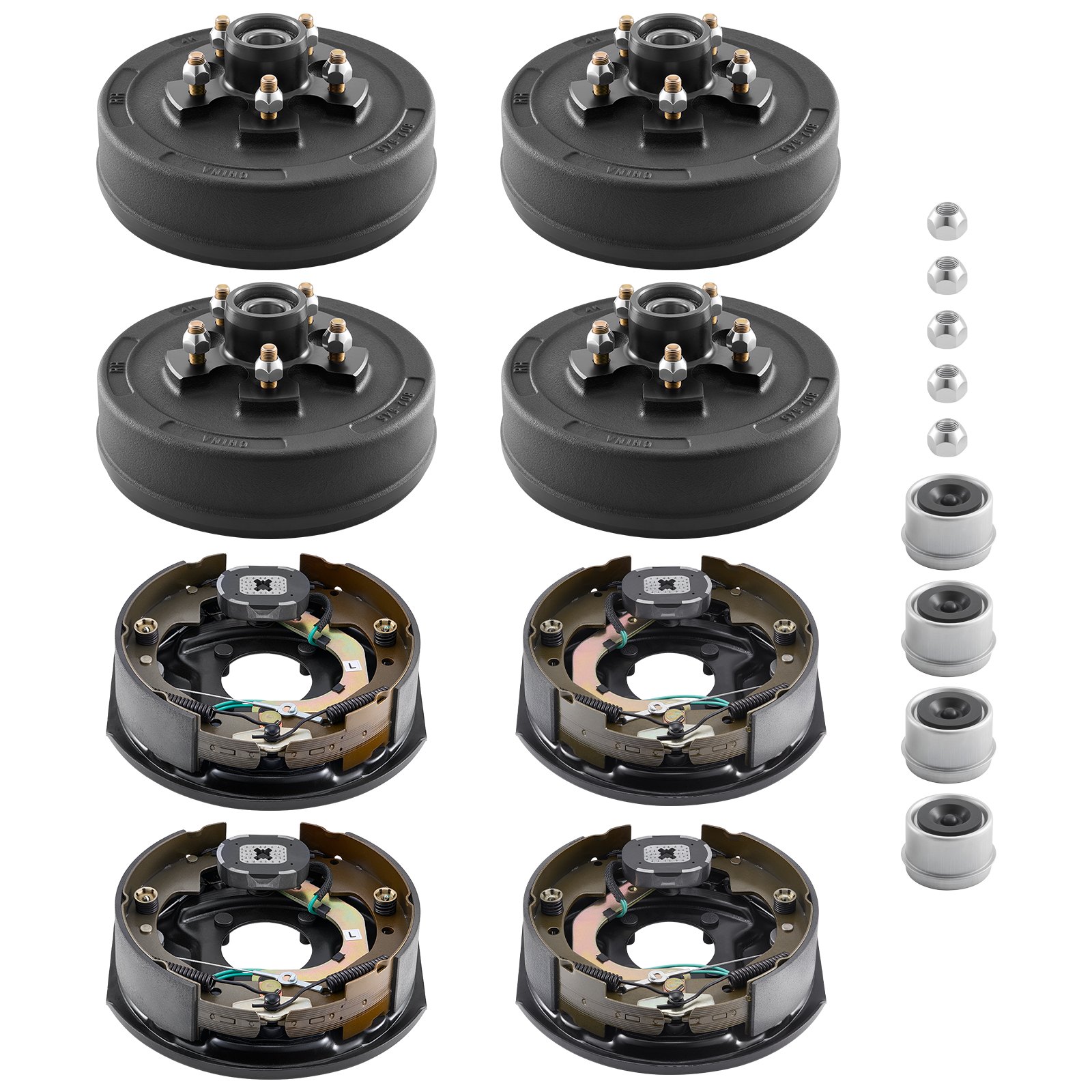

Package Contents: Set of 2 (4 brake shoes + 4 brake drums)

Main Materials: Gray Cast Iron & SPHC & Q235

Brake Dimensions: 10 x 2-1/4 inch

Flange Bolt Count: 4, PCD 4 in / 101.8 mm, 7/16-20UNF (Length

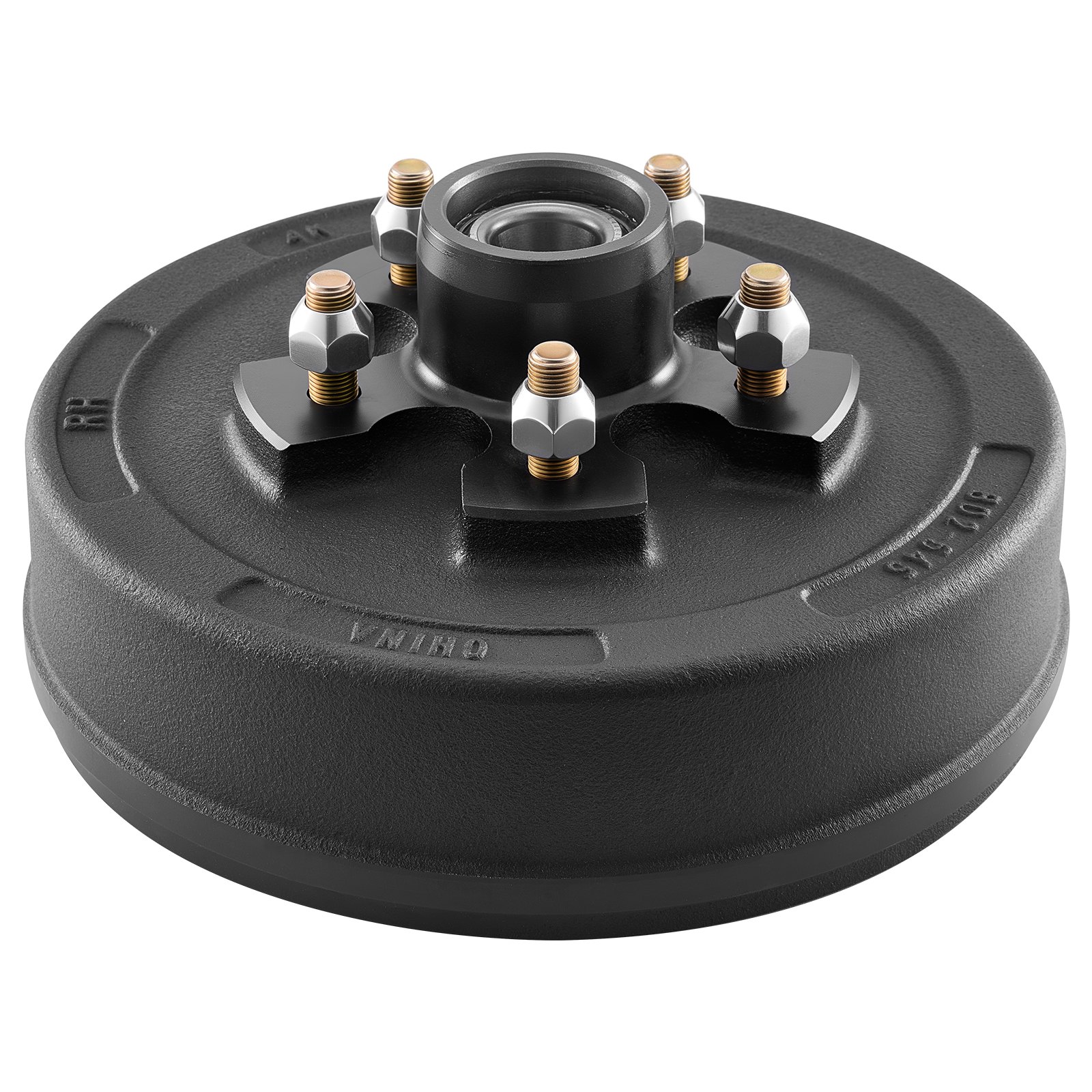

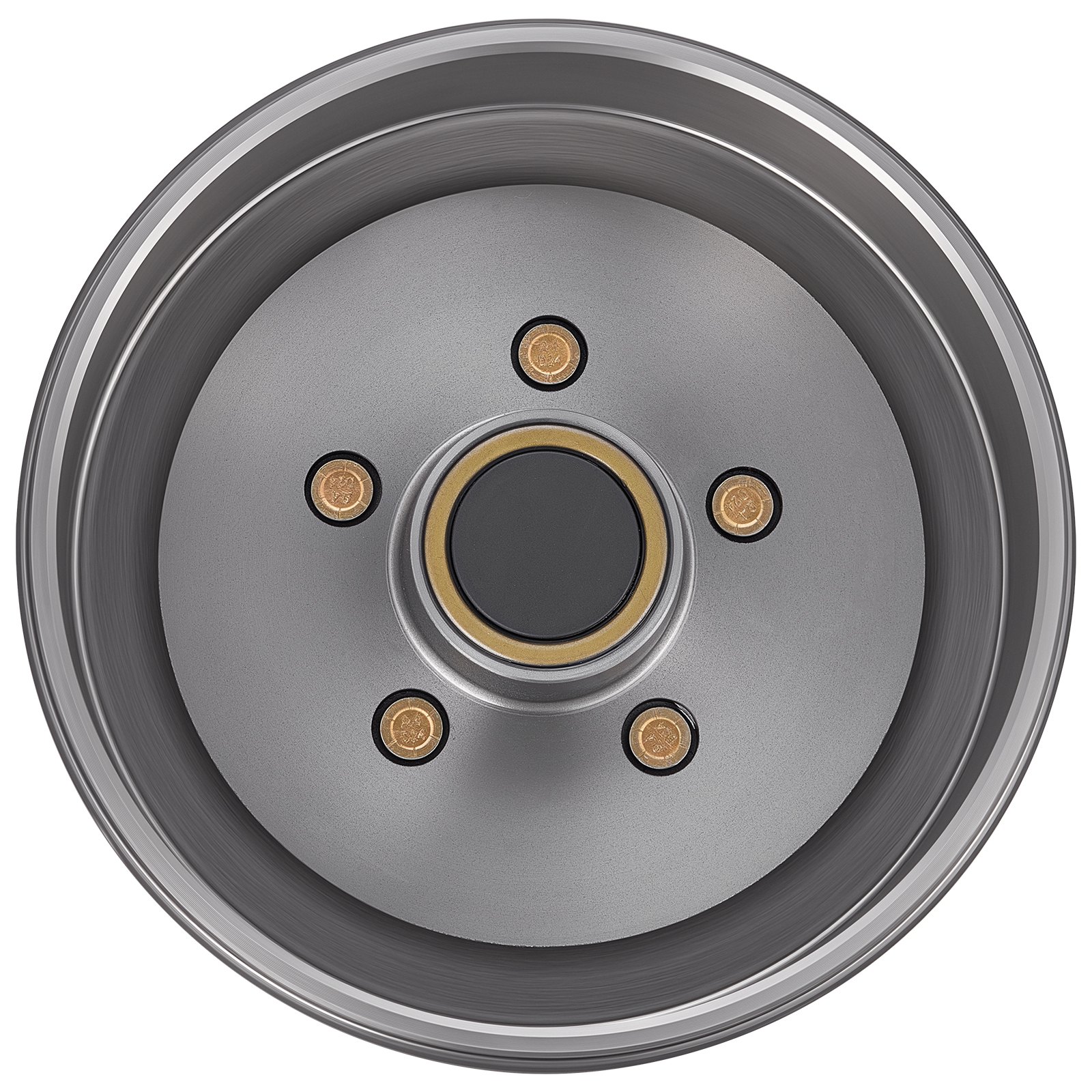

Brake Drum Dimensions (inner diameter): Φ 10 in / Φ 254 mm

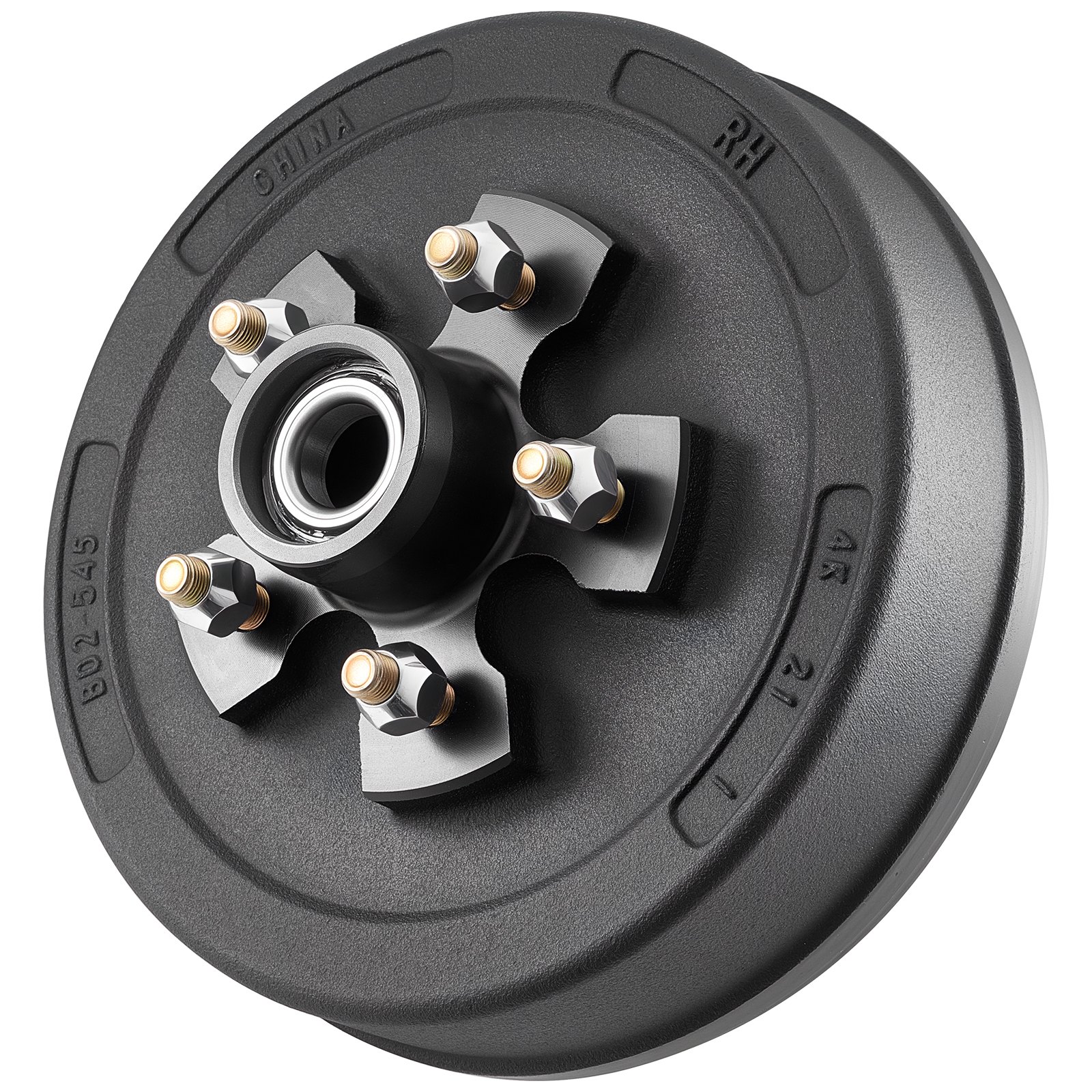

Brake Drum Bolt Count: 5, PCD=5.63 in / 143 mm, 1/2-20 UNF

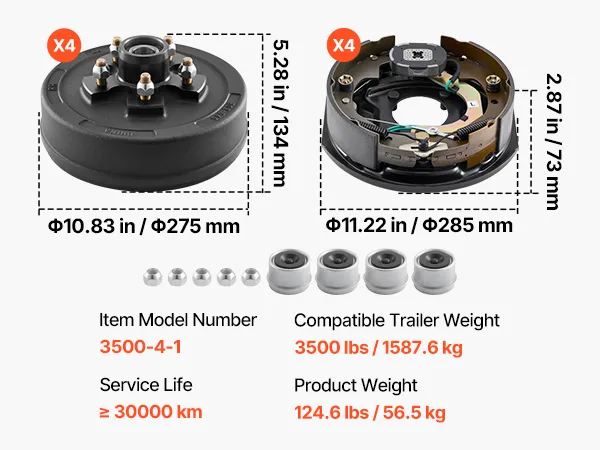

: Product Dimensions (Outer diameter × Height)

Brake Shoe: Φ11.22 x 2.87 in / Φ285 x 73 mm

Brake Drum: Φ10.83 x 5.28 in / Φ275 x 134 mm

Electromagnet Specifications: 10 in / 254 mm

Voltage/Current: DC12V/2.5-3.6A

Magnetic Force: ≥450N

Service Life: ≥30000 km

Brake Pad Friction Coefficient: 0.48

Brake Pad Dimensions: 2.26 x 0.19 in / 57.3 x 4.8 mm

Product Weight: 124.6 lbs / 56.5 kg

Description

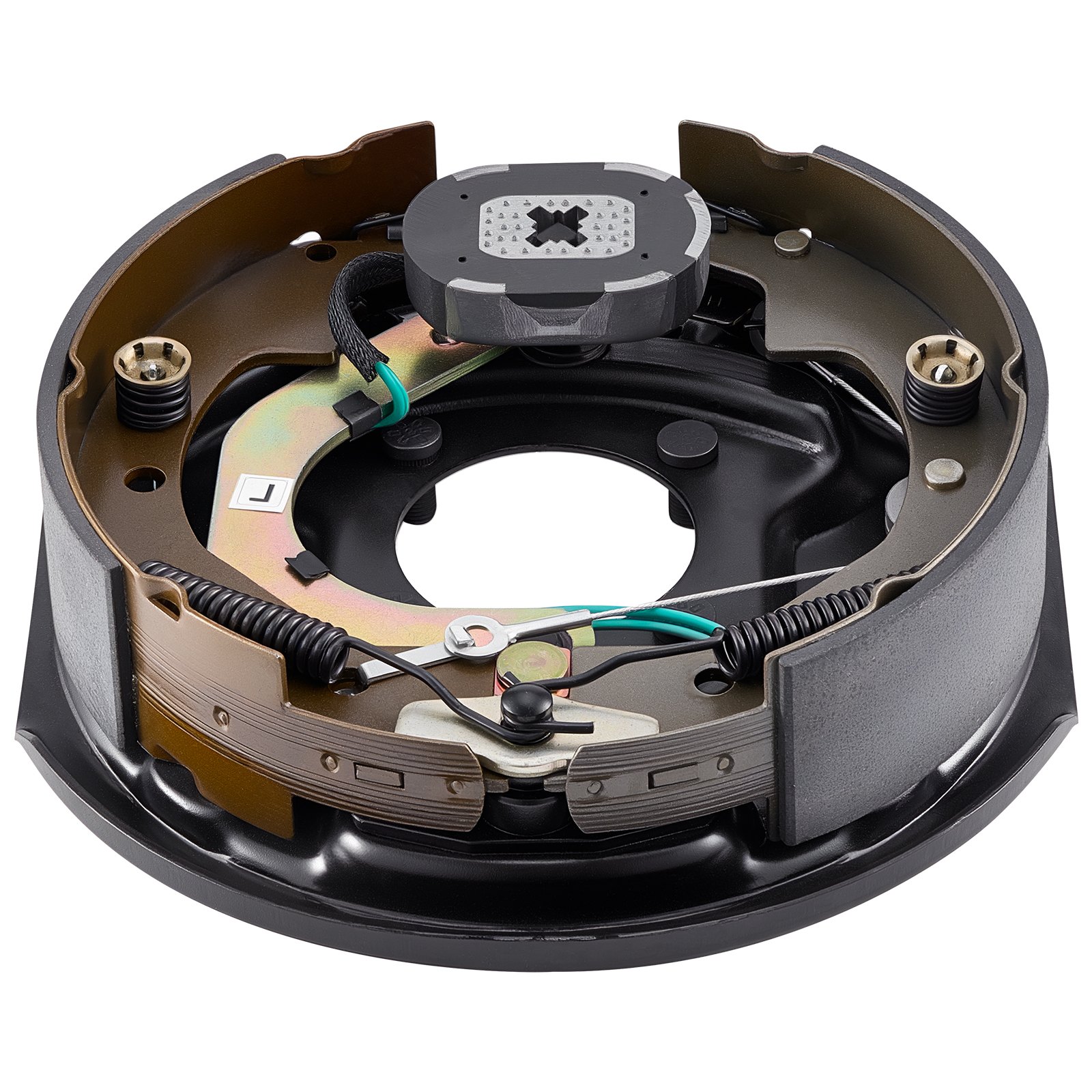

Self-adjusting Electric Trailer Brake Kit: For 3500 lbs Trailers

This trailer brake kit includes 4 brake assemblies and 4 brake drums, fit for 3500 lbs trailers. The auto-adjust feature compensates for wear, making it an ideal upgrade for enhanced braking performance.

The electric trailer brake assembly is compatible with top axle brands like Al-Ko, Dexter, and Lippert. Pre-assembled core components make installation easy. Simply add oil, and you’re ready to go!

The self-adjusting brake mechanism ensures a smooth ride, minimizing the need for frequent brake checks. Enjoy consistent braking performance and enhanced security on steep descents.

Our self-adjusting electric brakes kit is crafted with durable GG-rated brake pads, steel brake assemblies, and cast iron drums. These components resist wear, heat, and impact, making them ideal for long trips.

Ideal for trailers, caravans, and RVs. Whether for towing or transporting cargo, this electric trailer brake kit provides reliable security and peace of mind.

Product guides and documents

User manual-es (PDF) Review

Questions and Answers (3)

3 Questions Ask a Question

Do the hibs come with bearings and seals

Answer This Question

Yes,the hibs comes with bearings and seals.

By vevor

Helpful ( 1 )

What is the bolt pattern (PCD) on the brake drum? (for the tire/rim) 5 on 5.63 in / 143mm is listed, but this is not a standard pattern. The other 10x2-1/4" brakes listed have a 5 on 4.5" pattern - which is by far the most prevalent for 3500lb trailer axles.

Answer This Question

Dear Customer, Thanks for your inquiry. 5-4.5, The diameter of the pcd distribution circle is 4.5 inches. 25.4×4.5=114.3.

By vevor

Helpful ( 0 )

Is this 5 x 4 1/2

Answer This Question

Brake Dimensions：10 x 2-1/4 inch

By vevor

Helpful ( 0 )
