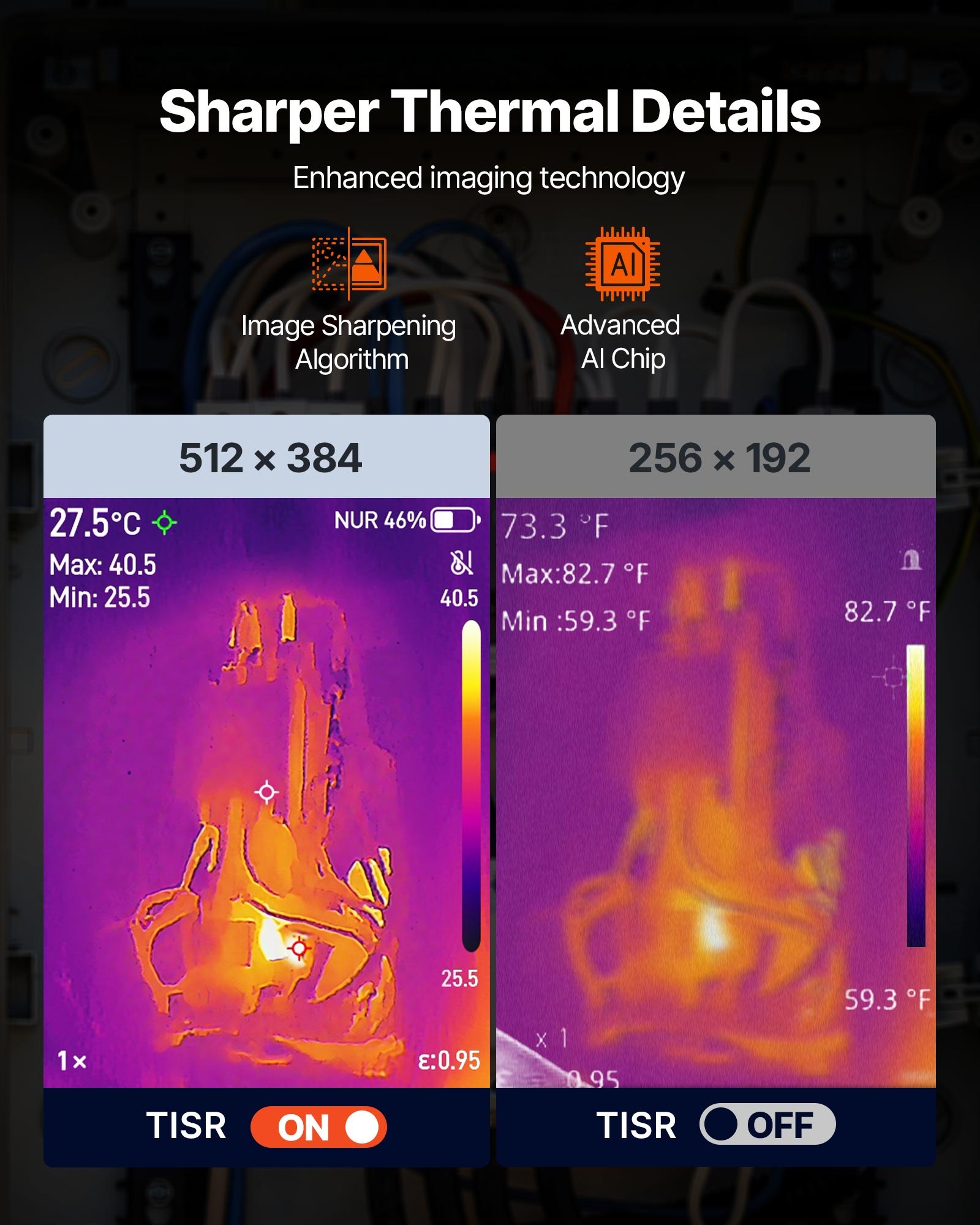

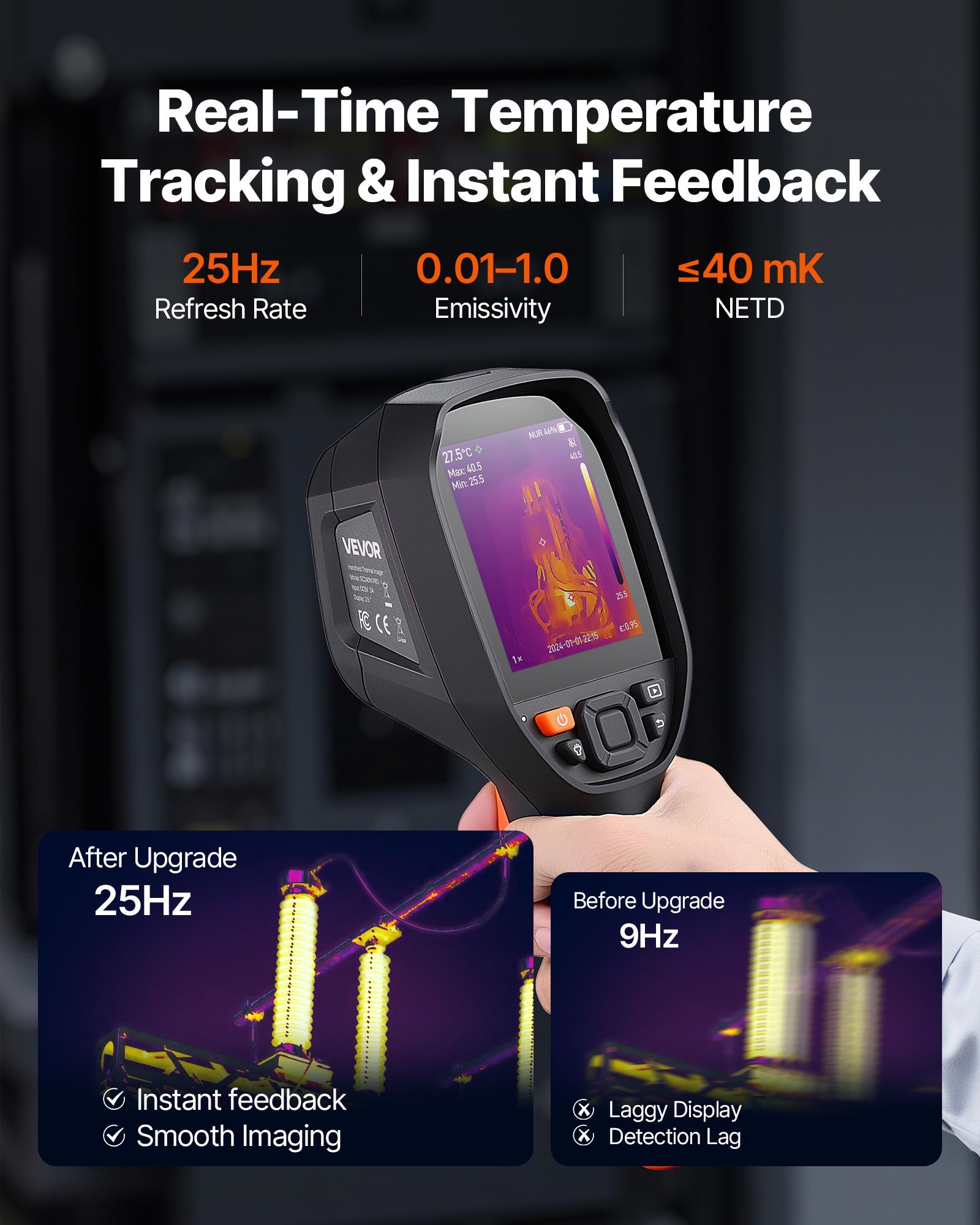

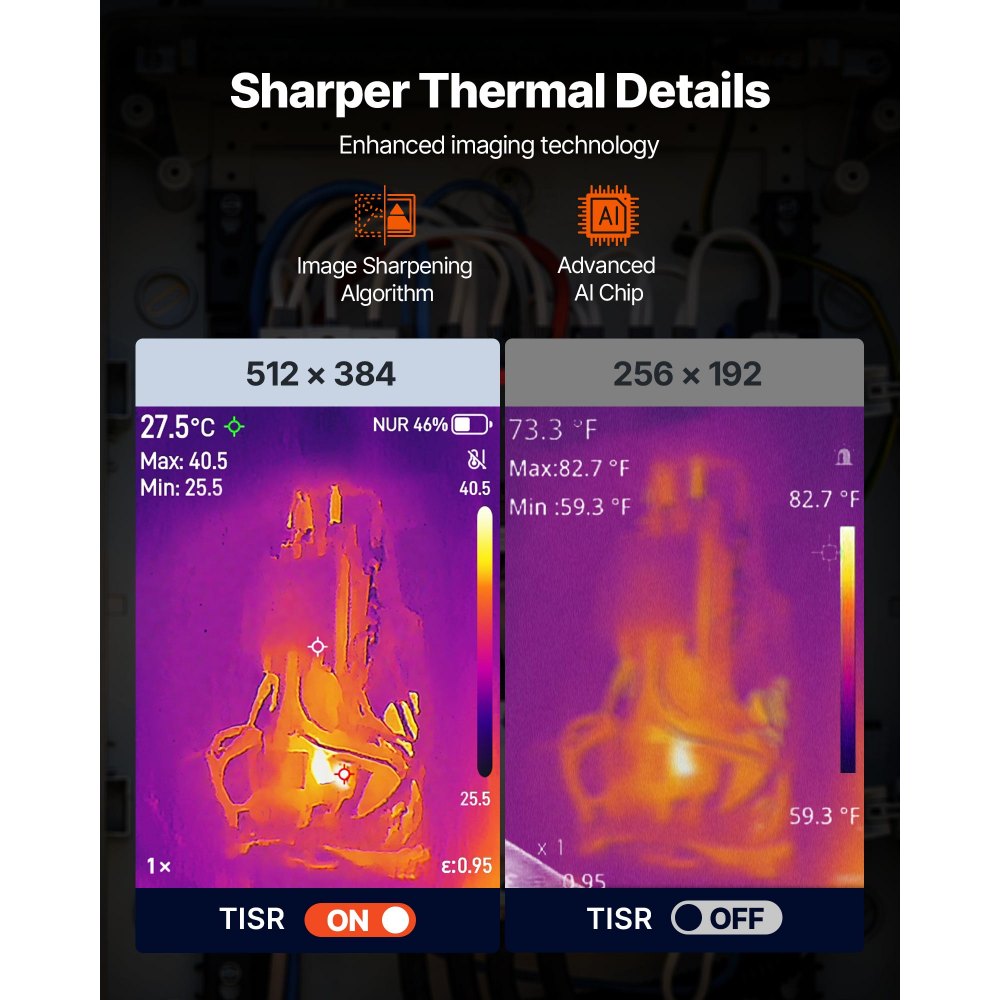

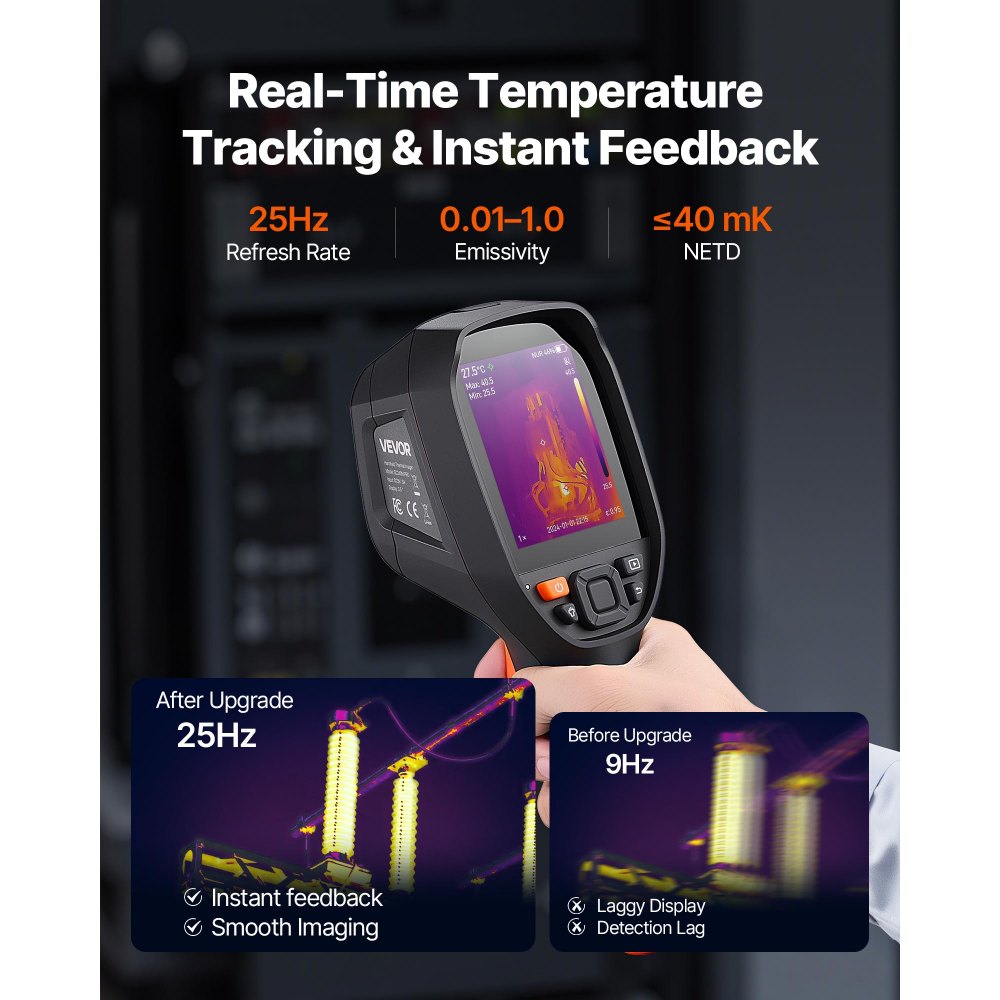

Image Enhancement Technology: VEVOR pro thermal imager adopts TISR enhancement technology, upgrading the original infrared resolution of 256x192 to a 4x super resolution of 512x384. With a 25Hz refresh rate, ≤40 mK thermal sensitivity, and a wide 56° x 42° field of view, combined with image sharpening algorithms and a high-performance AI chip, its 3.45-inch LCD screen captures and displays heat source details with greater clarity

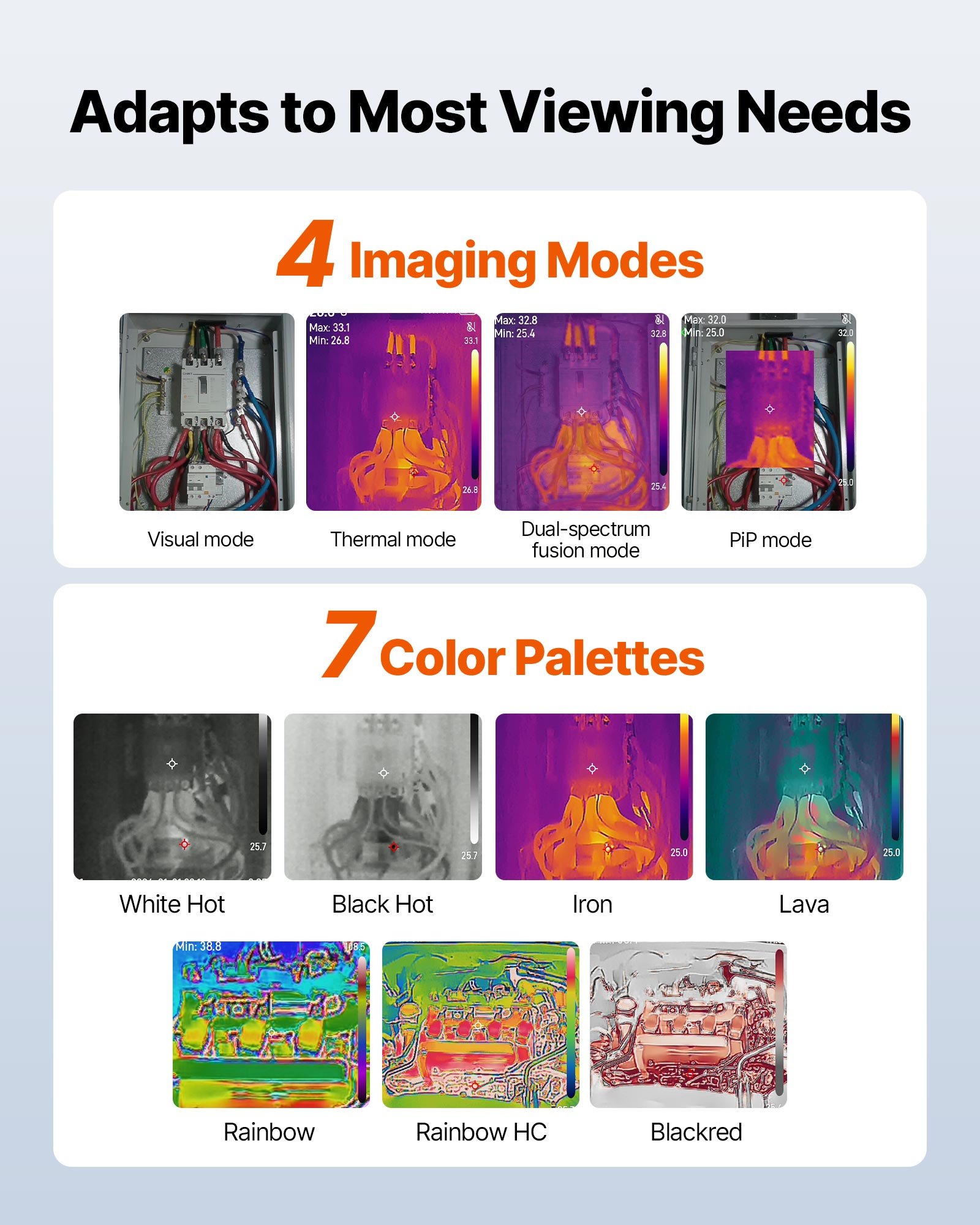

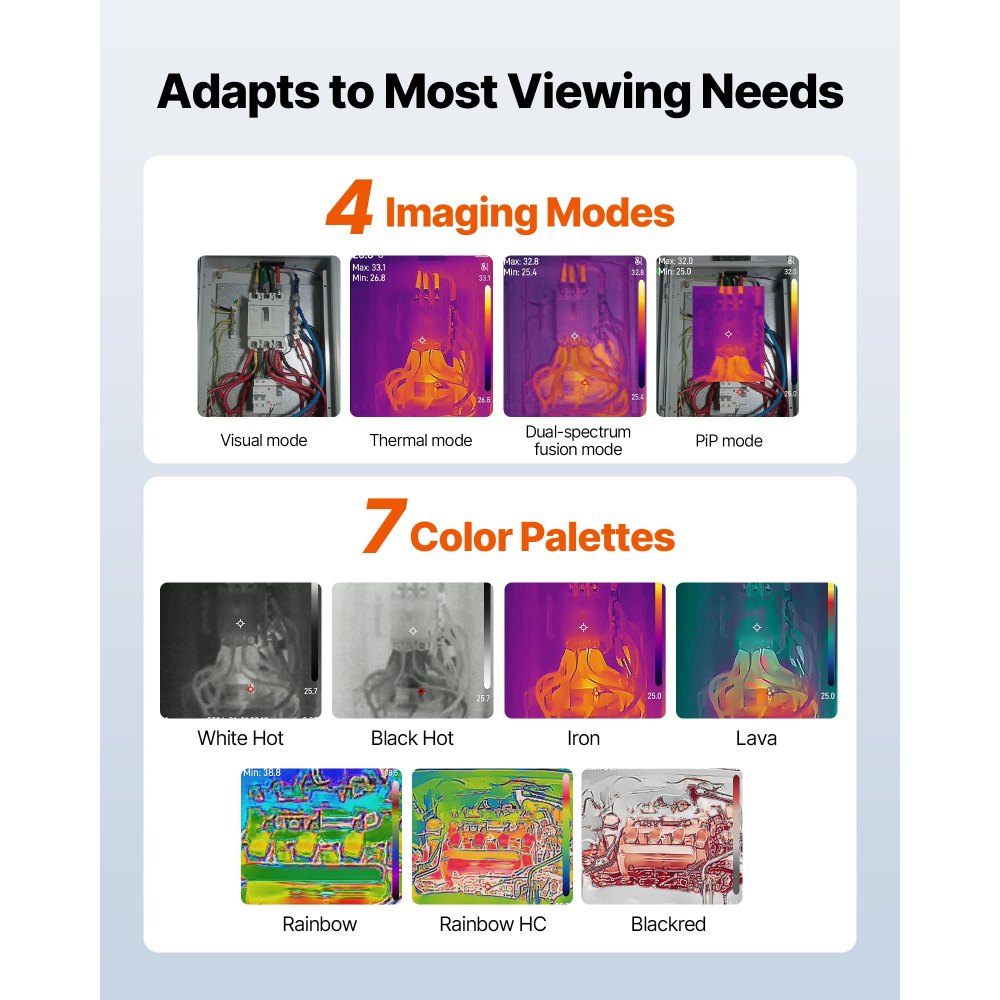

Accurate Temperature Measurement: This infrared camera supports a temperature range from -4°F to 1022°F, automatically identifying and marking hot, cold, and central spots. It offers 4 thermal imaging modes and 7 color palettes for better adaptability to different tasks. The 2x and 4x digital zoom functions enhance observation, helping you capture more subtle details

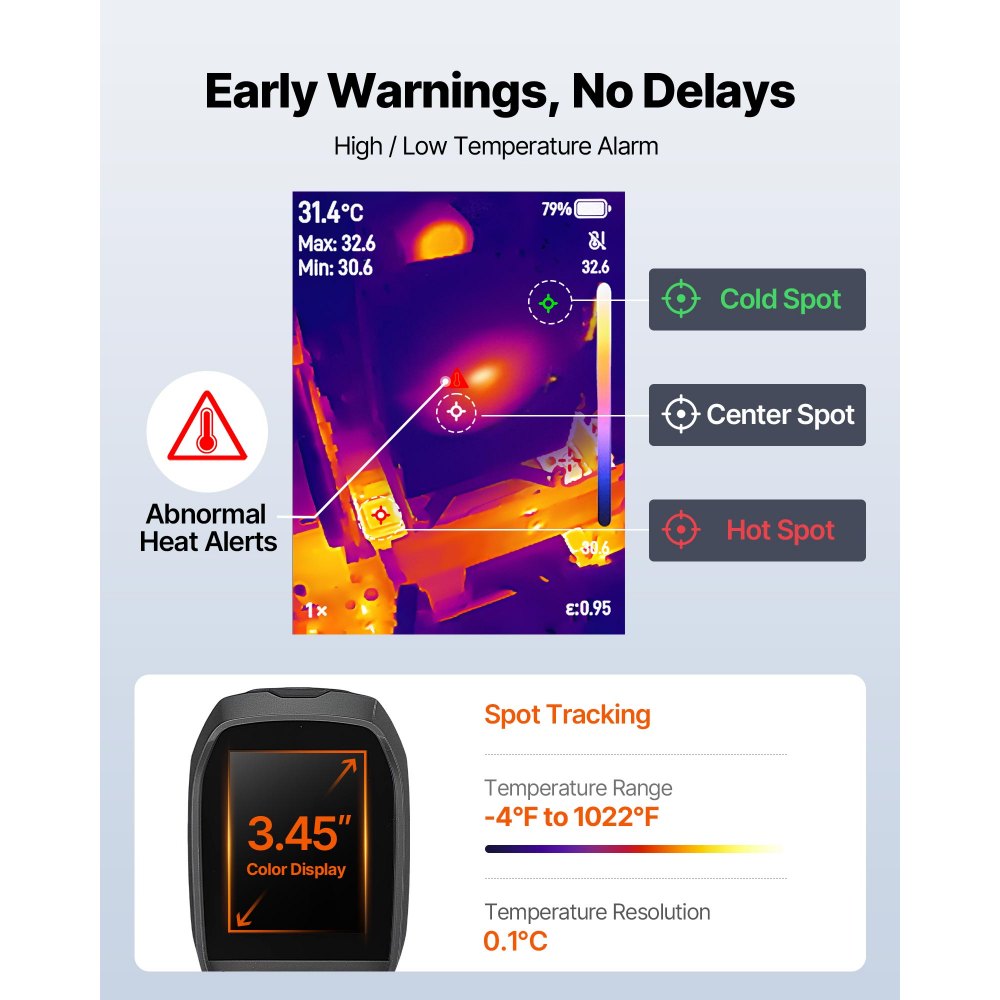

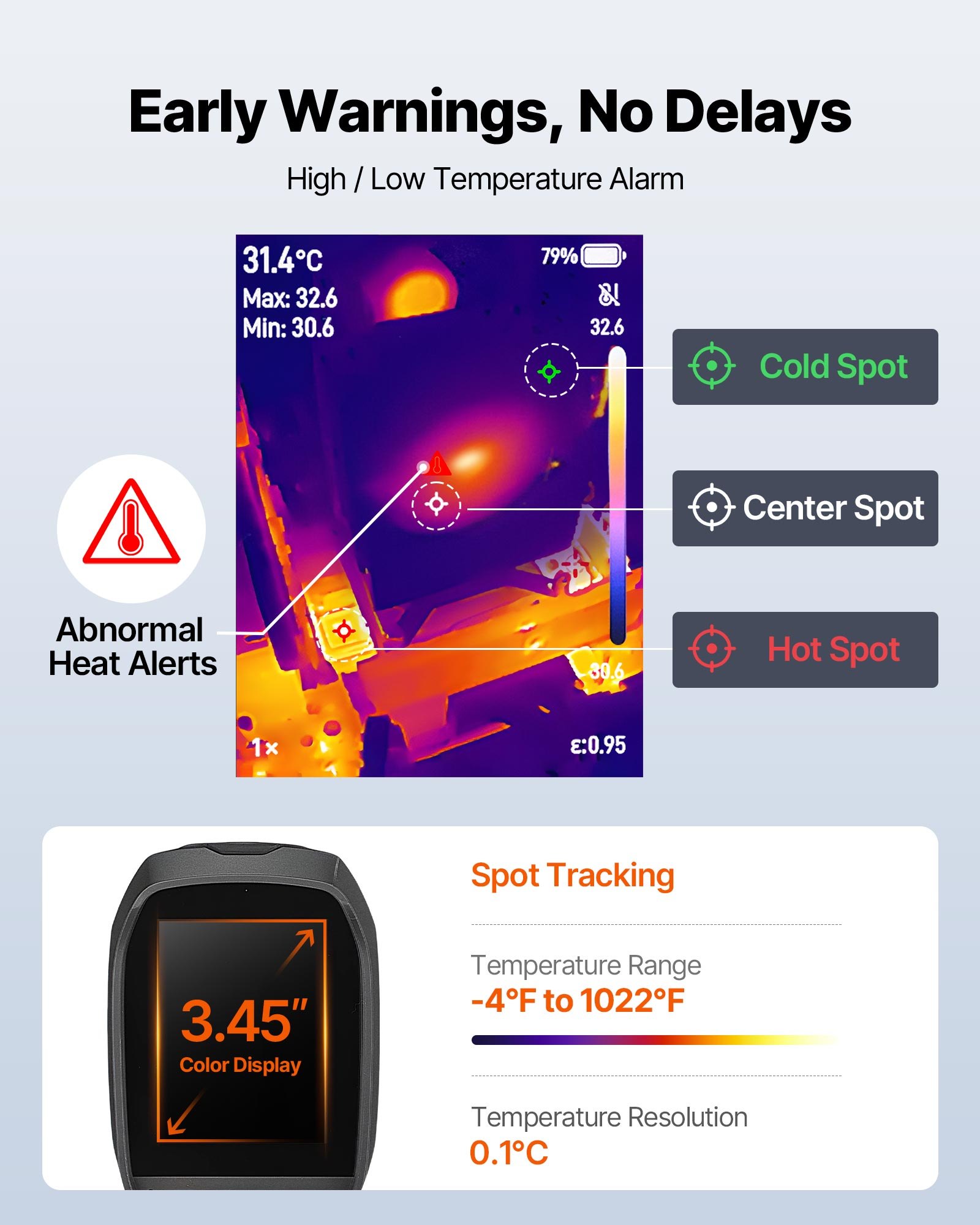

Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts in real time. Equipped with a laser pointer, it allows easy fault positioning and detection of hidden heat risks, making potential issues visible and manageable in advance
Multiple Upgrades: This thermal camera comes with a 5000mAh large-capacity battery, offering up to 6 hours of runtime. It supports auto power-off, photo and video recording, and an LED work light. The compact and sturdy body withstands drops up to 2 m and, with IP54-rated dust and water resistance, performs reliably in demanding environments

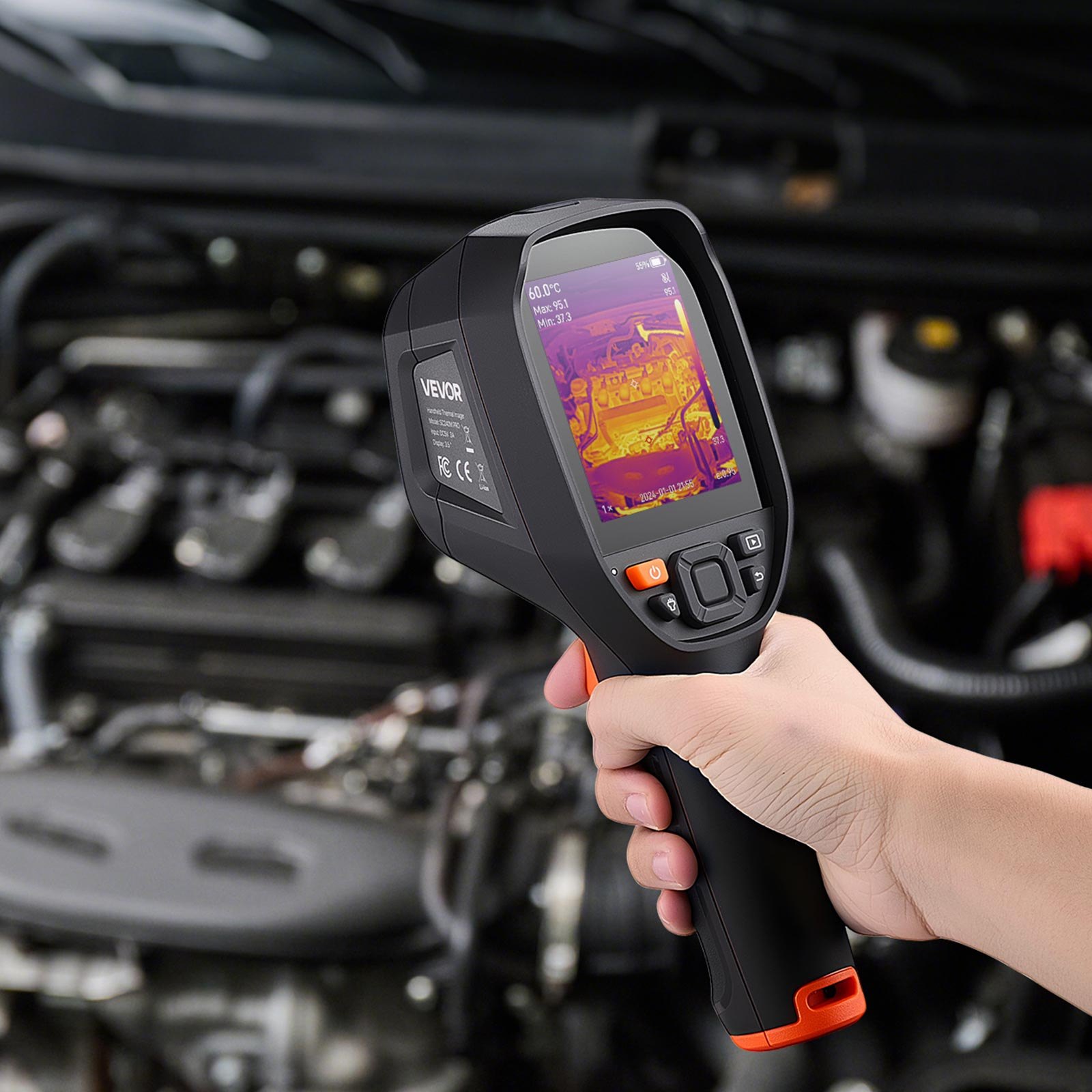

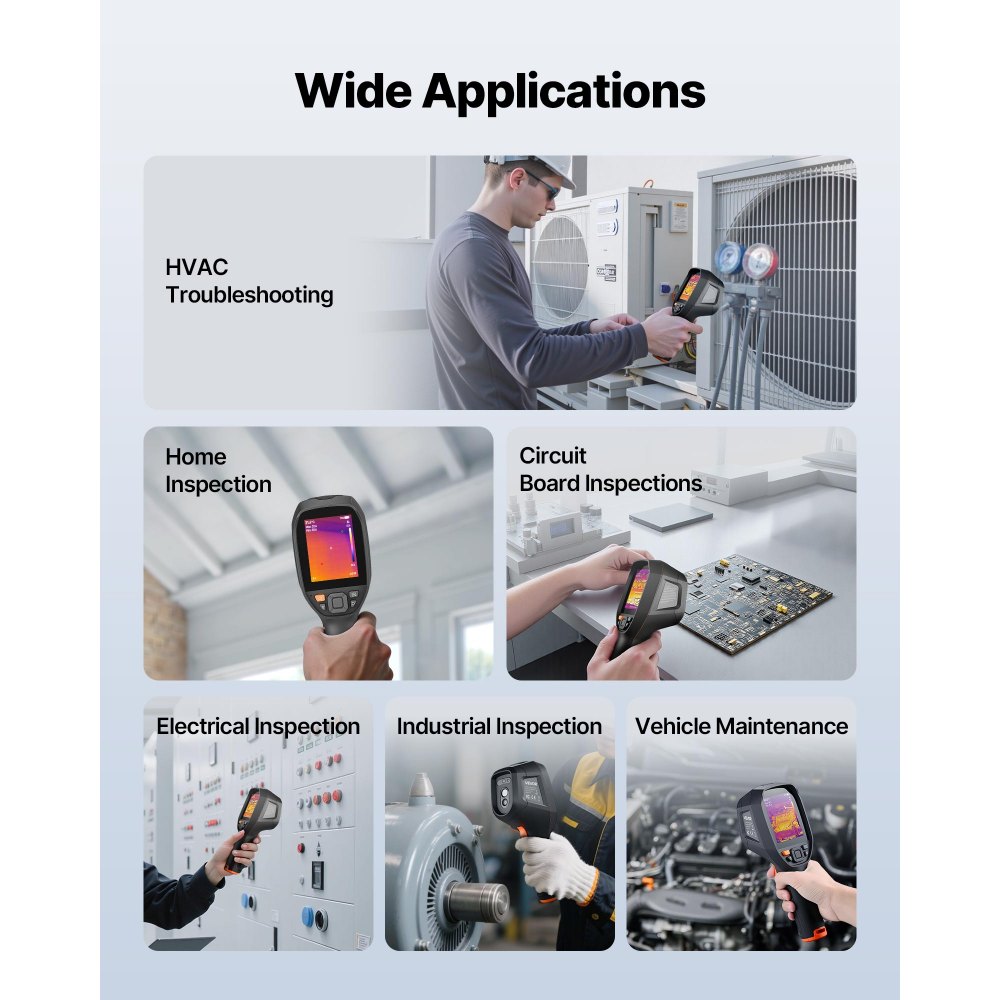

Portable and Reliable: Charging is made convenient with a USB cable. The built-in 32GB storage can hold over 120,000 images, and WiFi connectivity allows easy file transfer. Supporting 13 languages, this device is widely suitable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection
Well packaged and does everything as expected. I would recommend this product. The only problem was it was shipped by usps. It only took them 13 days to deliver. It seems as if some one there is trying to ruin their reputation (USPS)so they could privtize it (USPS) and step in to make a fortune. Imagine that.
See Less
See More
Cory
Reviewed on Feb 10,2026
This thing was GOATED for the price. Worked perfectly. It had its software bugs, but it wasn’t too bad. Image was clear, much clearer than similar units. It was way clearer than my toptool scanner that cost double and has double the resolution.
Unfortunately, the usb-c input was weak. It broke off inside the unit when I was gently putting in a charger. Making the unit worthless. Customer service issued a full refund. Which is great but I wanted another one of these! It’s OOS for a good reason, quality unit.
See Less
See More
Curt
Reviewed on Jan 21,2026
This thermal imaging camera is as good or better than other brand name cameras but is 1/3 the price. Awesome camera with great features. Would buy it again in a heartbeat. Go Vevor!!
See Less
See More
Tim Dinges
Reviewed on Jan 19,2026
Works great shows where my bees are in cluster very great product very happy gonna use it a lot on honeybee removals
See Less
See More
Patricia
Reviewed on Jan 13,2026
Absolutely love this tool. I have purchased 2 of these as gifts now. They work fantastic. No home should be without out one.
See Less
See More
Steven
Reviewed on Jan 10,2026
I have a 5” thick radiant heat concrete floor. Turned up the heat and could tell where the pipes were and drilled holes in between to install some equipment. Worked great
See Less
See More
michelle
Reviewed on Dec 31,2025
a gift for my son, he loved it. he has already used it to check for leaks, hot spots in our house. Will update later on quality.
See Less
See More
Happy Now
Reviewed on Dec 14,2025
First unit that arrived had ghosting, where it would keep overlapping images every time you moved until it looked like a kaleidoscope. Contacted VEVOR support, they responded in less than 24hrs, gave me options and I sought a replacement to finish my project. New unit arrive 3 days later, and is A+. I am able to finish my task on time.
Unit build quality is A+, thermal imaging detection, mapping, temps and color spectrums are A+, Kingston memory card included. Very easy to setup and use.
See Less
See More
Josh97140
Reviewed on Nov 09,2025
I work as a maintenance supervisor at a high school. This has been a game-changer in finding roof leaks, I can walk in a room and see if we have a leak even if the ceiling looks dry. It pinpoints roof leaks. It can also show you if HVAC circuitboard issue. I have only had this for a few weeks I am sure I will find more uses.
See Less
See More
William McCormick
Reviewed on Nov 09,2025
Great tool, rugged very accurate if you respect it and take a few minutes to go through the menu. It offers all kinds of features that are important for different types of temperature sensing. Great buy.
See Less
See More
See all 73 reviews
About this item
Product specification
Item Model Number
SC240M PRO
Infrared Resolution
256 x 192 pixels
Enhanced Resolution
512 x 384 pixels (4 x Super Resolution)
Display Size
3.45 inch LCD
Refresh Rate
25Hz
Thermal Sensitivity
≤ 40 mK
Visible Light Resolution
1600 × 1200 pixels
Emissivity
0.01 - 1.0
Measuring Distance
0.5-4m
Temperature Measurement Range
-4℉ to 1022℉ / -20℃ to 550℃
Temperature Resolution
0.1°C
Temperature Accuracy
±2°C
Temperature Display
Center / Hot / Cold Spot
Battery Capacity
5000 mAh
Internal Storage
32 GB
Drop Resistance
2 m Drop Resistance
Waterproof Rating
IP54
Language Options
13 Languages
Operating Temperature
14℉ to 122℉ / -10℃ to 50℃
Storage Temperature
-4℉ to 140℉ / -20℃ to 60℃
Tripod Support
Supported (Standard 1/4-inch Thread)
Net Weight
1.5 lbs / 0.68 kg
Description

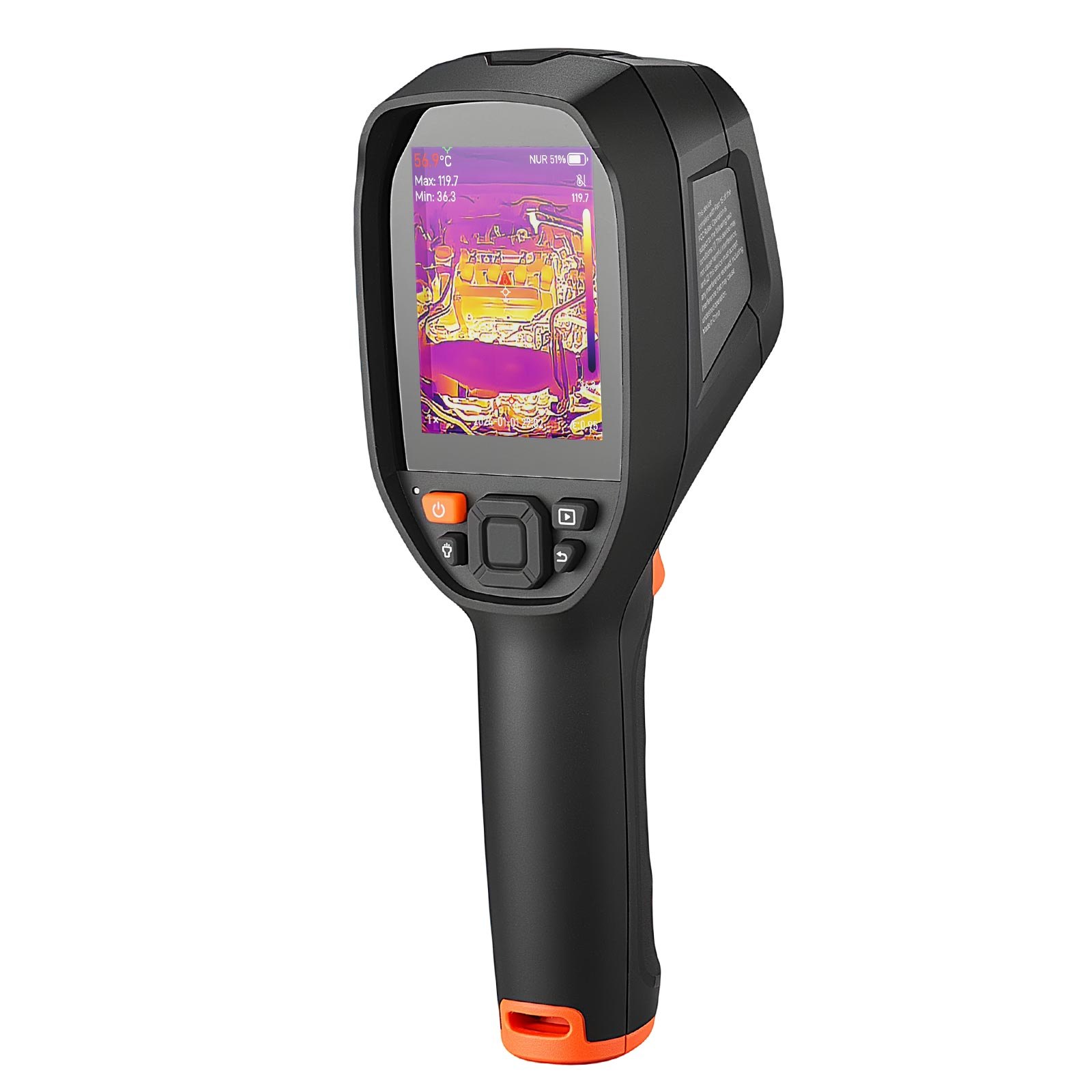

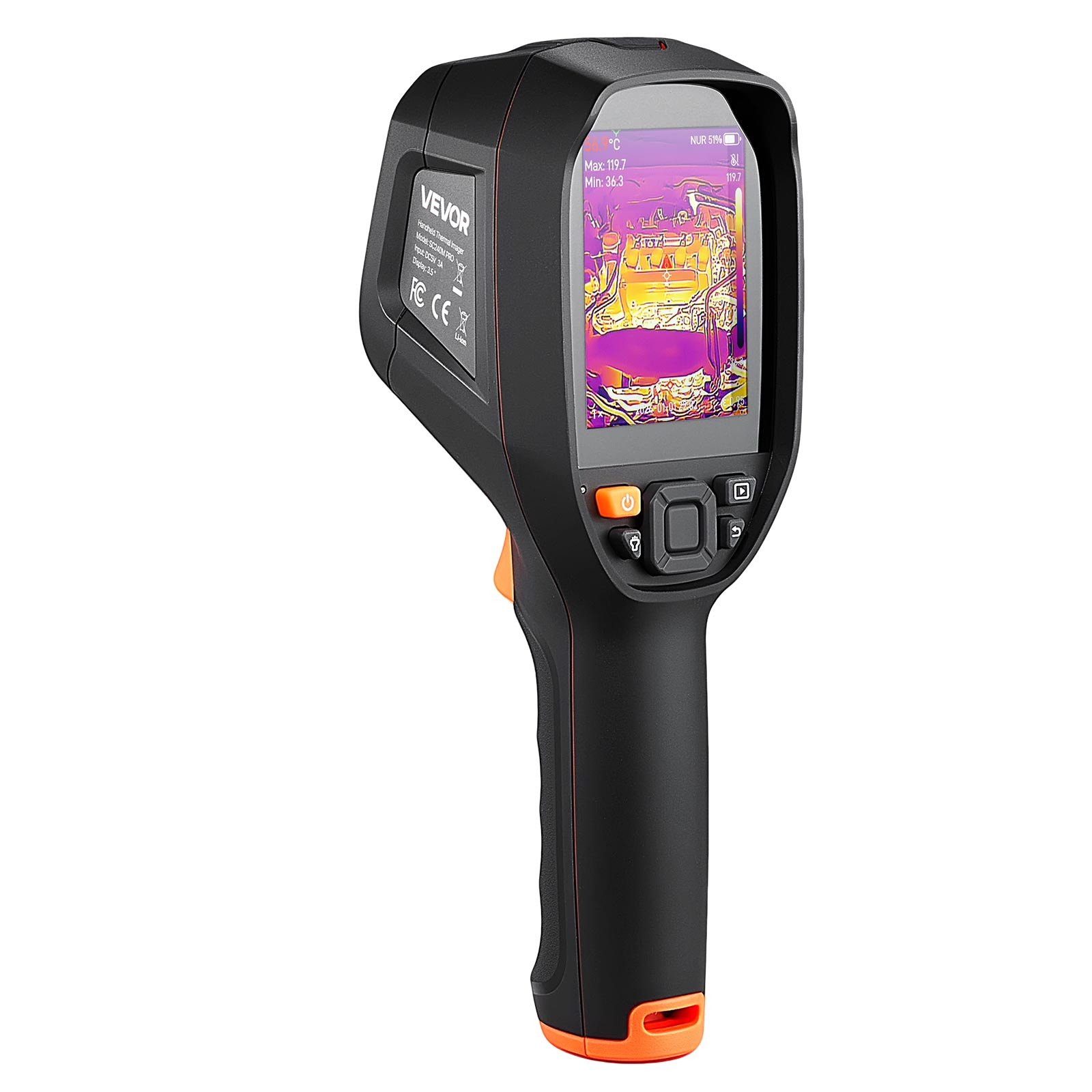

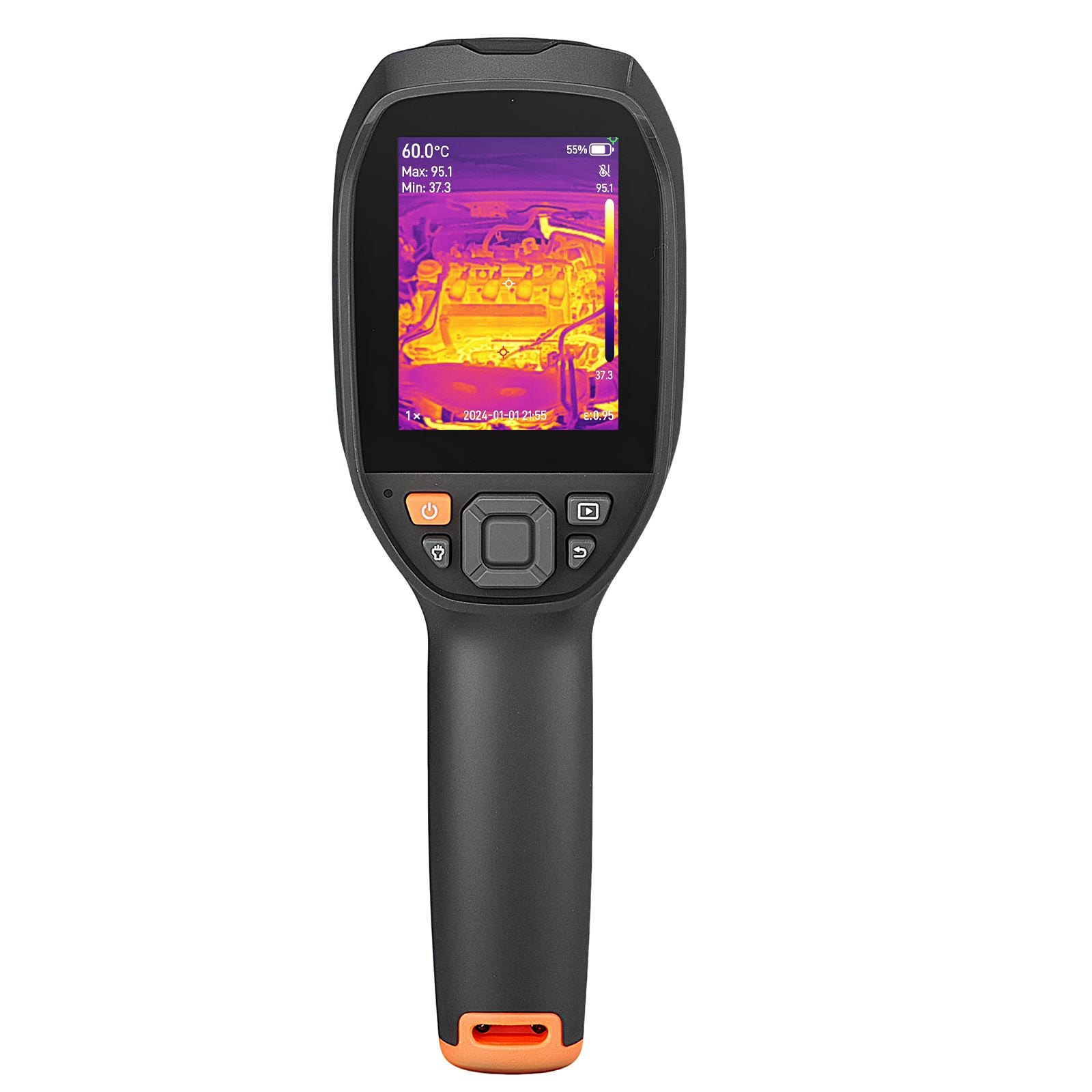

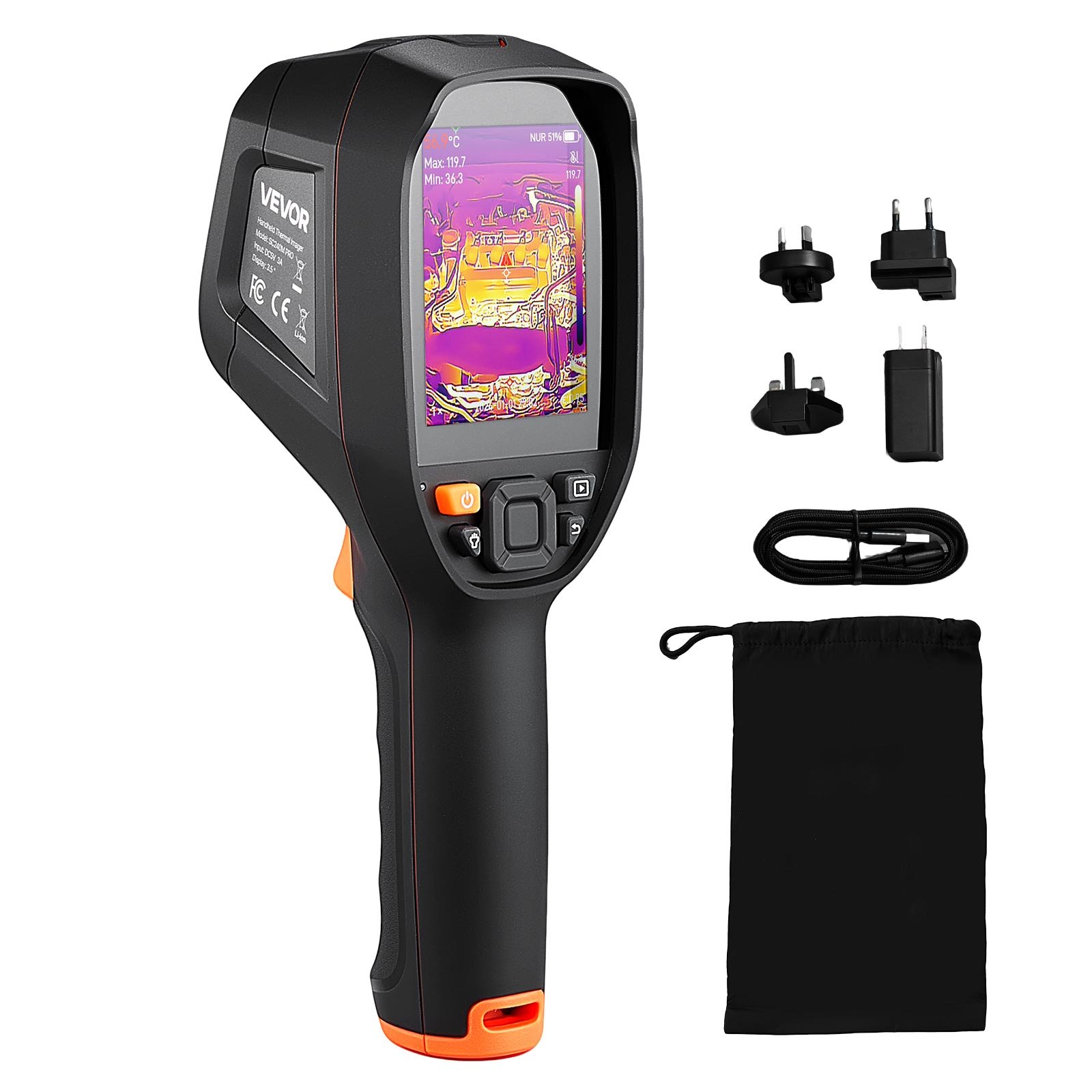

Professional Handheld Thermal Imager
Operate in the palm of your hand with instant imaging! This handheld thermal imager quickly reveals invisible temperature differences, making complex inspections effortless.
Key Features
3.45" Color Display
The large, vivid screen provides real-time thermal visuals, allowing you to easily distinguish temperature variations and identify problem areas.

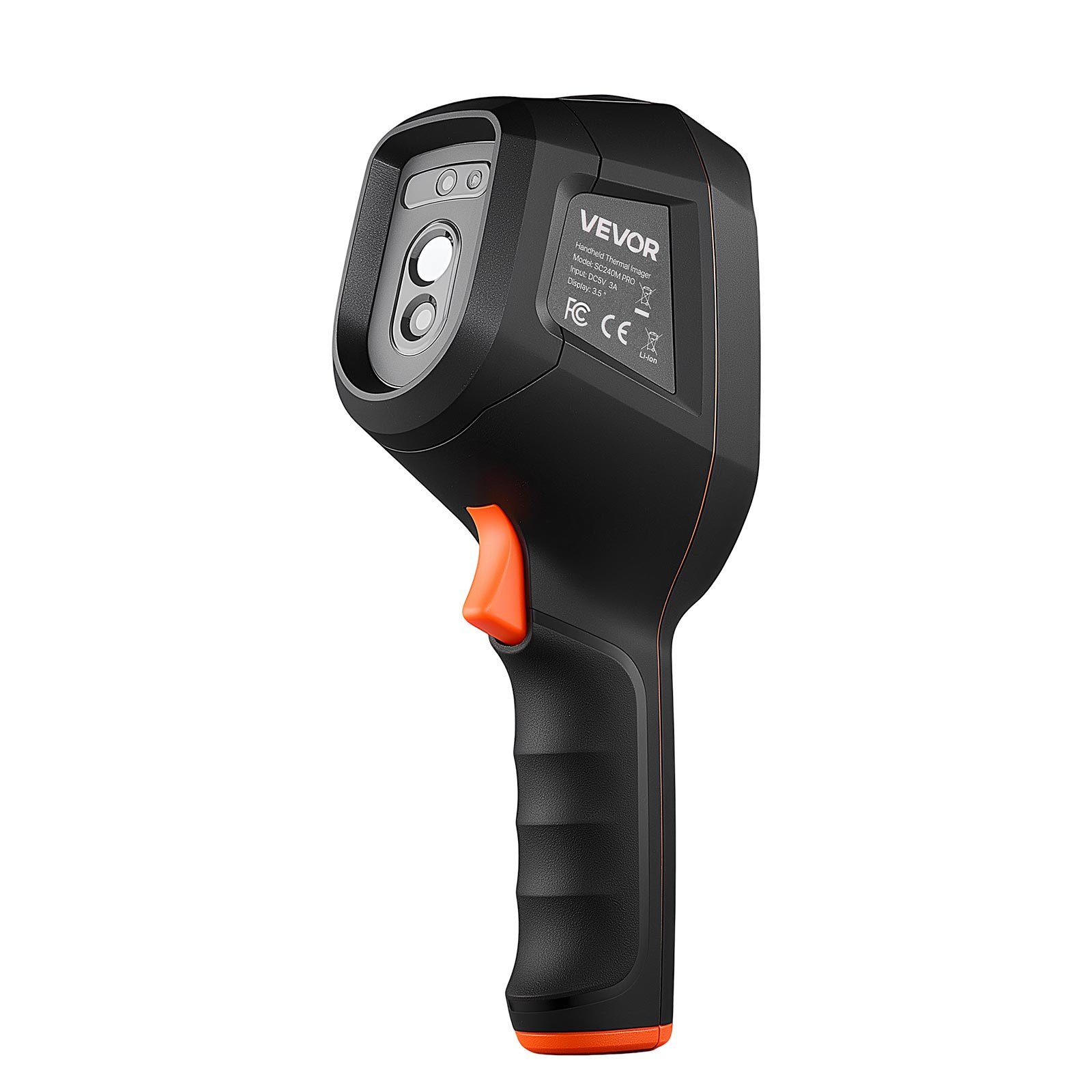

Visible Light Assist
Equipped with a visible light camera, this thermal imaging device combines infrared and visible images for clearer and more accurate results.

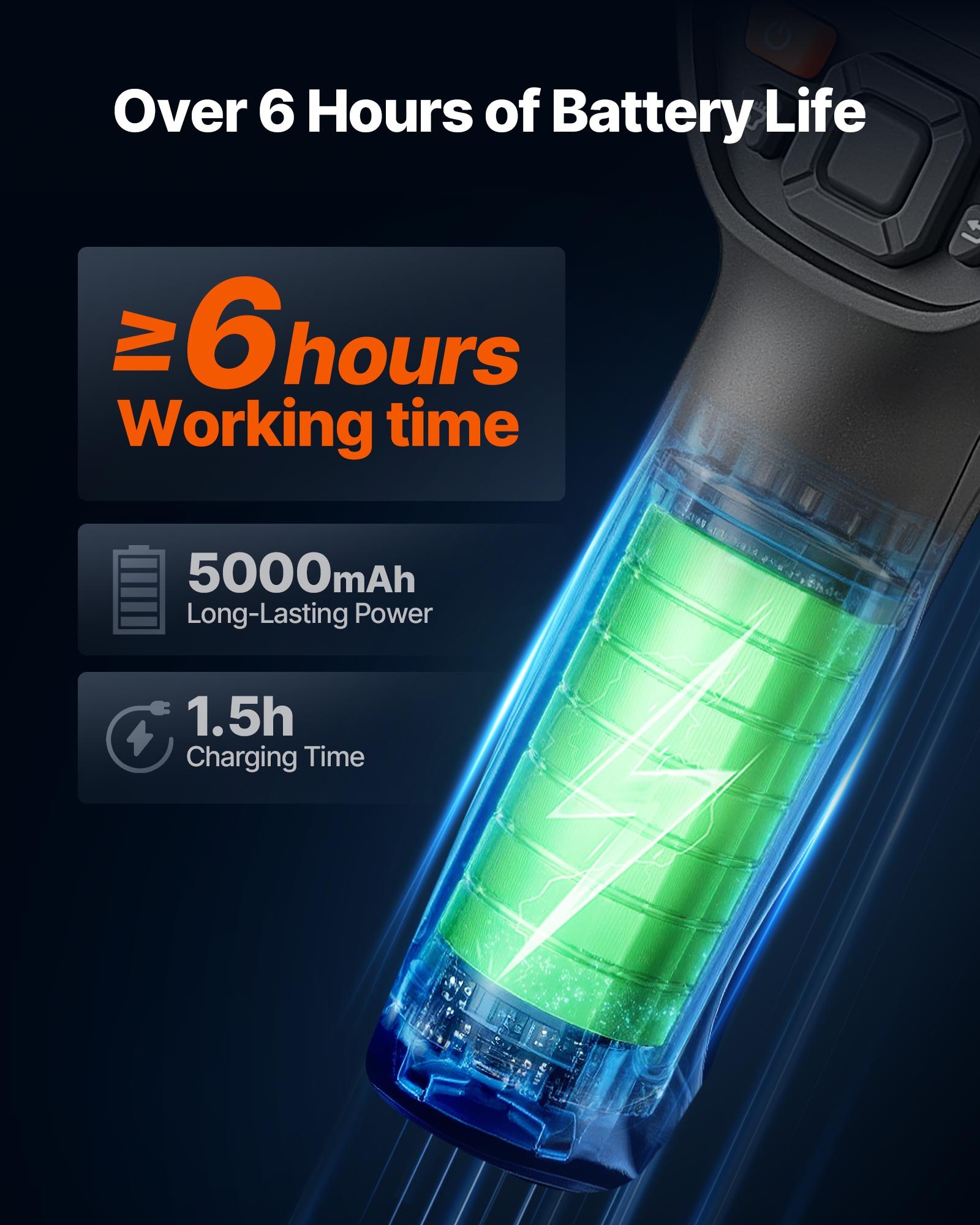

5000mAh
Built with a powerful 5000mAh rechargeable battery, this thermal imaging camera supports extended working sessions without frequent recharging.
