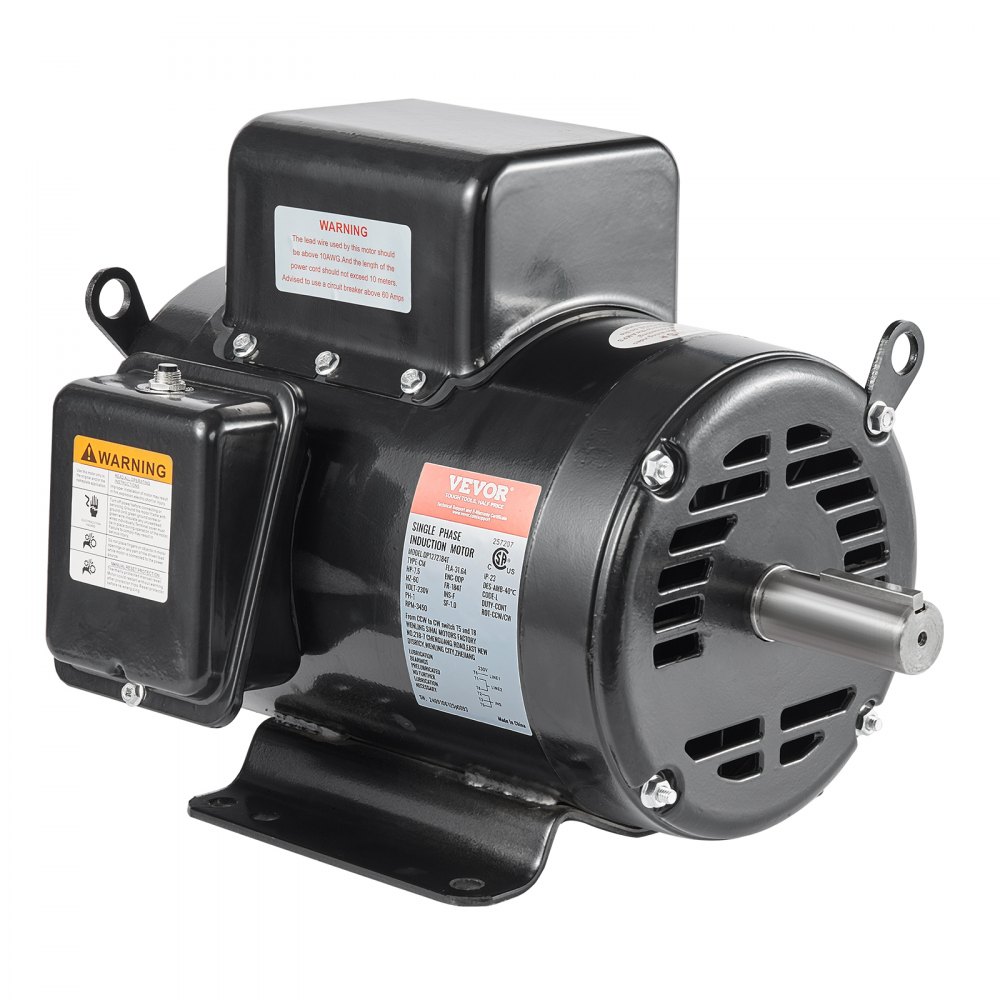

7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)
7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate (Factory Setting is CCW)

Features & Details

  • High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.
  • Frame Type: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size.
  • Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
  • Dual Rotation Direction: Motor is Reversible for CCW/CCW rotation (Factory Setting is CCW), provides easier wiring operations.
  • Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)
See More

Frequently Bought Together

Videos for this product

Reviews 3.9

All reviews are from verified purchases
Average rating based on 44 reviews
Top Reviews
Bill Bill
Reviewed on Jun 16,2025
Motor is quiet and runs with minmal heat. The spade terminals leave a little to be desired, but they work. Motor came setup for high voltage, had to reconfigure for 120v and ccw rotation. Pinouts are on the motor label along with the diagram.
Cody j Cody j
Reviewed on Jun 11,2025
I bought this as a replacement for my dewalt air compressor as the one for it was nearly 700$ considering the price point of this product it was worth a try and I'm impressed it was essentially i direct fit i did make another hole to ensure solid mounting on the compressor itself everything lined up well and wiring this motor up was a breeze I'm happy with it only had it a few months now and the compressor isn't used often enough for me to preach on its longevity but all in all I'm very pleased with this product it did arrive on time and was packaged in a wood crate if that's another concern you may have but I'd recommend to anyone in the market this motor is worth it in my opinion
Mikey Mikey
Reviewed on Jun 08,2025
works great! been using it for a couplemonths now and without a problem. Strong motor, does wht it is supozed to.
Shawn Smith Shawn Smith
Reviewed on Jun 06,2025
Part arrived on-time. Installation was easy. Started right up.
TJ TJ
Reviewed on May 27,2025
Upgraded my old Craftsman 1 hp motor perfectly. With a slight modification to my old belt guard I was also able to use it as well.
Roy Miller Roy Miller
Reviewed on May 27,2025
The motor worked out great! I now have an air compressor up and running and ready to rock and roll. I highly recommend this brand. I had bought an ebay one and didn't work. Thank you 😊
Thomas R Corley III Thomas R Corley III
Reviewed on May 24,2025
Shipping was great price excellent thank you very much
Lawrence Ordoyne Lawrence Ordoyne
Reviewed on May 18,2025
Fits perfectly easily installed
David McQurter David McQurter
Reviewed on May 05,2025
make sure you order the right part. lil did i kno there was different size output shafts on the motors. was basically told it was mine from what the man said in chat. which sucks. again make sure you order the right parts. hard to talk to someone all you can do is chat with maybe a robot. who knows.. motor seemed well made and looks great. just wished was the right size shaft.. 174.00 down the drain..
DJ DJ
Reviewed on Apr 26,2025
This motor is exactly what the description says. It’s strong and so far have not needed to contact support. Thanks vevor.

About this item

Product specification
Item Model Number
DP1272184T
Voltage
230V
Frequency
60HZ
Current
31.6A
Rotation Speed
3450rpm
SF
1.0
Enclosure
ODP
Frame Size
184T
Shaft Diameter
1-1/8" Keyed Shaft
Shaft Length
2.75"
Keyway Size
0.25"
Net Weight
67.7 lbs / 30.7 Kg
Description
Unleash the Power of Your Air Compressor Again !
Inject powerful energy into your air compressor with 7.5HP compressor motor, 230V voltage, 31.6A current, 184T frame, 2.75 inch shaft length, 1-1/8" keyed shaft, CW/CCW dual rotation direction (Factory Setting is CCW). A perfect addition to air compressors, industrial and commercial needs.
Key Features
Powerful Motor
3450RPM high speed enables faster inflation and energy-saving efficiency.
CW/CCW Rotation Direction
The motor can be used for both clockwise and counterclockwise rotations. (Factory Setting is CCW)
Efficient Cooling
Dissipate heat quickly and efficiently with a large fan, preventing overheating and ensuring durability.
See More

Questions and Answers (6)

6 Questions
Ask a Question
Showing 1-6 of 6
Sort by: Featured questions
You have a motor ... VEVOR 7.5HP Air Compressor Motor, 230V 30 Amps Electric Motor, 3450RPM 184T Frame, 1-1/8" Keyed Shaft, 2.75" Shaft Length for Air Compressors, CW/CCW Rotation That is out of stock . What is the dirrerence between the two in application ?
Answer This Question
One is 5hp and the other is 7.5hp, the horsepower is different. The installation dimensions are also different.
By vevor on
Does the DP1272184T 7.5 hp compressor motor require the use of a magnetic starter. If not can you use with a magnetic starter anyway?
Answer This Question
This depends on whether the original air compressor is equipped with a magnetic starter. It must be the same as the original one.
By vevor on
The instructions on this 7.5 motor (model#DP1272184T) calls for over 60A circuit breaker. So, does that mean the FLA-31.6A is for each line 1 and 2?
Answer This Question
Each circuit breaker has a current rating, 60A-75A is fine
By vevor on
Does this motor require a starter
Answer This Question
Air compressors are generally equipped with a pressure switch. If your other equipment is modified to use this product and the power is uncertain, we do not recommend purchasing it.
By vevor on
What size are the start and run capacitors
Answer This Question
The capacitor dimensions are 45mm in diameter and 90mm in length.
By vevor on
