Features & Details
- High Performance: 5HP 3450 RPM, Single Phase, Full Load Amps: 25Amp, 230V 60Hz, SF: 1.0.

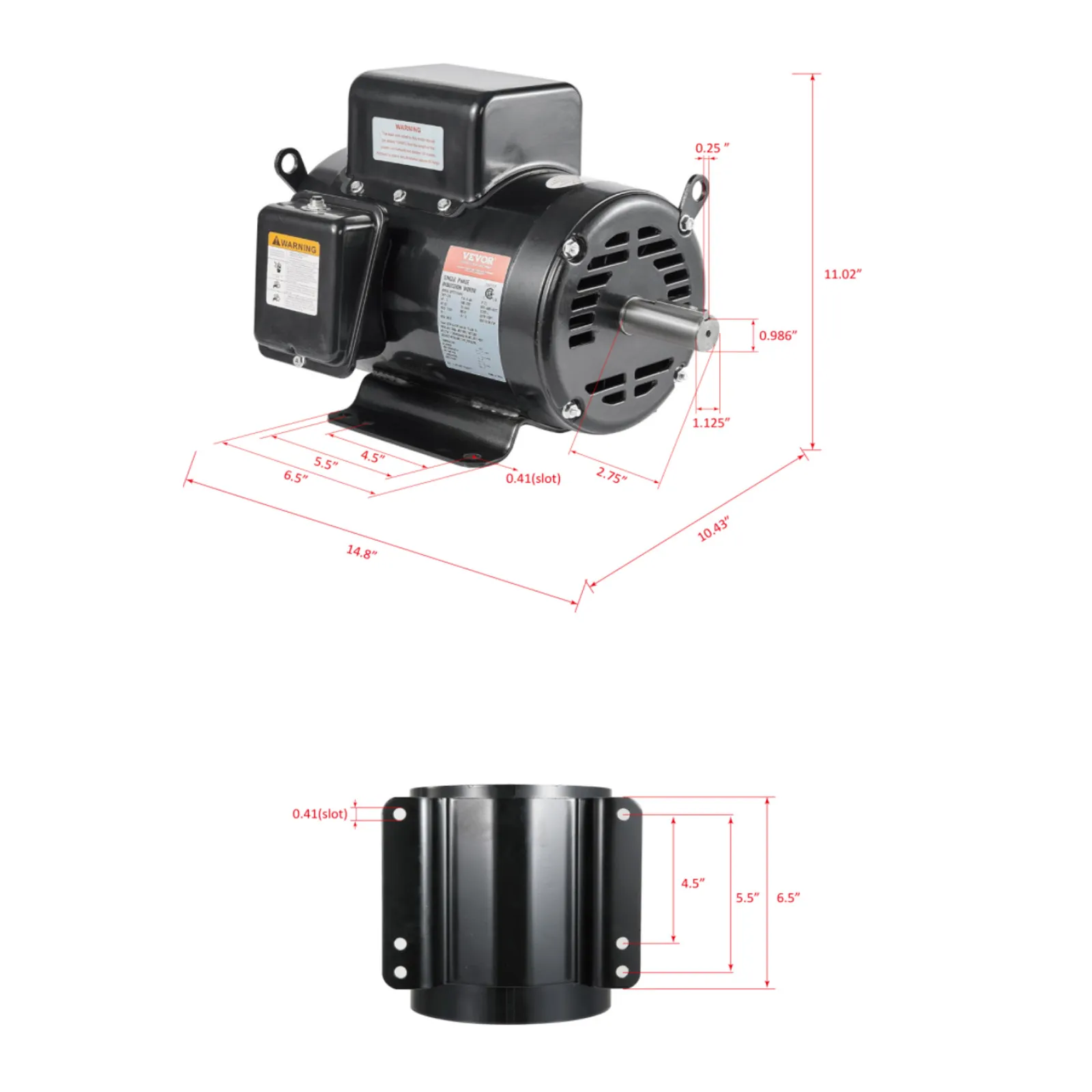

- Frame Type: 56Hz Frame, 7/8" Keyed shaft, 2.25" Shaft length, 0.188" Keyway Size.

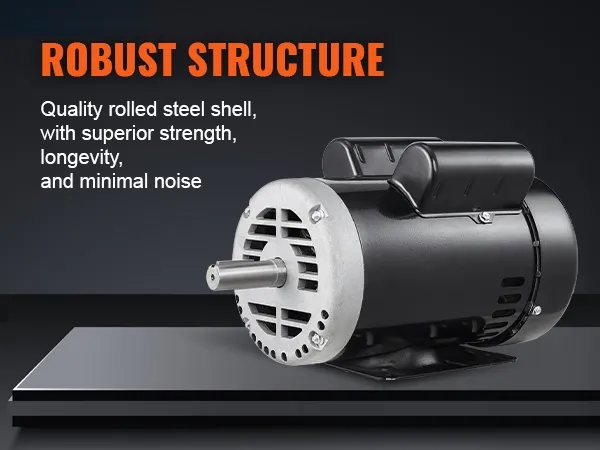

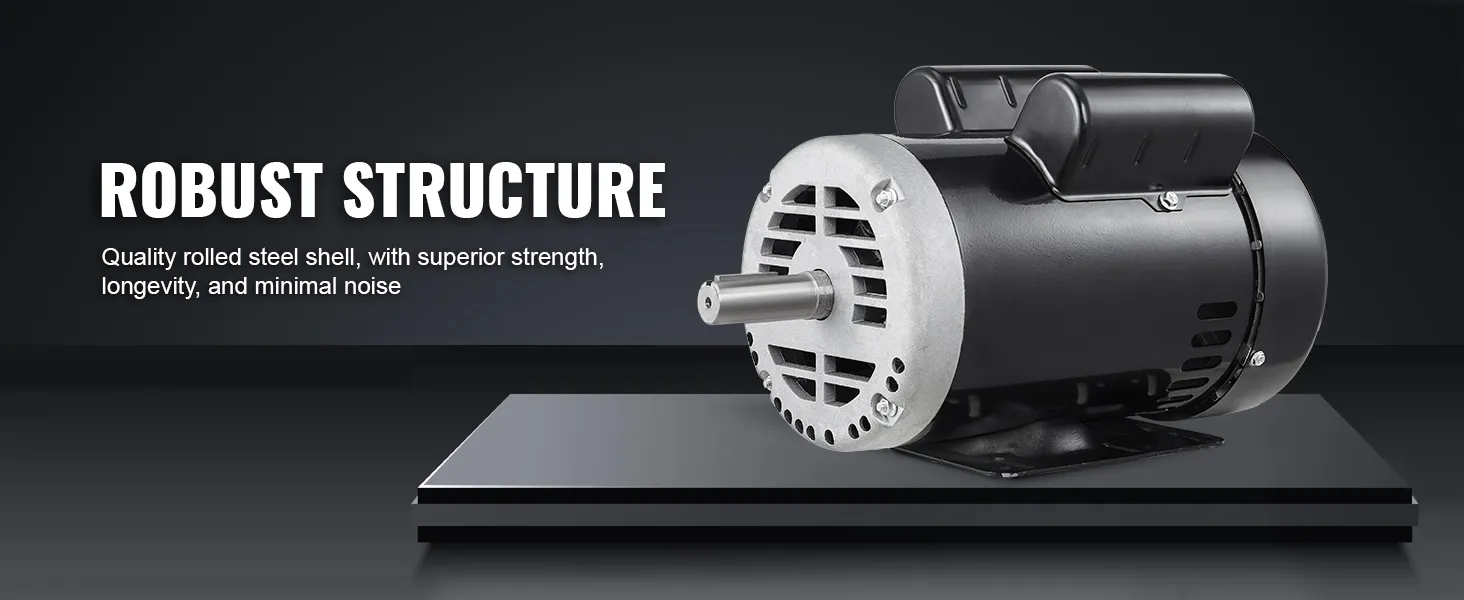

- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.

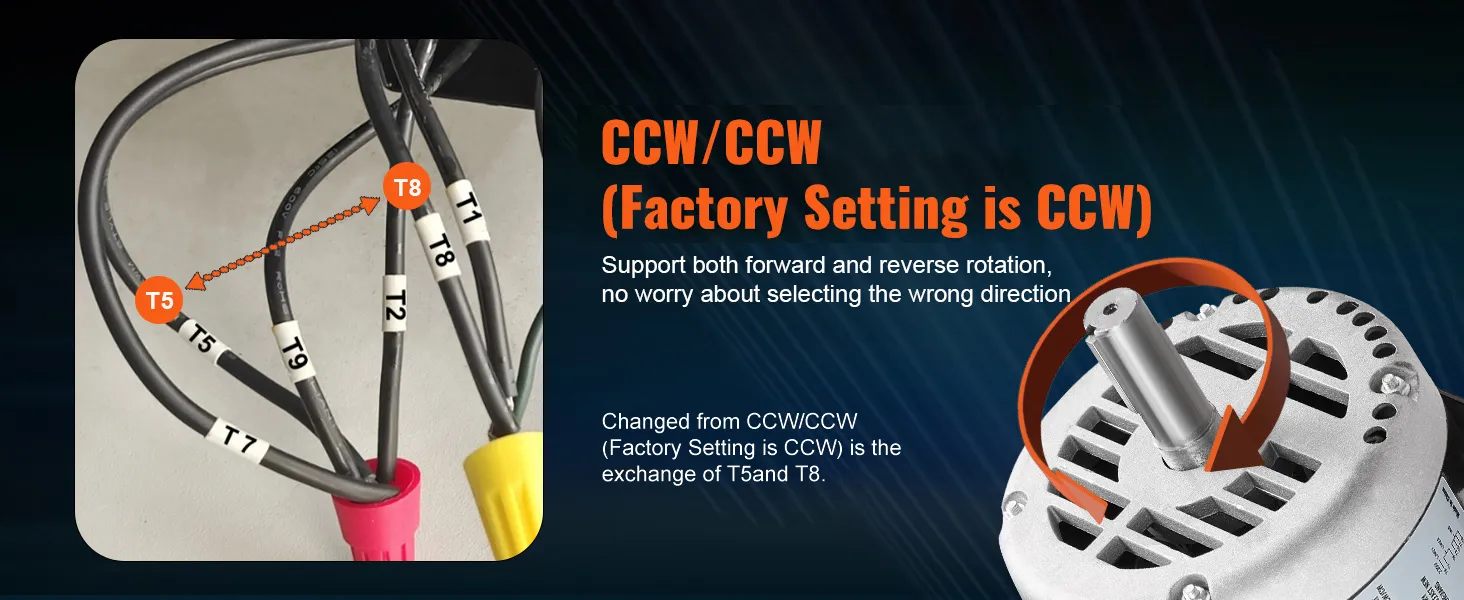

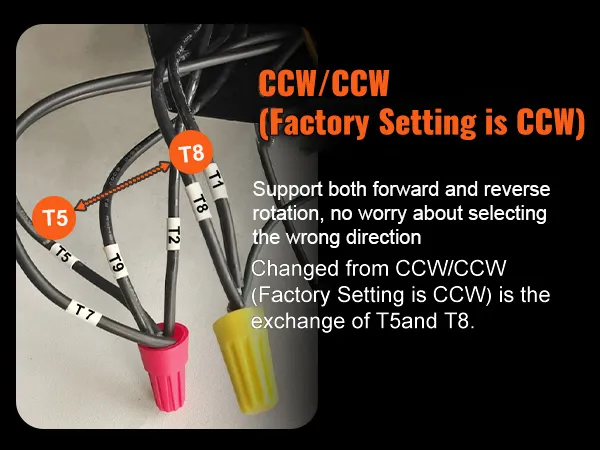

- Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 60.0 amps.)
See More
Frequently Bought Together
Videos for this product
Reviews 3.8
All reviews are from verified purchases
Average rating based on 53 reviews
Top Reviews
Greg Hof
Reviewed on Jul 14,2025
Operates like it should. Price was great and shipping was on time
Lance Asher
Reviewed on Jul 02,2025
Fit perfect
Shawn
Reviewed on Jul 02,2025
Just like it I would be
Robert
Reviewed on Jun 20,2025
Great motor. Arrived undamaged. Installed on a Campbell Hausfeld air compressor. The wiring was easy with the instructions. The quality of the unit is excellent and the performance after 1 months of shop use has been flawless. The shaft was covered with a plastic protector and the key under it. My pulley fit perfectly. Great little motor.
Bill
Reviewed on Jun 16,2025

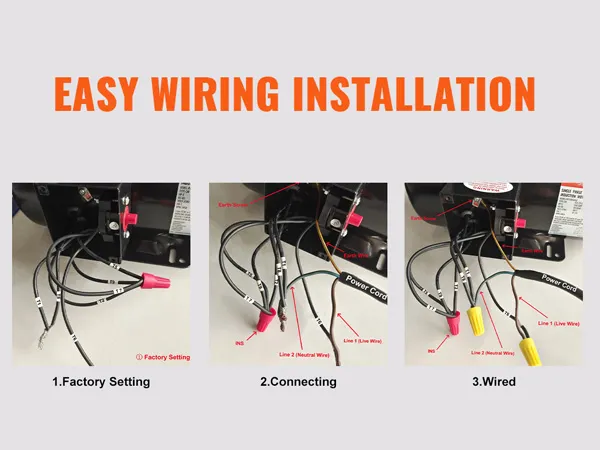

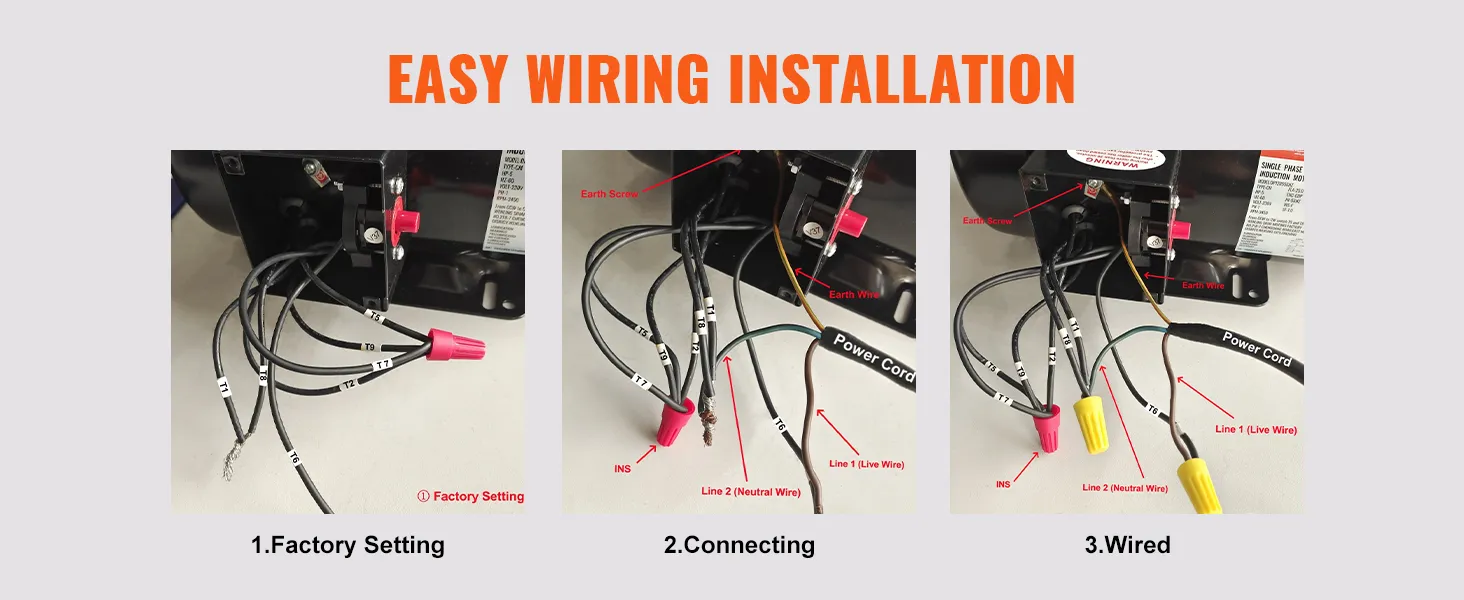

Motor is quiet and runs with minmal heat. The spade terminals leave a little to be desired, but they work. Motor came setup for high voltage, had to reconfigure for 120v and ccw rotation. Pinouts are on the motor label along with the diagram.
Cody j
Reviewed on Jun 11,2025
I bought this as a replacement for my dewalt air compressor as the one for it was nearly 700$ considering the price point of this product it was worth a try and I'm impressed it was essentially i direct fit i did make another hole to ensure solid mounting on the compressor itself everything lined up well and wiring this motor up was a breeze I'm happy with it only had it a few months now and the compressor isn't used often enough for me to preach on its longevity but all in all I'm very pleased with this product it did arrive on time and was packaged in a wood crate if that's another concern you may have but I'd recommend to anyone in the market this motor is worth it in my opinion
Mikey
Reviewed on Jun 08,2025
works great! been using it for a couplemonths now and without a problem. Strong motor, does wht it is supozed to.
Shawn Smith
Reviewed on Jun 06,2025
Part arrived on-time. Installation was easy. Started right up.
TJ
Reviewed on May 27,2025
Upgraded my old Craftsman 1 hp motor perfectly. With a slight modification to my old belt guard I was also able to use it as well.
Roy Miller
Reviewed on May 27,2025
The motor worked out great! I now have an air compressor up and running and ready to rock and roll. I highly recommend this brand. I had bought an ebay one and didn't work. Thank you 😊
About this item

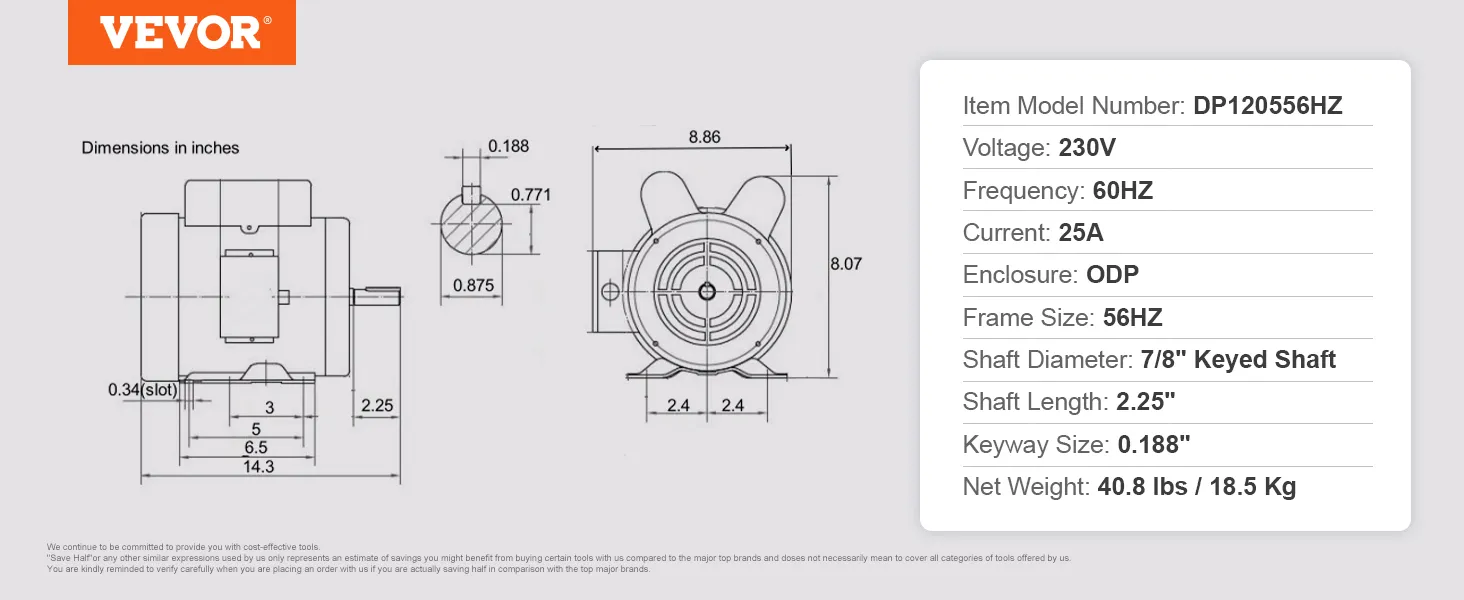

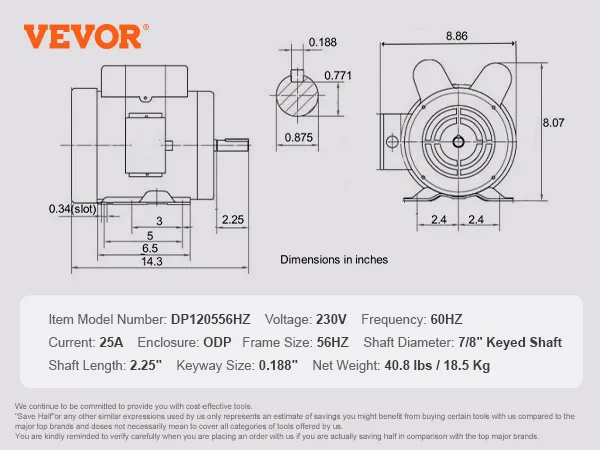

Product specification
- Item Model Number
- DP120556HZ
- Voltage
- 230V
- Frequency
- 60HZ
- Current
- 25A
- Rotation Speed
- 3450rpm
- SF
- 1.0
- Enclosure
- ODP
- Frame Size
- 56HZ
- Shaft Diameter
- 7/8" Keyed Shaft
- Shaft Length
- 2.25"
- Keyway Size
- 0.188"
- Net Weight
- 40.8 lbs / 18.5 Kg
Description
Unleash the Power of Your Air Compressor Again !

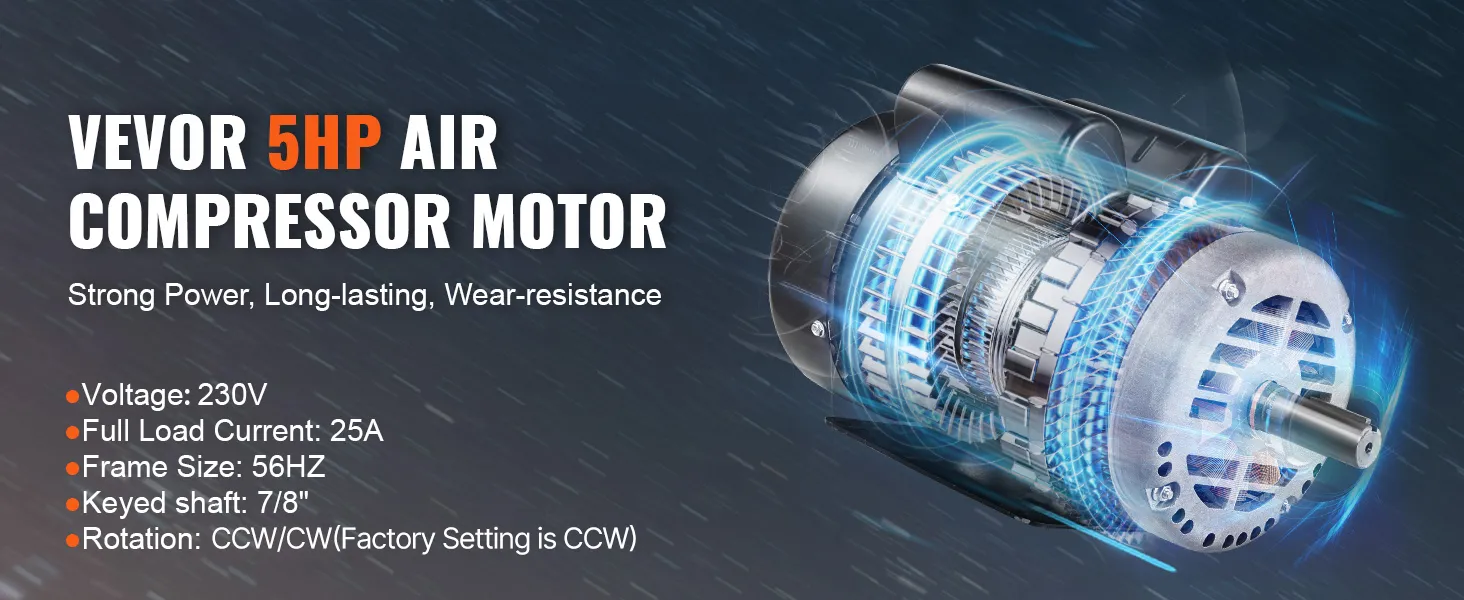

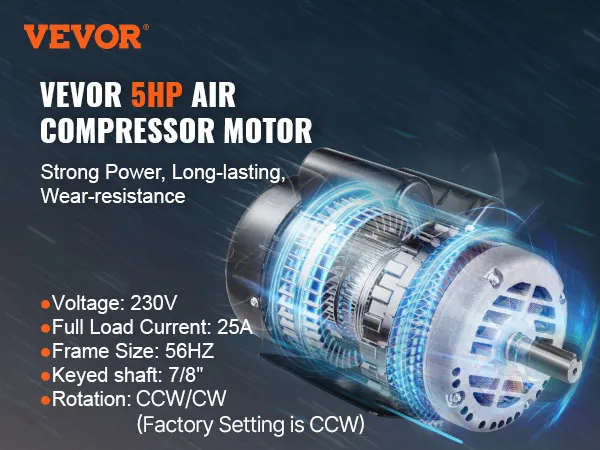

Inject powerful energy into your air compressor with 5HP compressor motor, 230V voltage, 25A current, 56Hz frame, 2.25 inch shaft length, 7/8 inch keyed shaft, CW/CCW dual rotation direction (Factory Setting is CCW). A perfect addition to air compressors, industrial and commercial needs.
Key Features

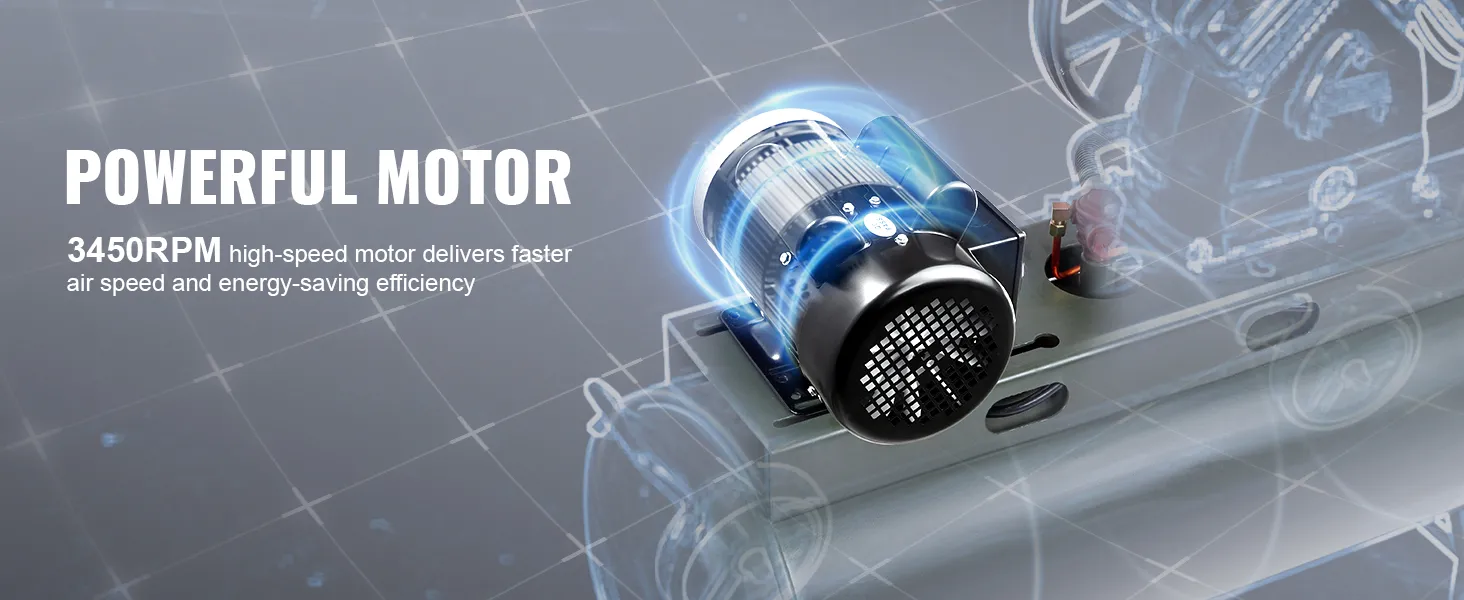

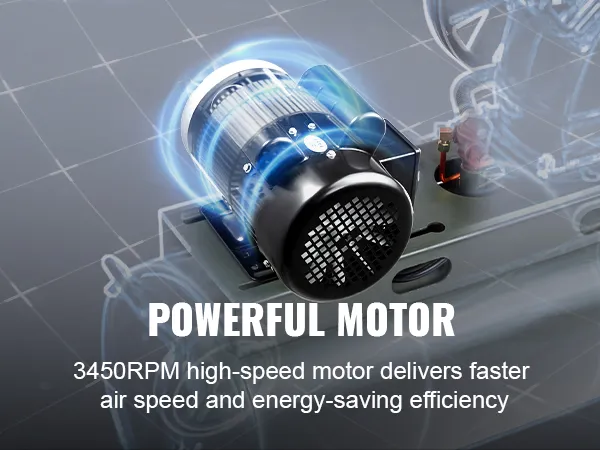

Powerful Motor
3450RPM high speed enables faster inflation and energy-saving efficiency.
CW/CCW Rotation Direction
The motor can be used for both clockwise and counterclockwise rotations. (Factory Setting is CCW)

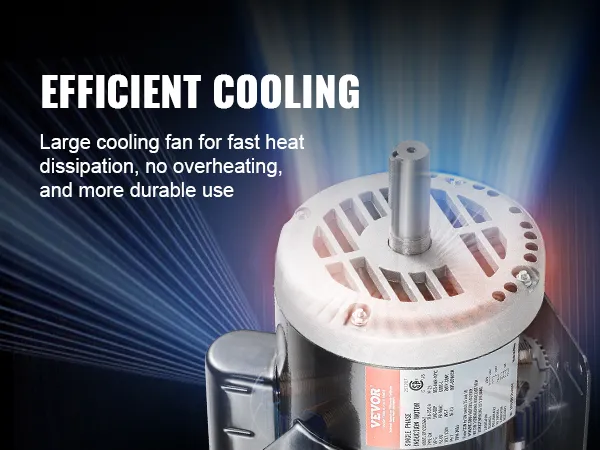

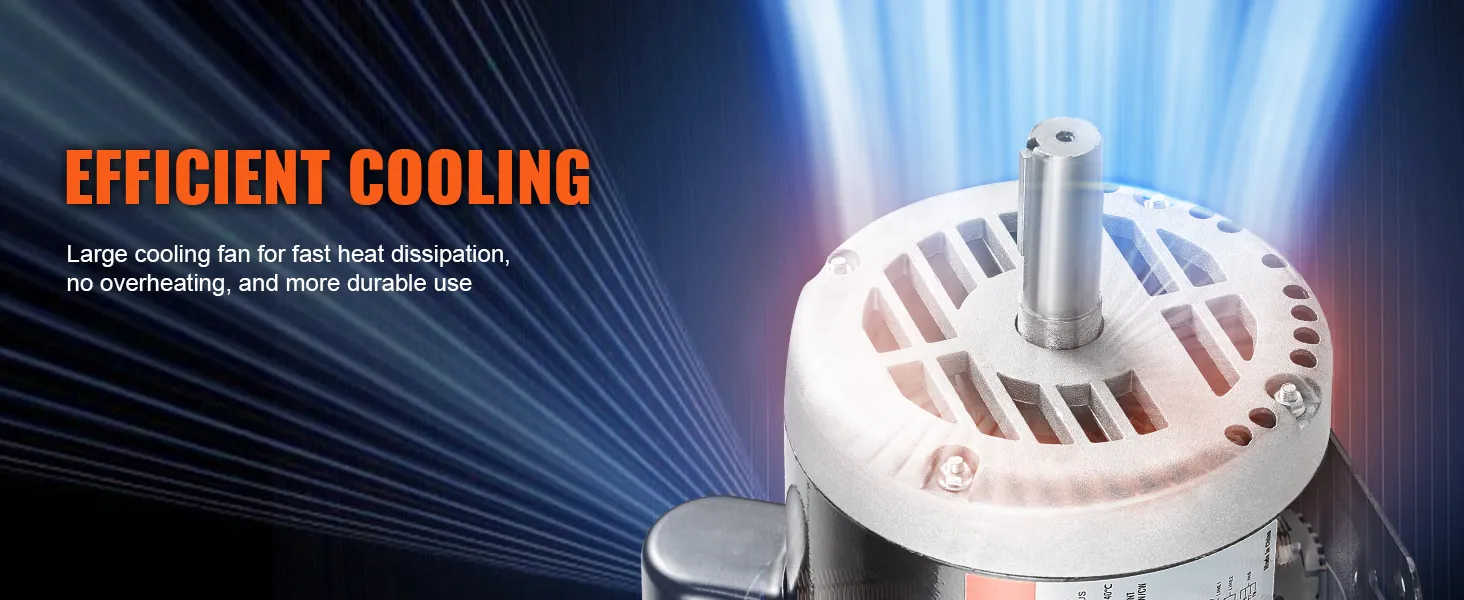

Efficient Cooling
Dissipate heat quickly and efficiently with a large fan, preventing overheating and ensuring durability.
Questions and Answers (4)
Showing 1-4 of 4
Sort by: Featured questions
Is it a standard 120v plug or one of the big twist lock or 240v plugs?
Answer This Question
This motor requires a 230v power supply, but it does not come with a plug, so you need to buy it.
By vevor on
What is the warranty policy on this motor?
Answer This Question
All products on our official website come with a 12-month warranty. If you purchase a product that has a problem within one year, we will be responsible for you.
By vevor on
is this motor a tefc or odp motor? picture shows tefc motor.
Answer This Question
Is it free shipping
Answer This Question
Generally, the shipping is free of charge, except some remote area, please see the detailed information：https://www.vevor.com/pages/shipping-policy
By vevor on

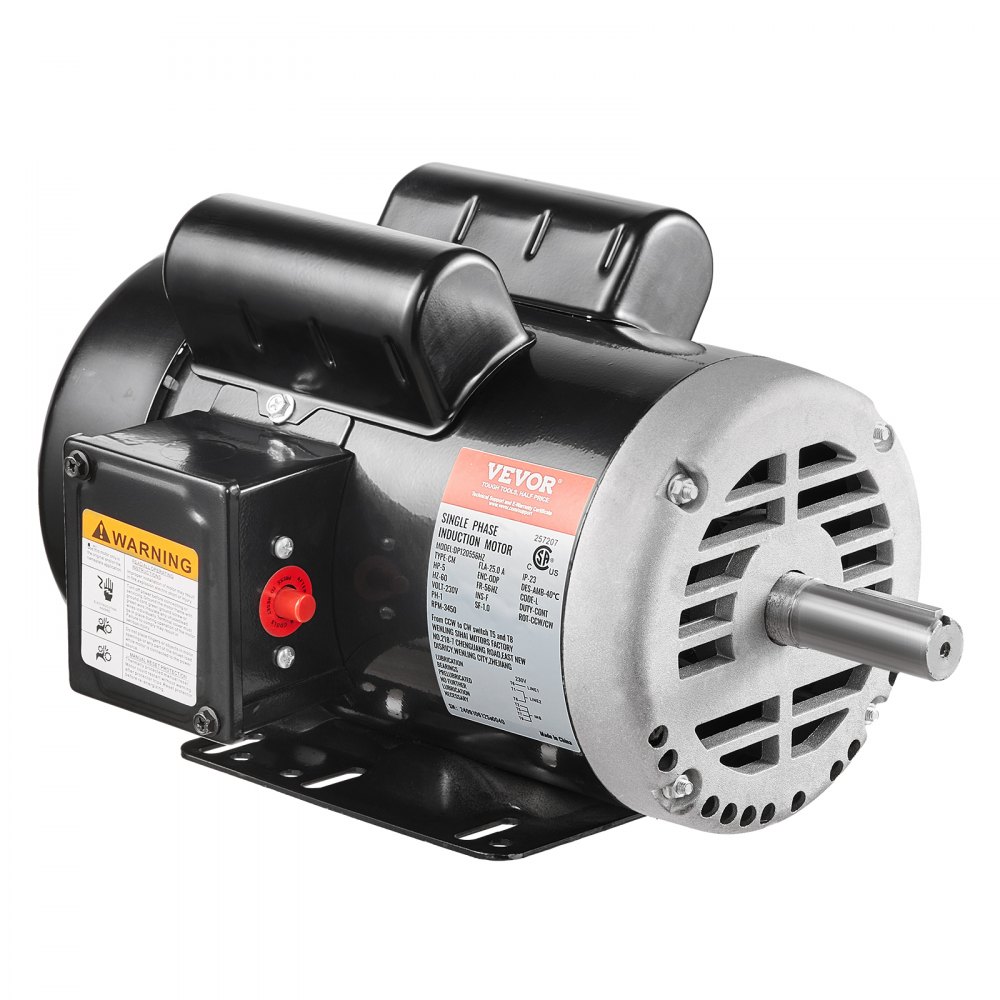

5HP Air Compressor Electric Motor 230V 25A 3450RPM 56Hz Frame CW/CCW Rotation (Factory Setting is CCW)
