Features & Details
- High Performance: 3.7HP 3450 RPM, Single Phase, Full Load Amps: 17.2Amp, 230V 60Hz, SF: 1.0.
- Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
- Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
- Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
- Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)
See More
Frequently Bought Together
Videos for this product
Reviews 3.8
All reviews are from verified purchases
Average rating based on 35 reviews
Top Reviews
Lawrence Ordoyne
Reviewed on May 18,2025
Fits perfectly easily installed
David McQurter
Reviewed on May 05,2025
make sure you order the right part. lil did i kno there was different size output shafts on the motors. was basically told it was mine from what the man said in chat. which sucks. again make sure you order the right parts. hard to talk to someone all you can do is chat with maybe a robot. who knows.. motor seemed well made and looks great. just wished was the right size shaft.. 174.00 down the drain..
DJ
Reviewed on Apr 26,2025
This motor is exactly what the description says. It’s strong and so far have not needed to contact support. Thanks vevor.
John
Reviewed on Apr 24,2025
Everything went well, on time delivery, everything fit without any problems runs as it should, satisfied customer.
Rick Hollier
Reviewed on Apr 23,2025
The first motor worked great my compressor runs like it should
Roger Smith
Reviewed on Apr 05,2025
Great product and Great place to buy from !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
jernkar
Reviewed on Mar 28,2025
It is everything they said it is. Even though it says 3450 rpm it actually is 3595 rpm with no load. This is very common with all of these 5 hp motors. My 30 year old 5hp is the same way, label says 3450 and it runs 3595 rpm no load. I hope it lasts 30 years like the old one but I don't care, I am 70 years old.
Larry
Reviewed on Mar 28,2025
Easy to wire as there were both blade and lugs for attaching the power cord. Motors direction is shipped with a CCW direction that can be easily changed to CW direction.
michael klenotiz
Reviewed on Mar 27,2025
Motor works great for half the price. Use it to run my 60 gallon air compressor with no issues. I would recommend this to anyone looking for a replacement motor.
Joe
Reviewed on Mar 25,2025
No issues wired up works great. If you don't know you shouldn't try hooking it up you will damage it.
About this item
Product specification
- Item Model Number
- DP123756
- Voltage
- 230V
- Frequency
- 60HZ
- Current
- 17.2A
- Rotation Speed
- 3450rpm
- SF
- 1.0
- Enclosure
- ODP
- Frame Size
- 56
- Shaft Diameter
- 5/8" Keyed Shaft
- Shaft Length
- 1.88"
- Keyway Size
- 0.188"
- Net Weight
- 34.3 lbs / 15.55 Kg
Description
Unleash the Power of Your Air Compressor Again !

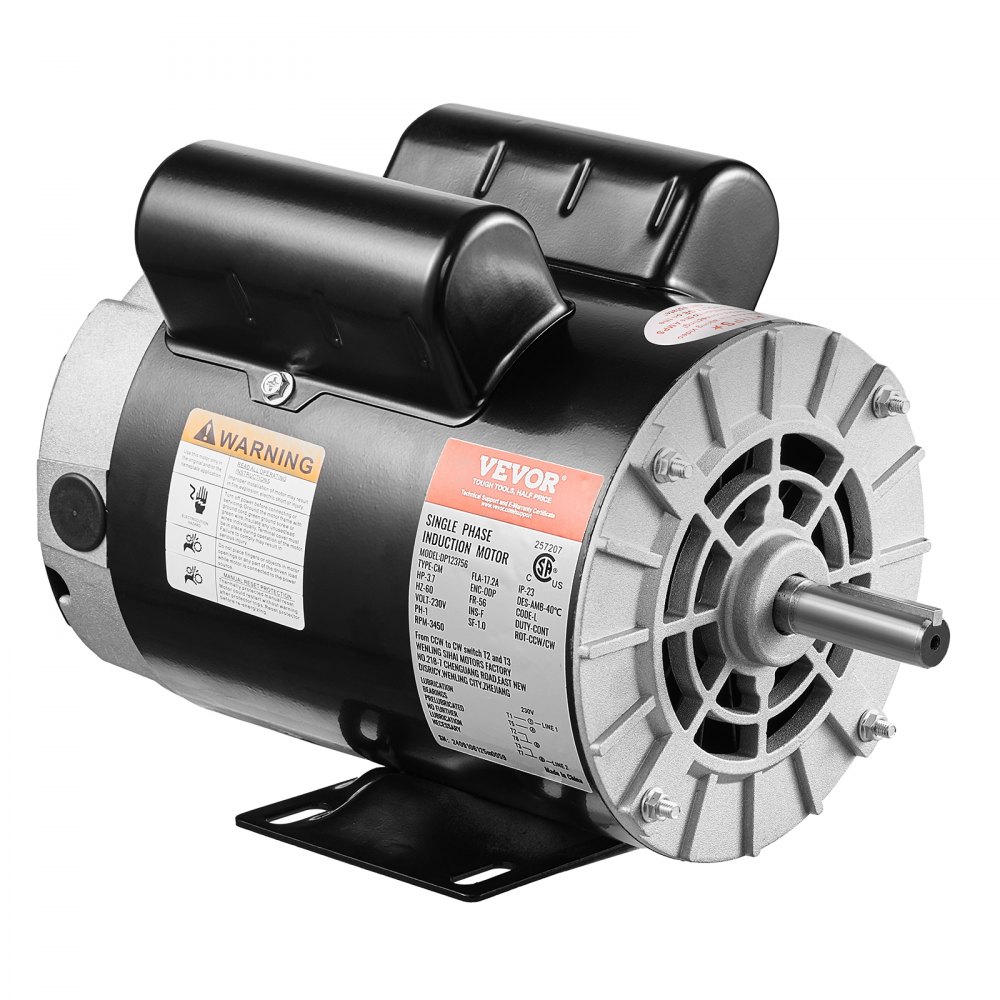

Inject powerful energy into your air compressor with 3.7HP compressor motor, 230V voltage, 17.2A current, 56 frame, 1.88 inch shaft length, 5/8 inch keyed shaft, CW/CCW dual rotation direction (Factory Setting is CCW). A perfect addition to air compressors, industrial and commercial needs.
Key Features
Powerful Motor
3450RPM high speed enables faster inflation and energy-saving efficiency.
CW/CCW Rotation Direction
The motor can be used for both clockwise and counterclockwise rotations. (Factory Setting is CCW)
Efficient Cooling
Dissipate heat quickly and efficiently with a large fan, preventing overheating and ensuring durability.
See More
Questions and Answers (1)
Showing 1-1 of 1
Sort by: Featured questions
I need a continuous load motor in about the 3hp range....whats available?
Answer This Question
This one is 3hp 3450rpm, you can see if it meets your needs.
https://www.vevor.com/s/ODPKYJDJ3HP5Z8MOIV7
By vevor on
3.7HP Air Compressor Electric Motor 230V 17.2A 3450RPM 56 Frame CW/CCW Rotation (Factory Setting is CCW)
