Features & Details

• Wide Vehicle Compatibility: Our hydraulic power steering rack and pinion fits: 2000-2004 Toyota Tundra 3.4L / 4.7L, 2005-2006 Toyota Tundra 4.0L / 4.7L, 2001-2007 Toyota Sequoia 4.7L. Note: For left-hand drive only.
• OE Part Numbers: This steering rack and pinion assembly is a direct replacement for OE part numbers: 44250-0C010, 97-1618, 971618, 442500C020, 442500C030, 442500C041, 442500C050.

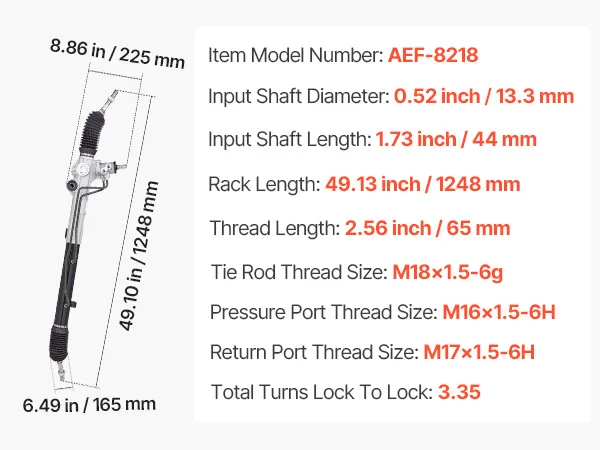

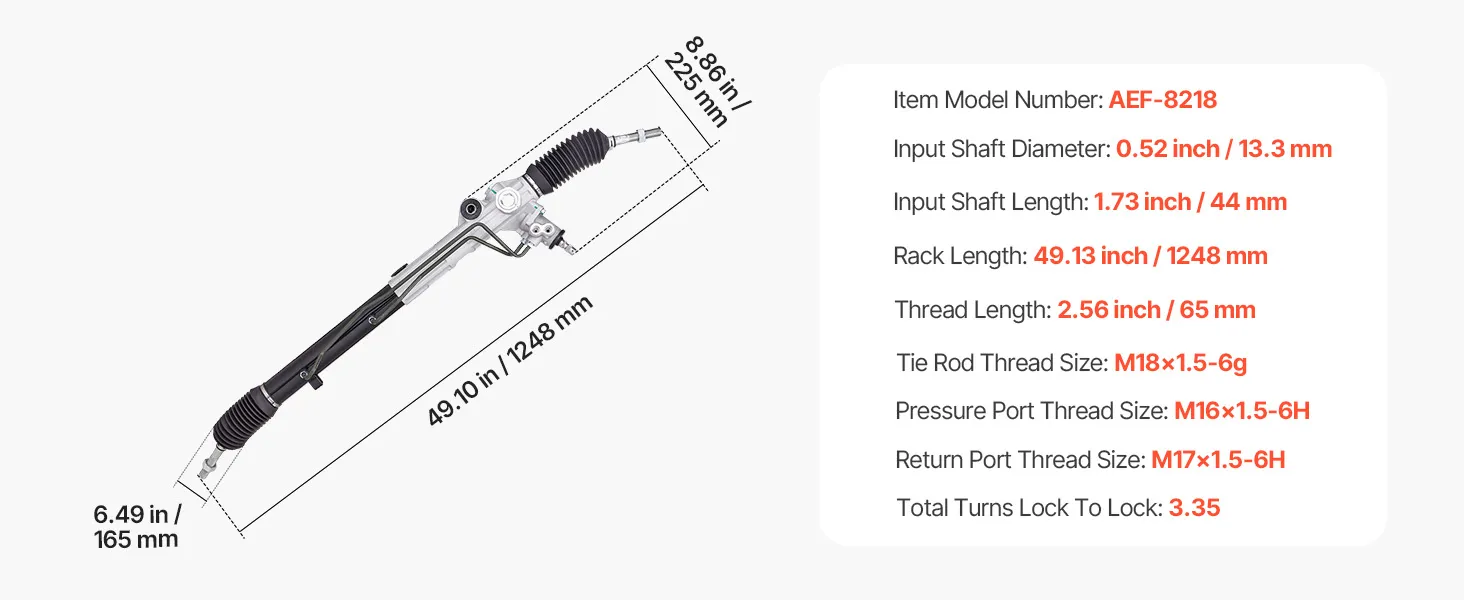

• Specifications: Input shaft diameter: 13.3 mm / 0.52 inch; Input shaft length: 44 mm / 1.73 inch; Rack length: 1248 mm / 49.13 inch; Tie rod thread length: 65 mm / 2.56 inch; Tie rod thread size: M18×1.5-6g; Pressure port thread size: M16×1.5-6H; Return port thread size: M17×1.5-6H; Total turns lock to lock: 3.35.

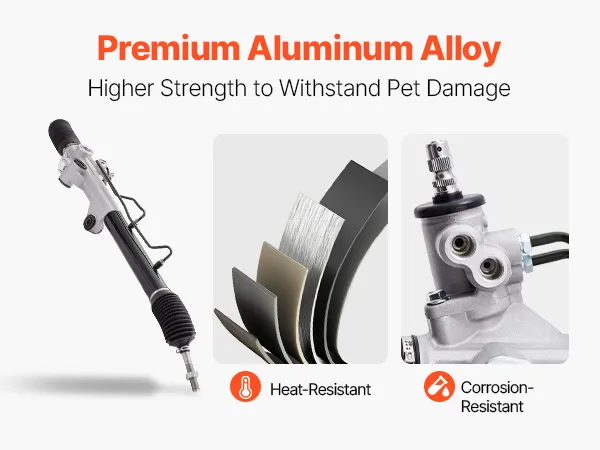

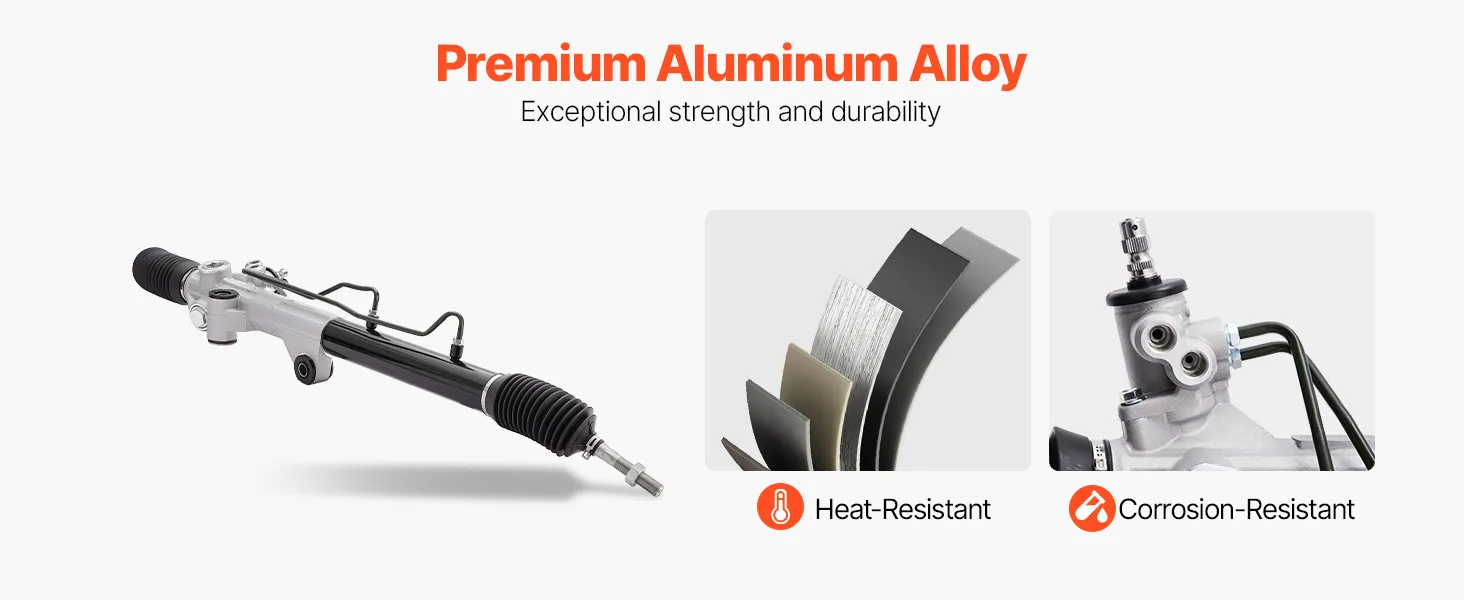

• Corrosion-Resistant Alloy: Crafted from high-quality aluminum alloy, the steering rack and pinion assembly offers exceptional strength and durability for smooth driving on harsh terrains while preventing the steering system from jamming with a leak-free dust boot design.
• Agile Steering: Optimized gear and rack meshing technology provides enhanced stability and quick, responsive steering, ensuring smooth and precise control for a superior driving experience.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

AEF-8218

Net Weight

28.24 lbs / 12.8 kg

Product Dimensions

49.10 x 6.49 x 8.86 in / 1248 x 165 x 225 mm

Description

Precision and Comfort – Your Ultimate Steering Upgrade

Direct replacement for power steering rack and pinion OEM part numbers 44250-0C010, 97-1618, 971618, 442500C020, 442500C030, 442500C041, 442500C050. Compatible with Toyota Tundra (2000-2006). Please confirm your exact model before purchase.

Made from 45# steel gears and a 40Cr alloy housing, rigorously tested for high-temperature and corrosion resistance, our power steering rack and pinion assembly ensures long-lasting durability.

The rack and pinion mechanism optimizes gear meshing technology, enhancing vehicle stability for precise control, quick response, and smooth, agile steering.

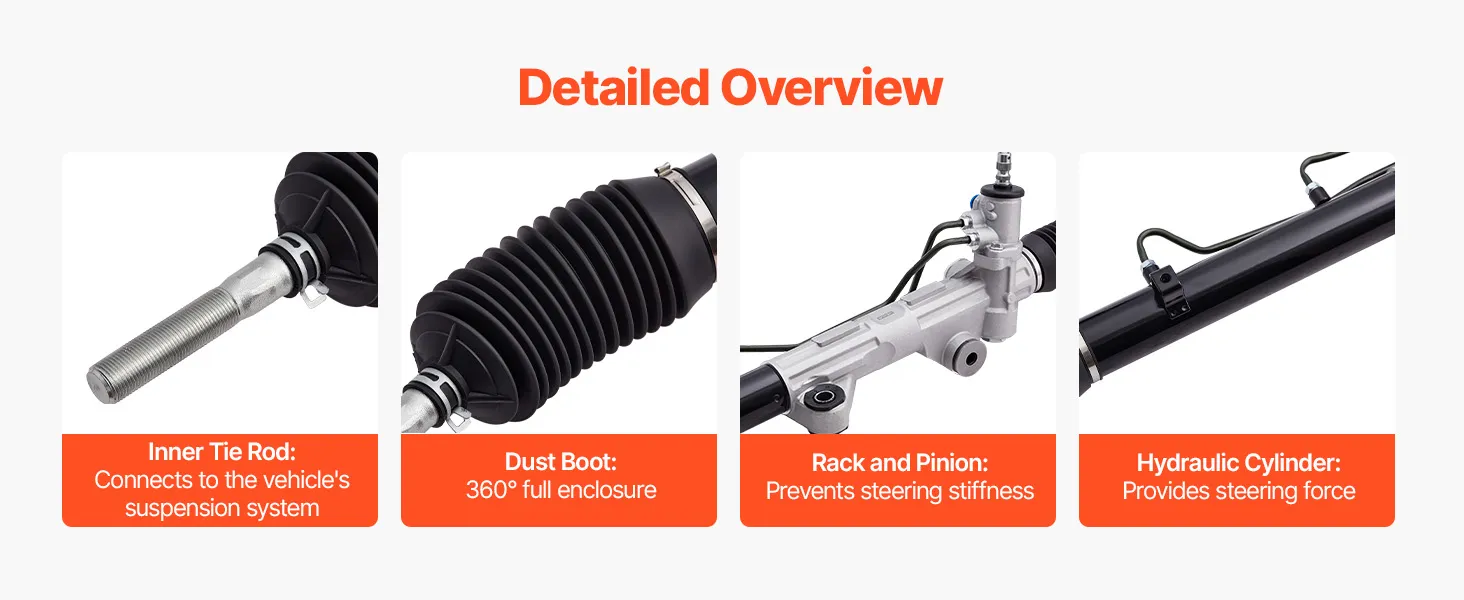

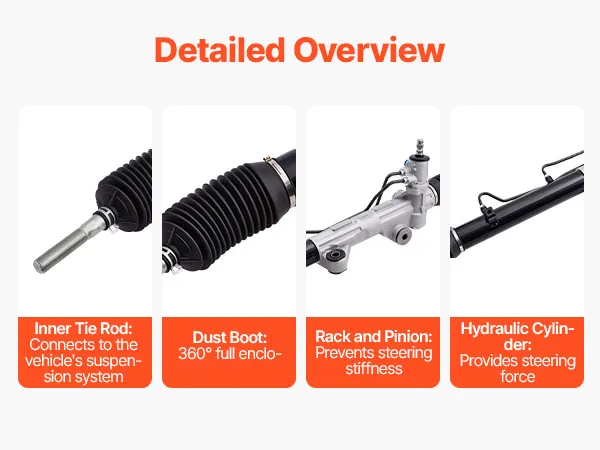

The rack and pinion assembly comes with an inner tie rod that securely links the vehicle's suspension, providing stable, precise handling in every turn. The fully enclosed dust boot delivers comprehensive protection, effectively blocking external debris and preventing steering interference.

The hydraulic system features a noise-reduction upgrade with 1.3 MPa high-pressure sealing technology, keeping leakage below 1.135 L/min to effectively reduce unwanted noise. The dust boot design blocks mud, water, and sand, ensuring a tight seal to prevent oil leaks and extend service life.
