Vevor Reflow Oven Reflow Soldering Machine Bga Infrared Ic Heater 960 X 300mm

Vevor Reflow Oven Reflow Soldering Machine Bga Infrared Ic Heater 960 X 300mm

Available: In Stock
Product SKU: TDHLHJ960SM000001V1
$1,999.99 USD


Features & Details


  • [SIGNIFICANT PARAMETER]- Different needs of people entail a large soldering area. That is the reason why our soldering machine is so distinguisheda soldering area of 300 x 960 mm (11.8'' x 37.8''). Apart from that, there are three heating zones above and two below; the rated power is 4.5 KW, while temperature control accuracy can reach up to ±1 . Independent wheel structure and special stainless steel strut are durable wear-resisting runs smoothly, and speed precision can reach ±10mm/min.
  • [PID INTELLIGENT TEMP CONTROL]- PID intelligent temperature control, one advanced technology you cannot ignore in our five heating areas, attains more accurate and well-proportioned temperature control. Our sophisticated transmission system includes a 1:150 turbine reducer and a frequency conversion motor. (speed adjustable range 0-240 mm/min) It takes only about 20 minutes to let it heat up to 350from the room temperature.
  • [AUTOMATIC SOLDERING PROCESS]- This T-960S SMD reflow oven can provide eight stored temperature parameter waves as options to fulfill various welding technological requirements. The programmable technology allows you to preset the temperature waves prior to the whole welding process being completed automatically from preheating, soaking, and reflow through to cooling down according to your presetting wave.
  • [USER-FRIENDLY OPERATION]- Speed, time, and temperature are integrated into one LED screen for convenient operation and straightforward observation. Aside from that, the external control panel can effectively avoid the risks caused by high temperature whilst ensuring stability and safety. This practical interface features an ergonomic design. After some training, there is no doubt that you will find your way to harness the machine. It is very lightweight and has small foot stands, allowing the T-960S to be easily bench positioned, transported, or stored.
  • [EXTENSIVE APPLICATION]- The T-960S reflow soldering machine adopted intelligent curve heating modes and rapid infrared heating technology to solder most small parts of PCB boards, CHIP, SOP, PLCC, QFP, BGA, etc. It is an ideal rework solution from single runs to on-demand small batch production.

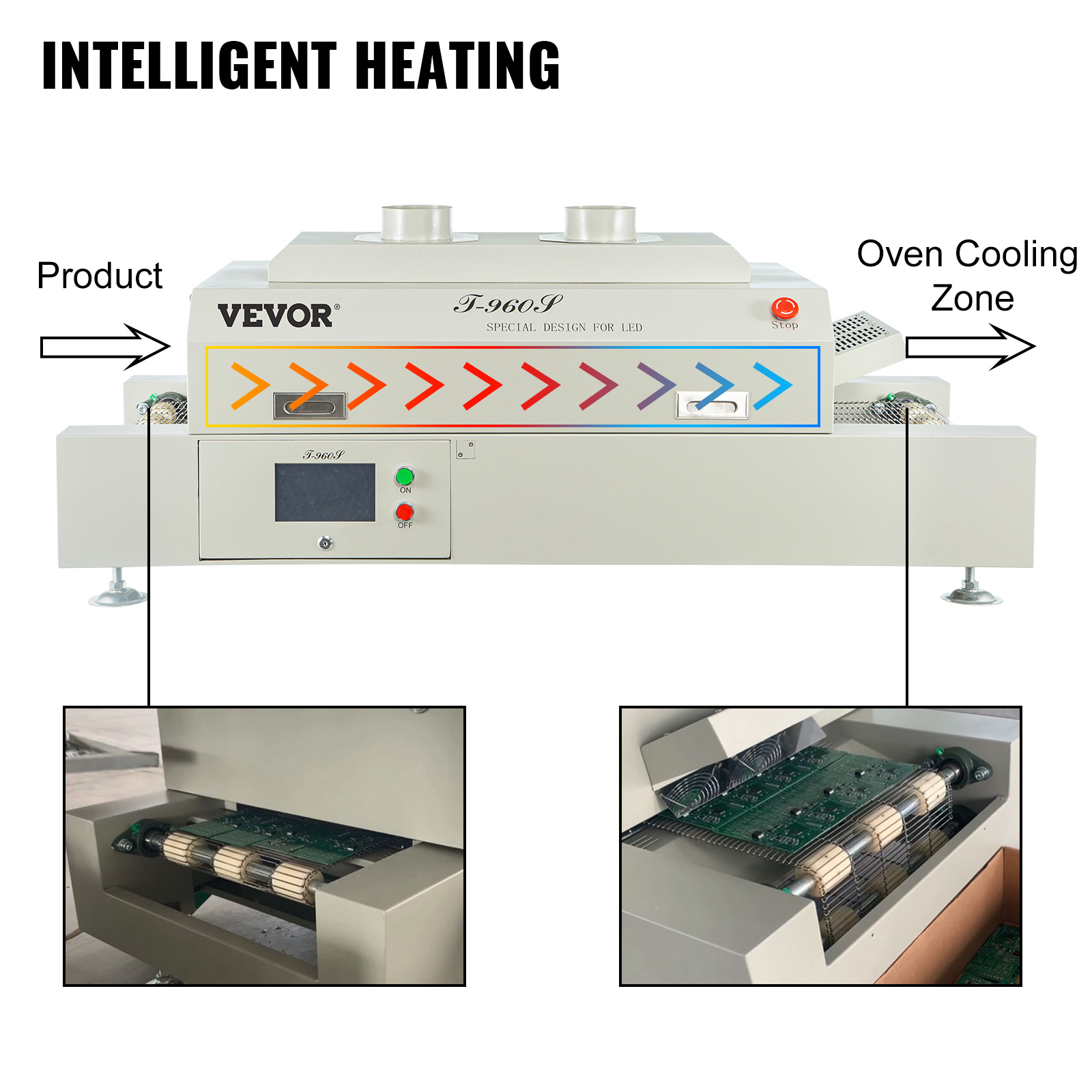

Intelligent Heating


PID temperature control, fast infrared radiation, and smooth wind circulation are three key elements of the heating system. The non-contact output of imported high-current solid-state relays can effectively avoid damage to IC or circuit boards, making the entire welding process more scientific and safe.

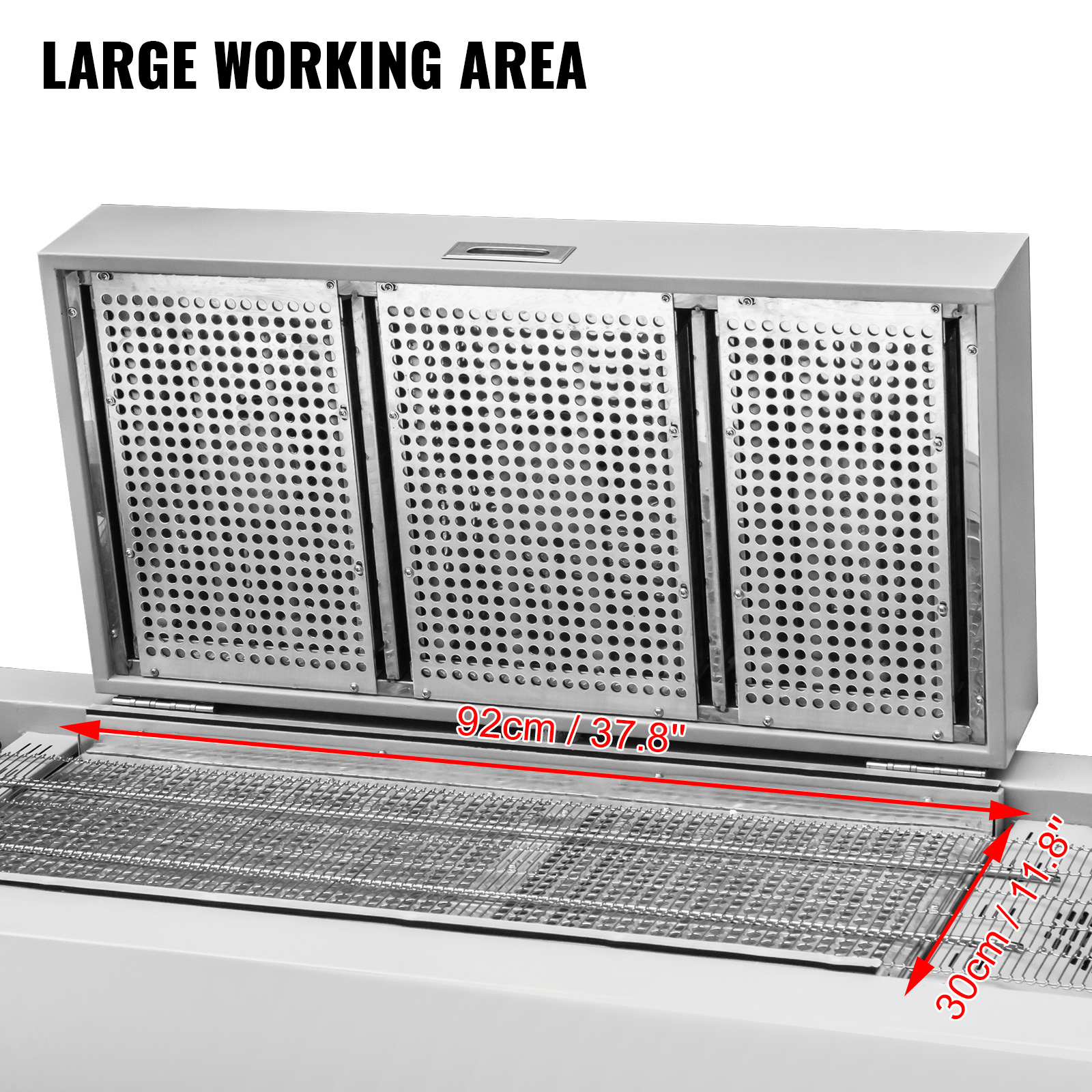

Large Working Area


An extensive working area of 300 x 960 mm (11.8'' x 37.8’’) allows the machine to work under different working conditions. The application range is broadened drastically thanks to that. It will definitely be an economic investment for you to make.

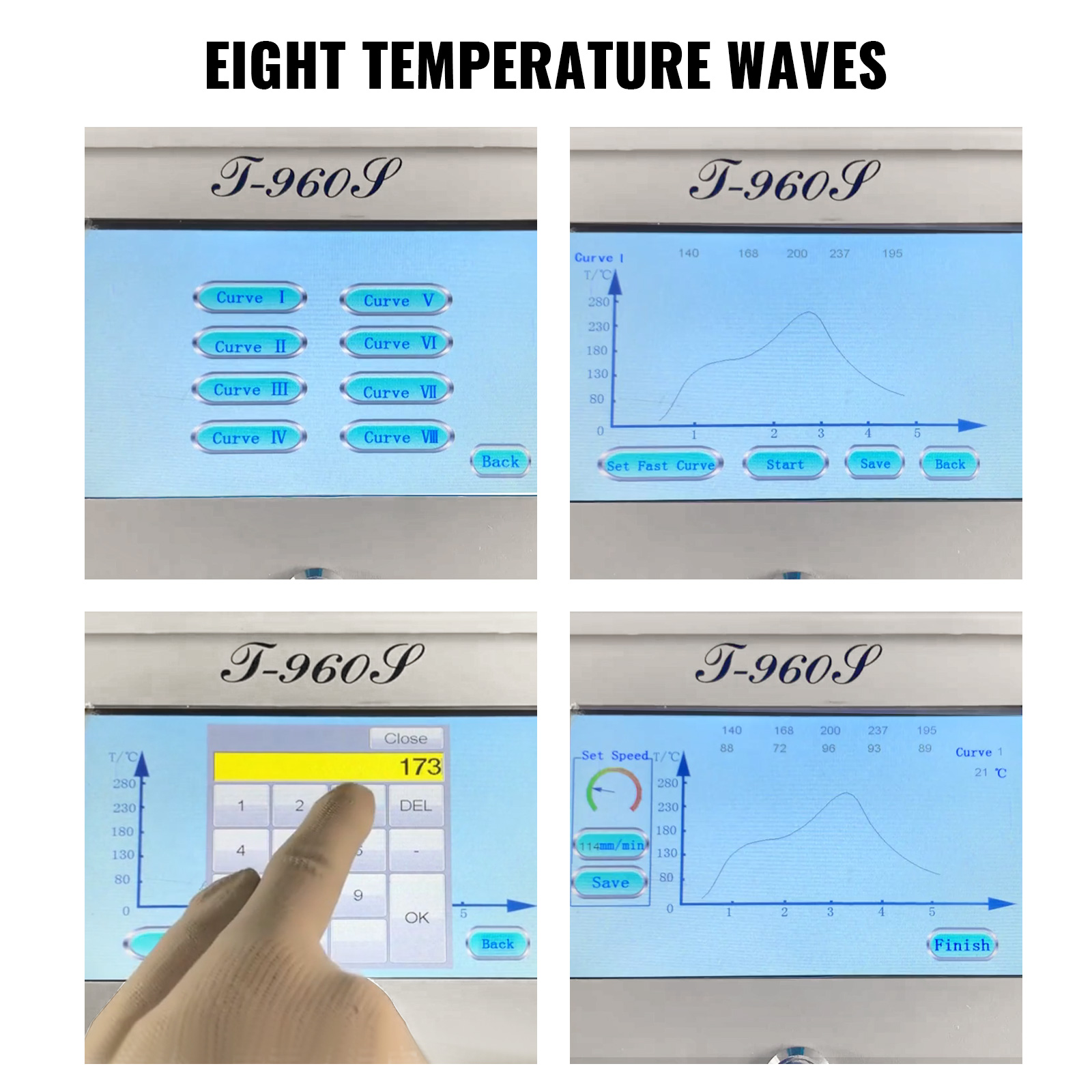

Eight Temperature Waves


This SMD reflow oven can provide eight kinds of stored temperature parameter waves as options to meet the requirements of various welding processes, and it has mobile heating and cooling functions. Besides, the entire welding process is auto-completed after you preset the wave. So you can say it is easy to use.

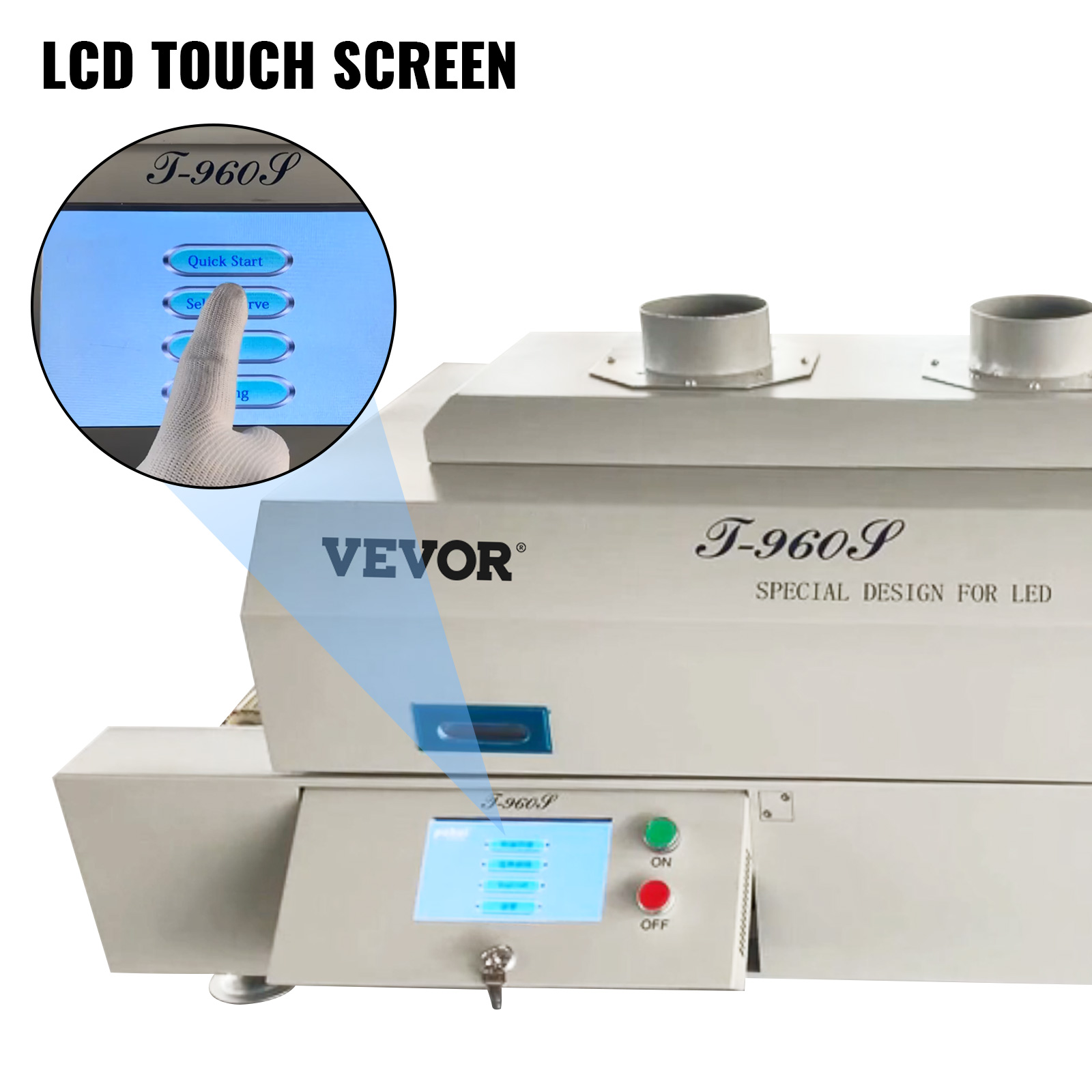

LCD Touch Screen


The LCD screen can demonstrate every data such as speed, time, and temperature. The touch screen provides a user-friendly operation interface. There is no need to connect with the PC, and you can watch the whole repairing process very clearly.

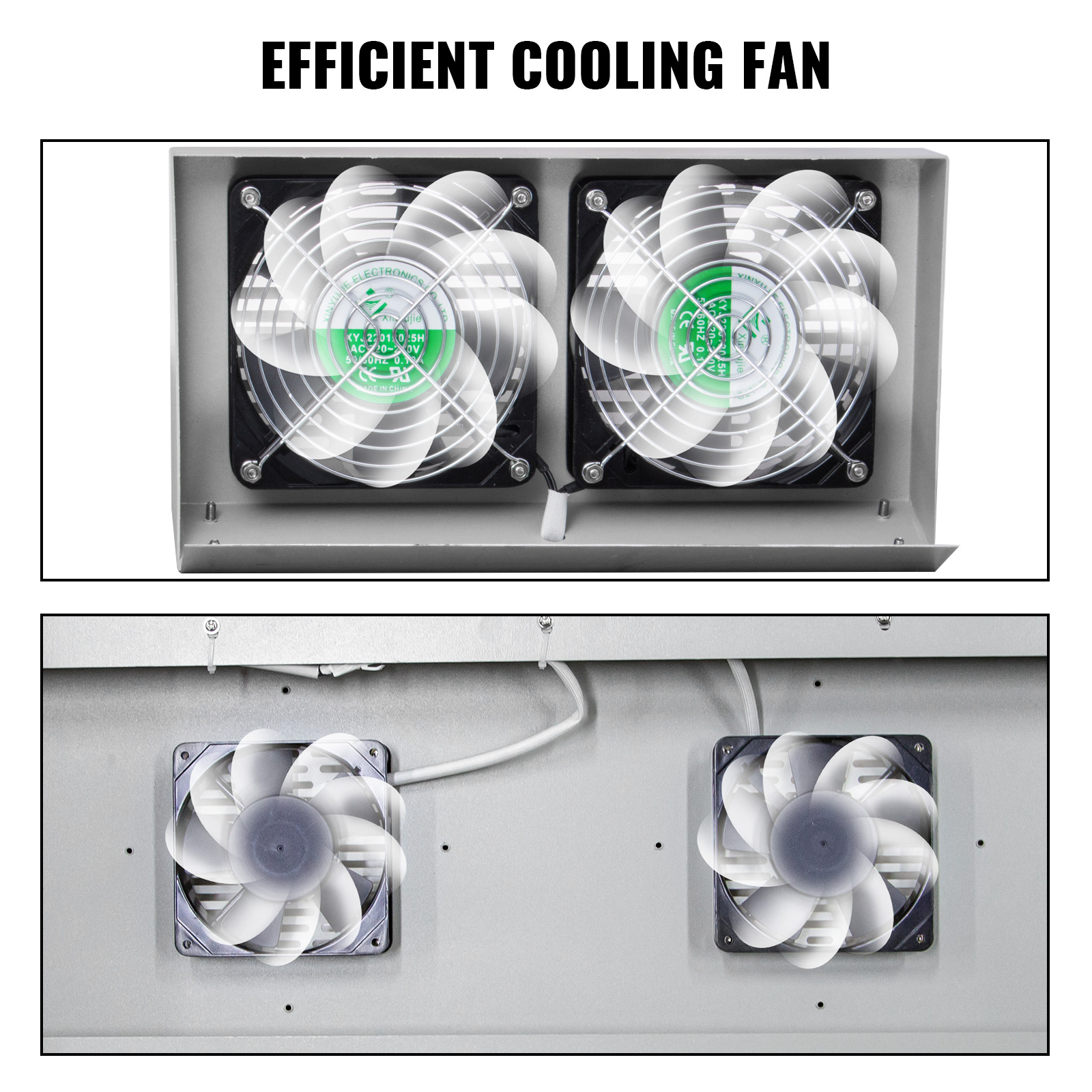

Efficient Cooling Fan


The high-efficiency cooling fan equipped with this machine is to ensure the rapid cooling of PCB boards. It makes them maintain the low temperatures required when PCB board release. Consequently, the process can be completed efficiently and securely.

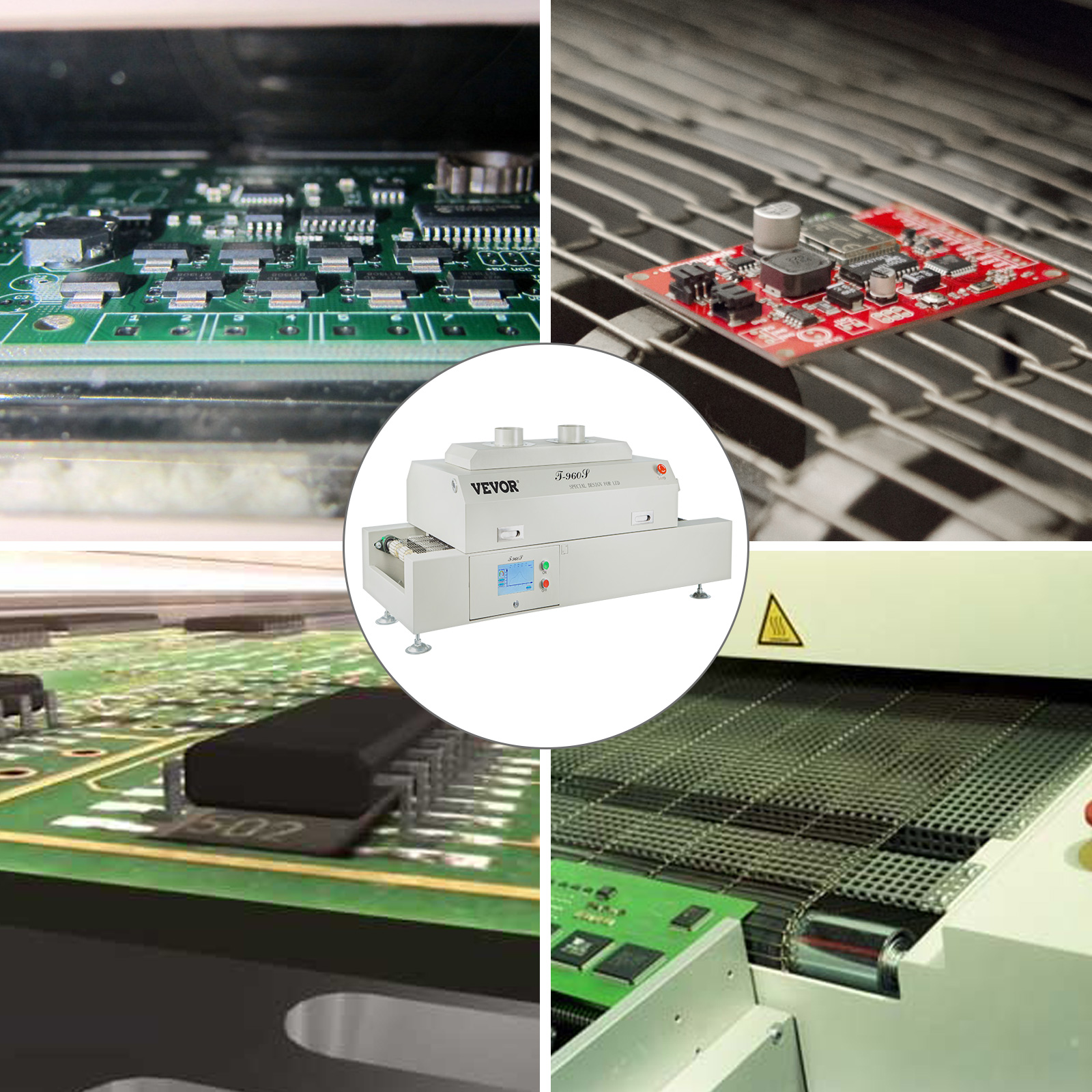

Wide Application


The T-960S reflow soldering machine is able to solder small parts of most PCB boards, for example, CHIP, SOP, PLCC, QFP, BGA, etc. It is the ideal rework solution from single runs to on-demand small batch production.

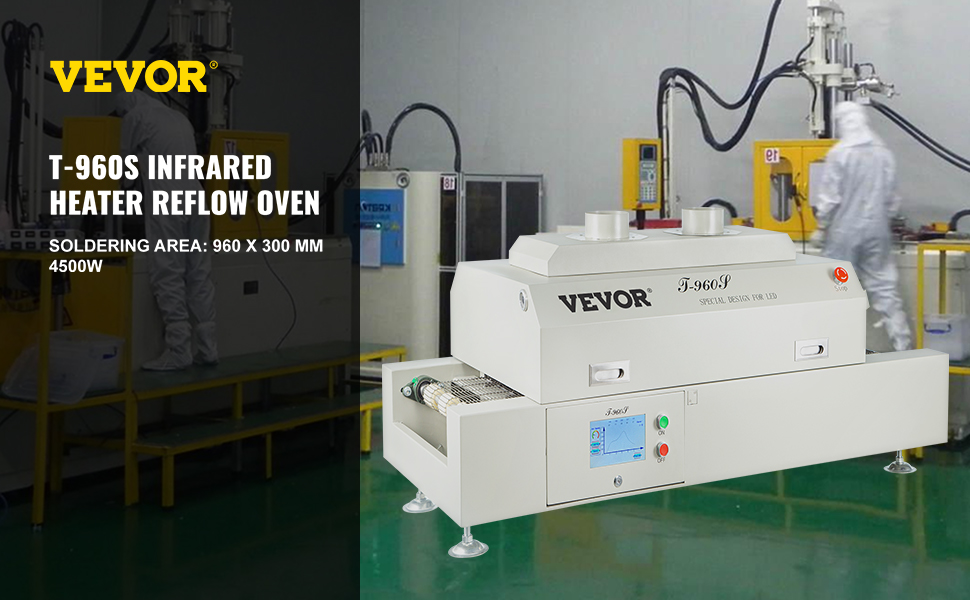

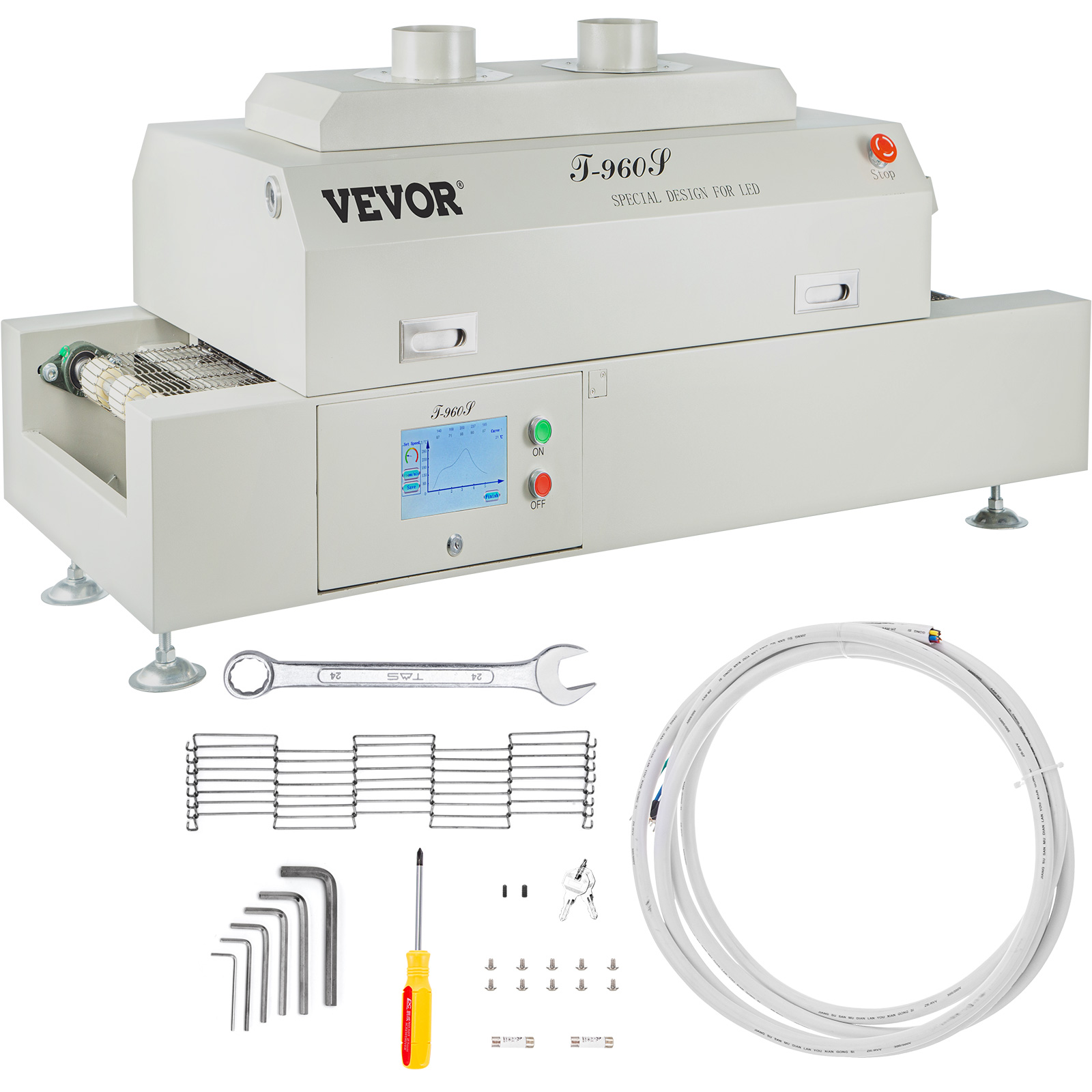

T-960S Reflow Oven

The Infrared IC Heater T960S is a microprocessor-controlled reflow-oven. This machine uses the intelligent level sirocco and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. It is suitable for high welding temperature lead-solder paste and can be used for effectively soldering various SMT and BGA components.

  • Wide Soldering Area
  • Effective Temperature Control
  • Stable Transmission System
  • Convenient Control
  • Professional Use
Package Content:

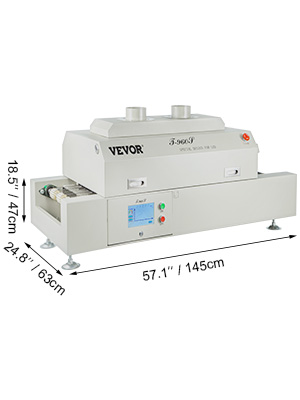

Specifications
  • Model: T-960S
  • Heating Zone: upper 3 / down 2
  • Soldering Area: 300 x 960 mm / 11.8 x 37.8 in.
  • Voltage: 110V, 60HZ
  • Length of Heating Zone: 960 mm / 37.8 in.
  • Max Width of PCB Board: 300 mm / 11.8 in.
  • Rated Power: 8KW
  • Average Power: 4.5KW
  • Speed of Conveyor Belt: 0-240 mm/min
  • Heating Up Time: 15min
  • Temperature Control Range: Room temperature - 350 ℃ / 662
  • Temperature Control accuracy: ± 1℃
  • Temperature Distribution Deviation: ± 2℃

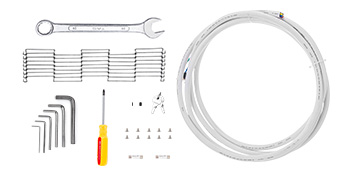

Package Content
  • 1 x T-960S Reflow Oven
  • 1 x Accessory Kit (tool bag x 1, foot stand x 4, cable x 1, smoke tube x 2)


Features & Details


  • [SIGNIFICANT PARAMETER]- Different needs of people entail a large soldering area. That is the reason why our soldering machine is so distinguisheda soldering area of 300 x 960 mm (11.8'' x 37.8''). Apart from that, there are three heating zones above and two below; the rated power is 4.5 KW, while temperature control accuracy can reach up to ±1 . Independent wheel structure and special stainless steel strut are durable wear-resisting runs smoothly, and speed precision can reach ±10mm/min.
  • [PID INTELLIGENT TEMP CONTROL]- PID intelligent temperature control, one advanced technology you cannot ignore in our five heating areas, attains more accurate and well-proportioned temperature control. Our sophisticated transmission system includes a 1:150 turbine reducer and a frequency conversion motor. (speed adjustable range 0-240 mm/min) It takes only about 20 minutes to let it heat up to 350from the room temperature.
  • [AUTOMATIC SOLDERING PROCESS]- This T-960S SMD reflow oven can provide eight stored temperature parameter waves as options to fulfill various welding technological requirements. The programmable technology allows you to preset the temperature waves prior to the whole welding process being completed automatically from preheating, soaking, and reflow through to cooling down according to your presetting wave.
  • [USER-FRIENDLY OPERATION]- Speed, time, and temperature are integrated into one LED screen for convenient operation and straightforward observation. Aside from that, the external control panel can effectively avoid the risks caused by high temperature whilst ensuring stability and safety. This practical interface features an ergonomic design. After some training, there is no doubt that you will find your way to harness the machine. It is very lightweight and has small foot stands, allowing the T-960S to be easily bench positioned, transported, or stored.
  • [EXTENSIVE APPLICATION]- The T-960S reflow soldering machine adopted intelligent curve heating modes and rapid infrared heating technology to solder most small parts of PCB boards, CHIP, SOP, PLCC, QFP, BGA, etc. It is an ideal rework solution from single runs to on-demand small batch production.


Intelligent Heating


PID temperature control, fast infrared radiation, and smooth wind circulation are three key elements of the heating system. The non-contact output of imported high-current solid-state relays can effectively avoid damage to IC or circuit boards, making the entire welding process more scientific and safe.



Large Working Area


An extensive working area of 300 x 960 mm (11.8'' x 37.8’’) allows the machine to work under different working conditions. The application range is broadened drastically thanks to that. It will definitely be an economic investment for you to make.



Eight Temperature Waves


This SMD reflow oven can provide eight kinds of stored temperature parameter waves as options to meet the requirements of various welding processes, and it has mobile heating and cooling functions. Besides, the entire welding process is auto-completed after you preset the wave. So you can say it is easy to use.


LCD Touch Screen


The LCD screen can demonstrate every data such as speed, time, and temperature. The touch screen provides a user-friendly operation interface. There is no need to connect with the PC, and you can watch the whole repairing process very clearly.



Efficient Cooling Fan


The high-efficiency cooling fan equipped with this machine is to ensure the rapid cooling of PCB boards. It makes them maintain the low temperatures required when PCB board release. Consequently, the process can be completed efficiently and securely.


Wide Application


The T-960S reflow soldering machine is able to solder small parts of most PCB boards, for example, CHIP, SOP, PLCC, QFP, BGA, etc. It is the ideal rework solution from single runs to on-demand small batch production.

T-960S Reflow Oven

The Infrared IC Heater T960S is a microprocessor-controlled reflow-oven. This machine uses the intelligent level sirocco and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. It is suitable for high welding temperature lead-solder paste and can be used for effectively soldering various SMT and BGA components.

  • Wide Soldering Area
  • Effective Temperature Control
  • Stable Transmission System
  • Convenient Control
  • Professional Use
Package Content:Specifications
  • Model: T-960S
  • Heating Zone: upper 3 / down 2
  • Soldering Area: 300 x 960 mm / 11.8 x 37.8 in.
  • Voltage: 110V, 60HZ
  • Length of Heating Zone: 960 mm / 37.8 in.
  • Max Width of PCB Board: 300 mm / 11.8 in.
  • Rated Power: 8KW
  • Average Power: 4.5KW
  • Speed of Conveyor Belt: 0-240 mm/min
  • Heating Up Time: 15min
  • Temperature Control Range: Room temperature - 350 ℃ / 662
  • Temperature Control accuracy: ± 1℃
  • Temperature Distribution Deviation: ± 2℃
Package Content
  • 1 x T-960S Reflow Oven
  • 1 x Accessory Kit (tool bag x 1, foot stand x 4, cable x 1, smoke tube x 2)
