Vevor Nema 23 Stepper Motor 425oz.in 57x113 Mm 4.2a Drive Control For 3d Printer

Vevor Nema 23 Stepper Motor 425oz.in 57x113 Mm 4.2a Drive Control For 3d Printer

Available: In Stock
Product SKU: BJDJ57HS113SJT2DYV9
FREE delivery: June 21 - June 24
$227.99 USD


Features & Details

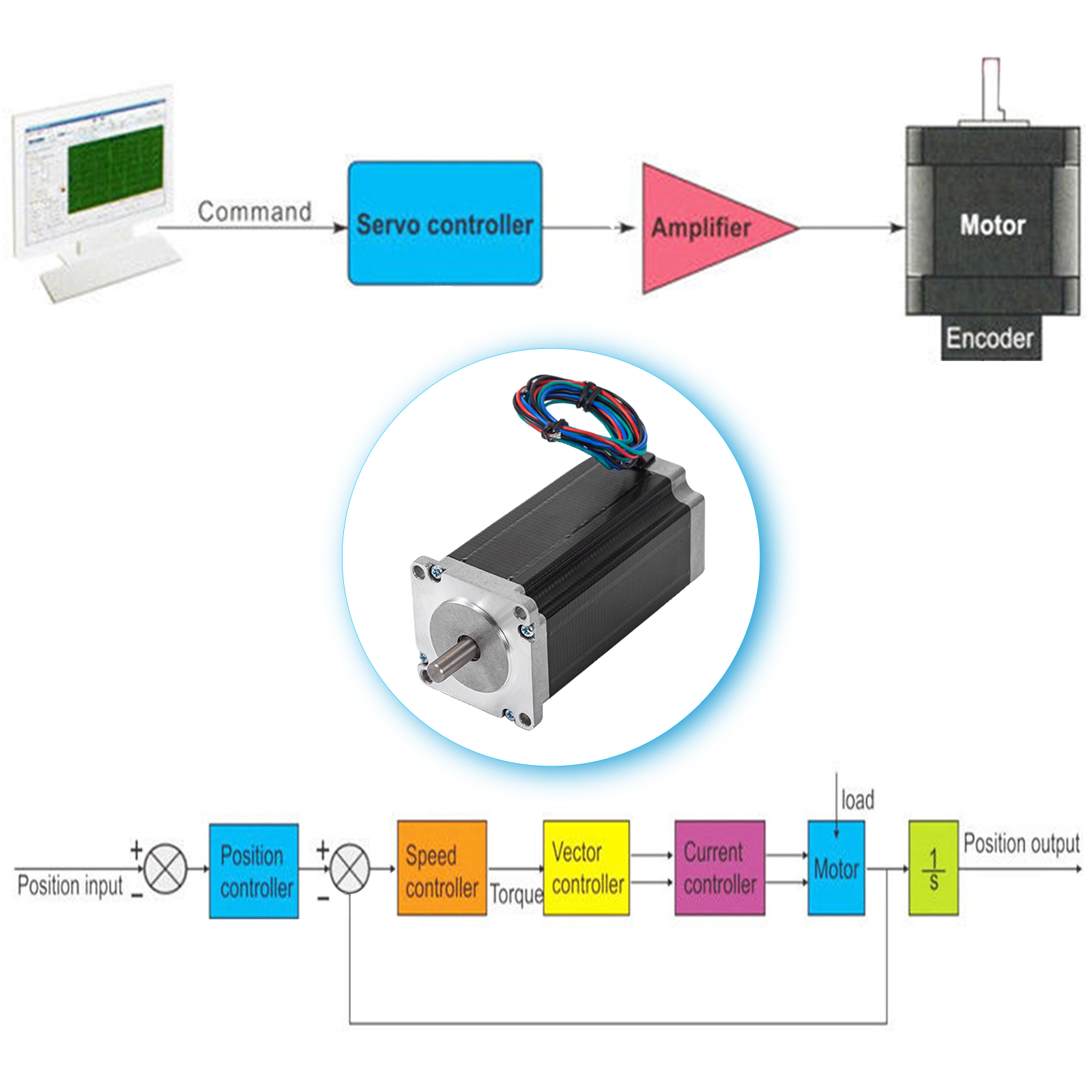

  • [PRECISION CONTROL SYSTEM]- Stepper motor applied control technology and vector control technology to prevent out-of-control and ensure product accuracy. High torque stepper motor features a stepping opened-loop circuit system, which runs smoothly, vibrates mildly, and has no loss of movement synchronization.
  • [EXCELLENT PERFORMANCE]- Stepper motor is provided with 3.0 Nm/424.83 oz.in high holding torque, low self-inductance reactance, responsive and can avoid system error. This step motor can lower resistance value than motors of the same thickness and torque, thus enabling good thermal conductivity.
  • [PREMIUM QUALITY]- The stepping motor is built with a 100% copper core for low noise operation and excellent speed regulating performance. The nema motor adopts a durable metal structure to keep the rotor away from corrosion rust. Magnetic filling materials cover the motor rotor to refrain from skipping steps and getting stuck.
  • [EFFORTLESS TO USE]- The stepper motor comes with a stepper motor driver (controller) that is mainly used as a power source to drive the stepper motor by controlling the stepper pulse signal's frequency and number to achieve the motor's precise positioning. It contains the power supply and mounting bracket, which has an excellent working frequency, and composite expansion.
  • [MULTIPLE APPLICATION]- A stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.


Strong Compatibility


Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.


High Torque & Speed


The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.

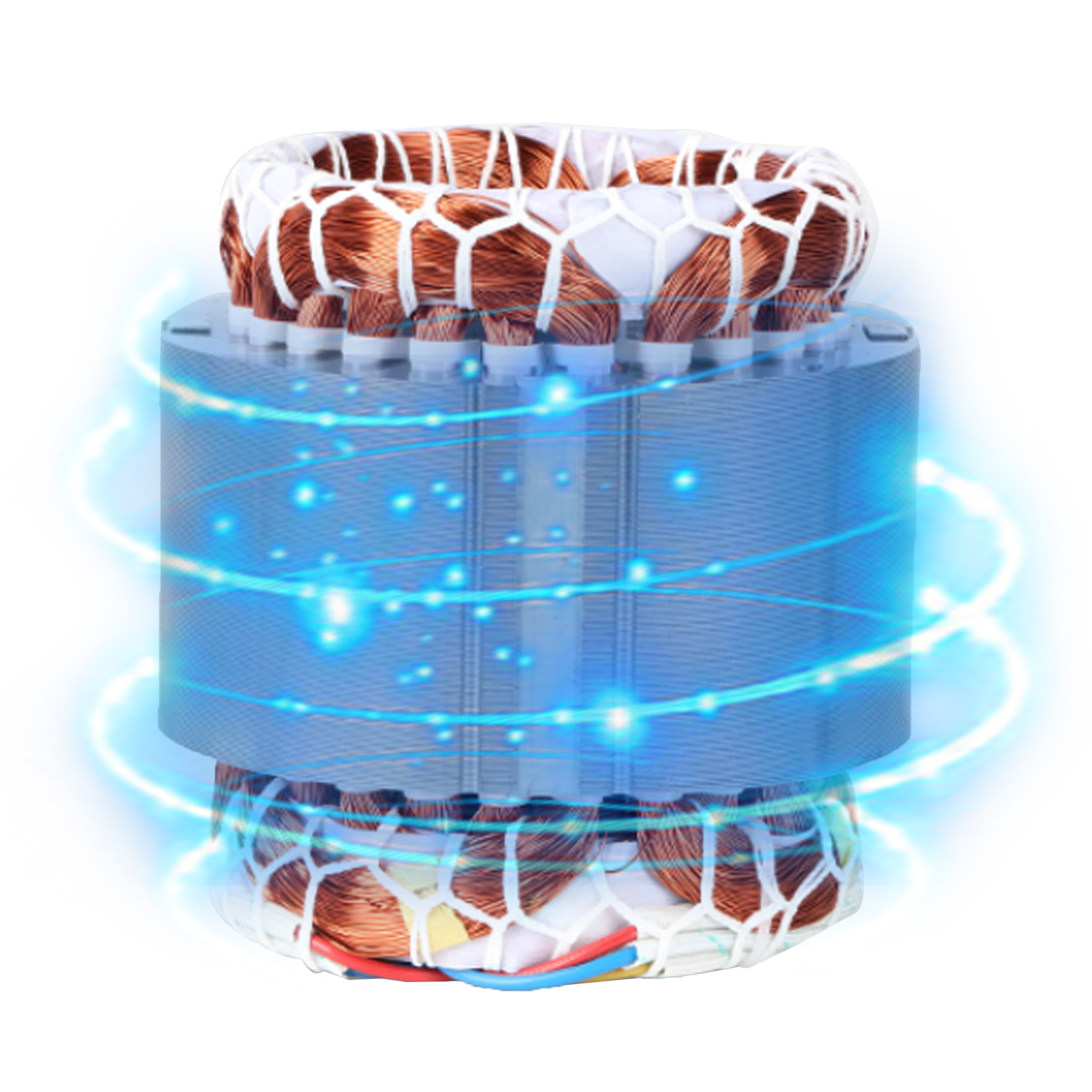

Pure Copper Coils


This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.

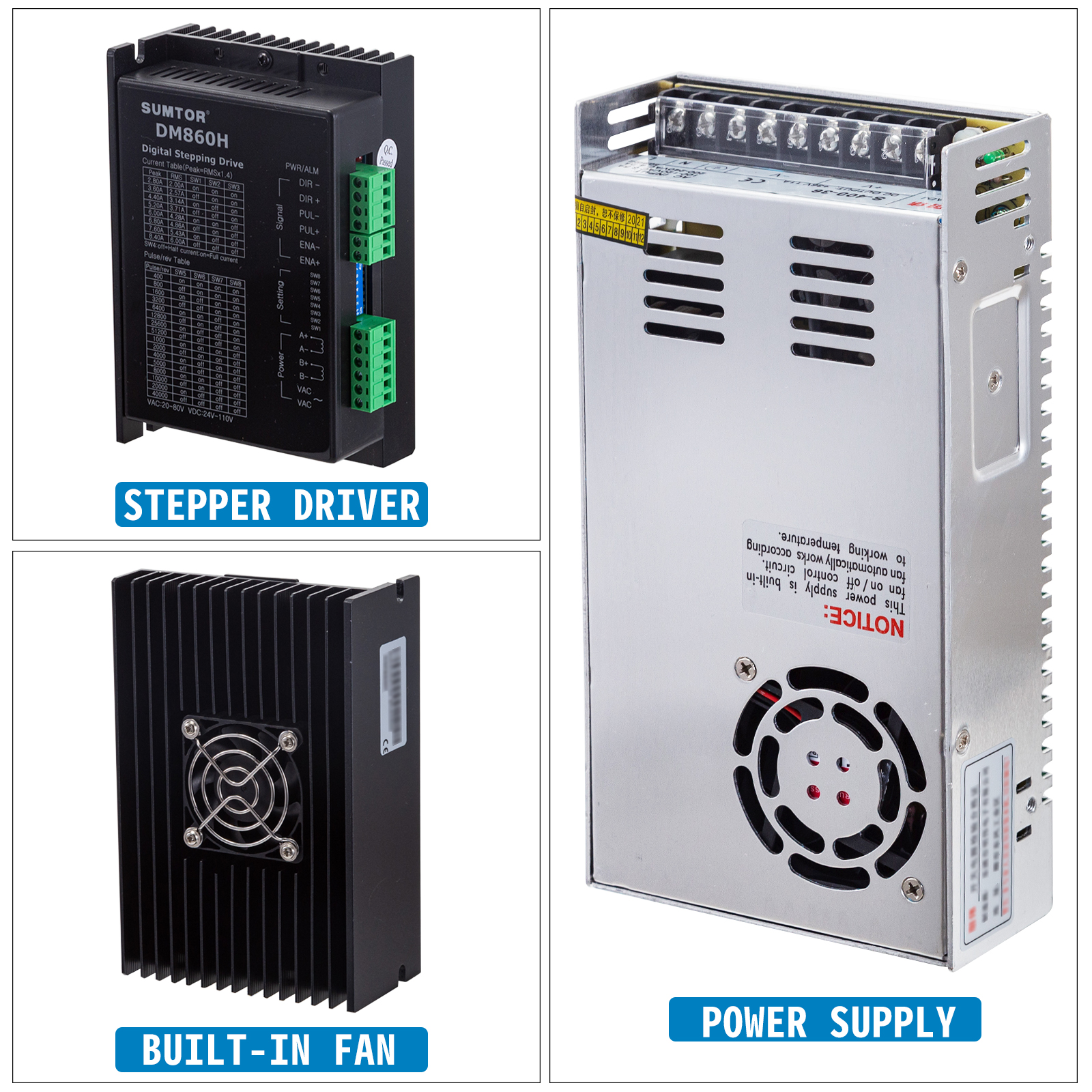

Easy to Control


Stepper motor driver (controller) can control the stepping pulse signal frequency and accurately adjust the motor speed. The power supply is a built-in fan on/off control circuit, and the fan automatically works according to working temperature.

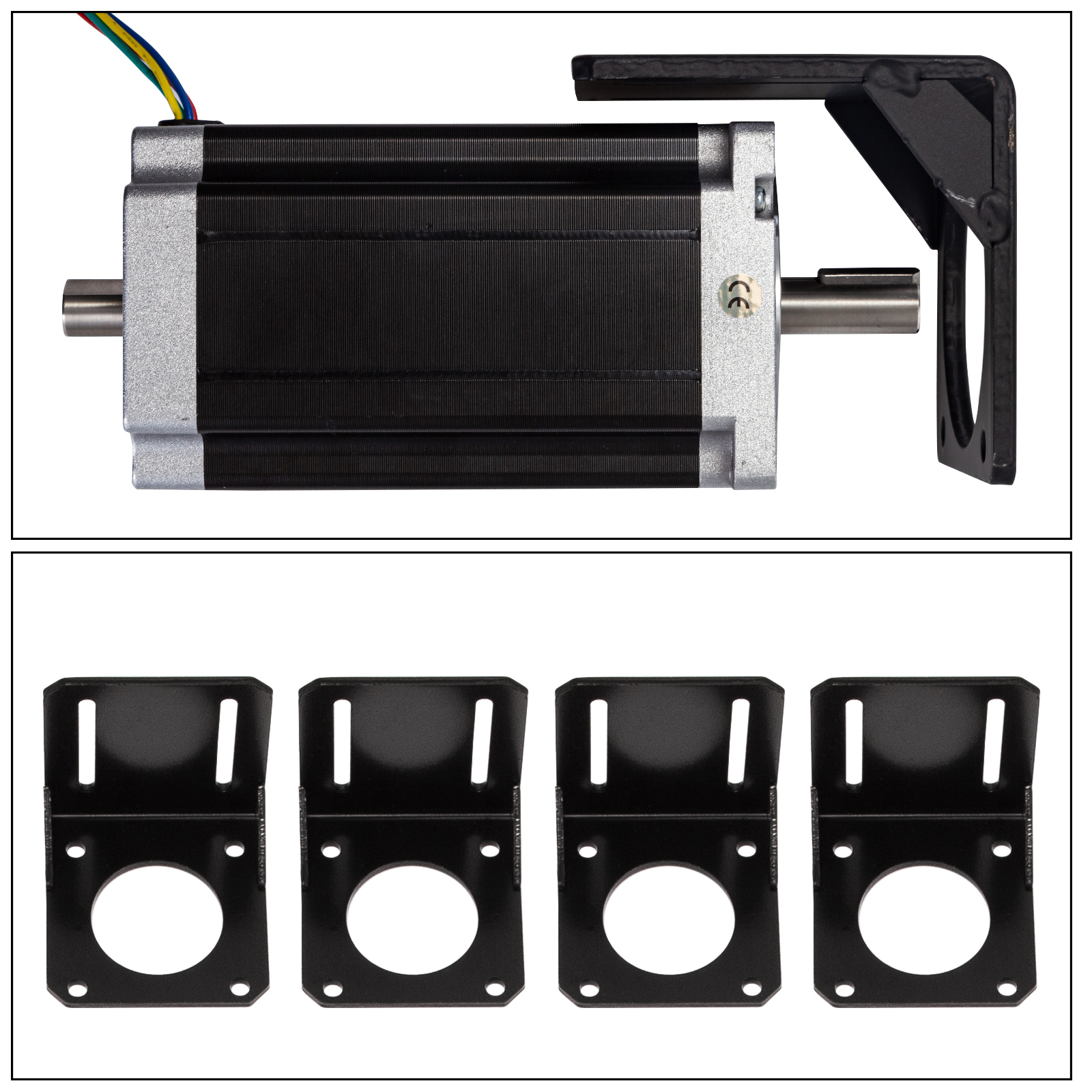

Mounting Bracket Included


The high torque stepper motor package comes with a sturdy mounting bracket to facilitate user installation and reinforce the motor structure's stability, reducing friction and vibration.


Wide Application


Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
4 Sets NEMA 23 3Nm Stepper Motor
This two-phase stepper motor adopts control technology and closed-loop control technology, preventing the loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. This stepper motor comes with the stepper motor driver (controller), power supply, and mounting bracket. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
Package Content:
Specifications
Stepper Motor
  • Model: 57HS11242B4D8
  • Quantity: 4PCS
  • Rated Current/Phase: 4.2A
  • Number of Phase: 2
  • Holding Torque: 3.0 N.m / 424.83 oz.in
  • Detent Torque: 12 N.cm / 17 oz.in
  • Step Angle: 1.8°

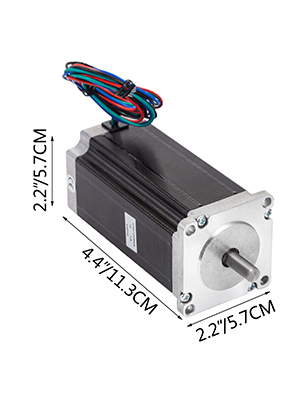

  • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''
Stepper Motor Driver
  • Rated Voltage: 50V
  • Rated Current: 4.5A
Power Supply
  • Power: 400W
  • Rated Voltage: 36V
  • Rated Current: 11A
Package Content
  • 4 x Stepper Motors
  • 4 x DM542 Stepper Motor Drivers
  • 4 x 57ZJ-T Mounting Brackets
  • 2 x 36V Power Supply
  • 1 x 5-axis Wiring Board
  • 1 x DB25 Parallel-connecting Cable
  • 1 x USB Cable
  • 1 x Product Manual


Features & Details


  • [PRECISION CONTROL SYSTEM]- Stepper motor applied control technology and vector control technology to prevent out-of-control and ensure product accuracy. High torque stepper motor features a stepping opened-loop circuit system, which runs smoothly, vibrates mildly, and has no loss of movement synchronization.
  • [EXCELLENT PERFORMANCE]- Stepper motor is provided with 3.0 Nm/424.83 oz.in high holding torque, low self-inductance reactance, responsive and can avoid system error. This step motor can lower resistance value than motors of the same thickness and torque, thus enabling good thermal conductivity.
  • [PREMIUM QUALITY]- The stepping motor is built with a 100% copper core for low noise operation and excellent speed regulating performance. The nema motor adopts a durable metal structure to keep the rotor away from corrosion rust. Magnetic filling materials cover the motor rotor to refrain from skipping steps and getting stuck.
  • [EFFORTLESS TO USE]- The stepper motor comes with a stepper motor driver (controller) that is mainly used as a power source to drive the stepper motor by controlling the stepper pulse signal's frequency and number to achieve the motor's precise positioning. It contains the power supply and mounting bracket, which has an excellent working frequency, and composite expansion.
  • [MULTIPLE APPLICATION]- A stepping motor is a motor that converts electrical pulse signals into corresponding angular displacements or linear displacements. This small stepper motor can be widely used in various fields, such as a 3D printer, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.


Strong Compatibility


Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.


High Torque & Speed


The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.


Pure Copper Coils


This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.


Easy to Control


Stepper motor driver (controller) can control the stepping pulse signal frequency and accurately adjust the motor speed. The power supply is a built-in fan on/off control circuit, and the fan automatically works according to working temperature.


Mounting Bracket Included


The high torque stepper motor package comes with a sturdy mounting bracket to facilitate user installation and reinforce the motor structure's stability, reducing friction and vibration.


Wide Application


Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
4 Sets NEMA 23 3Nm Stepper Motor
This two-phase stepper motor adopts control technology and closed-loop control technology, preventing the loss of movement synchronization and ensures accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. This stepper motor comes with the stepper motor driver (controller), power supply, and mounting bracket. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
Package Content:Specifications
Stepper Motor
  • Model: 57HS11242B4D8
  • Quantity: 4PCS
  • Rated Current/Phase: 4.2A
  • Number of Phase: 2
  • Holding Torque: 3.0 N.m / 424.83 oz.in
  • Detent Torque: 12 N.cm / 17 oz.in
  • Step Angle: 1.8°
  • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''
Stepper Motor Driver
  • Rated Voltage: 50V
  • Rated Current: 4.5A
Power Supply
  • Power: 400W
  • Rated Voltage: 36V
  • Rated Current: 11A
Package Content
  • 4 x Stepper Motors
  • 4 x DM542 Stepper Motor Drivers
  • 4 x 57ZJ-T Mounting Brackets
  • 2 x 36V Power Supply
  • 1 x 5-axis Wiring Board
  • 1 x DB25 Parallel-connecting Cable
  • 1 x USB Cable
  • 1 x Product Manual
