Vevor Nema 23 Stepper Motor 425 Oz.in 4.2a 57x113 Mm High Torque For 3d Printer

Vevor Nema 23 Stepper Motor 425 Oz.in 4.2a 57x113 Mm High Torque For 3d Printer

Available: Out of Stock
Product SKU: BJDJ57HS3.0NMSZZ1V9
$79.99 USD
Successful pre-order.Thanks for contacting us!
3PCS NEMA 23 3Nm High Torque Stepper Motor
This two-phase stepper motor adopts control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Strong Compatibility
Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
High Torque & Speed
The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
Pure Copper Coils
This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
Sturdy Construction
The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
Wire Stripper Included
The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
Wide Application
Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
Specifications
  • Model: 57HS11242A4D8
  • Rated Voltage: 5.88V
  • Rated Current/Phase: 4.2A
  • Number of Phase: 2
  • Holding Torque: 3 N.m / 424.8 oz.in
  • Step Angle: 1.8° ± 5%
  • DC Resistance: 1.4 Ω ± 10%
  • Detent Torque: 12 N.cm / 17 oz.in
  • Rotor lenth: 800 g.cm²
  • Motor Inertia: 112 mm / 4.41''
  • Lead Wire: 4
  • Shaft Diameter: Ø8 mm / 0.31''
  • Shaft Length: 21 ± 1 mm / 0.83''
  • Phase Inductance: 1.8mH ± 20%

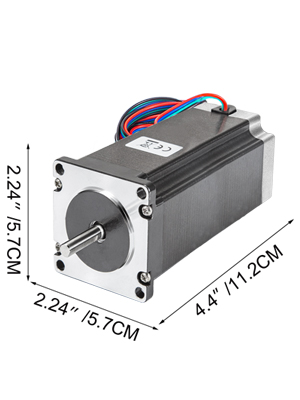

  • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''

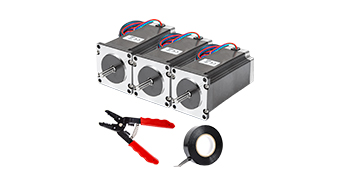

Package Content
  • 3 x Stepper Motors
  • 1 x Wire Stripper
  • 1 x Insulating Rubber Tape
  • 1 x Product Manual
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
3PCS NEMA 23 3Nm High Torque Stepper Motor
This two-phase stepper motor adopts control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
  • Strong Compatibility
    Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output.
    High Torque & Speed
    The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect.
    Pure Copper Coils
    This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly.
    Sturdy Construction
    The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure.
    Wire Stripper Included
    The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection.
    Wide Application
    Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment.
    Package Content
    • 3 x Stepper Motors
    • 1 x Wire Stripper
    • 1 x Insulating Rubber Tape
    • 1 x Product Manual
    Specifications
  • Model: 57HS11242A4D8
  • Rated Voltage: 5.88V
  • Rated Current/Phase: 4.2A
  • Number of Phase: 2
  • Holding Torque: 3 N.m / 424.8 oz.in
  • Step Angle: 1.8° ± 5%
  • DC Resistance: 1.4 Ω ± 10%
  • Detent Torque: 12 N.cm / 17 oz.in
  • Rotor lenth: 800 g.cm²
  • Motor Inertia: 112 mm / 4.41''
  • Lead Wire: 4
  • Shaft Diameter: Ø8 mm / 0.31''
  • Shaft Length: 21 ± 1 mm / 0.83''
  • Phase Inductance: 1.8mH ± 20%
  • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''
  • 3PCS NEMA 23 3Nm High Torque Stepper Motor This two-phase stepper motor adopts control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
    • Precision Control System
    • Excellent Performance
    • Premium Quality
    • Effortless to Use
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Strong Compatibility Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output. High Torque & Speed The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect. Pure Copper Coils This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly. Sturdy Construction The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure. Wire Stripper Included The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection. Wide Application Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment. Specifications
    • Model: 57HS11242A4D8
    • Rated Voltage: 5.88V
    • Rated Current/Phase: 4.2A
    • Number of Phase: 2
    • Holding Torque: 3 N.m / 424.8 oz.in
    • Step Angle: 1.8° ± 5%
    • DC Resistance: 1.4 Ω ± 10%
    • Detent Torque: 12 N.cm / 17 oz.in
    • Rotor lenth: 800 g.cm²
    • Motor Inertia: 112 mm / 4.41''
    • Lead Wire: 4
    • Shaft Diameter: Ø8 mm / 0.31''
    • Shaft Length: 21 ± 1 mm / 0.83''
    • Phase Inductance: 1.8mH ± 20%
    • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''
    Package Content
    • 3 x Stepper Motors
    • 1 x Wire Stripper
    • 1 x Insulating Rubber Tape
    • 1 x Product Manual
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    3PCS NEMA 23 3Nm High Torque Stepper Motor This two-phase stepper motor adopts control technology to prevent the loss of movement synchronization and ensure accuracy. Load-based current control technology can effectively reduce the temperature rise of motor and prolong motor service life. Position out-of-tolerance alarm function ensures machining equipment safe operation. With the stepper motor, you will find it easy to solve uneven extrusion problems, regularly plugging, and material reloading.
  • Precision Control System
  • Excellent Performance
  • Premium Quality
  • Effortless to Use
  • Strong Compatibility Opened-loop control is compatible with a 1000-line encoder, and no adjustment is required in general applications. The position accuracy is high without losing a step, close to 100% of the torque output. High Torque & Speed The holding torque of the stepper motor up to 3 N.m / 424.8 oz.in. Low loss stators have better high-speed performance, improve acceleration-deceleration dynamic performance and achieve the ideal uniform rotation effect. Pure Copper Coils This high torque stepper motor features a 100% pure copper core for high conductivity, high-temperature resistance, and lower noise. It can conserve energy over extended periods with smooth operation and move effortlessly. Sturdy Construction The white part of the motor is made of durable aluminum alloy material with high strength to resist oxidation. The black part is constructed with silicon steel, durable, and wear-resistant. Complete motor drawings allow users to understand the motor size and structure. Wire Stripper Included The wire stripper keeps the cut insulation apart from the wire and prevents electric shock. An insulating rubber tape is presented with good insulating voltage resistance, flame retardant, weather resistance for wire connection, and electrical insulation protection. Wide Application Stepper motor is suitable for CNC machine tools, laser cutters/engravers, electronic assembly & inspection equipment, dental mills, automatic production lines, lithium production equipment, clothing equipment, labeling equipment. Package Content
    • 3 x Stepper Motors
    • 1 x Wire Stripper
    • 1 x Insulating Rubber Tape
    • 1 x Product Manual
    Specifications
  • Model: 57HS11242A4D8
  • Rated Voltage: 5.88V
  • Rated Current/Phase: 4.2A
  • Number of Phase: 2
  • Holding Torque: 3 N.m / 424.8 oz.in
  • Step Angle: 1.8° ± 5%
  • DC Resistance: 1.4 Ω ± 10%
  • Detent Torque: 12 N.cm / 17 oz.in
  • Rotor lenth: 800 g.cm²
  • Motor Inertia: 112 mm / 4.41''
  • Lead Wire: 4
  • Shaft Diameter: Ø8 mm / 0.31''
  • Shaft Length: 21 ± 1 mm / 0.83''
  • Phase Inductance: 1.8mH ± 20%
  • Motor Size(L x M x H): 57 x 57 x 112 mm / 2.24 x 2.24 x 4.41''
