Vevor Cat 1 Top Link Cylinders Hydraulic Cylinders 22.8-34" 2-2.5" Bore W/ Valve

Vevor Cat 1 Top Link Cylinders Hydraulic Cylinders 22.8-34" 2-2.5" Bore W/ Valve

Available: Out of Stock
Product SKU: YYYGSZY20-31ZHF01V0
$179.99 USD
Successful pre-order.Thanks for contacting us!

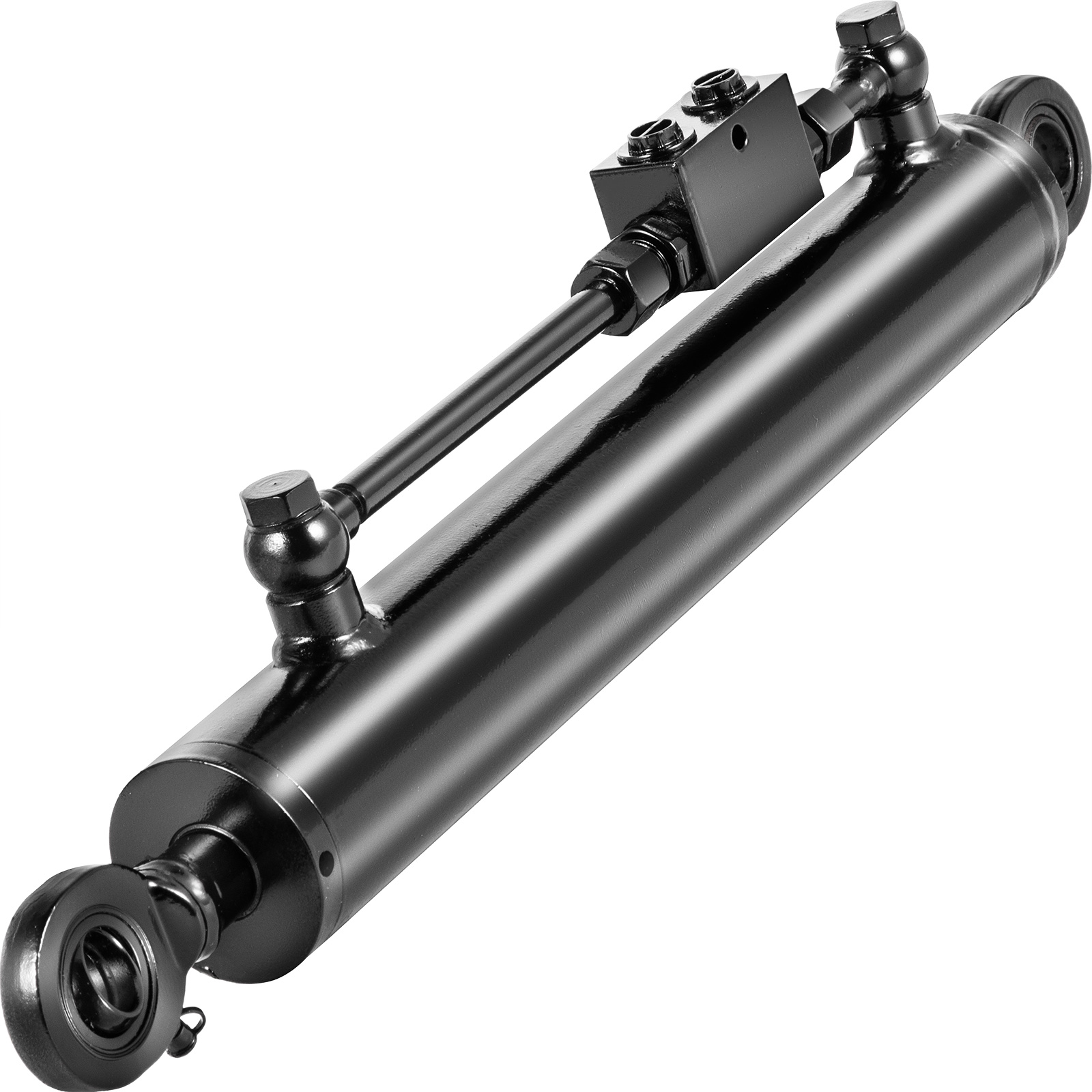

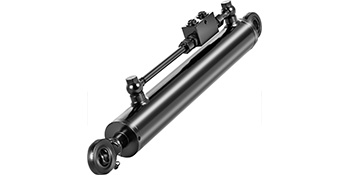

Double Acting Hydraulic Top Link Cylinder w/ Check Valve
This 2"-2.5" bore 13" stroke 22.8"-34" long hydraulic cylinder is built with a rigid welded construction, with 6700 lbs pushing and 4500 lbs lifting, and comes with a double pilot check valve. It has high tensile steel end mounts, threaded glands, and top quality seal components, allowing it to work in harsh conditions. All cylinders are wholly tested, easily maintainable, and are created for use in mobile equipment like wastes, recycling, constructions, transportations, agriculture, material handling, etc.
  • High Tensile Steel Structure
  • 2"-2.5" Bore 13" Stroke Top Link
  • Swivel Eye Bearing Design
  • With Check Valve & Fully Tested
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Welded Steel Construction
The loader cylinder is made of rigid carbon steel, polished and welded to be assembled as a top link cylinder, anti-corrosion, weariness, and can endure extreme weather for long-lasting services.

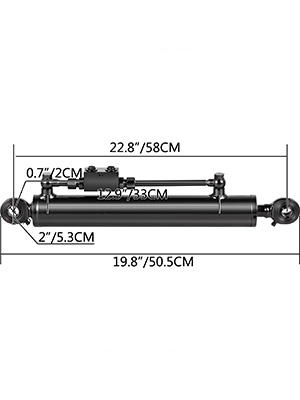

Structure & Dimensions
The cylinder is designed in standard dimensions; the cylinder bore is 2" to 2.5". With 13" stroke length, it works excellent in retracting and extending, with length size min 22.8", max 34".
Spherical Bearing Design
Specially designed durable bearings work for pivoting applications and helping to attach with mobile equipment. It features a max pushing capacity of 6700 lbs and a lifting capacity of 4500 lbs.
Check Valve Prevent Drift
The side link cylinder comes with a double pilot operated check valve, aiming to hold the cylinder in places and prevent drift, making the operation process smoother, safer, and reliable.
Well-tested & Assembled
All components have gone through oil pressure tests. Assembled sealing rings ensure an excellent sealing performance and contribute to tackling problems like oil evaporate, air leak, and piston blockage.
Wide Range Application
It can be directly mounted to tractors, excavators, and category 1 and 2 equipment, widely applied in industries like wastes, recycling, constructions, transportations, agriculture, material handling, etc.
Specifications
  • Cylinder Bore: 2"-2.5"/ 50-63 mm
  • Stroke: 13"/ 331 mm
  • Rod: 1.2"/ 30 mm
  • Pin Hole: 0.8"/ 20 mm
  • Retracted Length: 22.8"/ 580 mm
  • Extended Length: 34"/ 861 mm
  • Max Pushing Force: 6700 lbs/ 3 t
  • Max Lifting Force: 4500 lbs/ 2 t
  • Cylinder Port Size: M14*1.5
  • Double Pilot Check Valve Port Size: G3/8
  • Port Distance: 13"/ 330 mm
  • Joint Bearing Width: 2"/ 53 mm
  • Joint Bearing Thickness: 0.6"/ 16 mm
  • Cylinder Max Pressure: 2900 PSI/ 20 Mpa
  • Check Valve Max Pressure: 5076 PSI/ 350 Bar
  • Check Valve Max Flow Rate: 20 L/ min
  • Check Valve Opening Pressure: 50.76 PSI/ 3.3 Bar
  • Temperature: -22 to + 176 °F/- 30 to + 80 °C
Package Content
  • 1 x Hydraulic Cylinder with Check Valve
