Vevor 6kw 380v 12a Air Cooled Spindle Motor Er32 300hz 18000rpm For Cnc Router

Vevor 6kw 380v 12a Air Cooled Spindle Motor Er32 300hz 18000rpm For Cnc Router

Available: Out of Stock
Product SKU: FLDJ6KW380VER3201V8
$539.99 USD
Successful pre-order.Thanks for contacting us!
6KW Air Cooled Spindle Motor
The air cooled spindle motor with upgraded steel bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.
  • Advanced Balance Technology
  • Upgraded Core Power
  • High-Quality Material
  • Powerful Cooling Performance
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Dynamic Balance Technology
Unlike other milling spindle motors, ours use innovative & advanced dynamic balancing technology. The obvious advantages are low noise, low friction, and high efficiency.

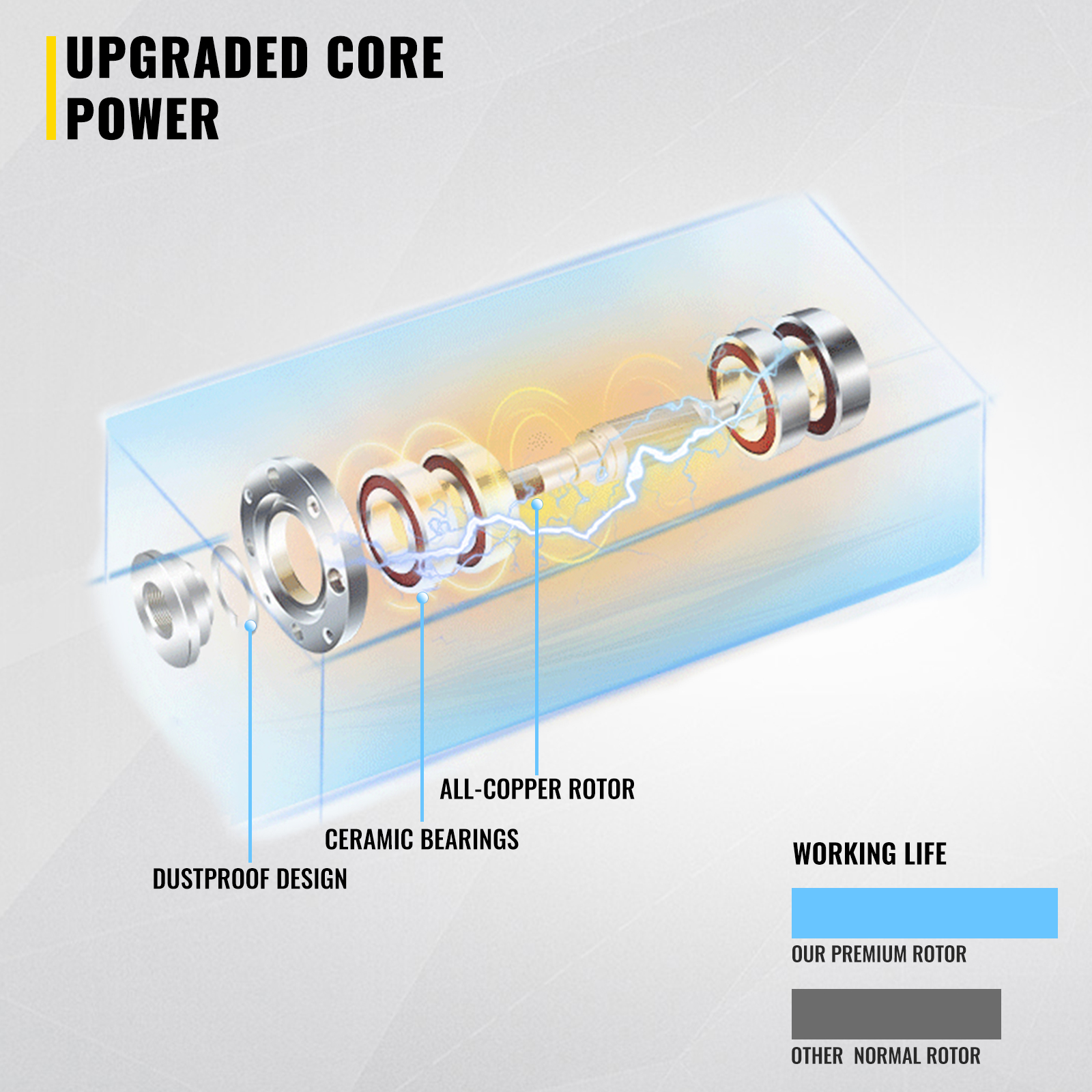

Ceramic Bearings & Copper Rotor
The CNC spindle motor is equipped with a copper rotor and two pairs of ceramic ball bearings in the front and the rear, which improves durability and corrosion resistance.

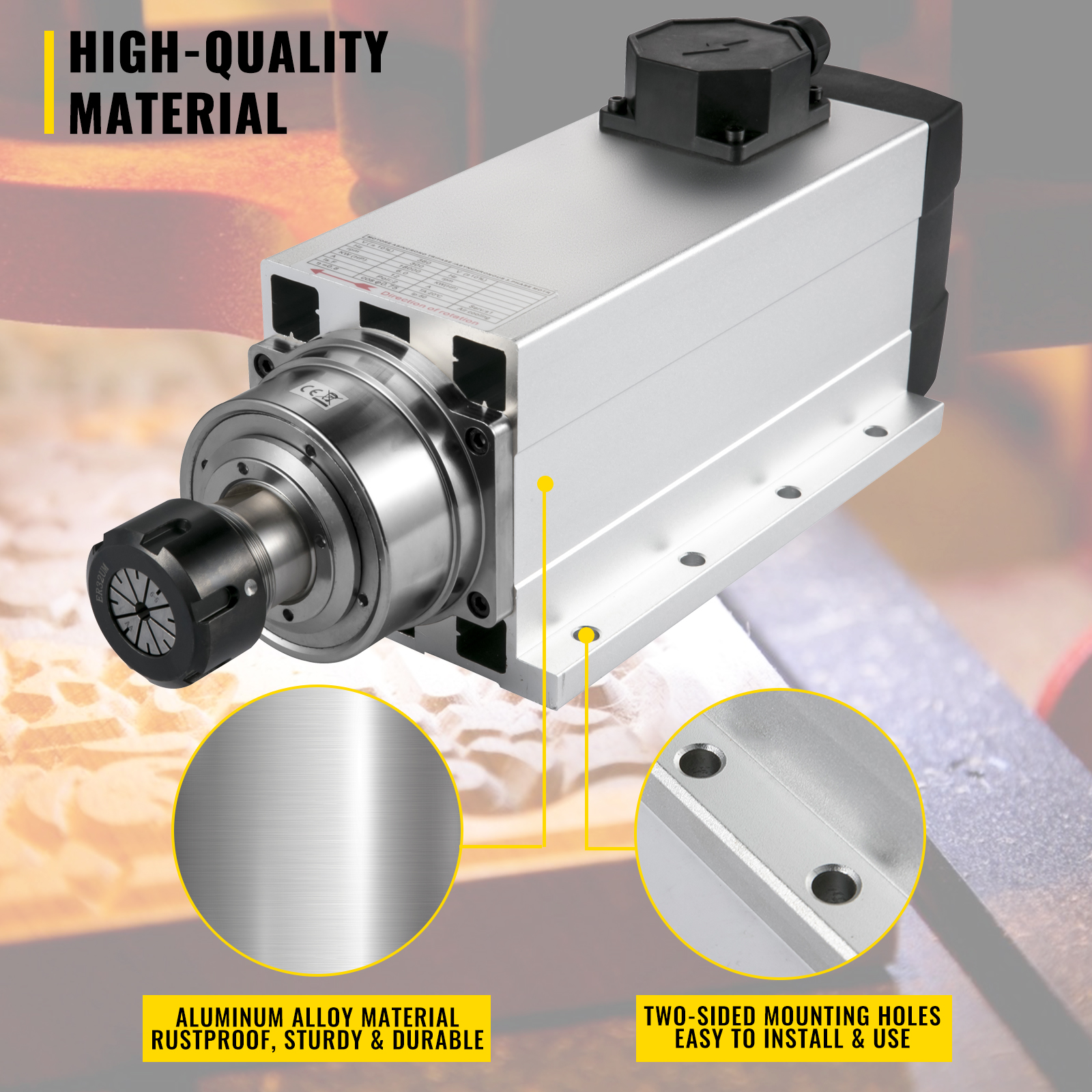

Aluminum Alloy Material
The use of premium aluminum alloy materials makes the spindle motor more rugged. The metal casing significantly improves cooling efficiency.

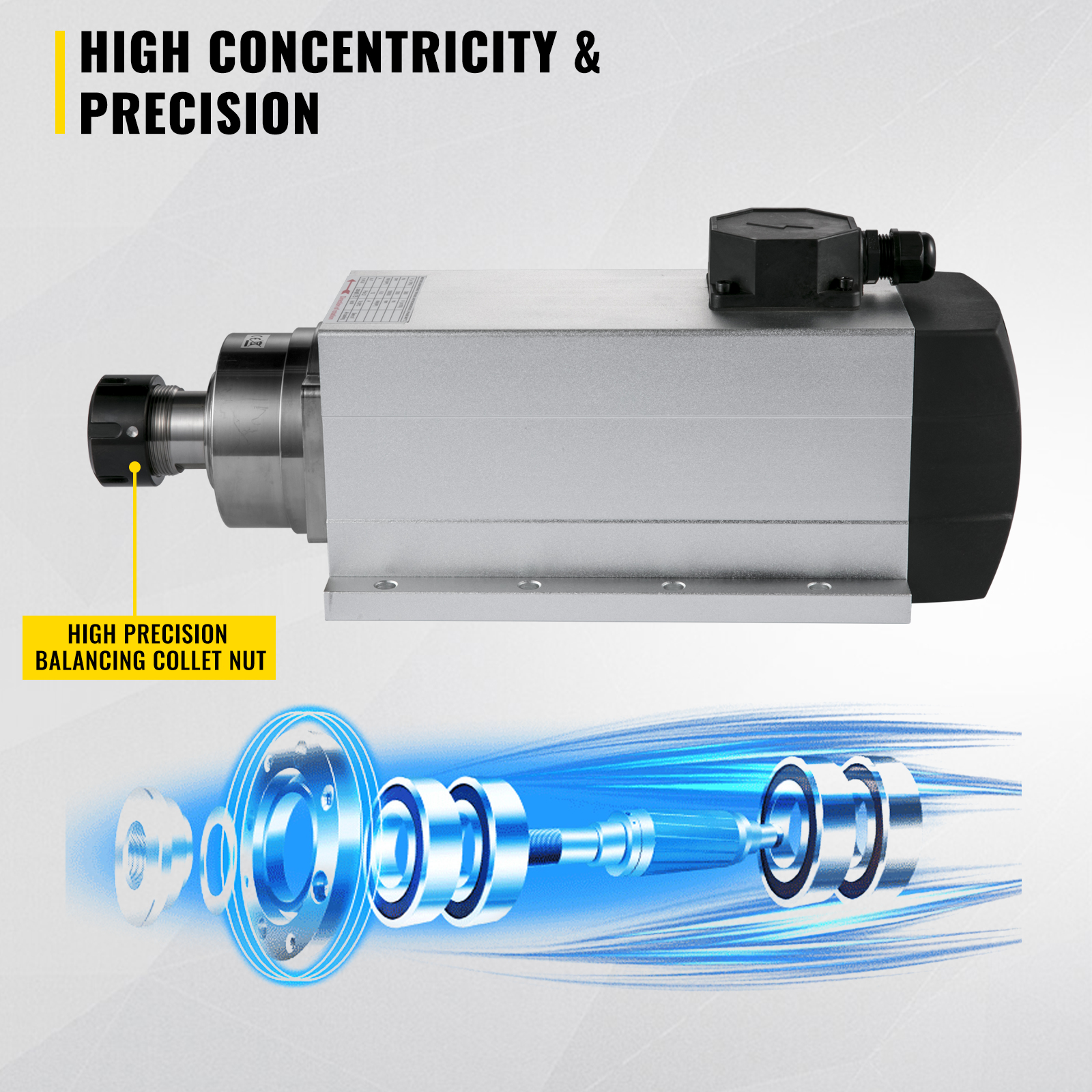

High Concentricity & Precision
With high accuracy & concentricity, our bearings are much superior to other manufacturers. One-time molding design brings more excellent precision to the motor.

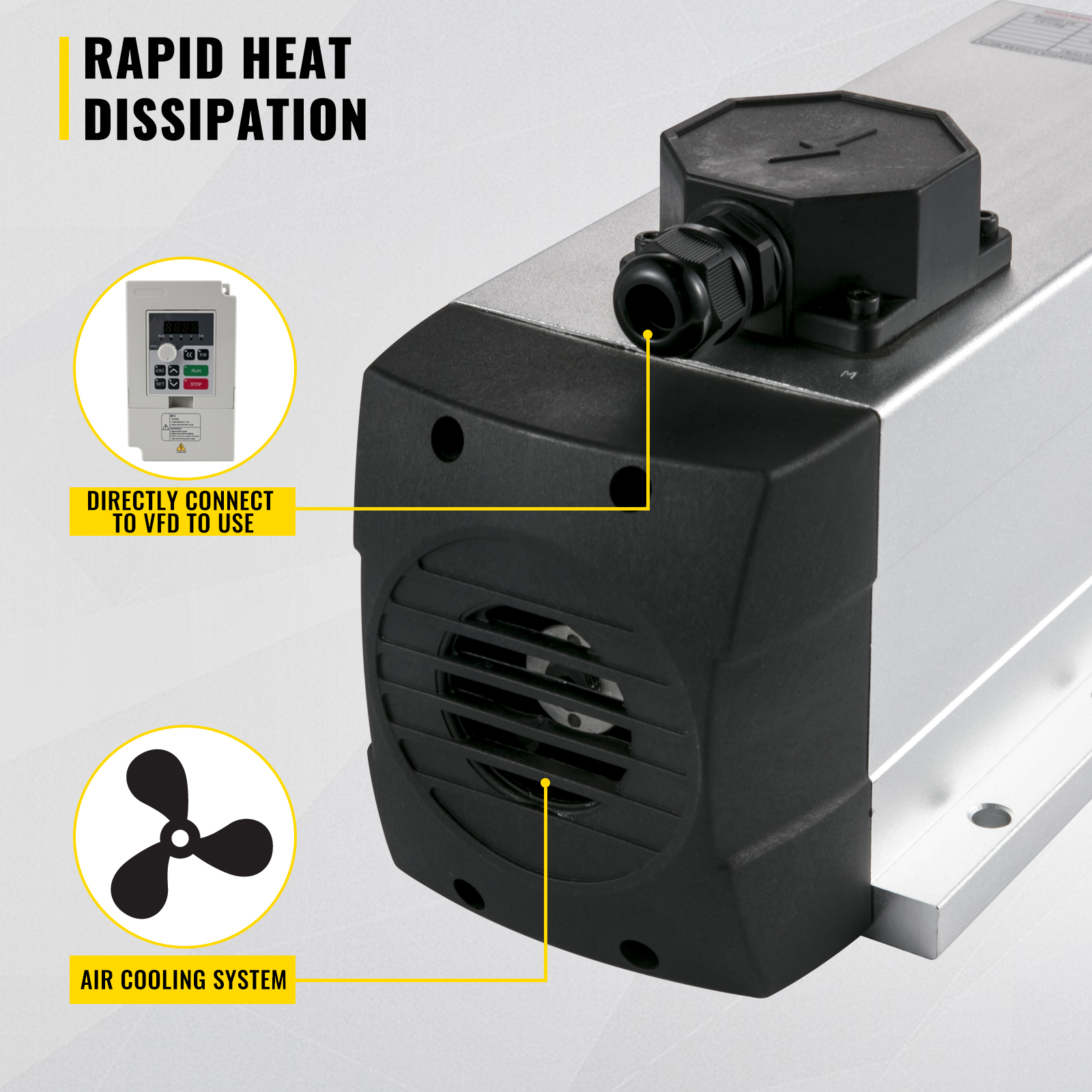

Excellent Heat Dissipation
The air cooled spindle motor takes advantage of the air cooling system to cool the machine's heat. You can directly connect to the VFD to operate without water pipes and pumps.

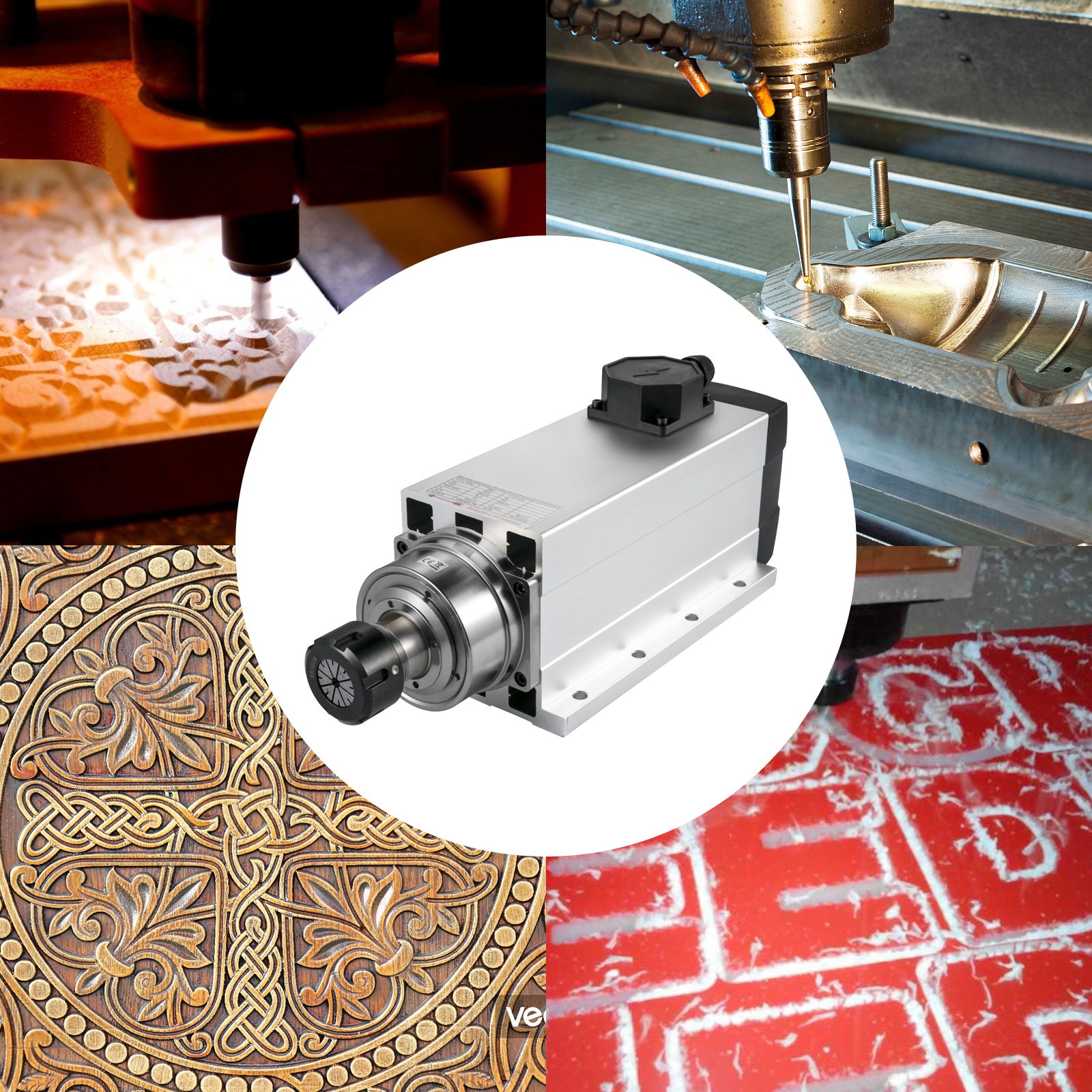

Wide Application
The air-cooled motors mainly match with engraving machines or frequency converters and commonly applied materials such as wood, stone, acrylic, and many more.
Specifications
  • Rated Power: 6KW
  • Voltage: 380V
  • Current: 12A
  • Frequency: 300 Hz
  • Collet: ER32
  • Collet Size(Dia.): 0.02" / 0.24" (0.5 mm / 6 mm)
  • Rotating Speed: 18000 rpm
  • Runout Off: 0.015 mm
  • Connection of Spindle End: ER32 ø 0.16"-0.79" (4 mm-20 mm)
  • Bearing Model: 7008 x 2, 7006 x 2
  • Cooling: Air Cooled
  • Weight: 35.94 lbs (16.3 kg)
  • Item Dimensions: 5.32" x 14.97" (135 mm x 380 mm)

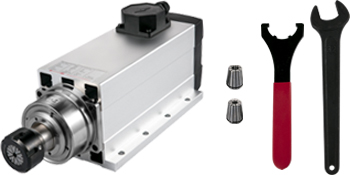

Package Content
  • 1 x 6KW Air-cooled Spindle Motor
  • 3 x ER32 Collets
  • 1 x Aviation Plug
  • 2 x Wrenches
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
6KW Air Cooled Spindle Motor
The air cooled spindle motor with upgraded steel bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.
  • Advanced Balance Technology
  • Upgraded Core Power
  • High-Quality Material
  • Powerful Cooling Performance
  • Dynamic Balance Technology
    Unlike other milling spindle motors, ours use innovative & advanced dynamic balancing technology. The obvious advantages are low noise, low friction, and high efficiency.
    Ceramic Bearings & Copper Rotor
    The CNC spindle motor is equipped with a copper rotor and two pairs of ceramic ball bearings in the front and the rear, which improves durability and corrosion resistance.
    Aluminum Alloy Material
    The use of premium aluminum alloy materials makes the spindle motor more rugged. The metal casing significantly improves cooling efficiency.
    High Concentricity & Precision
    With high accuracy & concentricity, our bearings are much superior to other manufacturers. One-time molding design brings more excellent precision to the motor.
    Excellent Heat Dissipation
    The air cooled spindle motor takes advantage of the air cooling system to cool the machine's heat. You can directly connect to the VFD to operate without water pipes and pumps.
    Wide Application
    The air-cooled motors mainly match with engraving machines or frequency converters and commonly applied materials such as wood, stone, acrylic, and many more.
    Package Content
    • 1 x 6KW Air-cooled Spindle Motor
    • 3 x ER32 Collets
    • 1 x Aviation Plug
    • 2 x Wrenches
    Specifications
  • Rated Power: 6KW
  • Voltage: 380V
  • Current: 12A
  • Frequency: 300 Hz
  • Collet: ER32
  • Collet Size(Dia.): 0.02" / 0.24" (0.5 mm / 6 mm)
  • Rotating Speed: 18000 rpm
  • Runout Off: 0.015 mm
  • Connection of Spindle End: ER32 ø 0.16"-0.79" (4 mm-20 mm)
  • Bearing Model: 7008 x 2, 7006 x 2
  • Cooling: Air Cooled
  • Weight: 35.94 lbs (16.3 kg)
  • Item Dimensions: 5.32" x 14.97" (135 mm x 380 mm)
  • 6KW Air Cooled Spindle Motor The air cooled spindle motor with upgraded steel bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.
    • Advanced Balance Technology
    • Upgraded Core Power
    • High-Quality Material
    • Powerful Cooling Performance
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Dynamic Balance Technology Unlike other milling spindle motors, ours use innovative & advanced dynamic balancing technology. The obvious advantages are low noise, low friction, and high efficiency. Ceramic Bearings & Copper Rotor The CNC spindle motor is equipped with a copper rotor and two pairs of ceramic ball bearings in the front and the rear, which improves durability and corrosion resistance. Aluminum Alloy Material The use of premium aluminum alloy materials makes the spindle motor more rugged. The metal casing significantly improves cooling efficiency. High Concentricity & Precision With high accuracy & concentricity, our bearings are much superior to other manufacturers. One-time molding design brings more excellent precision to the motor. Excellent Heat Dissipation The air cooled spindle motor takes advantage of the air cooling system to cool the machine's heat. You can directly connect to the VFD to operate without water pipes and pumps. Wide Application The air-cooled motors mainly match with engraving machines or frequency converters and commonly applied materials such as wood, stone, acrylic, and many more. Specifications
    • Rated Power: 6KW
    • Voltage: 380V
    • Current: 12A
    • Frequency: 300 Hz
    • Collet: ER32
    • Collet Size(Dia.): 0.02" / 0.24" (0.5 mm / 6 mm)
    • Rotating Speed: 18000 rpm
    • Runout Off: 0.015 mm
    • Connection of Spindle End: ER32 ø 0.16"-0.79" (4 mm-20 mm)
    • Bearing Model: 7008 x 2, 7006 x 2
    • Cooling: Air Cooled
    • Weight: 35.94 lbs (16.3 kg)
    • Item Dimensions: 5.32" x 14.97" (135 mm x 380 mm)
    Package Content
    • 1 x 6KW Air-cooled Spindle Motor
    • 3 x ER32 Collets
    • 1 x Aviation Plug
    • 2 x Wrenches
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    6KW Air Cooled Spindle Motor The air cooled spindle motor with upgraded steel bearings adopts rust-proof materials and dynamic balance technology to reduce noise, wear and tear during the actual operation. And the one-time molding design features high concentricity & high precision for an excellent performance.
  • Advanced Balance Technology
  • Upgraded Core Power
  • High-Quality Material
  • Powerful Cooling Performance
  • Dynamic Balance Technology Unlike other milling spindle motors, ours use innovative & advanced dynamic balancing technology. The obvious advantages are low noise, low friction, and high efficiency. Ceramic Bearings & Copper Rotor The CNC spindle motor is equipped with a copper rotor and two pairs of ceramic ball bearings in the front and the rear, which improves durability and corrosion resistance. Aluminum Alloy Material The use of premium aluminum alloy materials makes the spindle motor more rugged. The metal casing significantly improves cooling efficiency. High Concentricity & Precision With high accuracy & concentricity, our bearings are much superior to other manufacturers. One-time molding design brings more excellent precision to the motor. Excellent Heat Dissipation The air cooled spindle motor takes advantage of the air cooling system to cool the machine's heat. You can directly connect to the VFD to operate without water pipes and pumps. Wide Application The air-cooled motors mainly match with engraving machines or frequency converters and commonly applied materials such as wood, stone, acrylic, and many more. Package Content
    • 1 x 6KW Air-cooled Spindle Motor
    • 3 x ER32 Collets
    • 1 x Aviation Plug
    • 2 x Wrenches
    Specifications
  • Rated Power: 6KW
  • Voltage: 380V
  • Current: 12A
  • Frequency: 300 Hz
  • Collet: ER32
  • Collet Size(Dia.): 0.02" / 0.24" (0.5 mm / 6 mm)
  • Rotating Speed: 18000 rpm
  • Runout Off: 0.015 mm
  • Connection of Spindle End: ER32 ø 0.16"-0.79" (4 mm-20 mm)
  • Bearing Model: 7008 x 2, 7006 x 2
  • Cooling: Air Cooled
  • Weight: 35.94 lbs (16.3 kg)
  • Item Dimensions: 5.32" x 14.97" (135 mm x 380 mm)
