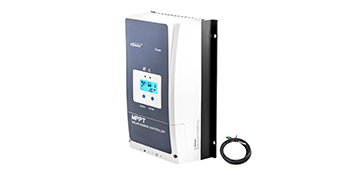

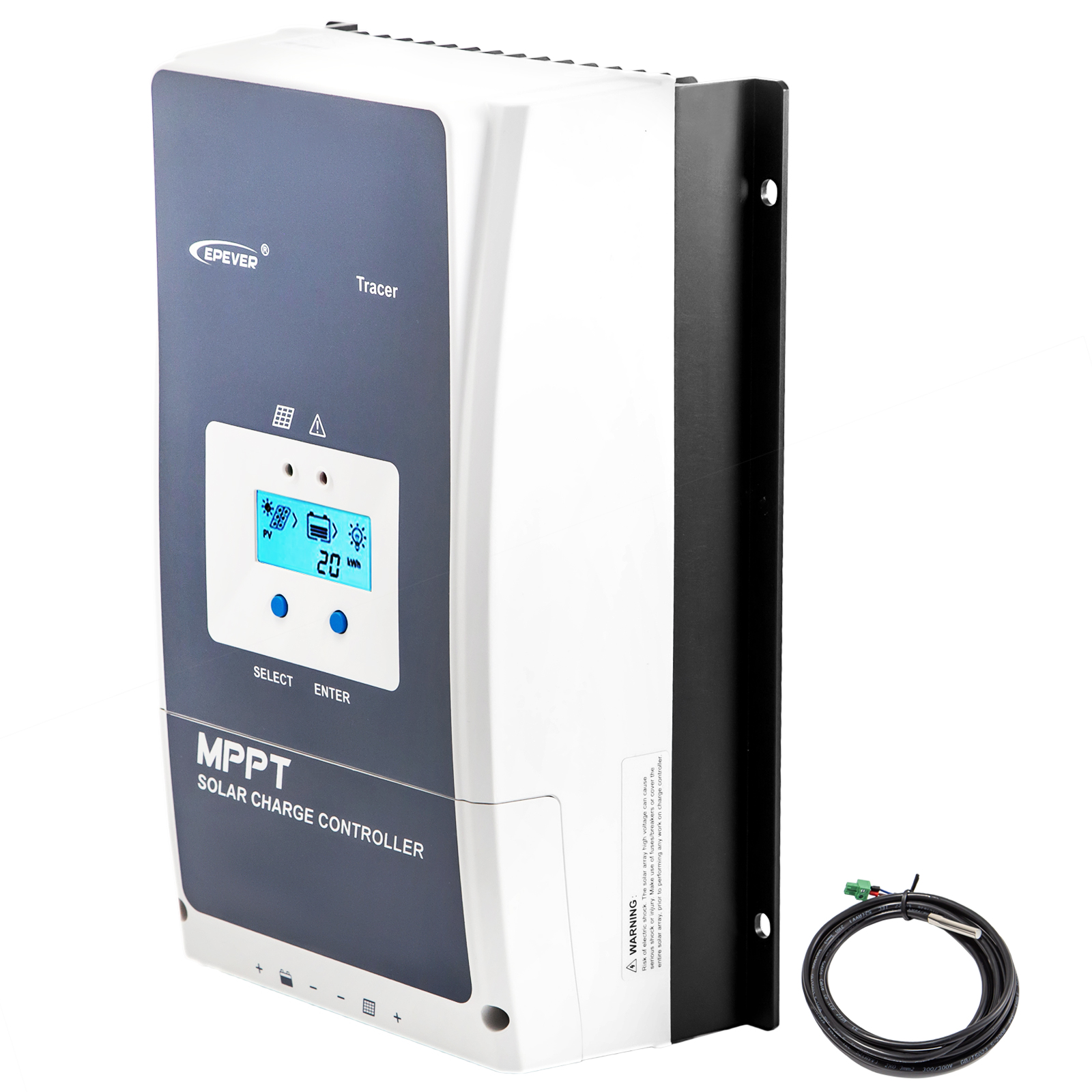

Solar Charge Controller, Mppt Charge Controller, 60 Amp, Solar Panel Controller

Solar Charge Controller, Mppt Charge Controller, 60 Amp, Solar Panel Controller

Available: Out of Stock
Product SKU: TYNKZQT-6415AN001V9
$232.99 USD
Successful pre-order.Thanks for contacting us!
60 Amp Solar Charge Controller
Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%,conversion≥98.6%,so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Cooling Fan Design
  • Temperature Sensor Included
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.6%.
LCD Display Screen
The back lit LCD screen shows the status of charging clearly.
Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
External Cooling Fan
The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.
Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Specifications
  • Max Input Power: 750/1500/2250/3000 W
  • Battery Voltage Range: 8-68 V
  • Max. Battery Charging Current: 60A
  • Efficiency:≥99.5%
  • Conversion: ≥98.6%
  • Equalization Voltage: 14.6/14.8 A
  • Float Voltage: 13.8 V
  • Standard Voltage System: 12 / 24 / 36 / 48 V
  • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon
  • Charge Stage : 3- stage
  • TEP CO: -3mV/°C@2V
  • Operating Temperature Range: -30~+60℃
  • Storage Temperature: -30 ~ +85 °C
  • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in the Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection

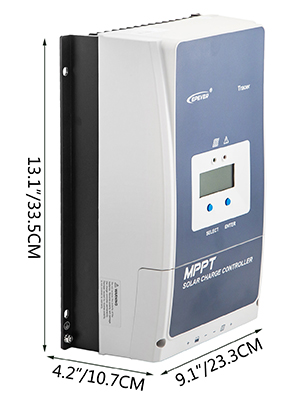

  • Dimension: 340 x 236 x 119 mm
Package Content
  • 1 X Solar Charge Controller
  • 1 X Temperature Sensor
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
60 Amp Solar Charge Controller
Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%,conversion≥98.6%,so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Cooling Fan Design
  • Temperature Sensor Included
  • Advanced MPPT Control
    It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.6%.
    LCD Display Screen
    The back lit LCD screen shows the status of charging clearly.
    Multiple Monitoring Modes
    It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
    External Cooling Fan
    The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life.
    Remote Temperature Sensor
    A temperature sensor here for you to charge safely and quickly.
    Wide Application
    It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
    Package Content
    • 1 X Solar Charge Controller
    • 1 X Temperature Sensor
    Specifications
  • Max Input Power: 750/1500/2250/3000 W
  • Battery Voltage Range: 8-68 V
  • Max. Battery Charging Current: 60A
  • Efficiency:≥99.5%
  • Conversion: ≥98.6%
  • Equalization Voltage: 14.6/14.8 A
  • Float Voltage: 13.8 V
  • Standard Voltage System: 12 / 24 / 36 / 48 V
  • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon
  • Charge Stage : 3- stage
  • TEP CO: -3mV/°C@2V
  • Operating Temperature Range: -30~+60℃
  • Storage Temperature: -30 ~ +85 °C
  • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in the Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection
  • Dimension: 340 x 236 x 119 mm
  • 60 Amp Solar Charge Controller Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%,conversion≥98.6%,so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
    • High Efficiency
    • High-Definition LCD Display
    • Intelligent Monitoring
    • Cooling Fan Design
    • Temperature Sensor Included
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Advanced MPPT Control It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.6%. LCD Display Screen The back lit LCD screen shows the status of charging clearly. Multiple Monitoring Modes It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor. External Cooling Fan The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life. Remote Temperature Sensor A temperature sensor here for you to charge safely and quickly. Wide Application It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc. Specifications
    • Max Input Power: 750/1500/2250/3000 W
    • Battery Voltage Range: 8-68 V
    • Max. Battery Charging Current: 60A
    • Efficiency:≥99.5%
    • Conversion: ≥98.6%
    • Equalization Voltage: 14.6/14.8 A
    • Float Voltage: 13.8 V
    • Standard Voltage System: 12 / 24 / 36 / 48 V
    • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon
    • Charge Stage : 3- stage
    • TEP CO: -3mV/°C@2V
    • Operating Temperature Range: -30~+60℃
    • Storage Temperature: -30 ~ +85 °C
    • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in the Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection
    • Dimension: 340 x 236 x 119 mm
    Package Content
    • 1 X Solar Charge Controller
    • 1 X Temperature Sensor
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Returns
    • 24/7 Attentive Service
    60 Amp Solar Charge Controller Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%,conversion≥98.6%,so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Cooling Fan Design
  • Temperature Sensor Included
  • Advanced MPPT Control It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.6%. LCD Display Screen The back lit LCD screen shows the status of charging clearly. Multiple Monitoring Modes It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor. External Cooling Fan The rear-mounted cooling fan can radiate quickly, which can help to lengthen the machine's service life. Remote Temperature Sensor A temperature sensor here for you to charge safely and quickly. Wide Application It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc. Package Content
    • 1 X Solar Charge Controller
    • 1 X Temperature Sensor
    Specifications
  • Max Input Power: 750/1500/2250/3000 W
  • Battery Voltage Range: 8-68 V
  • Max. Battery Charging Current: 60A
  • Efficiency:≥99.5%
  • Conversion: ≥98.6%
  • Equalization Voltage: 14.6/14.8 A
  • Float Voltage: 13.8 V
  • Standard Voltage System: 12 / 24 / 36 / 48 V
  • Battery Type: Gel, AGM, Plumbic Acid, Lead-Carbon
  • Charge Stage : 3- stage
  • TEP CO: -3mV/°C@2V
  • Operating Temperature Range: -30~+60℃
  • Storage Temperature: -30 ~ +85 °C
  • Protections: Short-Circuit Protection, PV Reverse Polarity Protection, PV Reverse Current Protection in the Nighttime, Reverse Battery Protection, Over-load Protection, Over-charge Protection, Over-Temperature Protection, Over-Discharge Protection
  • Dimension: 340 x 236 x 119 mm
