Solar Charge Controller, Mppt Charge Controller, 30 Amp, Solar Panel Controller

Solar Charge Controller, Mppt Charge Controller, 30 Amp, Solar Panel Controller

Available: Out of Stock
Product SKU: TYNKZQT-3210AN001V9
$98.99 USD
Successful pre-order.Thanks for contacting us!
30 Amp Solar Charge Controller
Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Temperature Sensor Included
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Advanced MPPT Control
It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.3%.
LCD Display Screen
The backlit LCD screen shows the status of charging clearly.
Multiple Monitoring Modes
It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
Fully Protection Designs
There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.
Remote Temperature Sensor
A temperature sensor here for you to charge safely and quickly.
Wide Application
It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
Specifications
  • Nominal System Voltage: 12/24V DC or Auto
  • Battery Input Voltage Range: 8V-68V
  • Battery Type: Lead-acid Battery :Sealed (Default)/Gel/Flooded/User Lithium Battery : Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
  • Battery Fuse: 80A/58V
  • Rated Charge Current: 30A
  • Rated charge Power: 390W/12V 780W/24V
  • Max. PV Open Circuit Voltage: 100V②/92V③
  • MPP Voltage Range: Battery voltage +2V) ~72V
  • Full Load Efficiency:97%
  • Temperature Compensate Coefficient④:-3mV/°C/2V(Default)
  • Self-Consumption: ≤12mA
  • Grounding: Common Negative Grounding
  • Working Temperature: -25 °C ~+50 °C (100% input and output)
  • LCD backlight time: 60S (Default)
  • Storage Temperature Range:-20 °C ~+75 °C
  • Relative Humidity Range: ≤95%. N.C.
  • Enclosure: IP30
  • Pollution Degree: PD2

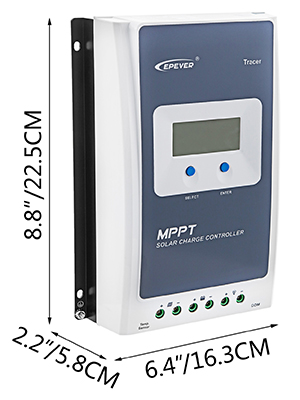

  • Dimension: 228 mm x 164 mm x 55 mm
  • Mounting Dimension: 70 mm x164 mm
  • Mounting Hole Size: φ5 mm
  • ① When a lead-acid battery is used, the controller hasn’t the low-temperature protection ② At minimum operating environment temperature ③ At 25 °C environment temperature ④ When a lithium-ion battery is used, the system voltage can’t be identified automatically

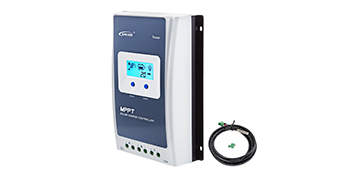

Package Content
  • 1 x Solar Charge Controller
  • 1 x Temperature Sensor
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Returns
  • 24/7 Attentive Service
30 Amp Solar Charge Controller
Our brand-MPPT charge controller series can offer excellent performance with its high efficiency ≥99.5%, conversion≥98%, so it is perfect for solar off-grid system of telecommunication base station, street lighting system, field monitoring system, etc.
  • High Efficiency
  • High-Definition LCD Display
  • Intelligent Monitoring
  • Temperature Sensor Included
  • Advanced MPPT Control
    It has higher efficiency than traditional PWN control; Efficiency≥99.5%; Conversion≥98.3%.
    LCD Display Screen
    The backlit LCD screen shows the status of charging clearly.
    Multiple Monitoring Modes
    It is compatible with several monitoring ways: WIFI/GPRS, App, and PC, easy to monitor.
    Fully Protection Designs
    There are some main protection measures for the solar controller: short-circuit protection, PV reverse polarity protection, over-load protection, over-charge protection, over-temperature protection, etc.
    Remote Temperature Sensor
    A temperature sensor here for you to charge safely and quickly.
    Wide Application
    It is ideal for the solar off-grid system of telecommunication base stations, street lighting systems, field monitoring system, etc.
    Package Content
    • 1 x Solar Charge Controller
    • 1 x Temperature Sensor
    Specifications
  • Nominal System Voltage: 12/24V DC or Auto
  • Battery Input Voltage Range: 8V-68V
  • Battery Type: Lead-acid Battery :Sealed (Default)/Gel/Flooded/User Lithium Battery : Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User
  • Battery Fuse: 80A/58V
  • Rated Charge Current: 30A
  • Rated charge Power: 390W/12V 780W/24V
  • Max. PV Open Circuit Voltage: 100V②/92V③
  • MPP Voltage Range: Battery voltage +2V) ~72V
  • Full Load Efficiency:97%
  • Temperature Compensate Coefficient④:-3mV/°C/2V(Default)
  • Self-Consumption: ≤12mA
  • Grounding: Common Negative Grounding
  • Working Temperature: -25 °C ~+50 °C (100% input and output)
  • LCD backlight time: 60S (Default)
  • Storage Temperature Range:-20 °C ~+75 °C
  • Relative Humidity Range: ≤95%. N.C.
  • Enclosure: IP30
  • Pollution Degree: PD2
  • Dimension: 228 mm x 164 mm x 55 mm
  • Mounting Dimension: 70 mm x164 mm
  • Mounting Hole Size: φ5 mm
  • ① When a lead-acid battery is used, the controller hasn’t the low-temperature protection ② At minimum operating environment temperature ③ At 25 °C environment temperature ④ When a lithium-ion battery is used, the system voltage can’t be identified automatically
