Portable Cnc Machine For Gas Flame/plasma Cutting Cnc Control System 63"x 98"

Portable Cnc Machine For Gas Flame/plasma Cutting Cnc Control System 63"x 98"

Available: In Stock
Product SKU: DLZQG63X98ZH00001V1
$1,789.99 USD


Features & Details


  • [WIDE CUTTING RANGE]- Cutting Controlling System-Axis: 2(X and Y); Accuracy: ±0.001mm; Work Speed: 15m/min. THC-Drive Way: PWM constant speed adjust; Arc Voltage Adjust Accuracy: 1V. Effective cutting range: 63"x98". Track rail size 84"x118". Input Voltage: 110V.
  • [HIGH CUTTING CAPACITY]- Oxyfuel flame cutting gas supply type: Propane/acetylene + oxygen. Oxyfuel flame cutting thickness: 0.24-7.87 inches, Max.cutting speed: 23.6 inch/min.
  • [MULTI PROTECTIONS]- The cutting system has: power-off protection, memory function. The THC support: Over load/Over-heat protection, low-voltage protection, anti-interference. Guarantee the safe & stable situation on operation.
  • [MULTI-LANGUAGE SUPPORT]- This product is widely support languages, like: English/French/Portuguese/Russian/Denmark/Korean language etc.
  • [WIDE APPLICATION]- Perfect to used in steel processing industry, help to decrease workers work and make cutting works more intelligent, get more complex cutting functions.



Great Cutting Capacity


Oxyfuel flame cutting gas supply type: Propane/acetylene + oxygen. Oxyfuel flame cutting thickness: 0.24-7.87 inches, Max.cutting speed: 23.6 inch/min.



Heavy Duty Track Rail


2 axis design(X and Y axis), effective cutting range: 63"x98". Made of high-strength steel, it is sturdy, heavy duty and non-break.


Distinct Control Panel


Both cutting control system & torch height controller adopt LCD screen to display parameters, easy to adjust different functions by buttons.


Dynamic Bore Hole


The THC supports dynamic bore hole, effectively prevent slag to splash everywhere, help protect torch head.


Input & Output


All input & output port type and the number can be customized. Front USB 2.0 port, convenient to transmit files.


Wide Application


This portable CNC machine is perfect to be used in steel processing industry, help to decrease workers work and make cutting works more intelligent, get more complex cutting functions.

Portable CNC Machine


This is an automatic portable CNC machine with THC. The cutting control system can control the motion of 2 axises, which is suitable for flame or plasma cutting. The THC controller is designed to change the height between torch & workpiece. This kit is accurate, stable, low noise, while easy to operate. With graphic to guide your use, come with 2 booklets of user manual to explicitly guide your operation.




  • Great Cutting Capacity
  • Heavy Duty Track Rail
  • Distinct Control Panel
  • Dynamic Bore Hole


Friendly Note ❤
The  machines and tracks may be in different stock, so they may be sent separately.
Pls do not worry,you will receive ALL the parcels in recent days after the order.
If you have any problem,pls contact us any time.We will help you result it.

Package Content:

Specifications

Cutting Control System:

  • Control Axis: 3
  • Control Accuracy: +/-0.001mm
  • Coordinate Range: +/-99999.99mm
  • Max Pulses: 200 kHz
  • Max Speed: 15,000 mm/min
  • Max. Lines of Code: 150,000 Lines
  • Max. Size of Single Code File: 4M
  • Max. Power of Drive Are THC Motor: 45W
  • Time Resolution: 10 ms
  • Working Temperature: -10℃ to 60℃; Humidity: 0-95%
  • Effective Cutting Range: 63" x 98" / 1600 x 2500 mm

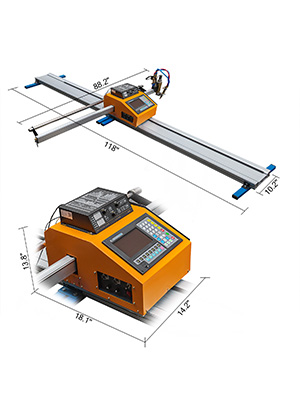

  • Track rail size: 84" x 118" / 2135 x 3000 mm
  • Input Voltage: 110V±15%, 50/60Hz
Torch Height Controller:
  • Work Voltage: DC 24V
  • Motor Drive: PWM
  • Output Current: 0-3A
  • Load Capacity: 100W
  • Working Temperature: 0-50℃
  • IHS: Proximity switch of IHS
  • Voltage: Divide Ratio: 100:1
  • Arc Voltage Sampling Accuracy: 0.2V
  • Arc Voltage Adjust Accuracy: 1V
  • Speed of Lifting: It determines by highest speed of lifting
  • Setting Scope of Arc Voltage: 30-600V
  • Weight: 38kg / 83.7LB

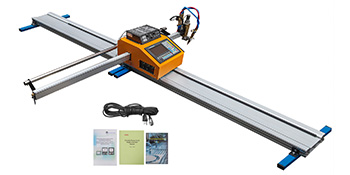

Package Content

  • 1 x CNC Machine with THC
  • 2 x User Manual


Features & Details


  • [WIDE CUTTING RANGE]- Cutting Controlling System-Axis: 2(X and Y); Accuracy: ±0.001mm; Work Speed: 15m/min. THC-Drive Way: PWM constant speed adjust; Arc Voltage Adjust Accuracy: 1V. Effective cutting range: 63"x98". Track rail size 84"x118". Input Voltage: 110V.
  • [HIGH CUTTING CAPACITY]- Oxyfuel flame cutting gas supply type: Propane/acetylene + oxygen. Oxyfuel flame cutting thickness: 0.24-7.87 inches, Max.cutting speed: 23.6 inch/min.
  • [MULTI PROTECTIONS]- The cutting system has: power-off protection, memory function. The THC support: Over load/Over-heat protection, low-voltage protection, anti-interference. Guarantee the safe & stable situation on operation.
  • [MULTI-LANGUAGE SUPPORT]- This product is widely support languages, like: English/French/Portuguese/Russian/Denmark/Korean language etc.
  • [WIDE APPLICATION]- Perfect to used in steel processing industry, help to decrease workers work and make cutting works more intelligent, get more complex cutting functions.



Great Cutting Capacity


Oxyfuel flame cutting gas supply type: Propane/acetylene + oxygen. Oxyfuel flame cutting thickness: 0.24-7.87 inches, Max.cutting speed: 23.6 inch/min.



Heavy Duty Track Rail


2 axis design(X and Y axis), effective cutting range: 63"x98". Made of high-strength steel, it is sturdy, heavy duty and non-break.


Distinct Control Panel


Both cutting control system & torch height controller adopt LCD screen to display parameters, easy to adjust different functions by buttons.


Dynamic Bore Hole


The THC supports dynamic bore hole, effectively prevent slag to splash everywhere, help protect torch head.


Input & Output


All input & output port type and the number can be customized. Front USB 2.0 port, convenient to transmit files.


Wide Application


This portable CNC machine is perfect to be used in steel processing industry, help to decrease workers work and make cutting works more intelligent, get more complex cutting functions.

Portable CNC Machine


This is an automatic portable CNC machine with THC. The cutting control system can control the motion of 2 axises, which is suitable for flame or plasma cutting. The THC controller is designed to change the height between torch & workpiece. This kit is accurate, stable, low noise, while easy to operate. With graphic to guide your use, come with 2 booklets of user manual to explicitly guide your operation.




  • Great Cutting Capacity
  • Heavy Duty Track Rail
  • Distinct Control Panel
  • Dynamic Bore Hole


Friendly Note ❤
The  machines and tracks may be in different stock, so they may be sent separately.
Pls do not worry,you will receive ALL the parcels in recent days after the order.
If you have any problem,pls contact us any time.We will help you result it.

Package Content:

Specifications

Cutting Control System:

  • Control Axis: 3
  • Control Accuracy: +/-0.001mm
  • Coordinate Range: +/-99999.99mm
  • Max Pulses: 200 kHz
  • Max Speed: 15,000 mm/min
  • Max. Lines of Code: 150,000 Lines
  • Max. Size of Single Code File: 4M
  • Max. Power of Drive Are THC Motor: 45W
  • Time Resolution: 10 ms
  • Working Temperature: -10℃ to 60℃; Humidity: 0-95%
  • Effective Cutting Range: 63" x 98" / 1600 x 2500 mm
  • Track rail size: 84" x 118" / 2135 x 3000 mm
  • Input Voltage: 110V±15%, 50/60Hz
Torch Height Controller:
  • Work Voltage: DC 24V
  • Motor Drive: PWM
  • Output Current: 0-3A
  • Load Capacity: 100W
  • Working Temperature: 0-50℃
  • IHS: Proximity switch of IHS
  • Voltage: Divide Ratio: 100:1
  • Arc Voltage Sampling Accuracy: 0.2V
  • Arc Voltage Adjust Accuracy: 1V
  • Speed of Lifting: It determines by highest speed of lifting
  • Setting Scope of Arc Voltage: 30-600V
  • Weight: 38kg / 83.7LB

Package Content

  • 1 x CNC Machine with THC
  • 2 x User Manual
