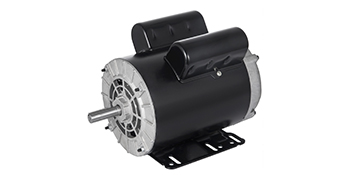

3 Hp 3450 Rpm Air Compressor 60 Hz Electric Motor 115-230 Volts Cm03256

3 Hp 3450 Rpm Air Compressor 60 Hz Electric Motor 115-230 Volts Cm03256

Available: Out of Stock
Product SKU: DJCM0325600000001V6
$153.99 USD
Successful pre-order.Thanks for contacting us!
2.2 KW 3 HP Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 2.2 KW Electric Motor for air compressor. A 115/230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a three hp SPL electric motor that is commonly used for home and small shop air compressors.
  • AC Electric Motor
  • Steel Housing
  • High-Speed Cooling Fan
  • Manual Overload Protection
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
3 HP Reliable Motor
High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
High Performance
Runs at 3 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 115/230V 60 HZ, Frame: 56, easy to use.
Premium Steel Frame
Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
Fully Enclosed Fan
Even in dusty or damp environments, the big fan at one end cools the motor in hours' running to reduce the energy costs and the running temperature.
Safe Protection
Capacitor housing and conduit boxes protect all environments, and low-temperature manual overload protector protects against extreme overload.
Wide Application
The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
Specifications
  • Type: SPL
  • Phase: Single phase, 2 pole
  • Input: 2.2 KW
  • Horsepower: 3 HP
  • Voltage: 115/230V
  • Amperage: 18/9 fl amps
  • Frequency: 60 Hz
  • Rated speed: 3450 RPM
  • Synchronous speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service factor: 1.15
  • Efficiency: 80 %
Package Content
  • 1 x Electric Motor
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
2.2 KW 3 HP Air Compressor Electric Motor Single Phase
An AC electric motor is an electrical machine that converts AC electrical power energy into mechanical energy. The 2.2 KW Electric Motor for air compressor. A 115/230 volt electric motor that turns at 3450 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft. It is a three hp SPL electric motor that is commonly used for home and small shop air compressors.
  • AC Electric Motor
  • Steel Housing
  • High-Speed Cooling Fan
  • Manual Overload Protection
  • 3 HP Reliable Motor
    High power motor allows conserving energy over extended periods, featuring single-phase electric motor, reducing energy costs or overheads, effortless to move.
    High Performance
    Runs at 3 HP, with a maximum speed of 3450 RPM, synchronous speed: 3600 RPM, Voltage: 115/230V 60 HZ, Frame: 56, easy to use.
    Premium Steel Frame
    Heavy gauge steel frame construction for strength and durability, corrosion and wear resistance, and smooth surface provides comfortable use.
    Fully Enclosed Fan
    Even in dusty or damp environments, the big fan at one end cools the motor in hours' running to reduce the energy costs and the running temperature.
    Safe Protection
    Capacitor housing and conduit boxes protect all environments, and low-temperature manual overload protector protects against extreme overload.
    Wide Application
    The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
    Package Content
    • 1 x Electric Motor
    Specifications
  • Type: SPL
  • Phase: Single phase, 2 pole
  • Input: 2.2 KW
  • Horsepower: 3 HP
  • Voltage: 115/230V
  • Amperage: 18/9 fl amps
  • Frequency: 60 Hz
  • Rated speed: 3450 RPM
  • Synchronous speed: 3600 RPM
  • Frame: 56 Frame
  • Shaft diameter: 5/8" Keyed shaft (1.6 cm)
  • Shaft length: 1.875" / 4.8 cm
  • Rotation: CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS NOT REVERSIBLE.)
  • Service factor: 1.15
  • Efficiency: 80 %
