Md25 6pcs Magnetic Drill Press 1 Hss Cutter Set Annular Cutter Kit Mag Drill

Md25 6pcs Magnetic Drill Press 1 Hss Cutter Set Annular Cutter Kit Mag Drill

Available: In Stock
Product SKU: CLZ1350WMD25D6ZT1V1
$349.99 USD

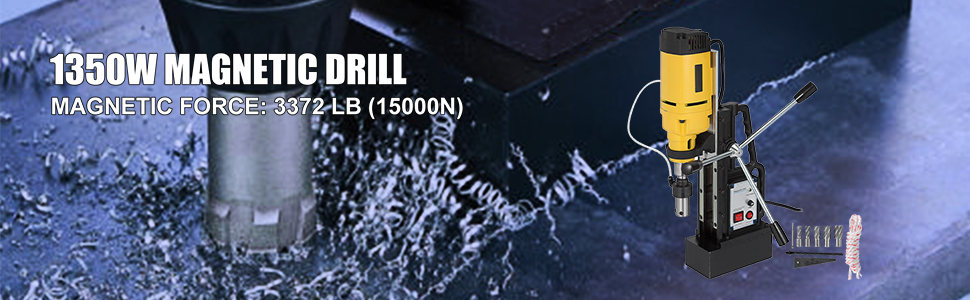

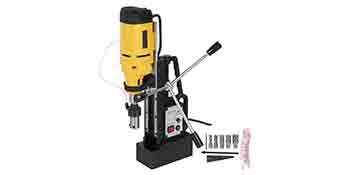

This magnetic drilling system is of 1350W power and 480 RPM rotary speed. Maximum boring depth: 180 mm (7"). Maximum boring diameter: 25 mm (1").

6 HSS bits provide clear cutting, fast feed and less vibration. Better and quicker than twist drills and highly effective for drilling. Thin wall design enables faster cutting due to less material to be removed. Dual alternating tooth geometry produces more aggressive cutting and ejects chips more quickly.

Application:

  • Applicable on any metal surface.
  • Suitable for steel structure, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other fields.

Advantages:

  • More leverage than hand drills, which allows even and consistent hole drilling
  • Upside down operation can also be achieved with magnetic force
  • Attaches directly to the metal drilling surface with a powerful electromagnet, drill large holes up to ten times faster than regular drills bits
  • Machine-finish hole, no reaming needed when using lubricant
  • 6 pieces HSS annular bits with optimized end tooth for easy and fast cutting
  • MAIN PARAMETERS-Maximum boring depth: 180 mm (7"). Maximum boring diameter: 25 mm (1"). MT3 spindle taper.
  • SECURED DRILLER MOTOR-110V magnetic drilling system with 1350W power. Rotary speed of 480 RPM. 3370 lb (15000N) force ensures the magnetic cutter will not move during usage
  • 6PCS HSS CUTTER BITS-Made from high-performance high-speed tool steel. Cutting depth: 1". Annular bit sizes: 1 PC 9/16", 1 PC 5/8", 1 PC 11/16", 1 PC 13/16", 1 PC 15/16", 1 PC 1-1/16"
  • LEVER EFFECT-The annular cutter provides more leverage than hand drills, which allows even and consistent holes. Upside down operation can also be achieved
  • APPLICATION-Magnetic cutter machine, suitable for steel erection and fabrication, welding, mining and construction, HVAC and home usages. Able to drill on any metal surface
Specifications:
  • Voltage: 110V, 50/60 Hz
  • Power Source: Electric
  • Machine Type:Magnetic Drill Press
  • Power: 1350W
  • Rotary Speed: 480 RPM
  • Magnetic Force: 3372 lb (15000N)
  • Maximum Boring Depth: 180 mm (7")
  • Maximum Boring Diameter: 25 mm (1")
  • 6 HSS Drill Bits: 9/16", 5/8", 11/16", 13/16", 15/16", 1-1/16"; 1" depth
  • Gross Weight: 45.1 lb (20.5 kg)

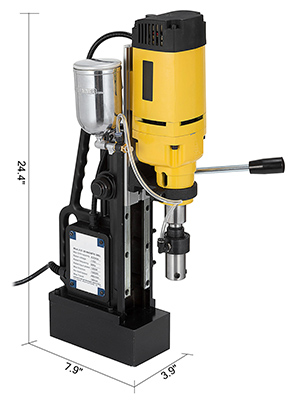

  • Package Dimensions (L x W x H): 20" x 14.2" x 7.1" (51 x 36 x 18 cm)

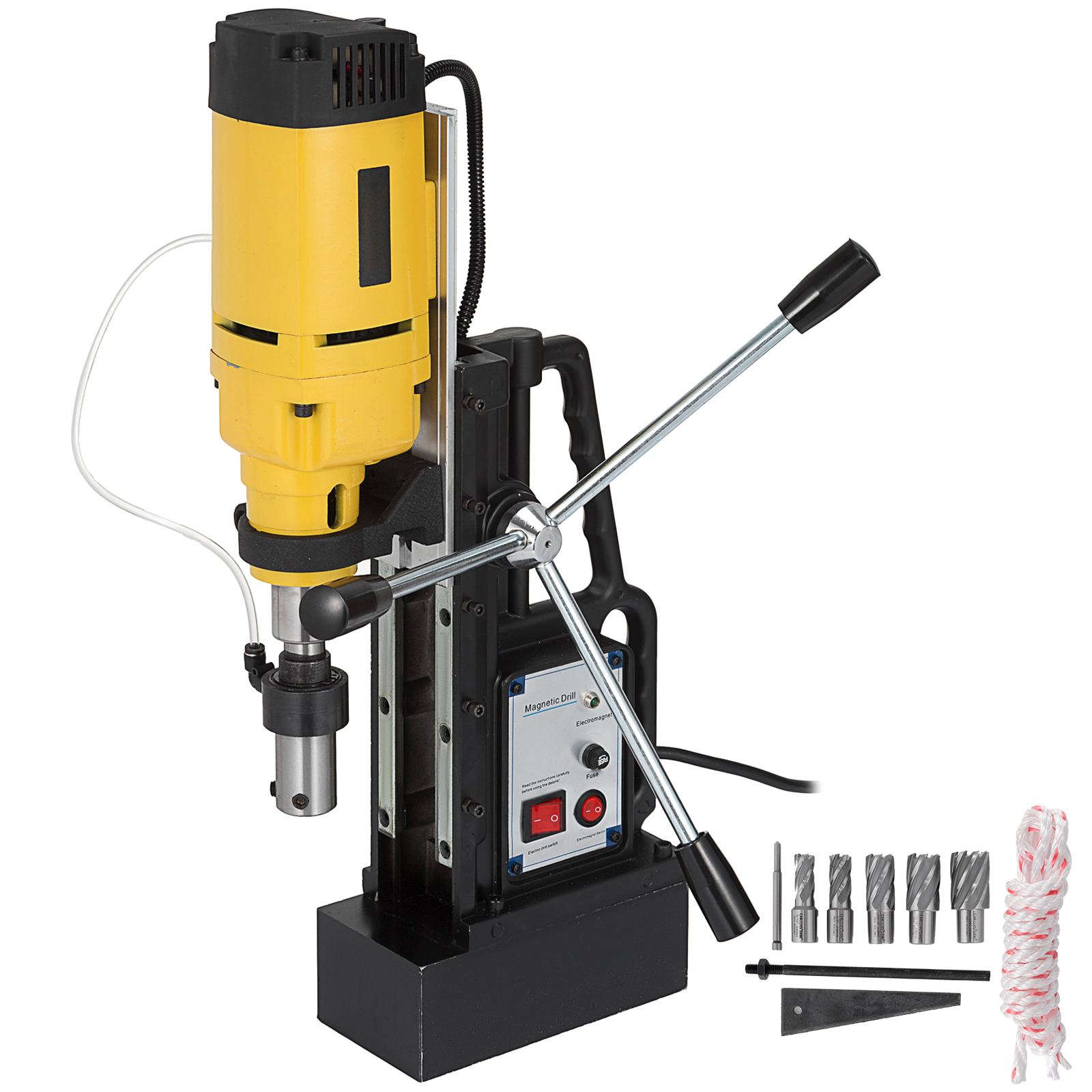

Package Content:
  • 1 X 1350W Magnetic Drill 1" Boring Diameter
  • 6 X HSS Annular Drill Bits
  • 1 X Pilot Pin
  • 1 X Adapter from MT3 to MT2
  • 1 X User Manual

This magnetic drilling system is of 1350W power and 480 RPM rotary speed. Maximum boring depth: 180 mm (7"). Maximum boring diameter: 25 mm (1").

6 HSS bits provide clear cutting, fast feed and less vibration. Better and quicker than twist drills and highly effective for drilling. Thin wall design enables faster cutting due to less material to be removed. Dual alternating tooth geometry produces more aggressive cutting and ejects chips more quickly.

Application:

  • Applicable on any metal surface.
  • Suitable for steel structure, shipbuilding, equipment manufacturing, equipment installation, bridge engineering, wind power generation, drilling rig, electric power construction, railway manufacturing and other fields.

Advantages:

  • More leverage than hand drills, which allows even and consistent hole drilling
  • Upside down operation can also be achieved with magnetic force
  • Attaches directly to the metal drilling surface with a powerful electromagnet, drill large holes up to ten times faster than regular drills bits
  • Machine-finish hole, no reaming needed when using lubricant
  • 6 pieces HSS annular bits with optimized end tooth for easy and fast cutting
  • MAIN PARAMETERS-Maximum boring depth: 180 mm (7"). Maximum boring diameter: 25 mm (1"). MT3 spindle taper.
  • SECURED DRILLER MOTOR-110V magnetic drilling system with 1350W power. Rotary speed of 480 RPM. 3370 lb (15000N) force ensures the magnetic cutter will not move during usage
  • 6PCS HSS CUTTER BITS-Made from high-performance high-speed tool steel. Cutting depth: 1". Annular bit sizes: 1 PC 9/16", 1 PC 5/8", 1 PC 11/16", 1 PC 13/16", 1 PC 15/16", 1 PC 1-1/16"
  • LEVER EFFECT-The annular cutter provides more leverage than hand drills, which allows even and consistent holes. Upside down operation can also be achieved
  • APPLICATION-Magnetic cutter machine, suitable for steel erection and fabrication, welding, mining and construction, HVAC and home usages. Able to drill on any metal surface
Specifications:
  • Voltage: 110V, 50/60 Hz
  • Power Source: Electric
  • Machine Type:Magnetic Drill Press
  • Power: 1350W
  • Rotary Speed: 480 RPM
  • Magnetic Force: 3372 lb (15000N)
  • Maximum Boring Depth: 180 mm (7")
  • Maximum Boring Diameter: 25 mm (1")
  • 6 HSS Drill Bits: 9/16", 5/8", 11/16", 13/16", 15/16", 1-1/16"; 1" depth
  • Gross Weight: 45.1 lb (20.5 kg)
  • Package Dimensions (L x W x H): 20" x 14.2" x 7.1" (51 x 36 x 18 cm)
Package Content:
  • 1 X 1350W Magnetic Drill 1" Boring Diameter
  • 6 X HSS Annular Drill Bits
  • 1 X Pilot Pin
  • 1 X Adapter from MT3 to MT2
  • 1 X User Manual
