Hydraulic Cylinder Welded Double Acting 2.5" Bore 20" Stroke Cross Tube 2.5x20

Hydraulic Cylinder Welded Double Acting 2.5" Bore 20" Stroke Cross Tube 2.5x20

Available: In Stock
Product SKU: YYG2.5X20YCYYYG01V0
FREE delivery: December 10 - December 13
$128.99 USD
2.5" Bore 20" Stroke Hydraulic Cylinder
This is a well-designed 20in double acting hydraulic cylinder, all cylinders are fully and easily maintainable and repairable. Rigid welded construction, convenient to assemble and have a max load bearing capacity, effectively solving problems like leak of oil, not have enough thrust. And it is created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
  • Rigid Welded Construction
  • Max Load-Bearing Capacity
  • Stable Sealing Performance
  • Convenient To Assemble
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
High Tensile Construction
This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards.
High Tensile Construction
This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards.
14700 LBS Load-Bearing Capacity
This hydraulic pump bore is 63mm/2.5", the longest Length is 1219mm/47.9", and the max load-bearing capacity is 14700 LBS. Bringing a great convenience to your work.

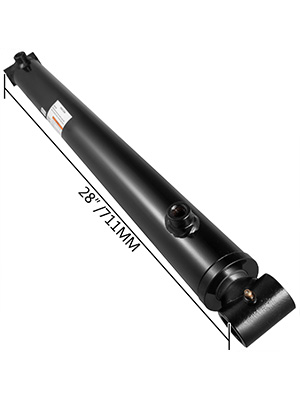

Structure & Dimension
Our hydraulic cylinders with compact structure, equipped with 4 sealing oil rings. Precise in dimension and efficient in working, it stands out in every aspect.
Professional Design for High Performance
All the components of our hydraulic cylinders are fully tested, ensures the quality and effectively solving problems like oil evaporate, and build for longevity.
Wide Application
The double action heavy duty hydraulic cylinder is suitable for a variety of mobile equipment such as agriculture, construction, transportation, forestry, garden, etc.
Specifications
  • Cylinder Bore: 63mm/2.5"
  • Stroke: 508mm/20"
  • Pin: 26mm/1.0"
  • Diameter Of Piston Rod: 35mm/1.3"
  • Minimum Length: 711mm/27"
  • Max Length: 1219mm/47.9"
  • Max Load-Bearing Capacity: 14700 LBS
  • Port Size: SAE8
  • Work Pressure: 3000PSI
  • Weight: 29LBS/13kg
  • Packing Size: 760*100*100mm/29.9"*3.9"*3.9"

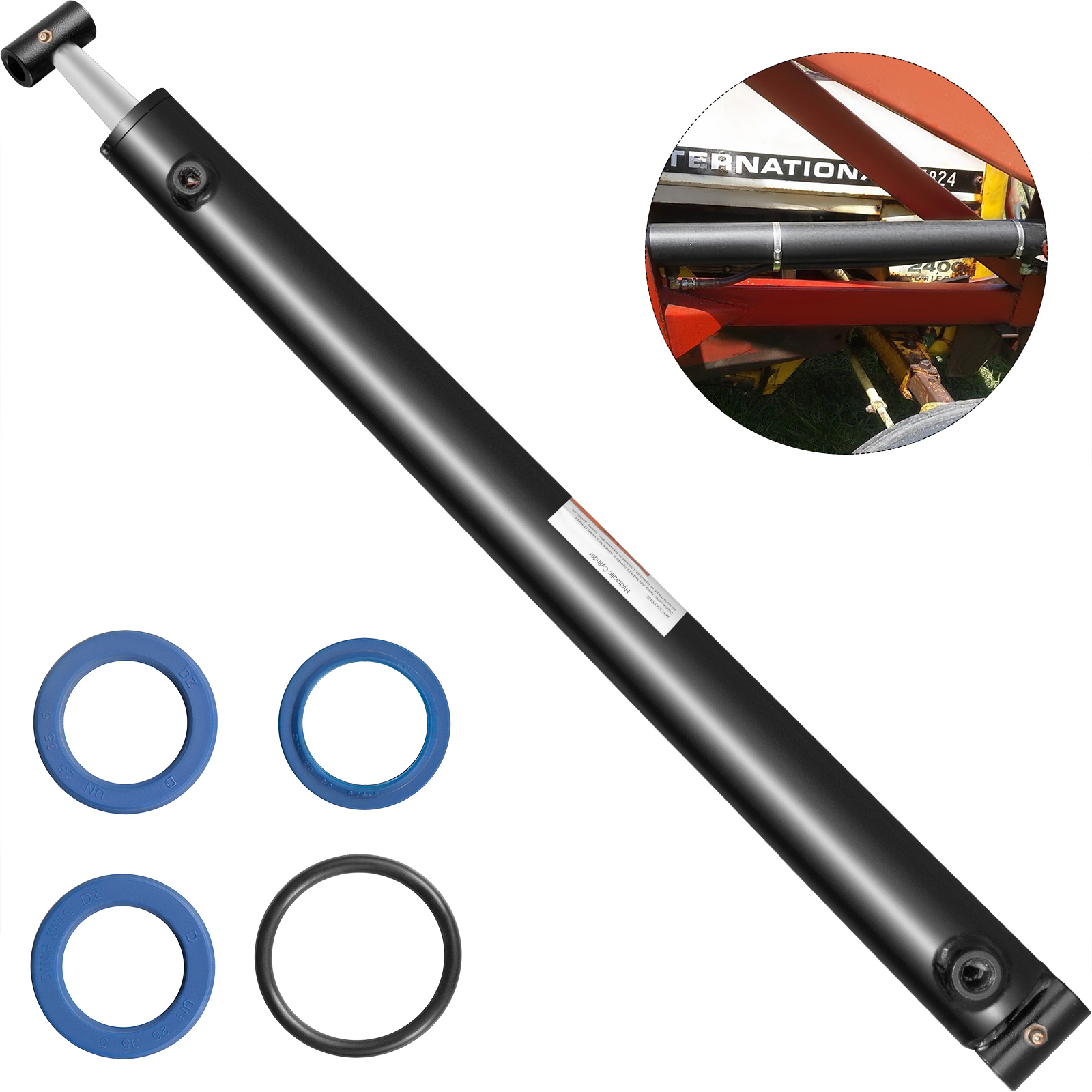

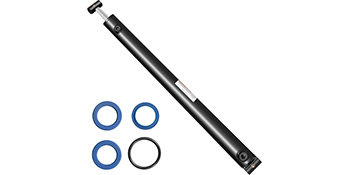

Package Content
  • 1 x Hydraulic Cylinder
  • 1 x Seal Ring Set
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
2.5" Bore 20" Stroke Hydraulic Cylinder
This is a well-designed 20in double acting hydraulic cylinder, all cylinders are fully and easily maintainable and repairable. Rigid welded construction, convenient to assemble and have a max load bearing capacity, effectively solving problems like leak of oil, not have enough thrust. And it is created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
  • Rigid Welded Construction
  • Max Load-Bearing Capacity
  • Stable Sealing Performance
  • Convenient To Assemble
  • High Tensile Construction
    This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards.
    High Tensile Construction
    This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards.
    14700 LBS Load-Bearing Capacity
    This hydraulic pump bore is 63mm/2.5", the longest Length is 1219mm/47.9", and the max load-bearing capacity is 14700 LBS. Bringing a great convenience to your work.
    Structure & Dimension
    Our hydraulic cylinders with compact structure, equipped with 4 sealing oil rings. Precise in dimension and efficient in working, it stands out in every aspect.
    Professional Design for High Performance
    All the components of our hydraulic cylinders are fully tested, ensures the quality and effectively solving problems like oil evaporate, and build for longevity.
    Wide Application
    The double action heavy duty hydraulic cylinder is suitable for a variety of mobile equipment such as agriculture, construction, transportation, forestry, garden, etc.
    Package Content
    • 1 x Hydraulic Cylinder
    • 1 x Seal Ring Set
    Specifications
  • Cylinder Bore: 63mm/2.5"
  • Stroke: 508mm/20"
  • Pin: 26mm/1.0"
  • Diameter Of Piston Rod: 35mm/1.3"
  • Minimum Length: 711mm/27"
  • Max Length: 1219mm/47.9"
  • Max Load-Bearing Capacity: 14700 LBS
  • Port Size: SAE8
  • Work Pressure: 3000PSI
  • Weight: 29LBS/13kg
  • Packing Size: 760*100*100mm/29.9"*3.9"*3.9"
  • 2.5" Bore 20" Stroke Hydraulic Cylinder This is a well-designed 20in double acting hydraulic cylinder, all cylinders are fully and easily maintainable and repairable. Rigid welded construction, convenient to assemble and have a max load bearing capacity, effectively solving problems like leak of oil, not have enough thrust. And it is created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
    • Rigid Welded Construction
    • Max Load-Bearing Capacity
    • Stable Sealing Performance
    • Convenient To Assemble
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    High Tensile Construction This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards. High Tensile Construction This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards. 14700 LBS Load-Bearing Capacity This hydraulic pump bore is 63mm/2.5", the longest Length is 1219mm/47.9", and the max load-bearing capacity is 14700 LBS. Bringing a great convenience to your work. Structure & Dimension Our hydraulic cylinders with compact structure, equipped with 4 sealing oil rings. Precise in dimension and efficient in working, it stands out in every aspect. Professional Design for High Performance All the components of our hydraulic cylinders are fully tested, ensures the quality and effectively solving problems like oil evaporate, and build for longevity. Wide Application The double action heavy duty hydraulic cylinder is suitable for a variety of mobile equipment such as agriculture, construction, transportation, forestry, garden, etc. Specifications
    • Cylinder Bore: 63mm/2.5"
    • Stroke: 508mm/20"
    • Pin: 26mm/1.0"
    • Diameter Of Piston Rod: 35mm/1.3"
    • Minimum Length: 711mm/27"
    • Max Length: 1219mm/47.9"
    • Max Load-Bearing Capacity: 14700 LBS
    • Port Size: SAE8
    • Work Pressure: 3000PSI
    • Weight: 29LBS/13kg
    • Packing Size: 760*100*100mm/29.9"*3.9"*3.9"
    Package Content
    • 1 x Hydraulic Cylinder
    • 1 x Seal Ring Set
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    2.5" Bore 20" Stroke Hydraulic Cylinder This is a well-designed 20in double acting hydraulic cylinder, all cylinders are fully and easily maintainable and repairable. Rigid welded construction, convenient to assemble and have a max load bearing capacity, effectively solving problems like leak of oil, not have enough thrust. And it is created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
  • Rigid Welded Construction
  • Max Load-Bearing Capacity
  • Stable Sealing Performance
  • Convenient To Assemble
  • High Tensile Construction This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards. High Tensile Construction This welded hydraulic cylinder cross tube style is designed for a pressure up to 3000 PSI. These high quality welded hydraulic cylinders are manufactured in accordance with high standards. 14700 LBS Load-Bearing Capacity This hydraulic pump bore is 63mm/2.5", the longest Length is 1219mm/47.9", and the max load-bearing capacity is 14700 LBS. Bringing a great convenience to your work. Structure & Dimension Our hydraulic cylinders with compact structure, equipped with 4 sealing oil rings. Precise in dimension and efficient in working, it stands out in every aspect. Professional Design for High Performance All the components of our hydraulic cylinders are fully tested, ensures the quality and effectively solving problems like oil evaporate, and build for longevity. Wide Application The double action heavy duty hydraulic cylinder is suitable for a variety of mobile equipment such as agriculture, construction, transportation, forestry, garden, etc. Package Content
    • 1 x Hydraulic Cylinder
    • 1 x Seal Ring Set
    Specifications
  • Cylinder Bore: 63mm/2.5"
  • Stroke: 508mm/20"
  • Pin: 26mm/1.0"
  • Diameter Of Piston Rod: 35mm/1.3"
  • Minimum Length: 711mm/27"
  • Max Length: 1219mm/47.9"
  • Max Load-Bearing Capacity: 14700 LBS
  • Port Size: SAE8
  • Work Pressure: 3000PSI
  • Weight: 29LBS/13kg
  • Packing Size: 760*100*100mm/29.9"*3.9"*3.9"
  • Shipping Policy

    Shipping Fees

    All the products are free shipping now, part of AK, HI, PW, MH, FM, VI, MP, AS, PR, GU States where remote place need addition shipping fees, no custom fees.



    Note: Shipping time is influenced by the COVID-19, cargoes delivered time put off 3 days! Big cargoes( Please notice the size description or size photos that unilateral length more than 108'',  perimeter more than 165'' ) need 12 days delay.

    Shipping Times

    We adopt FedEx Ground、 UPS Ground、SAIA、RRTS、RLCARRIERS only ship orders within US, other country is not opened on this site, you can go to our other country site shop.



    • DELIVERY Days: 1-4 Business Days
    • Processing Time: 3 Business Day
    •  SHIP FROM NJ & CA & TX & GA & WA WAREHOUSE



    About Modification

    Once your payment is completed, please inform by phone or E-mail if any modification is needed before we dispatch your package.

    The customer will be responsible for all extra fees caused by address alternation if contact is made after item has been dispatched.



    International Purchase

    Import duties, taxes and charges are not included in item price or shipping charges. The buyer should be responsible for these charges.





    Return Policy

    Every single product is backed by a 12-months Warranty and a 30-day return policy from the date of purchase. Special circumstances will be listed clearly in the listing.

    If you need to return a product and get a refund, please contact us for free shipping label and ship it back to us.



    Satisfying Guarantee for Every Purchase

    Dear customer, please contact us if you are not satisfied with a product before applying for return or refund. A prompt exchange should be issued within 30 days of delivery in original packaging and with proof of purchase from Vevor.



    Please do check everything carefully after you received the parcel, cause any man-made damage except DOA (Dead-On-Arrival) would not be covered. If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.

    1. All returns must be pre-approved. Unauthorized returns will not be accepted.
    2.  Check twice to confirm the item not working before contacting our customer service representative. Let us know the detailed problem by sending us some pictures for confirmation.
    3. The same warranty is provided for replaced products as the returned ones.



    If you are shipping the product

    1. Carefully pack the item(s) in original package.
    2. Stick the shipping label we offered (quality / seller's problem ) on the outer.
    3. Refund would be processed after the item is received by our warehouse staff, which is confirmed to be unopened and in good condition.
    4. For assistance on return, please message Vevor Facebook or send a message to: support@vevor.com.

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    R
    R.R.
    Solid and cheap.

    As described, replaced a factory cylinder on tractor loader. Comes with spare packing kit too.
