Hand Shear Sheet Metal Cutting Bench Mount 5"

Hand Shear Sheet Metal Cutting Bench Mount 5"

Available: Out of Stock
Product SKU: QGJ5CSDJBQ0000001V0
$65.97 USD
Successful pre-order.Thanks for contacting us!

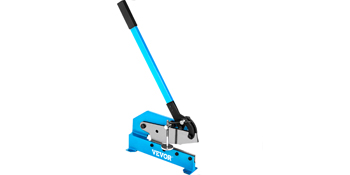

This multi-function 5 inch metal shear cutter is designed to shear carbon steel plates and bars. It is able to cut sheet metal, rebar and round stock as well. Its blade length is 5 inch (127 mm) and cutting thickness can reach to 1/4 inch (6 mm) maximum, 3/16 inch (4.75 mm) thickness at full length.

Advantages:

  • Cutting blades made with hardened steel, able to shear carbon steel plate
  • The metal shear owns an adjustable hold-down clamp inside, this helps to secure material more firmly
  • Long handle saves your time and energy. Level arm with compensating spring, easy cutting across the entire length
  • Solid steel frame ensures stability while cutting
  • Screw holes at the bottom, can be fixed onto workbenchs
  • Designed to cut different metal forms including sheet metal, rebar and round stock
  • SHEAR CAPACITY-This 5" hand plate shear is designed to cut 1/4" sheet steel, 2-3/4" x 1/4" flat steel and 7/16" rod steel
  • LONG HANDLE-The metal shear cutter is equipped with a long lever arm with compensating spring for maximum leverage, saves effort efficiently
  • CHOSEN MATERIAL-Solid steel frame metal shear ensures safety. Blades made of high carbon steel for long-term usage
  • FLEXIBLE USE-This manual shear can also be fixed onto a workbench, thus making cutting process smooth and easy
  • STABLE OPERATION-Compact metal frame provides stability. Adjustable clamp inside this metal shear ensures easy adjustment and operation
Specifications:

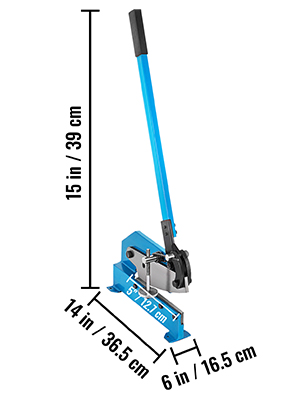

  • Blade Length: 5" (127 mm)
  • Capacity:
  • Sheet Steel Thickness: 1/4" (6 mm)
  • Flat Steel Size: 2-3/4" x 1/4" (70 x 6 mm)
  • Rod Steel: 7/16" (11 mm)
  • Maximum Thickness at Full Length: 3/16" (4.75 mm)
  • Gross weight: 24.8 lb (11.2 kg)
  • Package dimensions (L x W x H): 13.8" x 13" x 6.7" (35 x 33 x 17 cm)
Package Content:
  • 1 X 5 Inch Manual Metal Shear Cutter
  • 1 X Manual

This multi-function 5 inch metal shear cutter is designed to shear carbon steel plates and bars. It is able to cut sheet metal, rebar and round stock as well. Its blade length is 5 inch (127 mm) and cutting thickness can reach to 1/4 inch (6 mm) maximum, 3/16 inch (4.75 mm) thickness at full length.

Advantages:

  • Cutting blades made with hardened steel, able to shear carbon steel plate
  • The metal shear owns an adjustable hold-down clamp inside, this helps to secure material more firmly
  • Long handle saves your time and energy. Level arm with compensating spring, easy cutting across the entire length
  • Solid steel frame ensures stability while cutting
  • Screw holes at the bottom, can be fixed onto workbenchs
  • Designed to cut different metal forms including sheet metal, rebar and round stock
  • SHEAR CAPACITY-This 5" hand plate shear is designed to cut 1/4" sheet steel, 2-3/4" x 1/4" flat steel and 7/16" rod steel
  • LONG HANDLE-The metal shear cutter is equipped with a long lever arm with compensating spring for maximum leverage, saves effort efficiently
  • CHOSEN MATERIAL-Solid steel frame metal shear ensures safety. Blades made of high carbon steel for long-term usage
  • FLEXIBLE USE-This manual shear can also be fixed onto a workbench, thus making cutting process smooth and easy
  • STABLE OPERATION-Compact metal frame provides stability. Adjustable clamp inside this metal shear ensures easy adjustment and operation
Specifications:
  • Blade Length: 5" (127 mm)
  • Capacity:
  • Sheet Steel Thickness: 1/4" (6 mm)
  • Flat Steel Size: 2-3/4" x 1/4" (70 x 6 mm)
  • Rod Steel: 7/16" (11 mm)
  • Maximum Thickness at Full Length: 3/16" (4.75 mm)
  • Gross weight: 24.8 lb (11.2 kg)
  • Package dimensions (L x W x H): 13.8" x 13" x 6.7" (35 x 33 x 17 cm)
Package Content:
  • 1 X 5 Inch Manual Metal Shear Cutter
  • 1 X Manual
