Computer Wire Stripping & Twisting Machine 0.1-4.5mm2 Wire Cutting Peeling

Computer Wire Stripping & Twisting Machine 0.1-4.5mm2 Wire Cutting Peeling

Available: Out of Stock
Product SKU: DNJXJSWT508-NX2ZHV1
$1,169.99 USD
Successful pre-order.Thanks for contacting us!

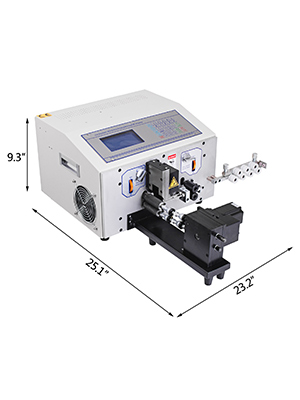

SWT508-NX2 Computer Wire Peeling Stripping Machine
Full-automatic Computer Wire Stripping and Twisting Machine supports both double-end and single-end wire twisting function. Various cutting style and programmable length and distance can suit any wire assemble needed. The Wire length can be set at will, 30 cm ruler built-in.
  • Powerful Full Automatic Operation
  • User-friendly Control
  • Large Stripping Capacity
  • Stable Performance
  • Strong Big Fan
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Full Automatic Operation
450W. Fully automated CNC equipment. Beautiful appearance. Drive Mode: Four-wheel drove.

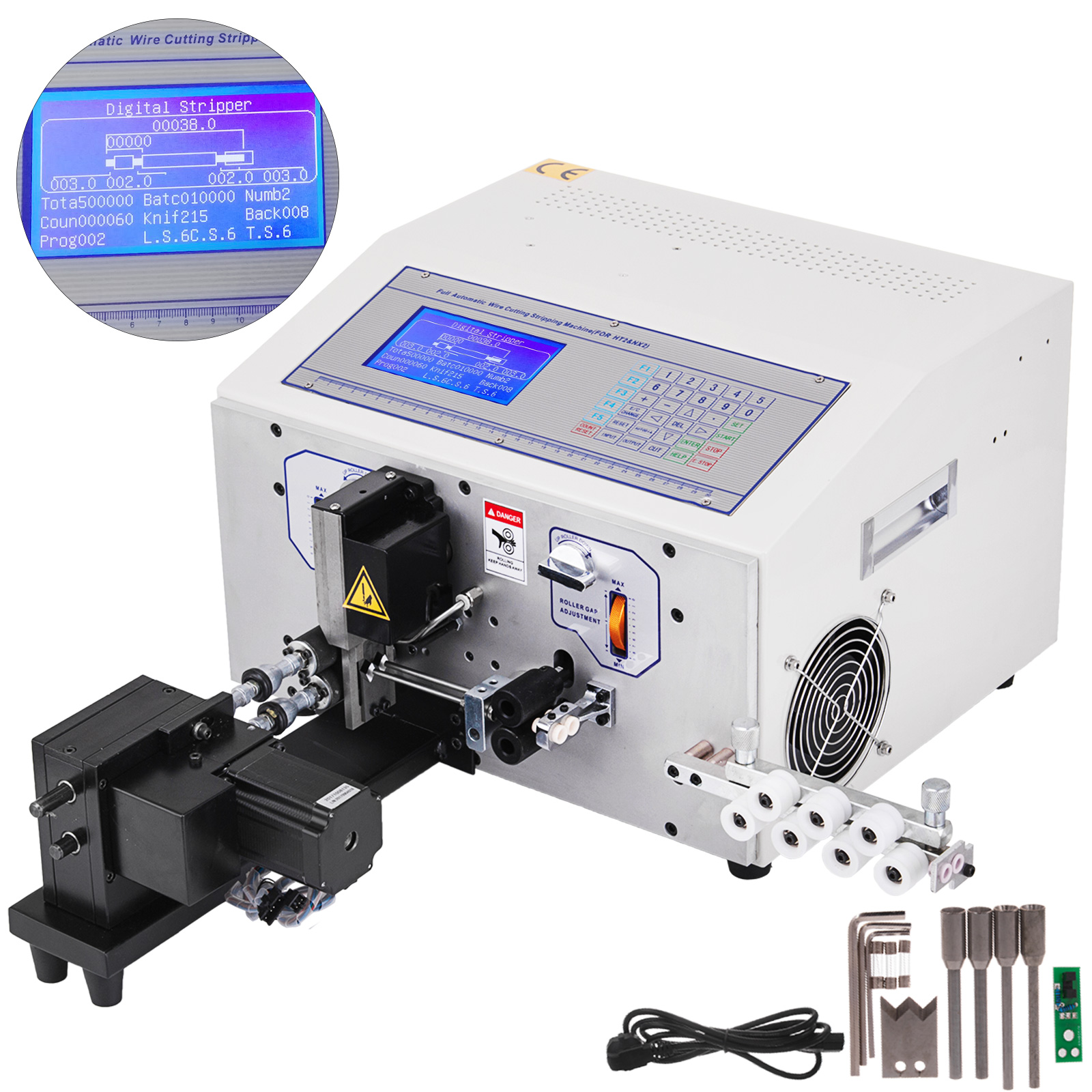

Professional LCD Display
Microcomputer control. It is easy to use with the LCD interface display panel.
High Stripping Speed
4000-10,000pcs / h. Cutting Length: 1 - 100,000 mm. Stripped Length: Thread 0-35, line end 0-20mm. Cable length may be set free.
Excellent Performance
Can peel wires with different thicknesses. Maximum Duct Diameter: 6 mm. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Roller gap adjustment can be made by wires in various materials.
Big Cooling Fan
Environmental protection and energy saving. Low noise and low energy consumption. The powerful big cooling fan can fast dissipate heat.
Wide Application
Suitable for a variety of electrical needs in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc.
Specifications
  • Power: AC 110V, 60 Hz
  • Wattage: 450W rated
  • Cutting Length: 1-100,000 mm
  • Cutting Tolerance: (0.001 by L) mm
  • Stripping Length: Thrum 0-35, wire ends 0-20 mm
  • Middle Strip Cut: Sixteen place strip
  • Cutting Wire Core Section (Single Channel): 0.1-4.5mm² (AWG27 #-AWG11 #)
  • Cutting Wire Core Section (Dual Channel): 0.1-2.5mm² (AWG27 #-AWG13 #)
  • Max. Duct Diameter: 6 mm
  • Peeling Capacity: 4,000-10,000 PCS/h
  • Driving Method: Four-wheel driven
  • Display: LCD interface (English/Chinese)
  • Gross Weight: 74.8 lb (34 kg)

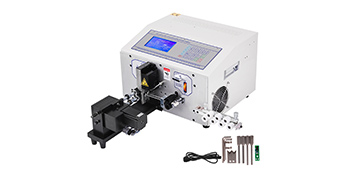

Package Content
  • 1 X Wire Stripping Twisting Machine
  • 1 X Wire Twisting Element
  • 1 X Straightening Wire Feeder
  • 3 X Hexagon Tools
  • 1 X Sensor
  • 2 X Blades
  • 3 X Fuses
  • 1 X Power Cable
  • 1 X English Manual
  • Wire Conduits
  • Screws and Nuts
MobileBulletPoint
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
SWT508-NX2 Computer Wire Peeling Stripping Machine
Full-automatic Computer Wire Stripping and Twisting Machine supports both double-end and single-end wire twisting function. Various cutting style and programmable length and distance can suit any wire assemble needed. The Wire length can be set at will, 30 cm ruler built-in.
  • Powerful Full Automatic Operation
  • User-friendly Control
  • Large Stripping Capacity
  • Stable Performance
  • Strong Big Fan
  • Full Automatic Operation
    450W. Fully automated CNC equipment. Beautiful appearance. Drive Mode: Four-wheel drove.
    Professional LCD Display
    Microcomputer control. It is easy to use with the LCD interface display panel.
    High Stripping Speed
    4000-10,000pcs / h. Cutting Length: 1 - 100,000 mm. Stripped Length: Thread 0-35, line end 0-20mm. Cable length may be set free.
    Excellent Performance
    Can peel wires with different thicknesses. Maximum Duct Diameter: 6 mm. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Roller gap adjustment can be made by wires in various materials.
    Big Cooling Fan
    Environmental protection and energy saving. Low noise and low energy consumption. The powerful big cooling fan can fast dissipate heat.
    Wide Application
    Suitable for a variety of electrical needs in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc.
    Package Content
    • 1 X Wire Stripping Twisting Machine
    • 1 X Wire Twisting Element
    • 1 X Straightening Wire Feeder
    • 3 X Hexagon Tools
    • 1 X Sensor
    • 2 X Blades
    • 3 X Fuses
    • 1 X Power Cable
    • 1 X English Manual
    • Wire Conduits
    • Screws and Nuts
    Specifications
  • Power: AC 110V, 60 Hz
  • Wattage: 450W rated
  • Cutting Length: 1-100,000 mm
  • Cutting Tolerance: (0.001 by L) mm
  • Stripping Length: Thrum 0-35, wire ends 0-20 mm
  • Middle Strip Cut: Sixteen place strip
  • Cutting Wire Core Section (Single Channel): 0.1-4.5mm² (AWG27 #-AWG11 #)
  • Cutting Wire Core Section (Dual Channel): 0.1-2.5mm² (AWG27 #-AWG13 #)
  • Max. Duct Diameter: 6 mm
  • Peeling Capacity: 4,000-10,000 PCS/h
  • Driving Method: Four-wheel driven
  • Display: LCD interface (English/Chinese)
  • Gross Weight: 74.8 lb (34 kg)
  • SWT508-NX2 Computer Wire Peeling Stripping Machine Full-automatic Computer Wire Stripping and Twisting Machine supports both double-end and single-end wire twisting function. Various cutting style and programmable length and distance can suit any wire assemble needed. The Wire length can be set at will, 30 cm ruler built-in.
    • Powerful Full Automatic Operation
    • User-friendly Control
    • Large Stripping Capacity
    • Stable Performance
    • Strong Big Fan
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Full Automatic Operation 450W. Fully automated CNC equipment. Beautiful appearance. Drive Mode: Four-wheel drove. Professional LCD Display Microcomputer control. It is easy to use with the LCD interface display panel. High Stripping Speed 4000-10,000pcs / h. Cutting Length: 1 - 100,000 mm. Stripped Length: Thread 0-35, line end 0-20mm. Cable length may be set free. Excellent Performance Can peel wires with different thicknesses. Maximum Duct Diameter: 6 mm. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Roller gap adjustment can be made by wires in various materials. Big Cooling Fan Environmental protection and energy saving. Low noise and low energy consumption. The powerful big cooling fan can fast dissipate heat. Wide Application Suitable for a variety of electrical needs in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Specifications
    • Power: AC 110V, 60 Hz
    • Wattage: 450W rated
    • Cutting Length: 1-100,000 mm
    • Cutting Tolerance: (0.001 by L) mm
    • Stripping Length: Thrum 0-35, wire ends 0-20 mm
    • Middle Strip Cut: Sixteen place strip
    • Cutting Wire Core Section (Single Channel): 0.1-4.5mm² (AWG27 #-AWG11 #)
    • Cutting Wire Core Section (Dual Channel): 0.1-2.5mm² (AWG27 #-AWG13 #)
    • Max. Duct Diameter: 6 mm
    • Peeling Capacity: 4,000-10,000 PCS/h
    • Driving Method: Four-wheel driven
    • Display: LCD interface (English/Chinese)
    • Gross Weight: 74.8 lb (34 kg)
    Package Content
    • 1 X Wire Stripping Twisting Machine
    • 1 X Wire Twisting Element
    • 1 X Straightening Wire Feeder
    • 3 X Hexagon Tools
    • 1 X Sensor
    • 2 X Blades
    • 3 X Fuses
    • 1 X Power Cable
    • 1 X English Manual
    • Wire Conduits
    • Screws and Nuts
    MobileBulletPoint Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members. Why Choose VEVOR?
    • Premium Tough Quality
    • Incredibly Low Prices
    • Fast & Secure Delivery
    • 30-Day Free Returns
    • 24/7 Attentive Service
    SWT508-NX2 Computer Wire Peeling Stripping Machine Full-automatic Computer Wire Stripping and Twisting Machine supports both double-end and single-end wire twisting function. Various cutting style and programmable length and distance can suit any wire assemble needed. The Wire length can be set at will, 30 cm ruler built-in.
  • Powerful Full Automatic Operation
  • User-friendly Control
  • Large Stripping Capacity
  • Stable Performance
  • Strong Big Fan
  • Full Automatic Operation 450W. Fully automated CNC equipment. Beautiful appearance. Drive Mode: Four-wheel drove. Professional LCD Display Microcomputer control. It is easy to use with the LCD interface display panel. High Stripping Speed 4000-10,000pcs / h. Cutting Length: 1 - 100,000 mm. Stripped Length: Thread 0-35, line end 0-20mm. Cable length may be set free. Excellent Performance Can peel wires with different thicknesses. Maximum Duct Diameter: 6 mm. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Roller gap adjustment can be made by wires in various materials. Big Cooling Fan Environmental protection and energy saving. Low noise and low energy consumption. The powerful big cooling fan can fast dissipate heat. Wide Application Suitable for a variety of electrical needs in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. The optimal stripped wire includes PVC, Teflon, glass wire, silicon cable, etc. Package Content
    • 1 X Wire Stripping Twisting Machine
    • 1 X Wire Twisting Element
    • 1 X Straightening Wire Feeder
    • 3 X Hexagon Tools
    • 1 X Sensor
    • 2 X Blades
    • 3 X Fuses
    • 1 X Power Cable
    • 1 X English Manual
    • Wire Conduits
    • Screws and Nuts
    Specifications
  • Power: AC 110V, 60 Hz
  • Wattage: 450W rated
  • Cutting Length: 1-100,000 mm
  • Cutting Tolerance: (0.001 by L) mm
  • Stripping Length: Thrum 0-35, wire ends 0-20 mm
  • Middle Strip Cut: Sixteen place strip
  • Cutting Wire Core Section (Single Channel): 0.1-4.5mm² (AWG27 #-AWG11 #)
  • Cutting Wire Core Section (Dual Channel): 0.1-2.5mm² (AWG27 #-AWG13 #)
  • Max. Duct Diameter: 6 mm
  • Peeling Capacity: 4,000-10,000 PCS/h
  • Driving Method: Four-wheel driven
  • Display: LCD interface (English/Chinese)
  • Gross Weight: 74.8 lb (34 kg)
