4'' Compound Cross Slide Benchtop Drill Press Vise 2 Screw Rods Vise Leadscrew

4'' Compound Cross Slide Benchtop Drill Press Vise 2 Screw Rods Vise Leadscrew

VEVOR
Available: Out of Stock
Product SKU: TQ4YCFHSZQQ971001V0
$63.99 USD
Consultation
Successful pre-order.Thanks for contacting us!

Features & Details


  • [HEAVY DUTY CONSTRUCTION]- Body, saddle, base and jaws are made high strength cast iron. Vise leadscrew, longitudinal and cross feed  screws are precision ground carbon steel. Surface spray treatment, wear-resisting and anti-rust.
  • [DOUBLE DIRECTION DESIGN]- Cross vises travle on two seperate axes, longitudinal and cross, to permit accurate positioning of workpiece. Vise jaws are heightened and widened for more clamping force in order to keep workpiece more stable during machining. Both Longitudinal Travel & Cross Travel are 5" (125mm).
  • [PRECISE ADJUSTMENT]- Hand wheels feature machine-marked 0.1 mm (0.0039") increments for maximum precision. Clear numbers on them, high working efficiency improved.
  • [REMOVABLE HANDLES]- 2 swivel crank handles for adjusting vise front to back and left to right. Nut and handle of ductile cast iron, anticorrosive and elegant. Soft and smooth design with the science constructions, available for long time use.
  • [FREE SCREW RODS]- Two screw rods for free. To easy your replacement and make the drill press vise long lasting. Besides, 3 L-shaped wrenches are also included in the package.

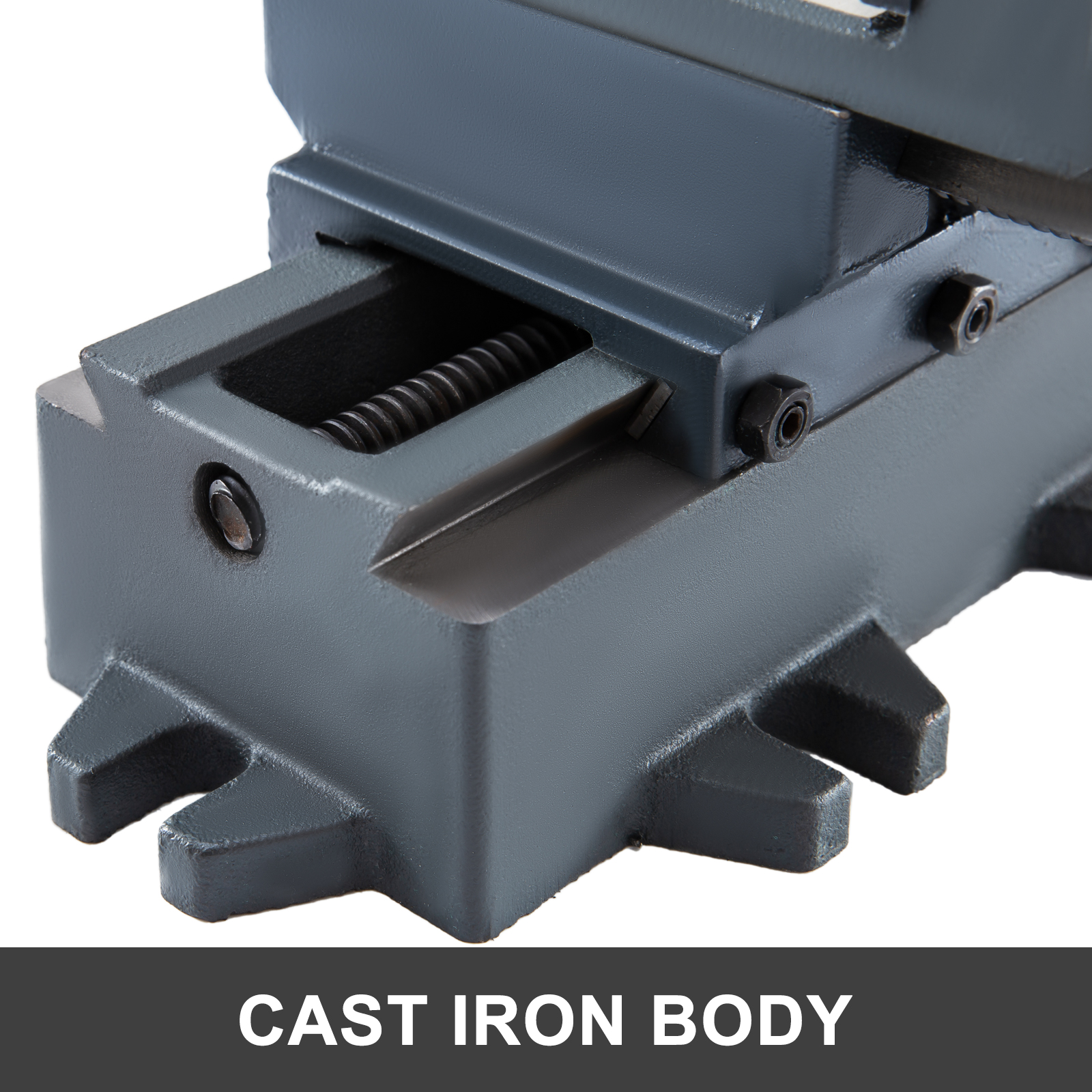

Cast Iron Body


Made of ductile cast iron, high tenacity to be durable. High accuracy. Surface spray treatment, wear-resisting and anti-rust.

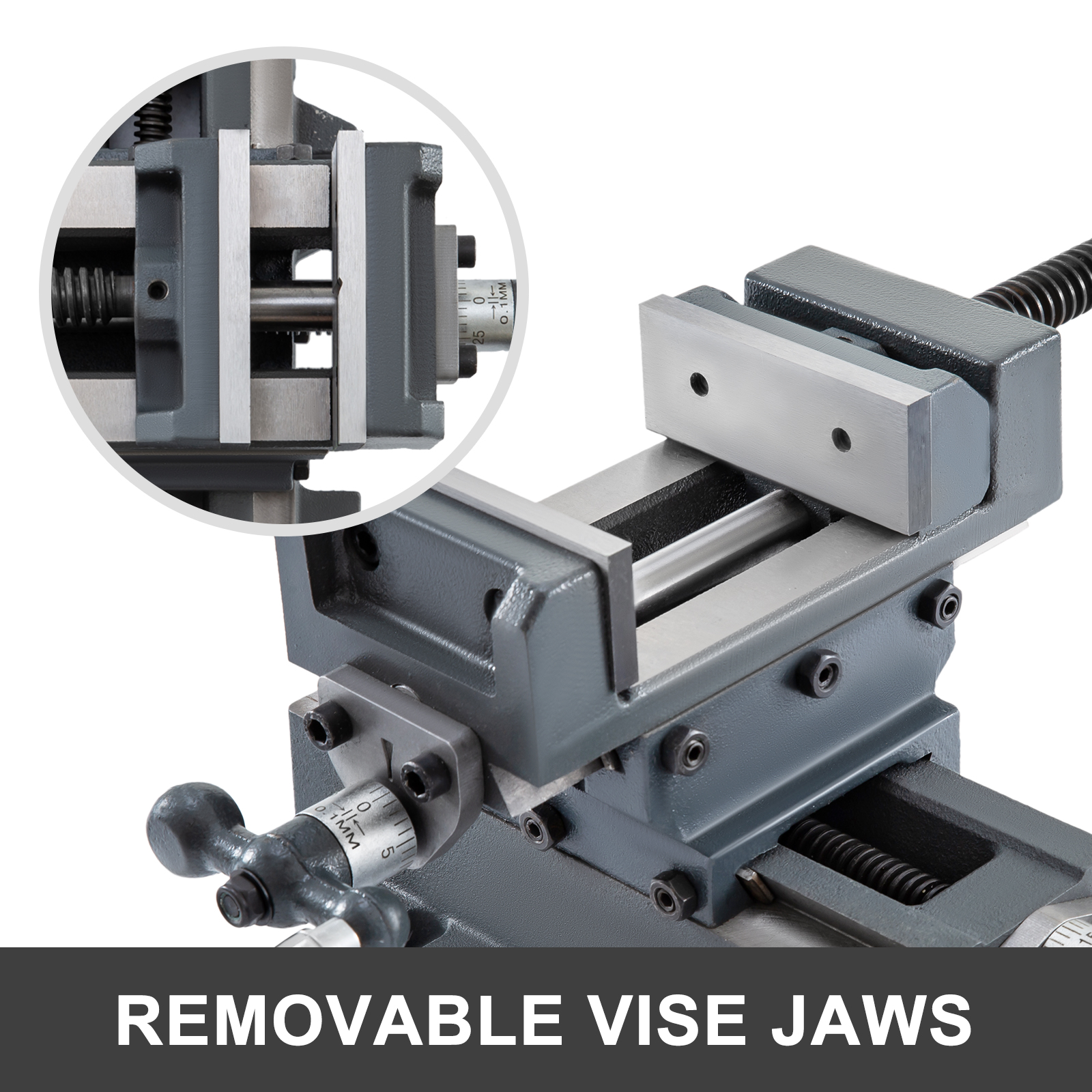

Removable Vise Jaws


Double direction design, it can move laterally or longitudinally. Cross Travel Per One Revolution: 3mm (0.12"), Longitudinal Travel Per One Revolution: 3mm (0.12").

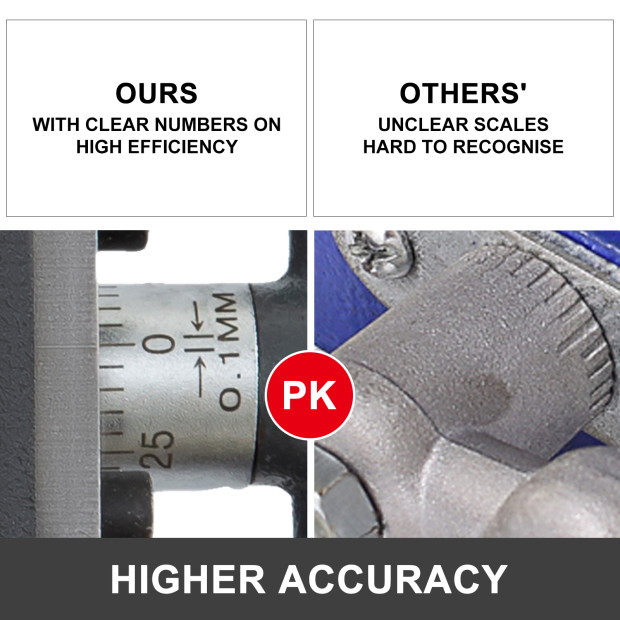

Higher Accuracy


Value of one division: 0.1mm (0.0039"). Throat Depth: 46mm (1.81"), Jaw Opening: 102mm (4.02").

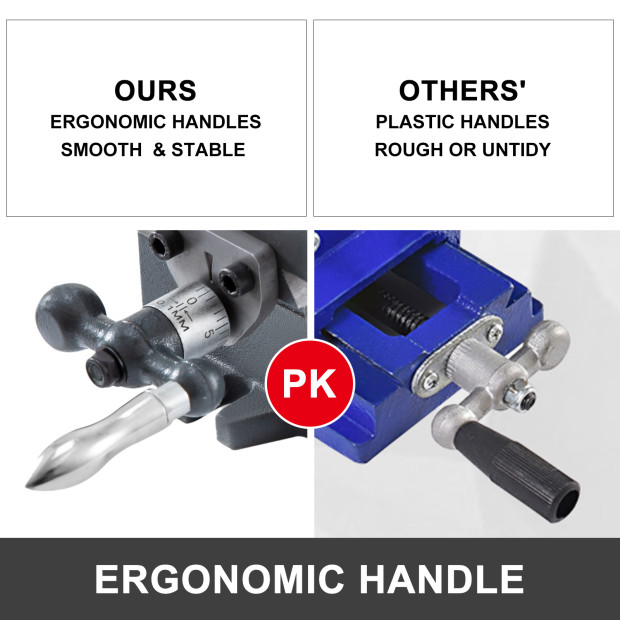

Ergonomic Handles


Nut and handle of ductile cast iron, anticorrosive and elegant. Soft and smooth design. Available for long time use.

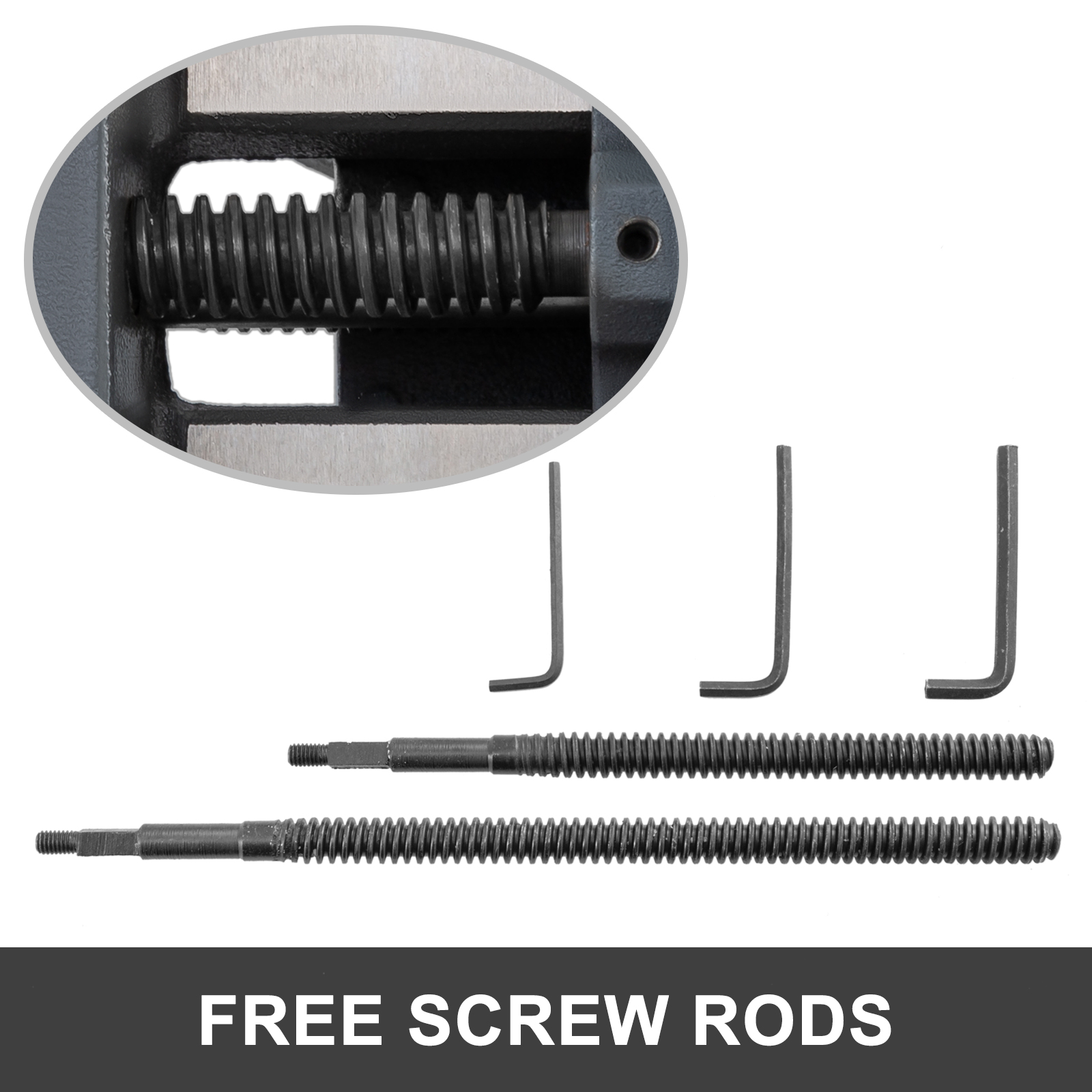

Screw Rods


Two screw rods here for your easy replacement. Screw threads feed smoothly and accurately.

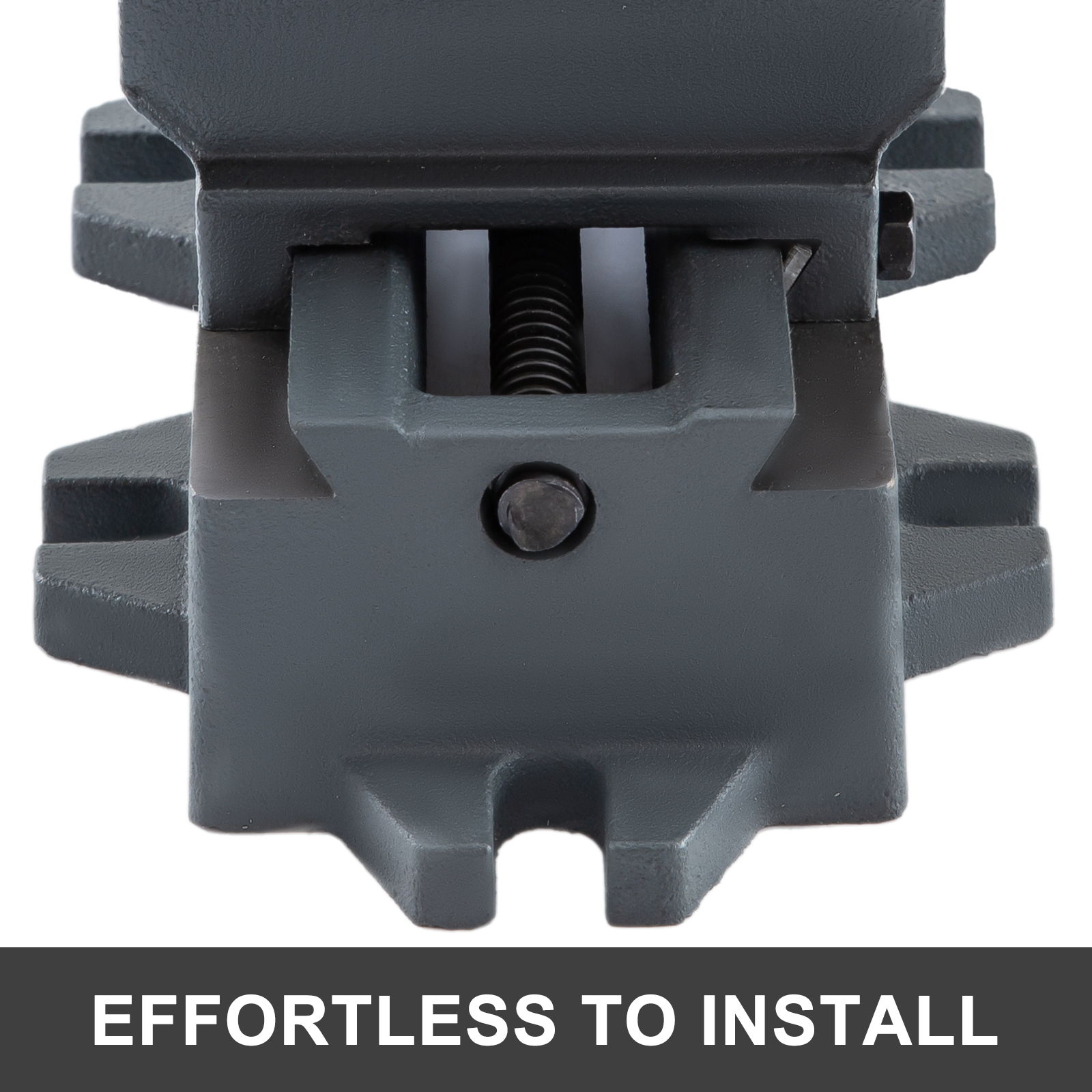

Effortless To Install


Several mounting holes on the bottom for convenient fastening firmly for milling machine, drill press and machinery maintenance, etc. Perfect for incremental drilling and other precision work.

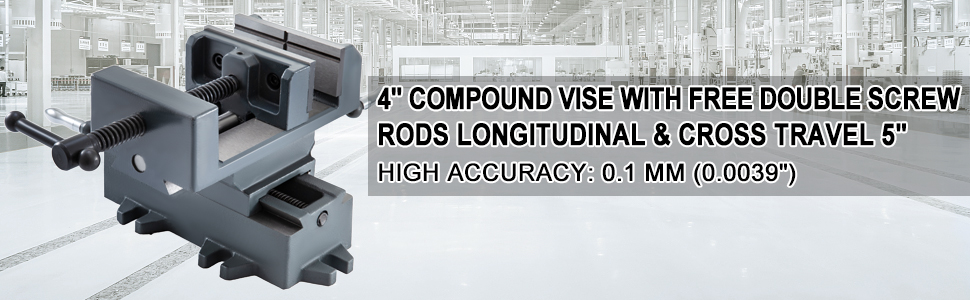

4" Compound Vise With Double Screw Rods
The 4" cross vises travle on two seperate axes, longitudinal and cross, to permit accurate positioning of workpiece. Heavy duty and high accuracy design make it ideal for the workshop in the production of work piece of multifarious variety and specification.
  • Heavy Duty Construction
  • Double Direction Design
  • Removable Handles
  • Precise Adjustment
  • Screw Rods
Specifications
  • Jaw Width: 102mm (4.02")
  • Throat Depth: 46mm (1.81")
  • Jaw Opening: 102mm (4.02")
  • Overall Height: 151mm (5.43")
  • Base(LxW): 216 x 124mm (8.50" x 4.88")
  • Cross Travel Per One Revolution: 3mm (0.12")
  • Longitudinal Travel Per One Revolution: 3mm (0.12")

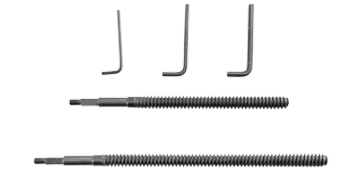

Package Content
  • 1 x Cross Vise
  • 2 x Screw Rod
  • 3 x Wrench


Features & Details


  • [HEAVY DUTY CONSTRUCTION]- Body, saddle, base and jaws are made high strength cast iron. Vise leadscrew, longitudinal and cross feed  screws are precision ground carbon steel. Surface spray treatment, wear-resisting and anti-rust.
  • [DOUBLE DIRECTION DESIGN]- Cross vises travle on two seperate axes, longitudinal and cross, to permit accurate positioning of workpiece. Vise jaws are heightened and widened for more clamping force in order to keep workpiece more stable during machining. Both Longitudinal Travel & Cross Travel are 5" (125mm).
  • [PRECISE ADJUSTMENT]- Hand wheels feature machine-marked 0.1 mm (0.0039") increments for maximum precision. Clear numbers on them, high working efficiency improved.
  • [REMOVABLE HANDLES]- 2 swivel crank handles for adjusting vise front to back and left to right. Nut and handle of ductile cast iron, anticorrosive and elegant. Soft and smooth design with the science constructions, available for long time use.
  • [FREE SCREW RODS]- Two screw rods for free. To easy your replacement and make the drill press vise long lasting. Besides, 3 L-shaped wrenches are also included in the package.



Cast Iron Body


Made of ductile cast iron, high tenacity to be durable. High accuracy. Surface spray treatment, wear-resisting and anti-rust.


Removable Vise Jaws


Double direction design, it can move laterally or longitudinally. Cross Travel Per One Revolution: 3mm (0.12"), Longitudinal Travel Per One Revolution: 3mm (0.12").



Higher Accuracy


Value of one division: 0.1mm (0.0039"). Throat Depth: 46mm (1.81"), Jaw Opening: 102mm (4.02").


Ergonomic Handles


Nut and handle of ductile cast iron, anticorrosive and elegant. Soft and smooth design. Available for long time use.



Screw Rods


Two screw rods here for your easy replacement. Screw threads feed smoothly and accurately.



Effortless To Install


Several mounting holes on the bottom for convenient fastening firmly for milling machine, drill press and machinery maintenance, etc. Perfect for incremental drilling and other precision work.
4" Compound Vise With Double Screw Rods
The 4" cross vises travle on two seperate axes, longitudinal and cross, to permit accurate positioning of workpiece. Heavy duty and high accuracy design make it ideal for the workshop in the production of work piece of multifarious variety and specification.
  • Heavy Duty Construction
  • Double Direction Design
  • Removable Handles
  • Precise Adjustment
  • Screw Rods
Specifications
  • Jaw Width: 102mm (4.02")
  • Throat Depth: 46mm (1.81")
  • Jaw Opening: 102mm (4.02")
  • Overall Height: 151mm (5.43")
  • Base(LxW): 216 x 124mm (8.50" x 4.88")
  • Cross Travel Per One Revolution: 3mm (0.12")
  • Longitudinal Travel Per One Revolution: 3mm (0.12")
Package Content
  • 1 x Cross Vise
  • 2 x Screw Rod
  • 3 x Wrench

Shipping Policy

Shipping Fees

All the products are free shipping now, part of AK, HI, PW, MH, FM, VI, MP, AS, PR, GU States where remote place need addition shipping fees, no custom fees.



Note: Shipping time is influenced by the COVID-19, cargoes delivered time put off 3 days! Big cargoes( Please notice the size description or size photos that unilateral length more than 108'',  perimeter more than 165'' ) need 12 days delay.

Shipping Times

We adopt FedEx Ground、 UPS Ground、SAIA、RRTS、RLCARRIERS only ship orders within US, other country is not opened on this site, you can go to our other country site shop.



  • DELIVERY Days: 1-4 Business Days
  • Processing Time: 3 Business Day
  • SHIP FROM CA & TX & KY & NJ WAREHOUSE



About Modification

Once your payment is completed, please inform by phone or E-mail if any modification is needed before we dispatch your package.

The customer will be responsible for all extra fees caused by address alternation if contact is made after item has been dispatched.



International Purchase

Import duties, taxes and charges are not included in item price or shipping charges. The buyer should be responsible for these charges.





Return Policy

Every single product is backed by a 12-months Warranty and a 30-day return policy from the date of purchase. Special circumstances will be listed clearly in the listing.

If you need to return a product and get a refund, please contact us for free shipping label and ship it back to us.



Satisfying Guarantee for Every Purchase

Dear customer, please contact us if you are not satisfied with a product before applying for return or refund. A prompt exchange should be issued within 30 days of delivery in original packaging and with proof of purchase from Vevor.



Please do check everything carefully after you received the parcel, any the damage except DOA (Dead-On-Arrival) would not be covered if it's related to man-made damage. If your item has been damaged in transit or become faulty in warranty period, please email us with pictures or video to show the problem.



  1. All returns must be pre-approved. Unauthorized returns will not be accepted.
  2. Check twice to confirm the item not work and contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.
  3. The same warranty is provided for replaced products as the returned ones.



If you are shipping the product

  1. Carefully pack the item(s) in original package.
  2. Stick the shipping label we offered on the outer
  3. Refund would be processed after the item is received by our warehouse staff, which is confirmed to be unopened and in good condition.
  4. For assistance on return, please message Vevor Facebook or send a message to: support@vevor.com.

Customer Reviews

Based on 28 reviews
50%
(14)
50%
(14)
0%
(0)
0%
(0)
0%
(0)
C
Charles G Burton
Better than most

Much better quality than expected. Edges were not sharp or jagged and milling marks were at a minimum. Made in China, but better than all the other Chinese vises I looked at.

K
Kevin Powell
Drill press cross slide vise.

I was impressed by the vise, I had to take it apart and sand down the rough edges, grease the guide rails. The screw rods were a little bent so I straighten them after all that I still think I made a good purchase and at a good price.

A
Armando B.
Put some work into it right out the box.

Buying this vice is like buying an 80% lower receiver .. Everything is there but you have to do ALOT of fine tuning to make it work "good"The drive screws are SLOPPY and take a 1/4 turn till it catches and moves. And when it's moved one direction you can physically move it the other way a good 1/4 inch so the slide is SLOPPY also.I had to make my own spacer bars because the ones that came with it were bent AND twisted!The part on the top axis where the spiral gear connects to the top Vice I had to weld in place because of the slop in it. After doing that it corrected it 100% I also had to take the entire Vice apart and deburr polish and smooth almost every surface that touched each other now it works very well but don't expect it to work great right out of the box it was covered in some weird oil grease that I cleaned off so if you're looking for a good X Y Vice and want to put some time into fixing this one up I would recommend it but if you just want one out of the box to work this is not for you

m
matt
works

this is a decent vice I have it on my 10" bench top drill press. it is not a machining table but its good enough to do what I want which is drilling multiple evenly spaced holes and milling wood. and some light metal work I did cut a key way with it. if you get this take it a part, clean and oil it and adjust the gibs. it work very smoothly. I gave it four stars because I believe it could have been built to closer tolerances. namely the moving vice jaw. all in all I like it. for the price you can't beat it

G
G. Brush
Works well for drill press/low quality milling, especially for the price

On advice of other reviewers, I disassembled, cleaned off the shipping grease, lightly oiled and reassembled. Guess what...it works pretty well. As you'd expect for a cheap vise, there is a lot of backlash on the drives, maybe 15 degrees. Also the gibs aren't quite parallel, so it gets a bit stiffer toward one end of the travel. But there isn't wiggle or eccentric movement through it's range, at least not enough for drill press milling class operations. Don't expect Bridgeport results at this price. But for me, just needing to cut some slots in brackets in 1/4" aluminum, it was okay.The biggest negative is that the spare threaded shafts were trying to come out of the box when it had arrived. If they were secured, they weren't secured well enough as both were trying to poke through the side of the box. It did, however, survive shipping.
