VEVOR 009-BF5-J Hot Water Circulation Pump 110V 180W 17 GPM Recirculating Pump

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

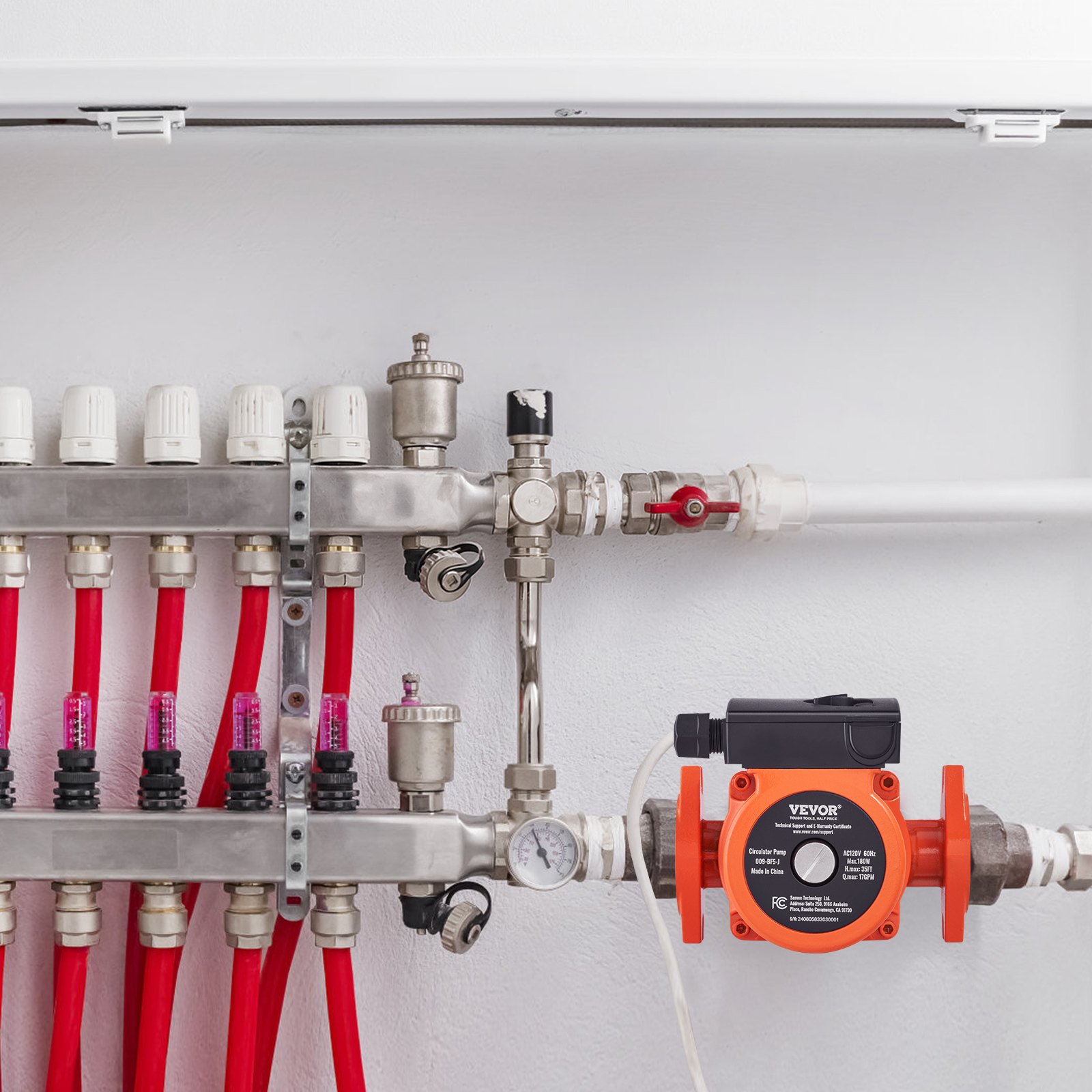

  • High Compatibility Design: Replacement part number: 009-BF5-J. Engineered specifically for underfloor heating systems, this cast iron circulator pump offers a maximum flow rate of 17 GPM and a head of 35 ft. With a 3/4" flange connection, it seamlessly replaces your existing hot water recirculating pump, meeting the circulation needs of both homes and complex piping networks with ease.

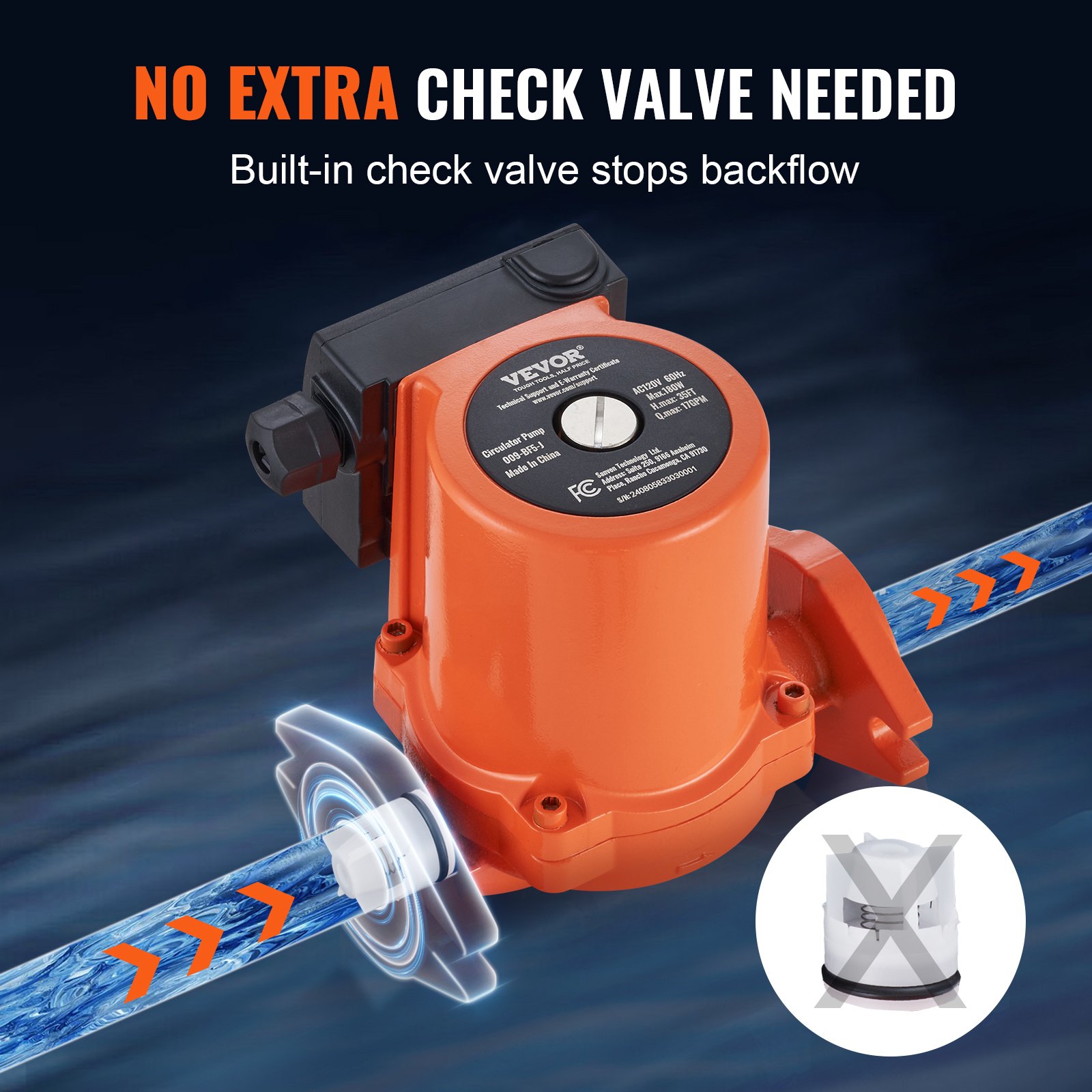

  • Built-In Check Valve: Designed to ensure water flows in the correct direction, our check valve avoids backflow, maintaining system stability and extending the pump's lifespan. Our hot water circulation pump minimizes maintenance and replacement needs, keeping your system running smoothly.
  • Low Noise Operation: Featuring a pure copper motor and unique internal design, our cast iron circulator pump operates at a maximum noise level of just 45 dB. Enjoy a peaceful home environment without disruptive noises, even in close proximity to your heating zones.

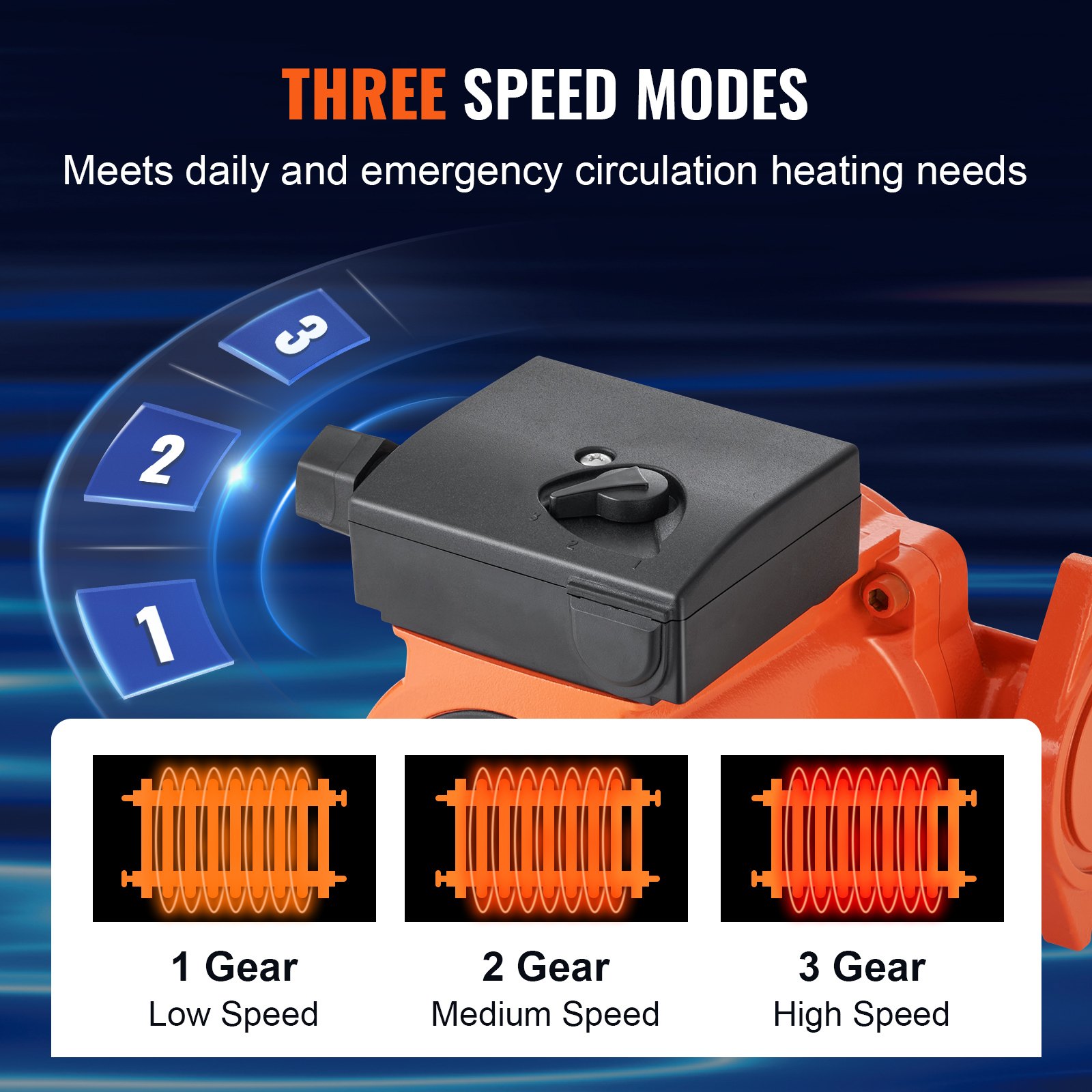

  • Adjustable Flow Rate: With three adjustable speed settings, tailor the water circulation speed to your seasonal needs or specific usage requirements. Achieve greater energy efficiency and comfort with ease.

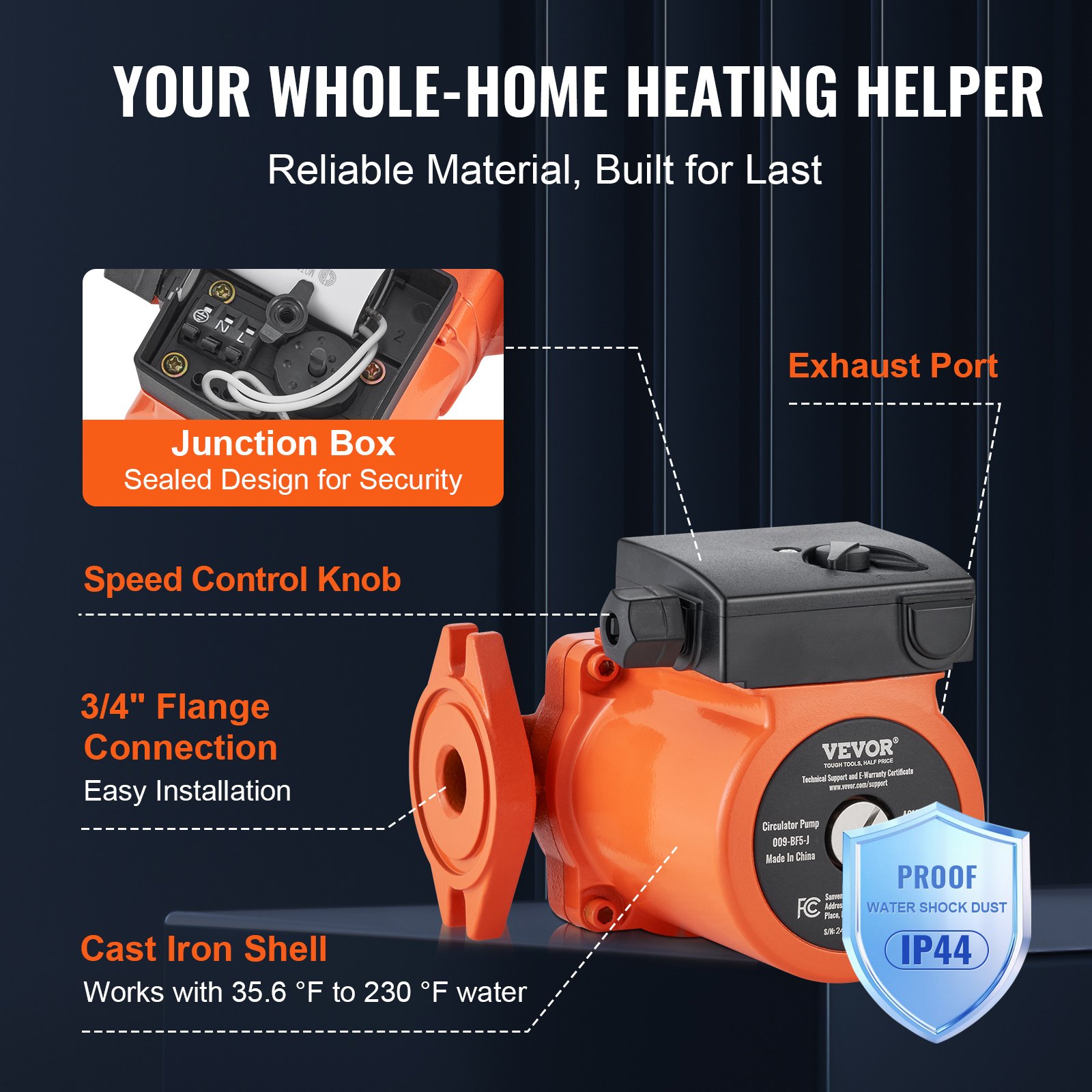

  • Durable Construction: Built with a cast iron exterior and IP44 protection rating, our hot water recirculating pump withstands a wide temperature range (35.6°F to 230°F). The high-performance pure copper motor and fully sealed junction box ensure long-term stability and security for reliable operation.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 009-BF5-J Hot Water Circulation Pump 110V 180W 17 GPM Recirculating Pump

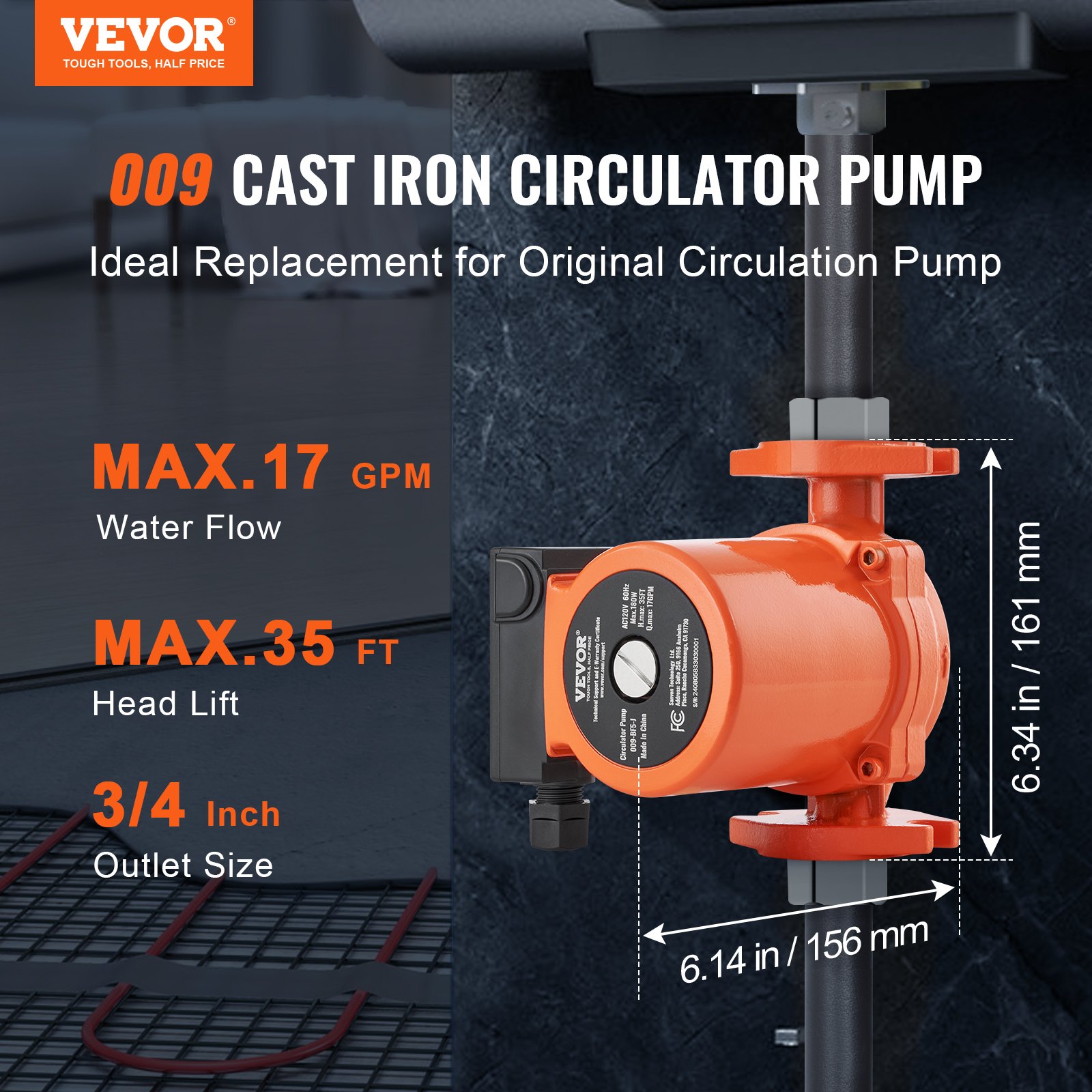

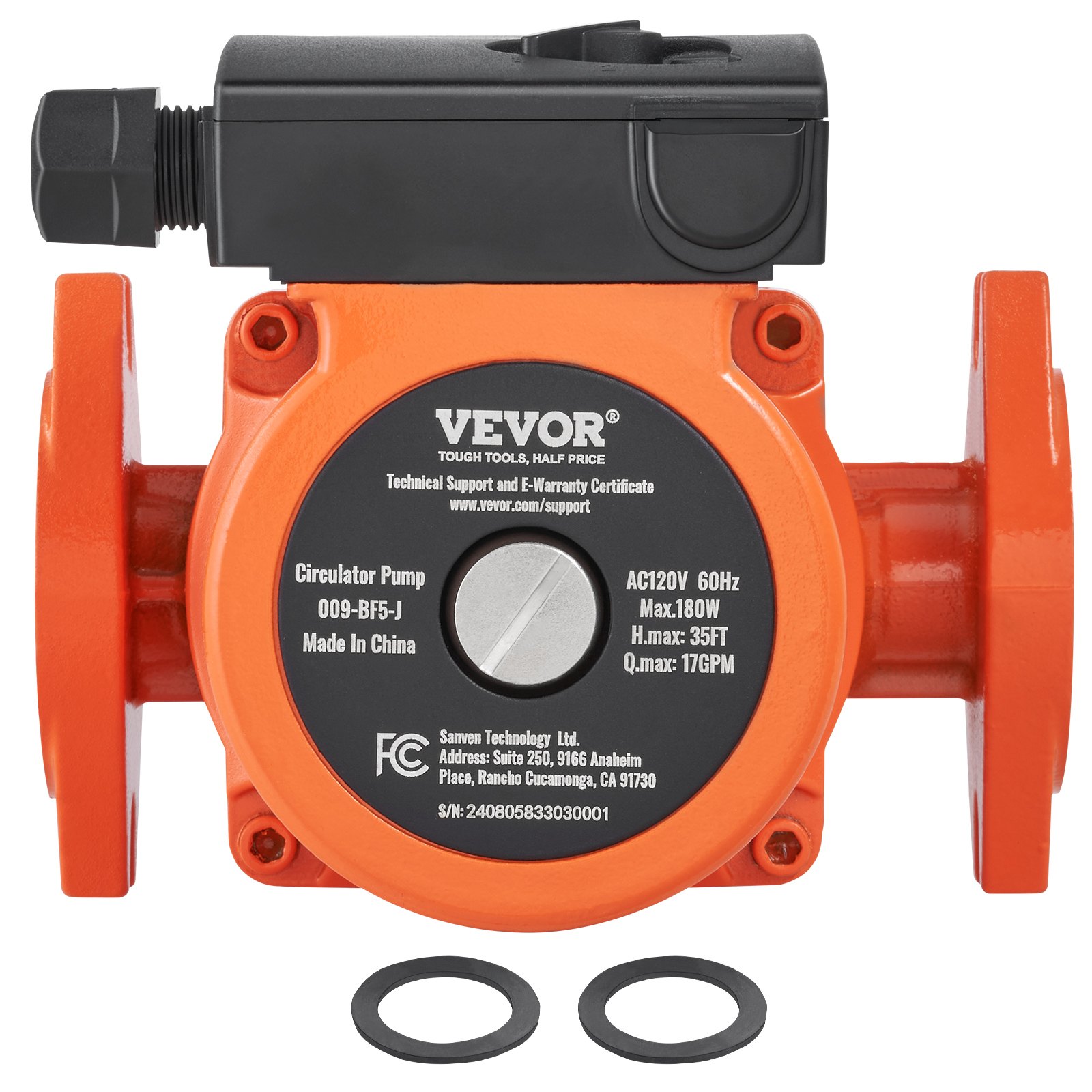

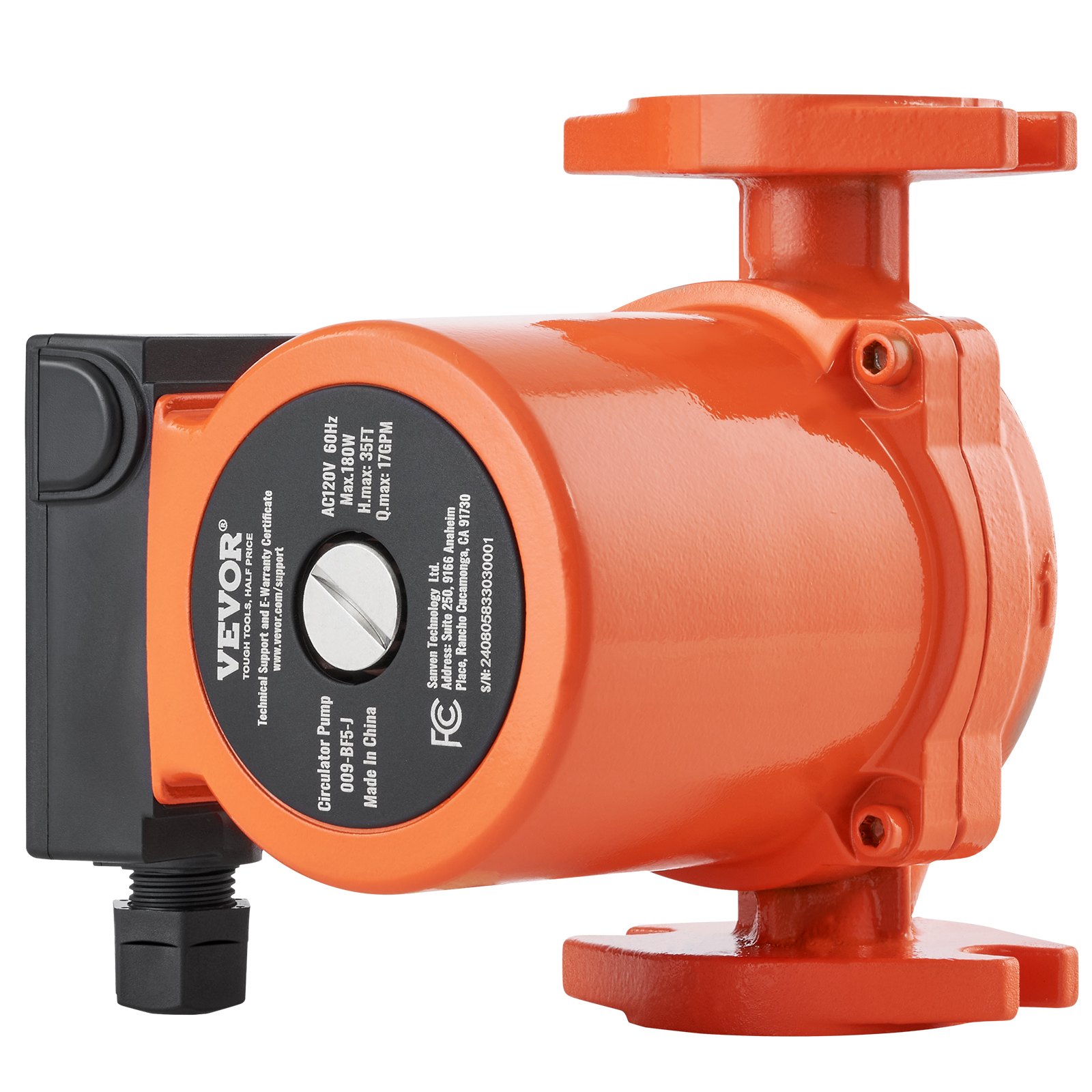

009 Cast Iron Circulator Pump
Our circulator pump offers a 17 GPM max flow, 35 ft max head lift, 3/4" flange connection, and check valve, is an ideal replacement for your existing hot water recirculating pump. The three-speed flow adjustment allows you to customize water circulation based on seasonal demand!
Featuring a durable all-copper motor, this cast iron circulator pump delivers powerful water circulation with minimal energy consumption. Enjoy long-lasting performance that keeps your energy cost low without sacrificing efficiency.

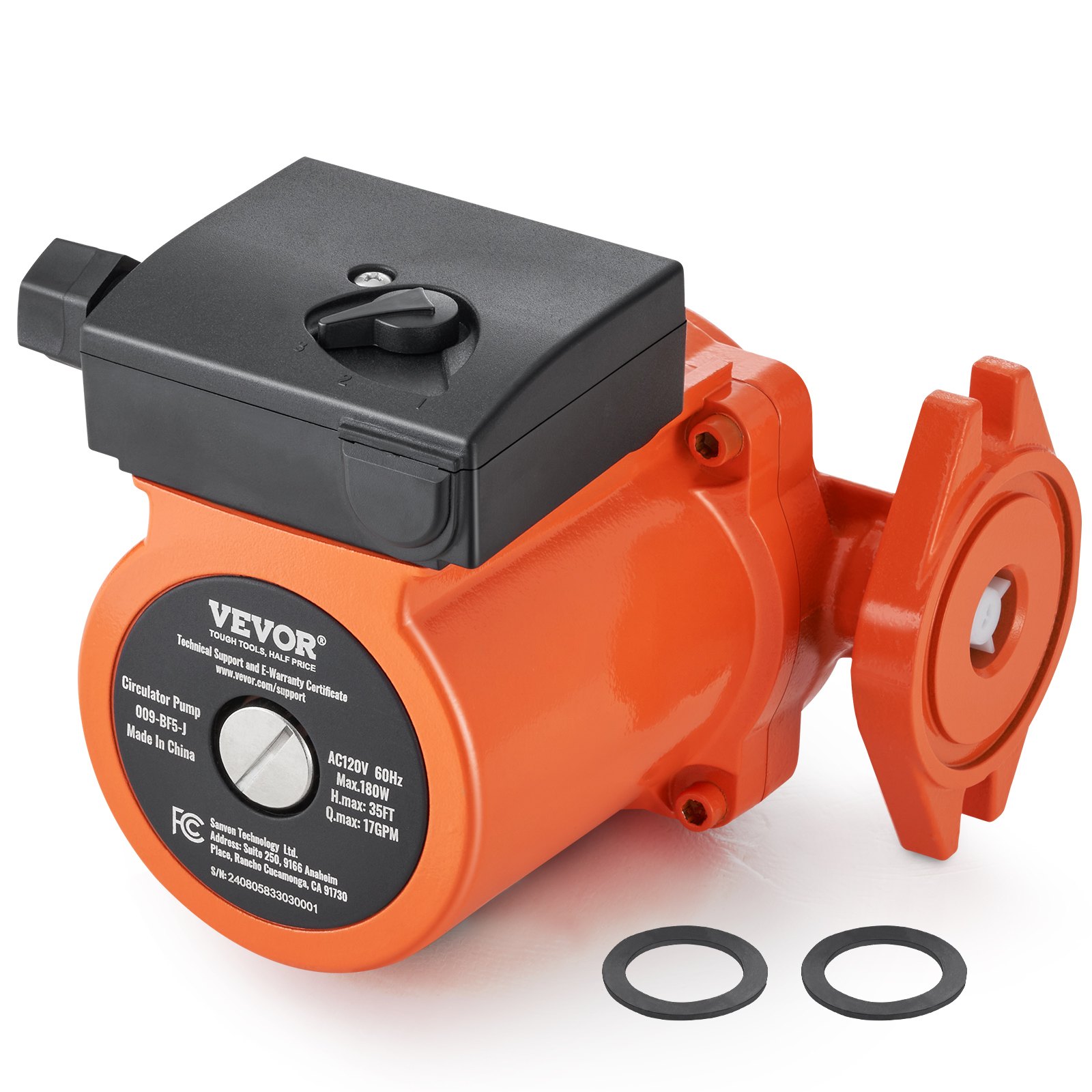

Designed with two robust rubber seals, this hot water recirculating pump avoids leaks at the connection points, safeguarding your heating system from water damage and helping you avoid unnecessary repairs or wasted water.
Proper maintenance is key! After installation or system upkeep, remember to release air from the exhaust valve to ensure smooth operation and keep your system from potential damage.
Ensure the hot water circulation pump is installed in a dry environment with a well-functioning drainage system. This keeps water leakage from causing potential property damage and maintains optimal performance.

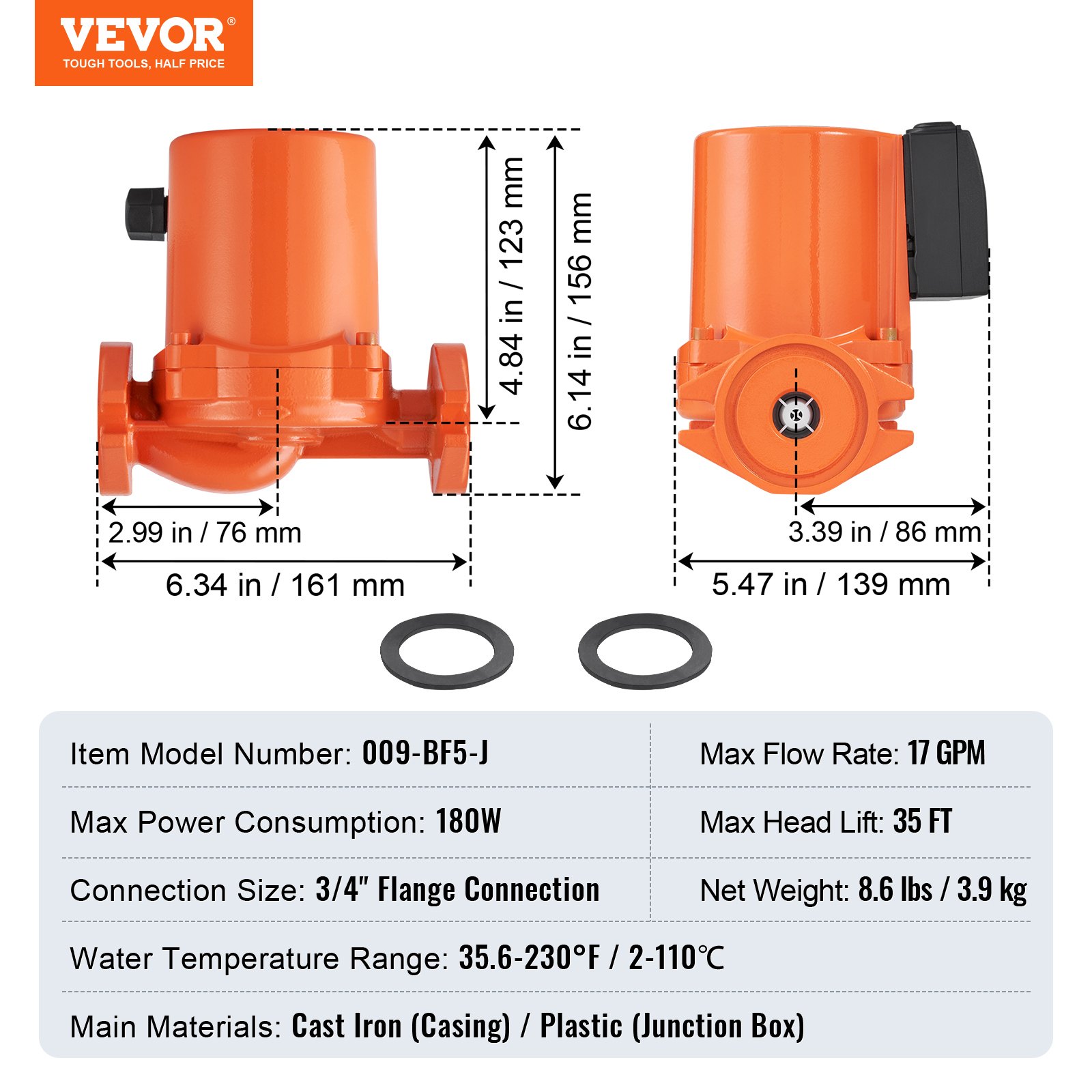

Specification

Item Model Number
009-BF5-J
Max Flow Rate
17 GPM
Max Head Lift
35 FT
Max Power Consumption
180W
Connection Size
3/4" Flange
Water Temperature Range
35.6-230°F / 2-110℃
Main Materials
Cast Iron (Casing) / Plastic (Junction Box)
Net Weight
8.6 lbs / 3.9 kg
Questions and Answers
2 Questions
Can you post an image of the pressure vs flow curve for this model at each of the 3 different speeds?
Please see the manual in below link for reference, the link is valid in 3 days: https://we.tl/t-3fpdeaYUKF
By vevor
What is the warranty on this pump
All products on our official website come with a 12-month warranty. If you purchase a product that has a problem within one year, we will be responsible for you. Here is the link: https://www.vevor.com/pages/return-policy
By vevor

Customer Reviews

10 Review(s)
Clear filters
FirecrackerFrank FirecrackerFrank
Works great
seems to be very durable and it’s reduced the time for hot water at bathrooms farther from the water heater in our home. No leaks and was very simple to install.
GoldenGail GoldenGail
Works great
I've had this recirculating pump in use for over six months now. It gets the hot water to my shower in just a few seconds. No more wasting all that water waiting for shower to get warm. Plumber had no problem installing it. Great purchase.
HillCountryHarry HillCountryHarry
Well worth the money and SO easy to install.
After years of waiting for water to reach the far areas of my house, I had finally had enough. This pump exceeded my expectations and works flawlessly. It sat on my counter for a few weeks until I finally decided to install it. Installation time was less than 30 min. It took me longer to get the junk out from beneath the far sink than it did to install. The instructions are straight forward and easy to understand. I did the under the sink valve first. They supply you with all the right hoses and connections. I did have to get long hoses, but that is not the fault of the mfg. My supply pipes are further apart. I bought longer hoses and everything was golden.
IvyIsabel IvyIsabel
Awesome Once Installed and Running
Hired a plumber to install. Seemed to work immediately after installation but stopped recirculating later that day. Pump was running just fine, but no hot water! Watts Tech Support is only so-so and that took it from 5 Star down to Four. Took forever to get anyone on the phone. They suggested removing the 'Heat Traps' from my water heater. I had the plumber come back. He just chuckled and moved the pump from the hot water side of the water heater to the cold water side. Works perfectly now. This could be a do-it-yourself install if you are still young enough to work under a sink. I'm not! Finally got the whole-house connected, took a total of three cross-flow valves under three different sinks to get it completely going. Villan was an R/O System under the kitchen sink. One plumber would not install the cross-flow valve because of the R/O plumbing. Finally got a competent plumber to do the install and it works great.
JuniperJill JuniperJill
What a difference in a big home!
I can honestly say this is probably the most cost effective way of getting hot water to far places in a home, Our home 12 years old is roughly 3000 sq ft 2 story with 4 full baths with the master being at the most furthest point of the home upstairs roughly 100+ feet away from the hot water tank in the garage between the master bath sinks, jetted tub and shower I would have to wait almost 4 minutes of water running before it got warm then cold. The water lines used throughout the home are PEX non metallic plumbing. The pump and sensor unit are very easy to install on your own with a bit of common sense and took me about 40 minutes to install. I let the pump do it's thing for about 30 minutes went up to the 2nd sink in the master bath, which is the last and furthest in the home only 3 feet further than the 2nd sink, within approx 3 secs the water was warm to the touch followed by hotter water very shortly thereafter. I had my wife verify this later that evening, we would usually waste a bunch of water filling up the jetted tub or turning on the shower waiting on hot water, again within seconds the water was warm then hot!
KeystoneKathy KeystoneKathy
This is excellent for circulating hot water
It used to take about five minutes of running the water in the bathroom to get hot water. After installing this circulating pump I get hot water in about 30 seconds. It is also extremely easy to install.
LavaLou LavaLou
Solid built and well worth it
I watched videos of the installation and had a handyman friend help me. It was more of an ordeal than I had bargained, because the flexible piping on the hot water heater had to be re-shaped to acommadate the unit. Then when I turned the water back on, my kitchen faucet head was blocked - more fun.
MountainMike MountainMike
Very duraable programmable recurculation pump.
Almost everything about this little recirculation pump I like. Comes with a long cord, I think 8 feet, and has a clock face which allows turning on and off the pump in 15 minute intervals. I have mine installed above the hot water outlet of the water heater and plug the power cord into the same outlet that the washer and dryer are plugged into. Clock must be synchronized with actual time, then one can turn the pump on or off, depending on location of little tabs located around the face. These little tabs are somewhat awkward to work and appear to be easy to break. My pump has been working for about 3 plus years. By the way, mine is usually off at night, and is programmed on for 15 minutes every hour thru the day. I live in So. Cal. For some people, it could be left off thru much of the summer. I use thermostatically controlled devices which allows the water to flow in the cold water lines during cold times. They are separate, but very important for the system to work correctly.
NeonNancy NeonNancy
Great investment. Read the manual for DIY
Over 2 months of use, I will say this is one of the best investments I have made to my plumbing system. After installation, there was vibration and slight leak at the heater connector/terminals. I followed the air flush steps in the manual to resolve the issue. So, it is very important to read the accompanying manual during your install.
OrangeOscar OrangeOscar
Instahot
everything i needed to install was in the box
