A fuel dispenser pump is a necessary system used to transfer fuel safely and correctly from tanks to vehicles and equipment. It integrates various elements, such as motors, meters, hoses, nozzles, and a control system, to deliver fuel smoothly. The following description of a fuel dispenser pump’s operation explains how fuel moves, how measurements are computed, and how safety mechanisms are used. Whether you are operating a commercial fueling station or a personal fueling installation, being familiar with the fundamentals of installation, maintenance, and troubleshooting can enhance efficiency. This guide describes how fuel dispenser pumps work, their types, issues, and maintenance needs.
Sommario

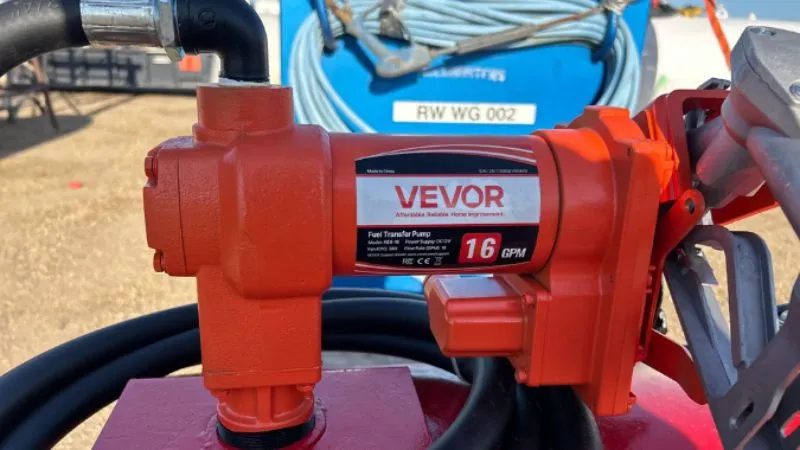

How Does a Fuel Dispenser Pump Work?
A fuel dispenser pump is designed to pump fuel from a storage tank, controlled by a pumping system, to a vehicle via a nozzle. The overall process uses various components that can be combined, including pumps, fuel lines, filters, valves, meters, and control systems.
The system will be able to keep the flow of the fuel steady, determine the amount that is dispensed accurately, and operate safely. Answering: What does a fuel dispenser pump do? can assist you in learning how every component of the fuel dispenser pump will contribute to the smooth transfer of fuel out of storage and to the final delivery point.
Consigliato per il tuo progetto
How Fuel Moves From the Storage Tank
Fuel transfer begins with the pumping of fuel out of a storage tank and transporting it to the dispenser unit. Storage tanks can either be underground at fuel stations or mounted outside in personal fueling systems. The process of transporting fuel is determined by the kind of pumping system in use.
Other dispensers operate on suction pump systems, which draw the fuel through the tank by using fuel lines. Some employ submersible pump systems installed in the storage tank, which force fuel to the dispenser. Fuel is often filtered before it reaches the pump to remove dirt, debris, and other contaminants. These elements help safeguard the system and ensure clean, dependable fuel delivery.
How the Pump Controls Fuel Flow and Pressure
Once the fuel has been taken out of the storage tank, the pump system regulates the rate at which the fuel flows out of the dispenser. The internal pumping mechanism, which is driven by the motor, provides the force to move fuel along the connected lines. This is a significant component of a fuel dispenser pump’s operation, as it promotes a uniform supply of fuel.
The system has valves that control the flow of fuel by maintaining pressure and ensuring that there is no undesired backflow. The pump maintains the appropriate pressure to allow fuel to flow smoothly to the nozzle without disruption. Adequate pressure management will also minimize the stress on internal parts and ensure the dispenser works safely in repeated use.
How the System Measures and Dispenses Fuel
The dispenser measures the amount of fuel being dispensed before it gets to the vehicle using a built-in flow measurement system. A flow meter monitors the amount of fuel that is flowing through the unit and transmits the data to the electronic display. The display then computes the total amount of fuel and the cost of the fuel according to the measured amount.
The nozzle manages the last phase of fuel flow by enabling or disabling the flow of fuel accordingly. When you press the nozzle handle, the valve opens, and fuel flows into the vehicle tank. The flow is stopped by releasing the handle, preventing spills and overfilling. The combination of measurement and control of the fuel dispenser pump makes it very accurate and efficient in the day-to-day fueling operation.

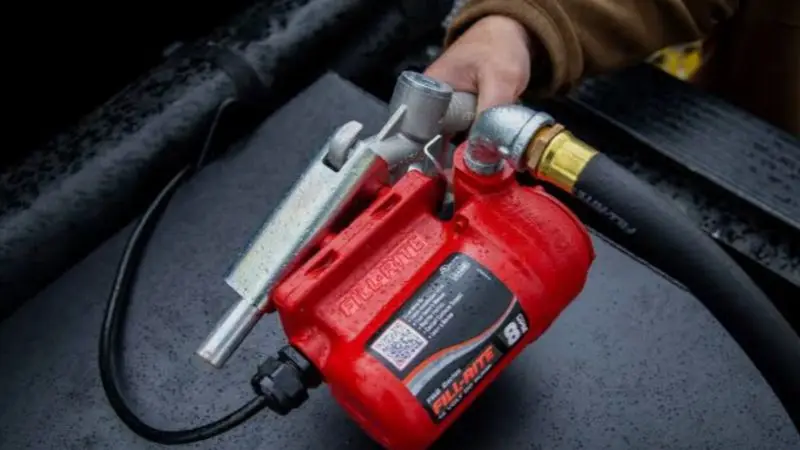

What Are the Main Parts of a Fuel Dispenser Pump?
A fuel dispenser pump consists of various key components that collaborate to transfer, measure, and deliver fuel safely. Each part plays a role, whether it is to transfer fuel through the system, regulate the amount dispensed, or safeguard equipment.
Learning the key elements can make it easier to learn how a fuel dispenser pump works and troubleshoot when operating or maintaining the device. A properly designed dispensing system relies on correct functioning of all the components: the motor, the meter, the nozzle, the control system, and safety functions.
Pump Motor: The Power Source for Fuel Movement
One of the most crucial components in a sistema di erogazione del carburante is the pump motor since it supplies the energy required to transfer fuel from the storage tank to the nozzle. The motor operates the pumping mechanism when the system is in operation and generates the pressure necessary to maintain a constant flow of fuel.
Electric motors are employed in most modern systems due to their reliable performance, consistent operation, and improved control of fuel movement. The motor should be correctly correlated with the pump capacity to ensure efficient working. A damaged or faulty motor can slow down the flow of fuel, create interruptions, or influence the overall performance of the fuel dispenser pump.
Flow Meter: Measuring Fuel Volume Accurately
The flow meter has the role of measuring the quantity of fuel that actually flows through the dispenser. As fuel passes through the system, the meter measures the volume and transfers the data to the control unit, which calculates the quantity and cost that is displayed.
Precision cannot be overemphasized, as minimal measurement errors can give erroneous fuel readings. Frequent calibration is also used to sustain credible performance and make sure that the dispenser makes the right measurements. A commercial fueling operation that involves the need to track the fuel precisely needs an appropriately functioning flow meter.
Fuel Nozzle and Hose: Controlling Fuel Delivery
The last components of the dispensing system are the fuel nozzle and the hose, which deliver fuel into the vehicle tank. The hose creates a flexible space between the dispenser and nozzle to enable easy fueling without compromising a safe fuel path.
When fuel begins and ends flowing, it is controlled by the nozzle. Most contemporary nozzles have automatic shut-off devices that sense when the fuel tank is full and are used to prevent spills. These safety functions ease the operation of the fuel dispenser pump as well as minimise the chances of fuel overflow and accidents during the fuel dispensing process.
Control System and Display Panel: Managing Operation
The display panel and the control system serve as the central communication point in the dispenser. They control vital processes including fuel measurements, pricing data, and user controls. Digital screens indicate information such as the quantity of fuel depleted, overall payment, and the working condition.
Modern systems can also include electronic settings, enabling operators to control performance and fueling operations more effectively. The control unit interprets the information given to it by various parts, processes the information, and makes sure that the dispenser is operating as it should. A good control system enhances convenience, accuracy, and overall system management.
Filters and Safety Components: Protecting the System
Safety components and filters are used to maintain a clean and safe dispensing system. Fuel filters are used to eliminate dirt, particles, and other contaminants before fuel gets to sensitive internal parts. This helps prevent damage, improves fuel quality, and increases the life of the equipment.
Other safety measures, like emergency shutoff systems and safety valves, provide extra protection in case of unforeseen circumstances. These characteristics can halt the flow of fuel quickly in case of an issue, helping curb leaks and risks. To maintain a fuel dispenser pump, proper maintenance of these parts is key and helps keep them safe to operate in the long term.

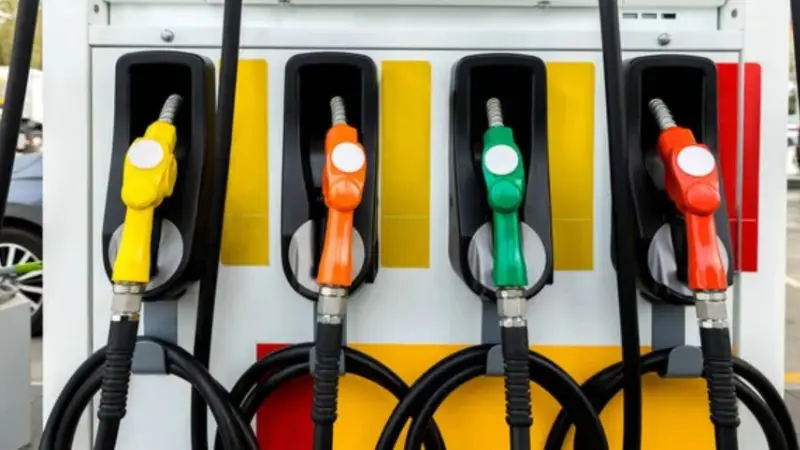

Types of Fuel Dispenser Pumps
Fuel dispenser pumps are designed in various forms to meet different fueling needs. The optimal choice is determined by factors that include the amount of fuel, tank arrangement, installation location, and system frequency of use.
There are pumps fitted in commercial fueling stations where massive quantities of fuel are involved, and others are more appropriate in farms, workshops, and equipment fueling. Knowing these types of pumps can help you select a fuel dispenser pump that offers good performance and meets your unique requirements.
Suction Fuel Pumps for Pulling Fuel From Storage Tanks
Suction fuel pumps operate by drawing fuel out of a fuel storage tank using a set of fuel lines. In this type of system, the pump is typically placed outside the tank and generates a force of suction to pull fuel to the dispenser. The fuel is then pumped through filters and pipes to the nozzle where it is delivered.
Such pumps are often installed in smaller fueling systems since they are conveniently inspected and repaired. They can be easily maintained since they are installed externally as opposed to pumps installed in storage tanks. Nevertheless, the suction pump is not always as effective as any other system on long fuel lines or for high-volume fueling. Adequate installation and maintenance facilitate a hassle-free flow of fuel and dependable operation.
Submersible Fuel Pumps for Moving Fuel From Inside the Tank
Storage tanks have submersible fuel pumps that force the fuel to the dispenser unit. These pumps generate pressure in the tank rather than outside the tank, as seen in suction systems, enabling the fuel to flow effectively through the system.
The pumps are usually employed in commercial fueling stations where they need to deliver fuel quickly and continuously. Their structure helps maintain constant pressure and increases fuel transfer distances. The pump is located within the tank, which minimizes noise during operation and maximizes fuel flow efficiency. A submersible fuel dispenser pump may be used to offer reliable operation and more control over fuel delivery in high-demand applications.
Portable Fuel Pumps for Easy Equipment Fueling
Portable fuel pumps are small devices used for flexible fueling. They are commonly applied to agricultural machinery, generators, construction equipment, boats, and workshop vehicles where a permanent fueling station is not always a viable option.
È prodotto in pompe portatili that can be used with external fuel tanks or containers to easily transfer fuel. Portable systems typically have a lower flow rate than commercial dispensers, but are handy in smaller fueling jobs. When choosing a portable pump, consider factors like fuel compatibility, power source, transfer speed, and the type of equipment you want to refuel.
How Does a Fuel Dispenser Pump Improve Safety?
The dispensing system includes fuel safety, which is a significant element since inappropriate handling may result in spills, leakages, or fire hazards. A modern fuel dispenser pump has numerous safety measures that help control fuel flow and safeguard the equipment and surroundings.
All these safety components combine to offer safe operation with each fueling process. These features can also be easily understood to identify problems and troubleshoot a fuel dispenser pump when issues arise.
Automatic Nozzle Shutoff to Prevent Fuel Overflows
A fuel nozzle has an automatic shutoff option; this prevents overfilling in the fuel tank by halting the flow of the fuel when the tank is full. The nozzle has a sensing mechanism that senses pressure variations and closes the shutoff valve when fuel reaches a specific amount.
This safety measure minimises fuel spillage, avoids unnecessary wastage, and simplifies the fueling process. It enables the system to automatically shut down and not require the operator to constantly watch the system. The malfunctioning nozzle shutoff system may influence safe functioning, and regular inspection of the nozzle state is a significant aspect of maintaining a fuel dispenser pump.
Pressure Control and Leak Protection Systems
Leak protection systems and pressure control systems help maintain stability and safety of fuel movement during the dispensing process. Valves and regulators keep fuel pressure within normal limits to prevent overpowering forces that may destroy hoses, pipes, or internal parts.
Leakage sensors are used to detect abnormal pressure variations that could reflect a loss of fuel or equipment issues. Periodic check-up of fuel lines, seals, as well as connections is used to prevent leaks and enhance system reliability. The appropriate pressure management also contributes to improved performance and lifespan of the fuel dispenser pump.
Grounding and Electrical Protection for Safe Operation
Electrical protection is necessary in the use of fuel dispensing equipment since fuel vapors may ignite when in contact with sparks or electrostatic charges. Adequate grounding will help manage any static accumulation and minimize the chance of electrical discharge around fuel.
Specially designed electrical components are used in fuel dispenser systems to manage fuel-related environments in the safest manner. Installation, wiring, and connections should be done correctly and maintained regularly to ensure reliability. By observing good electrical safety measures, operators, equipment, and the surrounding area are safeguarded, and this assists in safe and efficient dispensing of fuels.
Incartare
A fuel dispenser pump is significant to deliver safe, controlled, and precise fuel. All the parts are connected to each other to ensure precise performance, starting with the transfer of fuel in storage systems to the final quantity that is dispensed. Learning to operate a fuel dispenser pump, maintain it, and troubleshoot it can be used to enhance safety and minimize downtime. Proper selection of the type of pump and frequent inspection and cleaning of key parts may increase equipment life. A fuel dispenser system can last many years with proper care and professional servicing as needed.
FAQ
How does a fuel dispenser pump work?
A fuel dispenser pump pumps fuel through a storage tank, via pumps, filters, and a fuel line to a nozzle. Flow meters are used to dispense the quantity of fuel.
What is your method of maintaining a fuel dispenser pump?
The fuel dispenser pump can be maintained by checking hoses, cleaning parts, changing filters, checking connections, and regular calibration so that it measures correctly and performs reliably.
What do you do to troubleshoot a fuel dispenser pump?
Diagnostic measures to troubleshoot a fuel dispenser pump: verify power connection, check filters, fuel lines, motor inspection, and check the control system to determine potential problems in operating the pump.
What is the procedure for installing a fuel dispenser pump?
Install the fuel dispenser pump properly, with securely connected fuel lines, proper electrical installation, grounding, and testing. Professional installation helps ensure safe and efficient operation.
What is your selection of a fuel dispenser pump?
Select a fuel dispenser pump according to the type of fuel, flow rate needed, storage tank design, frequency of use, power source, and pump use according to application requirements to ensure good performance over a long period of time.
