Features & Details

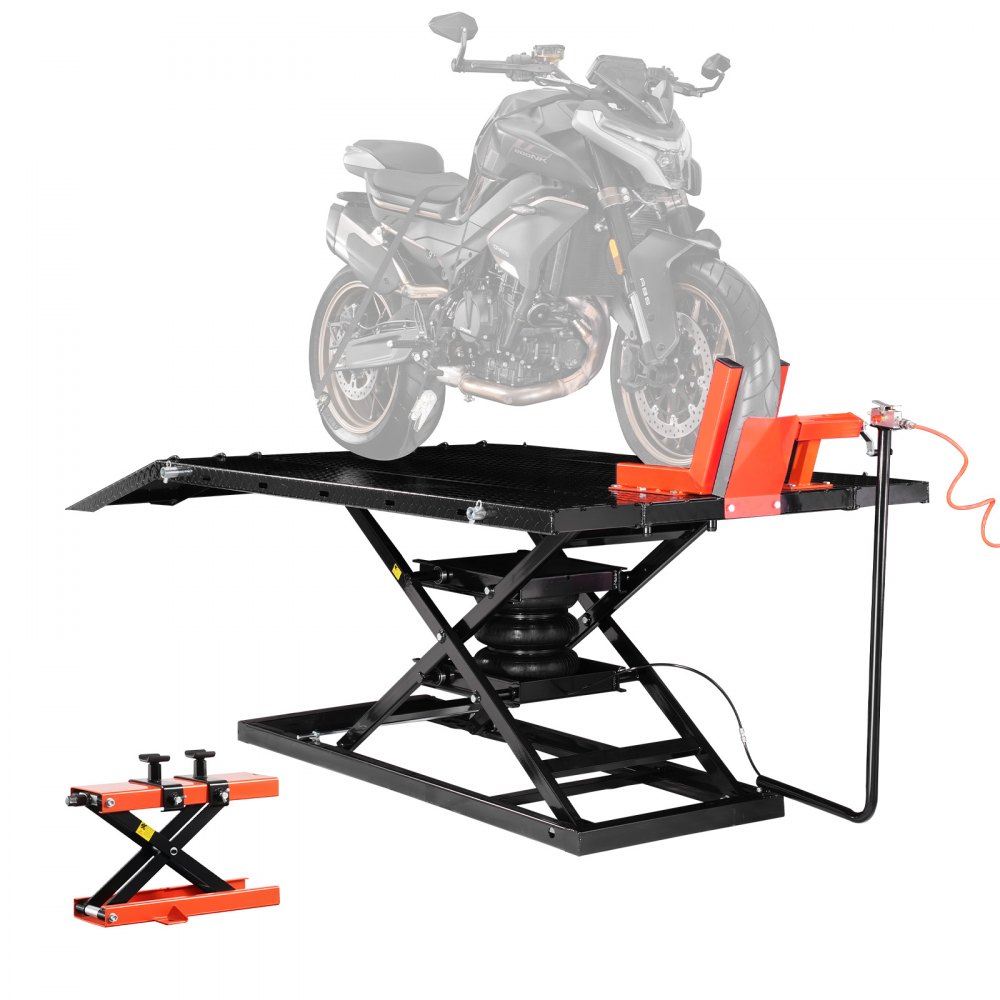

• 1500 lbs Weight Capacity: This pneumatic motorcycle lift platform has a maximum load capacity of 1500 lbs, making it capable of lifting most standard motorcycles, touring bikes, cruisers, and more.

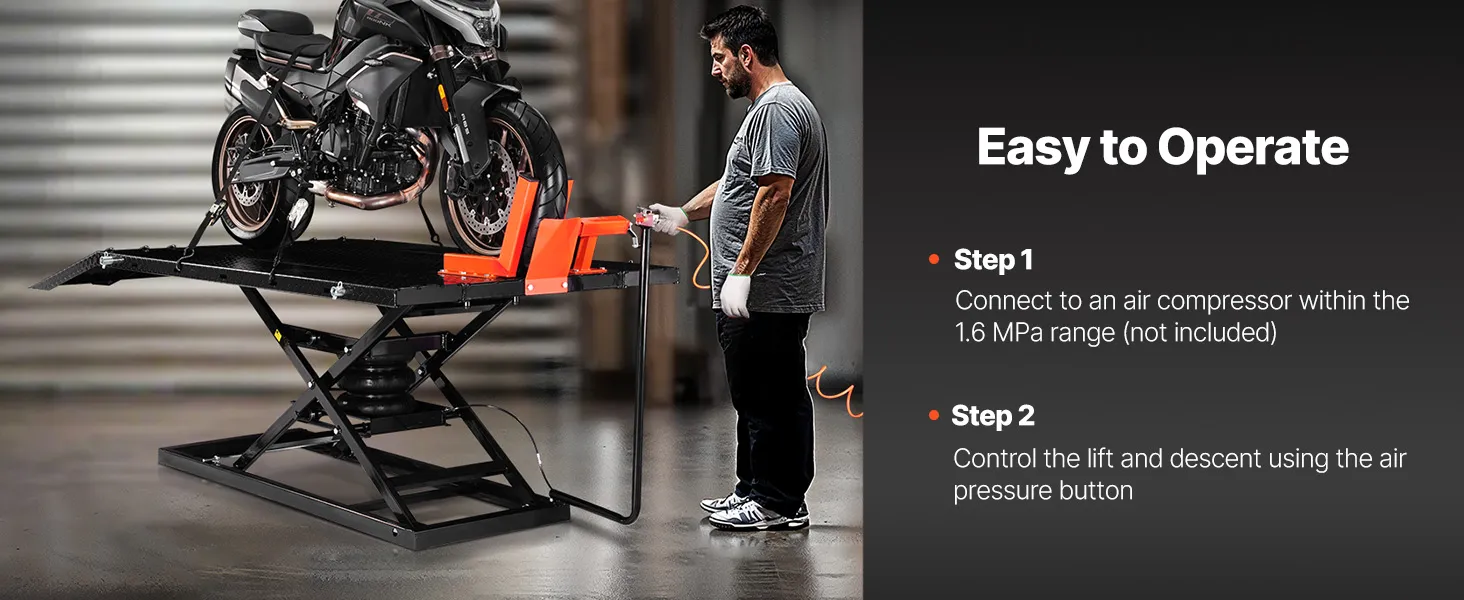

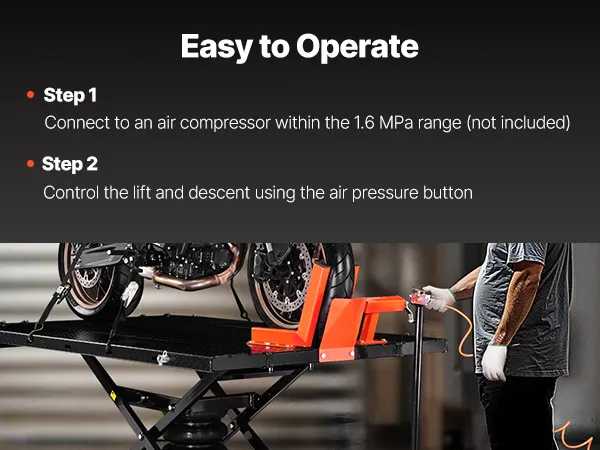

• Pneumatic Lifting: Equipped with a high-quality pneumatic pump, the motorcycle lift jack with foot pedal easily lifts the bike, saving effort and reducing resistance. The pneumatic pump features excellent airtightness, ensuring stable and reliable lifting.

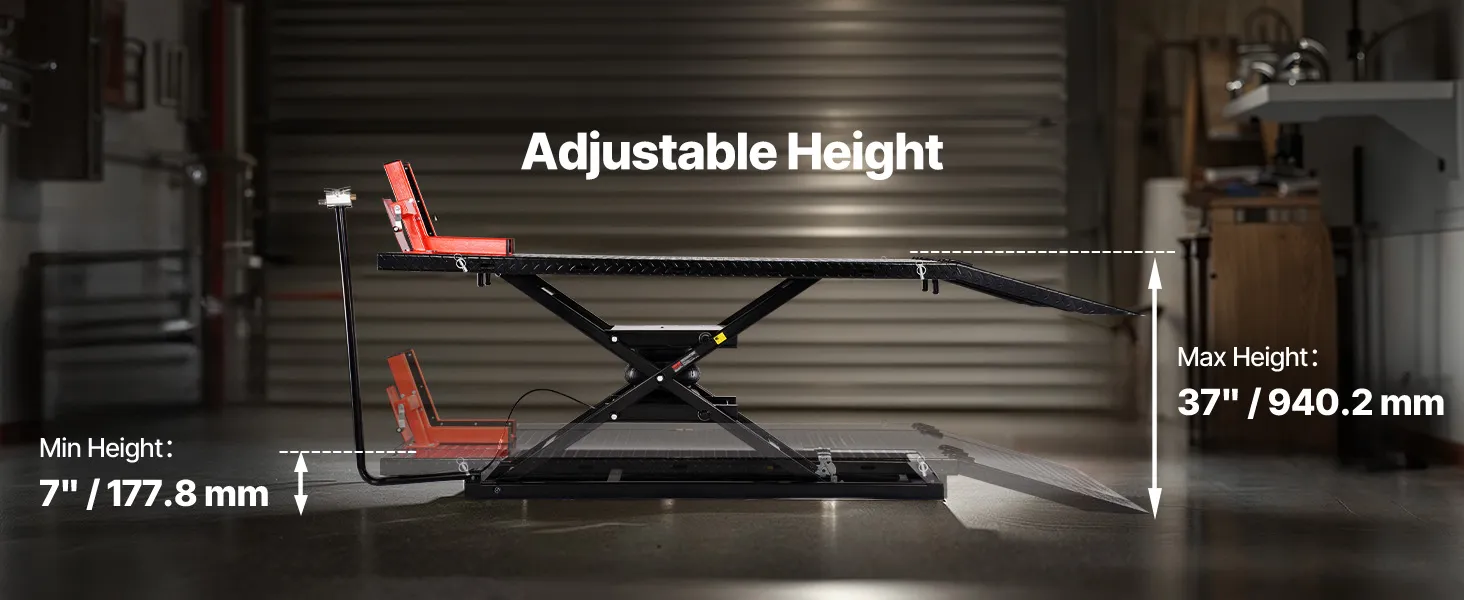

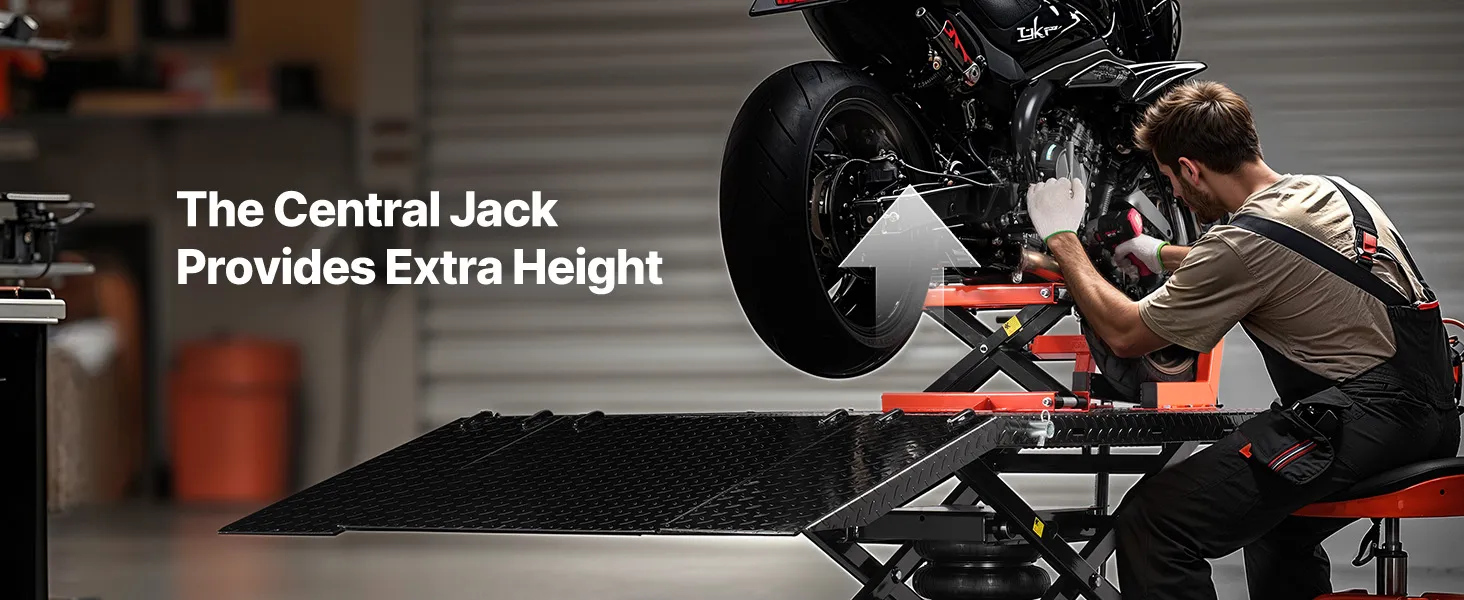

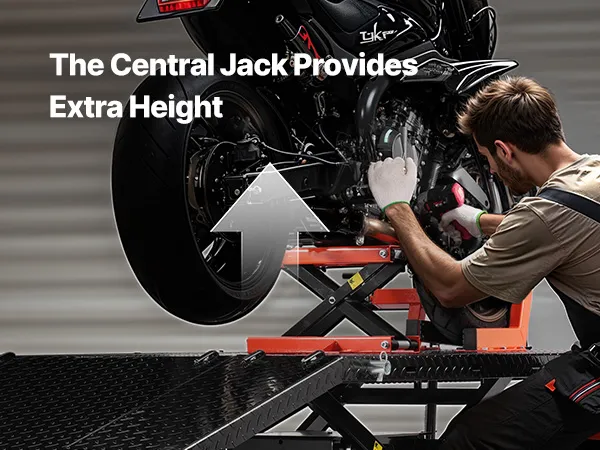

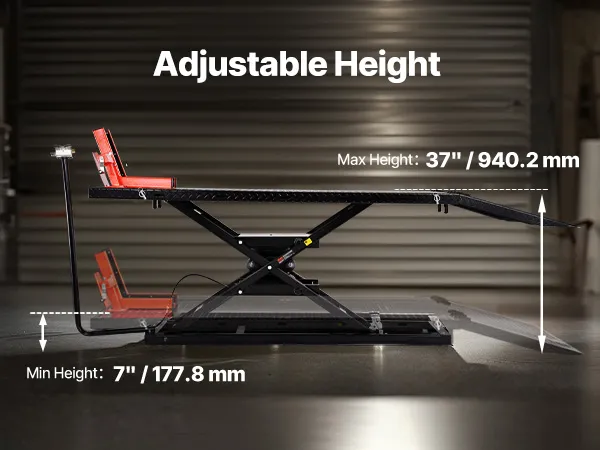

• Height Range: With an extensive height adjustment range of 7 to 37 inches (177.8 - 940.2 mm), this lift also includes a central jack to provide additional height, making it ideal for professional repair shops to service various types of motorcycles.

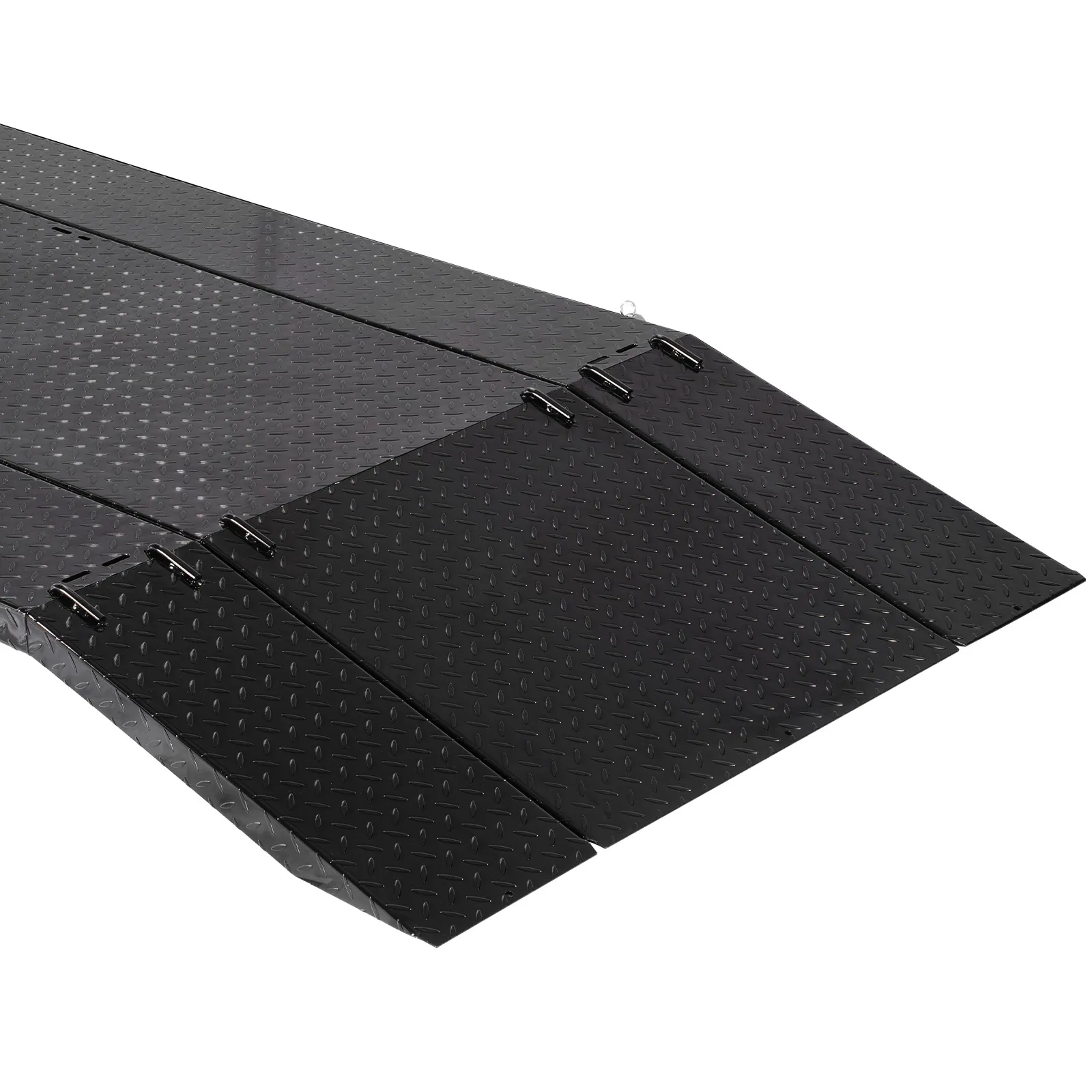

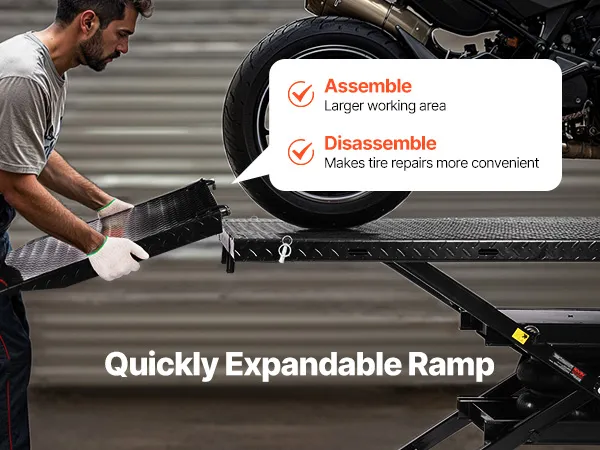

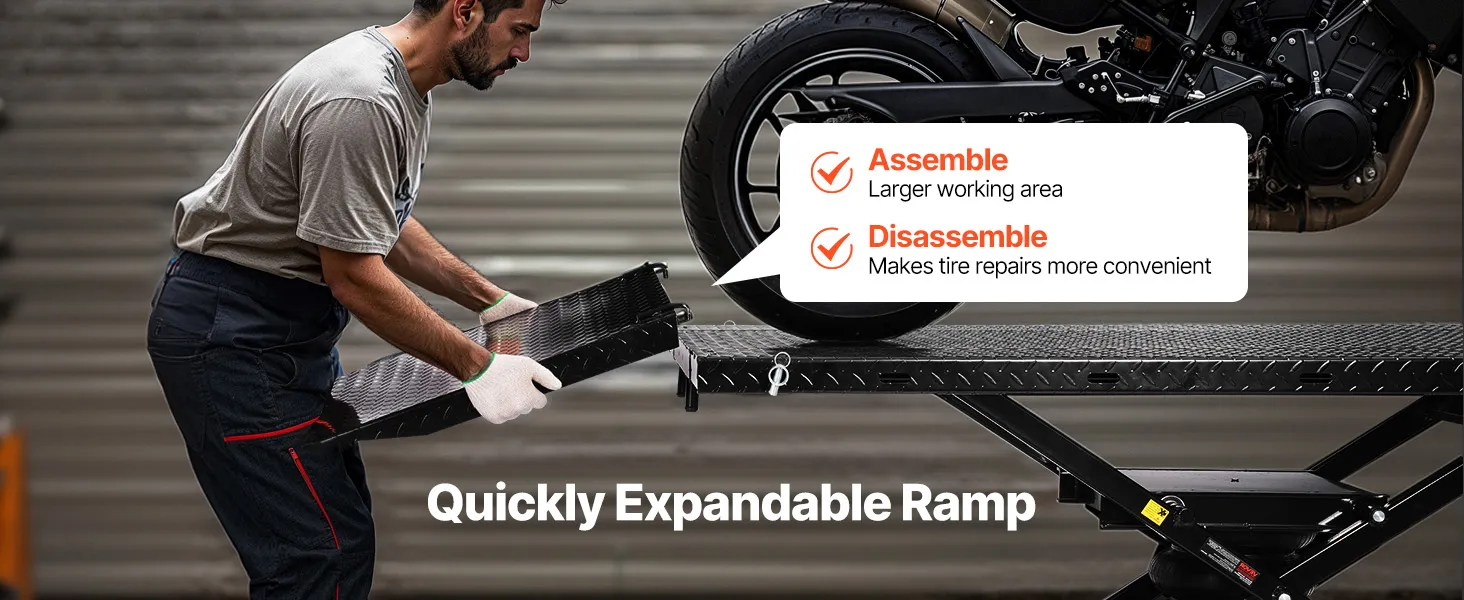

• Removable Workbench: The ramp is divided into three sections, which can be easily disassembled and assembled. This motorcycle jack stand allows for easy loading of the motorcycle onto the platform, and the ramp can also be removed for convenient inspection of the rear wheel.

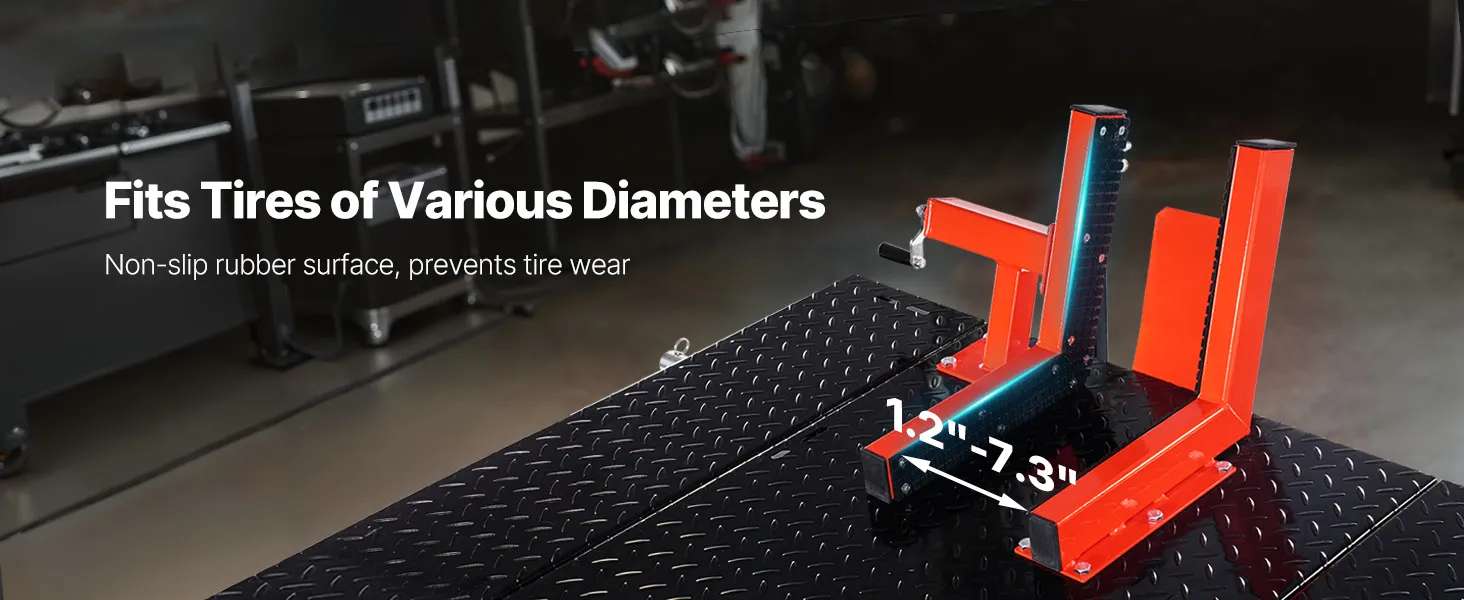

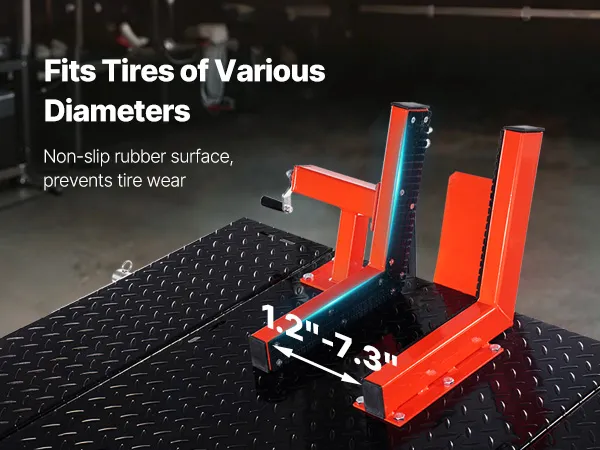

• Secure Fixing: The adjustable wheel chock fits tires of different diameters. A security lock is located under the workbench, and once the desired height is reached, the security pin can be inserted to prevent accidental lowering.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

JL-M03804

Load Capacity

1500 lbs

Workbench Dimensions(L x H)

78.7 x 48 inches / 2000 x 1220 mm

Thickness

0.1 inch / 2.5 mm

Minimum Lifting Height

7 inches / 177.8 mm

Maximum Lifting Height

37 inches / 940.2 mm

Lifting Type

Pneumatic

Surface Treatment

Powder Coating

Pressure Range

1.6 MPa

Airbag Model

300H-3

Airbag Material

Rubber

Thrust

3t

Center Jack Load

1100 lbs

Center Jack Material

Q235B

Dimensions

17.7 x 5.9 x (3.5-16.5) inches / 450 x 150 x (90-420) mm

Net Weight

560 lbs / 254kg

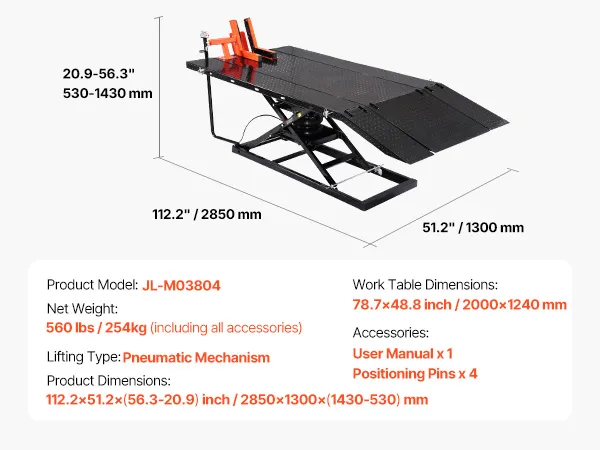

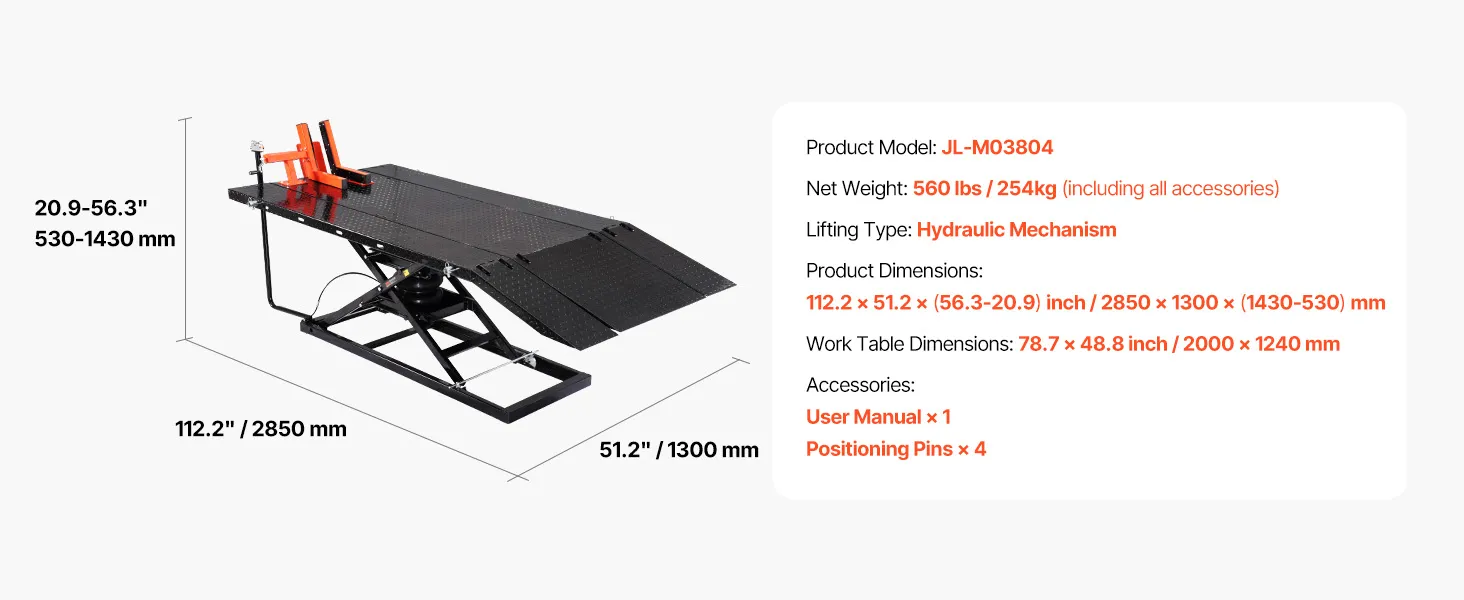

Product Dimensions

112.2 × 51.2×（56.3-20.9）inch / 2850 × 1300×（1430-530）mm

Description

The Ideal Helper for Motorcycle Repairs

This motorcycle lift is compatible with various motorcycle models, offering strong load capacity to easily lift heavy motorcycles. With excellent stability and adjustable height, it makes motorcycle maintenance professional and convenient. The included security pin lock securely fixes the height.

•
•

AdjustableSecondary Lifting

•
•

AdjustableSecondary Lifting

•
•

WorkbenchSecure Fixing

•
•

WorkbenchSecure Fixing

•
•

Pneumatic LiftingWide Compatability

•
•

Pneumatic LiftingWide Compatability

Key Features

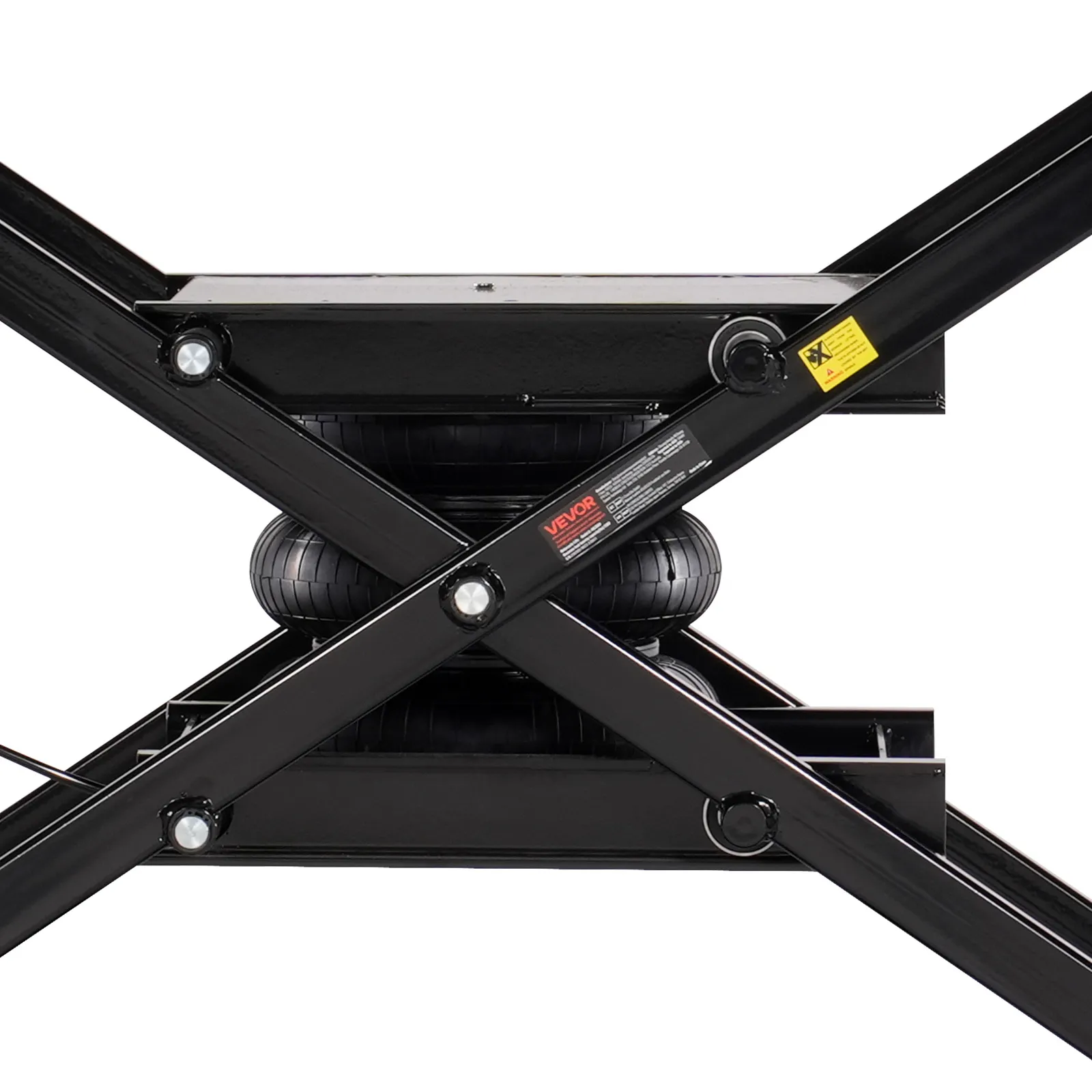

X Bracket

Sturdy steel for strong support

Reinforced Screw Jack

Hardened and resistant to breakage

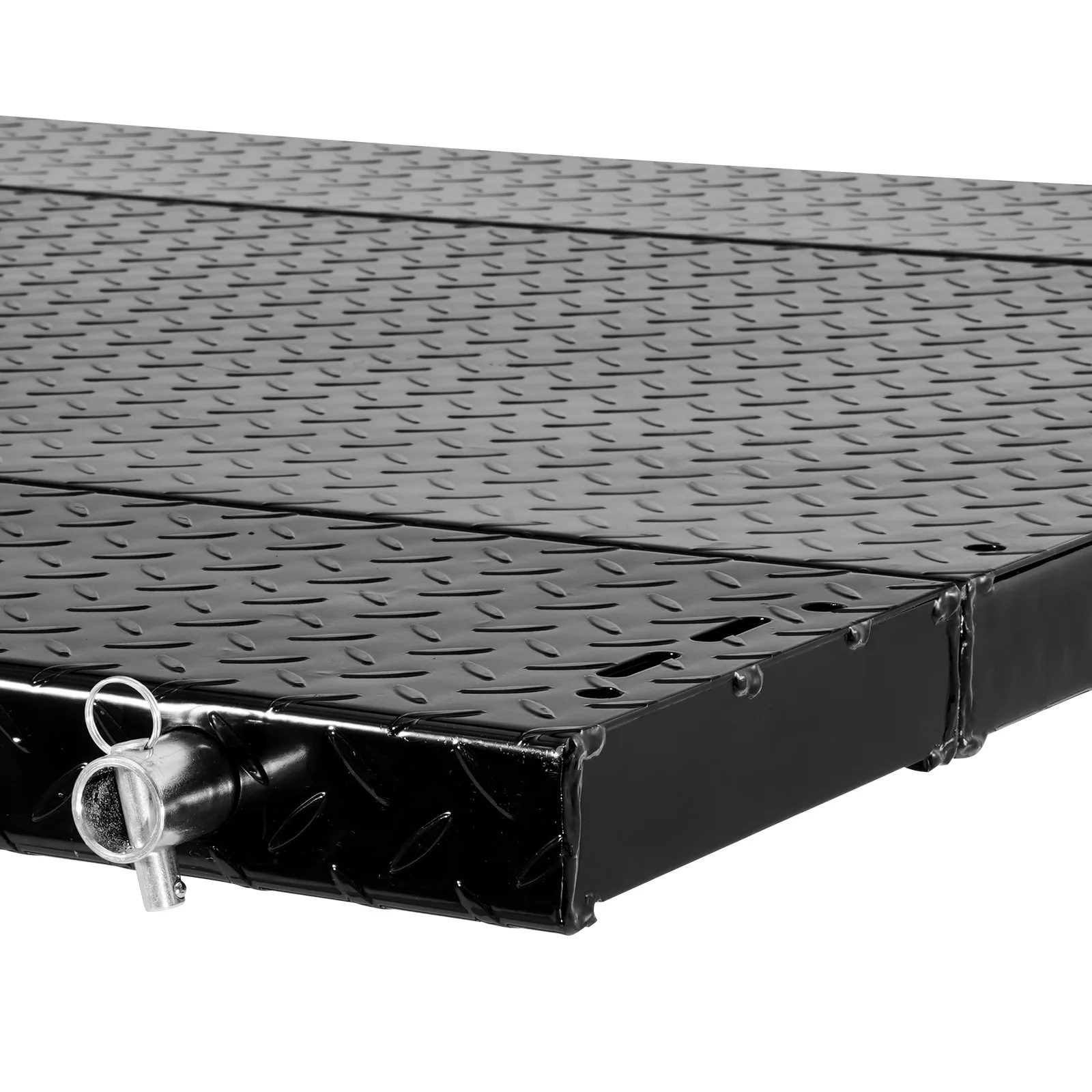

Larger Workbench

Stable support, resistant to wobbling
