Features & Details

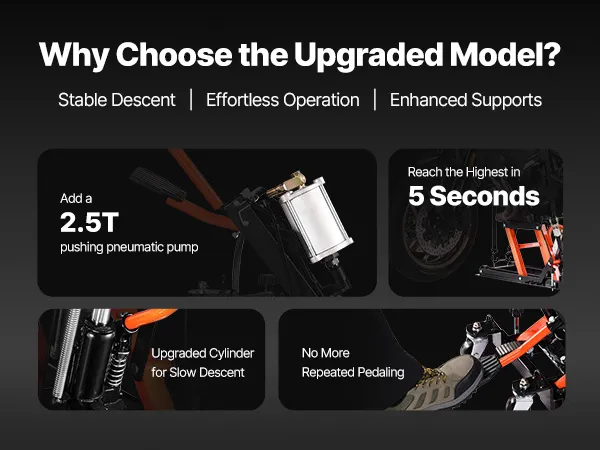

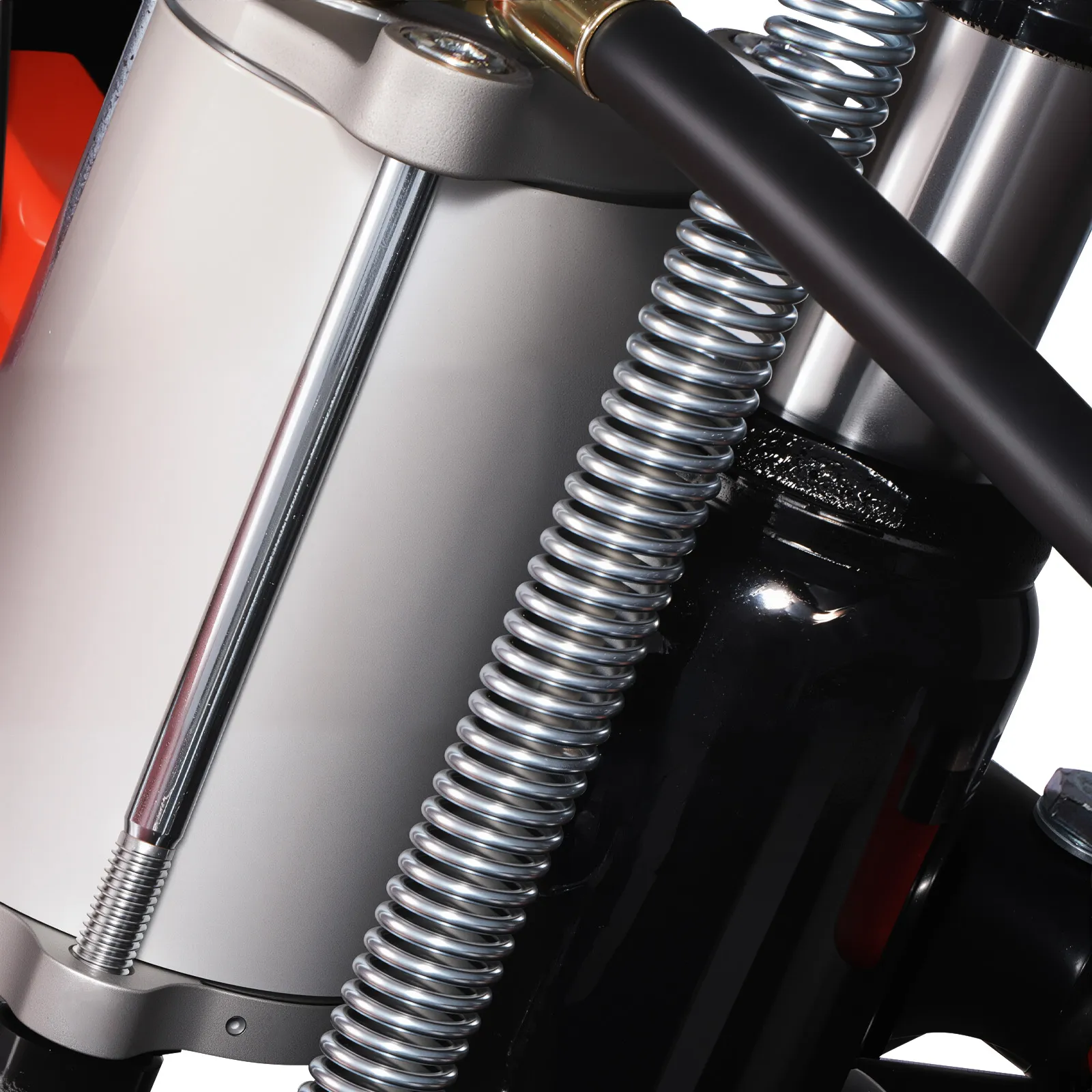

• Dual Hydraulic & Pneumatic Power: This upgraded motorcycle lift features both hydraulic and pneumatic lifting systems, offering stronger support, faster lifting, and less effort when raising heavy motorcycles. The oil-resistant hydraulic pump and airtight pneumatic pump ensure reliable and long-lasting performance.

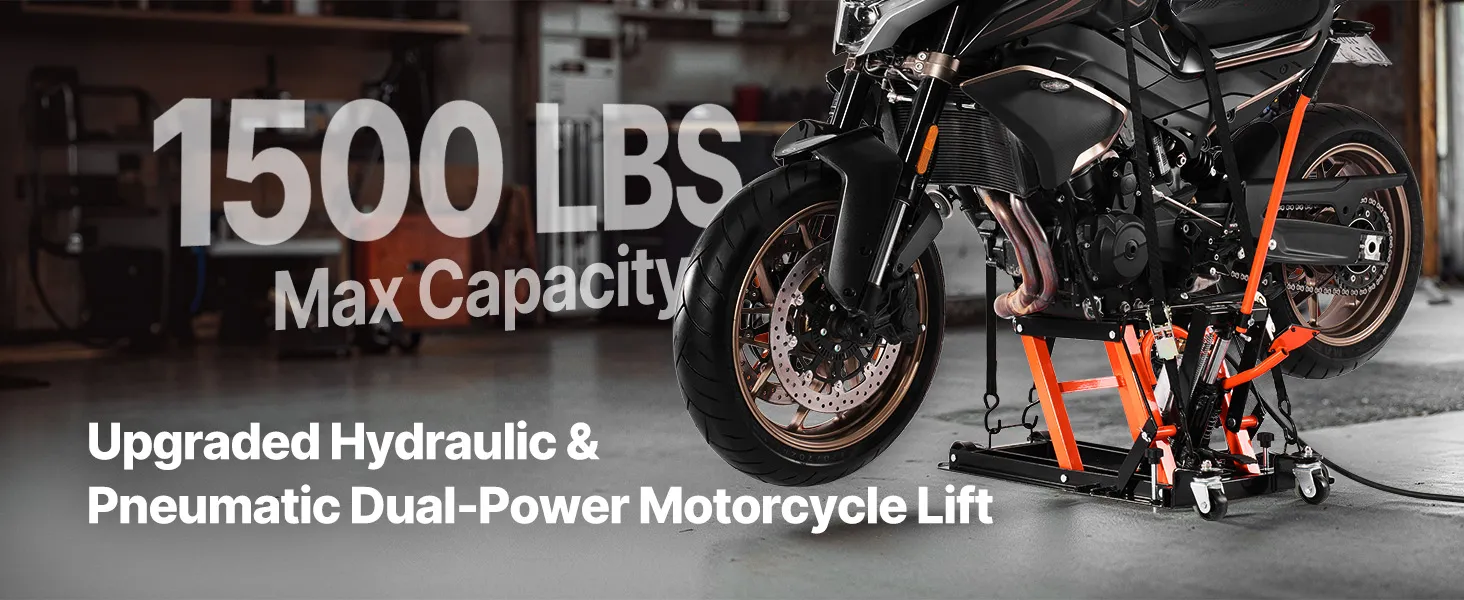

• 1500 lbs Weight Capacity: With a maximum load capacity of 1500 lbs, this motorcycle lift jack, powered by dual systems, can easily lift most standard motorcycles, touring bikes, cruisers, and more.

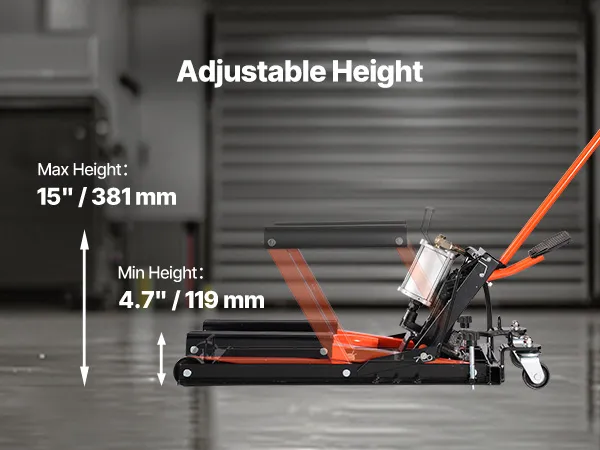

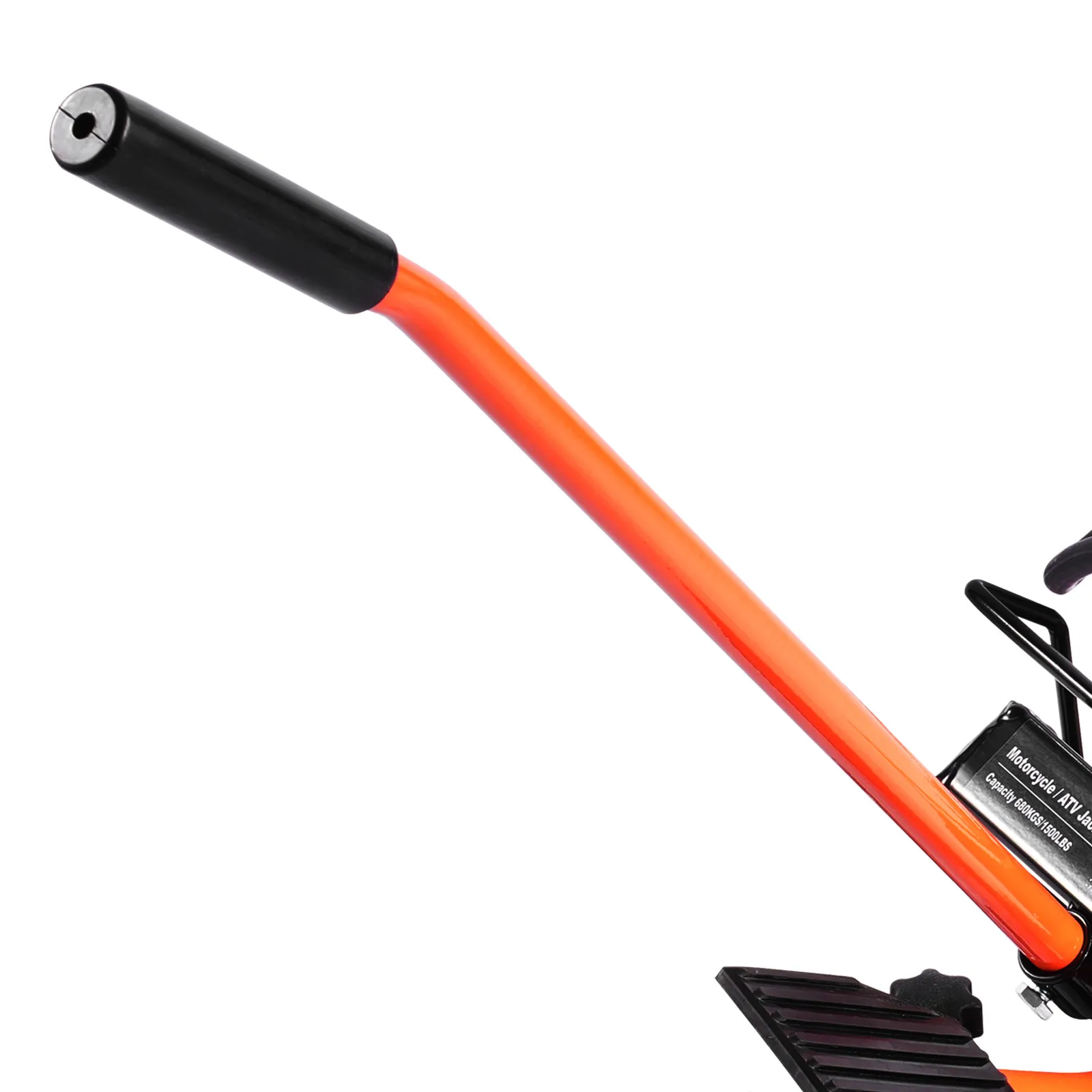

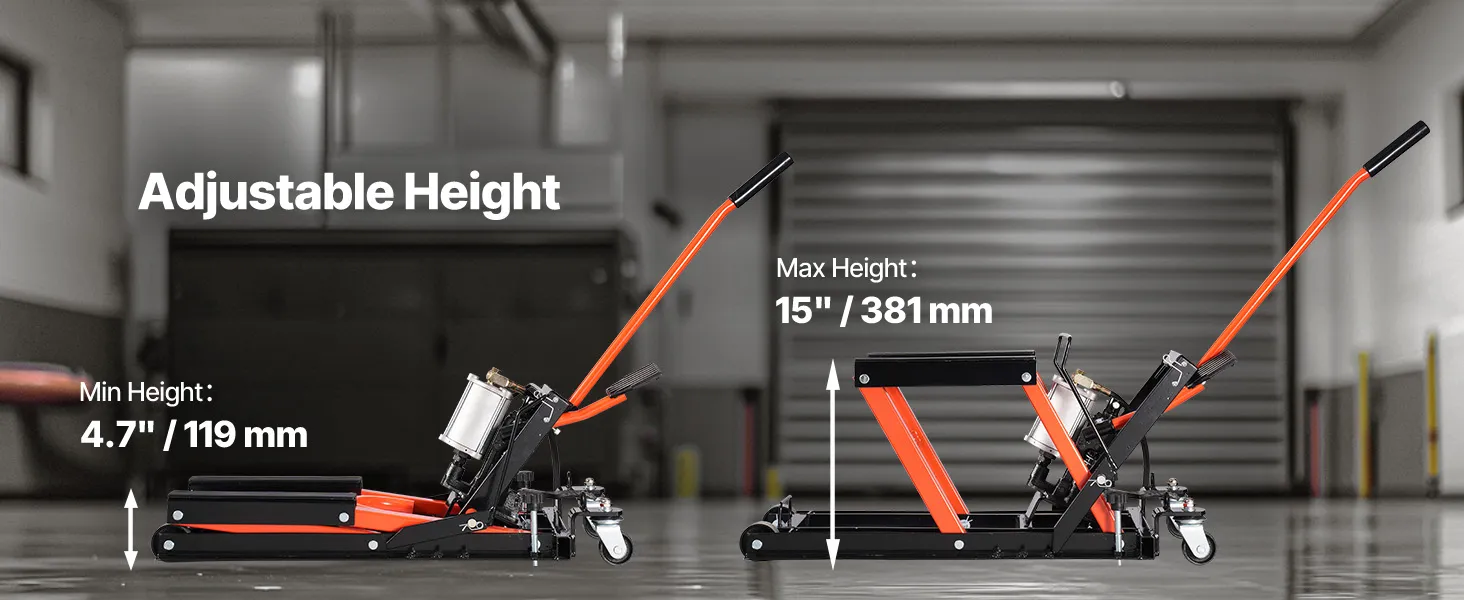

• Height Range: The wide height adjustment range of 4.7 to 15 in (119-381 mm) allows for smooth foot-pedal lifting and pressure release. Equipped with a long handle, the motorcycle jack stand allows you to adjust the height and move the lift under the bike without bending over.

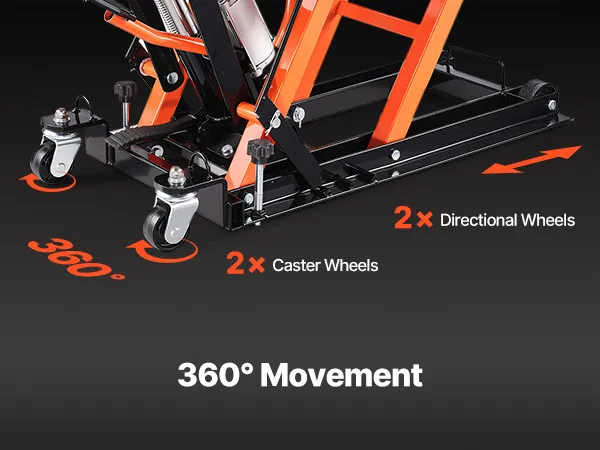

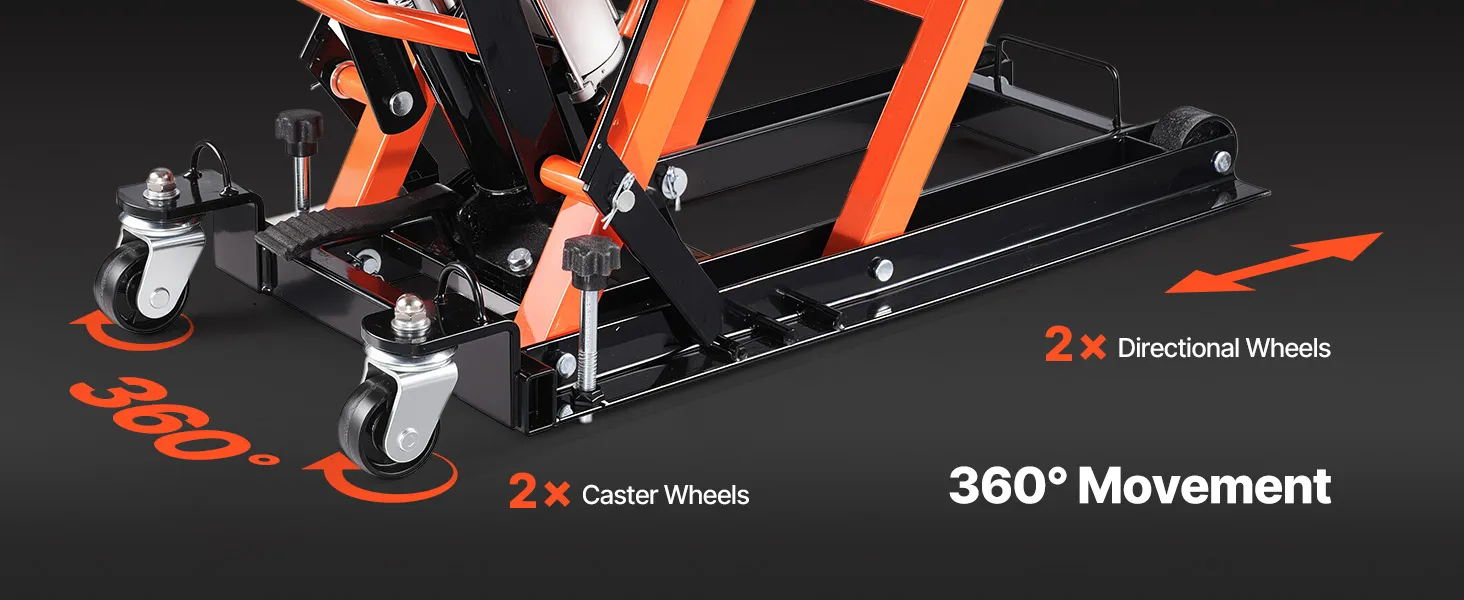

• 360° Flexible Movement: The motorcycle lift features two 360° swivel casters and two directional casters, enabling smooth movement under the motorcycle or to any other location you choose. It also makes it easy to transport heavy vehicles over short distances.

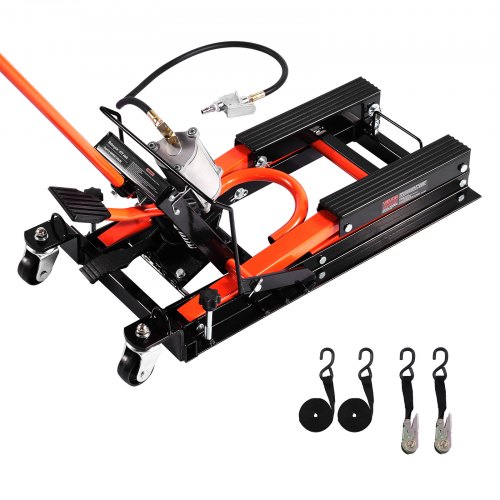

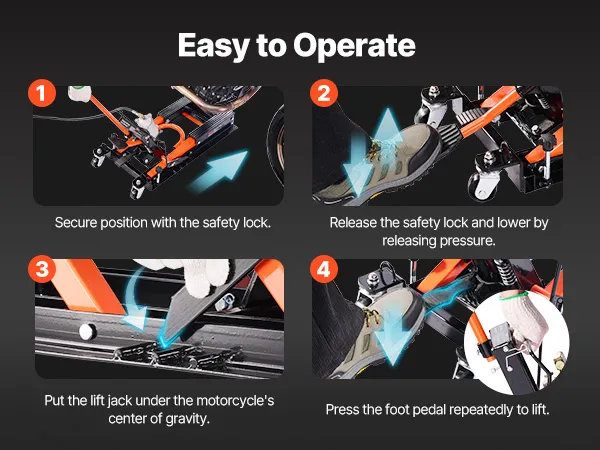

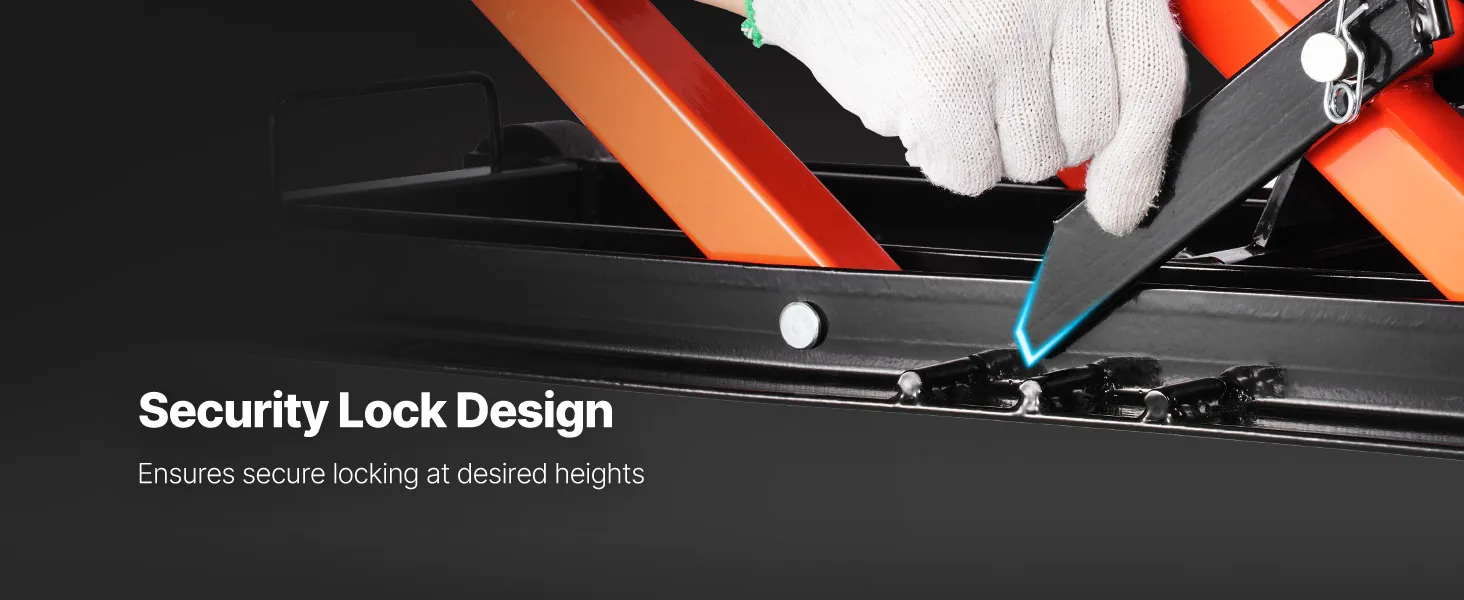

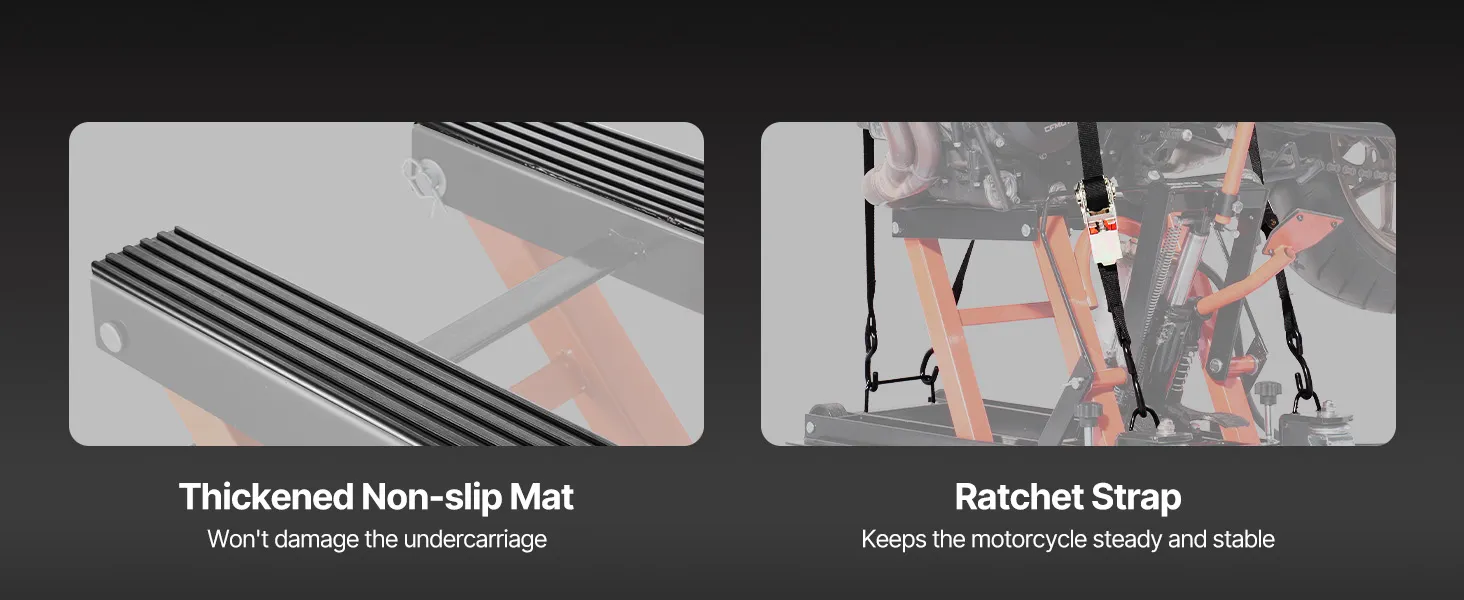

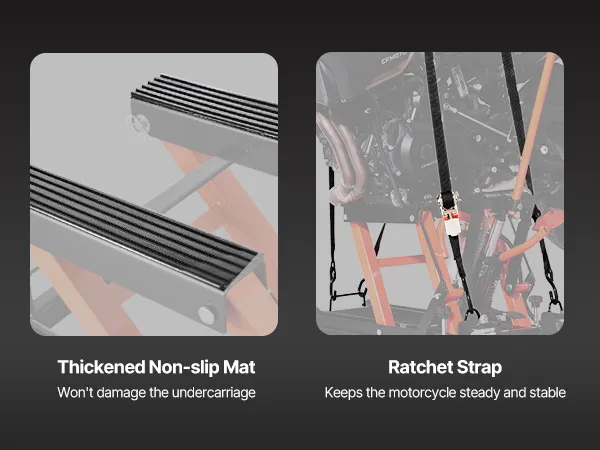

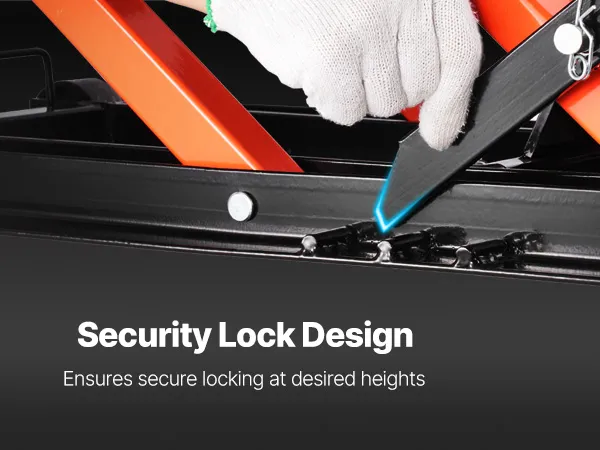

• Secure Fixing: The ratchet strap securely holds the motorcycle in place, while the thick anti-slip pads protect the bike's underside from wear. The security lock ensures that after lifting to the desired height, a security pin can be inserted to prevent accidental lowering.

Frequently Bought Together

Videos for this product

About this item

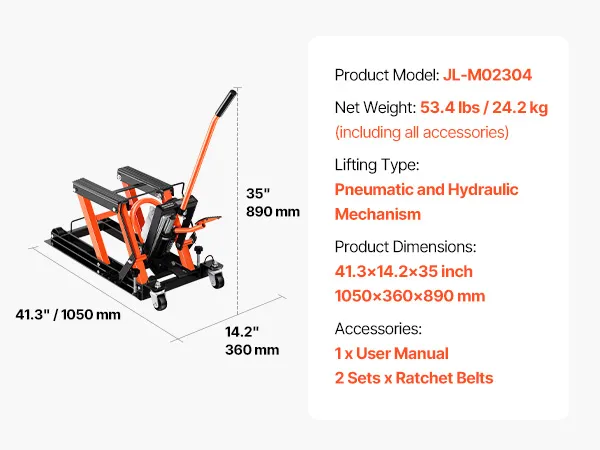

Product specification

Item Model Number

JL-M02304

Load Capacity

1500 lbs

Minimum Lifting Height

4.7 inches / 119 mm

Maximum Lifting Height

15 inches / 381 mm

Lifting Type

Pneumatic and Hydraulic

Surface Treatment

Powder Coating

Swivel Wheels

Outer Diameter φ60mm

Directional Wheels

Outer Diameter φ64mm

Material

Cast Iron

Pressure Range

0.8-2 MPa

Hydraulic Jack Cylinder Diameter

φ60mm

Hydraulic Jack Material

Q235B

Hydraulic Jack Stroke

100mm

Hydraulic Jack Thrust

2.5t

Pneumatic Lifter Cylinder Diameter

φ75mm

Pneumatic Lifter Material

6061 Aluminum

Pneumatic Lifter Thrust

2.5t

Air Hose

(Outer Diameter φ13mm, Length

Net Weight

1/2 Model

Net Weight

2/2 Model

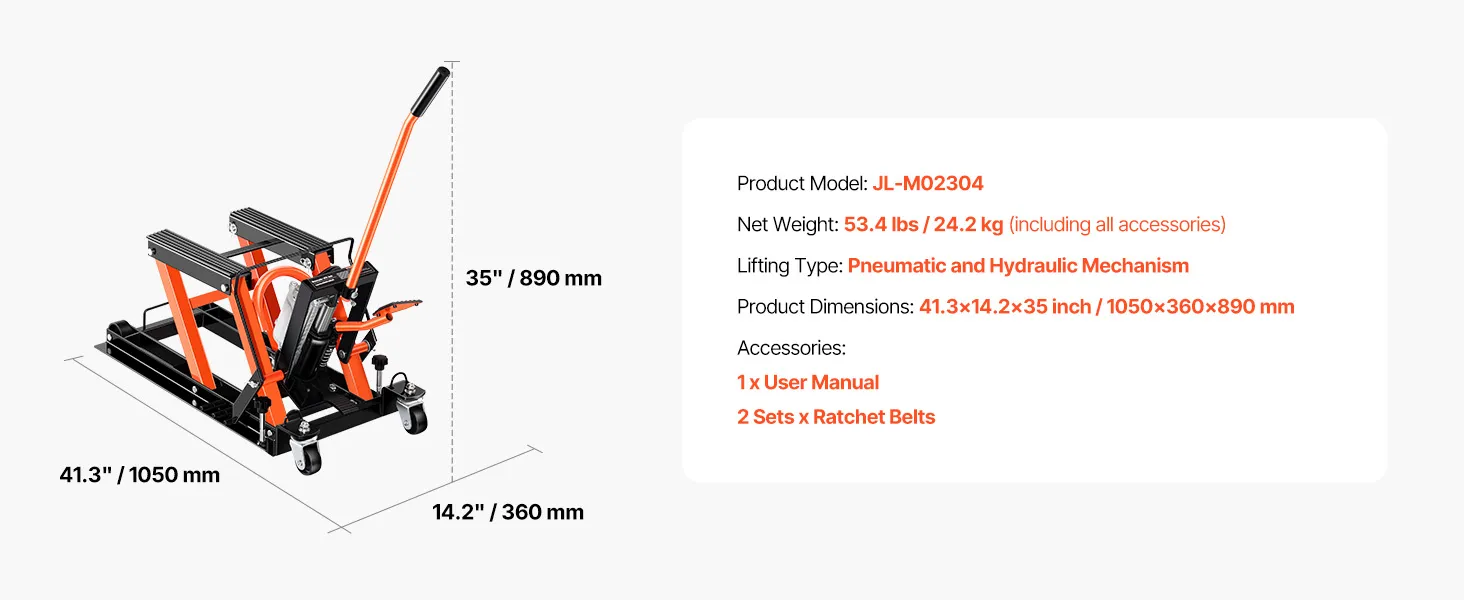

Product Dimensions

41.3 × 14.2 × 35 inch / 1050 × 360 × 890mm

Description

Dual Power, Half the Effort, Twice the Speed

This motorcycle lift is compatible with various motorcycle models, offering strong load capacity to easily lift heavy motorcycles. With excellent stability and adjustable height, it makes motorcycle maintenance professional and convenient. The included security pin lock securely fixes the height.

•
•
•

Dual PowerAdjustableSecurity Lock

•
•
•

Dual PowerAdjustableSecurity Lock

•
•

Flexible MovingSecure Fixing

•
•

Flexible MovingSecure Fixing

•
•

Effortless LiftingWide Compatibility

•
•

Effortless LiftingWide Compatibility

Key Features

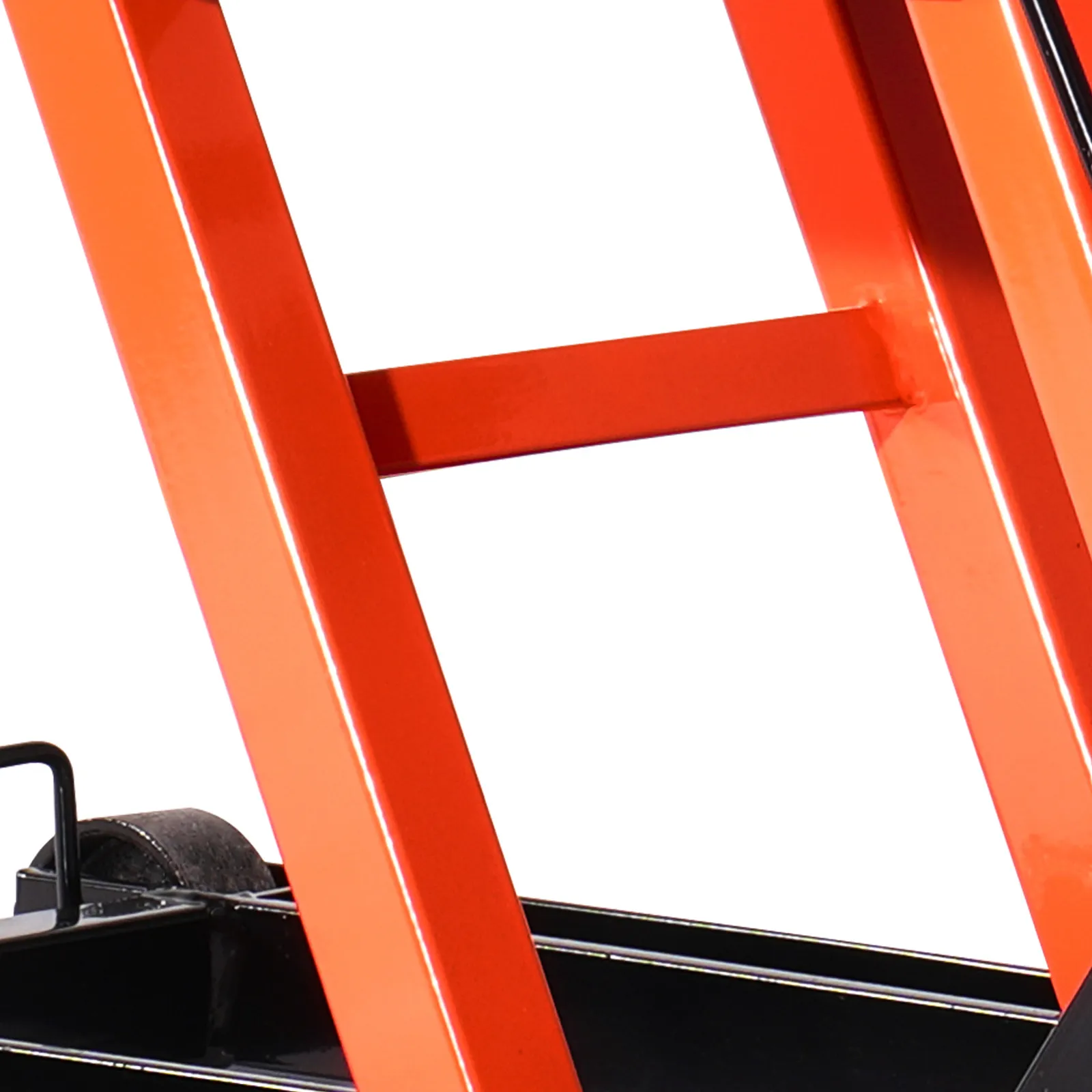

X Bracket

Sturdy steel for strong support

Reinforced Screw Jack

Hardened and resistant to breakage

Larger Workbench

Stable support, resistant to wobbling
