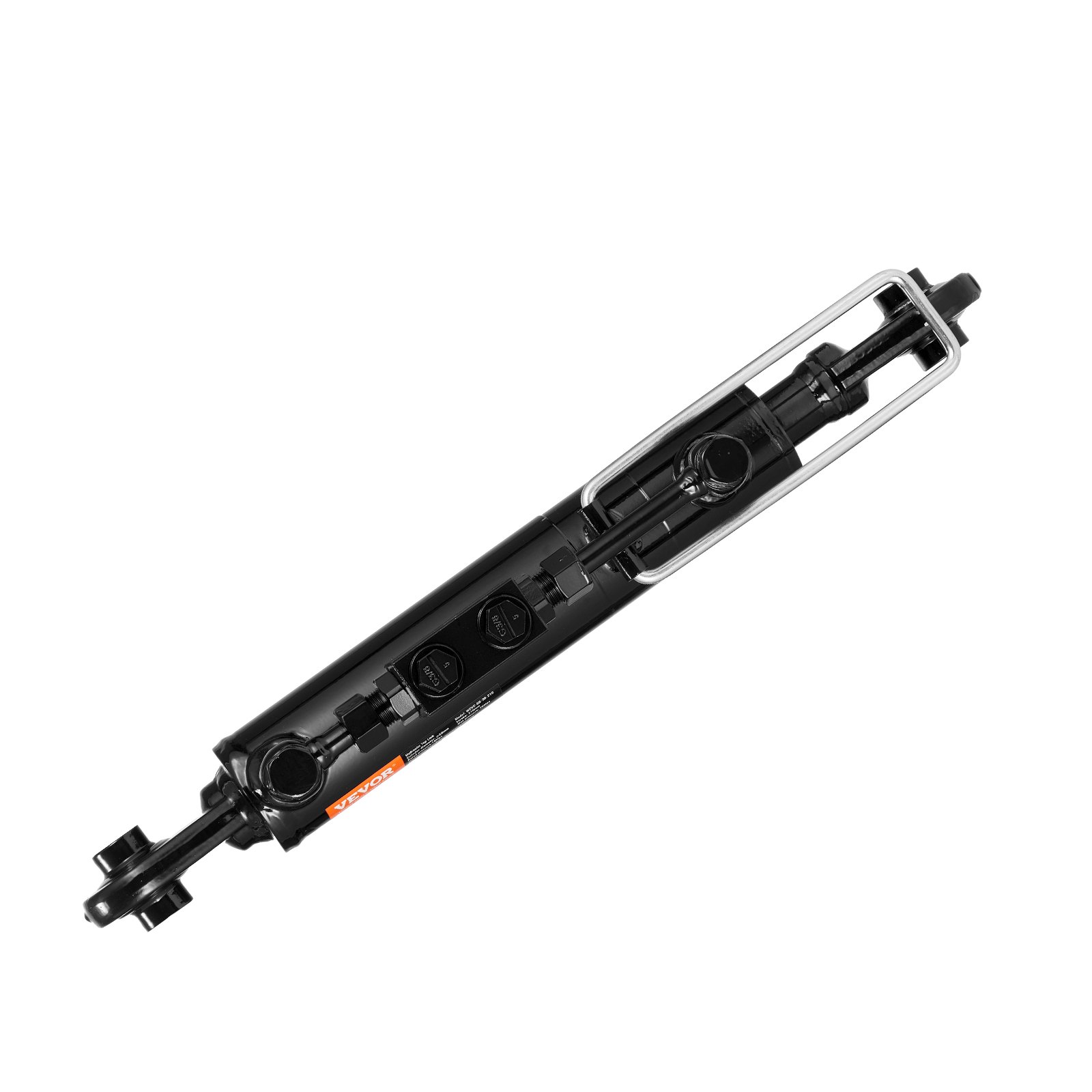

VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

Features & Details

  • Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length: 8-1/8 in (460 mm); Stroke length: 8-1/4 in (210 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
  • High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
  • Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons of pushing force and 2.3 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
  • Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
  • Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.
See More

Frequently Bought Together

Videos for this product

Reviews 4.4

All reviews are from verified purchases
Average rating based on 31 reviews
Top Reviews
Darin Darin
Reviewed on May 12,2025
I use this on my CX2510 Kioti HCB tractor. For the price point, I couldn't be happier. I bought a bigger 'name brand' one before this, and it was frankly crap. Cost nearly $300.00, and I needed to have it warrantied. (Which I must say, they did very handily.) In the meantime, I needed one that would work for my needs, and didn't want to spend another $300.00 on one that already needed parts...so I grabbed one of these, thinking if it lasted a month, that would be great. Well, it's still on my tractor, still working perfectly, and I don't have any plans to replace it with the one I originally bought. :-) I have had other Vevor products in the past, and have been pleasantly surprised by the quality and durability for the price point. I won't hesitate to buy another Vevor product when the need arises.
Brad Brad
Reviewed on May 10,2025
Works perfect. Well made
Mingo Dmz Mingo Dmz
Reviewed on Apr 29,2025
So far is working good, I'm beyond satisfied. It's strong and can pick up my heavy duty 8 foot shredder with ease
Brandon Brandon
Reviewed on Apr 15,2025
So far it has impressed me. I installed this on my kubota m4900 and the hoses supplied with the cylinder were a perfect length and it came with everything I needed to install it. It is very strong and responsive. And the price is the best I could find.
Price Price
Reviewed on Mar 29,2025
It came will packaged, did take 10 days to receive. For the price of the cylinder I think it was a good deal. The only thing I wished it to be about 3 inches long. But works well for light duty.
Kenneth Michel Kenneth Michel
Reviewed on Mar 25,2025
The unit was easy to assemble and install on my tractor. The challenge comes when trying to hook up a three point attachment without a flexible top link attachment point. My control is not reachable when standing behind so I had to go back and forth several times to get the top link holes to line up for the pin. All in all I am very happy with this because once hooked up it gives me very excellent control of the attachment when using it. My first use was with a land plane. It gave me precise control over the blades and teeth for a very smooth grading result.
Ron Ron
Reviewed on Mar 22,2025
cylinder is awesome very happy with it installed it in my tractor now i can have down pressure works great well built price was amazing would buy again Vevor is awesome has good product i will recommend vevor
Joe Joe
Reviewed on Feb 23,2025
I have not fully used it yet, but I am confident it is going to perform the task for which it was purchased for without problem. The ony thing I had to change were the quick couplers as they did not match my tractor, no big deal I expected it.
Bbq cowboy Bbq cowboy
Reviewed on Feb 20,2025
A lot better than I was expecting works great and well made I use it every day I would suggest this top link for anyone to purchase !!! Fits my tractor perfect
Lawrence Lawrence
Reviewed on Feb 09,2025
Installed perfectly on my New Holland Workmaster 25. Had to cut the pto shaft but no problem because of videos on YouTube. When operating it the movement is perfect as far as speed and easy to adjust precisely for different implements. Arrived as described it would and on time. Thanks for a great product!!!

About this item

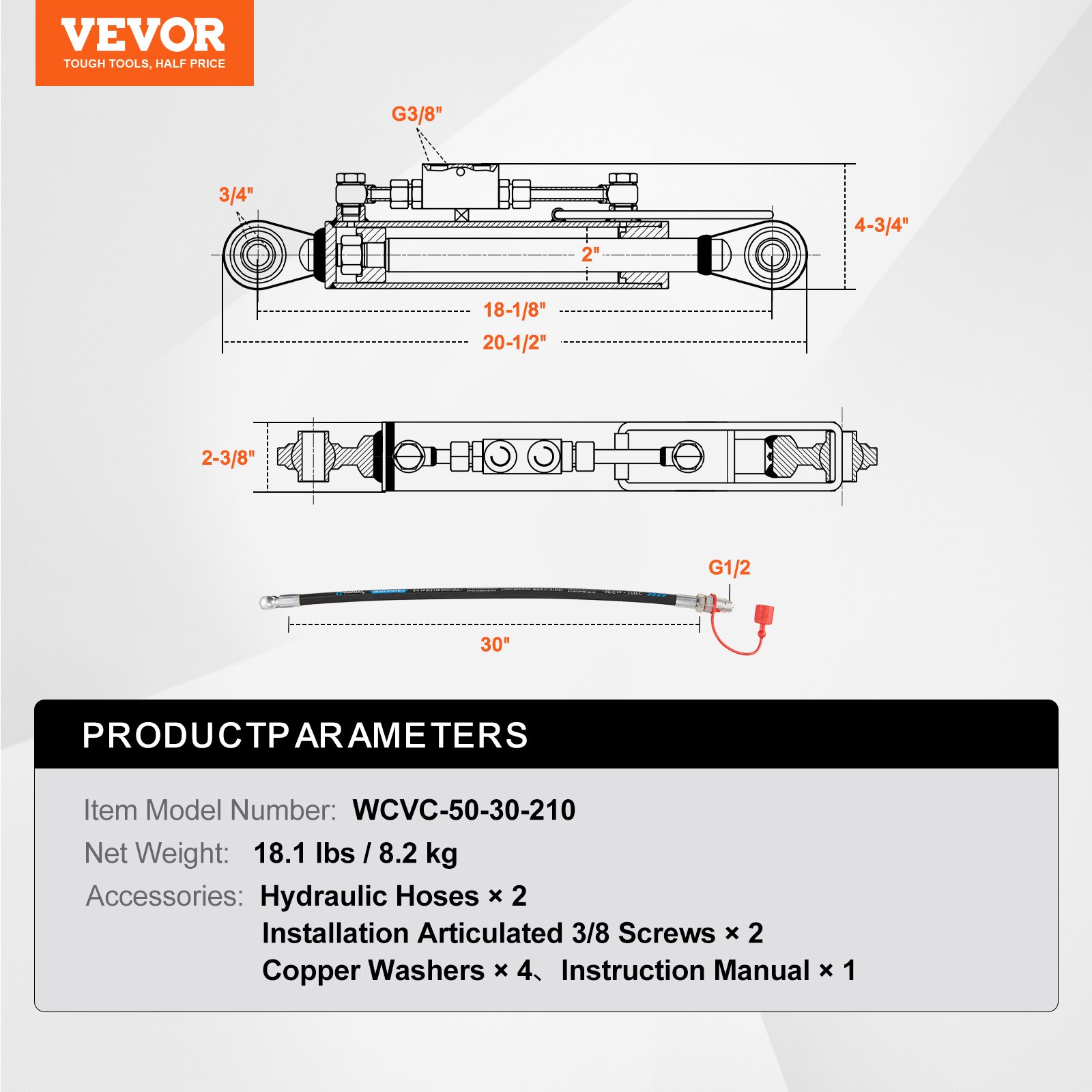

Product specification
Item Model Number
WCVC-50-30-210
Minimum Retracted Length
18-1/8 inch (460 mm)
Stroke
8-1/4 inch/210 mm
Cylinder Diameter (I.D.)
2.0 inch / Φ50 mm
Outer Diameter
2-3/8 inch (Φ60 mm)
Piston Rod Diameter
1.2 inch / Φ30 mm
Connection Hole Diameter
0.8 inch / Φ19.4 mm
Connection Hole Width
1.7 inch / 44 mm
Thrust Force
3.5 Tons
Pull Force
2.3 Tons
Check Valve Inlet/Outlet Port
G3/8"
Rotatable Piston Rod
Ball Joint Linkage Structure
Maximum/Rated Working Pressure
20/18 MPa (2900/2610 psi)
Compatible Equipment
ClassⅠTractors
Hydraulic Hose
(I.D.&L.)
Fitting Type
G1/2
Color and Surface Treatment
Black Paint
Main Material
45#
Service Life
1-year Warranty
Net Weight
18.1 lbs / 8.2 kg
Product Dimensions
20.5×4.7×2.4 inch / 520×120×60 mm
Description

Hydraulic Top Link for Cat. 1-1 Tractors Enhances Heavy-Duty Performance

This hydraulic cylinder is perfect for tasks like plowing, recycling, and transportation. It fits seamlessly onto these tractors. The difference in the tractor's efficiency is great. A high-sealing check valve ensures minimal leakage of hydraulic oil. It provides precise control of pushing and pulling operations. Even after the pump stops, the hydraulic piston rod stays stable. This feature is important for maintaining position under force. Our Cat. 1 hydraulic cylinder allows for stronger push/pull actions. It performs efficiently within a maximum working pressure range of 20–18 MPa. So, you can tackle tough jobs easily.

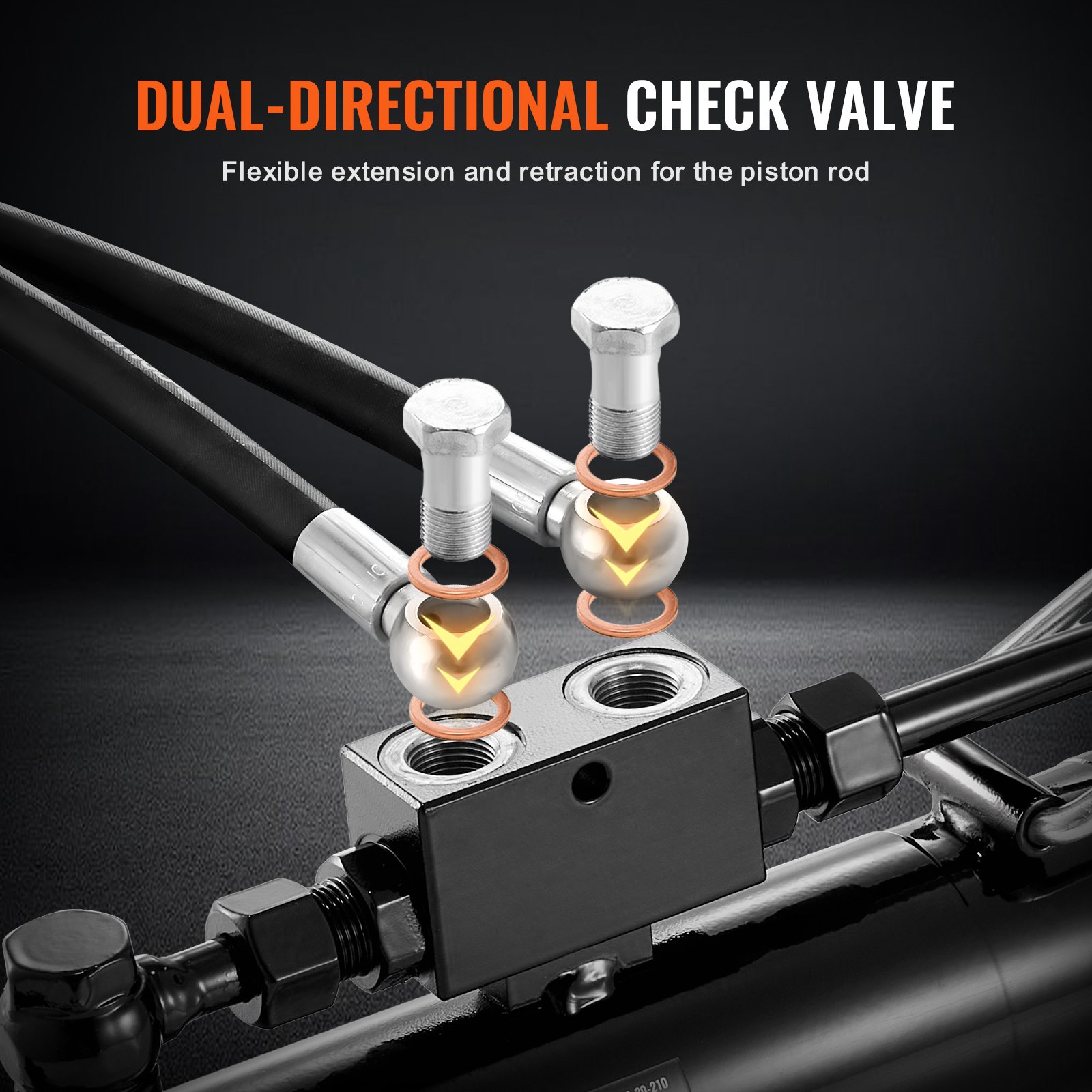

High-Sealing Bidirectional Check Valve Ensures Precision

The hydraulic top link is equipped with a high-sealing bidirectional check valve. This valve structure ensures minimal leakage of hydraulic oil. It provides precise control for pushing and pulling operations. The hydraulic cylinder can hold its position even when the pump is not working. This feature is important for stability under force. The check valve inlet and outlet ports are G3/8". This allows for a secure connection and optimal performance. The high-seal check valve is a must for operating efficiently and reliably in hydraulic applications.


Delivers 3.5 Tons of Pushing Force and 2.3 Tons of Pulling Force

It provides 3.5 tons of pushing force and 2.3 tons of pulling power. These capabilities make it ideal for heavy-duty tasks. It performs well within a maximum working pressure range of 20/18 MPa. This ensures it can handle tough jobs efficiently. The hydraulic piston rod is rotatable, so you can meet various installation requirements. The assembly includes high-pressure-resistant and sturdy hydraulic hoses. So, assembly is easy with no hassle. Our hydraulic top link is designed for durability and high performance.


Durable 45# Steel Resists Rust and Wear

The hydraulic cylinder with hoses is made from thick 45# steel. This material offers excellent rust resistance and wear resistance. The surface is coated with paint to improve durability. It can withstand harsh conditions like mud, rain, and high temperatures. These features ensure long-lasting performance and reliability. Our hydraulic top link has been designed to endure tough environments. Even in the worst conditions, it will remain functional. So, this durability makes it a valuable investment for heavy-duty tasks.

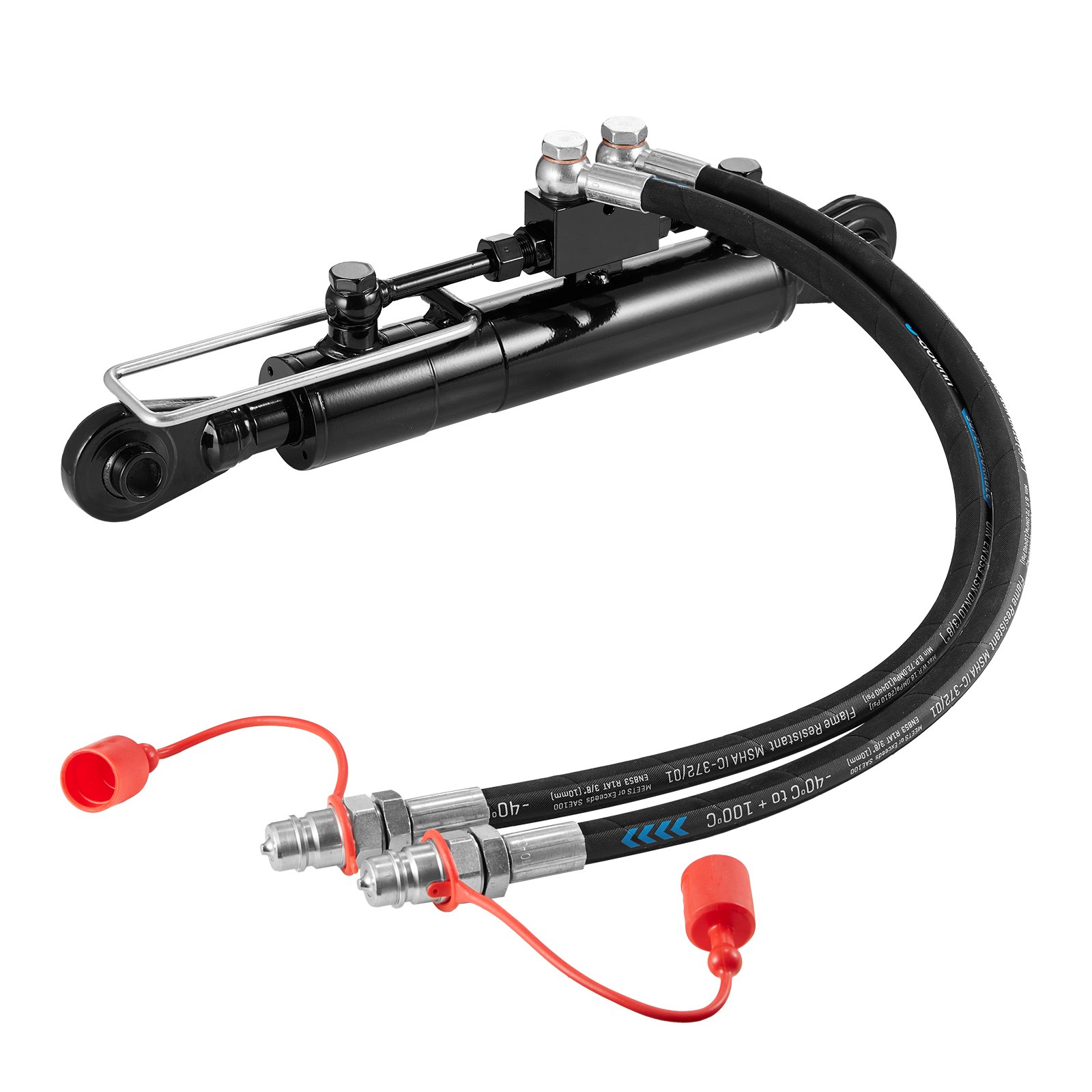

Easy Installation with Included Hoses and Fittings

The G3/8 check valve cylinder is very simple to install. It includes high-pressure-resistant hydraulic hoses. These hoses are sturdy and reliable. The product includes all necessary fittings, making assembly hassle-free. Also, the rotatable piston rod can meet different installation requirements. This flexibility simplifies the setup process. You can assemble and use the product without needing additional components. That saves time and effort during installation. Ease of installation adds to the overall convenience of the hydraulic top link.


Ideal for Plowing, Recycling, and Transportation

The hydraulic top link is versatile. It can be used for heavy-duty tasks like plowing, recycling, and transportation. This makes it easy to handle demanding conditions. So, it’s a valuable tool for various applications. The hydraulic top link helps improve efficiency in these tasks. With its robust performance, reliable operations are guaranteed. No matter if you're working in agriculture or waste management, this adjustable hydraulic cylinder provides the power you need. Because of its versatility, it offers flexibility and ease of use, making it able to work effectively on your equipment.


Reliable Performance Under Harsh Conditions

The hydraulic top link is built for reliability. It performs well under harsh conditions. Mud, rain, and high temperatures do not affect its performance. The 45# steel construction ensures durability. Paint coating enhances rust resistance and wear resistance. This hydraulic top link can handle tough environments. It remains functionally stable even in the face of adverse conditions; this quality makes it an essential tool for heavy-duty tasks. You get consistent performance no matter the conditions or circumstances.


VEVOR Hydraulic Cylinder- Powerful Performance, Precise Extension Control!

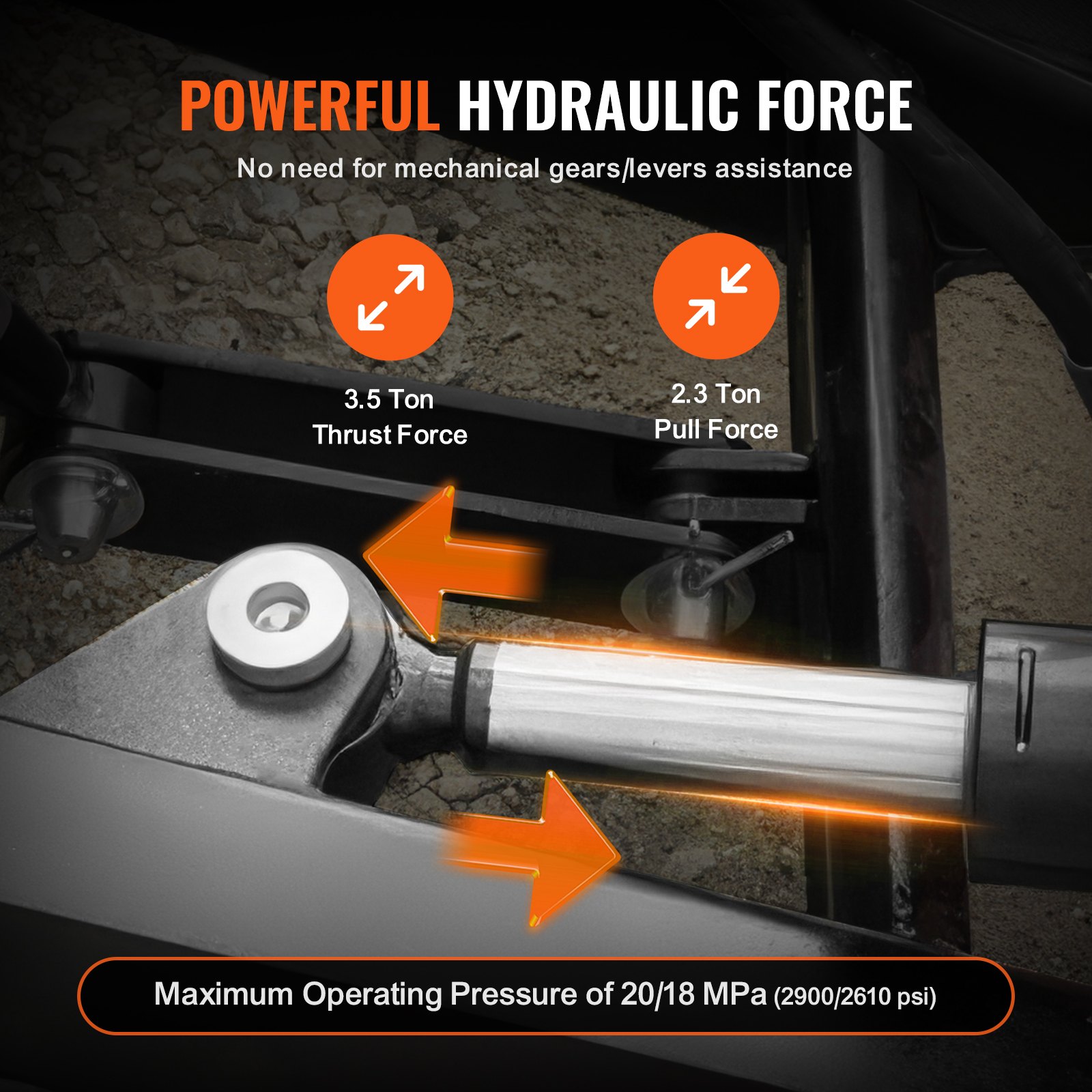

Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 3.5 tons of pushing force and 2.3 tons of pulling force without the need for mechanical gears/levers.
The hydraulic top link Cat.1-1 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.
The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.

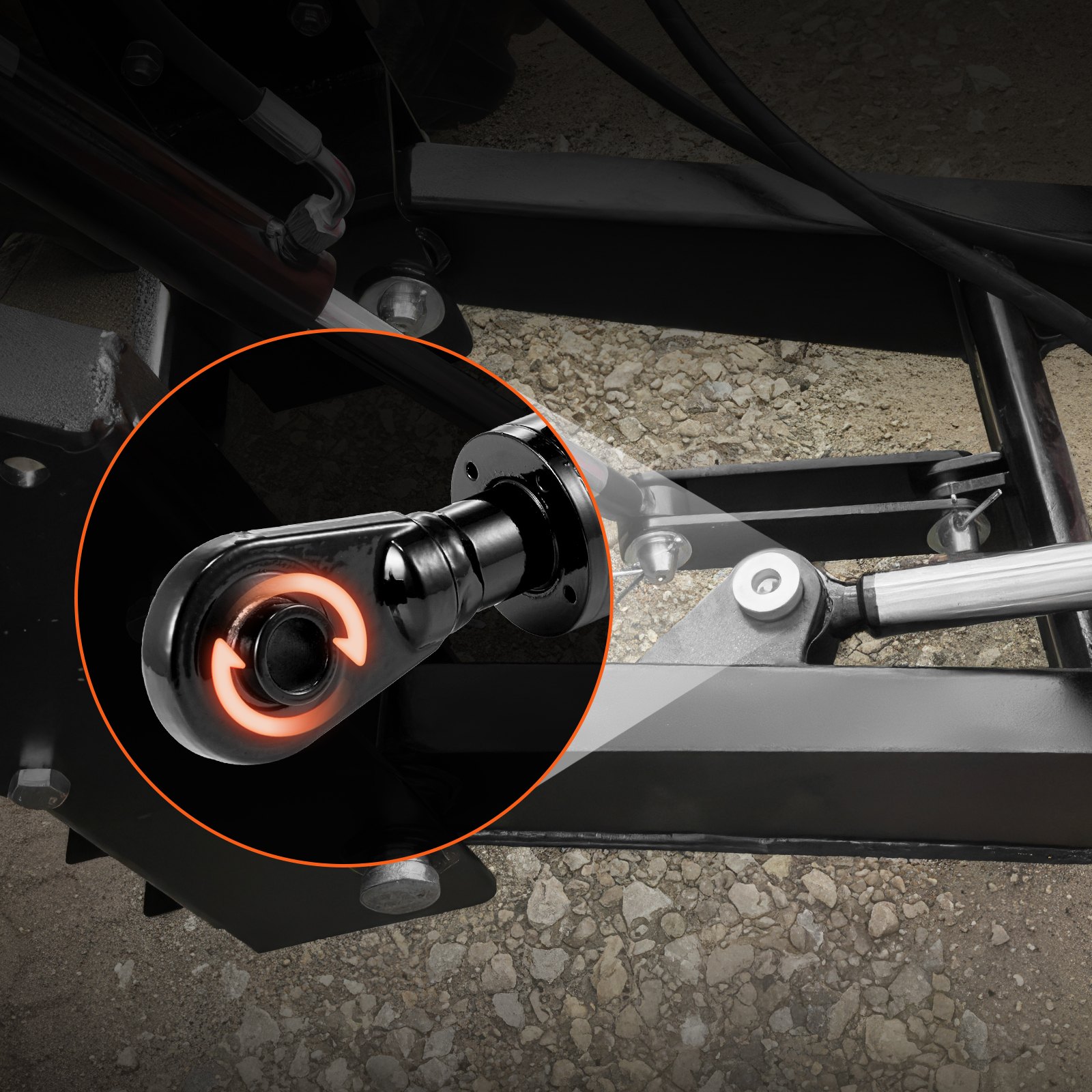

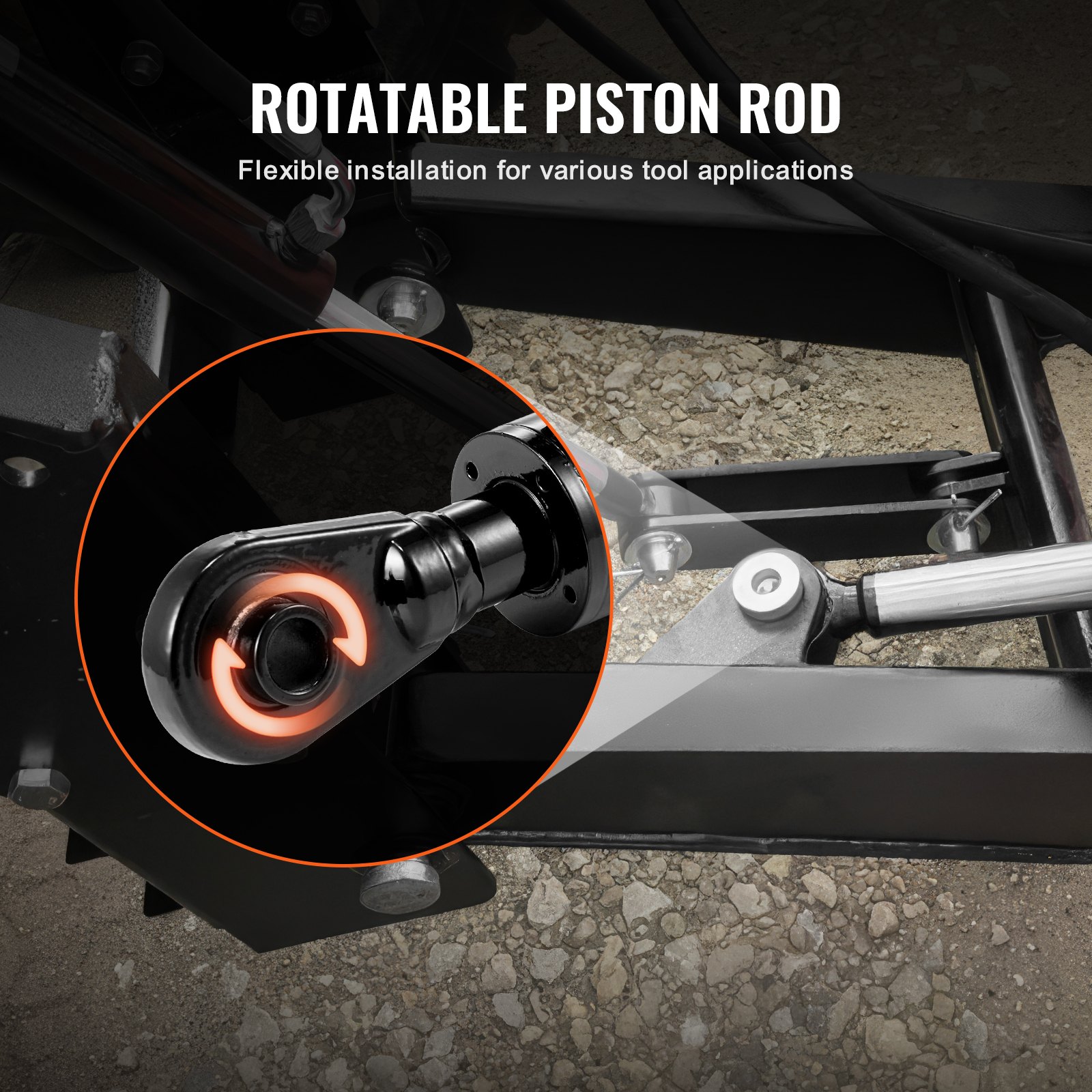

The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.
With a connection hole diameter of 0.8 in/Φ19.4 mm, double acting hydraulic cylinder is compatible with Cat.1-1 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.
