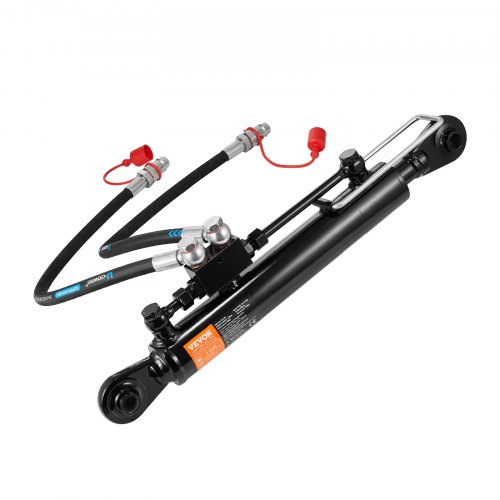

VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve
VEVOR Hydraulic Top Link Cat.1-1 (11 in, 20-7/8~31-7/8 in ), Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve

Features & Details

  • Adaptation for Cat. 1-1 Tractors: The hydraulic top link cat. 1-1's rod inlet/outlet diameter: 3/8 in; Min retracted length:20-7/8 in(530 mm); Stroke length: 11 in (280 mm); Hydraulic hose length: 30.1 in (765 mm). It can be directly installed on Cat. 1-1 tractors and is widely used in heavy-duty agricultural plowing, waste recycling, transportation, and other tasks.
  • High-Sealing Check Valve: The hydraulic cylinder is upgraded with a high-sealing bidirectional check valve structure, ensuring minimal hydraulic oil leakage and precise control of pushing and pulling operations. Even after the pump stops working, the position of the hydraulic cylinder piston rod remains stable under force. The hydraulic cylinder can only perform pushing and pulling actions when there is a certain oil pressure.
  • Enhanced Hydraulic Power: The hydraulic top link is capable of providing 3.5 tons of pushing force and 2.3 tons of pulling force, and it can deliver stronger performance within a max working pressure range of 20/18 MPa (2900/2610 psi), helping you easily tackle heavy-duty tasks.
  • Heavy-Duty Construction: Top Link mainly constructed with thick 45# steel material, with a surface paint coating that effectively enhances rust resistance, wear resistance, and corrosion resistance. It is durable and can withstand harsh conditions such as mud, rain, and high temperatures, making it long-lasting and reliable.
  • Easy Installation: The rotatable piston rod of tractor loader hydraulic cylinders can meet different installation requirements, equipped with high-pressure-resistant and sturdy hydraulic hoses. You can assemble and use the product by yourself without the need to separately acquire hoses, making assembly hassle-free.
See More

Frequently Bought Together

Videos for this product

Reviews 4.4

All reviews are from verified purchases
Average rating based on 31 reviews
Top Reviews
Darin Darin
Reviewed on May 12,2025
I use this on my CX2510 Kioti HCB tractor. For the price point, I couldn't be happier. I bought a bigger 'name brand' one before this, and it was frankly crap. Cost nearly $300.00, and I needed to have it warrantied. (Which I must say, they did very handily.) In the meantime, I needed one that would work for my needs, and didn't want to spend another $300.00 on one that already needed parts...so I grabbed one of these, thinking if it lasted a month, that would be great. Well, it's still on my tractor, still working perfectly, and I don't have any plans to replace it with the one I originally bought. :-) I have had other Vevor products in the past, and have been pleasantly surprised by the quality and durability for the price point. I won't hesitate to buy another Vevor product when the need arises.
Brad Brad
Reviewed on May 10,2025
Works perfect. Well made
Mingo Dmz Mingo Dmz
Reviewed on Apr 29,2025
So far is working good, I'm beyond satisfied. It's strong and can pick up my heavy duty 8 foot shredder with ease
Brandon Brandon
Reviewed on Apr 15,2025
So far it has impressed me. I installed this on my kubota m4900 and the hoses supplied with the cylinder were a perfect length and it came with everything I needed to install it. It is very strong and responsive. And the price is the best I could find.
Price Price
Reviewed on Mar 29,2025
It came will packaged, did take 10 days to receive. For the price of the cylinder I think it was a good deal. The only thing I wished it to be about 3 inches long. But works well for light duty.
Kenneth Michel Kenneth Michel
Reviewed on Mar 25,2025
The unit was easy to assemble and install on my tractor. The challenge comes when trying to hook up a three point attachment without a flexible top link attachment point. My control is not reachable when standing behind so I had to go back and forth several times to get the top link holes to line up for the pin. All in all I am very happy with this because once hooked up it gives me very excellent control of the attachment when using it. My first use was with a land plane. It gave me precise control over the blades and teeth for a very smooth grading result.
Ron Ron
Reviewed on Mar 22,2025
cylinder is awesome very happy with it installed it in my tractor now i can have down pressure works great well built price was amazing would buy again Vevor is awesome has good product i will recommend vevor
Joe Joe
Reviewed on Feb 23,2025
I have not fully used it yet, but I am confident it is going to perform the task for which it was purchased for without problem. The ony thing I had to change were the quick couplers as they did not match my tractor, no big deal I expected it.
Bbq cowboy Bbq cowboy
Reviewed on Feb 20,2025
A lot better than I was expecting works great and well made I use it every day I would suggest this top link for anyone to purchase !!! Fits my tractor perfect
Lawrence Lawrence
Reviewed on Feb 09,2025
Installed perfectly on my New Holland Workmaster 25. Had to cut the pto shaft but no problem because of videos on YouTube. When operating it the movement is perfect as far as speed and easy to adjust precisely for different implements. Arrived as described it would and on time. Thanks for a great product!!!

About this item

Product specification
Item Model Number
WCVC-50-30-280
Minimum Retracted Length
20-7/8 inch (530 mm)
Stroke
11 inch/280 mm
Cylinder Diameter (I.D.)
2.0 inch / Φ50 mm
Outer Diameter
2-3/8 inch (Φ60 mm)
Piston Rod Diameter
1.2 inch / Φ30 mm
Connection Hole Diameter
0.8 inch / Φ19.4 mm
Connection Hole Width
1.7 inch / 44 mm
Thrust Force
3.5 Tons
Pull Force
2.3 Tons
Check Valve Inlet/Outlet Port
G3/8"
Rotatable Piston Rod
Ball Joint Linkage Structure
Maximum/Rated Working Pressure
20/18 MPa (2900/2610 psi)
Compatible Equipment
ClassⅠTractors
Hydraulic Hose
(I.D.&L.)
Fitting Type
G1/2
Color and Surface Treatment
Black Paint
Main Material
45#
Service Life
1-year Warranty
Net Weight
20.1 lbs/9.1 kg
Product Dimensions
23.4×4.7×2.4 inch/595×120×60 mm
Description

Hydraulic Top Link for Versatile Tractor Applications

The VEVOR hydraulic cylinder is ideal for Cat. 1-1 tractors. It fits perfectly and works well for various tasks. Use it for heavy-duty plowing, waste recycling, and transportation. The compact design allows for easy installation. You can use it to handle tough conditions like mud and rain. A high-sealing check valve prevents oil leakage. This makes hydraulic operations precise and efficient. Our hydraulic cylinder is designed for durability and efficiency. So, you can trust it on both light and heavy tasks with ease. It is a versatile addition to your tractor setup.


Durable 45# Steel Construction Ensures Long-Lasting Use

It is made from thick 45# steel, known for its strength and durability. The paint coating improves rust and wear resistance. The hydraulic cylinder can handle mud, rain, and high temperatures, ensuring it lasts longer and stays reliable. Steel construction makes the hydraulic mechanical cylinder strong. It withstands heavy-duty tasks' wear and tear. You can use it often without worrying about damage. A durable build is ideal for long-term use.


Easy Installation with Pre-Attached Hoses and Check Valve

This hydraulic cylinder with hoses is super easy to install. It includes pre-attached hoses and a check valve. You don't need to buy additional parts. The installation process is straightforward. The rotatable piston rod caters to a variety of mounting requirements. High-pressure-resistant hydraulic hoses ensure secure encasement. This hassle-free setup saves you time and effort, offering immediate use of the hydraulic top link. It is especially convenient for busy tasks.


High-Sealing Bidirectional Check Valve for Precise Control

The hydraulic cylinder features a high-sealing bidirectional check valve. This structure ensures minimal oil leakage. It also provides precise control for push and pull operations. The hydraulic mechanics hold its position even after the pump stops. Due to this stability under force, it is essential for heavy-duty tasks. You can move only when there is enough oil pressure. That means safe and controlled operations are possible. High-seal design reduces maintenance needs. This check valve has become one of the most important features for precise control.


Delivers 3.5 Tons of Pushing Force and 2.3 Tons of Pulling Force

This is a powerful G3/8 check valve. It delivers 3.5 tons of pushing force. Also, it provides 2.3 tons of pulling force, which makes it suitable for heavy-duty tasks. The hydraulic cylinder works well under high pressure. You can handle up to 20/18 MPa (2900/2610 psi). This ensures strong performance for various jobs. Pushing and pulling tasks become easier with this hydraulic top link because the force it gives is reliable and consistent. So, it is not only excellent for demanding tasks but also useful in various applications.


Ideal for Heavy-Duty Tasks in Agriculture and Recycling

This hydraulic top link is ideal for heavy-duty tasks. It is perfect for agricultural plowing. You can also do good in waste recycling and transportation. The durable construction ensures it can handle tough conditions. Mud, rain, and high temperatures won’t affect its performance. Our hydraulic cylinder’s power makes it suitable for demanding jobs. Use it for moving heavy loads with ease. Due to its versatility, it becomes an asset for various tasks as well. So, you get reliable and efficient performance every time. This adjustable hydraulic cylinder is a must-have for heavy-duty needs.


Adjustable Hydraulic Cylinder for Customized Performance

This is the hydraulic top link that you can use. It has a minimum retracted length of 20–7/8 inches. The stroke length is 11 inches, which allows for customized performance. You can adjust the length to suit different tasks. Your options are flexible too. Our rotatable piston rod adds an extra layer of flexibility to its versatility. The hydraulic cylinder adapts to various installation requirements. This flexibility makes it suitable for different setups. You can trust it for both light and heavy tasks because the adjustable feature ensures it meets specific needs. So, it is able to perform custom work on your project with ease.


VEVOR Hydraulic Cylinder- Powerful Performance, Precise Extension Control!
VEVOR hydraulic top link cat 1-1 installed on blue tractor in a field.
VEVOR hydraulic top link cat 1-1 installed on blue tractor in a field.
Within the maximum working pressure range of 20/18 MPa, the double-acting hydraulic cylinder can generate 3.5 tons of pushing force and 2.3 tons of pulling force without the need for mechanical gears/levers.
dual-action hydraulic power VEVOR hydraulic top link in use for heavy-duty tasks with tractors in fields.
dual-action hydraulic power VEVOR hydraulic top link in use for heavy-duty tasks with tractors in fields.
The hydraulic top link Cat.1-1 utilizing bidirectional check valves with locking blocks, it effectively enhances sealing and precision control, preventing hydraulic oil backflow. Even after the pump stops working, the hydraulic cylinder piston rod remains stable under force.
VEVOR hydraulic top link with upgraded sealing, precision control, flexible piston rod, and leak resistance.
VEVOR hydraulic top link with upgraded sealing, precision control, flexible piston rod, and leak resistance.
The top link made entirely of 45# steel, it is robust and heavy-duty, resistant to deformation. With added paint coating on the surface, it is corrosion-resistant and rust-resistant, ensuring durability even in harsh environments such as muddy terrain, rainy days, and outdoor high temperatures.
VEVOR hydraulic top link: rust-resistant & corrosion-resistant, ideal for outdoor use in mud and rain.
VEVOR hydraulic top link: rust-resistant & corrosion-resistant, ideal for outdoor use in mud and rain.
The piston rod of hydraulic top link is specially designed with a rotating feature, allowing for flexible installation on different tools. Note: Hydraulic hose fittings need to be tightened securely to prevent oil leakage.
VEVOR hydraulic top link installation steps: connect hoses, attach top pin, tighten hoses, attach additional tool.
VEVOR hydraulic top link installation steps: connect hoses, attach top pin, tighten hoses, attach additional tool.
With a connection hole diameter of 0.8 in/Φ19.4 mm, double acting hydraulic cylinder is compatible with Cat.1-1 tractors, allowing for direct installation on tractor equipment to enhance operational efficiency.
VEVOR hydraulic top link with hoses, screws, washers, and instruction manual, model wcvc-50-30-280.
VEVOR hydraulic top link with hoses, screws, washers, and instruction manual, model wcvc-50-30-280.
See More

Questions and Answers (5)

5 Questions
Ask a Question
Showing 1-5 of 5
Sort by: Featured questions
I have a Bobcat Model 2025 Compact Tractor with 2 optional Rear Hyd Ports, will this work
Answer This Question
Please confirm whether the connecting pin size matches our machine. We have two connecting sizes.
By vevor on
Will work on John Deere four 4052R
Answer This Question
As long as it matches the device interface, it can be used
By vevor on
Will your 4 quart hydraulic pump run this unit? Will it have enough capacity and flow rate?
Answer This Question
Yes, it has enough capacity and flow.
By vevor on
will this work on a TYM 2610H tractor
Answer This Question
We don't know your machine model, as long as the pins and hydraulic pipe interfaces match, we can use the product.
By vevor on
does your cat 1 hydraulic top link have a locking block
Answer This Question
It has a locking block .
By vevor on
