VEVOR 2hp electric motor, black casing, three phase, cooling fans, and red warning labels VEVOR 2hp electric motor, ac 230v/460v, 6.3a/3.2a, 56c frame, cw/ccw rotation, black. VEVOR 2hp electric motor 3450rpm, high-speed rotation, robust power, stable performance, extended longevity. VEVOR 2hp electric motor with dual rotation, 5/8 inch shaft diameter, 1.88 inch length, 0.188 keyway size. VEVOR 2hp electric motor with heavy-duty rolled steel shell, csa certified, high quality and safe. VEVOR 2hp electric motor in versatile applications: industrial machinery, pressure washing, tractors, and welding. VEVOR 2hp electric motor, 60hz, 3450rpm, ac 230v/460v, 14.4 x 9.1 x 7.1 in, 31.9 lbs, model sy-2hp-2p-b34.
TYJLNEMADJ34K085PV8

VEVOR 2HP Electric Motor 3450 rpm, AC 230V/460V, 56C Frame, Air Compressor Motor 3-Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

2.0 HP

  • 0.75 hp
  • 1.5 hp
  • 2.0 HP
  • 1.0HP

3450 rpm

  • 1725 rpm
  • 3450 rpm

About this item

  • Powerful Performance: 2HP, 3-Phase, Full Load Current: 6.3/3.2A, AC 230V/460V 60Hz, 3450 RPM High Speed, SF: 1.15.
  • Sturdy Frame Type: 56C Frame, 5/8" Keyed shaft, Shaft length: 1.88", Keyway size: 0.188".
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
  • Durable and Safe: Tested to CSA standards. This air compressor motor features a heavy-duty rolled steel shell that resists rust and corrosion, ensuring a longer service life and reliable performance.
  • Wide Range of Applications: VEVOR 2HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 2HP Electric Motor 3450 rpm, AC 230V/460V, 56C Frame, Air Compressor Motor 3-Phase, 5/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
2.0 HP 3450 rpm
Power Up Fast: Revive Your Machine Now

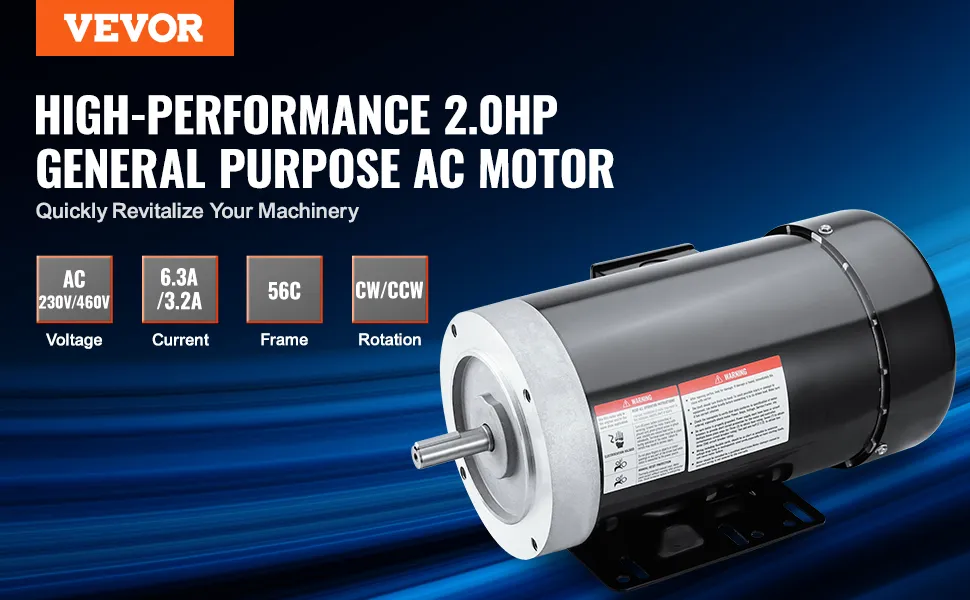

VEVOR 2hp electric motor: high-performance ac motor, 230v/460v, 6.3a/3.2a, 56c frame, cw/ccw rotation.
VEVOR 2hp electric motor: high-performance ac motor, 230v/460v, 6.3a/3.2a, 56c frame, cw/ccw rotation.
Inject powerful performance into your equipment with the VEVOR 2HP 3-phase electric motor. Operating at 230V/460V voltage with 6.3/3.2A current, it features 3450 RPM high speed, 56C frame, 1.88-inch shaft length, 5/8-inch keyed shaft, and CW/CCW dual rotation direction.

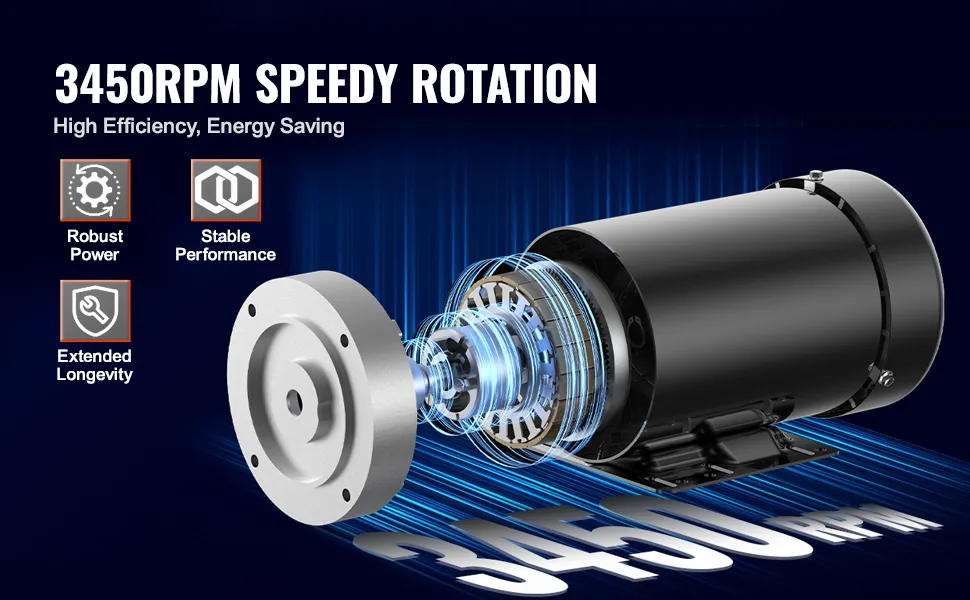

VEVOR 2hp electric motor showcasing 3450rpm rotation, robust power, stable performance, extended longevity.
VEVOR 2hp electric motor showcasing 3450rpm rotation, robust power, stable performance, extended longevity.
VEVOR 2HP electric motor boasts a high speed of 3450RPM, delivering powerful performance across various applications. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity.

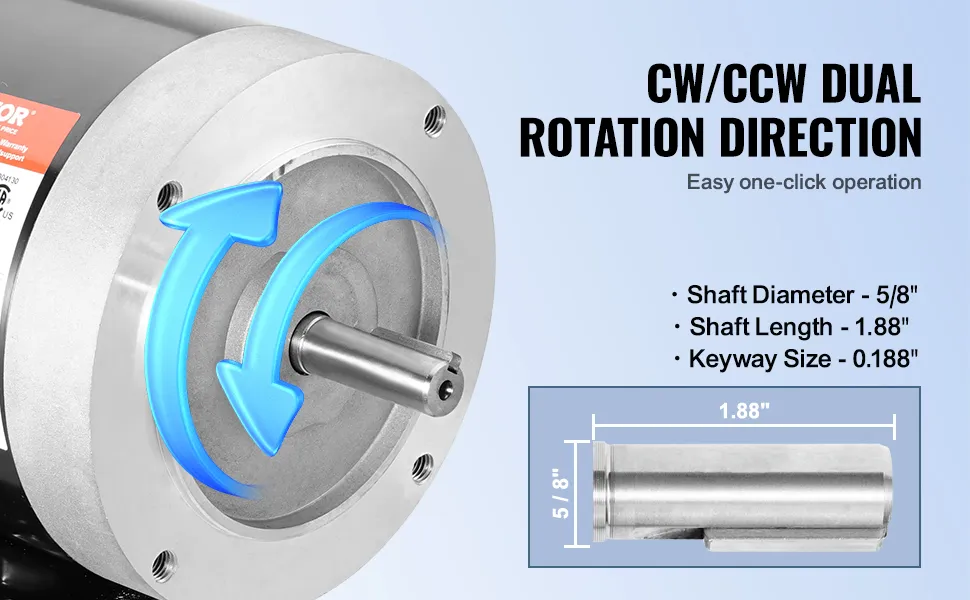

VEVOR 2hp electric motor with cw/ccw dual rotation, 5/8" shaft diameter, 1.88" shaft length.
VEVOR 2hp electric motor with cw/ccw dual rotation, 5/8" shaft diameter, 1.88" shaft length.
Featuring CW/CCW dual rotation direction, this air compressor motor is easy to install and user-friendly. With a 5/8-inch shaft diameter, 1.88-inch shaft length, and 0.188-inch keyway, it easily connects to diverse equipment, offering great versatility for different applications.

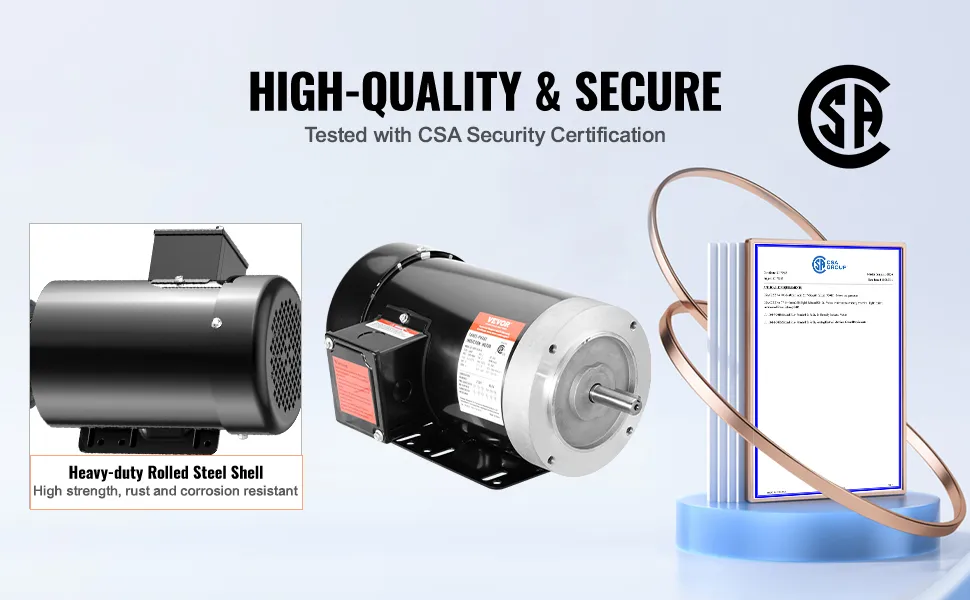

VEVOR 2hp electric motor with heavy-duty rolled steel shell and csa security certification.
VEVOR 2hp electric motor with heavy-duty rolled steel shell and csa security certification.
Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability.
VEVOR 2hp electric motor wide applications: agricultural pump, sprayer, harvester, grinder.
VEVOR 2hp electric motor wide applications: agricultural pump, sprayer, harvester, grinder.
Our general purpose AC motor is perfect for a wide range of applications, including water pumps, sprayers, harvesters, and grinders. Whether for agricultural or industrial use, this motor meets your needs and supports your projects with dependable performance.

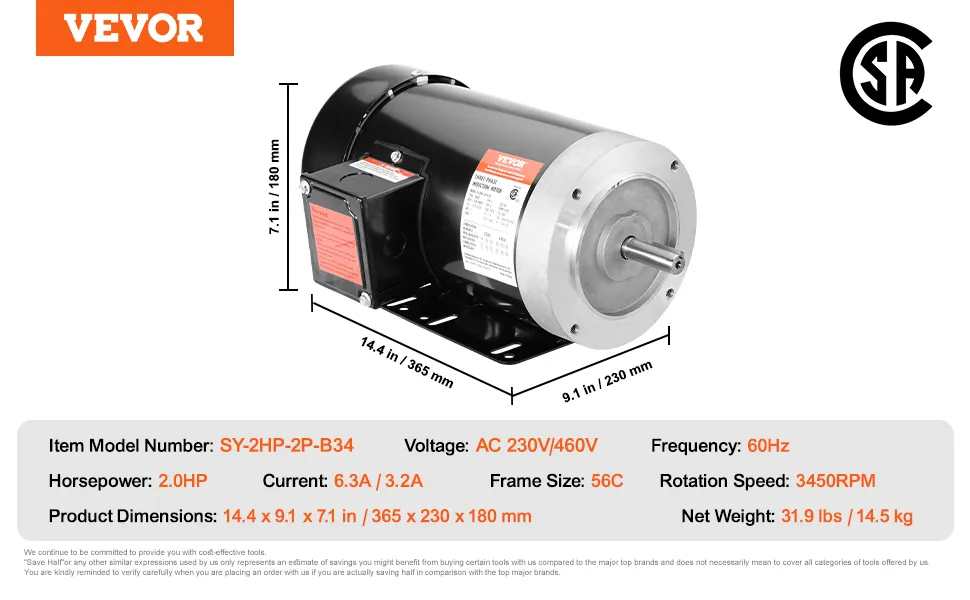

VEVOR 2hp electric motor, 230v/460v, 60hz, 3450 rpm, sy-2hp-2p-b34, black with dimensions and specifications.
VEVOR 2hp electric motor, 230v/460v, 60hz, 3450 rpm, sy-2hp-2p-b34, black with dimensions and specifications.

2HP Electric Motor Offers Versatile Applications

This electric motor is versatile  for many applications. It can be used for water pumps, agricultural machinery motors, and general equipment motors. You should use it for DIY projects as well as repair replacements. The motor provides powerful functionality for various needs. The motor has a 450 rpm speed. This ensures efficient and quick performance. Dual rotation direction simplifies wiring installation. It is easy to connect this motor to different applications, making it a dependable choice for numerous tasks.


High Speed 3450 rpm motor Ensures Efficient Performance

It runs at a high speed of 3450 rpm motor. This ensures efficient and quick performance. It is ideal for tasks that require speed. The high velocity helps in completing jobs faster. You can use it for various tools and machinery. Its speed makes it an incredibly useful addition to your equipment. So, it offers reliable performance every time. Our motor is designed to provide consistent speed so you get the job done effectively.


Durable Air Compressor Motor with Rust-Resistant Shell

This electric motor features a heavy-duty roll steel shell. This shell resists rust and corrosion. It ensures longer service life for the motor. The motor's durability makes it a dependable choice for many tasks. The rust-resistant shell protects the motor from damage. So, it performs well over time. The VEVOR 2HP electric motor is built to withstand tough conditions, perfect for outdoor use and harsh environments. A durable shell complements its reliability and longevity.


Ideal for Agricultural Machinery Motor, Ensuring Reliable Power

This is the best agricultural machinery motor. It provides reliable power for various tasks. You can use it in farms and fields. The motor is perfect for different agricultural needs. Because of its versatility, you can operate it in a variety of farm or field settings. This motor is suitable for many different types of agriculture. Our motor ensures efficient performance for agricultural tasks with high speed and a durable design. So, it’s a dependable tool. We have got your back! It helps you complete tasks quickly and effectively. The motor is easy to install and use in several agricultural applications.


Compact and Powerful 2HP Motor for General Equipment

VEVOR 2HP electric motor is compact and powerful. It is designed to fit into various general equipment motors. However, its small size does not compromise its power. The motor delivers strong performance in a compact package. Easy to install and use, this motor's size makes it an easier choice for many tasks. Our compact design ensures that it fits easily into different machines. This one is an incredibly helpful addition to your general gear needs.


Dual Rotation Direction Simplifies Installation and Usage

This is a great feature for the VEVOR 2HP electric motor. It offers reversible CW/CCW rotation. This makes wiring installation easier and more convenient. You can easily connect to different applications. The dual rotation direction makes it versatile. It can be used in various setups and configurations. Our motor's flexibility ensures that it meets different needs. How does one person switch between rotation directions? Yes, this user-friendly and convenient option adds to the motor’s versatility and ease of use.


High-Quality 56C Frame and Keyed Shaft for Sturdy Support

It features a high-quality 56C frame and keyed shaft. The frame provides strong support for the motor. The keyed shaft ensures secure and stable connections. It is designed to handle various tasks without issues. The motor's frame and shaft add strength. They provide reliable performance for many uses. This motor has dependable construction. Our frame and shaft are built to last. This ensures that it performs well over time. The solid design of the engine enhances its reliability and longevity.


See More

Specification

Item Model Number
SY-2HP-2P-B34
Voltage
AC 230V/460V 3-Phase
Frequency
60Hz
Horsepower
2.0HP
Current
6.3/3.2A
Frame Size
56C
Rotation Speed
3450RPM
Net Weight
31.9 lbs / 14.5 kg
Product Dimensions
14.4 x 9.1 x 7.1 in / 365 x 230 x 180 mm
Questions and Answers
5 Questions
Is this motor a tefc and can it be run by vfd?
This motor is TEFC and can be operated by VFD, but the voltage frequency needs to be maintained at 50Hz and cannot be used with variable frequency
By vevor
I am wiring this to a VFD with a 14/4 wire. Red is connected to U, black is connected to V and white is connected to W. I do not know how to wire t1- t6 to these colors. Which t numbers belong to these wires. Since it is 3 phase it should be able to be run from a VFD.
It is recommended to tell us whether you are using three-phase 230V or three-phase 460V. It is recommended to use three-phase power converted by VFD, and the frequency must be 60Hz. Variable frequency is not allowed.
By vevor
What's the insulation value for the motor. Do you rate it for vfd use, this applies only to the 3 phase model.
The insulation grade is F, the corresponding temperature is 155℃, and 100% 2200V withstand voltage test is carried out before leaving the factory. It can be used with a frequency converter, but can only run at a fixed frequency of 60Hz, and cannot be used with speed adjustment.
By vevor
Does the SY-2HP-2P-B34 motor have copper or aluminum windings? Also, is it rated for continuous duty?
It is a copper wire motor and can work continuously.
By vevor
Cam I use this motor to drive a power washer pump
Yes, it can be used with a power washer pump.
By vevor

Customer Reviews

5 Review(s)
Clear filters
GLS GLS
Lts of power
I used this motor on an air compressor.
Robert Robert
Mr.
Just what I needed to replace the factory 1hp motor on my Central Pneumatics 16 speed floor drill press. It is a little bit bigger and heavier than the original motor but it works great.👍🏻
Gyula Legler Gyula Legler
Happy
Awesome. Nice and quiet and does a great job running my roller mill. Only complaint is the knock outs for the cord are a bear to remove
Mark K. Mark K.
Great product, excellent transaction, reasonable price.
Perfect replacement motor for my drill press. The original motor's wires were eaten by mouses :-)
Seaview Seaview
Works like it should, but the installation instructions are horrible
Thanks to another reviewers notes and pictures I was able to get this wired up correctly. The instructions provided were impossible to decipher without testing all the leads and double-checking and triple-checking. Operations-wise it works well so far
