VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
TYJLNEMADJ1436S49V7

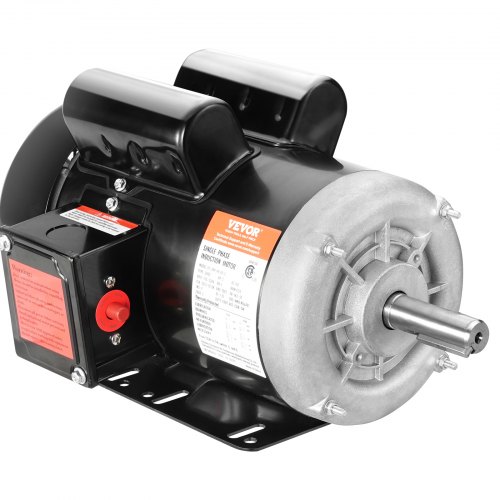

VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

2.0 HP

  • 2.0 HP
  • 1.5 hp
  • 0.75 hp

1725 rpm

  • 1725 rpm
  • 3450 rpm

About this item

  • Powerful Performance: 2HP, Single Phase, Full Load Current: 20.5A/10.5A, AC 115V/230V 60Hz, 1725 RPM High Speed, SF: 1.15.
  • Sturdy Frame Type: 143/5T Frame, 7/8" Keyed shaft, Shaft length: 2.25", Keyway size: 0.188".
  • Dual Rotation Direction: Our electric motor offers reversible CW/CCW rotation, simplifying wiring installation and providing quick, versatile connections for various applications.
  • Durable and Safe: Tested to CSA standards, this air compressor motor boasts a heavy-duty rolled steel shell for enhanced durability. It also includes overload protection with manual reset, ensuring longer service life and dependable performance.
  • Wide Range of Applications: VEVOR 2HP general purpose motor is universally applicable, ideal for water pumps, agricultural machinery, and general equipment. It's perfect for DIY projects and repair replacements, providing versatile and powerful functionality for various needs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 2HP Electric Motor 1725 rpm, AC 115V/230V, 143/5T Frame, Air Compressor Motor Single Phase, 7/8" Keyed Shaft, CW/CCW Rotation for Agricultural Machinery and General Equipment
2.0 HP 1725 rpm
Power Up Fast: Revive Your Machine Now
Inject powerful performance into your equipment with the VEVOR 2HP electric motor. Operating at 115V/230V voltage with 20.5A/10.5A current, it features 1725 RPM high speed, 143/5T frame, 2.25-inch shaft length, 7/8-inch keyed shaft, and CW/CCW dual rotation direction.
VEVOR 2HP electric motor boasts a high speed of 1725RPM, delivering powerful performance across various applications. Its robust power output ensures efficient operation, making it ideal for agricultural machinery and industrial equipment while saving energy and boosting productivity.
Featuring CW/CCW dual rotation direction, this air compressor motor is easy to install and user-friendly. With a 7/8-inch shaft diameter, 2.25-inch shaft length, and 0.188-inch keyway, it easily connects to diverse equipment, offering great versatility for different applications.
Constructed with a heavy-duty rolled steel shell, the general purpose motor is resistant to rust and corrosion, ensuring long-lasting durability. The built-in manual overload protection switch prevents overheating and motor burnout, providing a safer and more reliable user experience.
Our general purpose AC motor is perfect for a wide range of applications, including water pumps, sprayers, harvesters, and grinders. Whether for agricultural or industrial use, this motor meets your needs and supports your projects with dependable performance.

Specification

Item Model Number
SY-2HP-4P-B3-C
Voltage
AC 115V/230V
Frequency
60Hz
Horsepower
2.0HP
Current
20.5A/10.5A
Frame Size
143/5T
Rotation Speed
1725RPM
Net Weight
44.1 lbs / 20.0 kg
Product Dimensions
14.2 x 9.1 x 8.3 in / 360 x 230 x 210 mm
Questions and Answers
1 Questions
What is the torque produced by this motor?
The torque produced by this motor is 8.1N.m
By vevor

Customer Reviews

3 Review(s)
Clear filters
Gyula Legler Gyula Legler
Happy
Awesome. Nice and quiet and does a great job running my roller mill. Only complaint is the knock outs for the cord are a bear to remove
Mark K. Mark K.
Great product, excellent transaction, reasonable price.
Perfect replacement motor for my drill press. The original motor's wires were eaten by mouses :-)
Seaview Seaview
Works like it should, but the installation instructions are horrible
Thanks to another reviewers notes and pictures I was able to get this wired up correctly. The instructions provided were impossible to decipher without testing all the leads and double-checking and triple-checking. Operations-wise it works well so far
