Whether you’re hanging a heavy porch swing for family sunsets or setting up a sunshade to withstand a summer storm, the simple eye bolt is the only thing standing between a successful project and a dangerous drop. In this guide, we’ll explore the different eye bolt types, how to handle complex eye bolt sizes, and the specific steps to make sure your installation is done right.
When you’re suspending hundreds of pounds overhead, “good enough” hardware will not do. Choosing a high-quality socket set means gaining peace of mind. By the time you finish this article, you’ll know exactly which bolt to buy, how to identify a weak link, and how to use your tools to create a lasting anchor.
What are common Eye Bolt Types?
Walking into a project without knowing your eye bolt types is like trying to drive a screw with a hammer. It might eventually stay in, but it won’t be safe. Each style of bolt is made to handle force in a specific way. If you use a bolt designed for a straight pull to lift something at an angle, you risk the metal fatiguing and breaking.
Pernos de ojo simples
Plain eye bolts are the basic version of this fastener. They have a simple circular head attached to a threaded shank. These are designed for vertical pulls.
If your load is pulling straight up through the center of the bolt, these are perfect. However, they do not have a reinforced collar, so a side pull can put too much leverage on the shank, leading to a bent or broken bolt.
Pernos de ojo de hombro
If your project involves any kind of angled tension, like a zip line or a heavy canopy, you need the shoulder pattern. This version has a reinforced shoulder or collar where the eye meets the shank.
When installed, this shoulder sits flush against the mounting surface. It provides a solid base that resists bending during side-loading. It is the best choice for outdoor and industrial rigging.
Eye Bolt Screw
Commonly used in residential DIY, an eye bolt screw (also called a screw eye) has a pointed, lag-style thread. These are designed to bite directly into wood fibers without needing a nut.
They are great for hanging plants, stringing lights, or organizing tools. While convenient, their strength depends entirely on the quality of the wood they are screwed into.
Eye Bolt with Nut
For maximum security, an eye bolt with a nut is the best choice. These have machine threads and are designed to pass all the way through a mounting surface.
By securing it with a nut and washer on the other side, you create a bond that is much harder to pull out than a wood screw. This is the preferred choice for structural beams and metal frames.
Specialized Swivel Eye Bolt
The swivel eye bolt is a piece of high-end rigging hardware where the eye can rotate 360 degrees. This is essential for loads that might shift, spin, or move during a lift. By allowing the eye to align itself with the direction of the pull, it protects your bolts from the destructive twisting forces that snap stationary bolts.

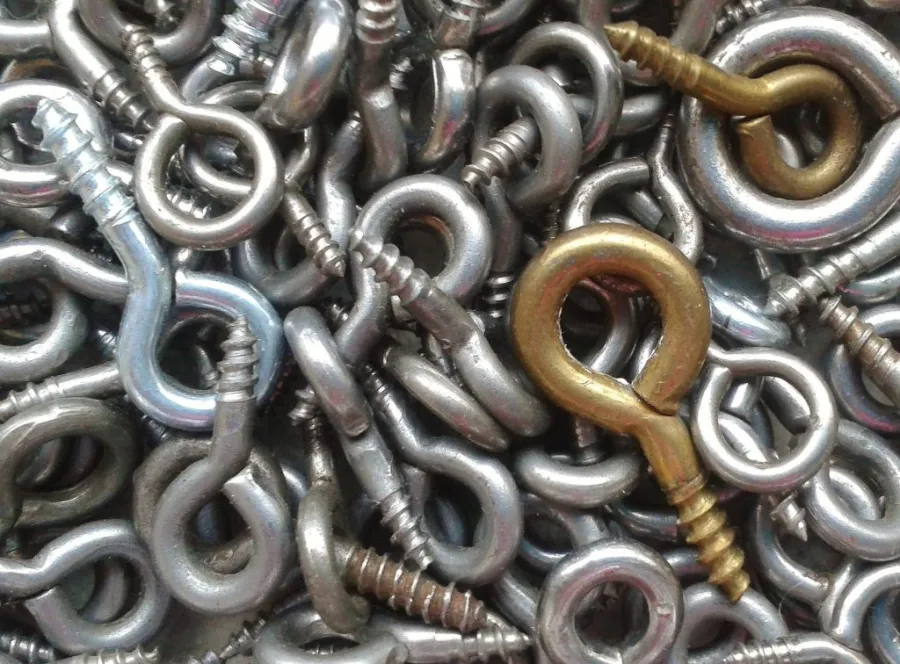

Understanding Eye Bolt Sizes and Load Limits
When you are choosing the hardware, you have to think about more than just how big the ring is. You need to know about the size of the eye bolts and how they relate to the Working Load Limits of the bolts.
A lot of people make the mistake of thinking that a bigger bolt is always stronger. The truth is, a small bolt that is made very strong will often be better than a big bolt that is not made as well.
Working Load Limits of the bolts
Every good anchor will have its Working Load Limits clearly stated. This rating shows you the weight that the bolt can safely hold under perfect conditions.
When you are buying a bolt, you should always look for one that has a Working Load Limit that’s at least 25 percent higher than the weight you think it will be holding.
This extra amount of strength is like a safety net that helps protect against things that might happen, like a strong wind or a sudden change in the weight that the bolt is holding.
The Impact of Angles
This is where many DIYers get into difficulties. Pulling on an eye bolt at a 45-degree angle reduces its effective strength by a stunning 75%.
Even the strongest shoulder bolt weakens dramatically as you move away from a vertical pull. This is why understanding Juego de vasos de impacto profundo ratings and the geometry of your rig is vital for safety.
Metric vs. SAE Threading
Before you buy, determine whether your project requires Metric (millimeters) or SAE (inches). Combining the two is a recipe for disaster, as the threads will feel like they fit for a turn or two before coming undone.
| Elemento | Metric (Standard) | SAE (Imperial/Inches) |
| Unidad de Medida | Millimeters (e.g., M10, M12) | Inches (e.g., 3/8″, 1/2″) |
| Thread Pitch | Distance between threads in mm | Hilos por pulgada (TPI) |
| Uso común | Modern vehicles & imported gear | North American construction & older cars |
| Compatibilidad | Use with metric socket sets | Usar con SAE socket sets |
How to install Eye Bolts
The strength of a bolt is no more than the strength of the hole it is in. Follow these step-by-step instructions to ensure your installation is strong and ready for heavy lifting.
Step 1: Drill the Pilot Hole.
Drill a hole the same size as the shank for a through-bolt (one with a nut). For an eye bolt screw, the pilot hole should be the size of the “root” of the screw (the solid middle part, not the threads). This prevents the wood from splitting but allows the threads to bite deep.
Paso 2: Limpiar la superficie
When installing a shoulder eye bolt, the surface you are mounting to must be perfectly flat. Any trash, bark, or uneven metal will prevent the shoulder from seating flush. If the shoulder is not in contact with the surface, the bolt will tend to wobble and eventually fail due to angular loading.
3. Nut and washer fixing
Use a heavy-duty fender washer on the backside. This spreads the pressure over a larger area and keeps the eye bolt with a nut from pulling through the wood or thin metal. Use an impact-ready 65-piece socket set for heavy loads, so that the nut is on a solid foundation.
Step 4: Tightening and Torque
Keep tightening the nut until the eye points the way the pull will go. You might need a Juego de herramientas de trinquete de 90 piezas to get the leverage you need. Be careful not to over-tighten; you don’t want to stretch out the steel threads. Just make sure it’s completely solid and doesn’t wiggle at all.
Paso 5: Inspección de seguridad
After you’ve installed everything, try a “test load.” This should be a weight a little bit heavier than what you plan to actually hang. Do this quickly and carefully. Check for anything bending, creaking, or pulling out. If everything looks good, then your setup is ready.
Normas de mantenimiento y seguridad
Just installing the bolts isn’t where your responsibility ends. Like any safety gear, they need regular attention to make sure weather or constant use hasn’t messed them up.
- Start with corrosion checks. Keep an eye out for rust or little pits. Stainless steel’s tough, but salty air can still win. If you spot flaky or reddish bolts, ditch them and swap in new ones from your 33-piece impact set before they snap.
- Notice any signs of stretching? If the circular eye starts going oval, that’s a red flag. The metal’s pushed past its limit—replace it right away.
- Don’t forget lubrication. If you’ve got a swivel eye bolt, put a drop of oil on the rotating part. Really, it makes everything smoother. Knowing your way around Cómo utilizar un juego de llaves de vaso also helps with these jobs.
- Every few months, grab your 34-piece metric impact set and check the threads. Nuts can work themselves loose over time.
- Store your spare eye bolt sizes in a dry, organized toolbox. Dampness eats away at raw steel hardware, so keep everything dry and tidy.
¡Comprende la Juego de llaves de vaso de 1/4" frente a 3/8" difference is also important for maintenance. Smaller bolts on garden decor might only need a 1/4-inch drive, but structural bolts on a deck require a 3/8-inch or even a 3/4-inch drive, a 29-piece set para manejar el torque.
Preguntas Frecuentes
How do I choose between different eye bolt types?
It all comes down to the direction of the load. Use plain bolts for straight, vertical pulls. Use shoulder bolts for any pull at an angle. If the load is going to rotate or move, a swivel eye bolt is the only safe way to prevent the shank from snapping.
What are the best eye bolt sizes for a porch swing?
Most porch swings require at least a 1/2-inch diameter eye bolt with a nut. You should always use a shoulder pattern to account for the swinging motion, which creates angular stress on the bolt.
¿Puedo usar un 48-piece ratchet kit for installation?
Yes, that kit works great for the typical eye bolts most people have at home. But if you’re dealing with big industrial bolts, anything over 3/4 of an inch, you’ll want a larger drive size. It just makes sense; you need enough torque, and you don’t want to wreck your tools trying to force something too small.
Why is my eye bolt screw starting to sag?
When you see this, it’s a sign the wood is either stripping out or starting to rot. Switch to a through-bolt with a nut and a big backing washer right away—that setup’s way more secure.
How do I remove a rusted eye bolt?
Soak it in penetrating oil for 30 minutes, then use a 9-piece deep socket set. If it’s really stuck, a 19-piece extension bar set will give you the extra leverage to break the rust’s hold.
Conclusión
Whether it’s a simple bird feeder or a heavy-duty workshop hoist, knowing your eye bolt hardware is the difference between a project that holds and one that fails. With the right eye bolt types and by following the exact installation steps we’ve laid out, you’ll be ready to handle any anchoring job with full confidence.
Remember that scary thought from the intro about hardware buckling? With the right eye bolt with a nut and a little bit of routine maintenance, you’ll never have to worry about that. So go ahead, check your gear, double-check those load limits, and get your next big project safely off the ground!
