Features & Details

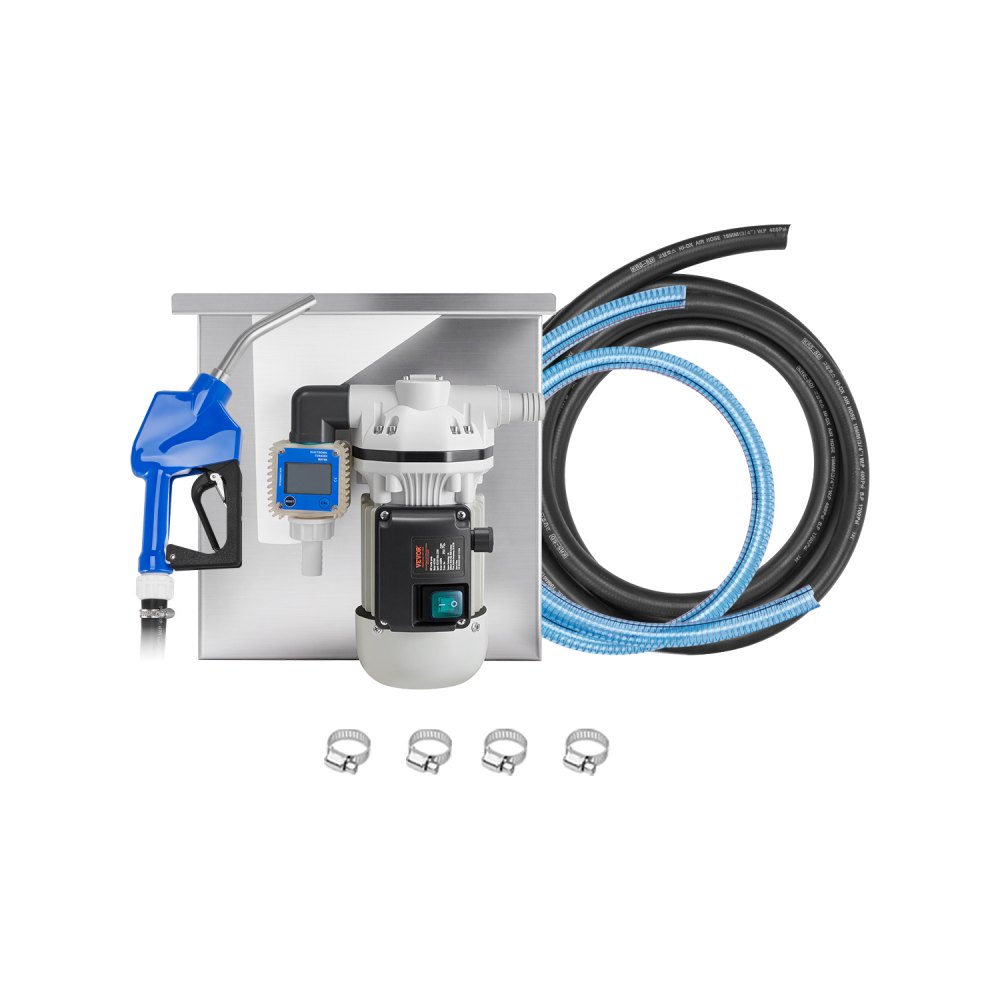

• Complete Transfer Pump Kit: This kit includes a stainless steel mounting bracket, flow meter, automatic nozzle, DEF transfer pump, filter hose, and outlet hose. It is compatible with drums, carrying straps, and wall mounts, providing a comprehensive solution for DEF transfer
• High-Efficiency Pumping: Utilizing a diaphragm self-priming mechanism and paired with a powerful copper motor, this DEF transfer pump delivers a flow rate of up to 8 GPM, a max lift of 26.25 ft, and a max suction of 9.84 ft, ensuring quick and efficient extraction
• Pure Copper Motor: Equipped with a pure copper motor, this diesel exhaust fluid transfer pump achieves an impressive no-load speed of 2800 RPM. The motor provides strong power and minimal wear, extending the pump's service life compared to standard motors
• Quality Materials, Built to Last: The durable aluminum alloy body ensures long-lasting performance, while the fluororubber seals effectively avoid leaks. The PPB pump head resists corrosion and wear, making this DEF transfer pump reliable in even harsh environments
• Versatile Application: This DEF transfer pump can handle not only DEF solution but also clean water, seawater, engine oil, diesel, and other low-acid/base liquids. It's ideal for use in fuel stations, agricultural irrigation, garden watering, spraying, and more

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

ACFD40

Voltage & Frequency

AC 110V 60 Hz

Rated Power

0.3 HP / 220 W

Maximum Flow Rate

8.0 GPM

Maximum Current

3.0 A

Maximum Lift

26.25 ft / 8 m

Maximum Suction

9.84 ft / 3 m

Waterproof Rating

IP54

Connector Size

1 in - BSP (F) / 25.4 mm - BSP (F)

Materials

Iron (Fan Guard), Aluminum Alloy (Body), PPB (Pump Head)

Power Cord Length

5.91 ft / 1.8 m

Net Weight

27.23 lbs / 12.35 kg

Product Dimensions

14.37 x 13.78 x 8.66 in / 365 x 350 x 220 mm

Description

8 GPM DEF Transfer Pump Kit, Diaphragm Self-Priming Mechanism

This complete kit has got you covered. It includes a stainless steel mounting bracket, flow meter, automatic nozzle, DEF transfer pump, hose with filter, and outlet hose. Equipped with a high-speed copper motor, it provides an 8 GPM max flow rate, 26.25 ft max lift, and 9.84 ft max suction.

Powered by a copper motor with a speed of 2600 RPM, our diesel exhaust fluid transfer pump ensures strong liquid pumping power. It operates smoothly with reduced vibration and noise.

Rated IP54 for water and dust resistance, our DEF transfer pump performs reliably even in harsh environments such as humid or dusty conditions, providing peace of mind no matter the setting.

The durable aluminum alloy body is designed for quick heat dissipation, while an internal cooling fan ensures rapid cooling. This DEF transfer pump avoids overheating, safeguards internal components, and enhances the pump's service life.

In addition to DEF transfer, this pump can transfer low-acid and alkaline liquids such as water, engine oil, etc. It is ideal for use in fuel stations, agricultural irrigation systems, and various other applications.
