MODEL: SHFGM4824GR

Safety Instructions

Warning: Please read this user manual carefully!

Assembly Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs, or medication.
6. Weight capacity and other product capabilities only apply to a properly and completely assembled product.
7. Assemble on a flat, level, hard, and smooth surface capable of safely supporting a fully loaded workbench.

Use Precautions

1. Do not attach or mount this product to a vehicle. This may cause personal injury or product damage.
2. Do not stand on or step on this product. You may fall, which may cause personal injury.
3. Keep the product on level surfaces. The product may become unstable and tip if stored or moved on an unlevel surface, which may cause personal injury or product damage.
4. Lock the drawers before moving this product. The drawers could open and make the product unstable and tip over, which may cause personal or product damage.
5. Keep children and bystanders away while loading, unloading, and moving the product.
6. Please do not lift the product directly with a forklift or tow it with any mechanical device.
7. Do not exceed the maximum load capacity, including contents. Do not exceed the maximum load capacity of each drawer. Do not exceed the maximum load capacity of each tray.
8. Do not alter this product in any manner.
9. The box contains some small components; please place them properly before installation to keep them away from kids and ensure safety.
10. Before installing the socket, the desktop should be cleaned to ensure no stains on it. In particular, attention should be paid to not bringing water into the socket to avoid safety problems during subsequent use.

CAUTION: Carefully read instructions and procedures for safe operations.

SAVE THESE INSTRUCTIONS

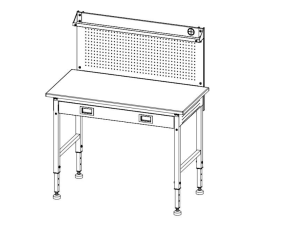

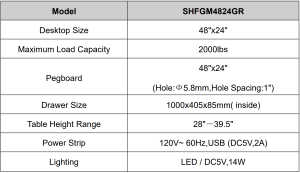

Model and Parameters

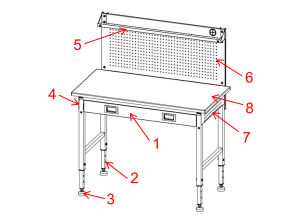

Structure Diagram

1. Drawer
2. Telescopic Leg
3. Foundation
4. Power Strip
5. LED Light
6. Pegboard
7. Hanging Plate (Side)
8. Desktop

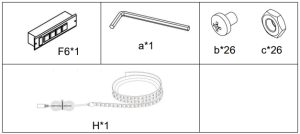

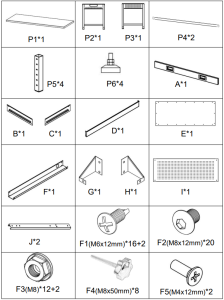

Components

Adjustable Workbench Installation

Installation Preparation

1. Two or more people are needed to move and assemble the workbench.
2. Please prepare a carpet or mat to protect your floor; you must spread all the accessories.
3. Please prepare gloves to avoid being scratched by sharp parts that may occur during installation.
4. Please open all the boxes to ensure the accessories are complete and in good condition.
5. If you need to use power tools to install this product, please set the speed to low speed in advance.
6. When installing, please align all the holes and do not tighten all thescrews first; otherwise, it may make the installation difficult.

Installation

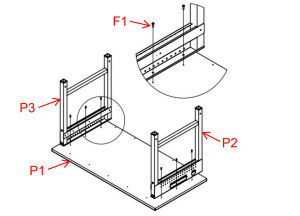

1. Install the desktop and supports.

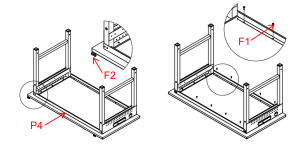

2. Install the front and rear baffles.

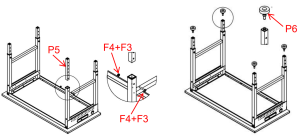

3. Install the telescopic legs.

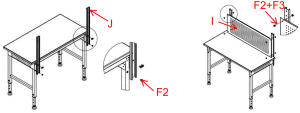

4. Install the pegboard.

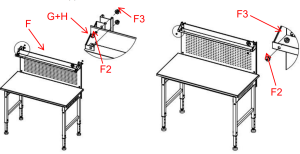

5. Install upper slots.

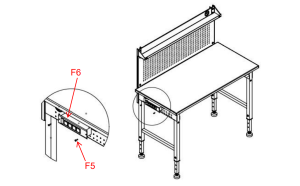

6. Install a power strip and attach LED light strips to the top shelf.

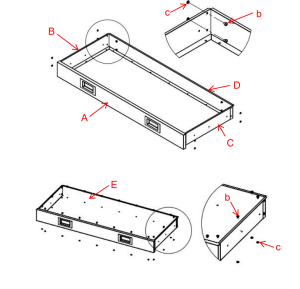

7. Mount the drawer.

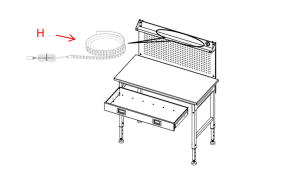

8. Paste the LED strip, plug in(if needed), and complete the installation.

NOTE: Do not;

1. Bend the LED strip light to a diameter of less than 1.5 inches.
2. Fold, crease, or twist the LED strip light.
3. Bend the LED strip light on a horizontal plane.
4. Put excessive pressure on the surface of the tape light.
5. Cover the strip light with any materials.
6. Wind the LED strip when it is powered on.

Adjustable Workbench Maintenance

1. Please try to avoid putting wet items on the desktop.
2. Dust off regularly with a clean rag, and arrange it neatly on the desktop.
3. Don’t let it sit in the sun for too long.
4. Check the table regularly to prevent screws from loosening and falling off.
